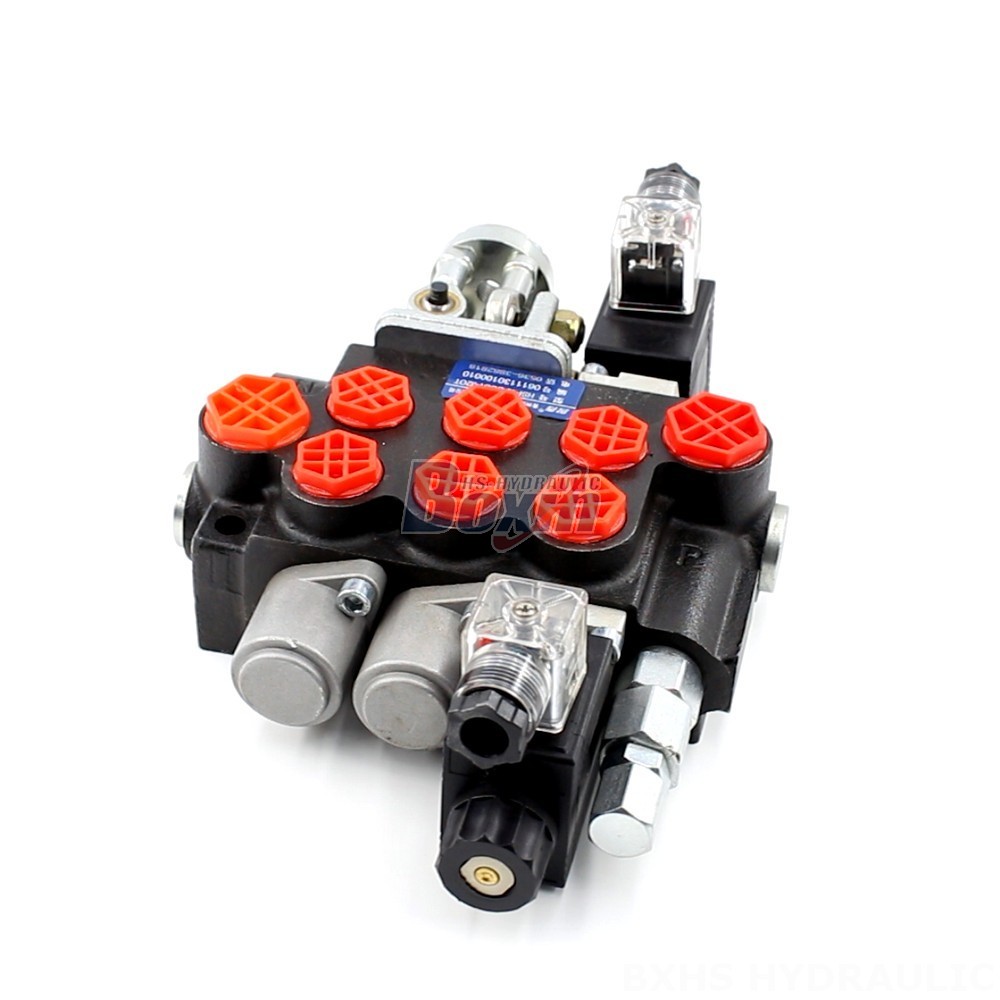

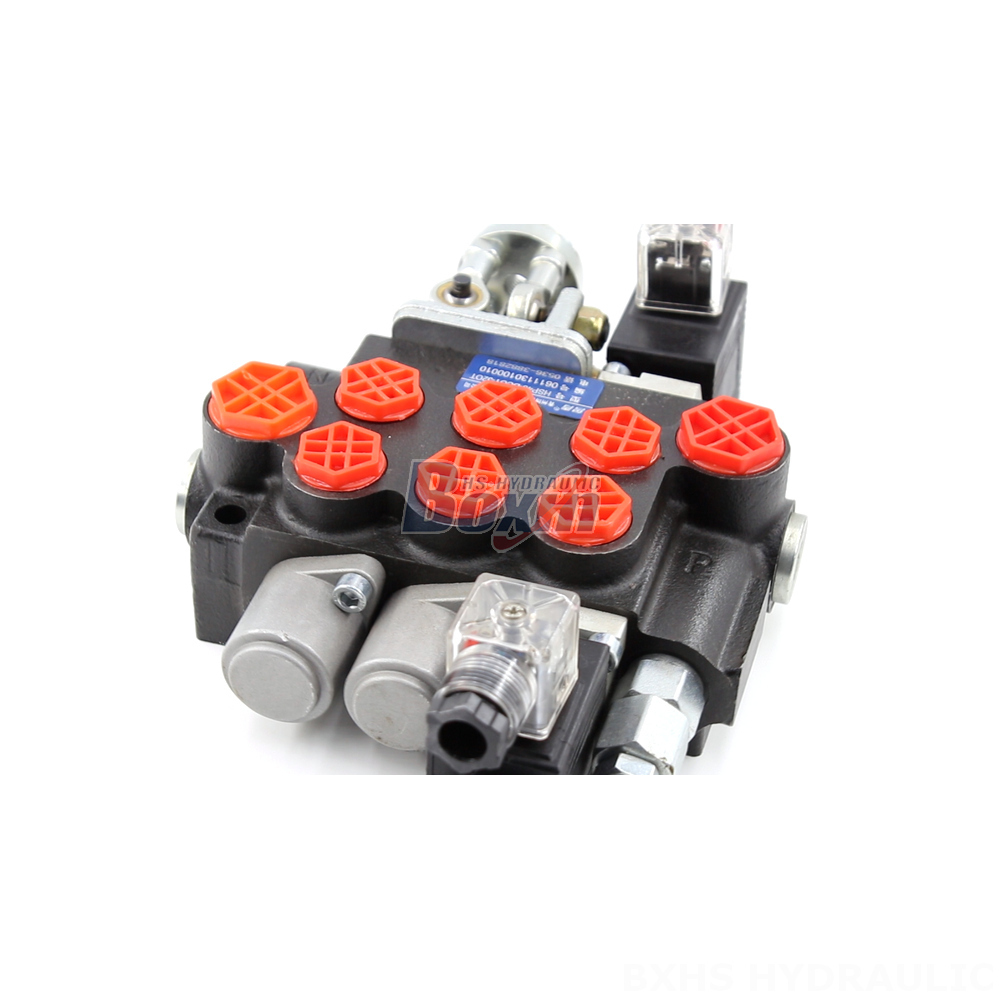

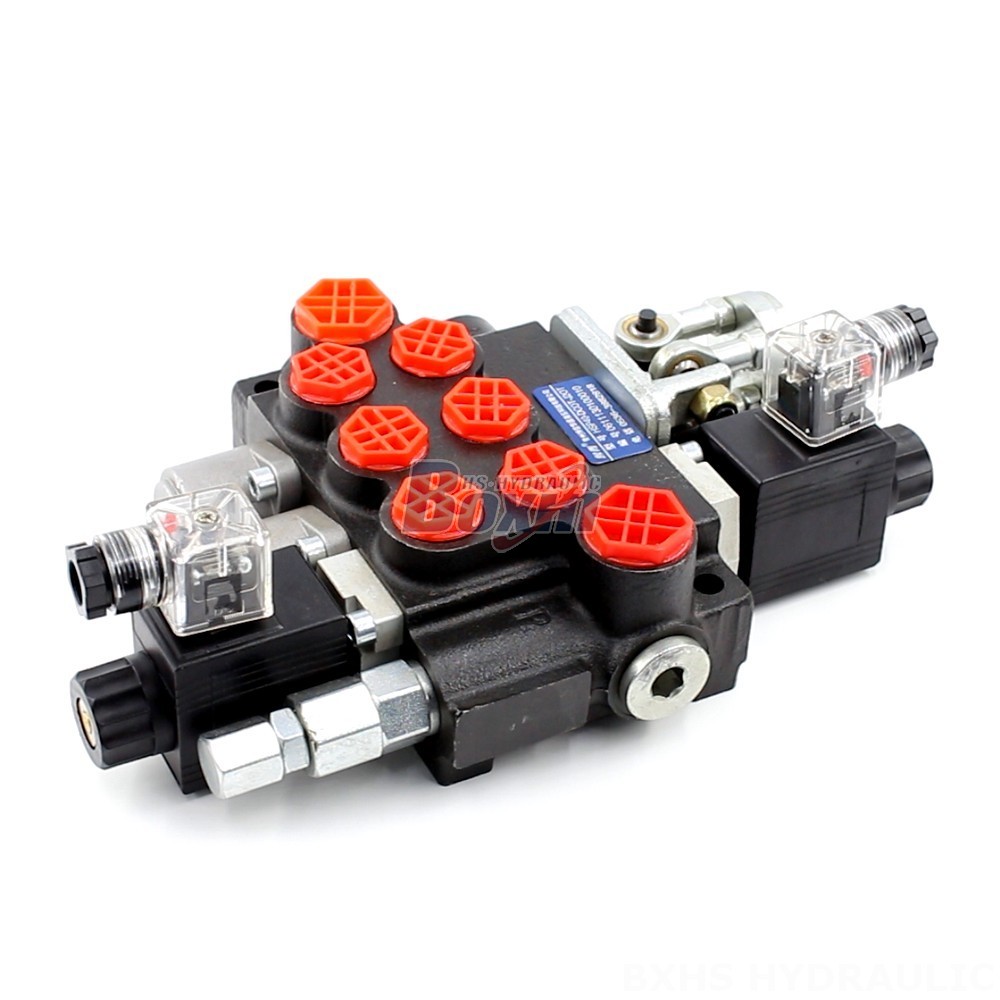

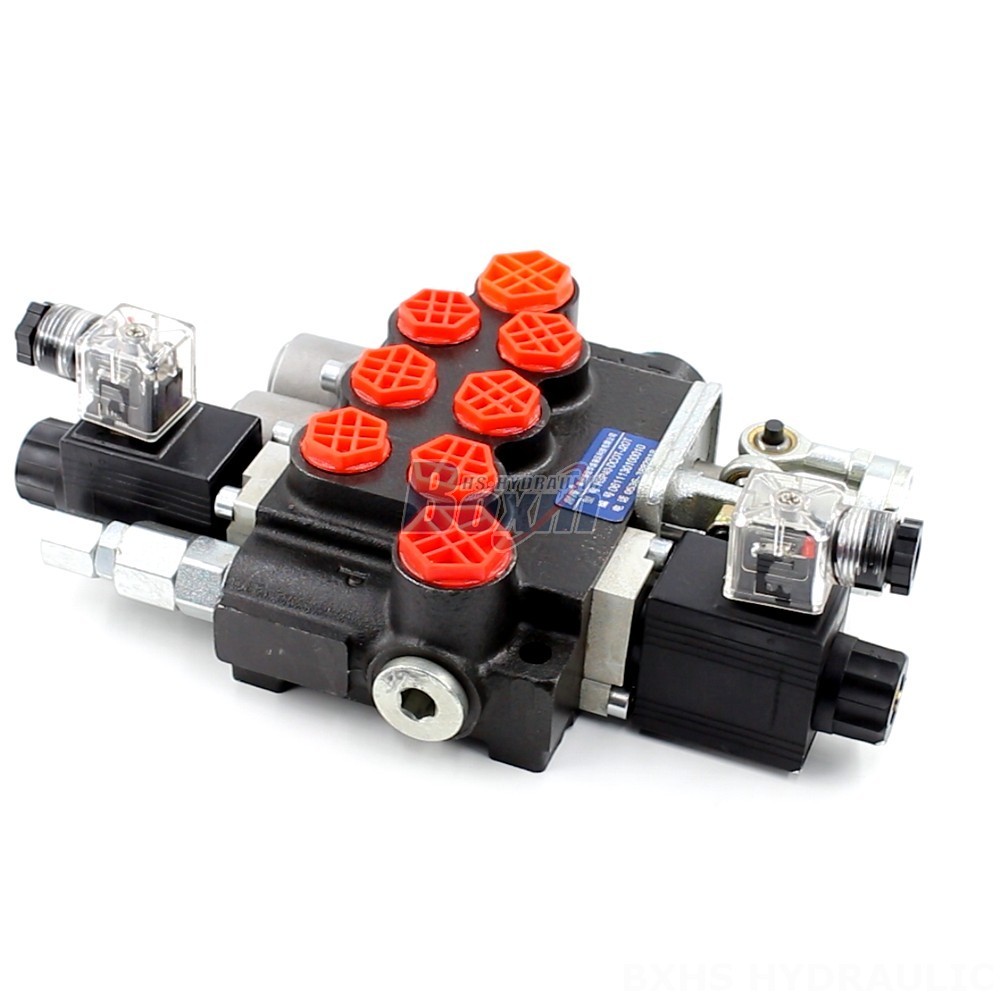

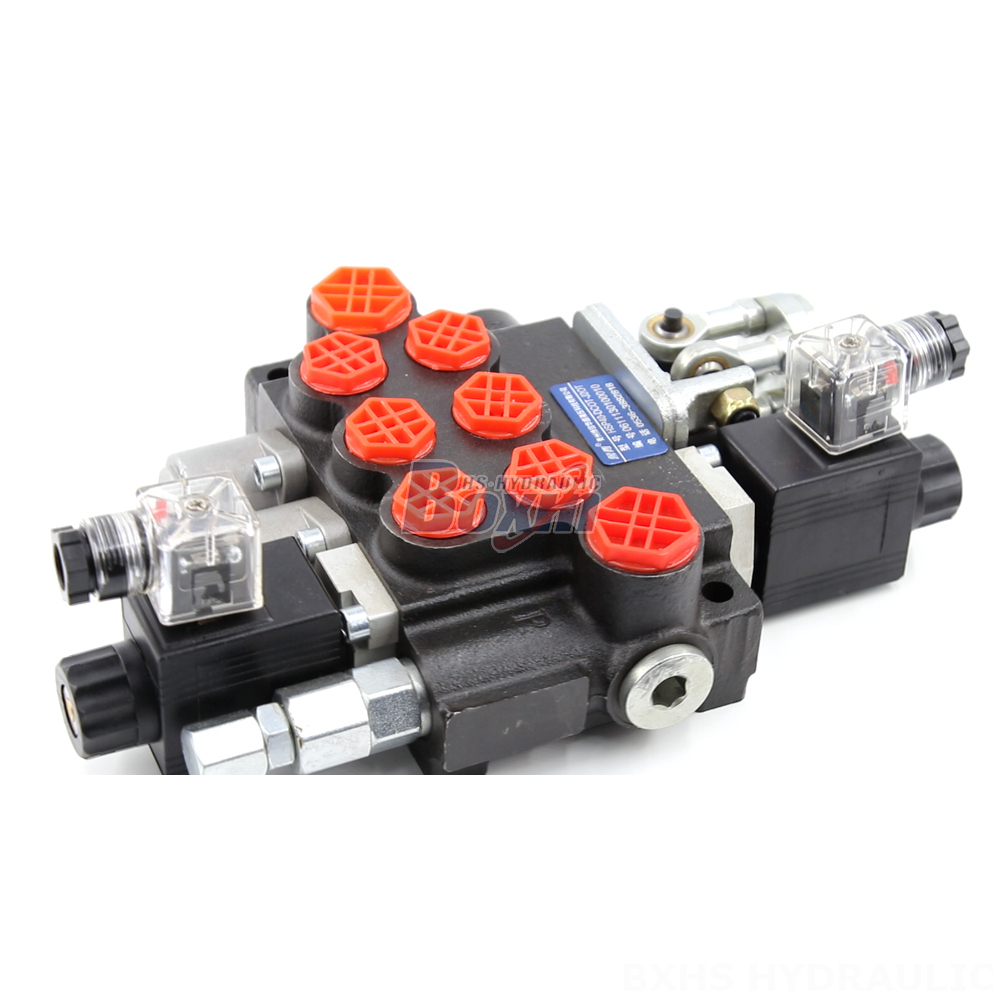

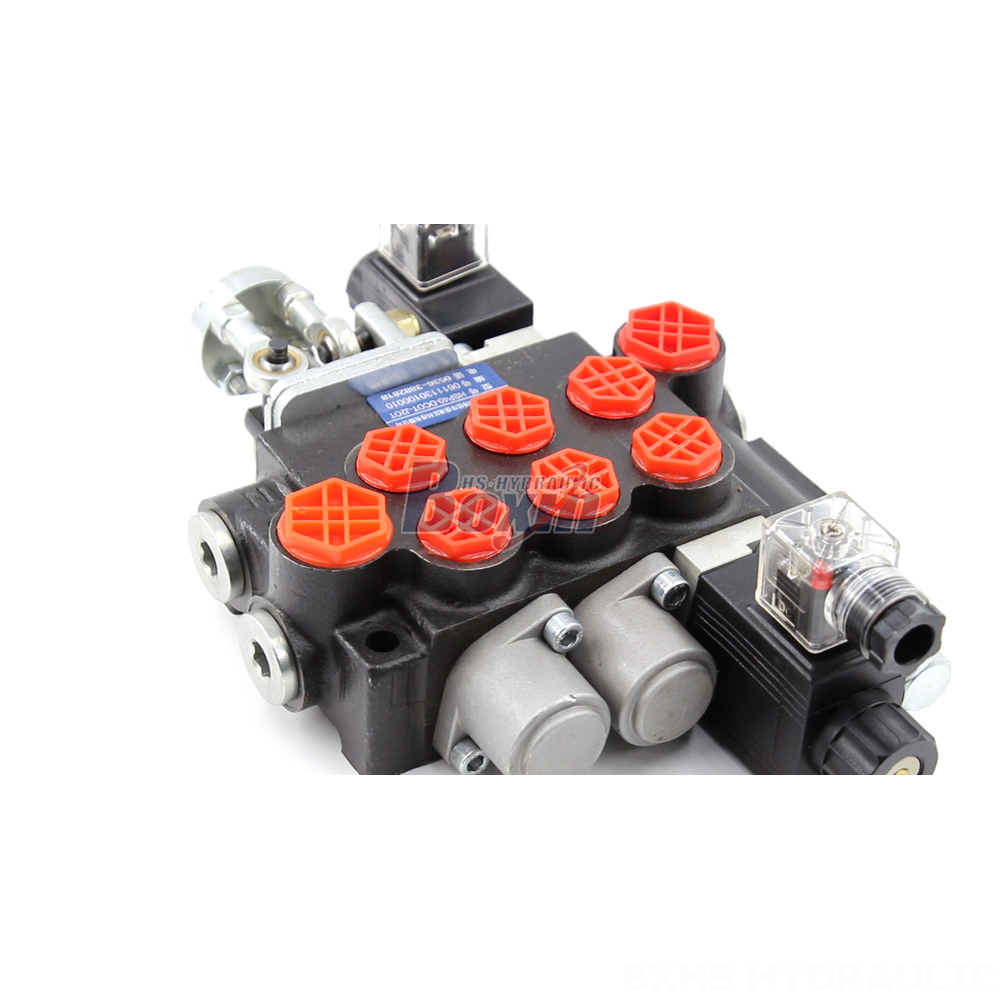

The P40 Series Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for heavy-duty applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 3-spool valve offers both solenoid and joystick control options, delivering precise and responsive hydraulic control for a wide range of equipment.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Hydraulic Directional Control Valve is a high-performance monoblock valve featuring a compact and robust design for reliable operation in demanding environments. It is equipped with 3 spools, offering versatile control options for hydraulic systems. The valve can be controlled via solenoid actuators or a joystick, providing flexibility and user-friendly operation. It is capable of handling high flow rates up to 40 L/min (10.5 US gpm) and withstands high pressures up to 250 bar (3600 psi). With a wide operating viscosity range and ambient temperature tolerance, this valve ensures optimal performance in various operating conditions. Its versatile design and robust construction make it suitable for a variety of applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve is also designed for various equipment, such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. We offer a range of services, including manufacturing, OEM, ODM, and customization options to meet specific customer requirements.
