Introducing the P40-U78-U34-OT-YW Hydraulic Directional Control Valve, designed for superior performance in demanding applications. This monoblock valve offers precise manual control with a rated flow of 40 L/min and a robust pressure capacity of 250 bar, ensuring efficient and reliable operation. Its wide operating temperature range of -40°C to +80°C and compatibility with various machines make it a versatile solution for industries such as construction, agriculture, and material handling.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

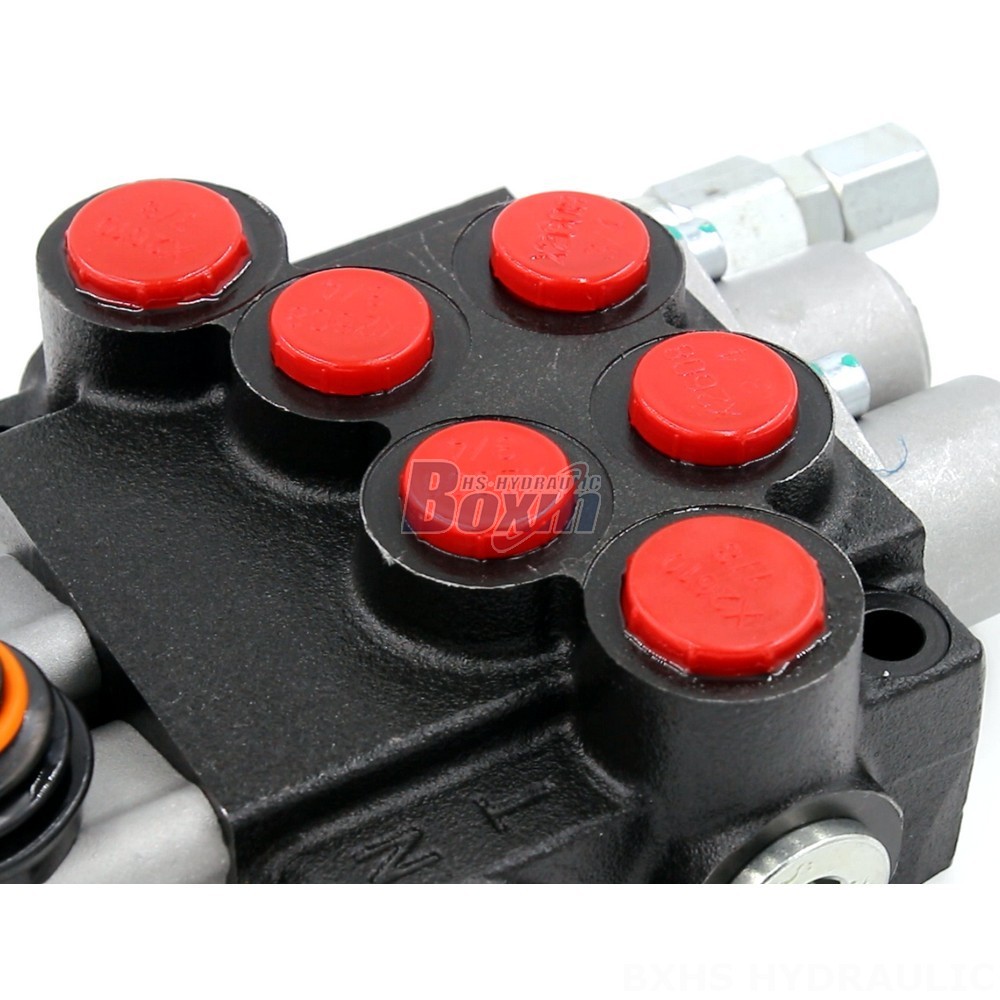

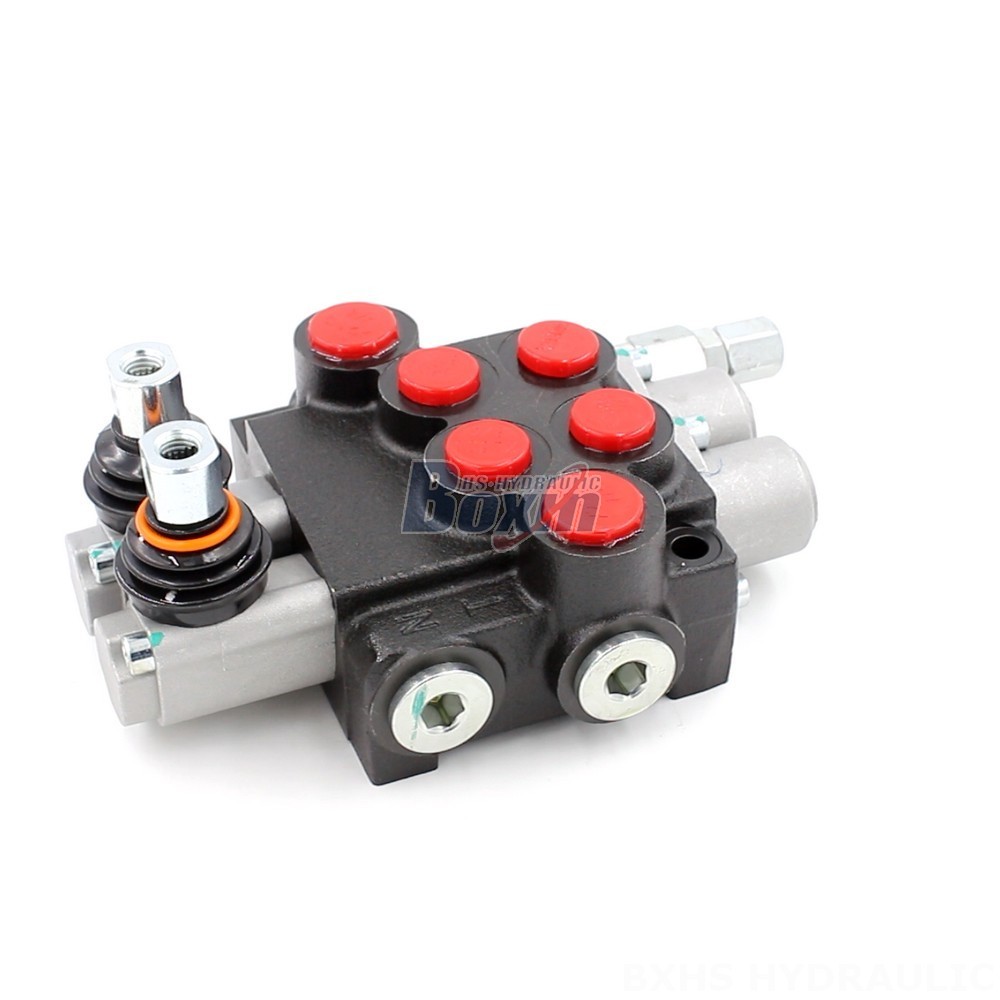

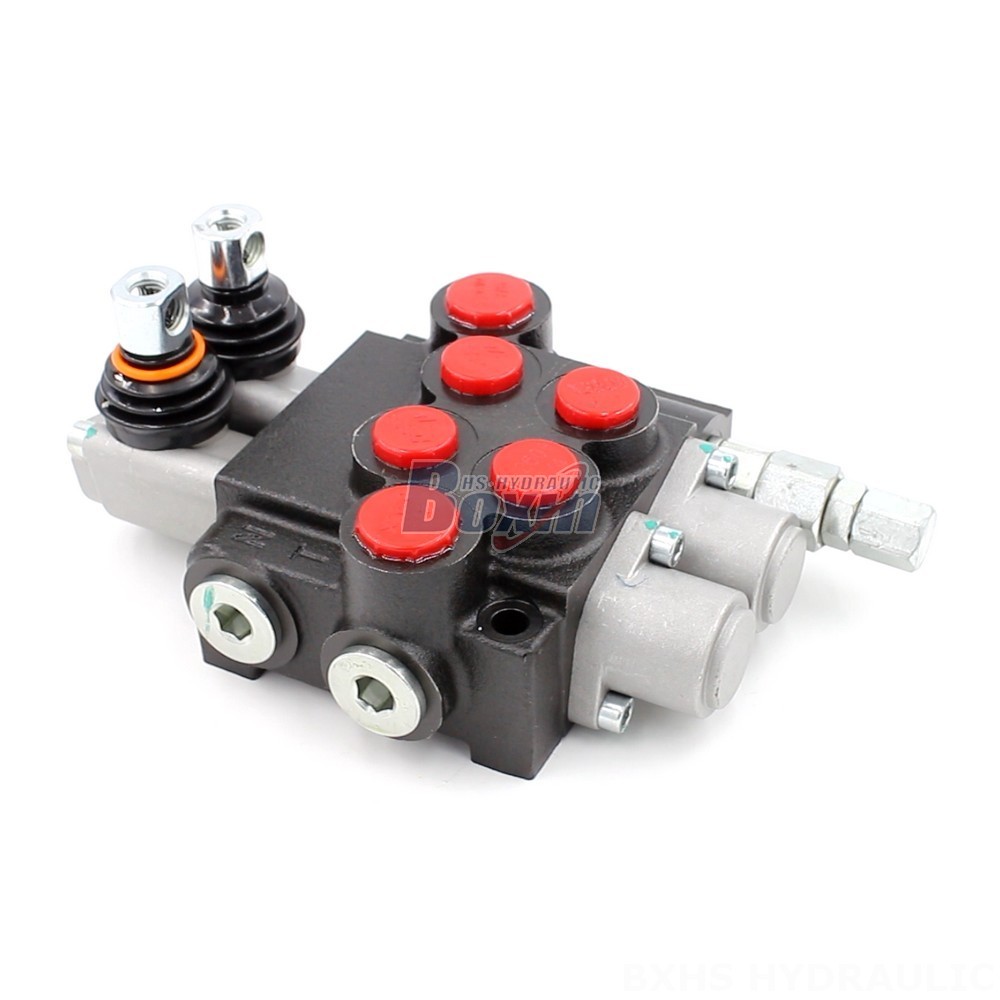

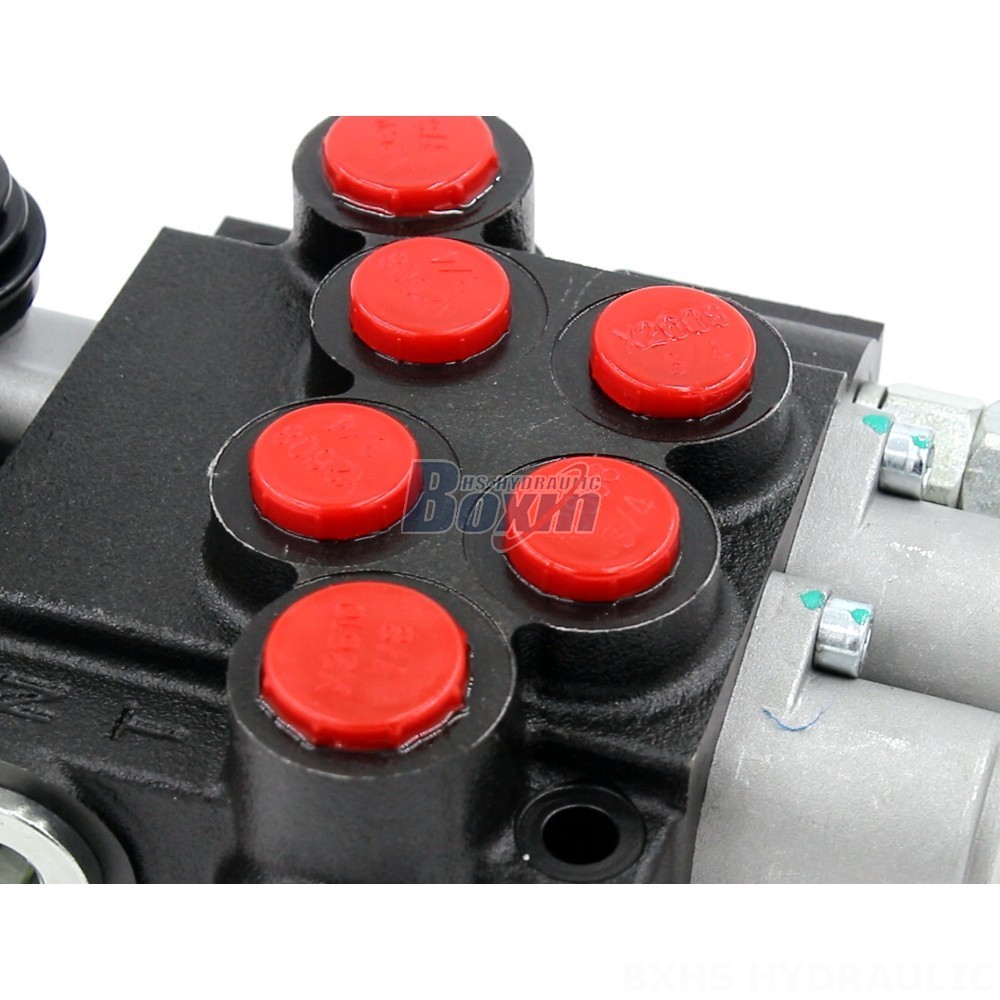

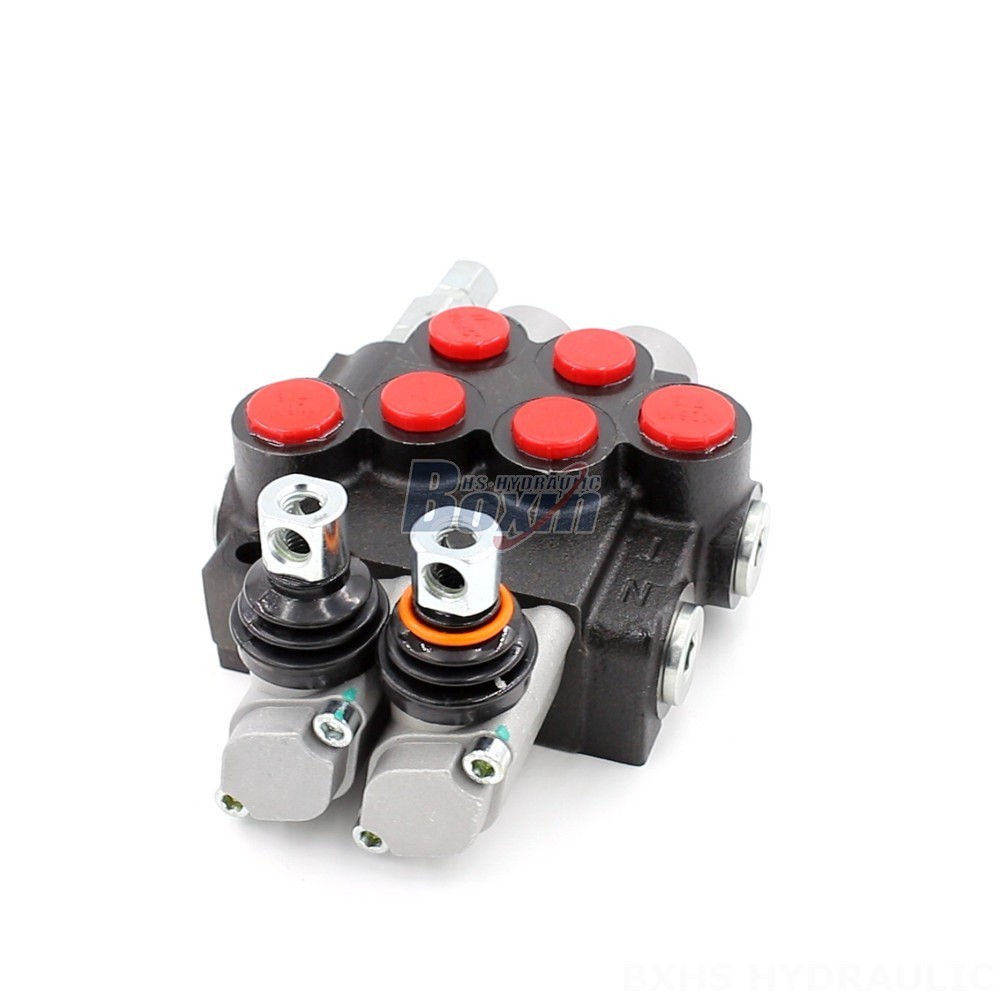

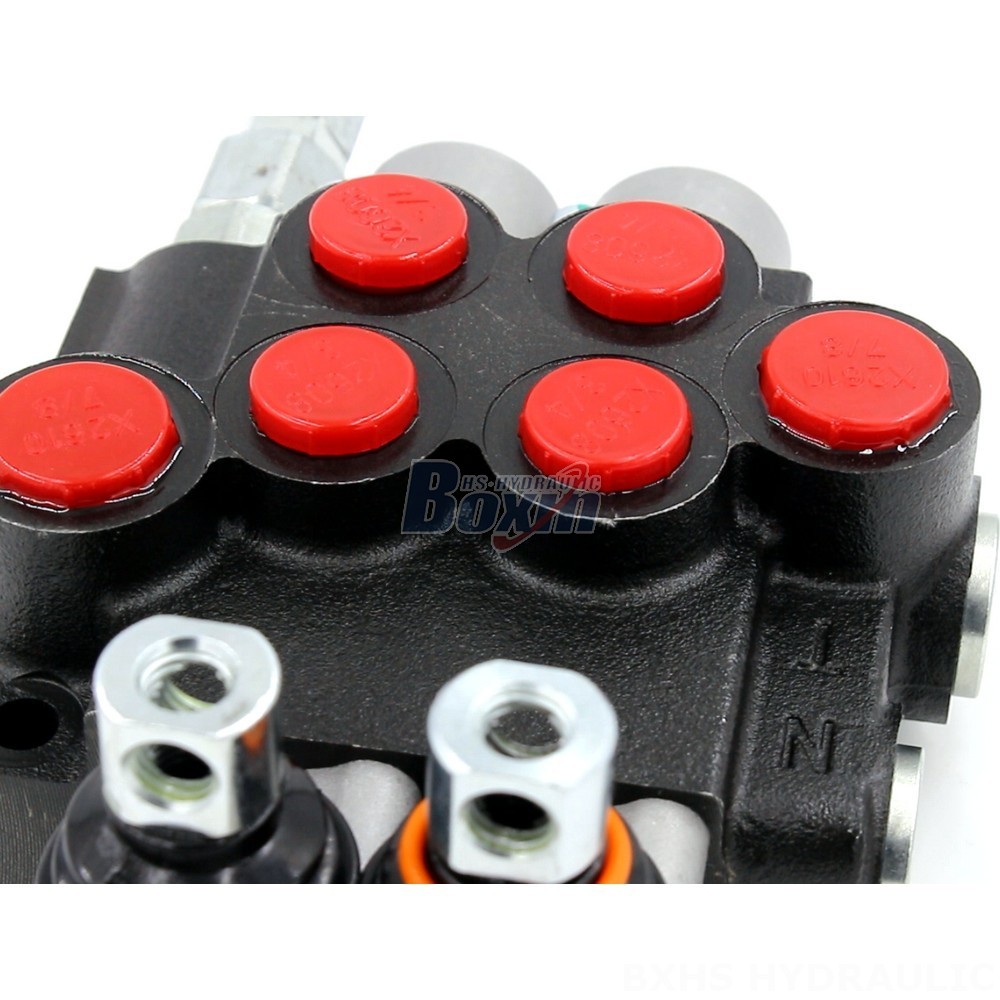

**P40-U78-U34-OT-YW Hydraulic Directional Control Valve**
**Key Features:**
- Manual control for precise operation
- Monoblock design for durability and compact installation
- Rated flow of 40 L/min (10.5 US gpm) for efficient performance
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
- 2 spool configuration for versatile control
**Applications:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Mini and midi excavators
- Skid steer loaders
- Compact wheel loaders
**Industries:**
- Material handling
- Construction and earth moving
- Agriculture
- Industrial vehicles
