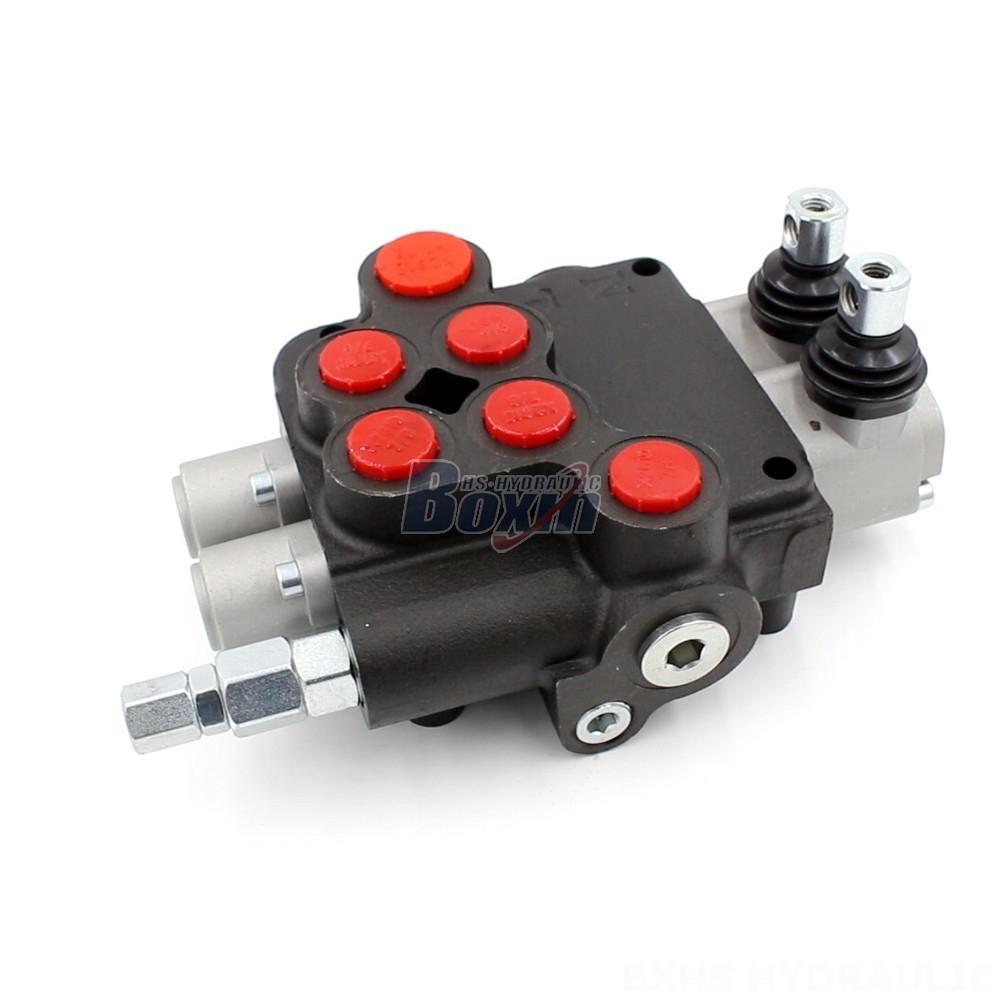

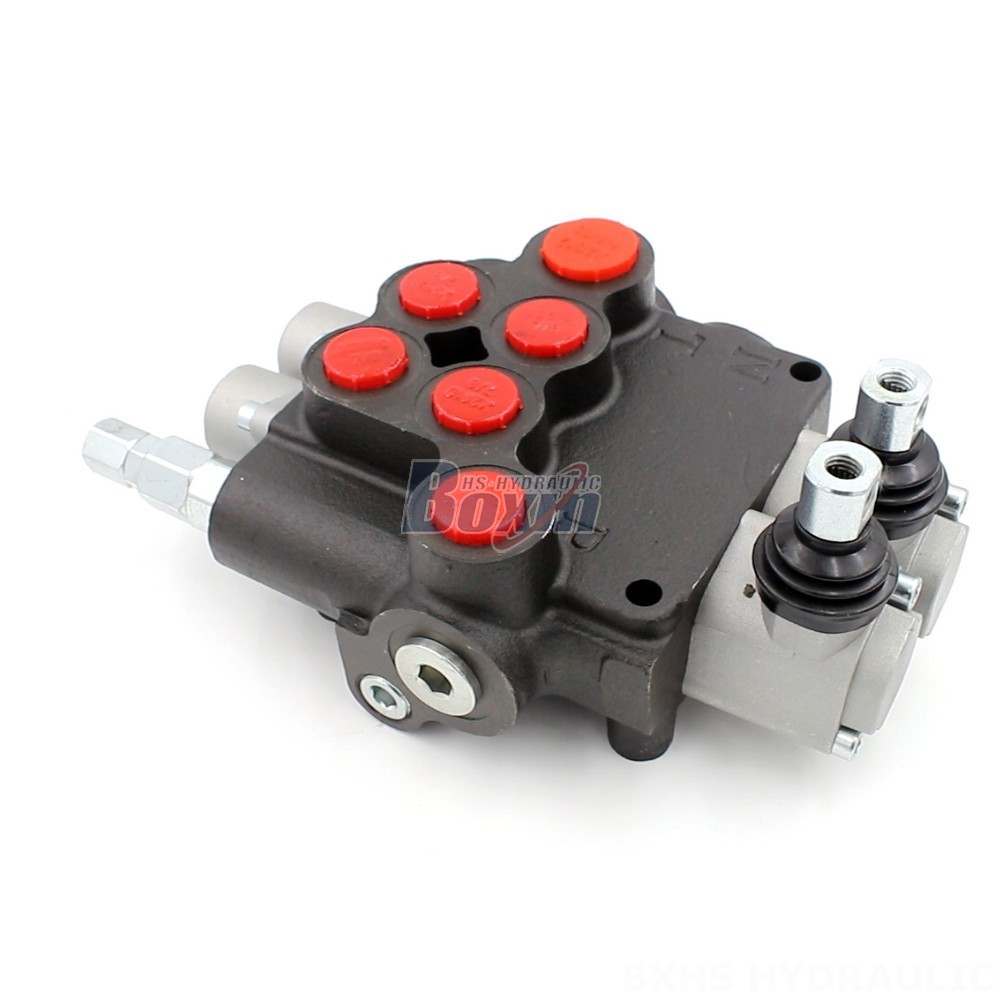

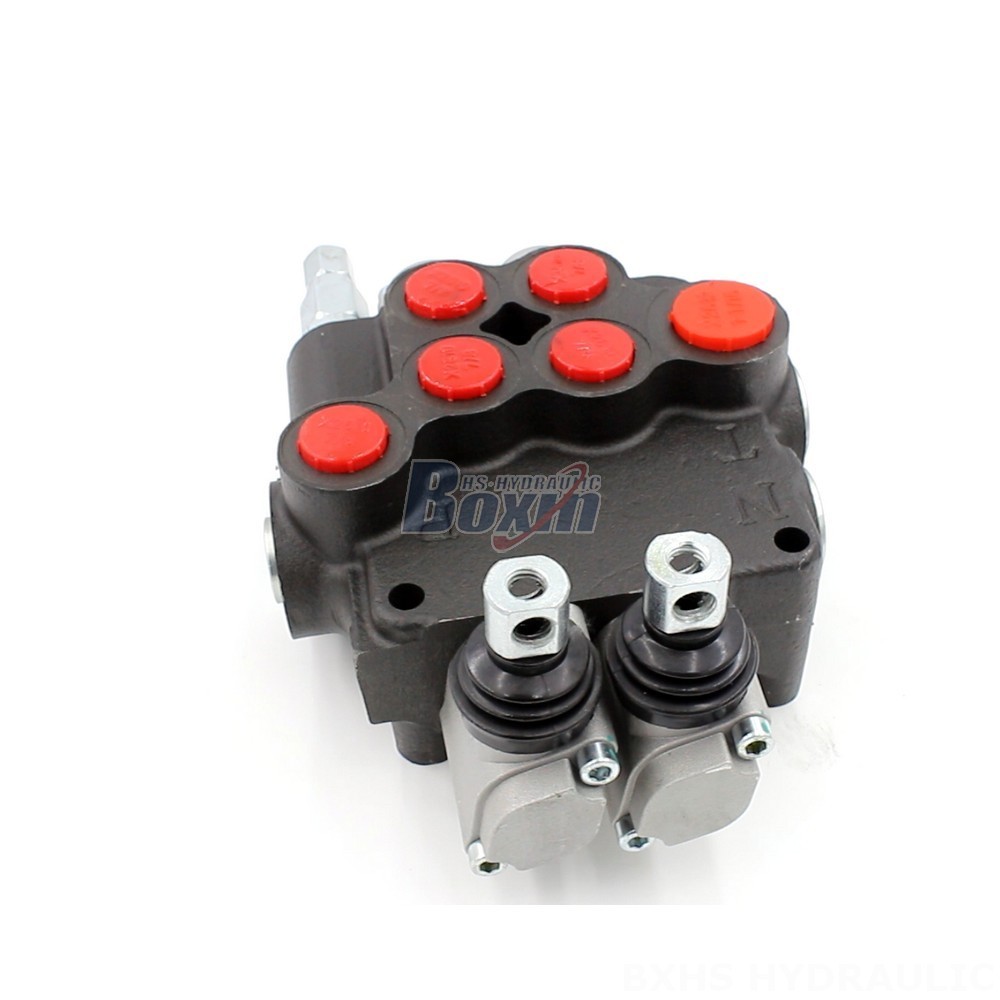

The Hydraulic Directional Control Valve P80-U116-U78 is a manually operated, 2-section monoblock valve designed for use in a wide range of industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for systems requiring precise control of fluid flow direction. The valve operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Name:** Hydraulic Directional Control Valve | P80-U116-U78
**Control Method:** Manual
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
