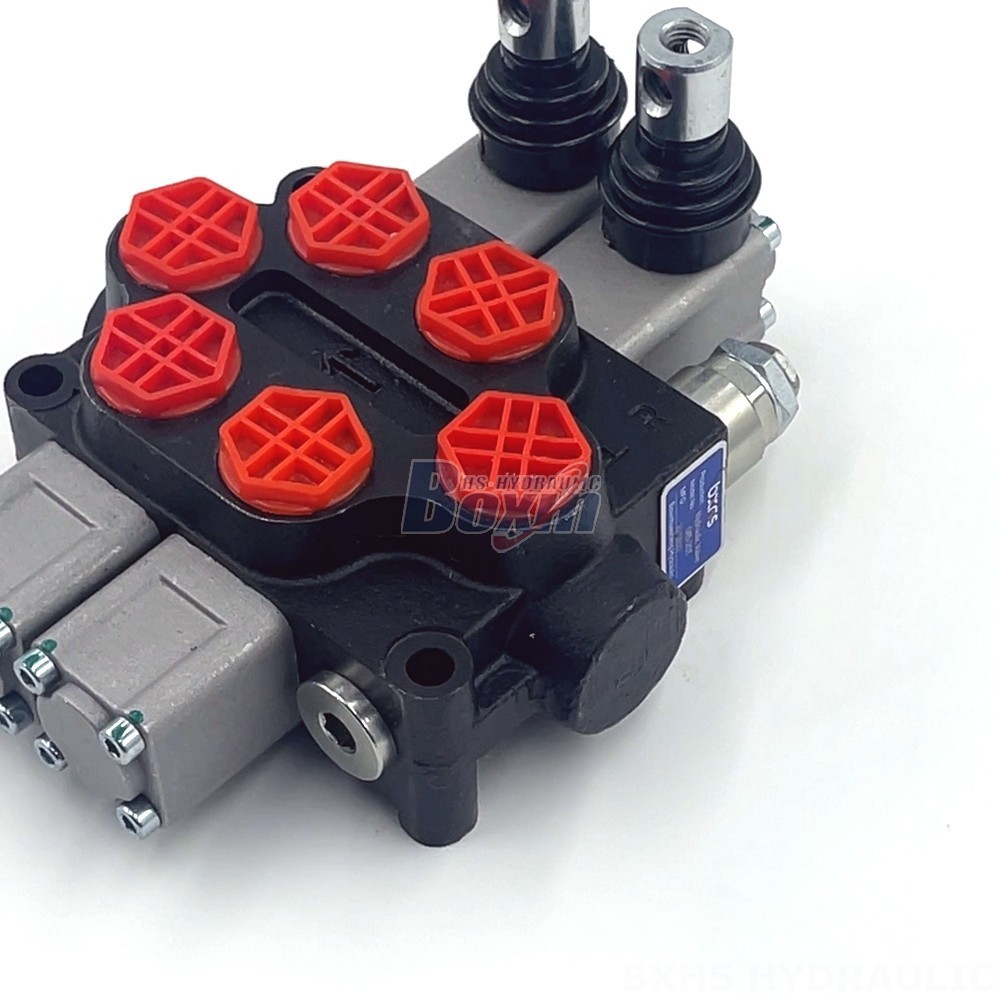

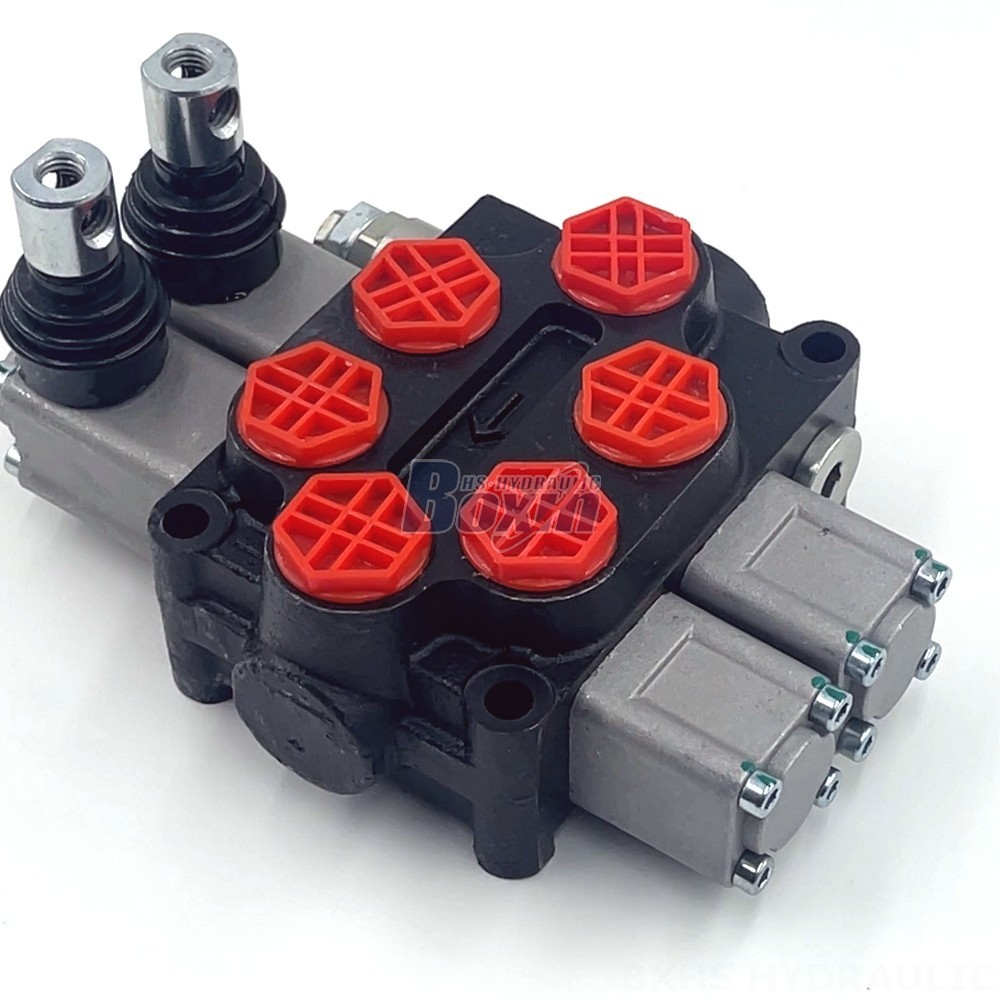

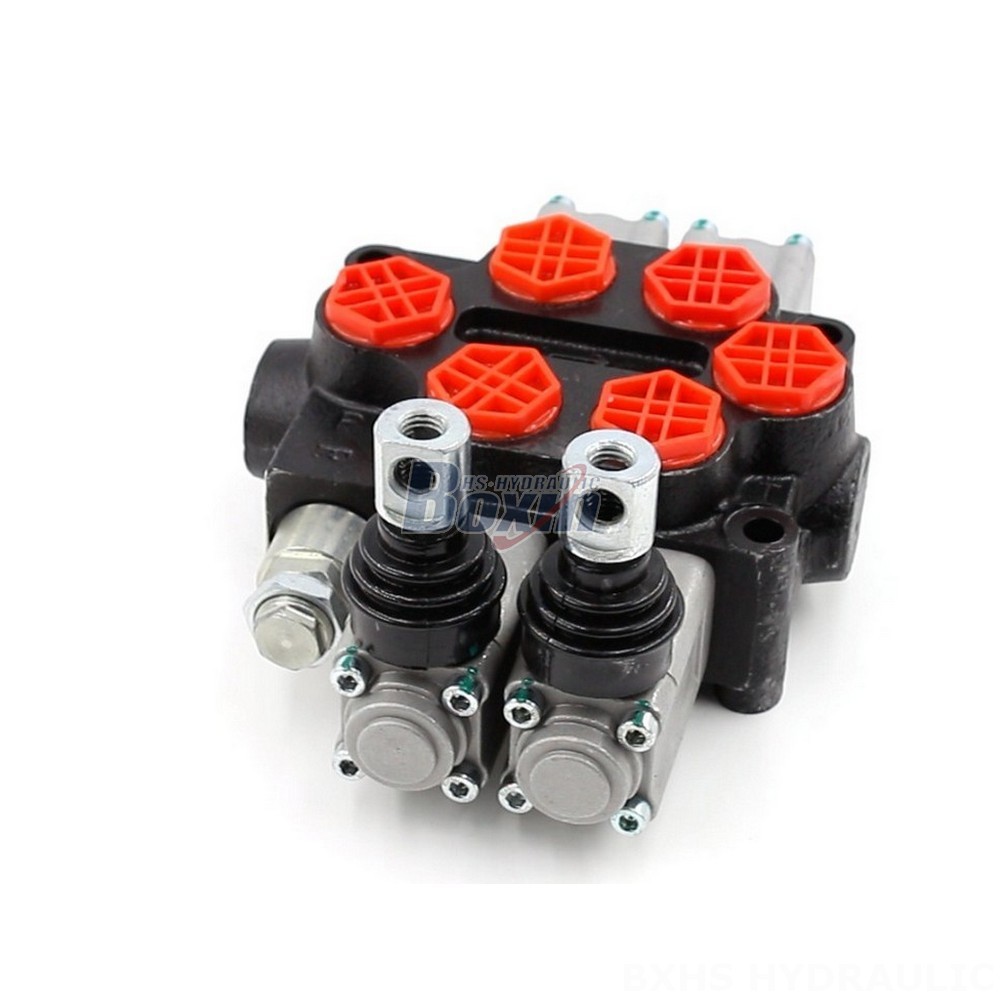

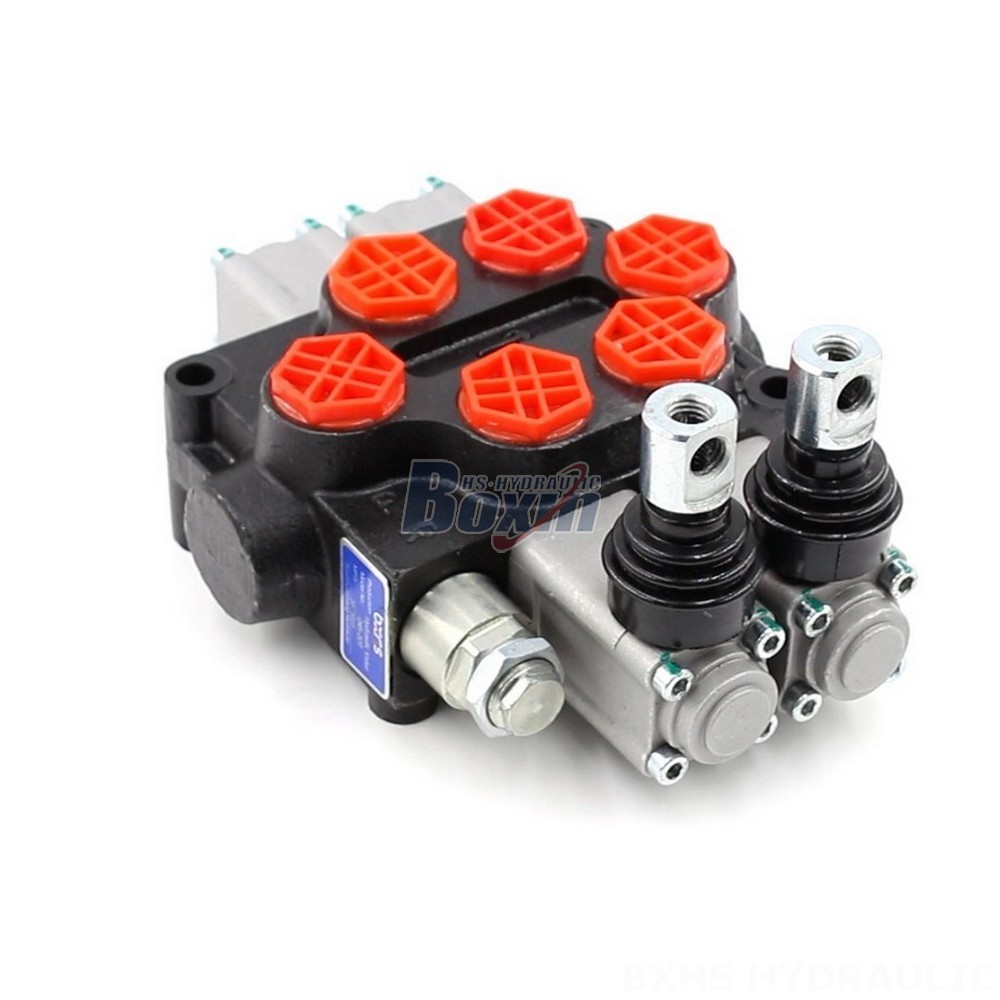

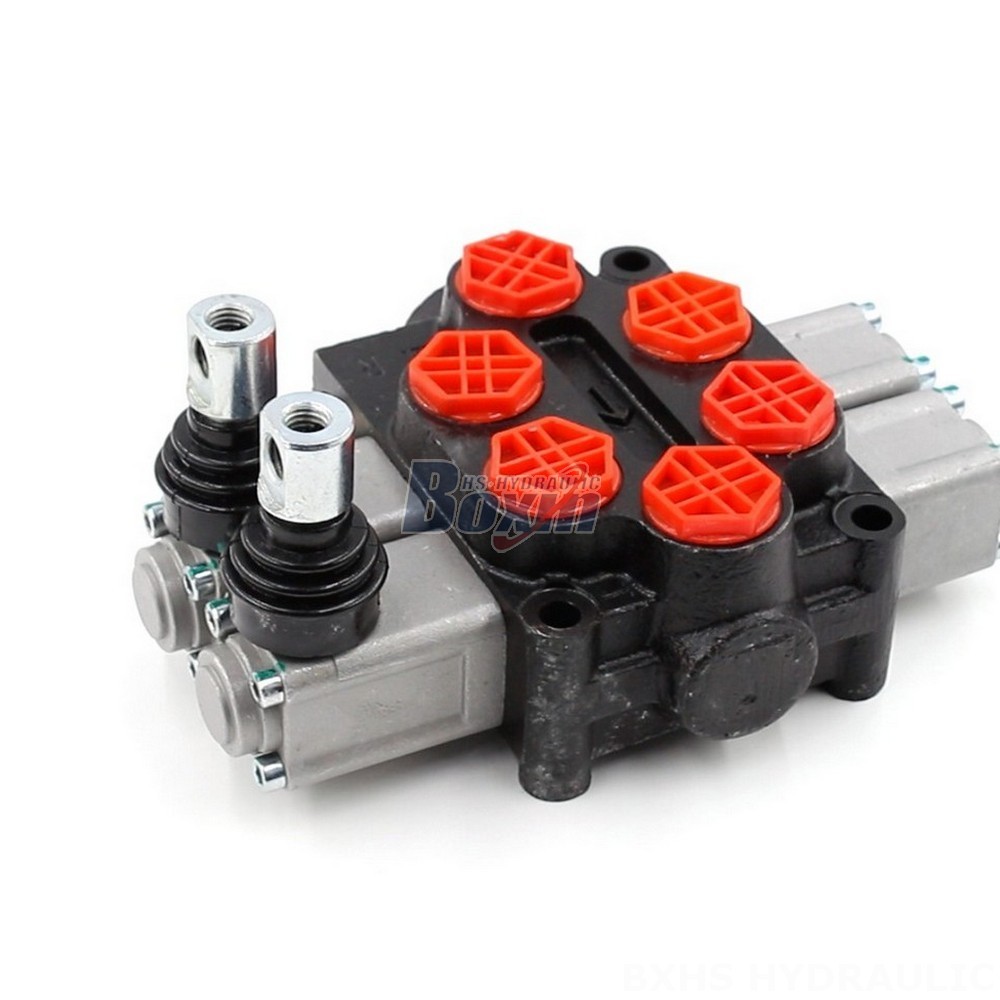

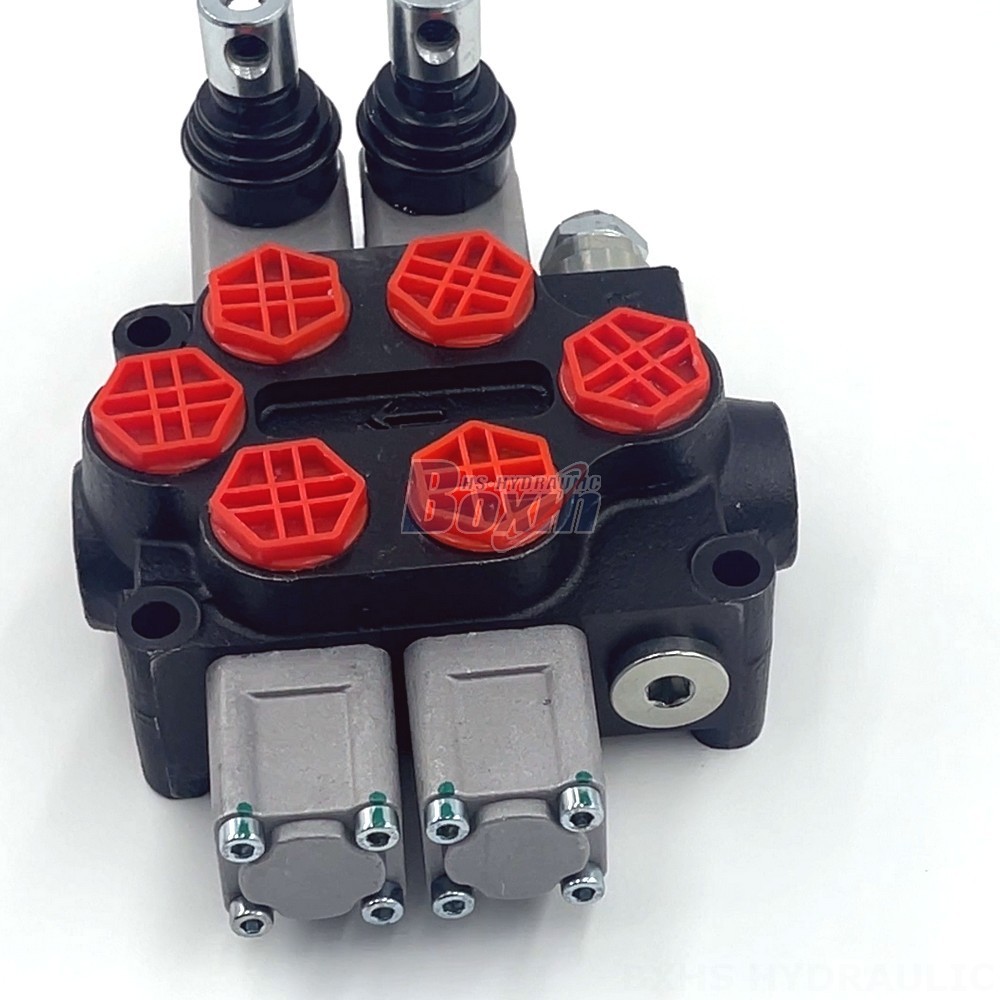

The Q45 Series Mechanical Valve is a 2-section, manual directional control valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. Featuring a robust monoblock construction, this valve boasts a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure of 315 bar (4600 psi).
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |
This Q45 Series Mechanical Valve is a 2-section, manually operated directional control valve, designed for use in a wide range of applications such as material handling, construction, agriculture, and industrial vehicles. It features a monoblock construction, which provides enhanced durability and reliability. With a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve is suitable for demanding applications. The valve employs a 2-spool design and offers precise control for hydraulic systems. This valve is ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini- excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
