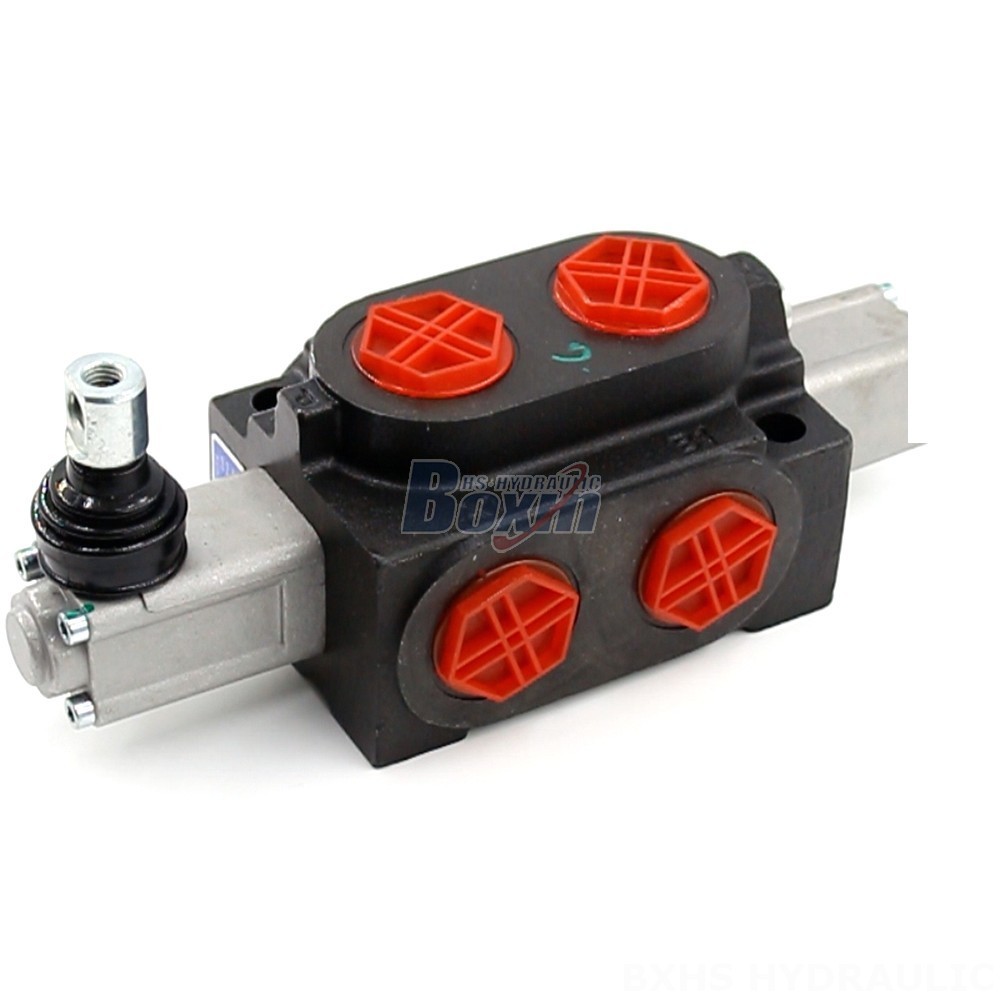

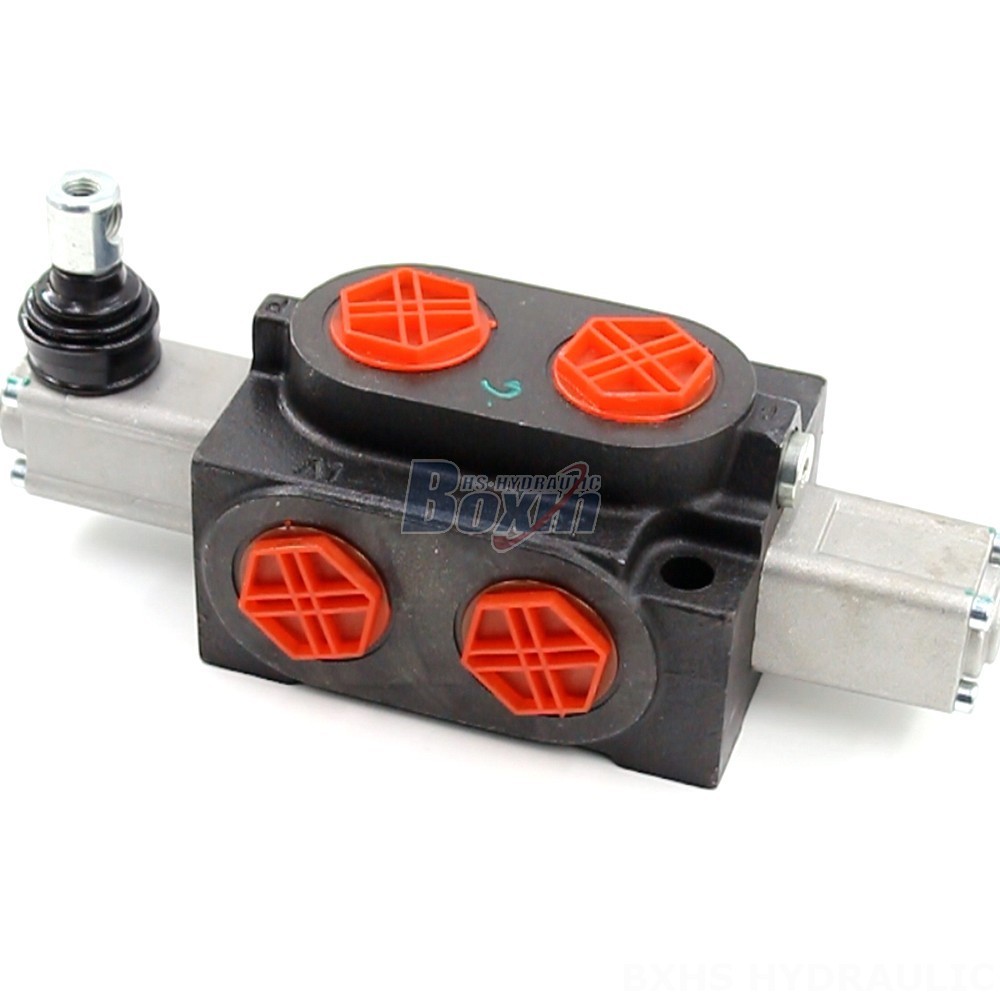

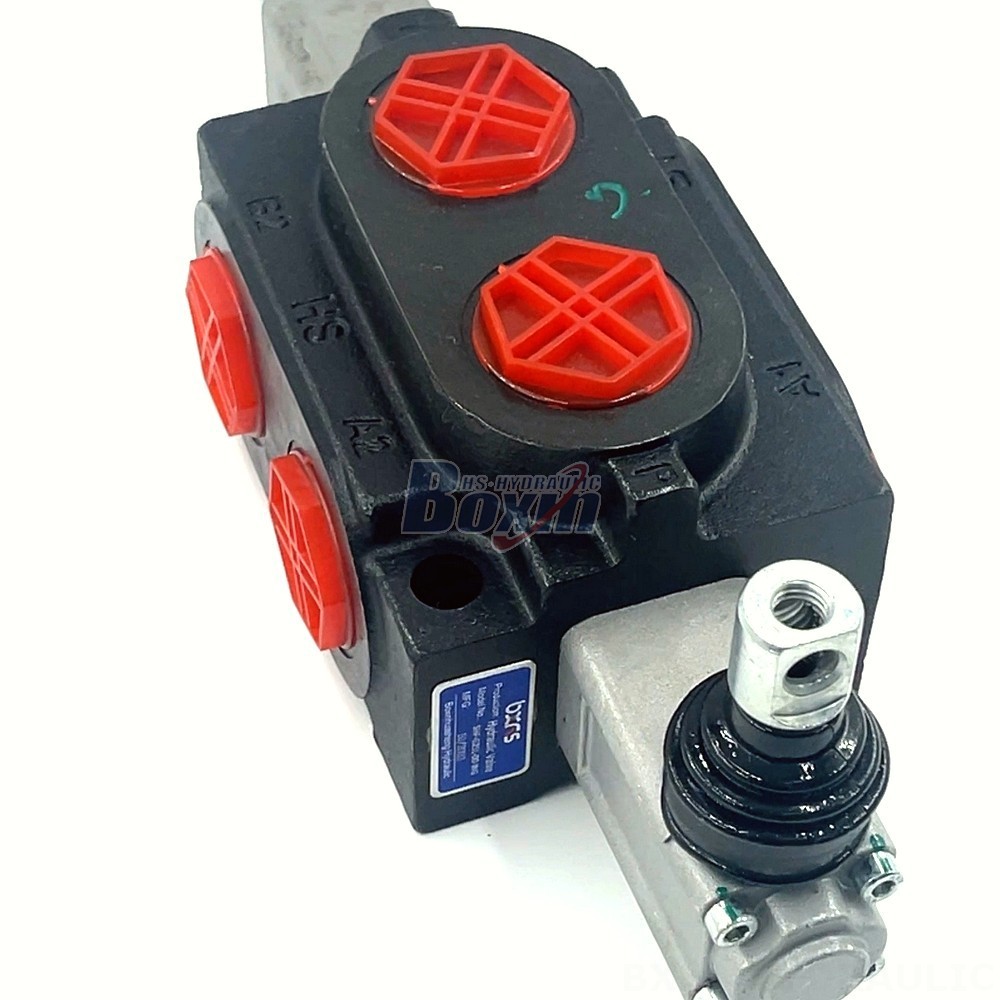

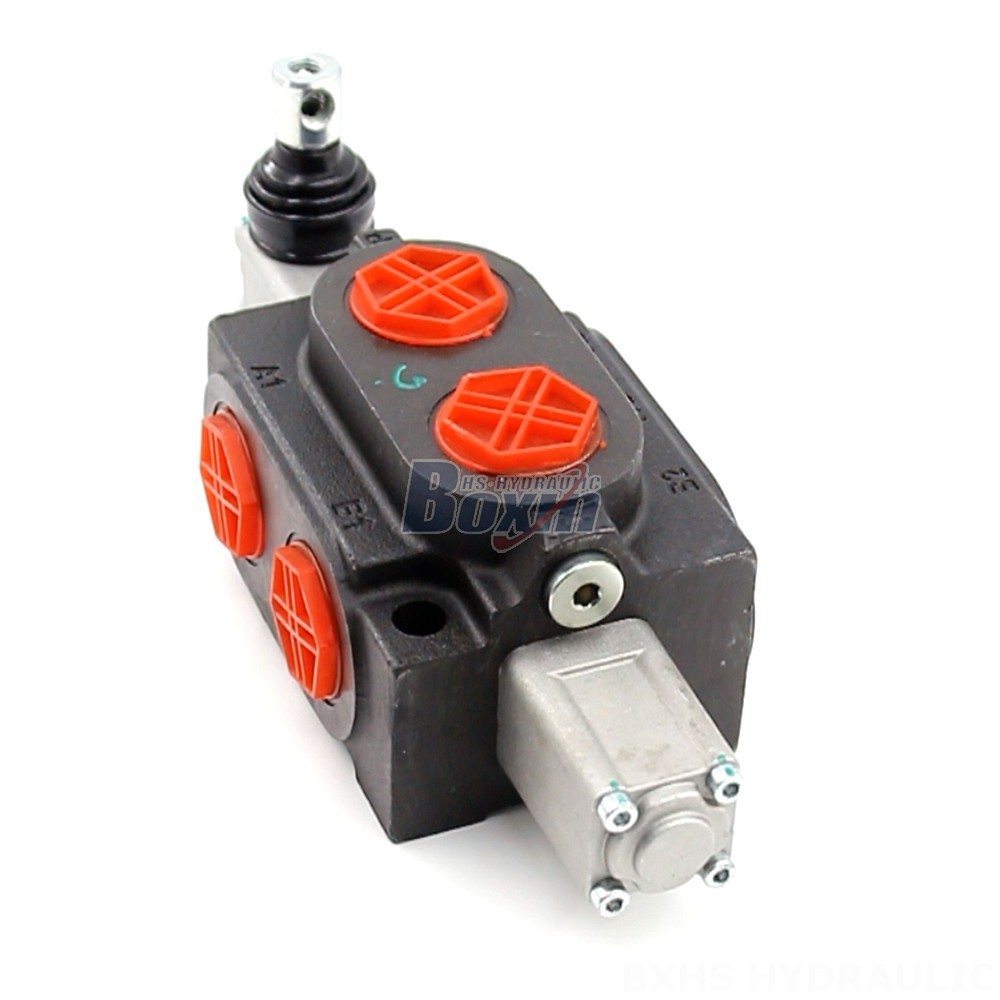

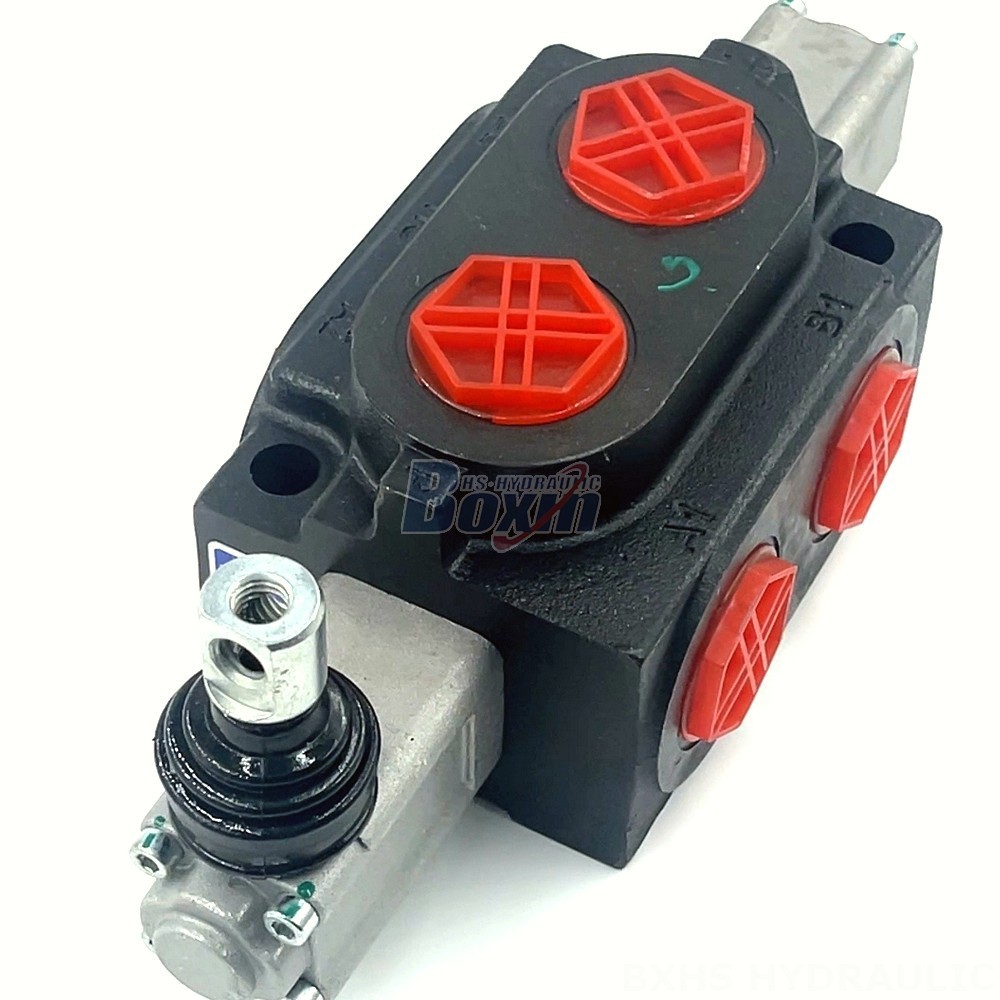

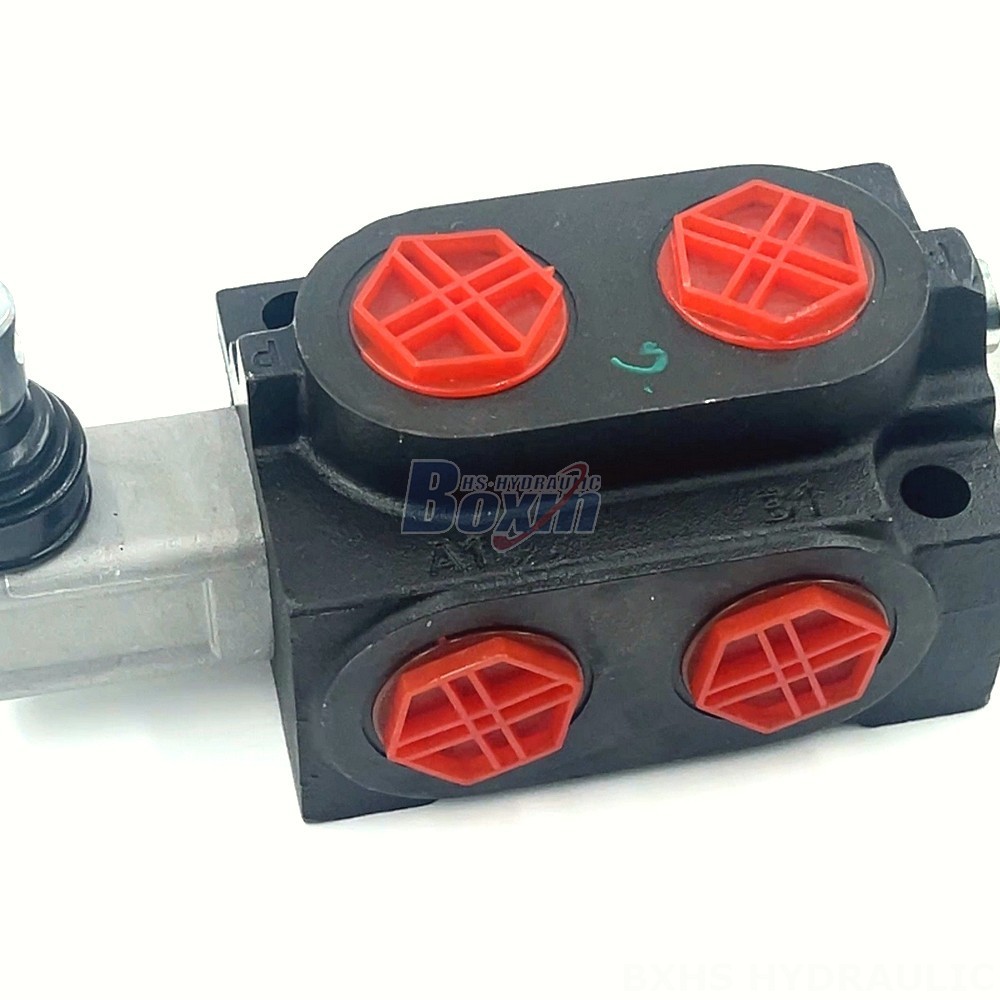

The SHFY-G25L-00 Hydraulic Directional Control Valve is a 1-section, manually controlled sectional valve designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 200 L/min and a maximum pressure of 315 bar, this valve provides precise control of hydraulic systems.
| Seri SHFY-G25L-00 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Hidraulis |
| Spul | 1 Spool |
| Aliran Terukur | 200 L/menit (52 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | M33×2.0 |
| Port Keluar | M33×2.0 |
| Ukuran Port | M33×2.0 |
| Bagian | 1 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
**Product Name:** Hydraulic Directional Control Valve | SHFY-G25L-00
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 200 L/min (52 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SHFY-G25L-00 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER, BALER
