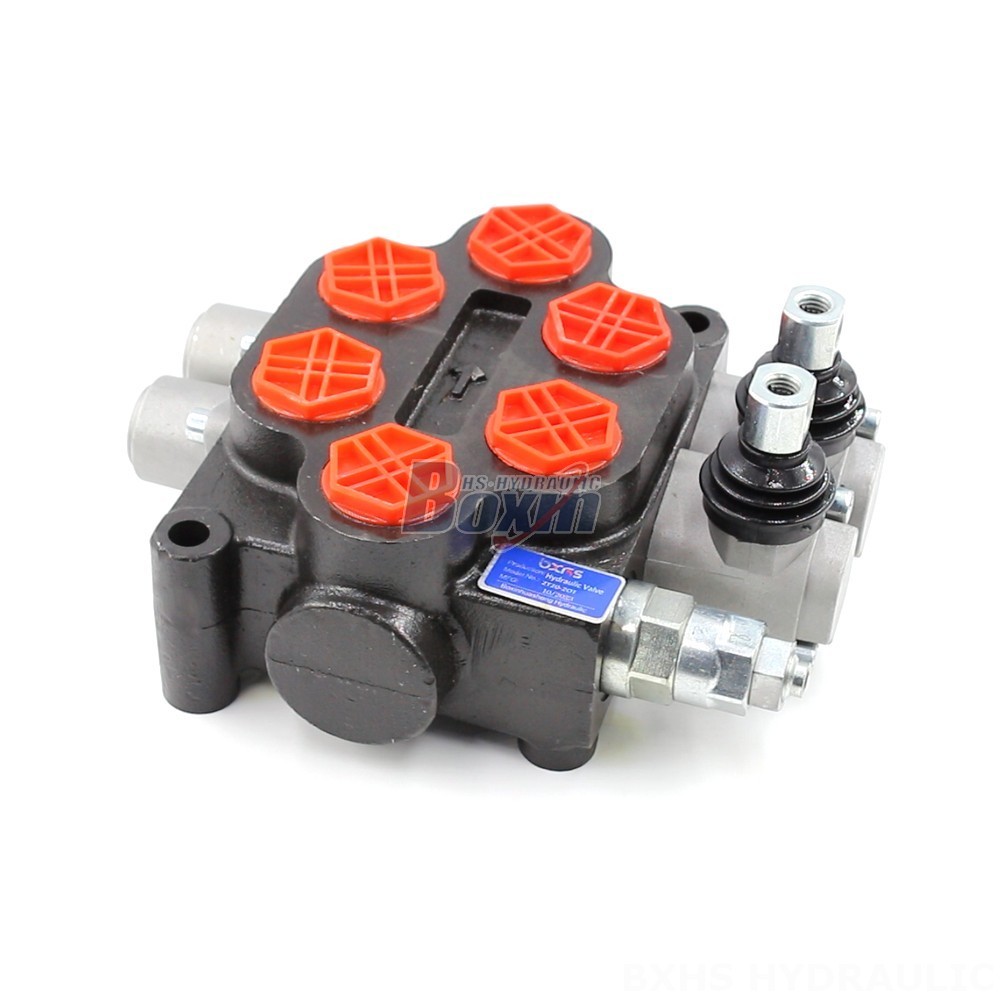

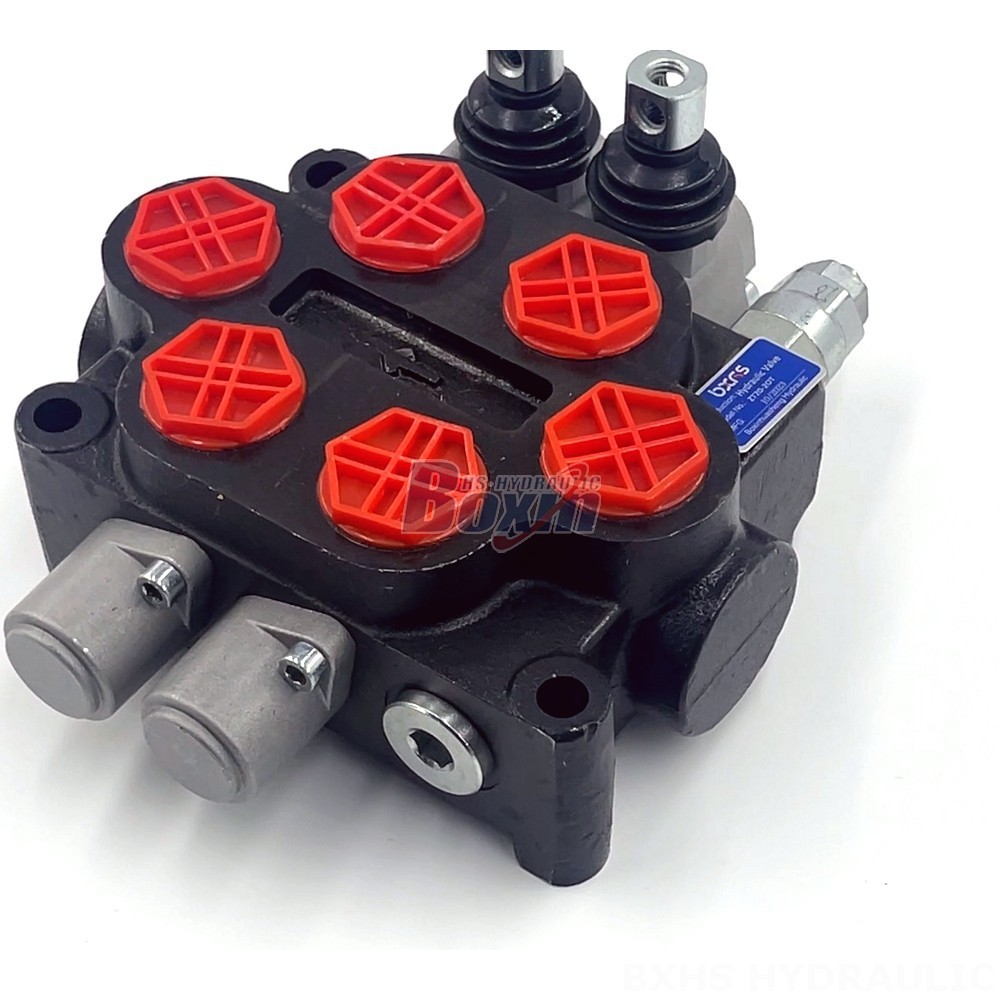

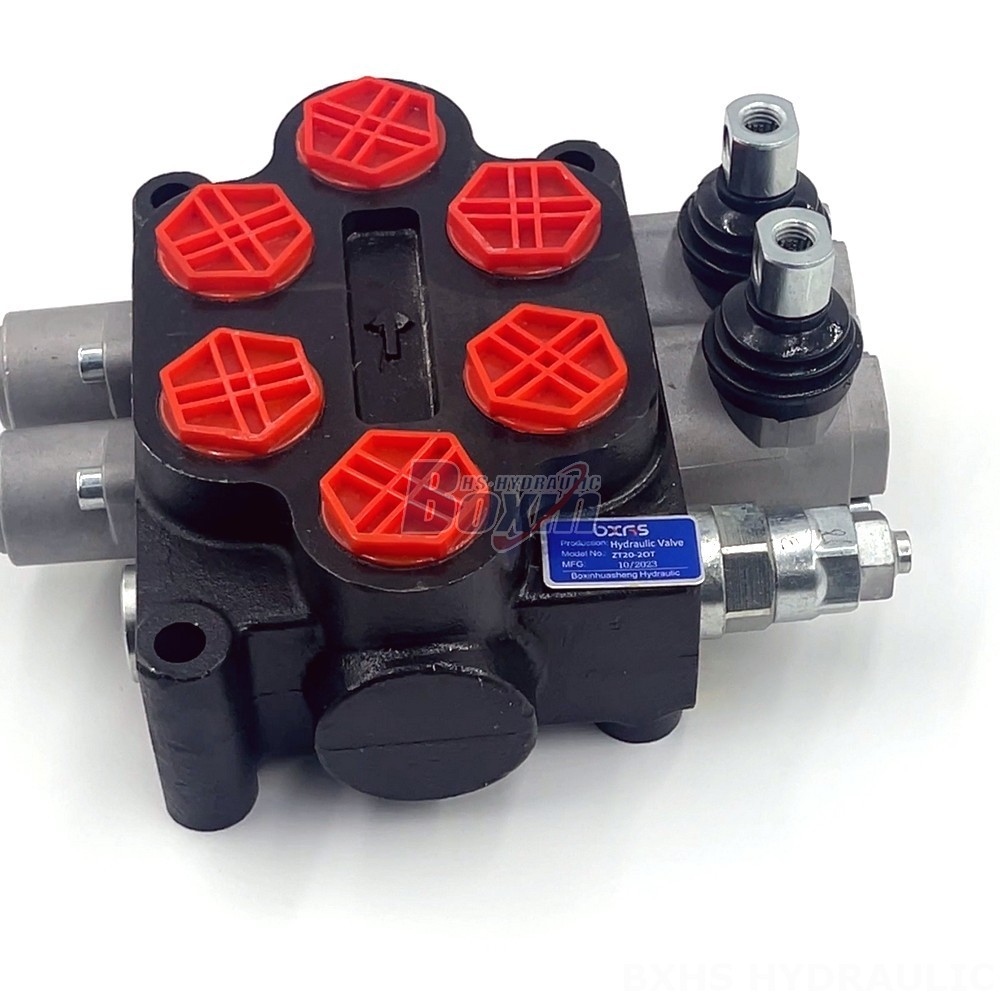

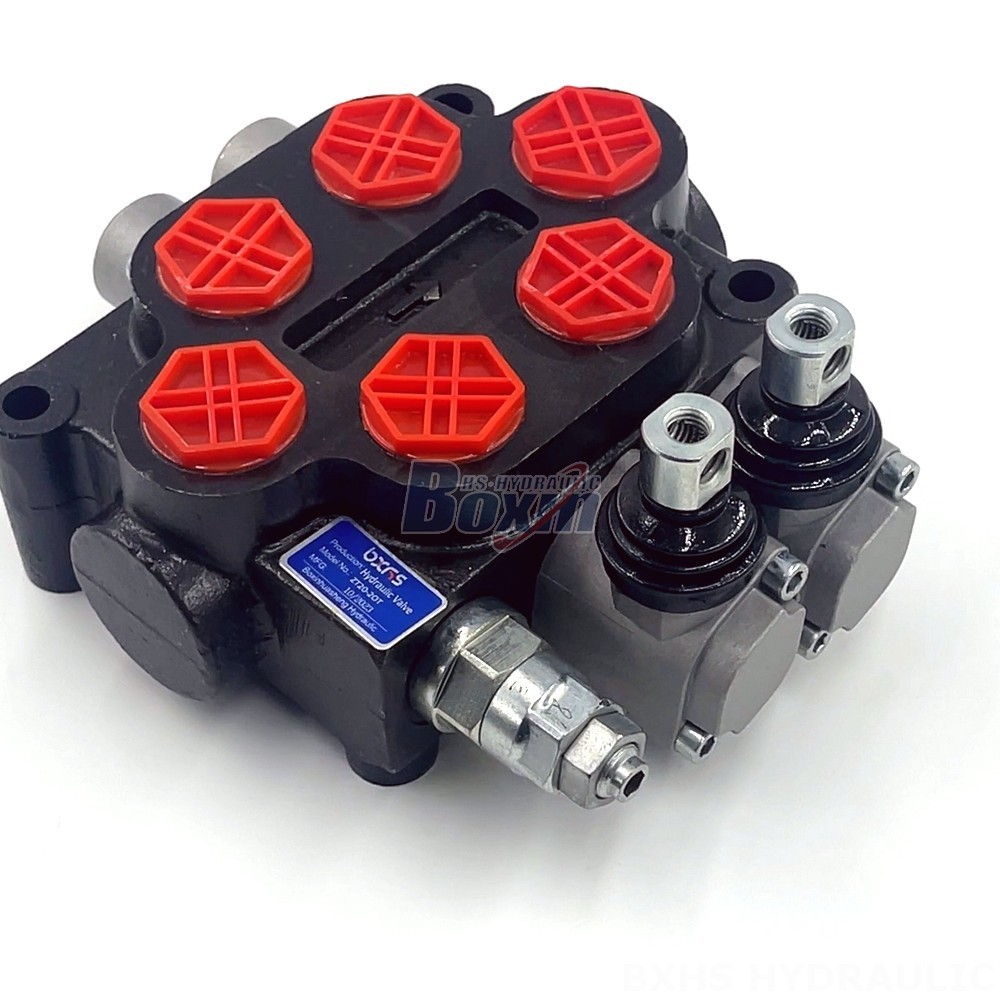

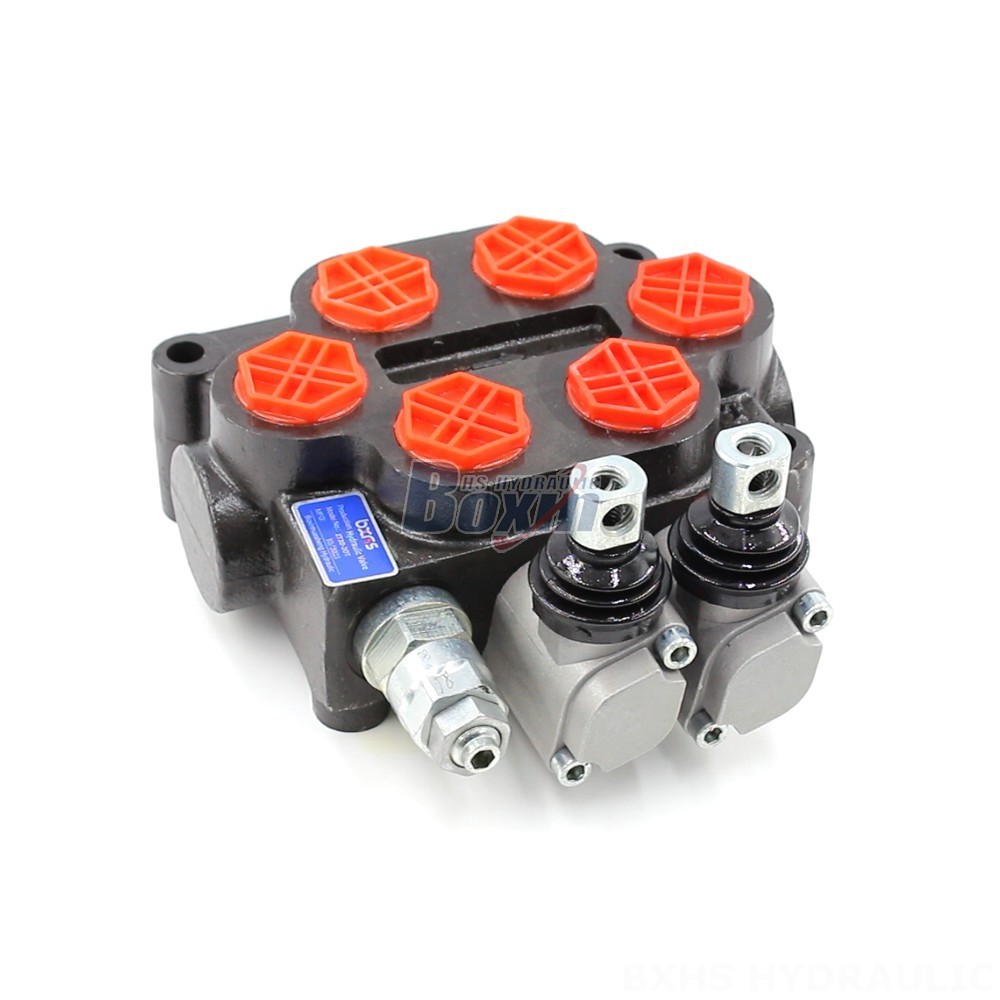

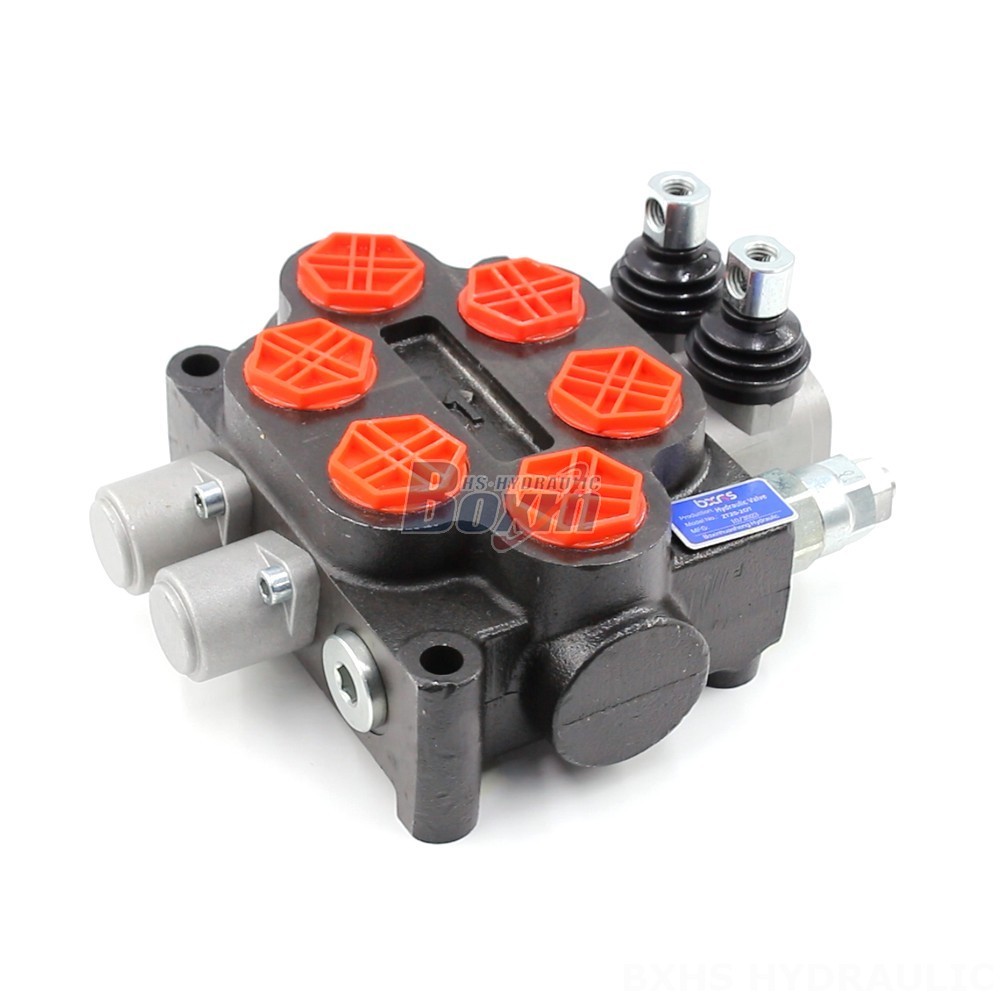

ZT20 Series Hydraulic Directional Control Valve is a high-performance valve designed for various applications in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles. With a rated flow of 100 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation. Its manual control and 2-section design provide precise flow control, while its monoblock structure ensures durability and compactness.
| Seri ZT20 Katup Kontrol Hidrolik Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**ZT20 Series Hydraulic Directional Control Valve**
**Key Features:**
* Manual Control
* 2 Section
* Monoblock Valve
* Rated Flow: 100 L/min (26.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
* COMPACT WHEEL LOADER
