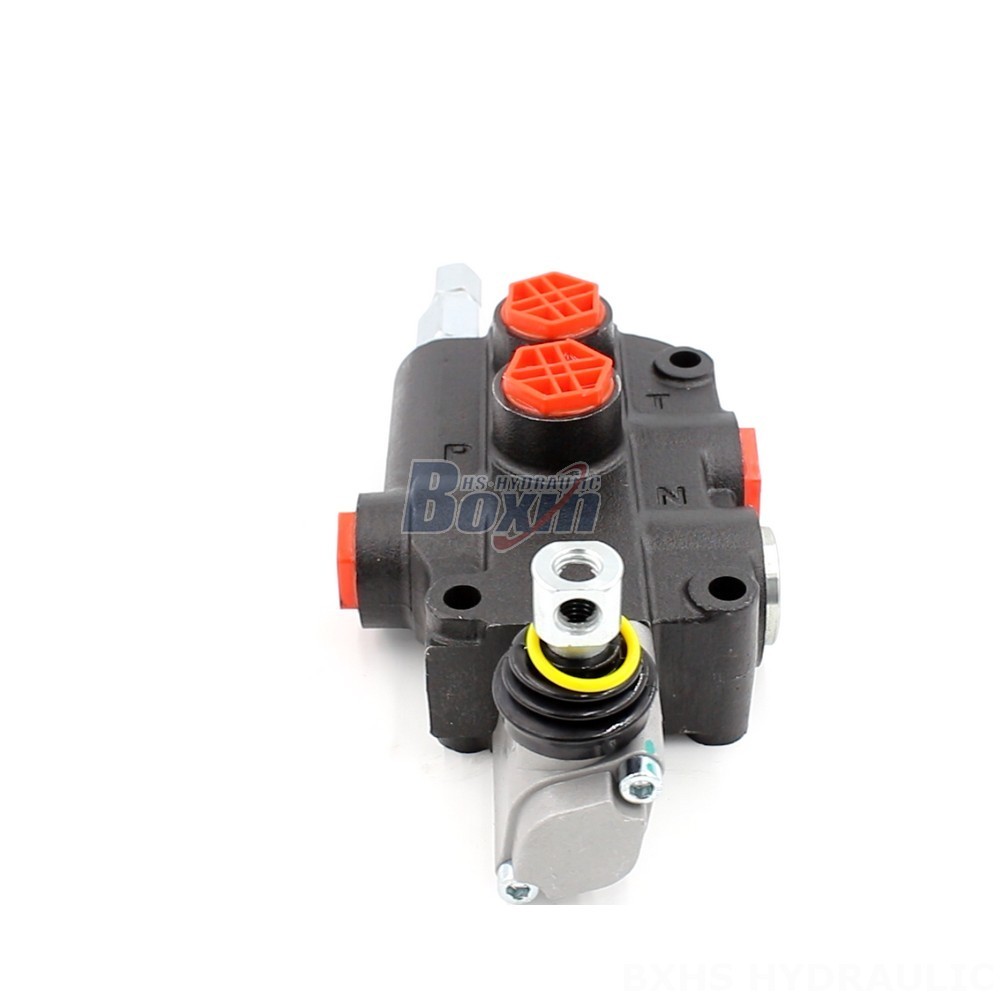

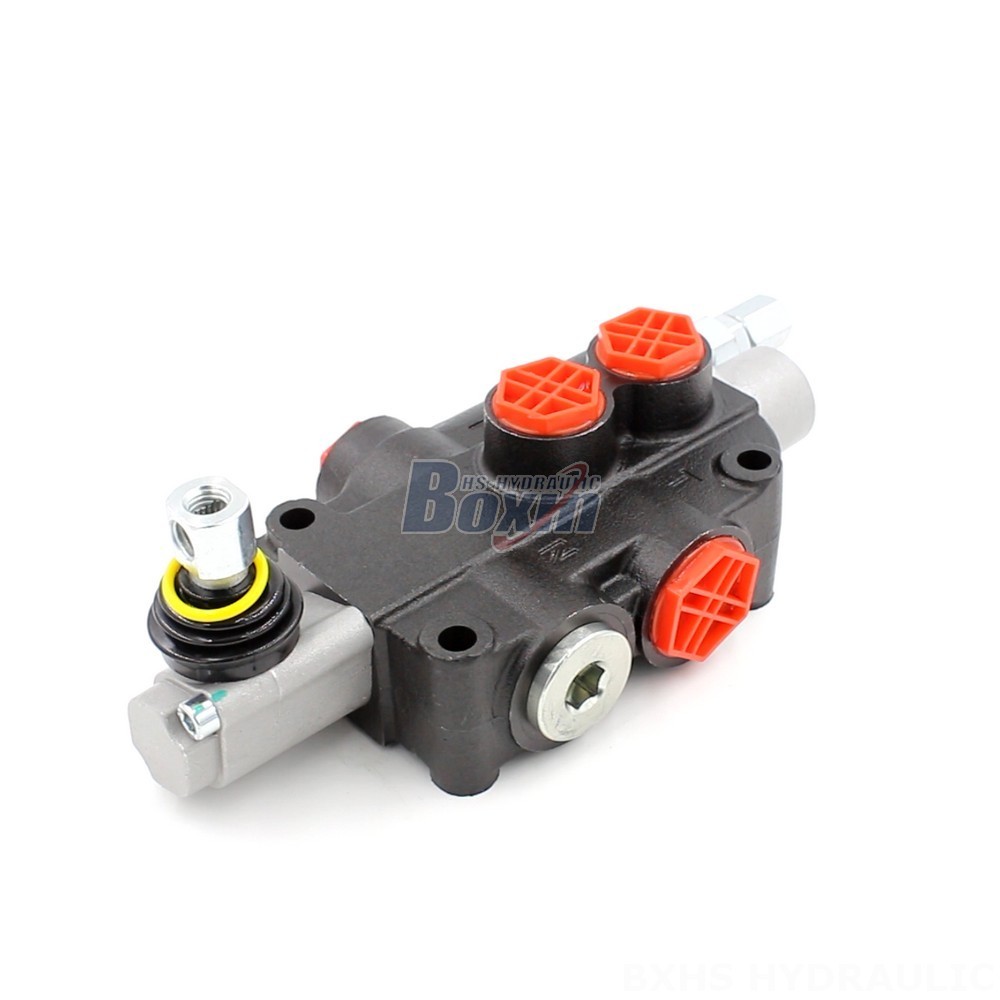

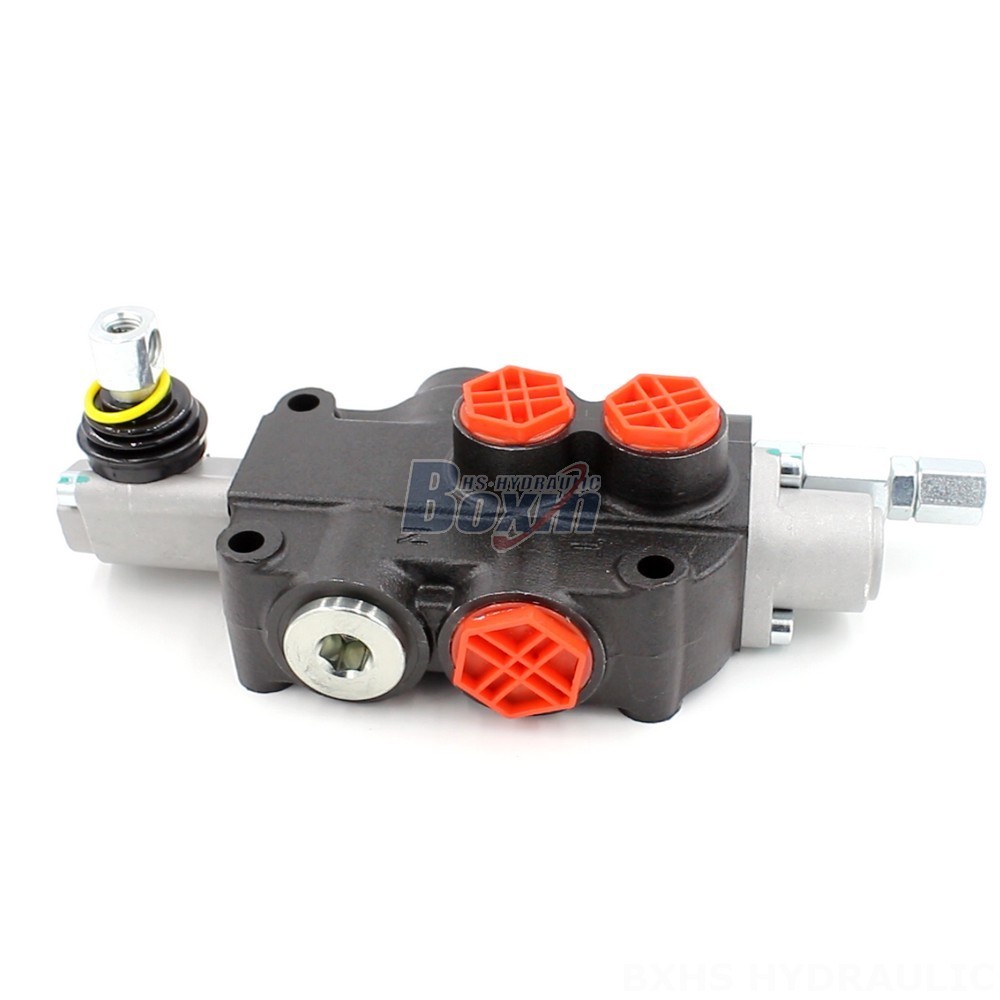

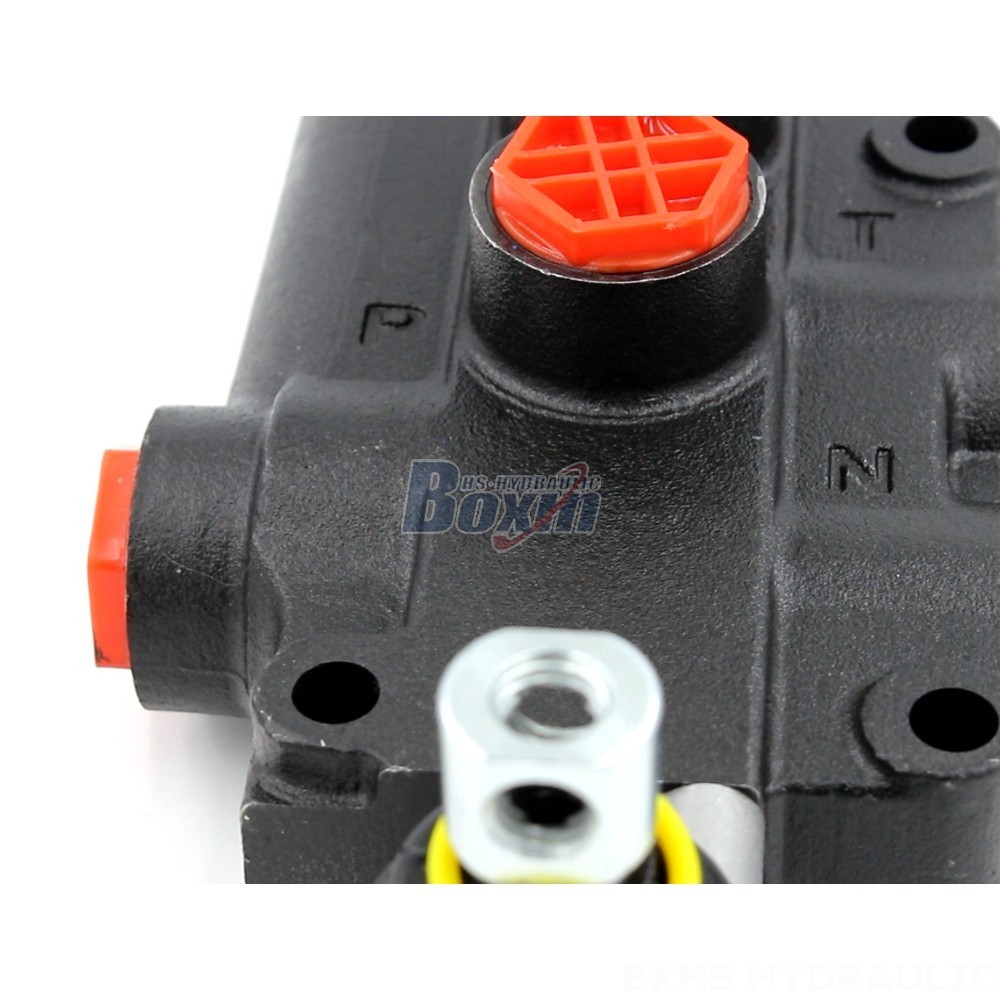

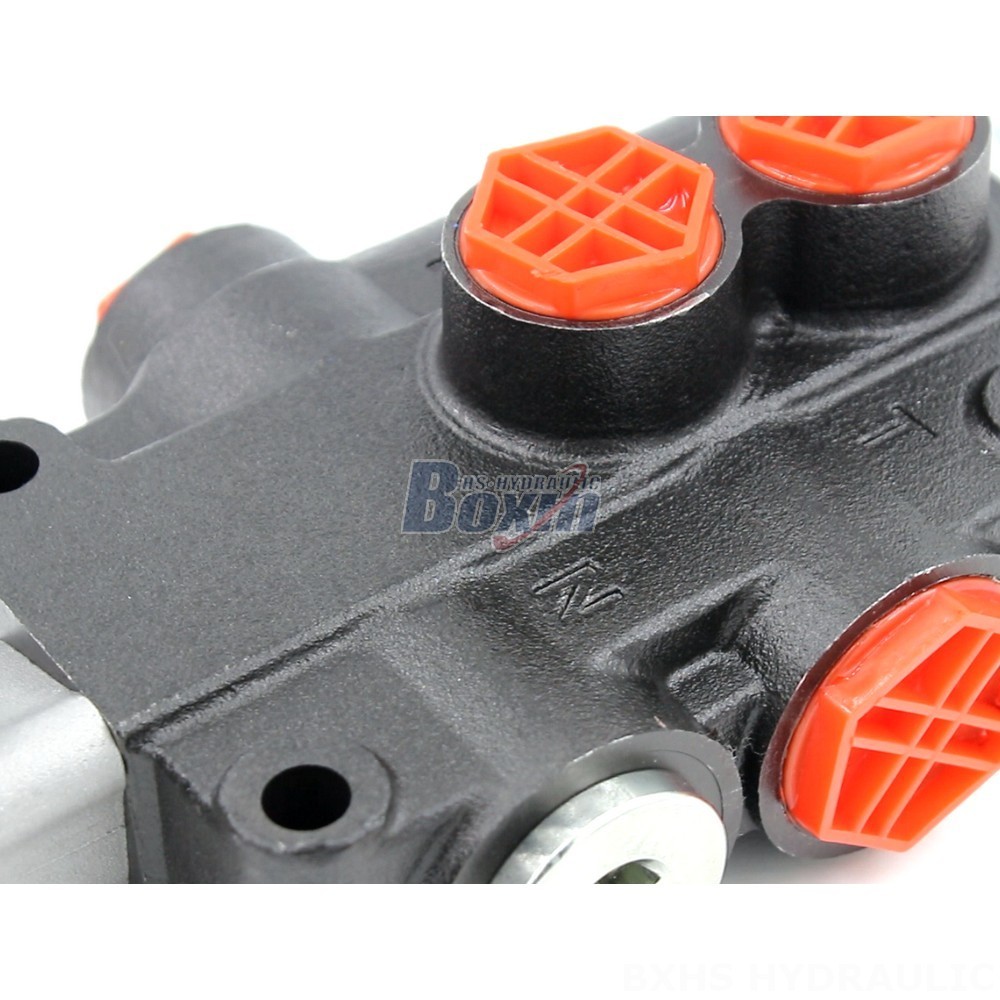

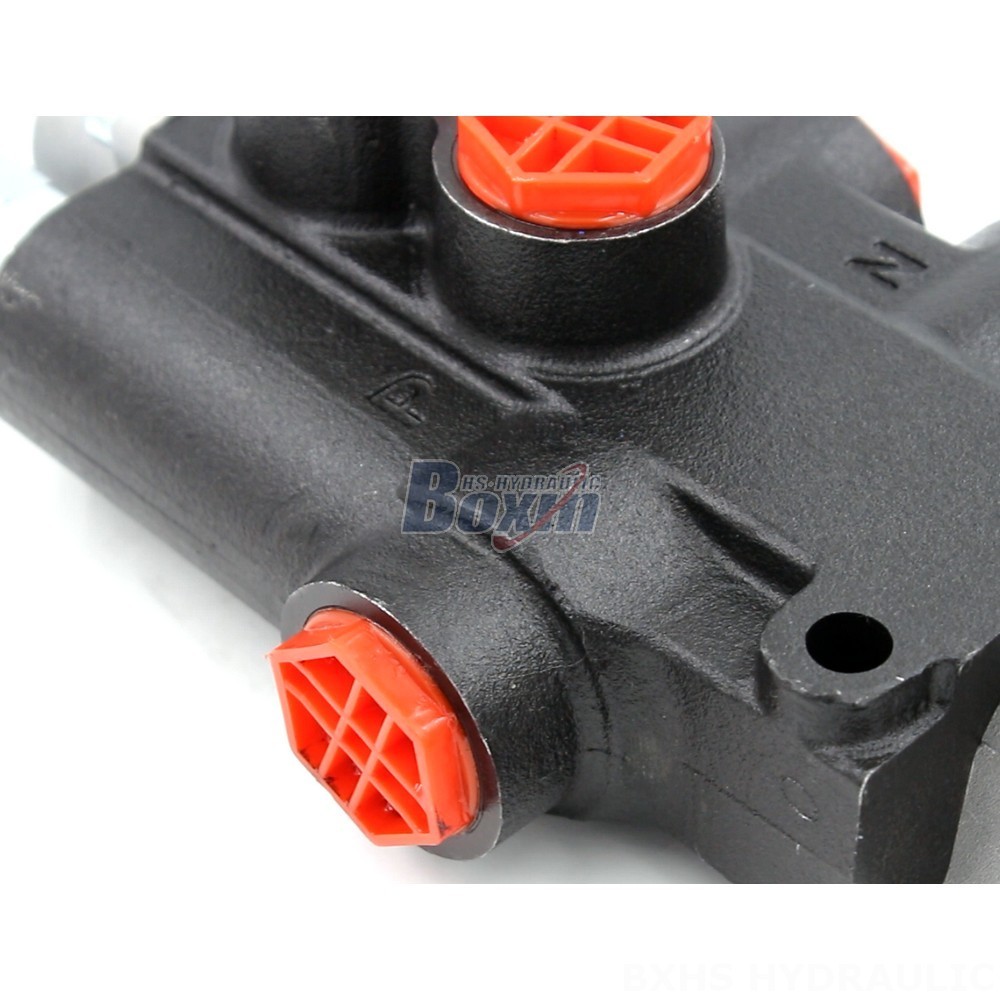

Hydraulic Directional Valve Customization | P80-G12-1OW Series

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*15*11

Kelas kotor:5.00 kg

Ketersediaan: Tersedia

1155 Pandangan Mencari Produk Ini

Hydraulic Directional Valve Customization | P80-G12-1OW Series

Hydraulic Directional Valve Customization | P80-G12-1OW Series

Hydraulic Directional Valve Customization | P80-G12-1OW Series drawing image

The P80-G12-1OW Series hydraulic directional valve is a high-performance, manually controlled valve designed for use in a variety of material handling, construction, and industrial applications. It features a compact, monoblock design and is rated for 80 L/min (21.2 US gpm) flow at 250 bar (3600 psi). This valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini- excavators, skid steer loaders, and compact wheel loaders.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series hydraulic directional valve is a manually controlled, monoblock valve offering high performance and durability. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it's suitable for demanding applications across various industries. Its operating viscosity range is 15-75 mm²/s (15 cSt to 75 cSt), and it can withstand temperatures ranging from -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for applications in material handling, construction, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Customization options are available to meet your specific needs.
