Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1343 Pandangan Mencari Produk Ini

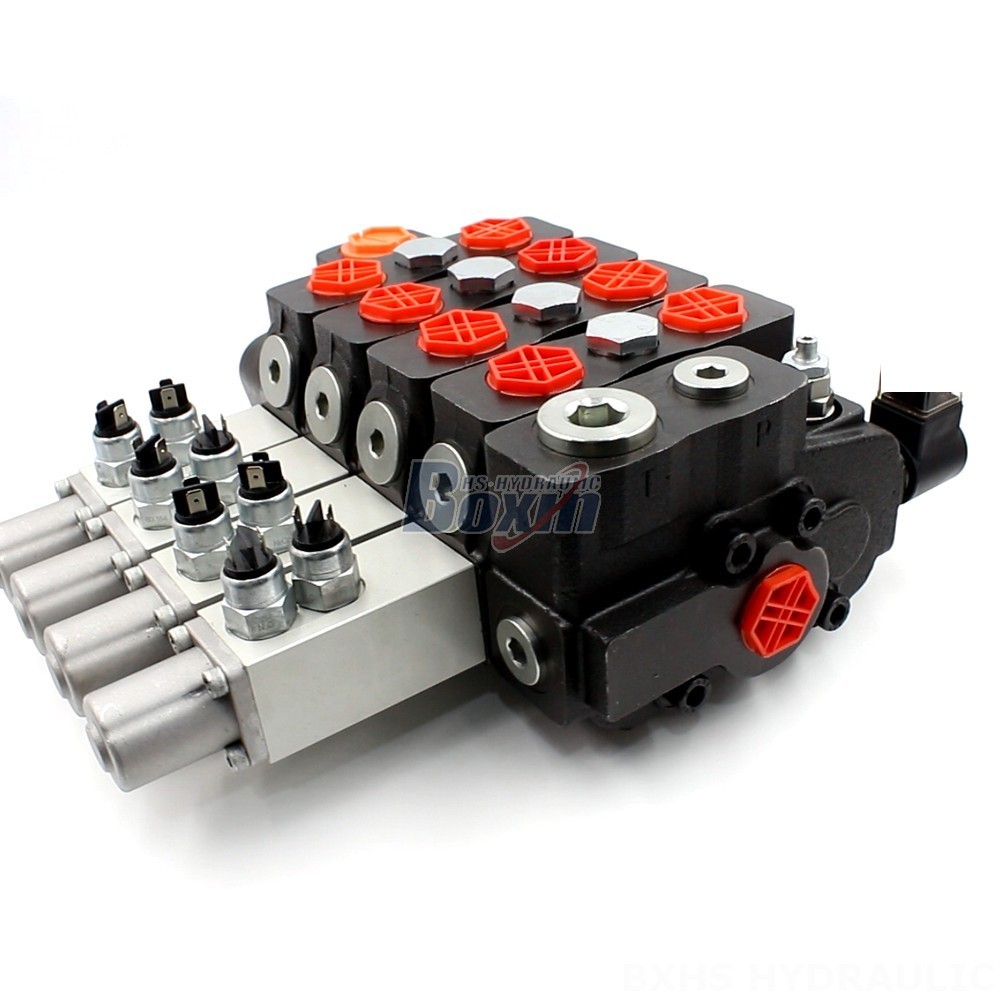

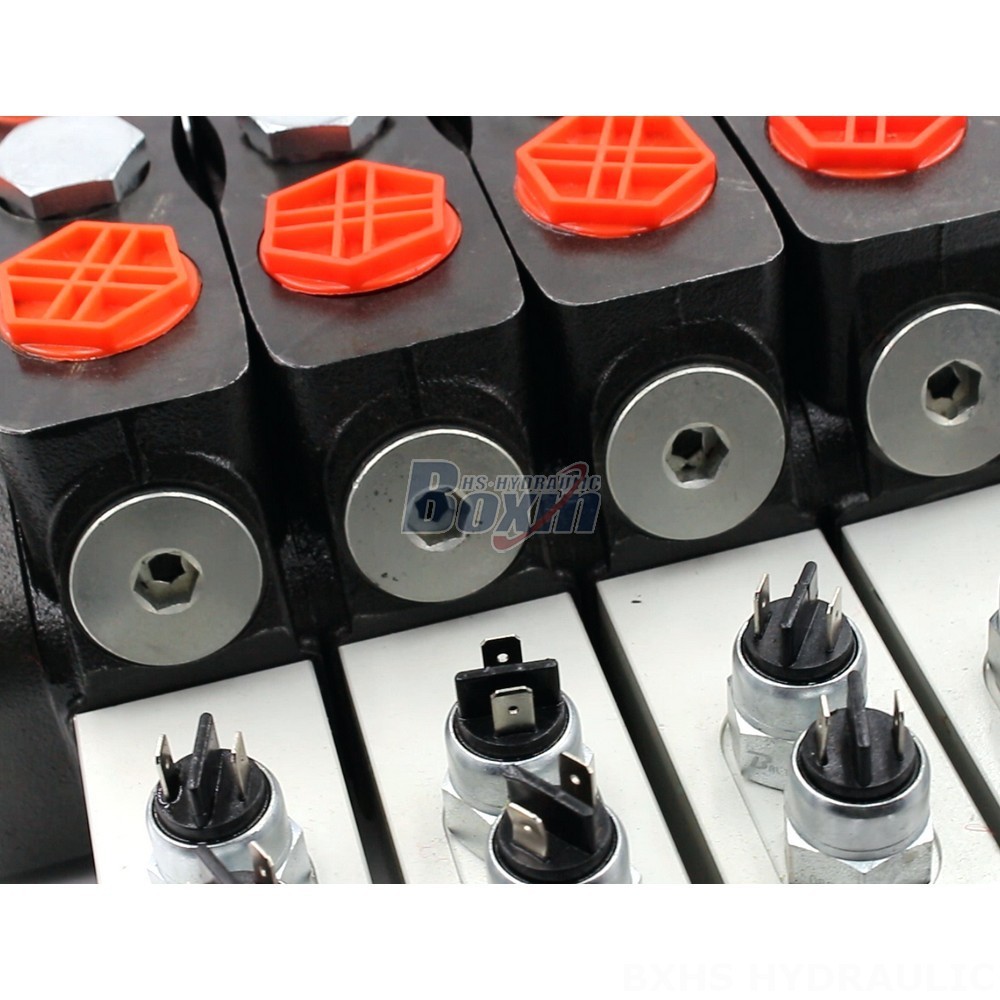

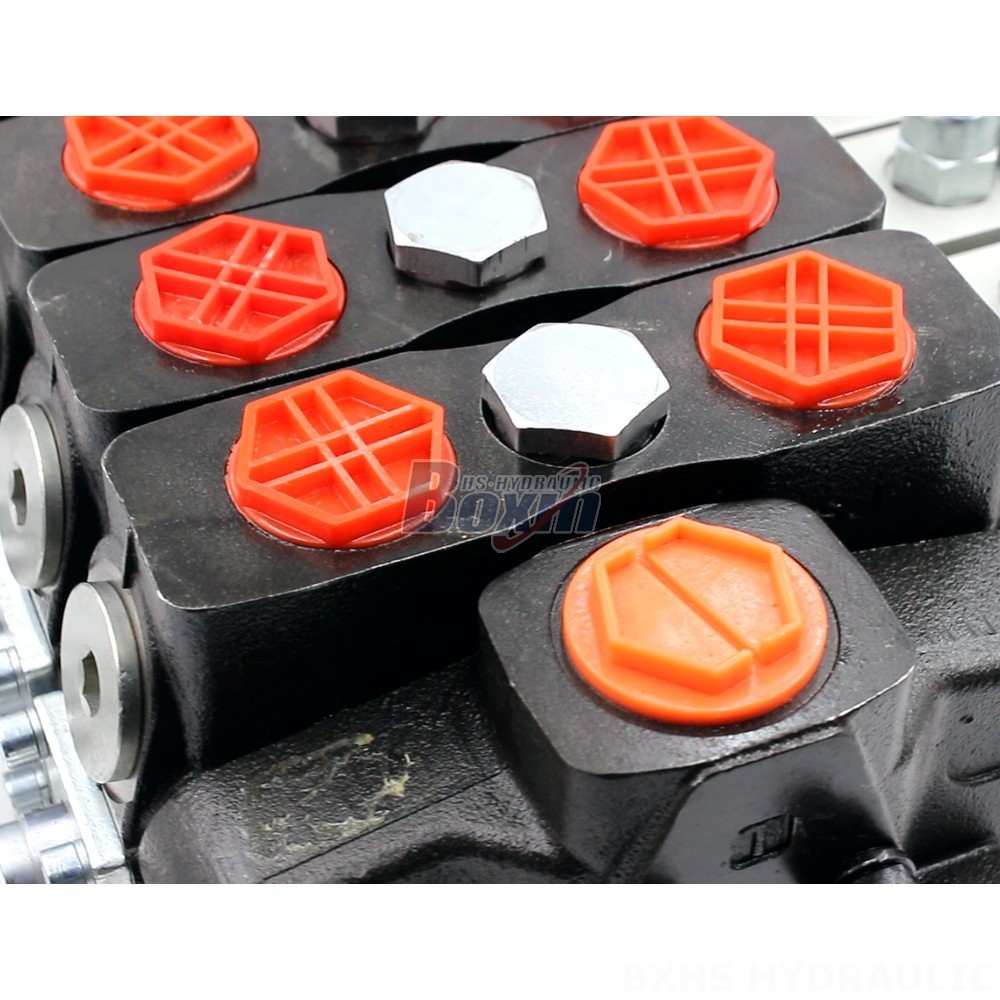

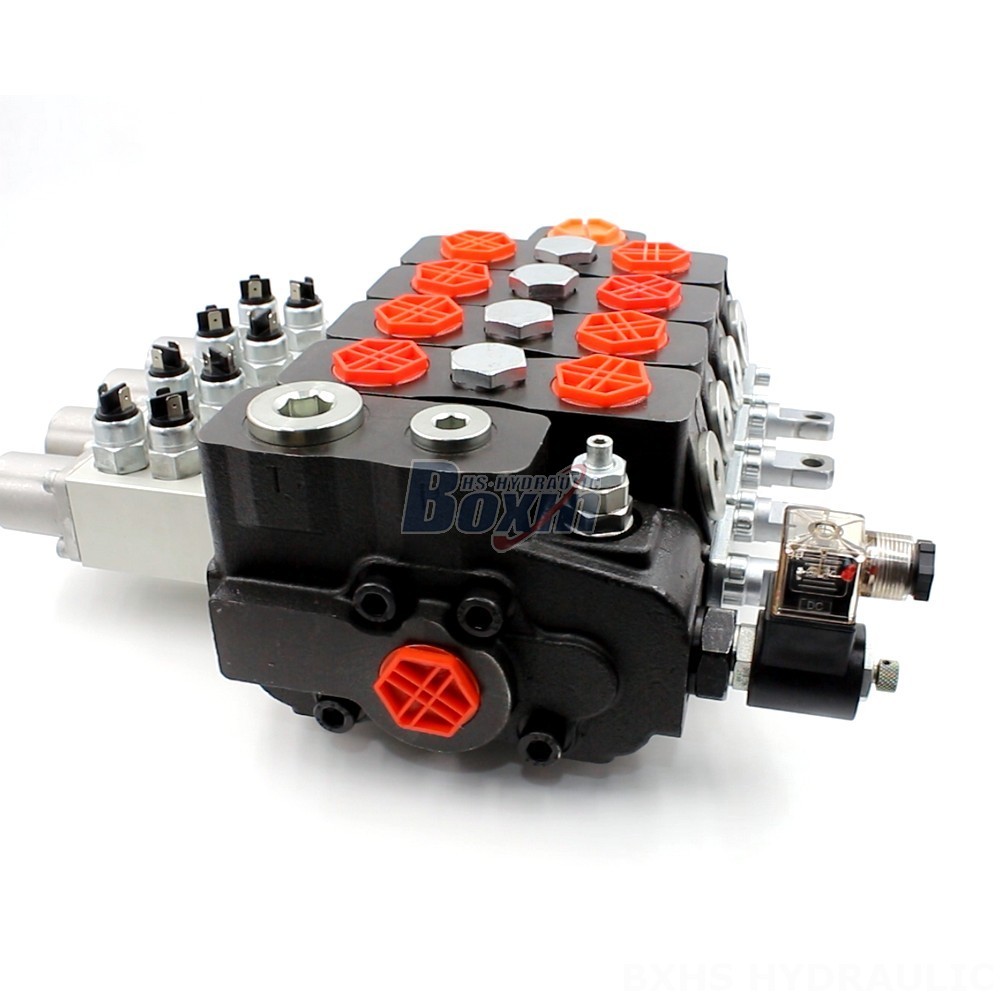

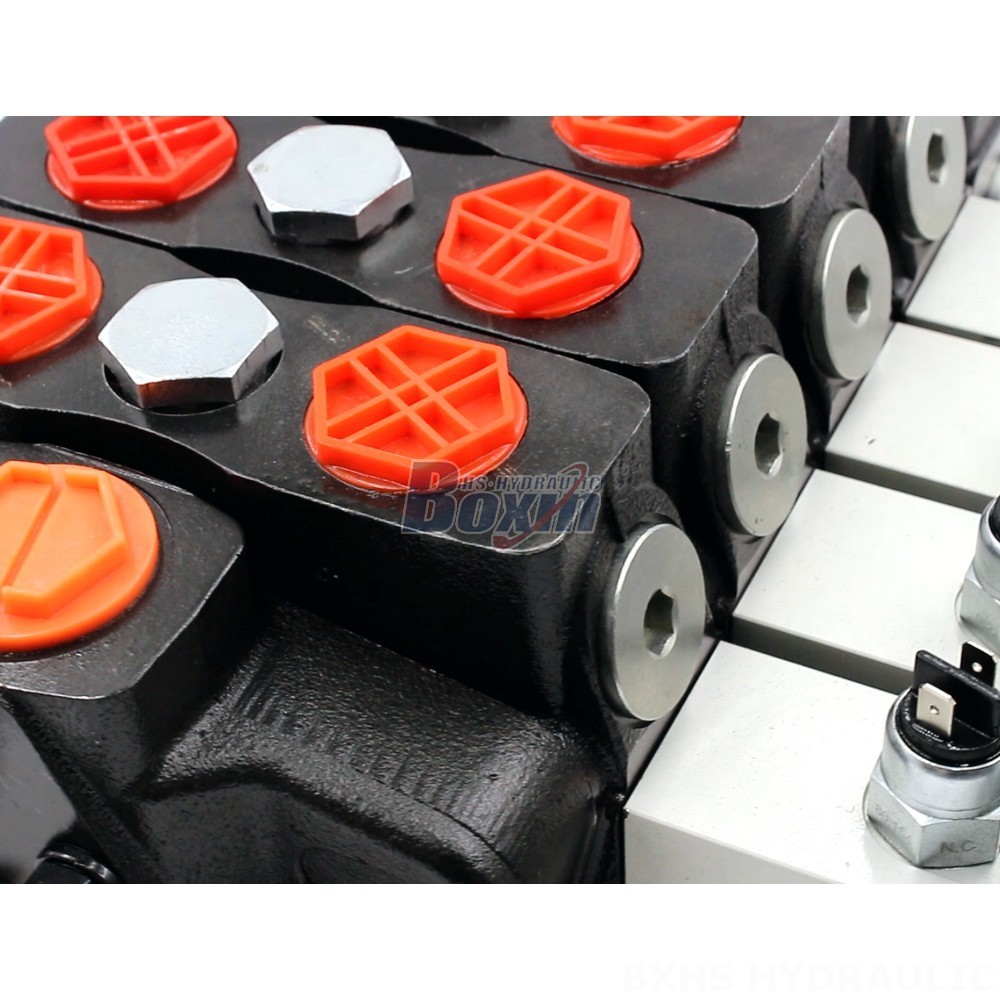

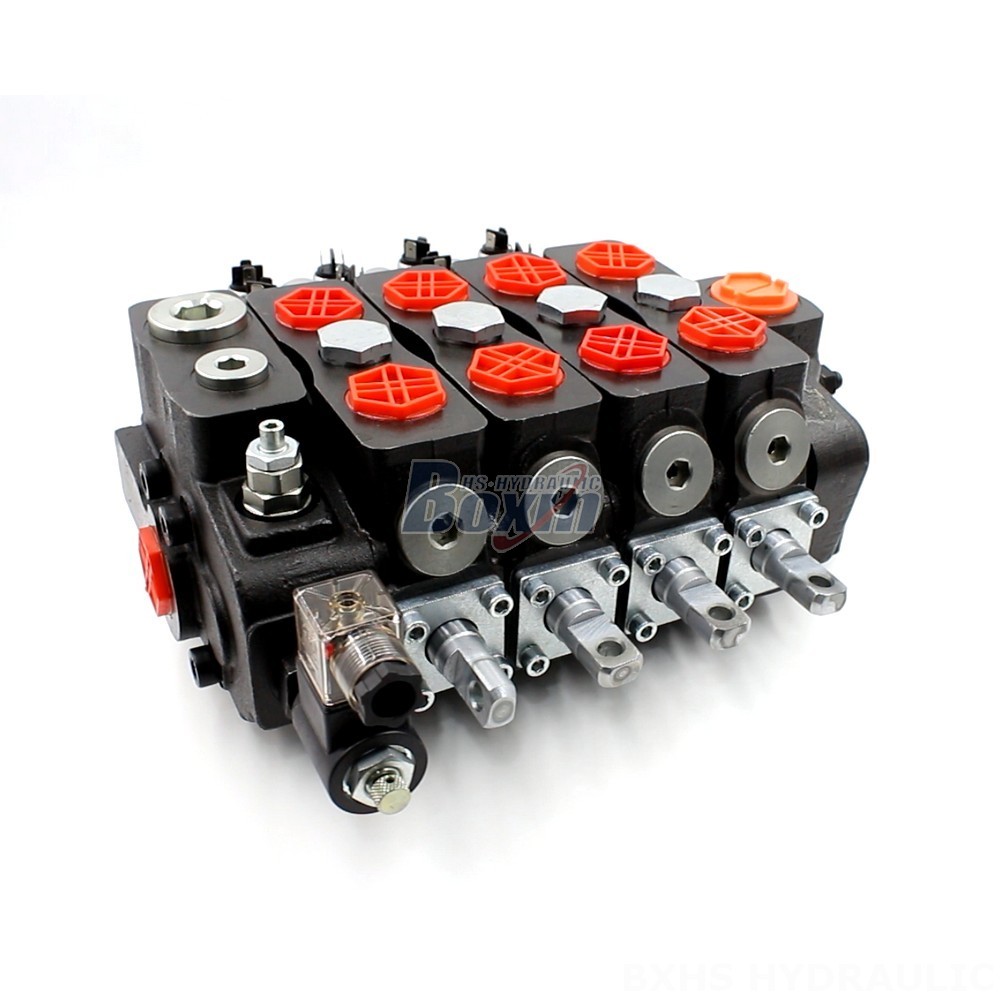

The DLS180 Micro Switch Manual 4 Spool Hydraulic Directional Valve is a high-performance, heavy-duty hydraulic valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. With a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve provides reliable and efficient hydraulic control.
| Seri SDS180 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G3/4, G1, SAE 12 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G3/4, G1, SAE 12 |
This SDS180 Series 4-spool hydraulic directional valve features manual control with a micro switch for precise operation. It is suitable for various applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The valve is designed for demanding environments, with a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi). It features a sectional valve structure and operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). Choose this durable and reliable hydraulic directional valve for optimal performance in your heavy-duty equipment.
