The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

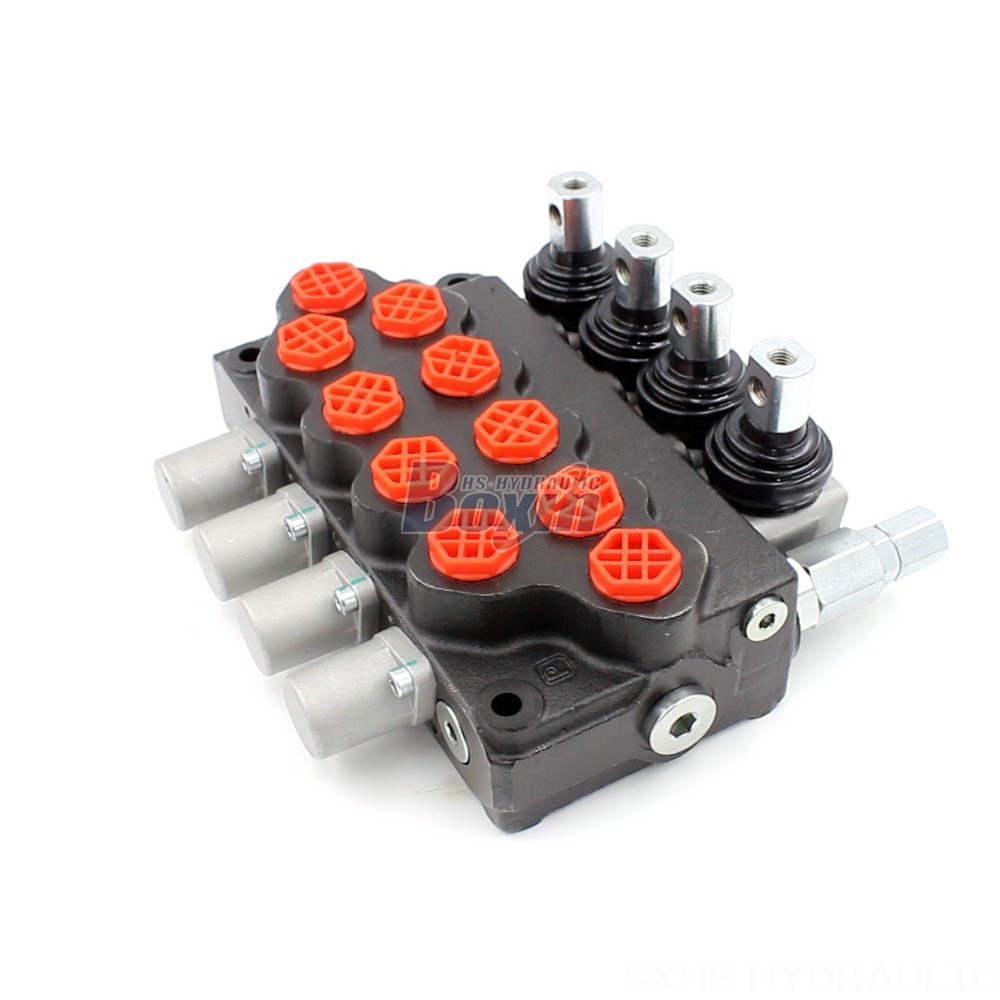

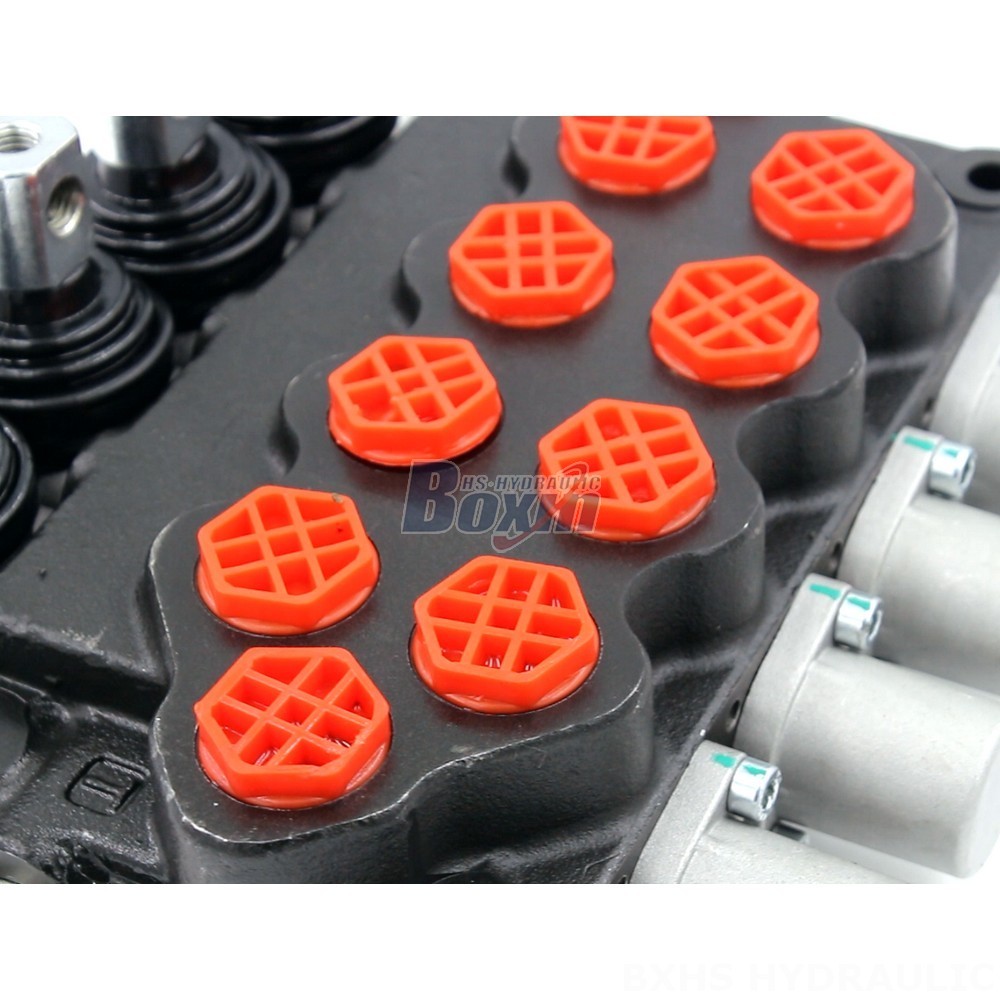

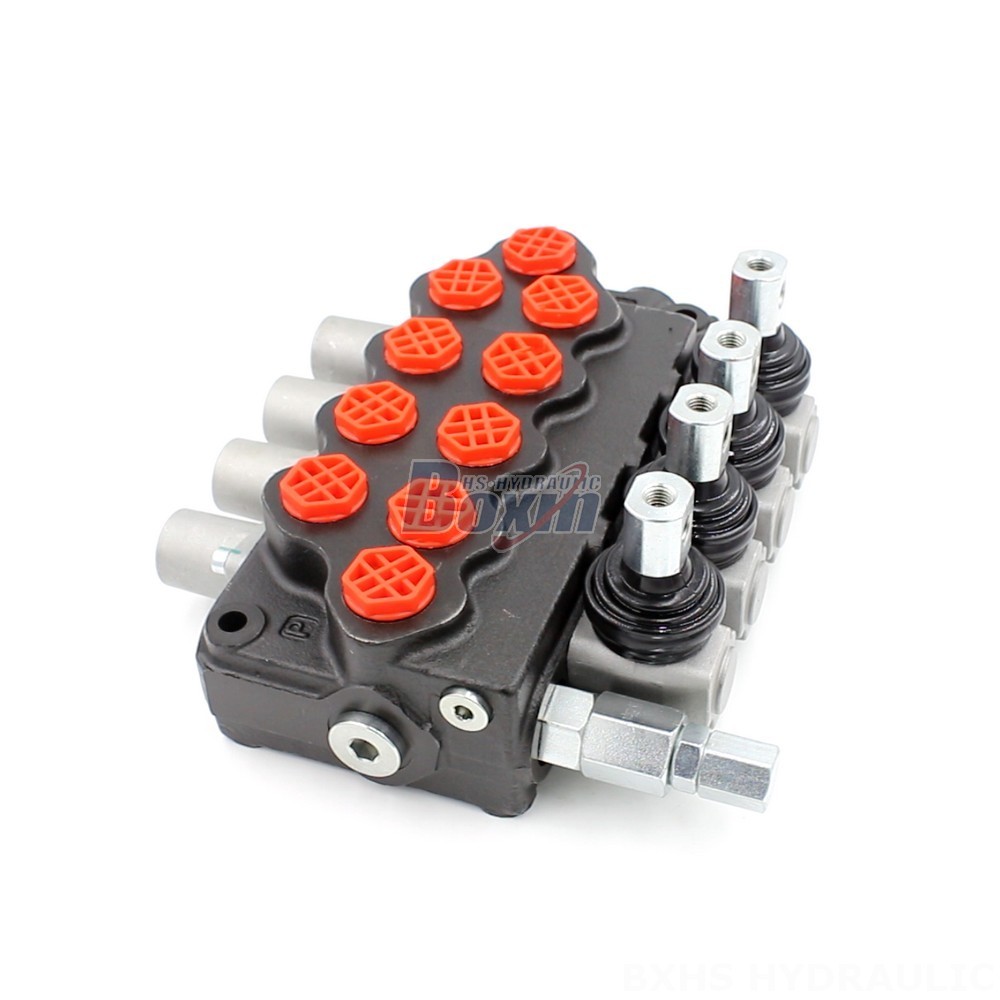

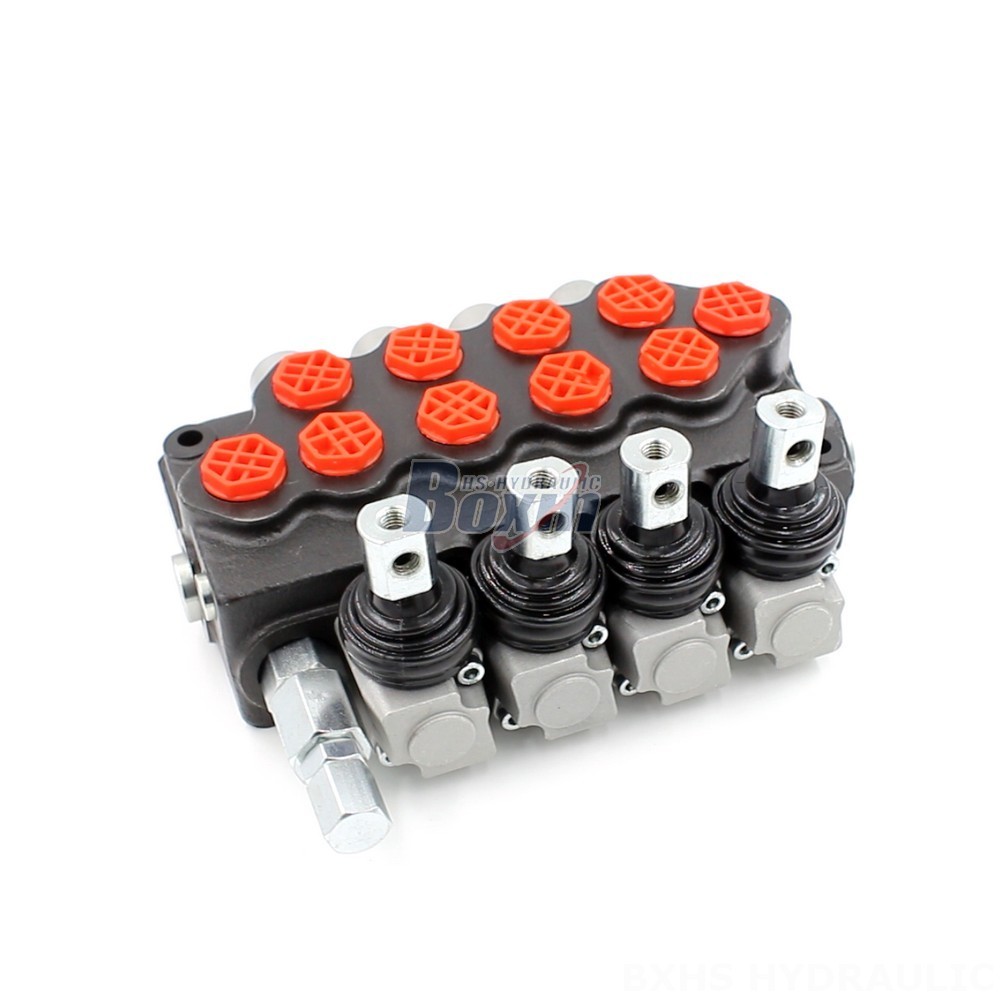

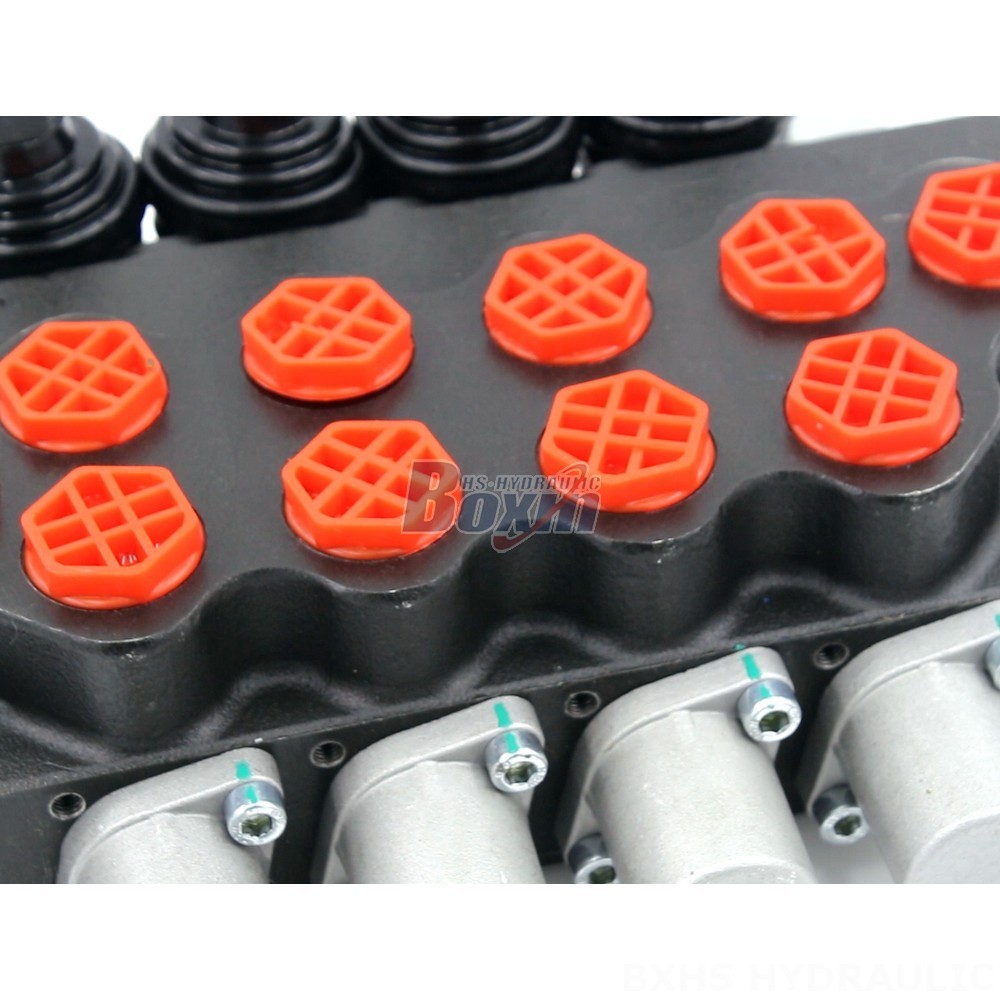

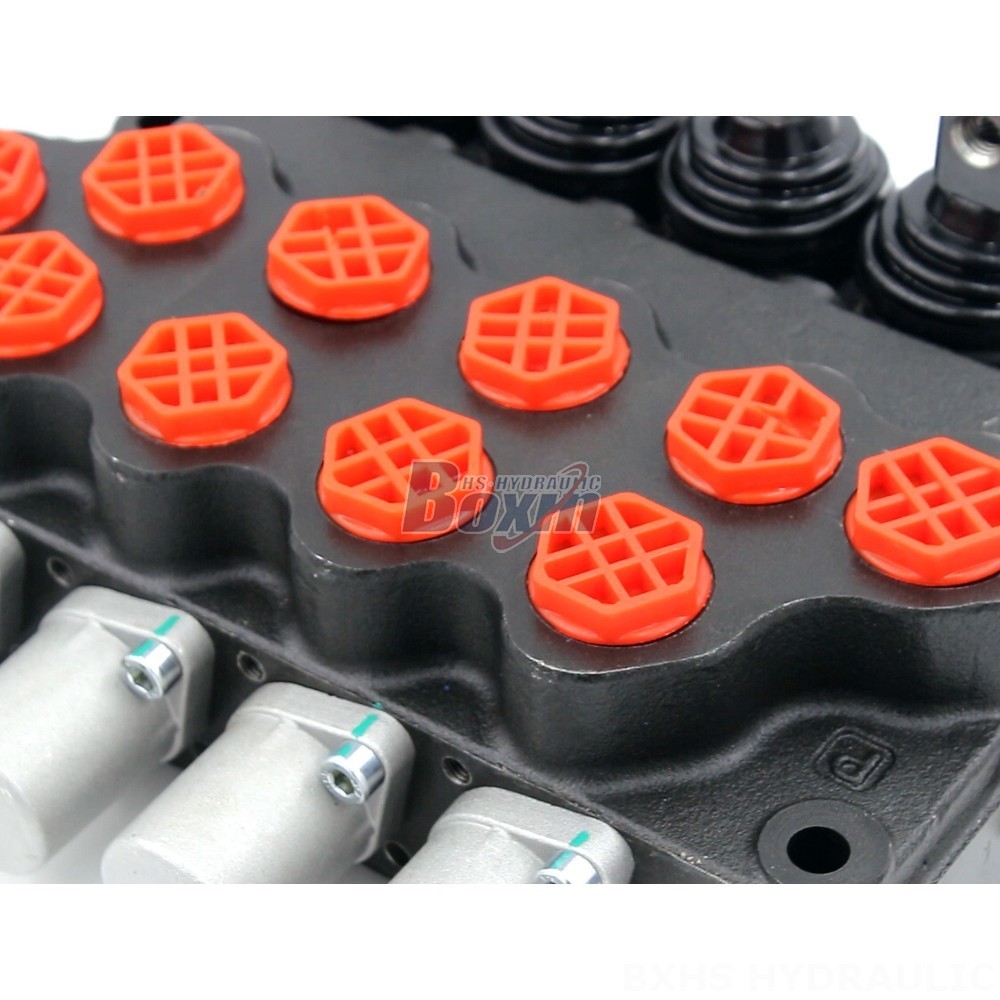

**SD5-G38 Series Hydraulic Directional Valve**
The SD5-G38 Series Hydraulic Directional Valve is a 4 section monoblock valve with manual control. It has a rated flow of 40 L/min, a maximum pressure of 305 bar, and an operating viscosity range of 15 - 75 mm²/s. The ambient temperature range is -40°C to +60°C. The valve has 4 spools and is suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications.
**Key Features:**
* 4 section monoblock valve
* Manual control
* Rated flow of 40 L/min
* Maximum pressure of 305 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +60°C
* 4 spools
* Suitable for use in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES applications
