Produksi & Pengiriman
Waktu Produksi 15-30 Hari
993 Pandangan Mencari Produk Ini

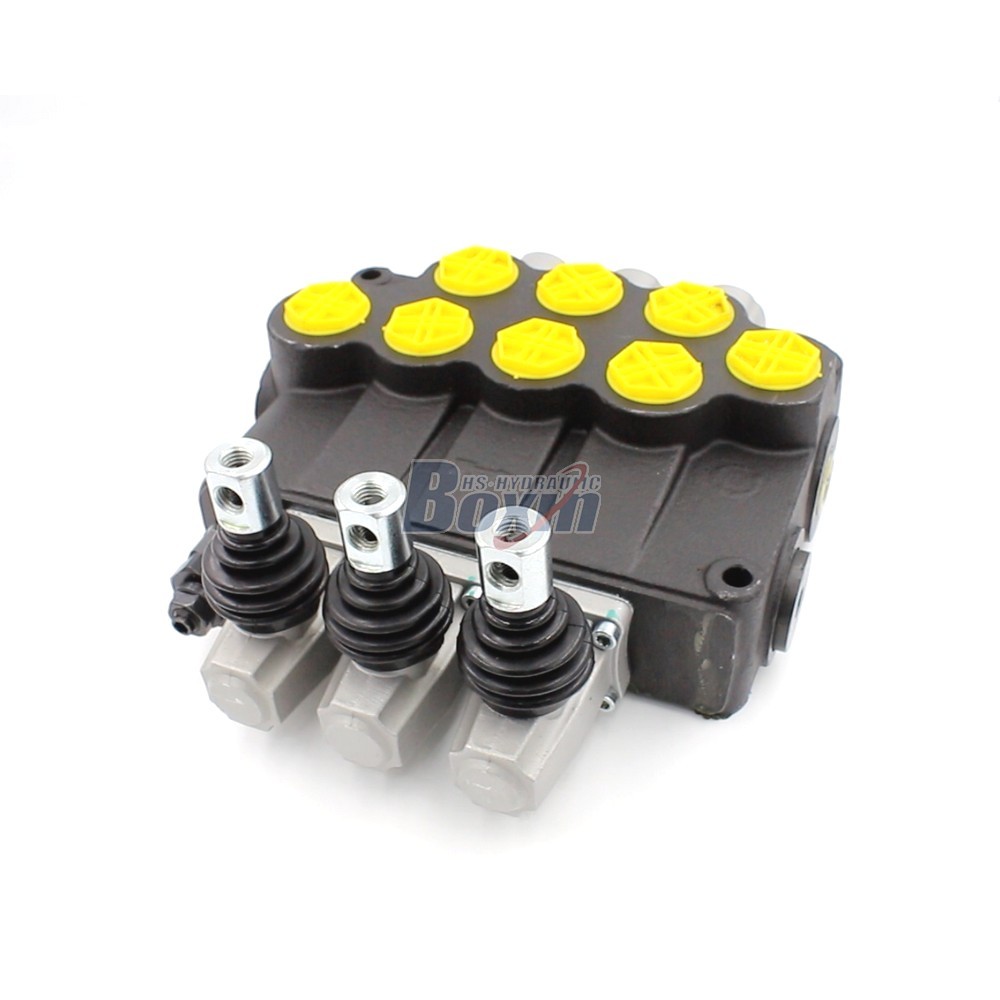

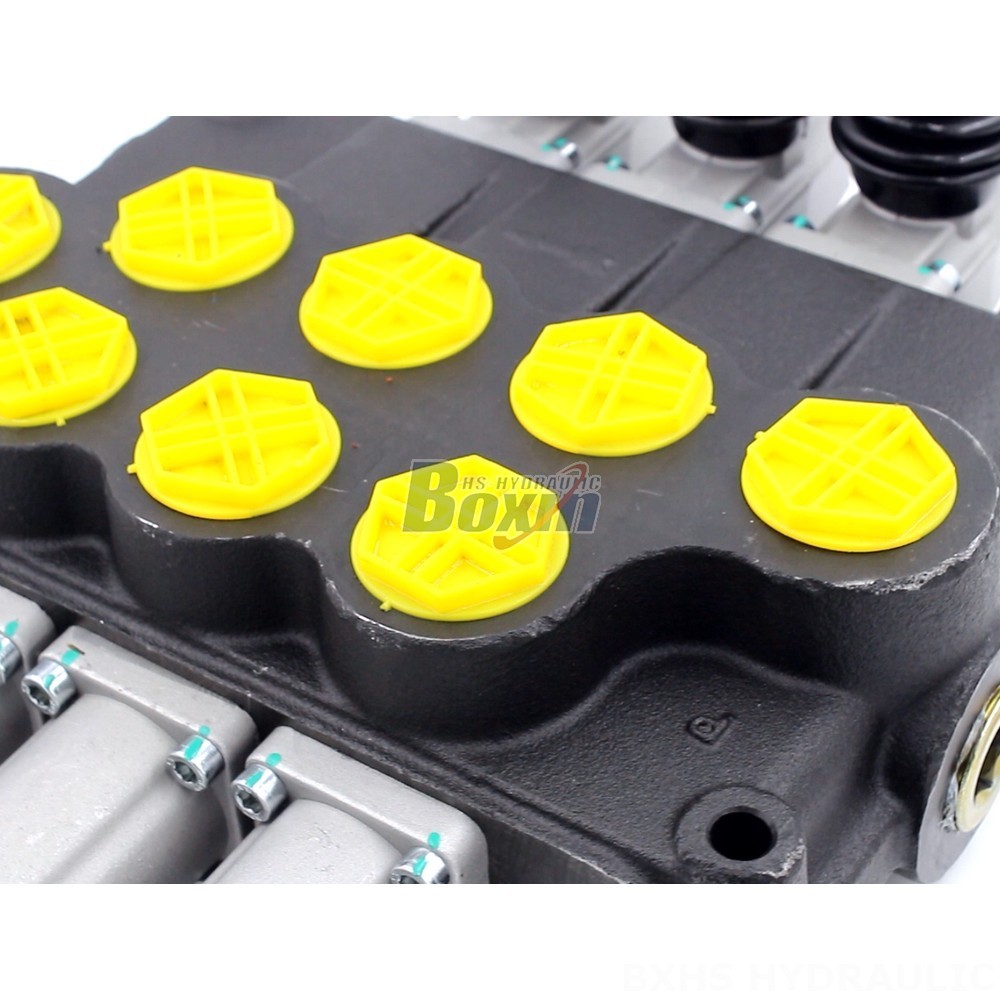

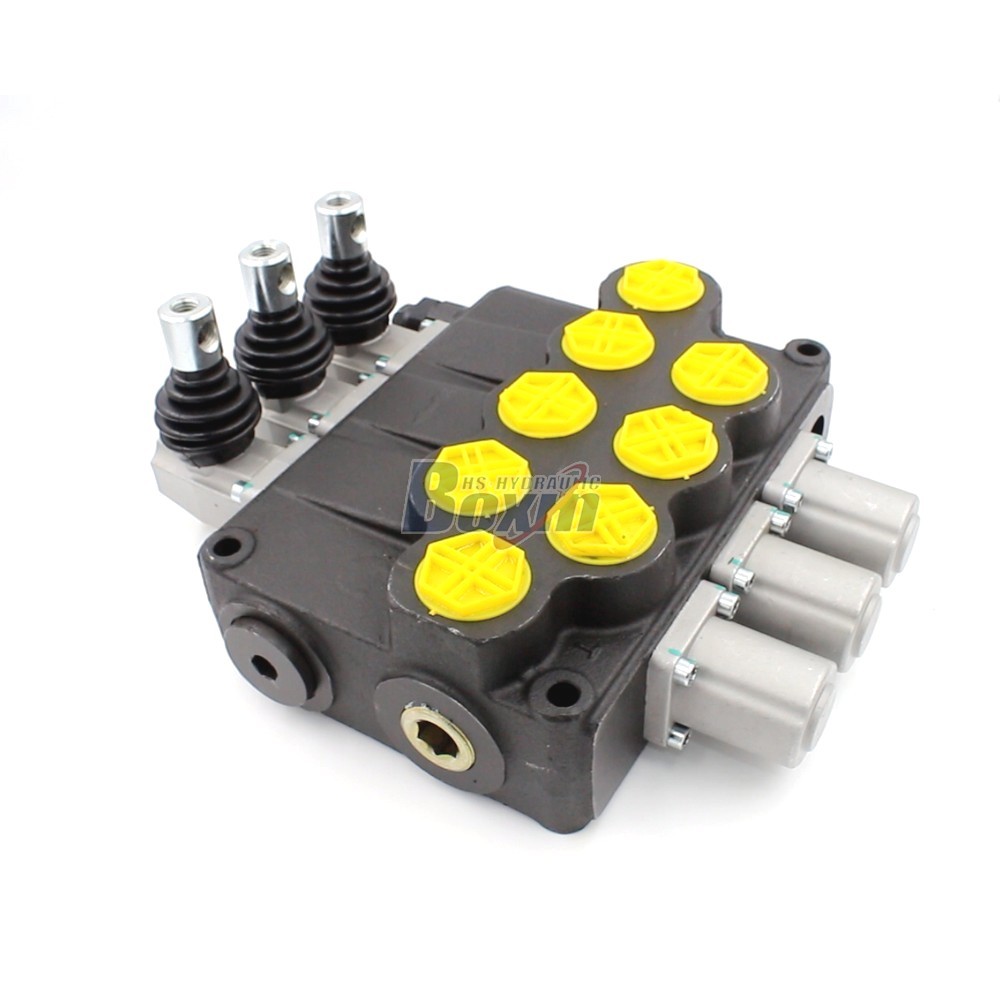

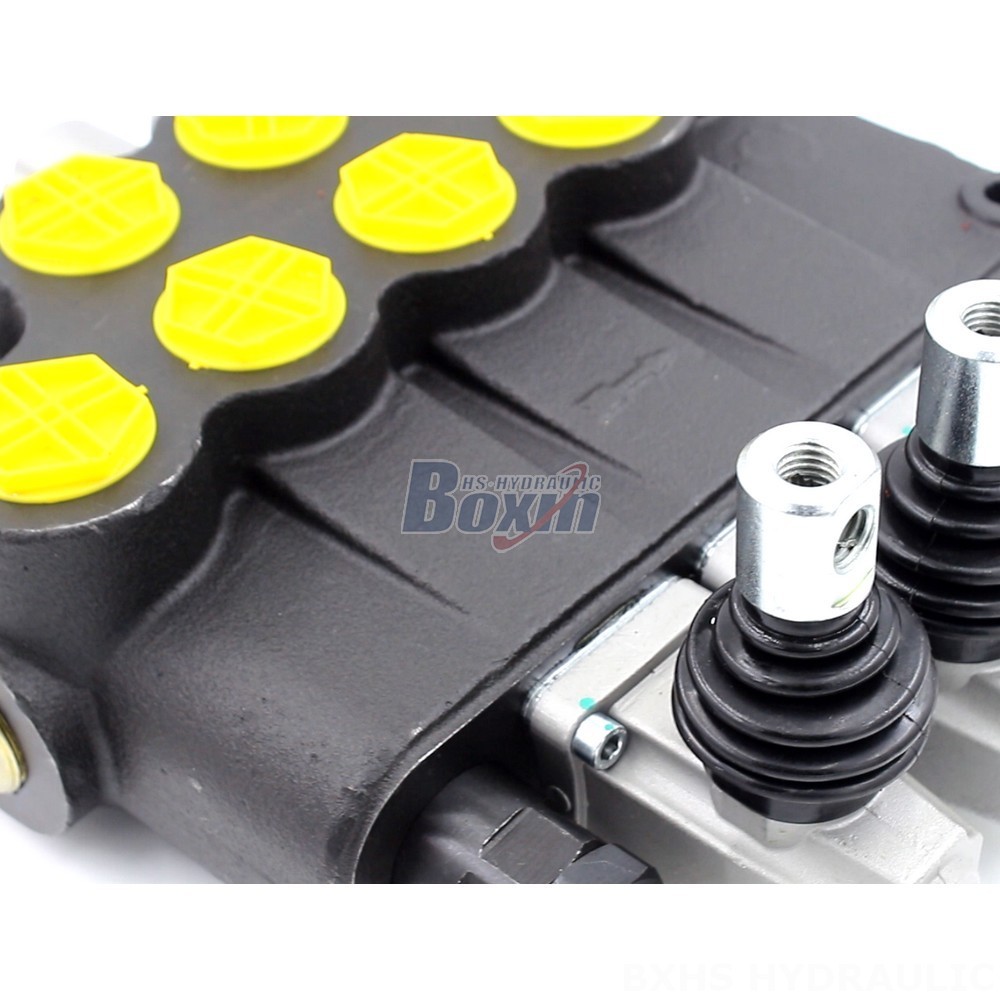

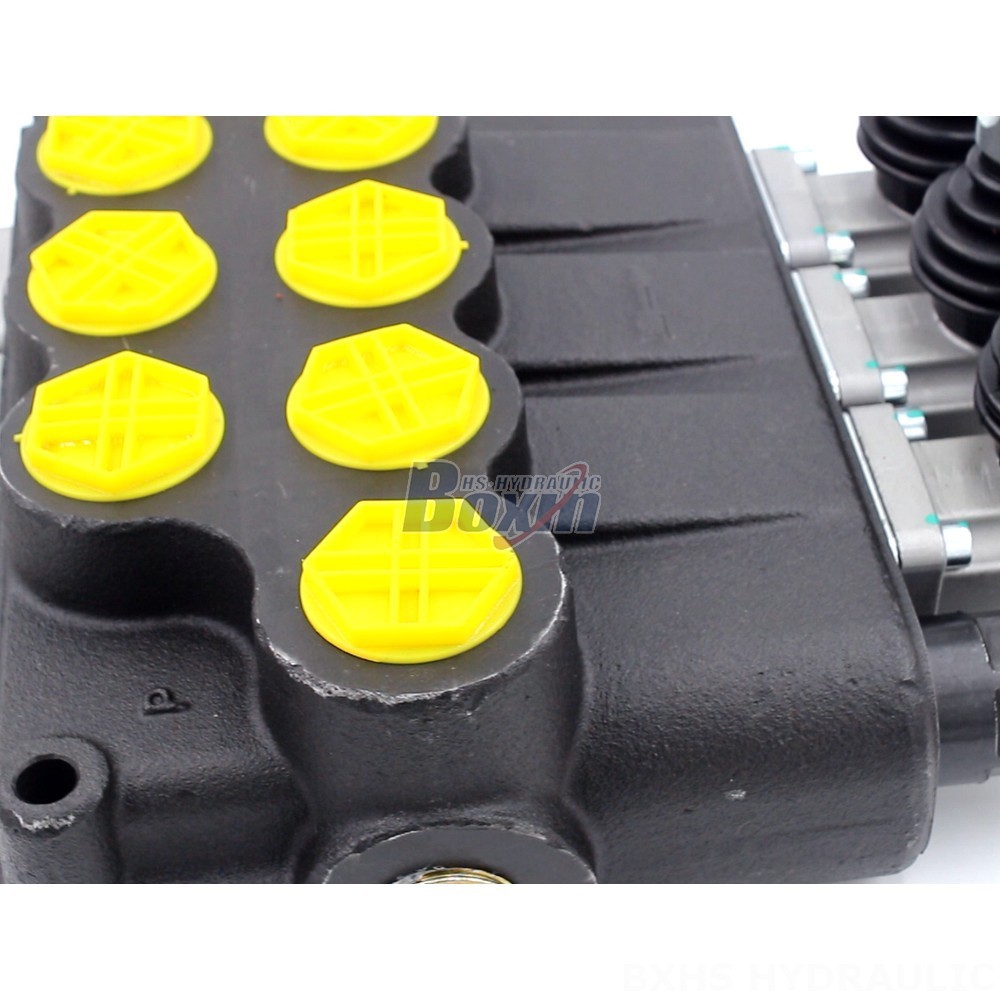

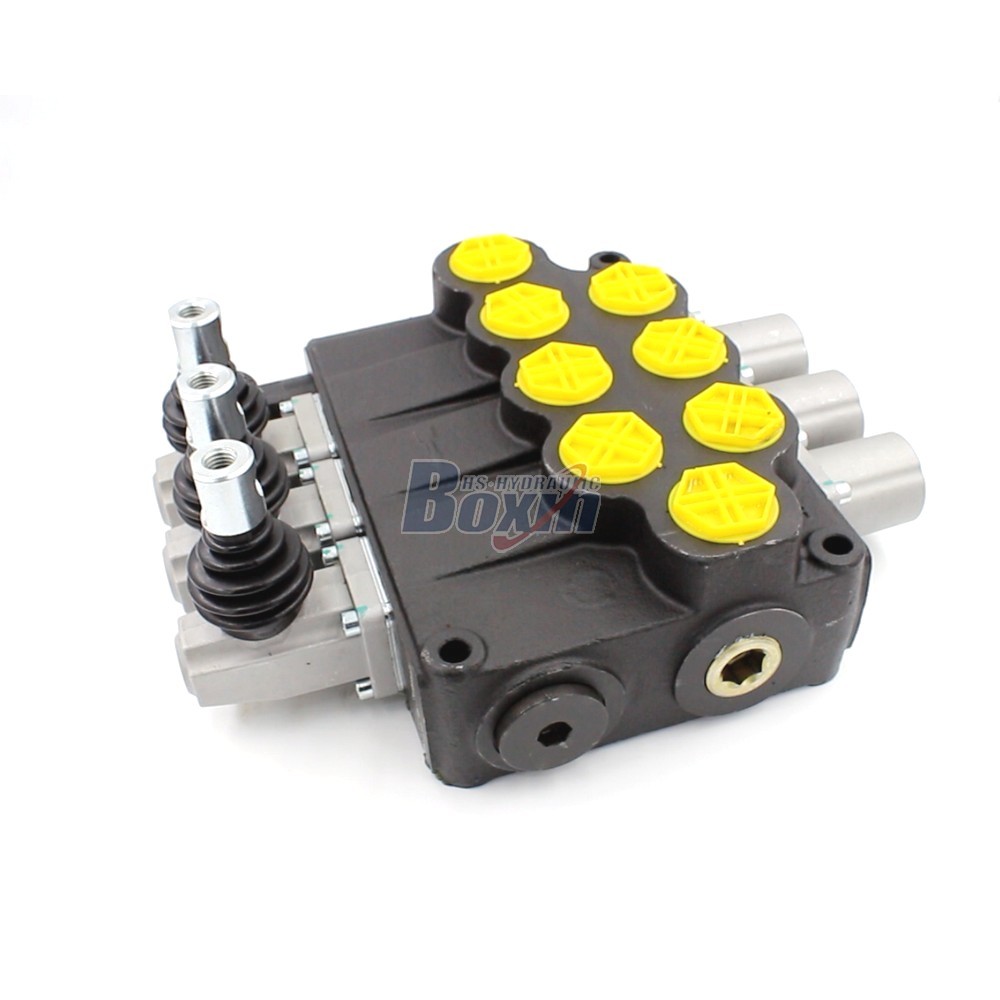

The P120-G1-OT series manual hydraulic directional valve is a 3-section, monoblock valve designed for use in a variety of construction and industrial applications. This valve features a rated flow of 120 L/min and a maximum pressure of 250 bar. It is available for wholesale and OEM orders.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P120-G1-OT series manual hydraulic directional valve is a high-performance, reliable valve designed for use in demanding applications. It features a 3-section, monoblock design for durability and ease of maintenance. The valve is rated for a flow rate of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of construction, material handling, and industrial equipment. It is available for wholesale and OEM orders, allowing you to customize the valve to meet your specific needs. The valve is also compatible with a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, midi excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
