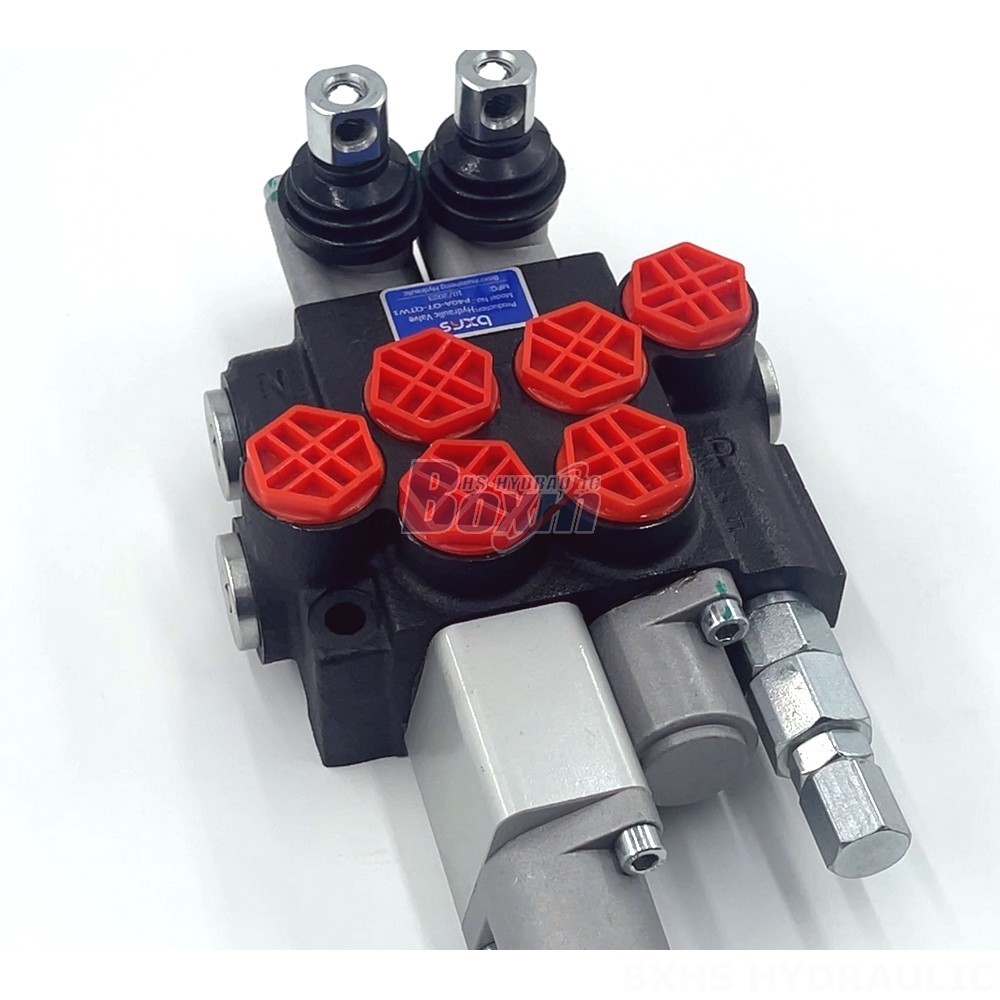

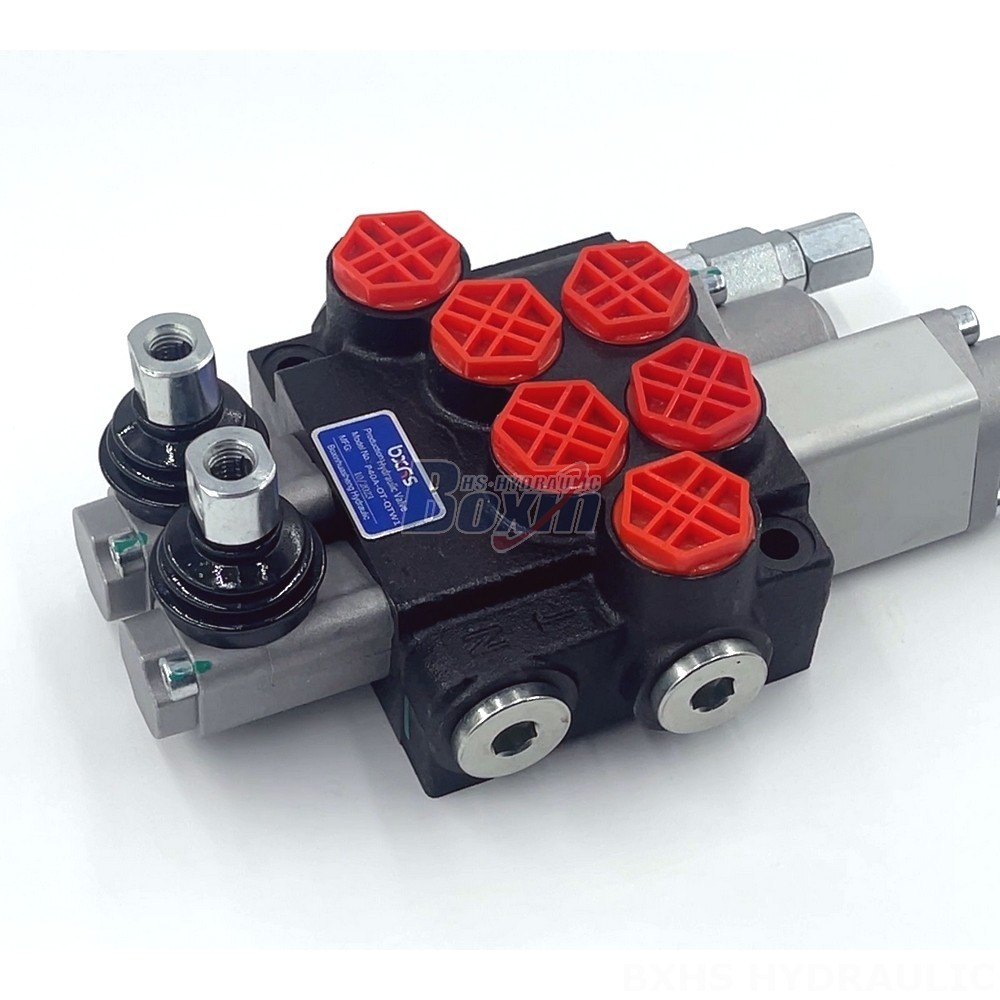

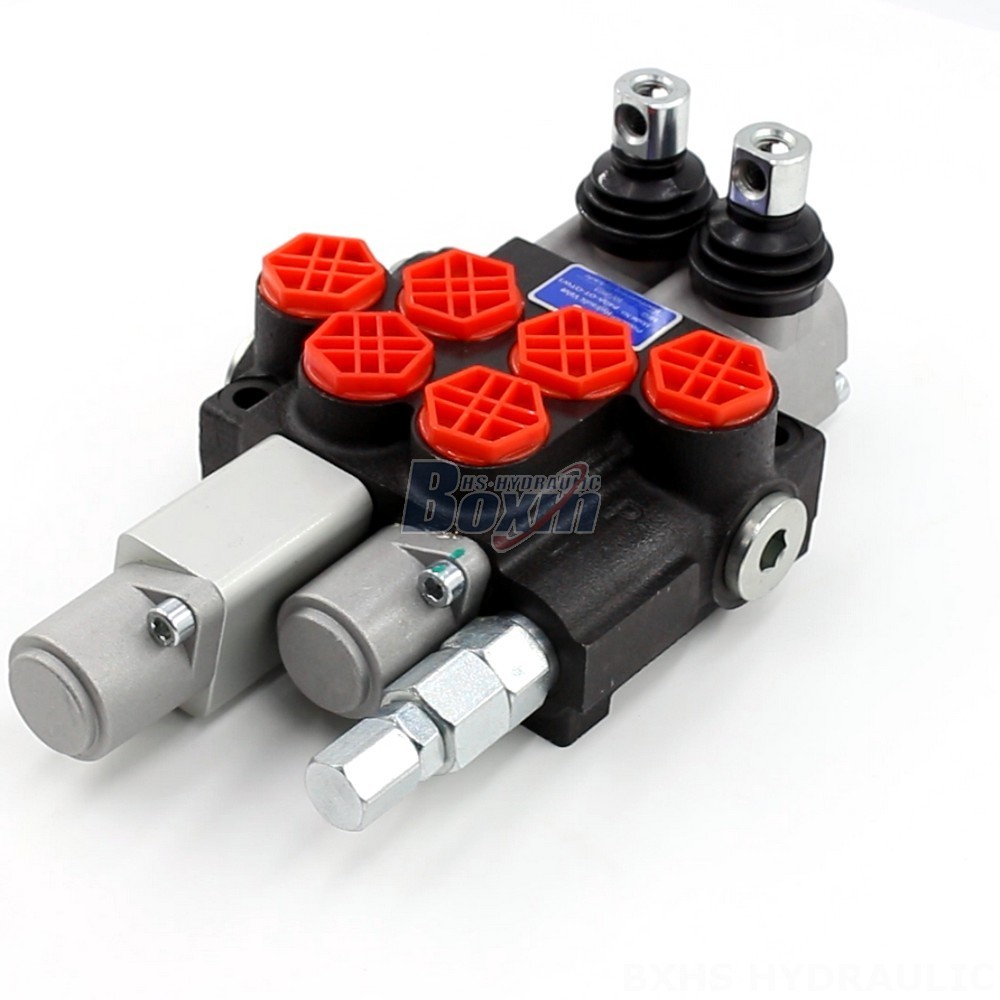

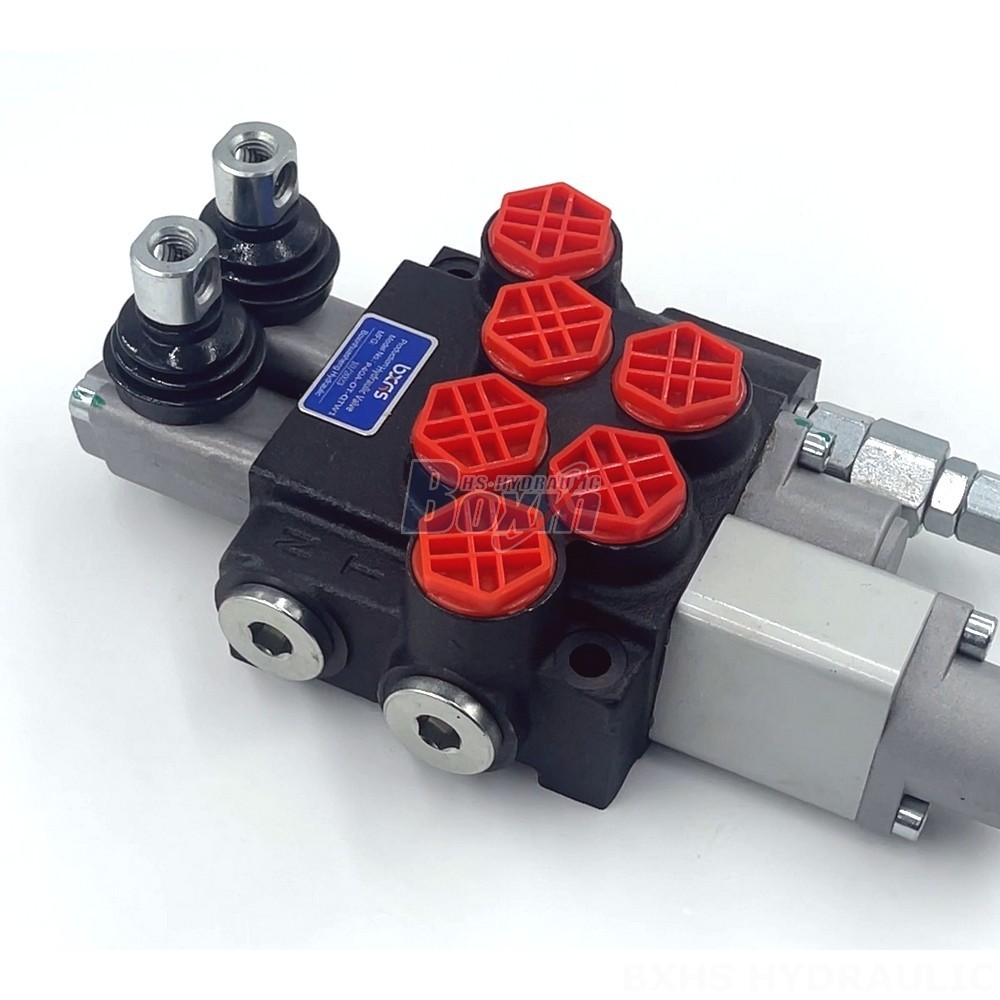

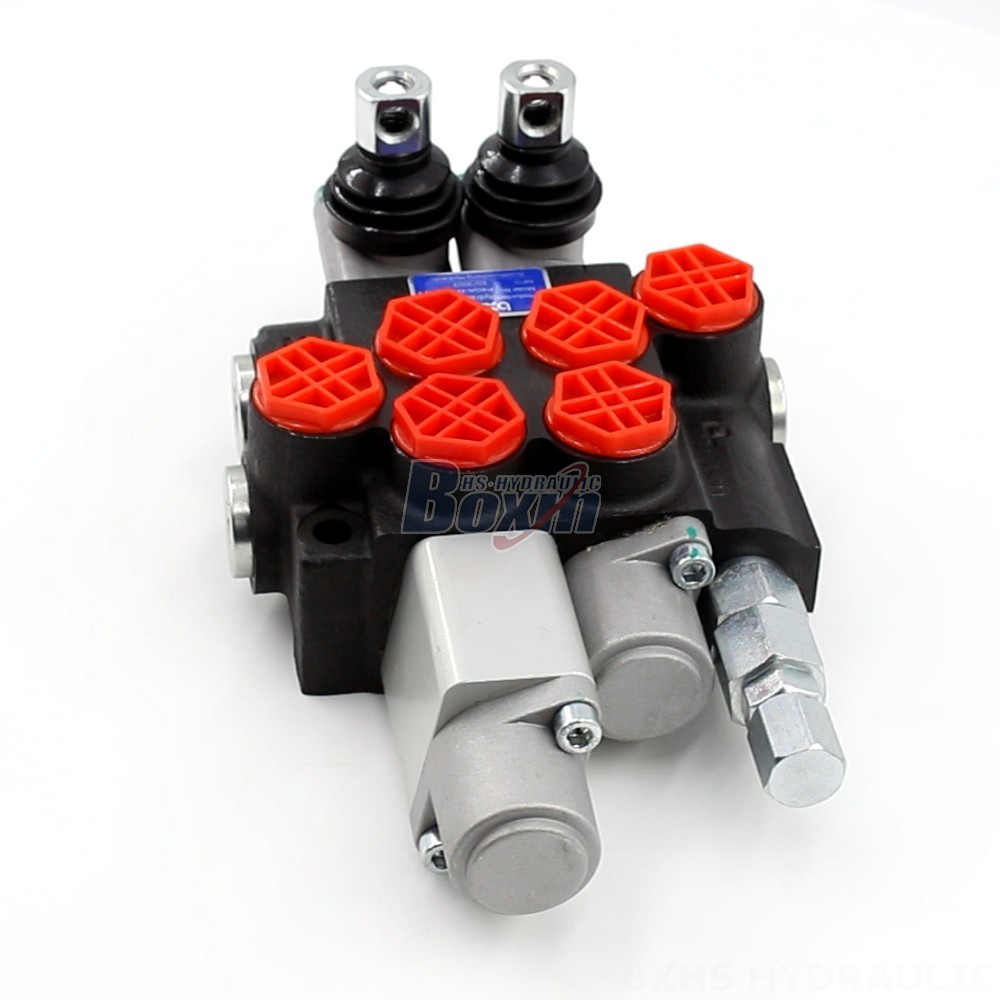

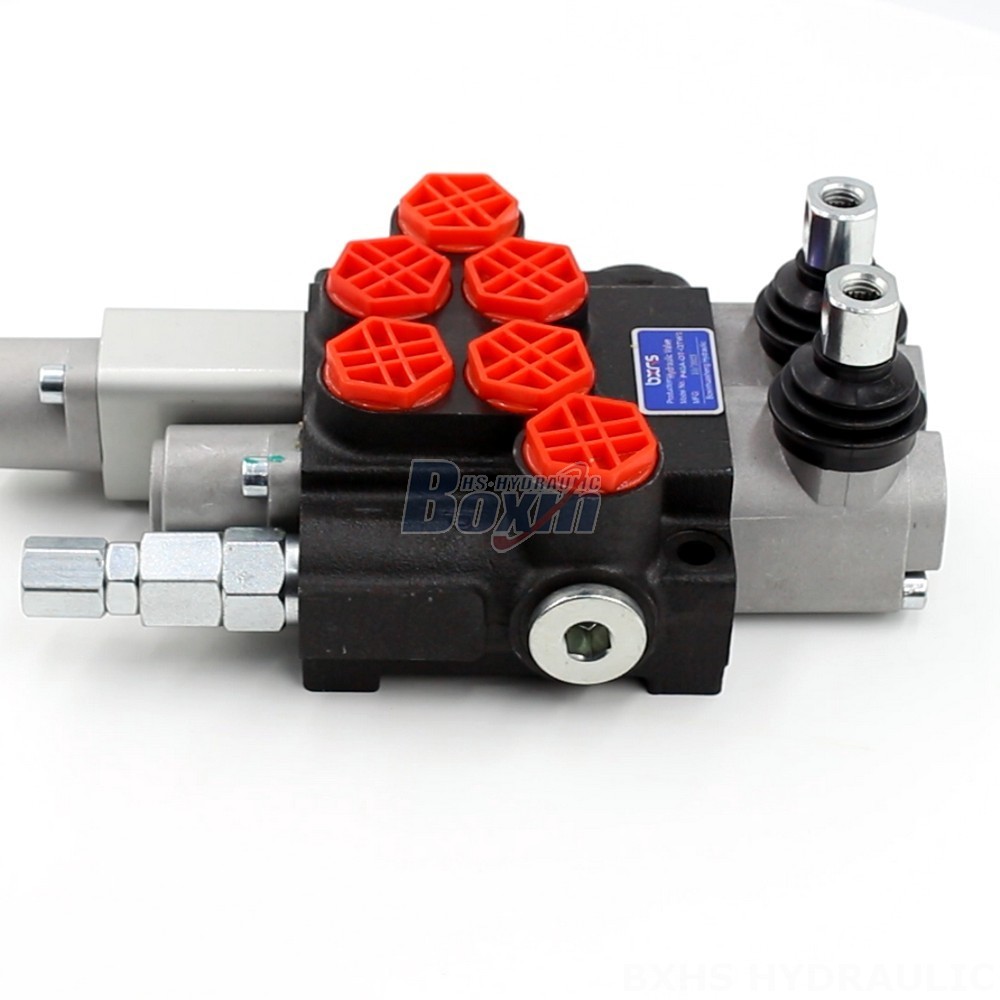

The P40A Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides reliable and efficient flow control in demanding operating conditions. Its compact monoblock design ensures durability and reduces installation time, making it an ideal choice for applications where space and weight are critical.
| P40A Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**Key Features:**
* Manual control for precise flow adjustment
* 2 spool design for independent control of two hydraulic circuits
* Monoblock construction for durability and reduced installation time
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for handling high-pressure systems
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for operation in challenging environments
**Applications:**
* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Material handling equipment: Forklifts, telehandlers, aerial platforms
* Construction and earth moving machinery: Excavators, skid steer loaders, compact wheel loaders, motor graders
