Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*21*13

Kelas kotor:6.60 kg

Ketersediaan: Tersedia

1034 Pandangan Mencari Produk Ini

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM

Hydraulic Monoblock Directional Valve - P40-G12 Series: Wholesale & OEM drawing image

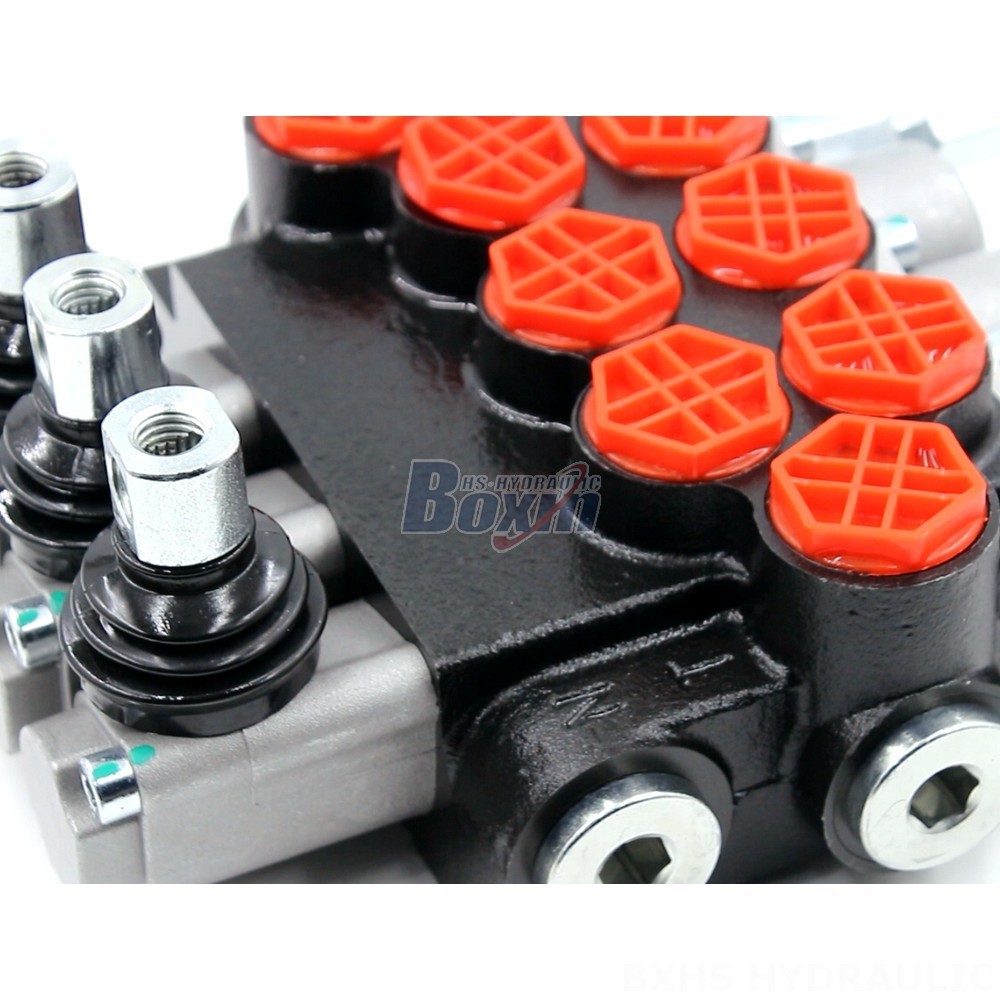

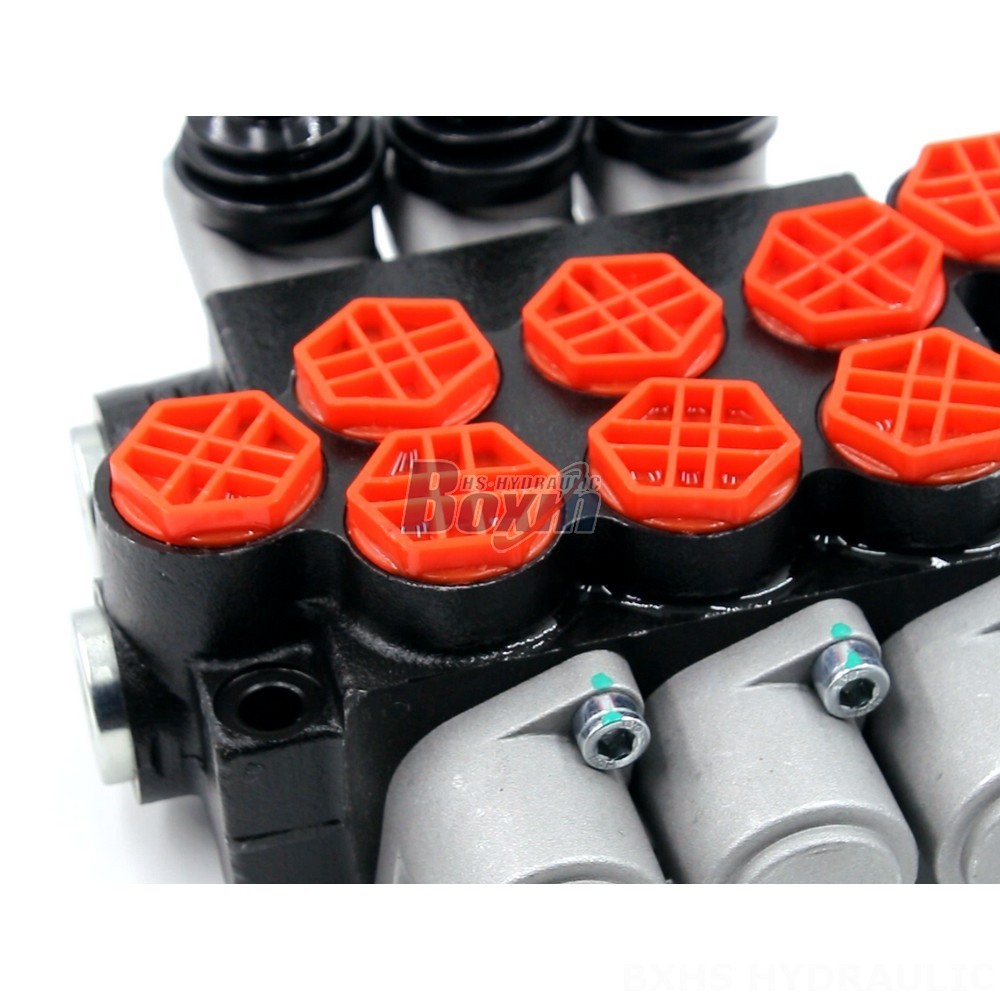

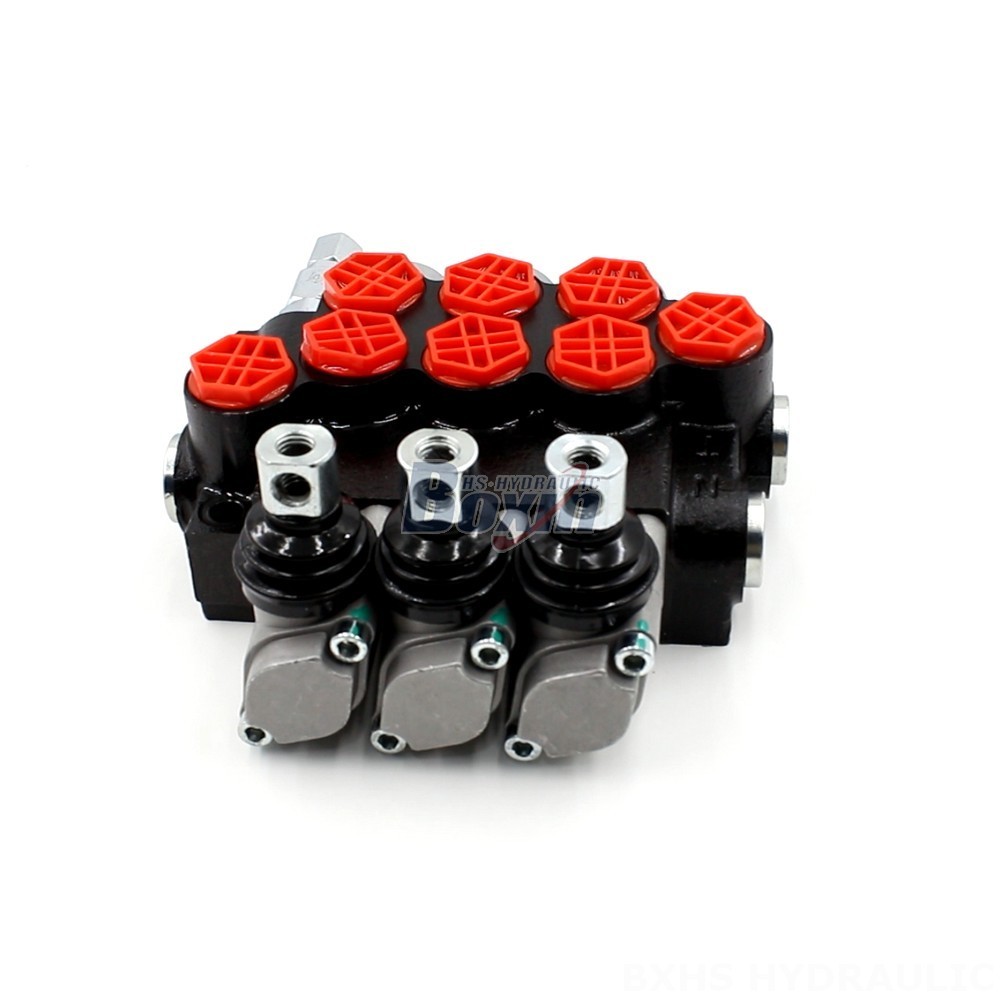

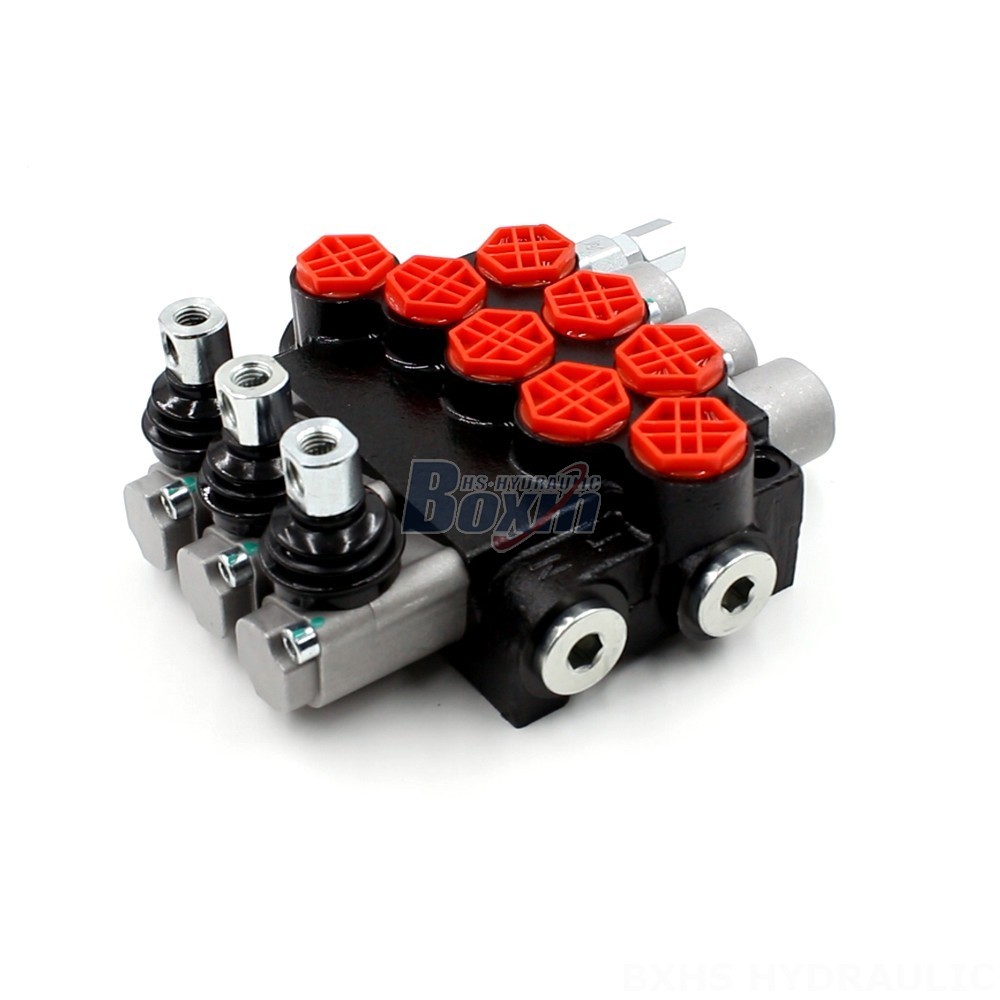

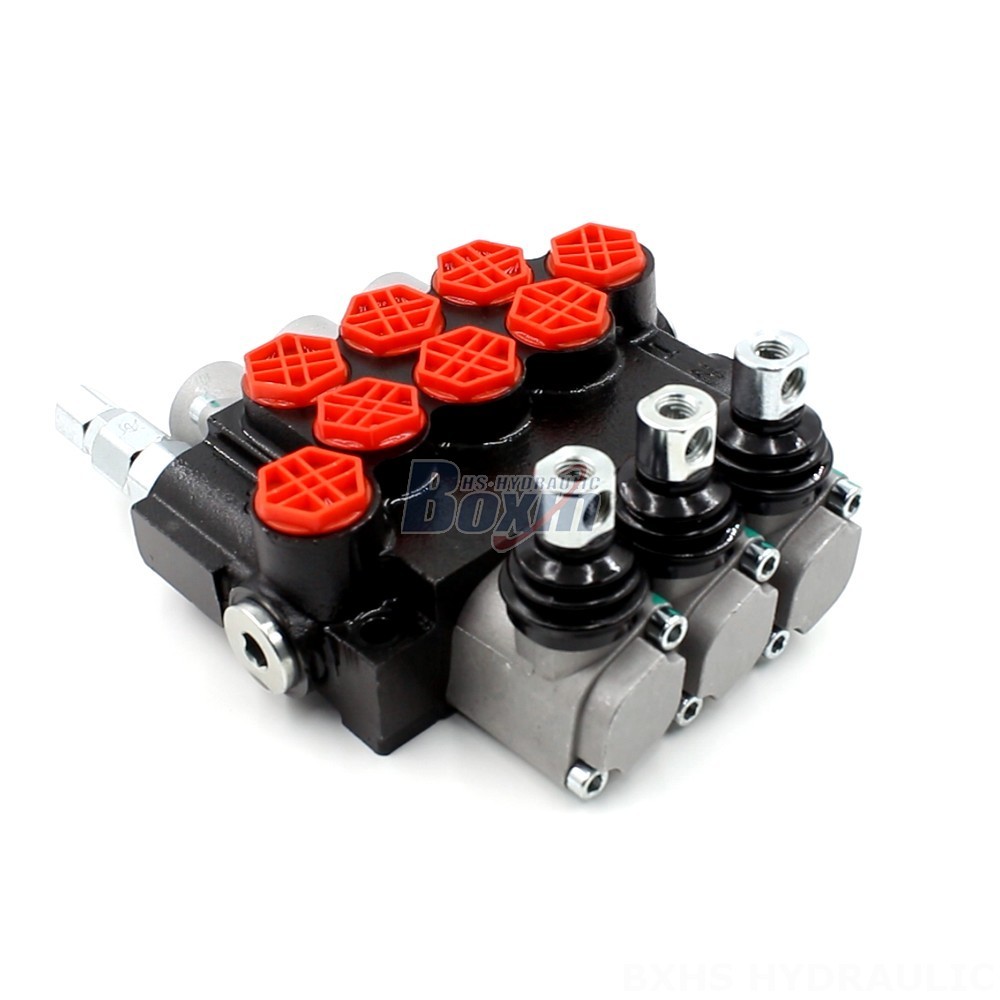

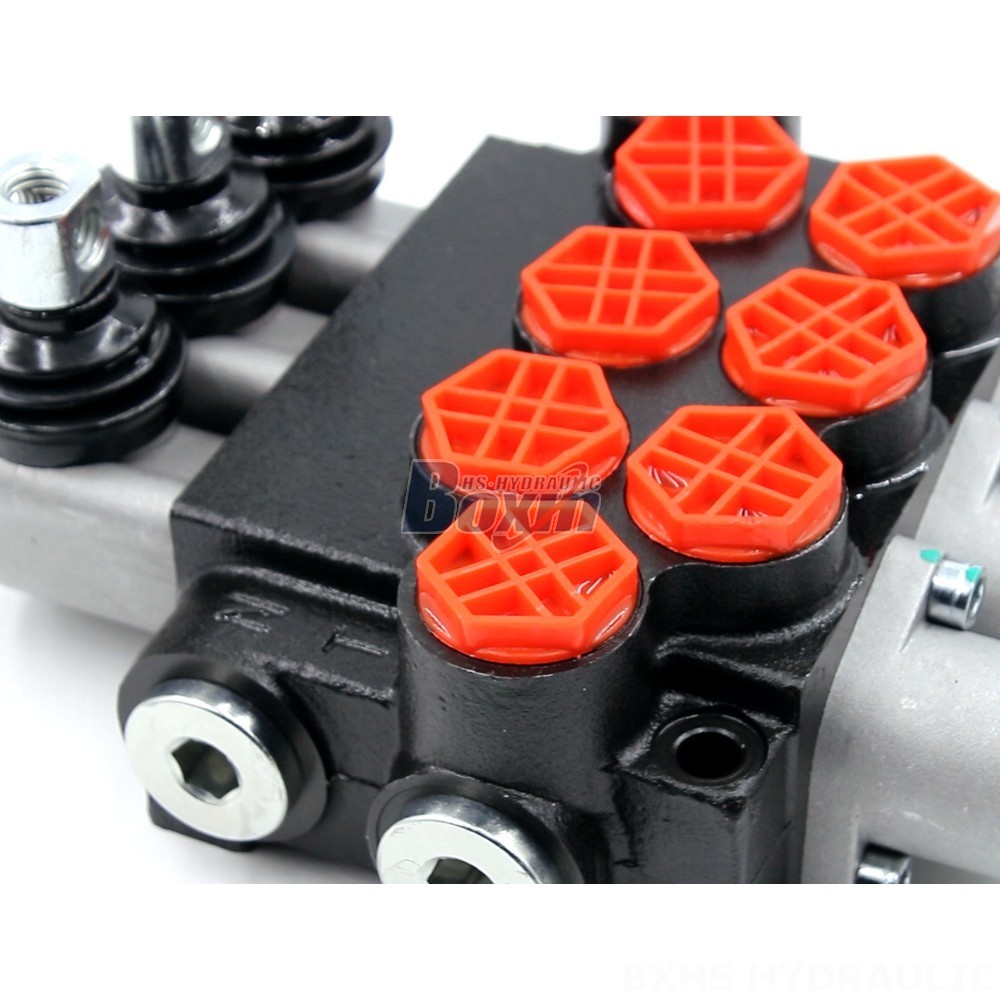

The P40-G12 Series Hydraulic Monoblock Directional Valve is a high-performance, versatile valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 3-section monoblock structure with a rated flow of 40 L/min and a maximum pressure of 250 bar. It's perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12 Series Hydraulic Monoblock Directional Valve is a robust and reliable solution for controlling hydraulic systems in various applications. It features a 3-section monoblock structure, offering superior strength and durability. The valve is equipped with a 3-spool design and has a rated flow of 40 L/min, making it suitable for various demanding applications. It can withstand pressures up to 250 bar, ensuring efficient operation in high-pressure environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve can handle diverse operating conditions. This valve is specifically designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a range of machines like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
