Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1068 Pandangan Mencari Produk Ini
This high-performance P40 Series 3rd Function Valve is a versatile hydraulic valve designed for various applications in construction, agriculture, and material handling. It's a monoblock valve with manual control, offering reliability and efficiency. The valve boasts a 40 L/min flow rate, 250 bar pressure capacity, and operates within a broad temperature range.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

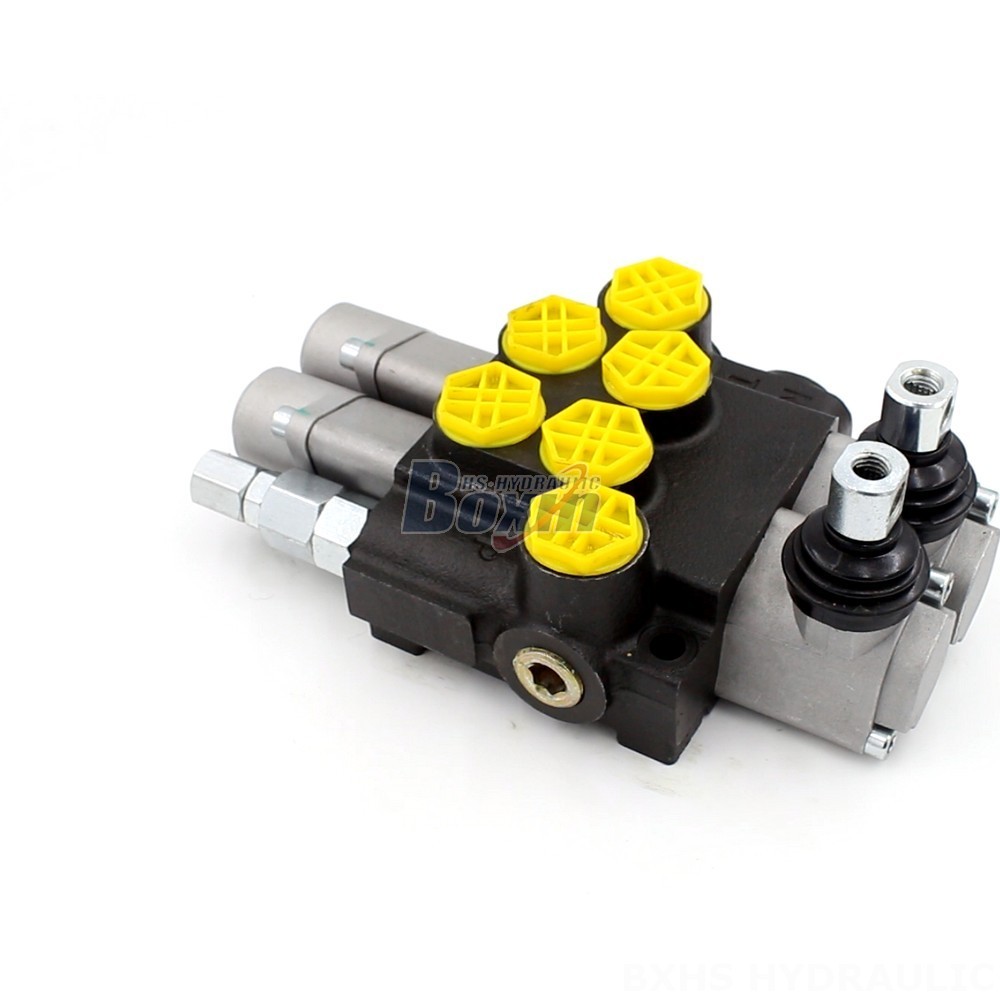

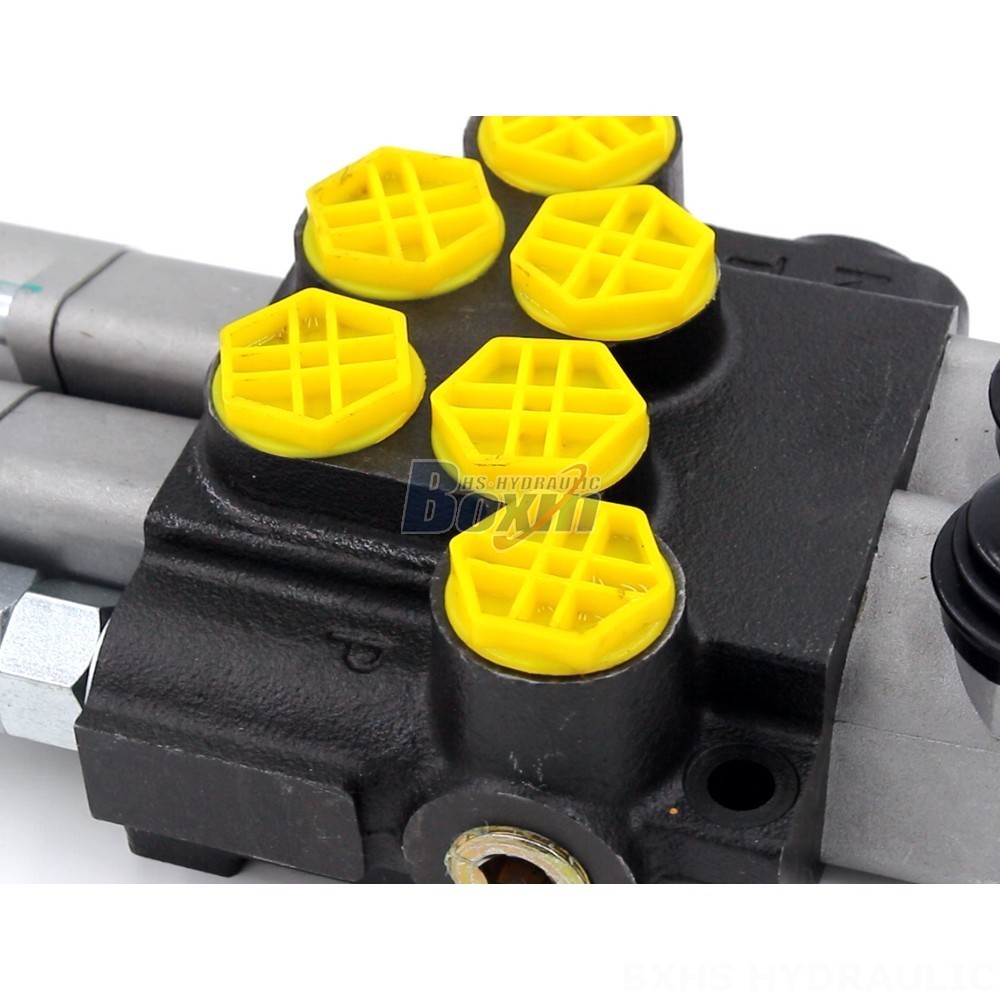

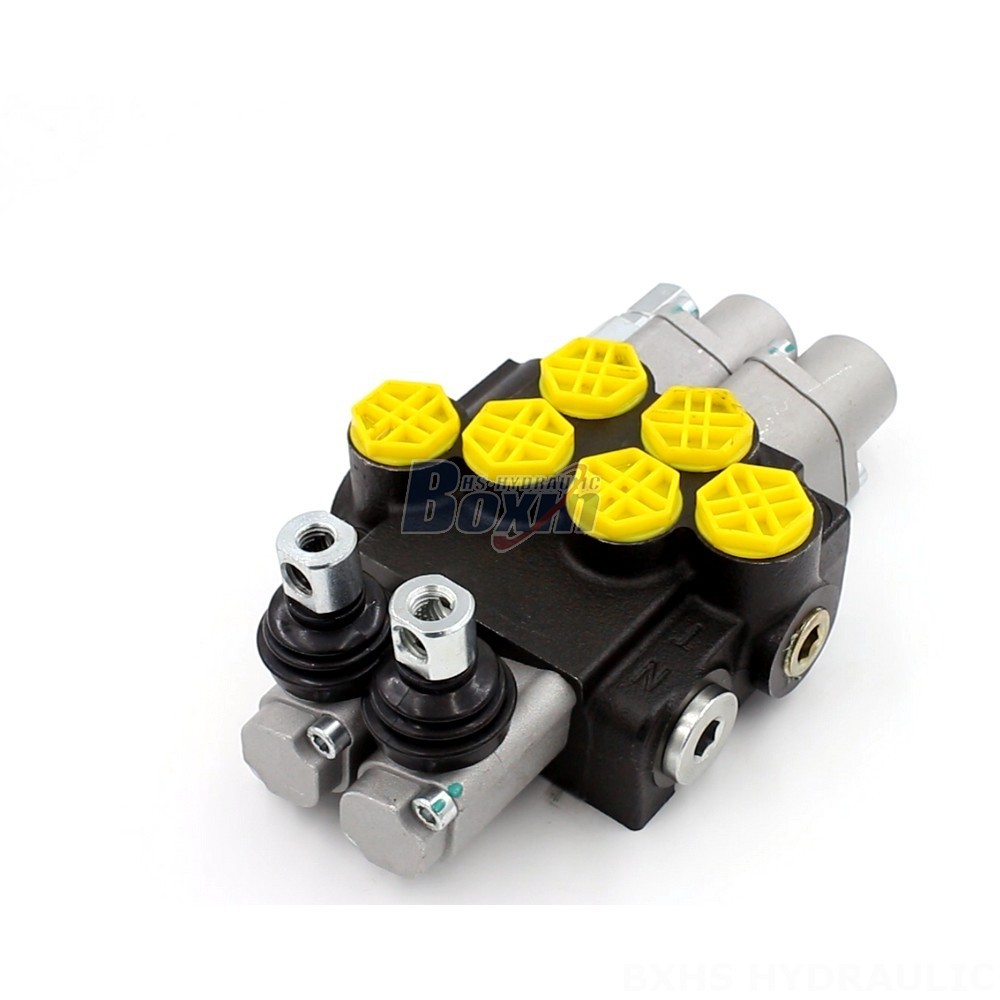

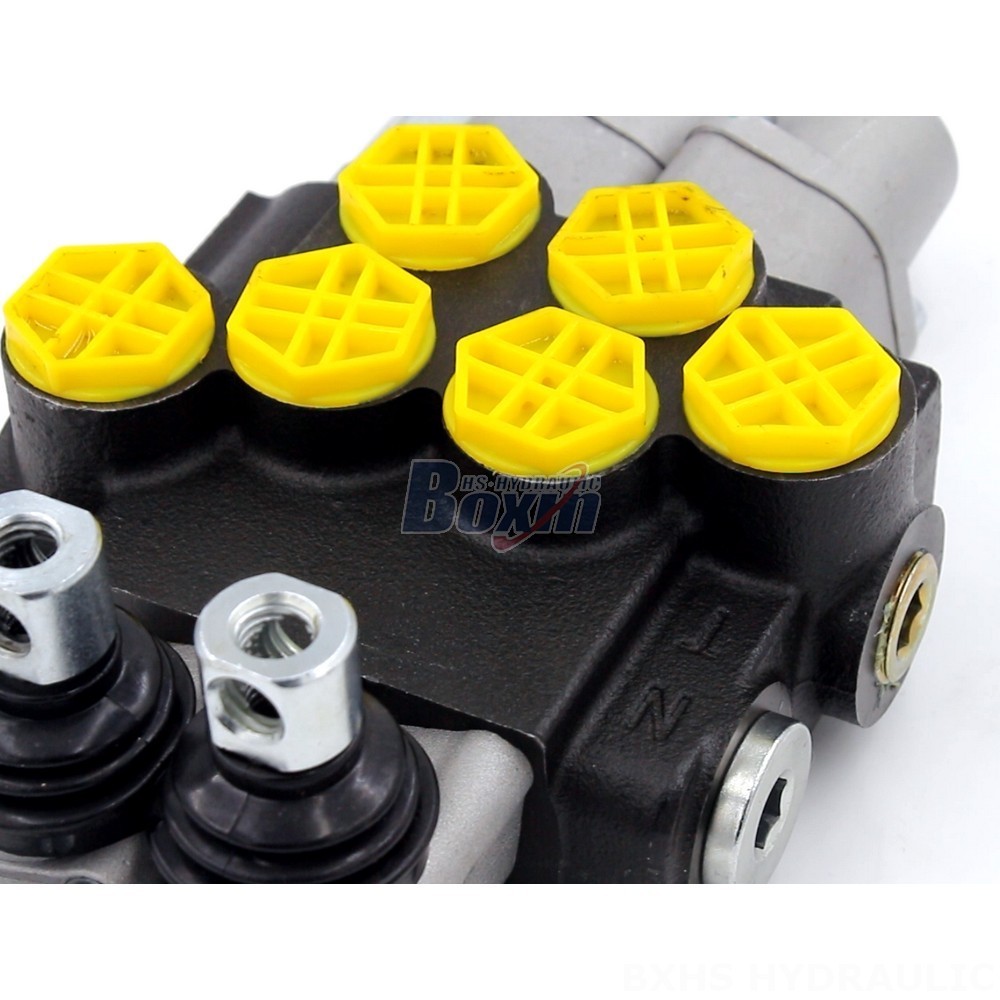

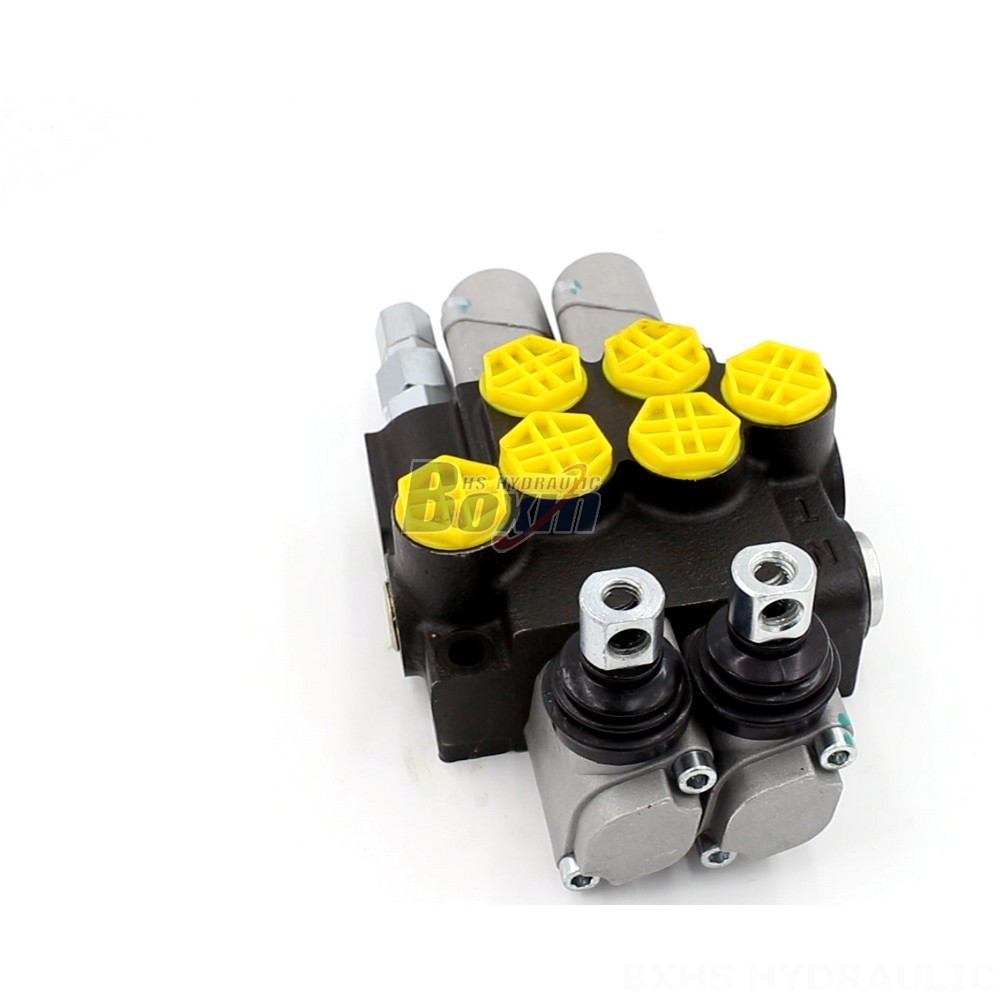

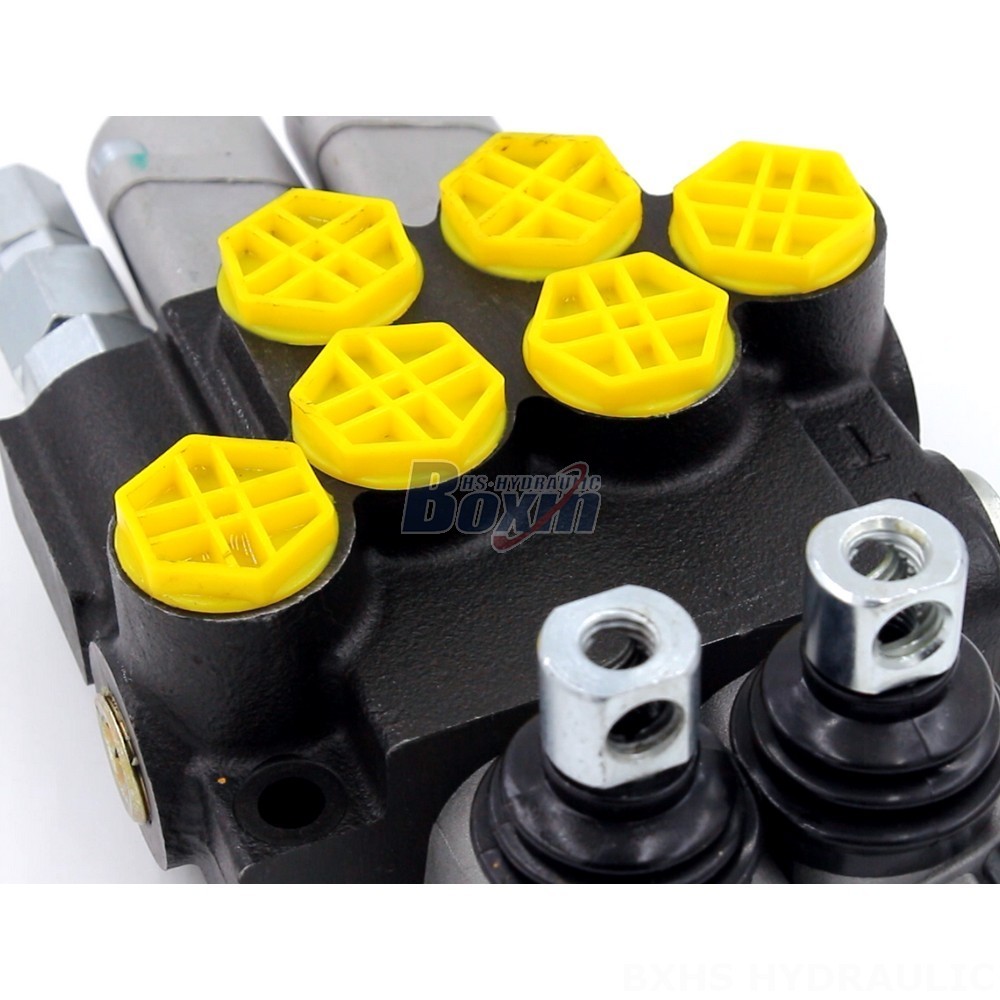

The P40-G12-2OT is a 2-section monoblock hydraulic valve built for demanding applications. It is designed for remote control and offers a 3rd function for increased versatility. The valve features a manual control method, 40 L/min rated flow, and a maximum pressure of 250 bar. Its robust construction allows for operation in temperatures ranging from -40°C to +80°C. The P40-G12-2OT is a reliable choice for various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve's compact design and robust performance make it a valuable addition to any heavy-duty machinery.
