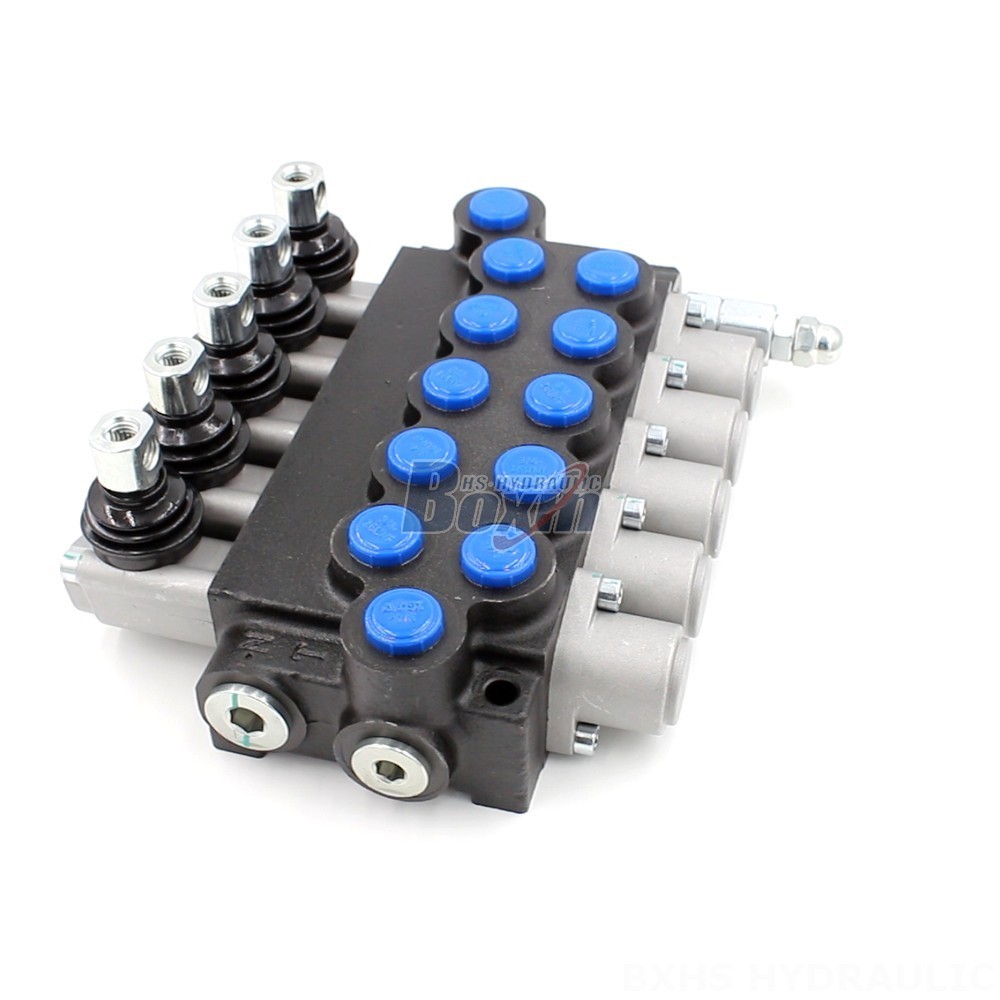

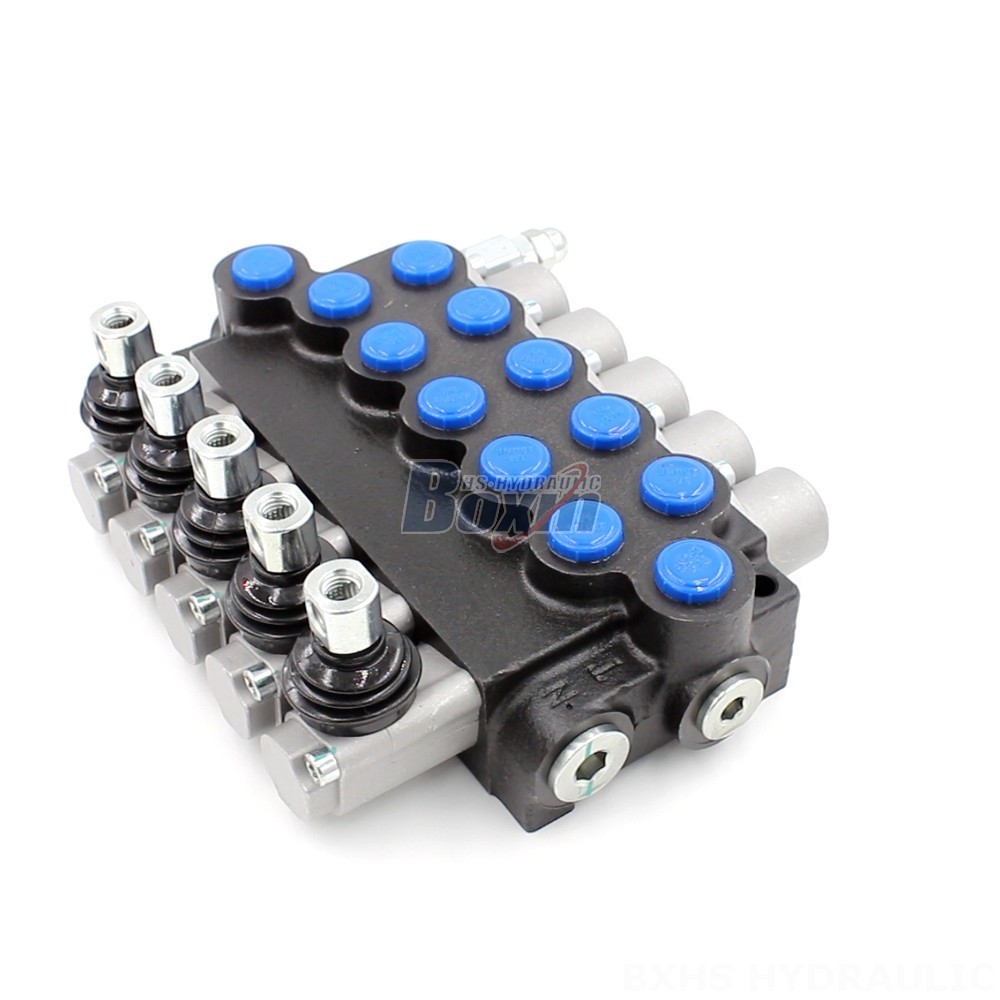

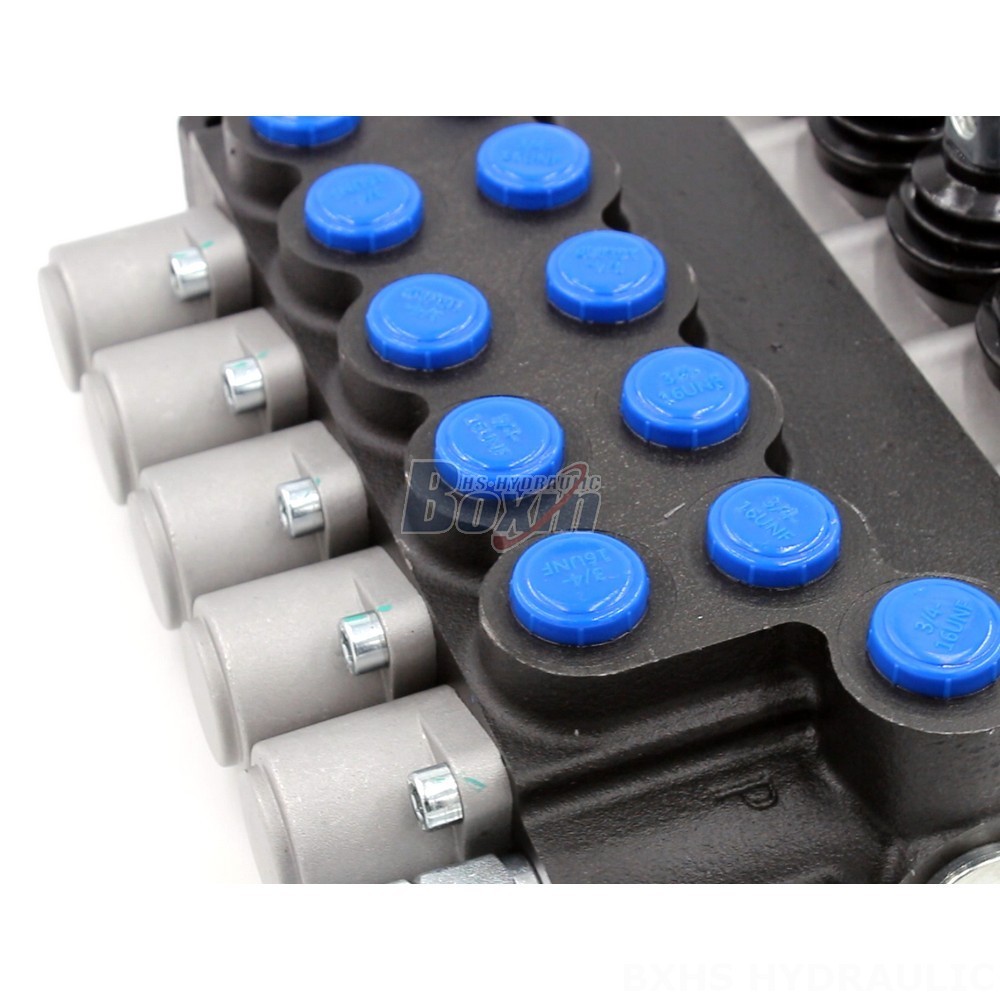

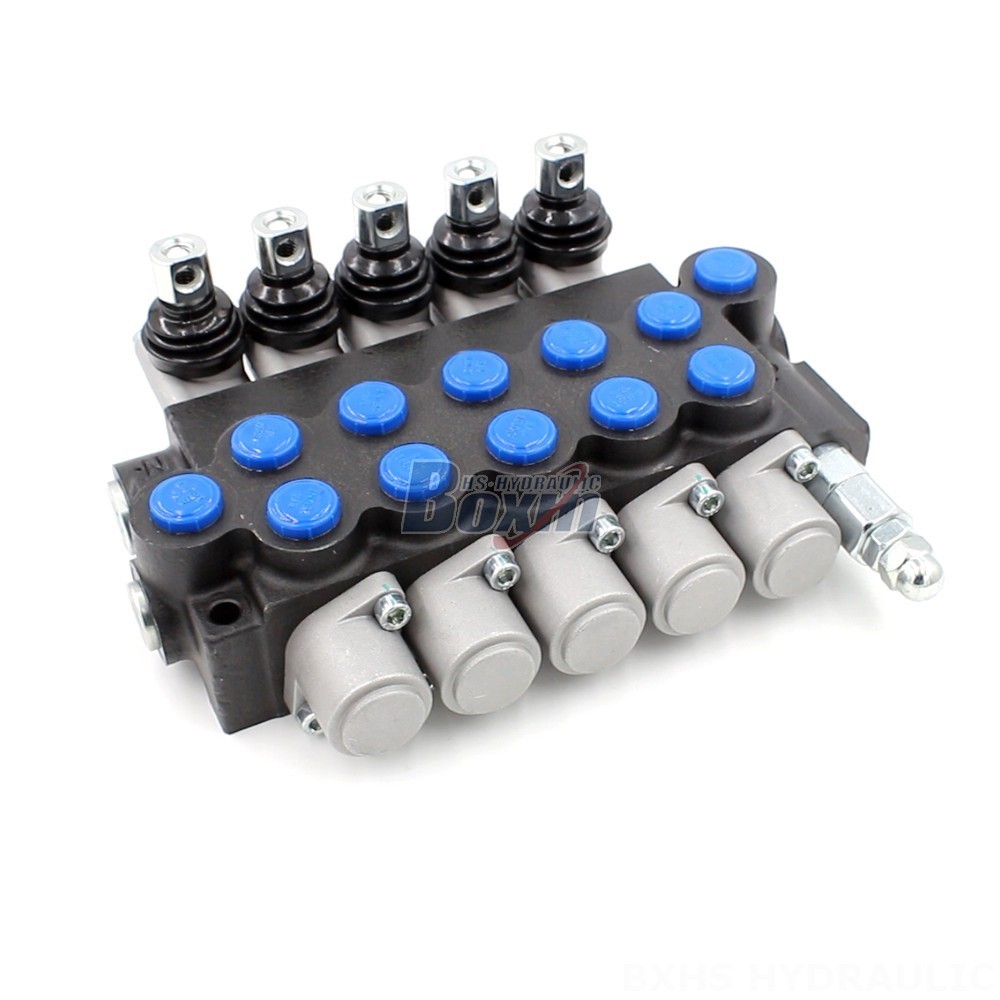

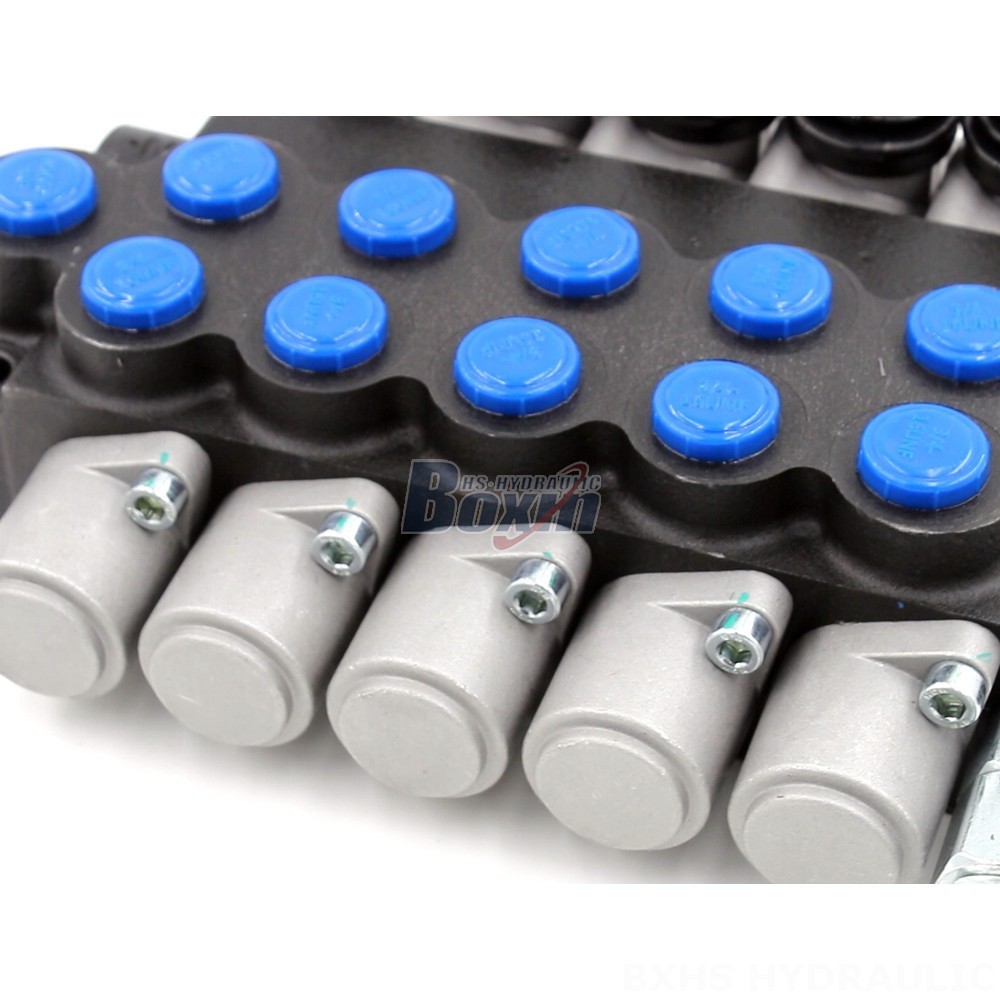

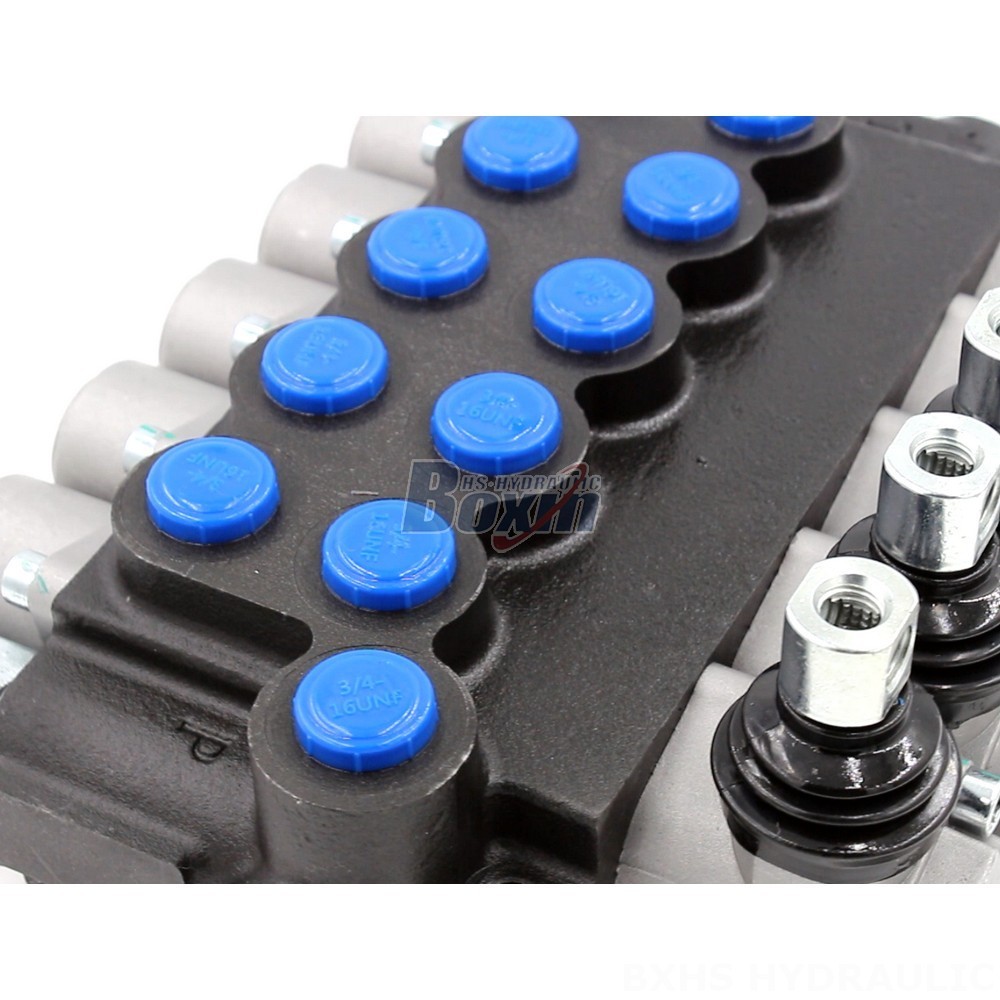

The Hidraulico De Varvula 60 Litro 315 Bar Hydraulic Monoblock Valve P40-U78 is a high-performance, 5-section monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles, this valve is ideal for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Hidraulico De Varvula 60 Litro 315 Bar Hydraulic Monoblock Valve P40-U78 is a robust and reliable valve designed for demanding applications in a variety of industries. Its 5-section, monoblock construction ensures high flow rates and maximum pressure handling, while the manual control method offers precise operation. The valve's rated flow of 40 L/min and maximum pressure of 250 bar make it suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators. The valve features a robust design, a compact footprint, and a wide operating temperature range (-40°C to +80°C), making it ideal for use in diverse environments. The Hidraulico De Varvula 60 Litro 315 Bar Hydraulic Monoblock Valve P40-U78 is a high-quality, durable, and reliable solution for your hydraulic system needs.
