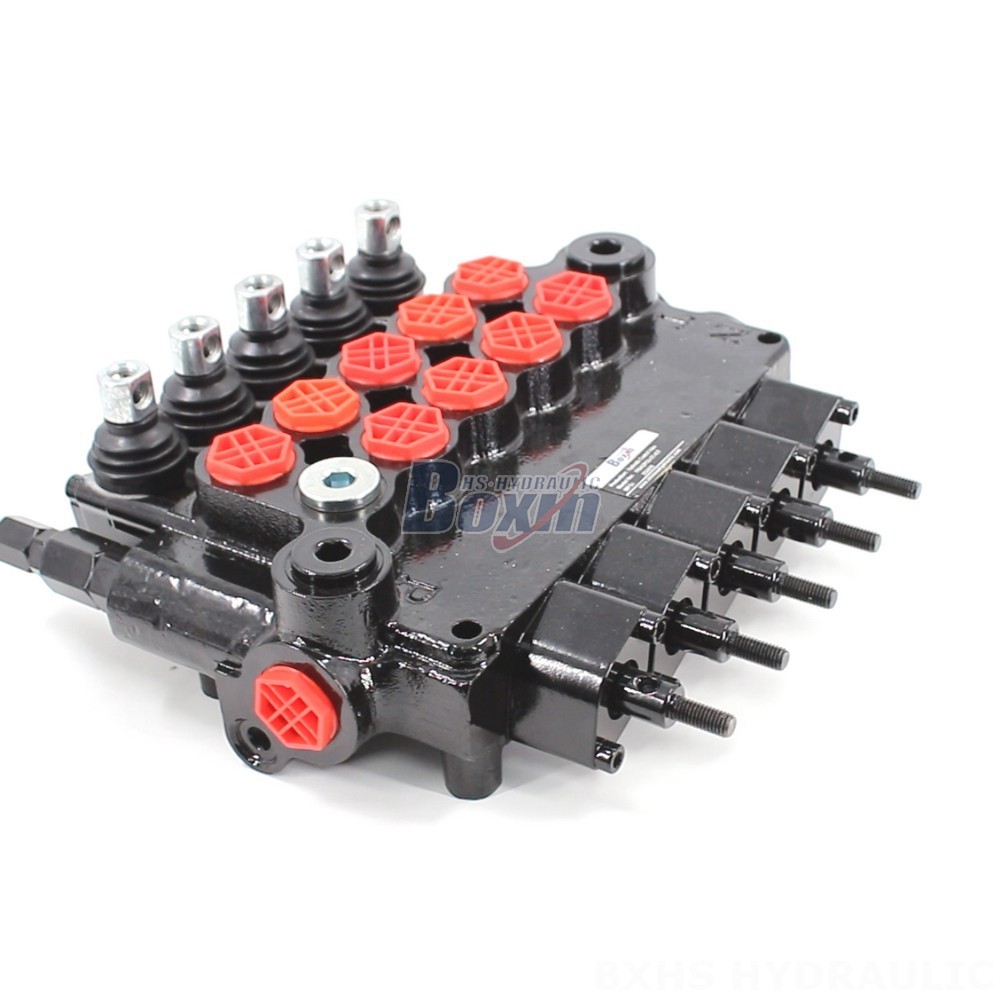

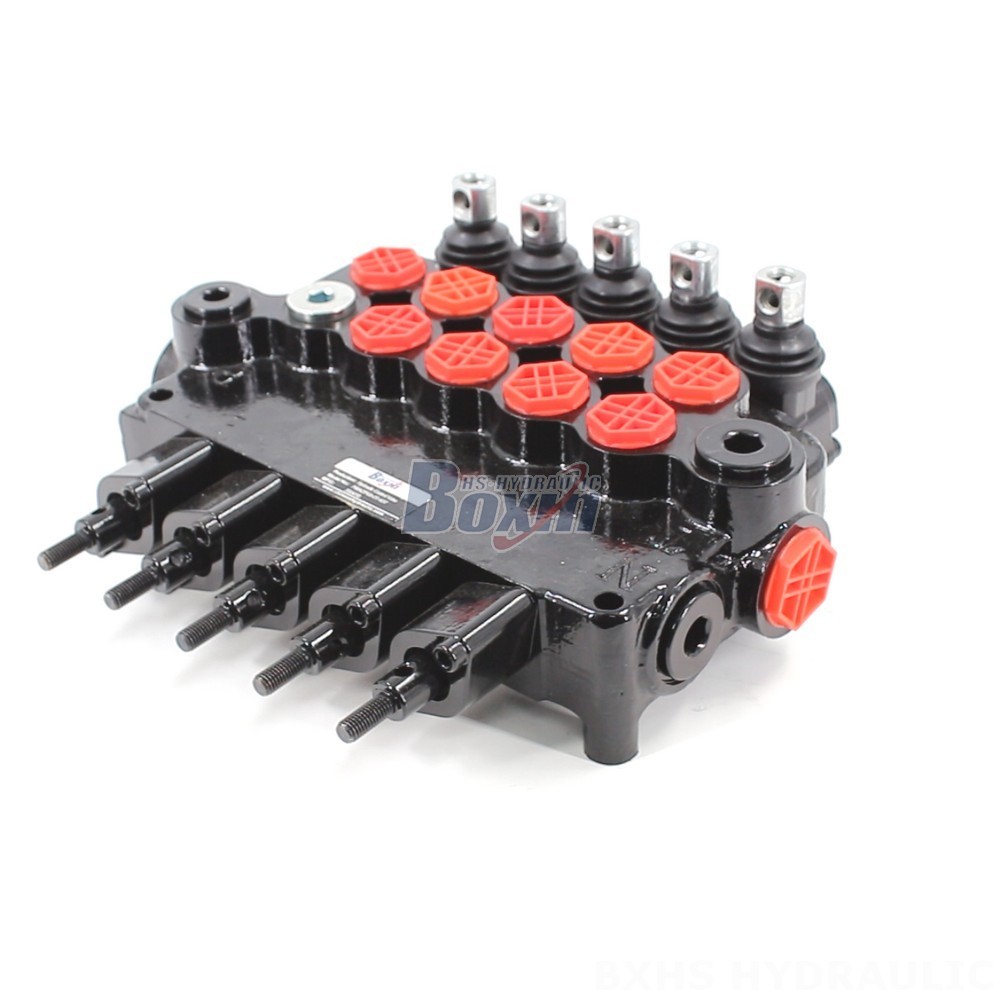

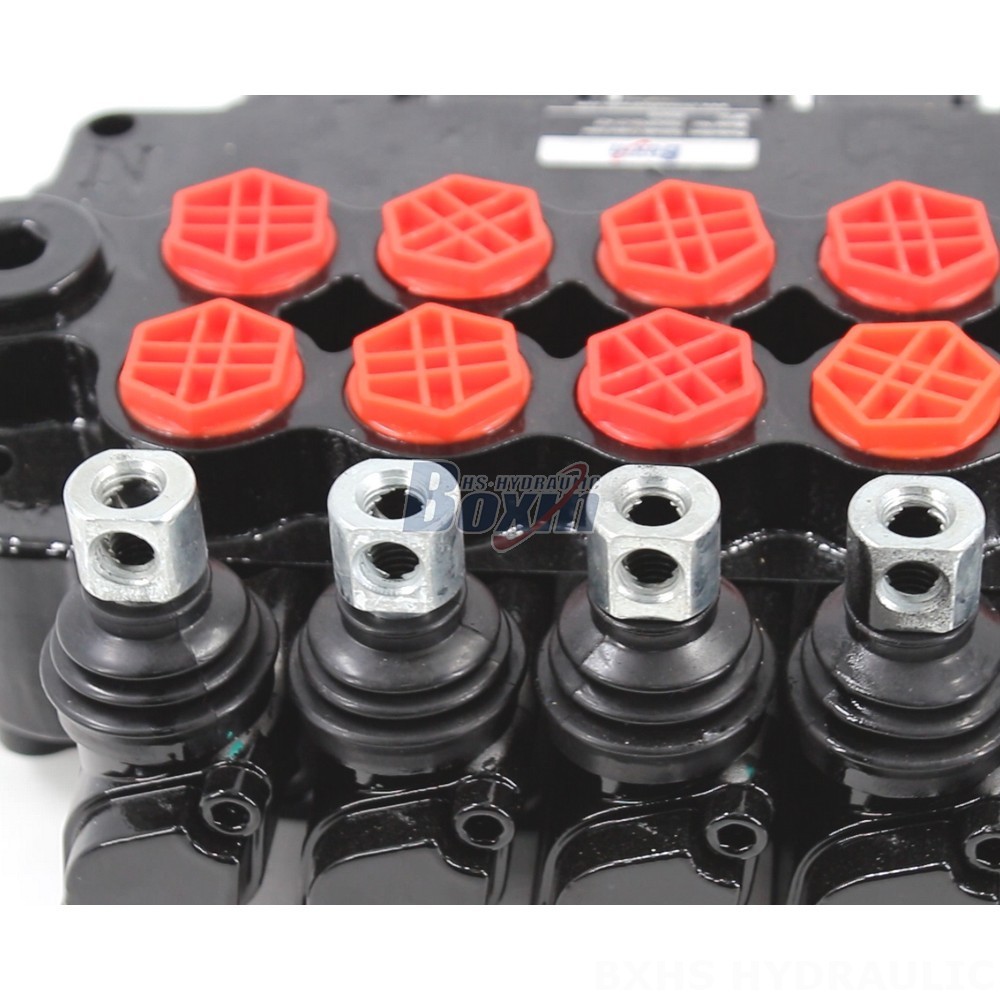

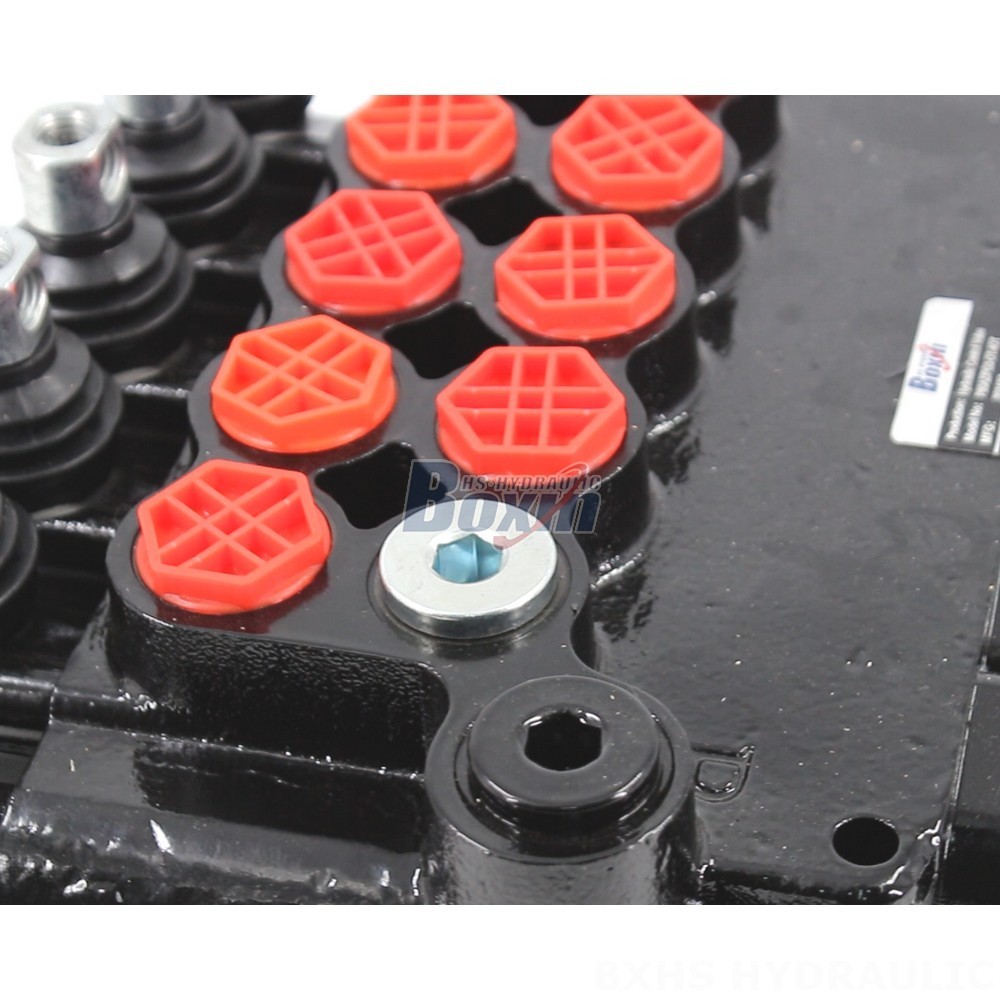

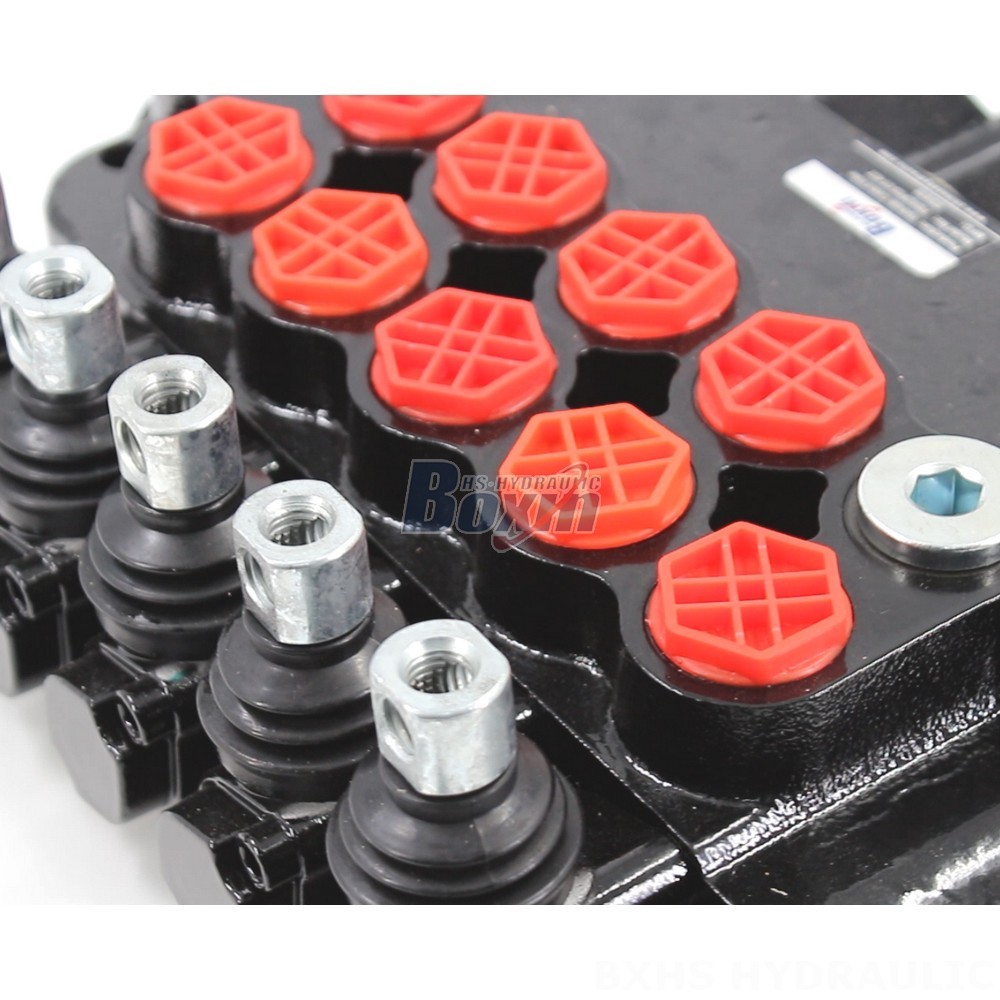

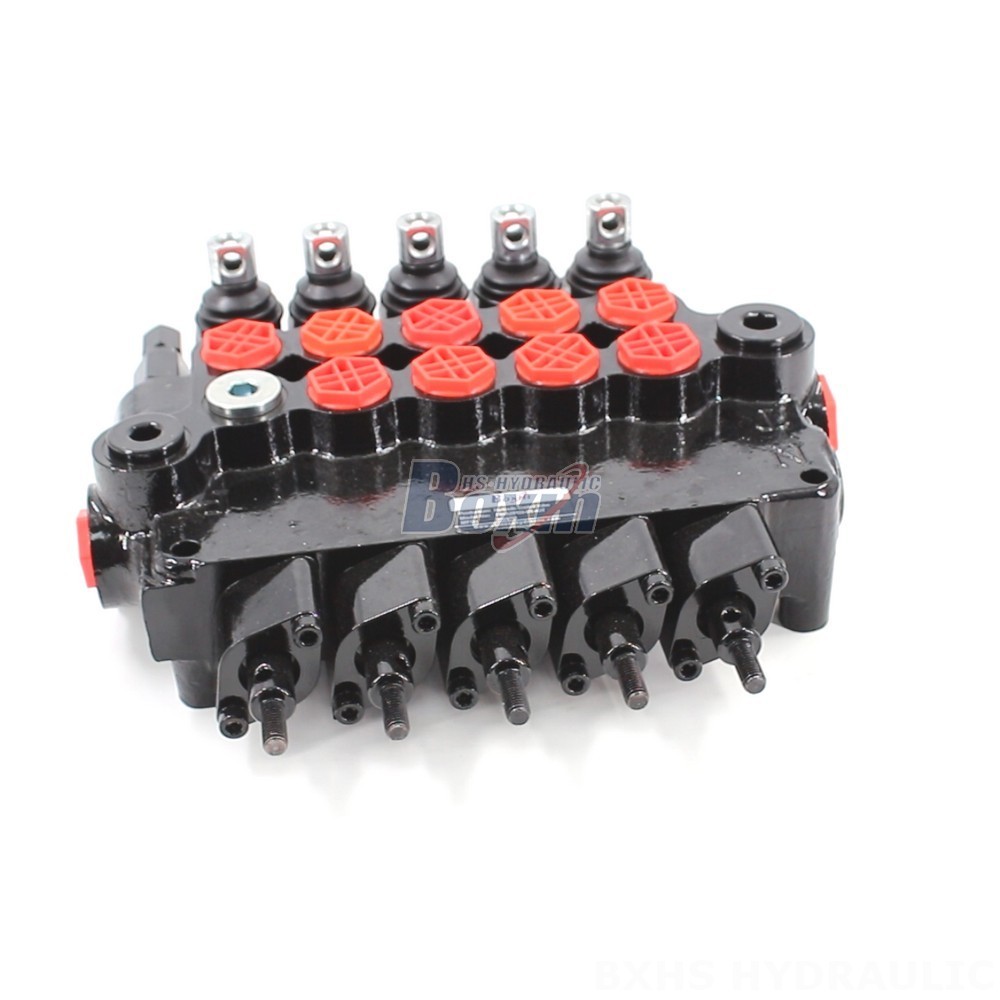

Hydraulic Outrigger Control: P80AZ 5-Spool Valve Wholesale

Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk: 23 Katup Pengendali Outrigger

Seri Produk:P80AZ Series 23 Katup Pengendali Outrigger

Ukuran kemasan:26*30*11

Kelas kotor:17.00 kg

Ketersediaan: Tersedia

680 Pandangan Mencari Produk Ini

Hydraulic Outrigger Control: P80AZ 5-Spool Valve Wholesale

Hydraulic Outrigger Control: P80AZ 5-Spool Valve Wholesale

Hydraulic Outrigger Control: P80AZ 5-Spool Valve Wholesale drawing image

High-performance P80AZ 5-spool hydraulic outrigger control valve, offering 80 L/min flow rate and 250 bar pressure. Ideal for material handling, construction, and industrial applications. Factory direct wholesale, OEM, and private label options available.

P80AZ Series 23 Katup Pengendali Outrigger Parameter
Metode Kontrol Buku Panduan
Spul 5 Spool
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/4, M22×1.5, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M22×1.5, SAE 10, SAE 12, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, SAE 10, SAE 12, 3/4 NPT
Bagian 5 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)

The P80AZ Series 5-Spool Hydraulic Outrigger Control Valve is a robust and reliable monoblock valve designed for demanding applications in material handling, construction, earthmoving, industrial vehicles, and agriculture. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is perfect for controlling outriggers on forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, tractors, front-end loaders, harvesters, balers, wood splitters, and sweepers.

**Key Features:**
* 5-Spool Design
* 80 L/min Rated Flow
* 250 bar Max Pressure
* Monoblock Construction
* Wide Operating Temperature Range (-40°C to +80°C)
* Hydraulic and Manual Control

**As a leading hydraulic product manufacturer, we offer:**
* **Manufacturing:** High-quality production with stringent quality control.
* **OEM/ODM:** Customize valves to your exact specifications.
* **Private Labeling:** Brand your own hydraulic valves.
* **Wholesale:** Competitive pricing for large-volume orders.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access our high-quality, factory-direct hydraulic outrigger control valves. Benefit from our competitive pricing and reliable supply chain. Contact us today to discuss your needs and explore the opportunities for collaboration. Factory wholesale prices are available. Contact us for more details!
