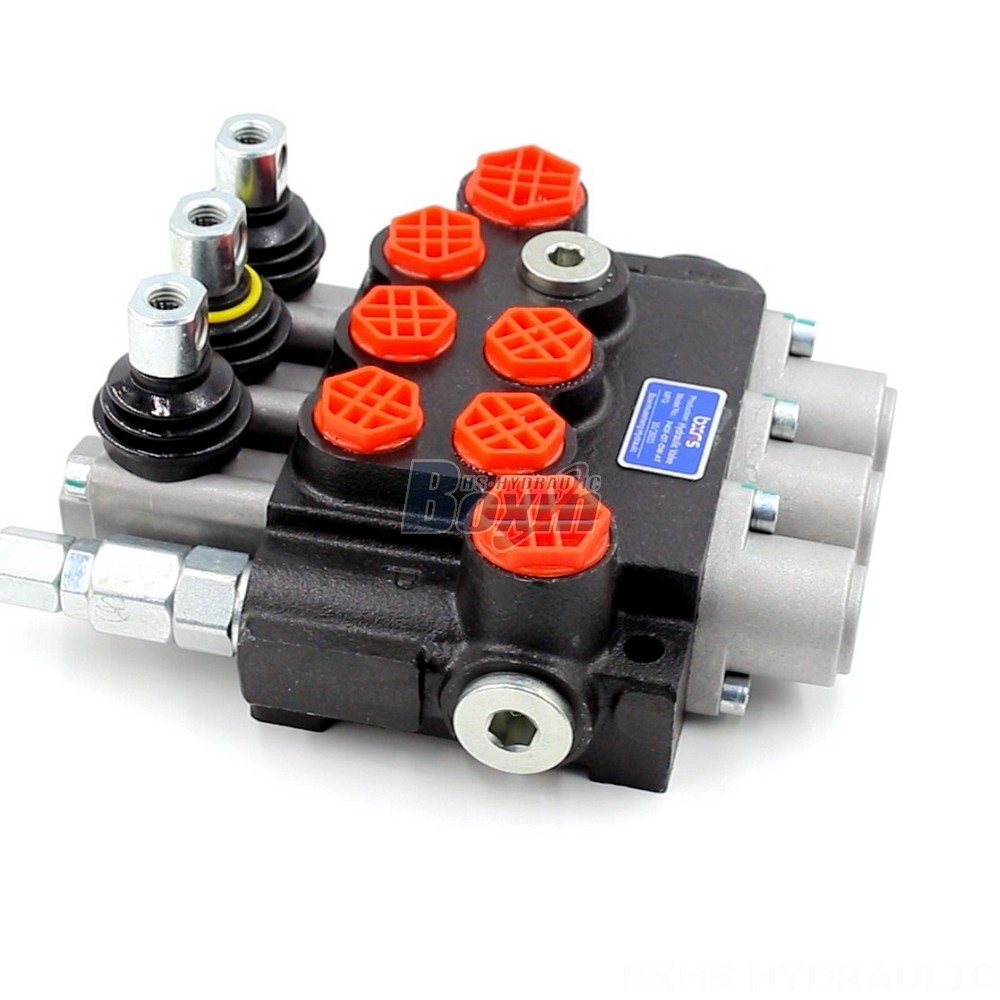

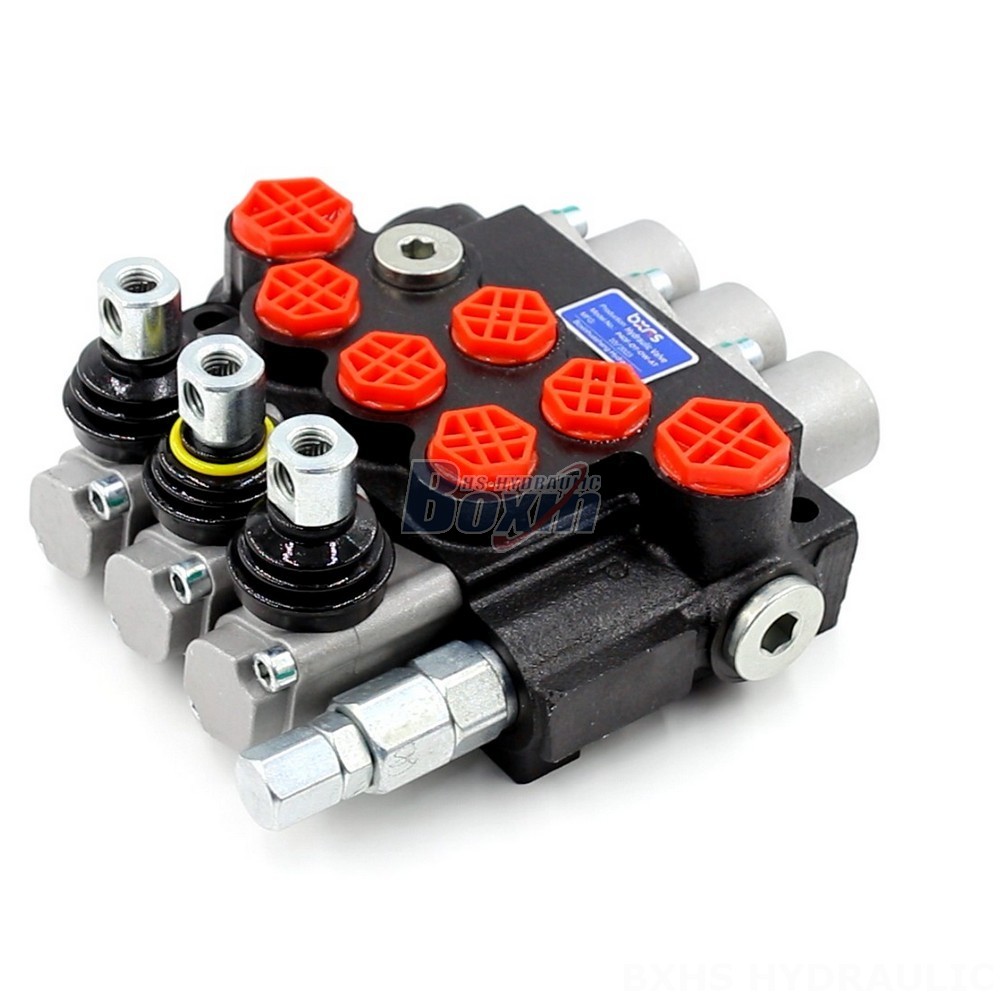

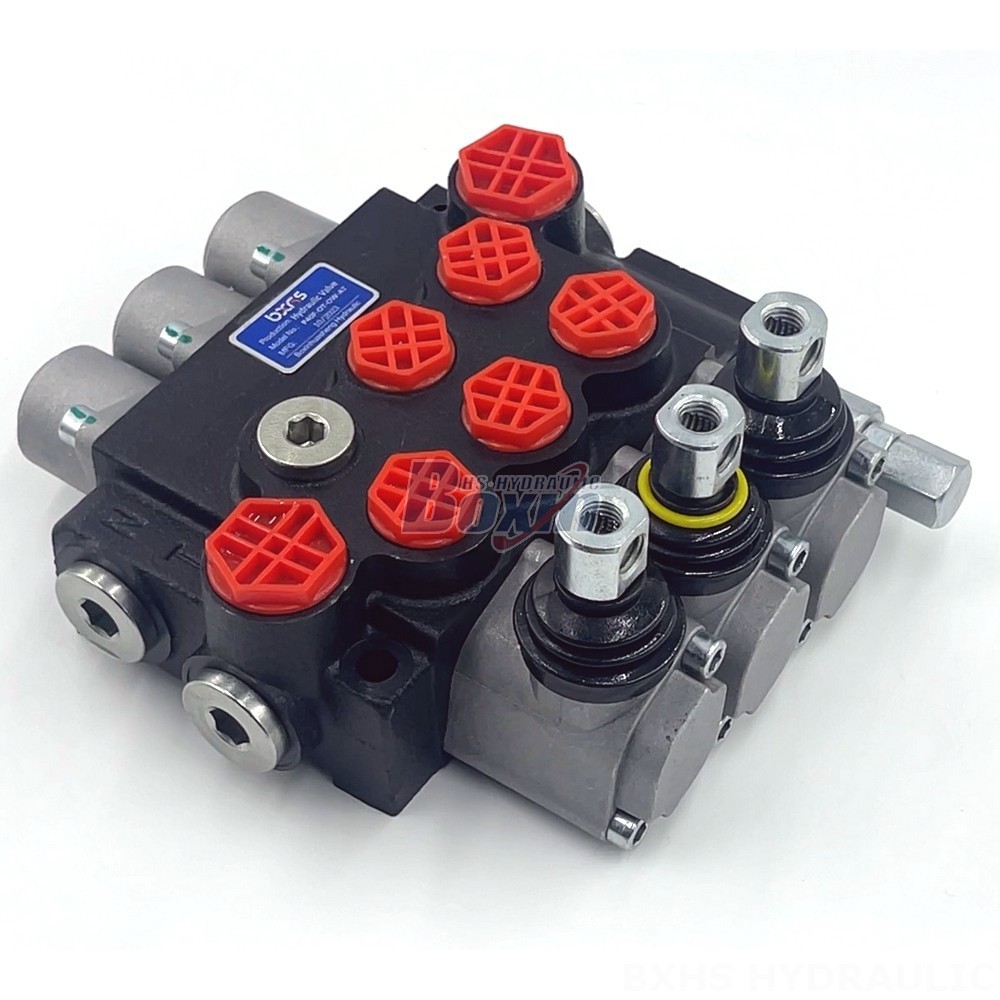

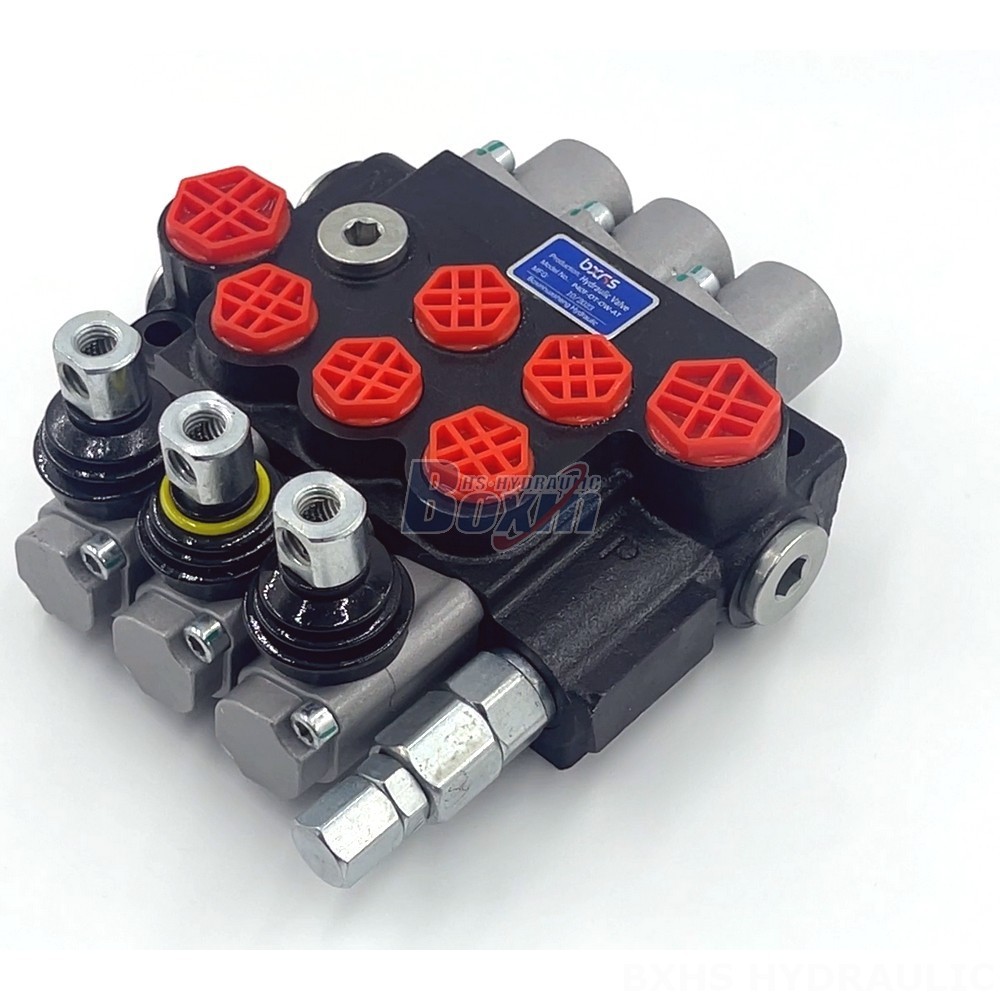

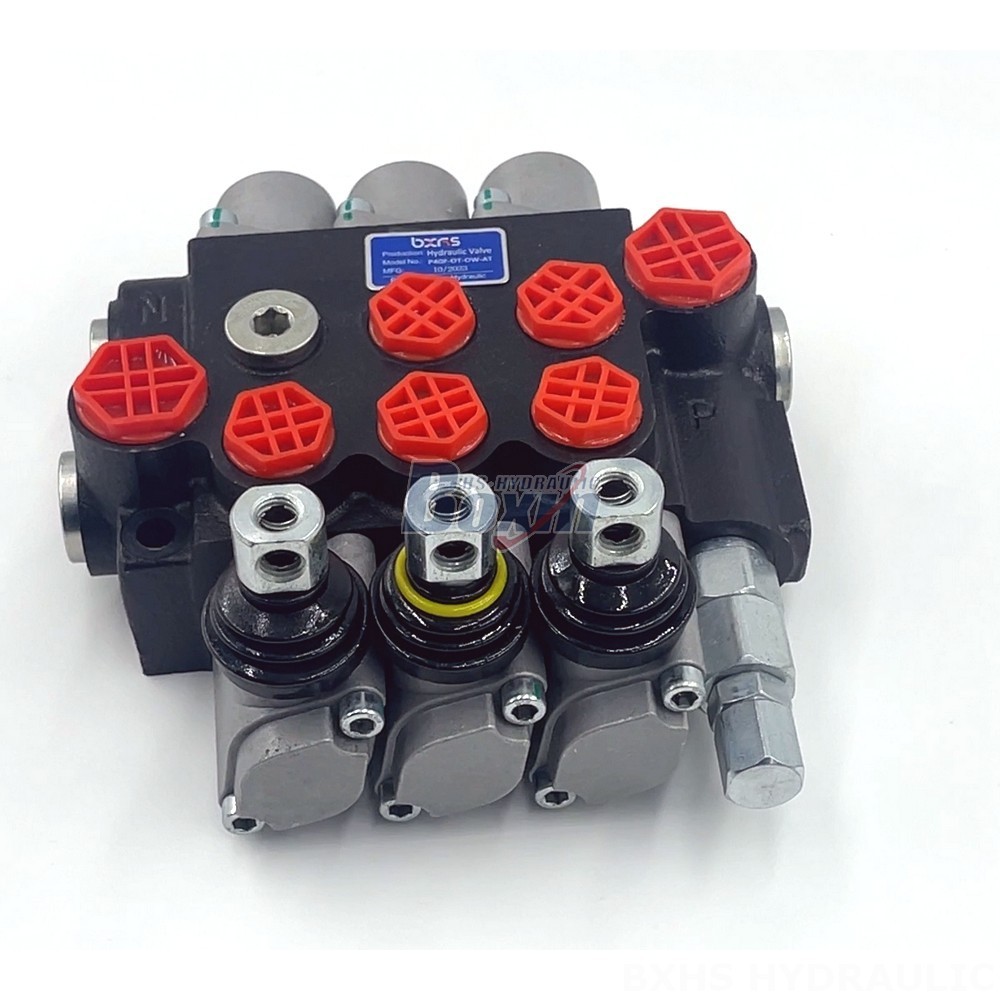

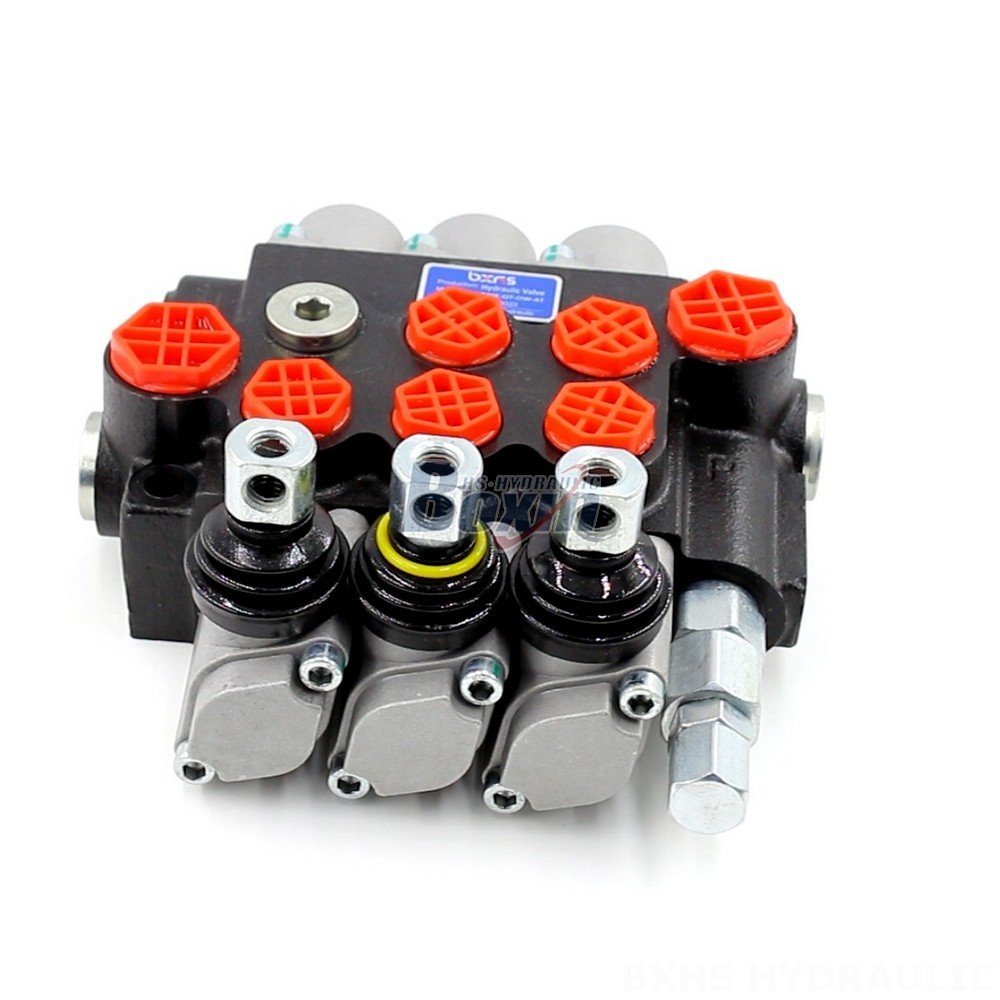

This P40 Series manual flow control valve is designed for hydraulic systems in construction, material handling, and agricultural equipment. It features a 3-section monoblock construction with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for various applications, including telehandlers, forklifts, cranes, and compact loaders.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series flow control valve is a manual, 3-section monoblock valve designed for use in hydraulic systems. It has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve features a 3-spool design and operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It is suitable for a wide range of operating temperatures, from -40°C to +80°C (-40°F to +176°F). The valve is commonly used in construction equipment, material handling equipment, agricultural equipment, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini- excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
