Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*23*11

Kelas kotor:10.70 kg

Ketersediaan: Tersedia

1163 Pandangan Mencari Produk Ini

Hydraulic Pump & Motor Drive | Distributor & Partner Opportunities

Hydraulic Pump & Motor Drive | Distributor & Partner Opportunities

Hydraulic Pump & Motor Drive | Distributor & Partner Opportunities drawing image

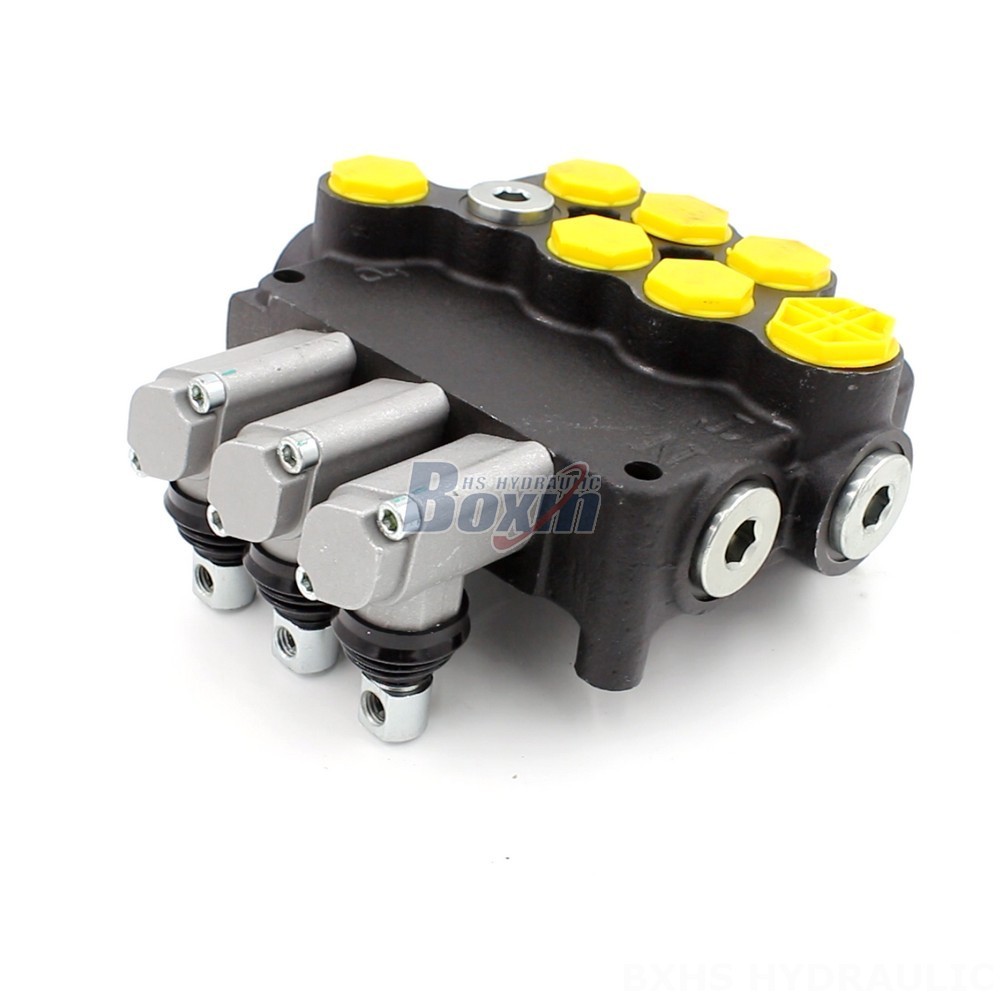

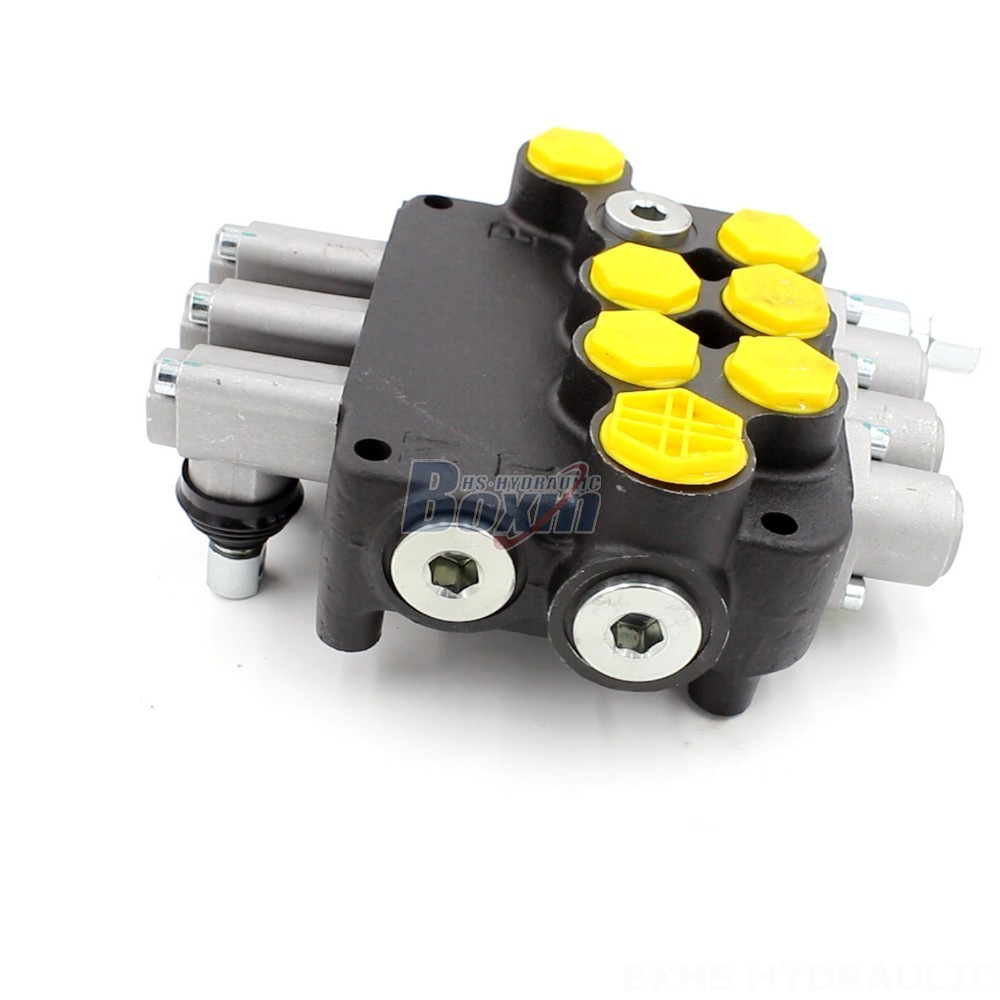

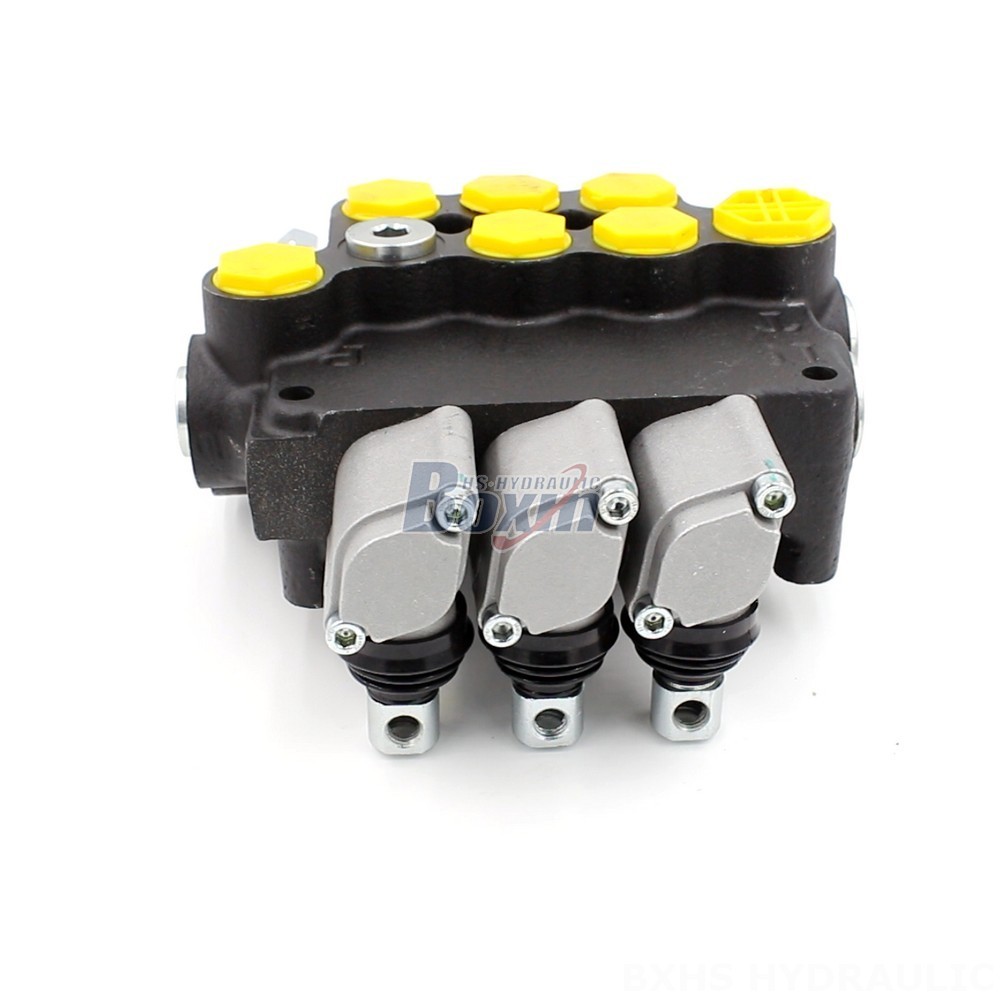

This 3-way hydraulic spool valve is designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 80 L/min, and a maximum pressure rating of 250 bar. We offer manufacturing, OEM/ODM, private label, and customized solutions.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 series 3-way hydraulic spool valve is a high-performance component suitable for a wide range of applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. It offers a manual control method, a 3-section design, and a robust monoblock valve construction. This valve is designed for high flow rates (80 L/min) and high pressure operation (250 bar). It is also engineered for a wide range of operating temperatures (-40°C to +80°C) and viscosity ranges (15-75 mm²/s). As a global hydraulic product manufacturer, we offer a comprehensive range of services including manufacturing, OEM/ODM, private label, and custom solutions to meet the specific needs of our clients. We are also actively seeking distributors, wholesalers, agents, and trading partners to expand our global reach.
