Produksi & Pengiriman
Waktu Produksi 15-30 Hari

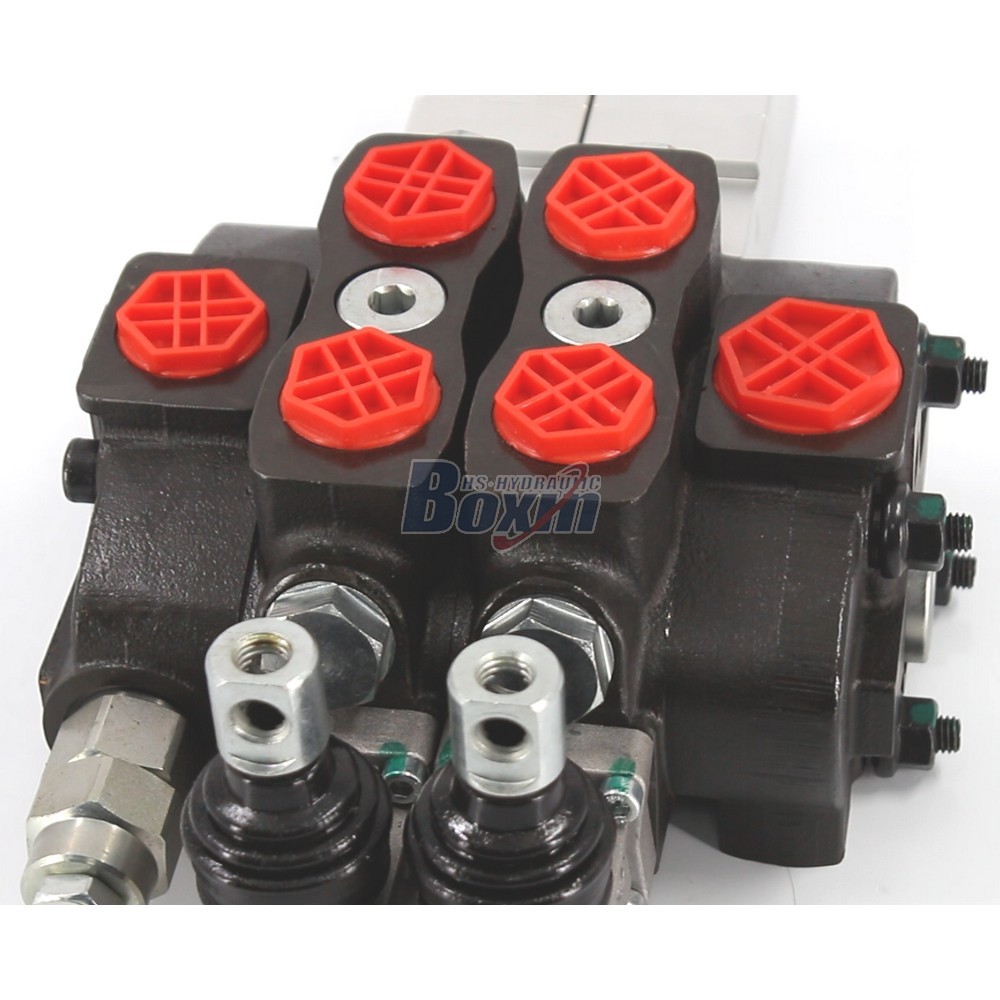

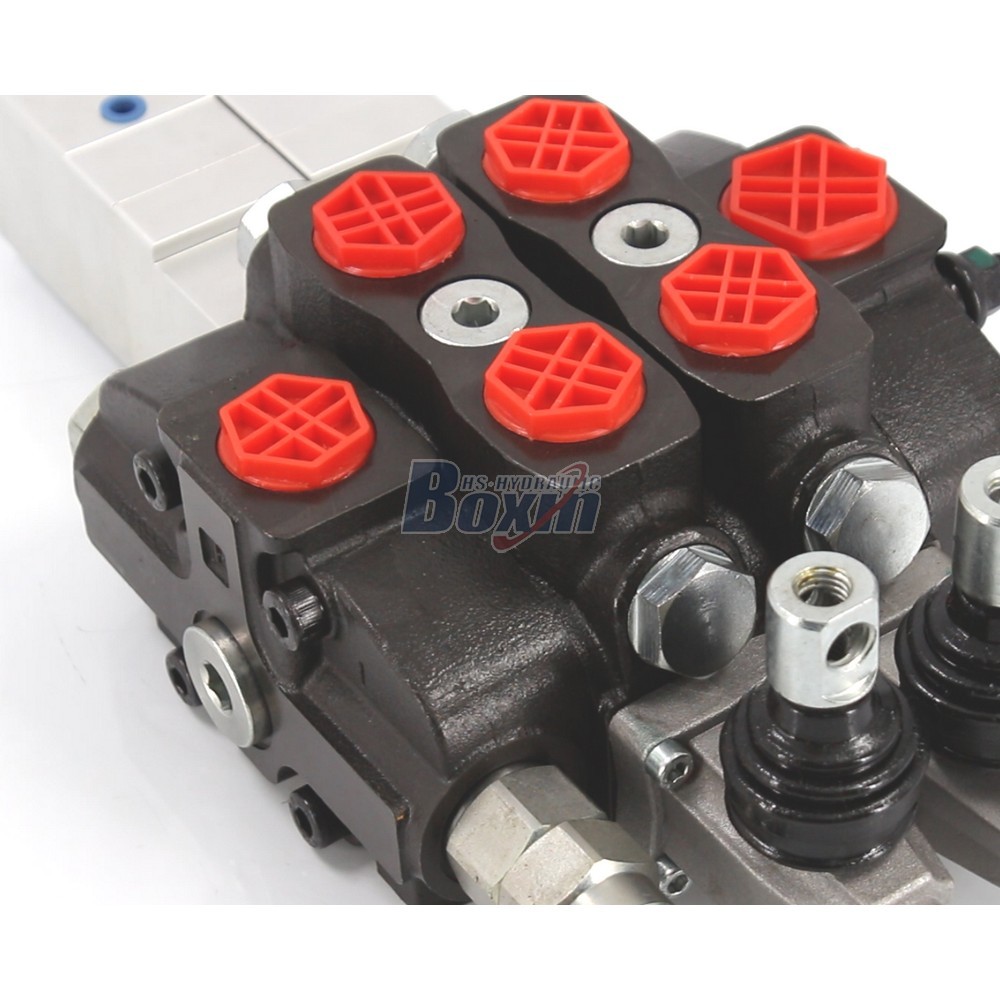

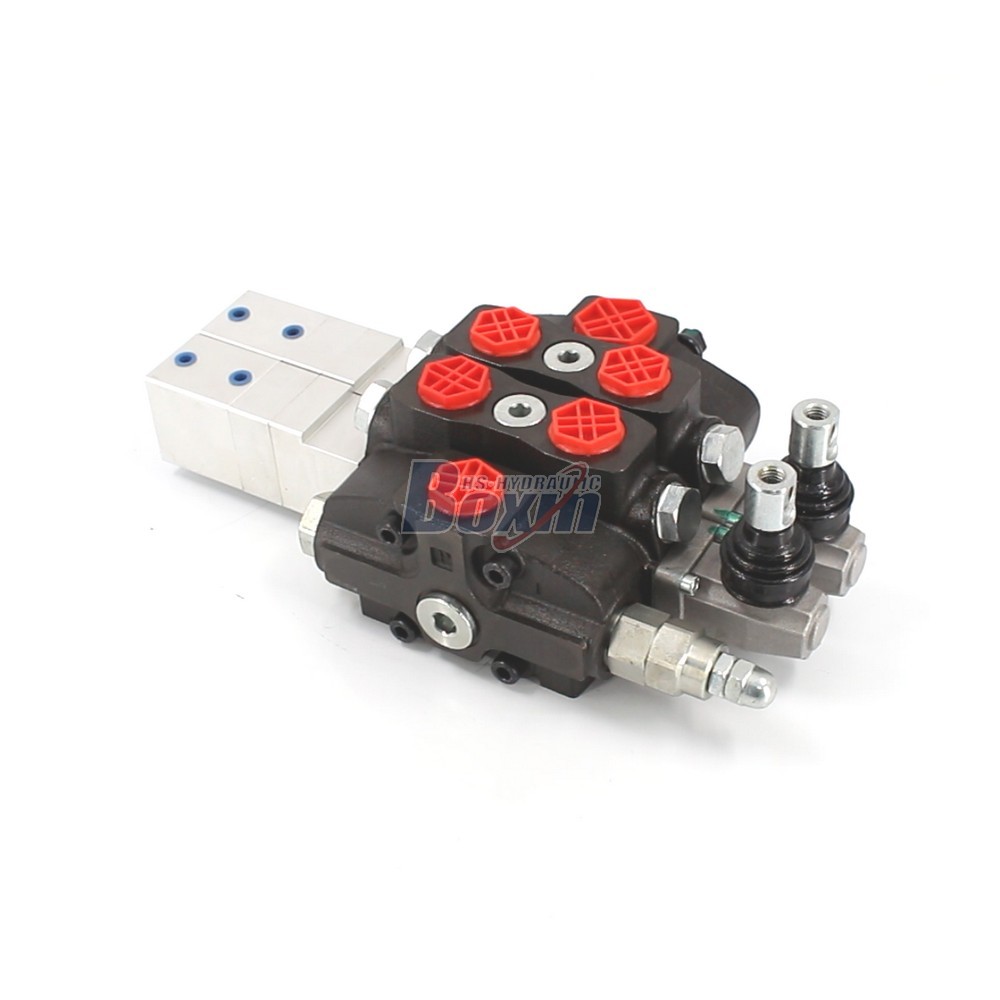

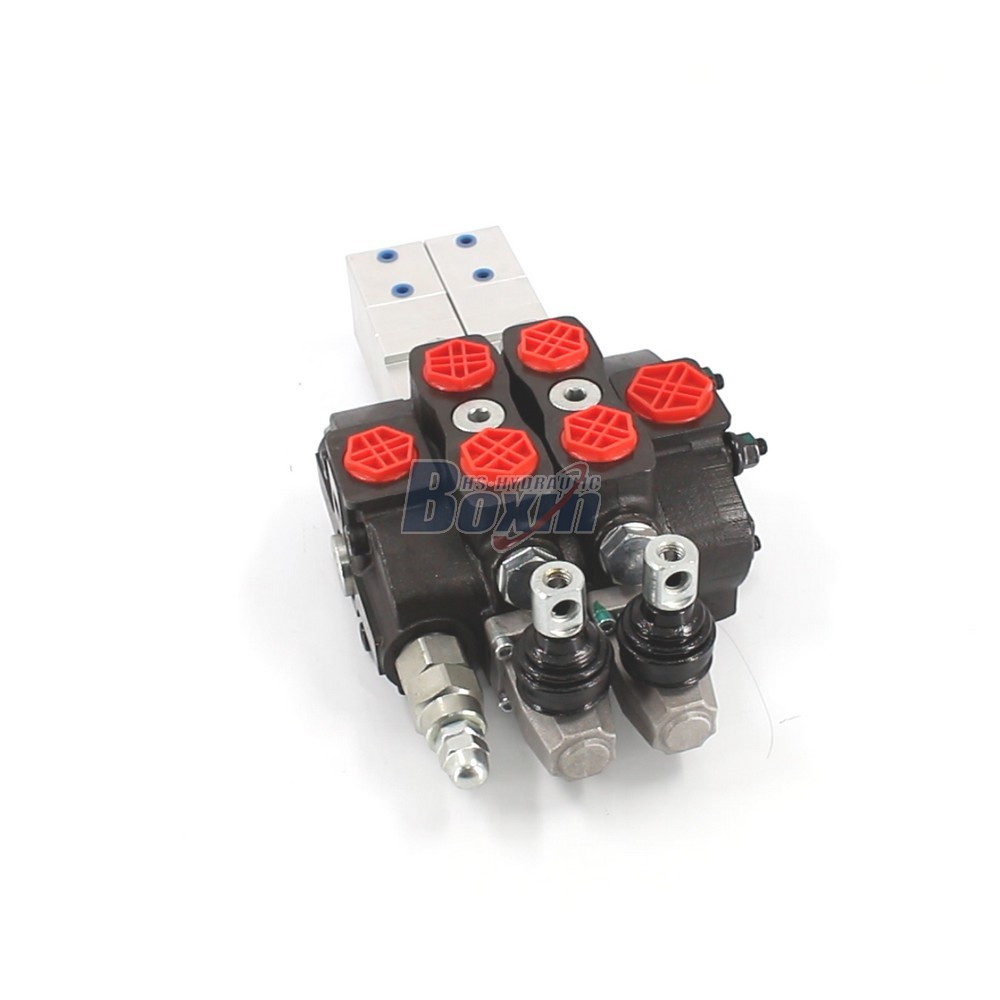

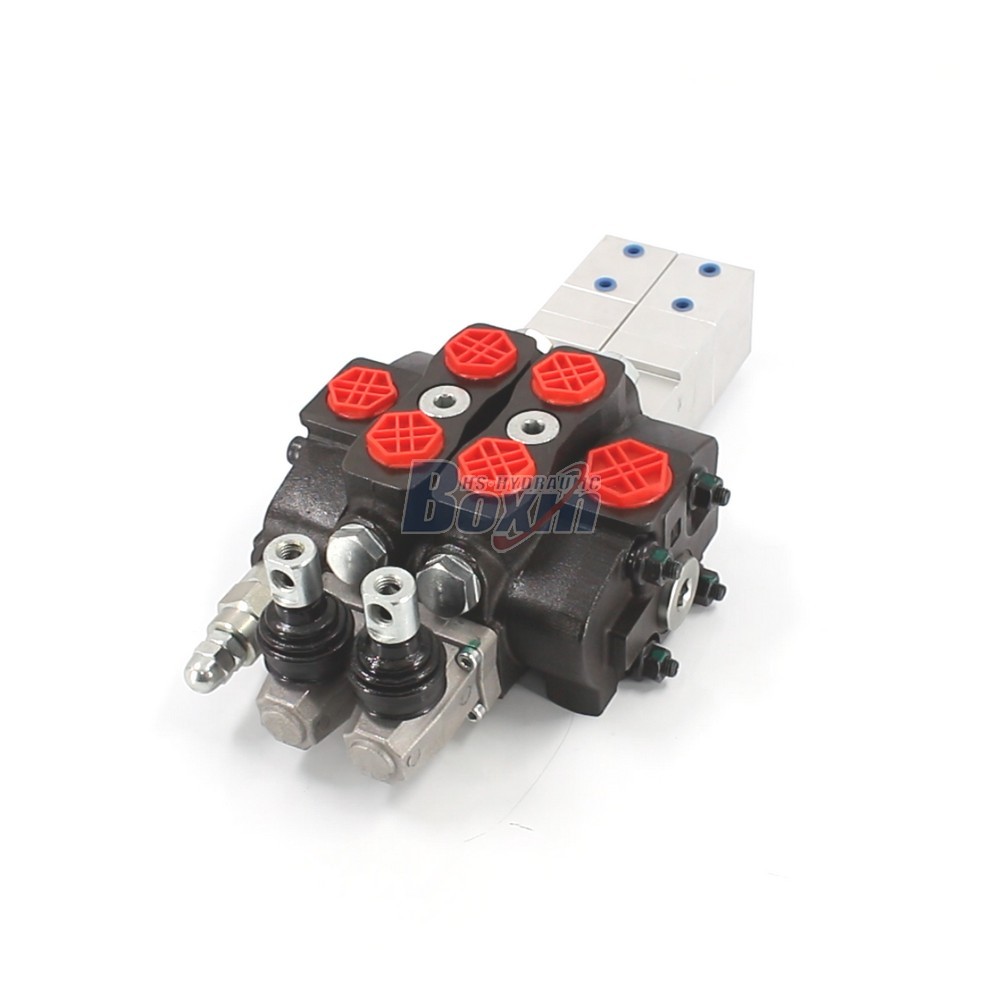

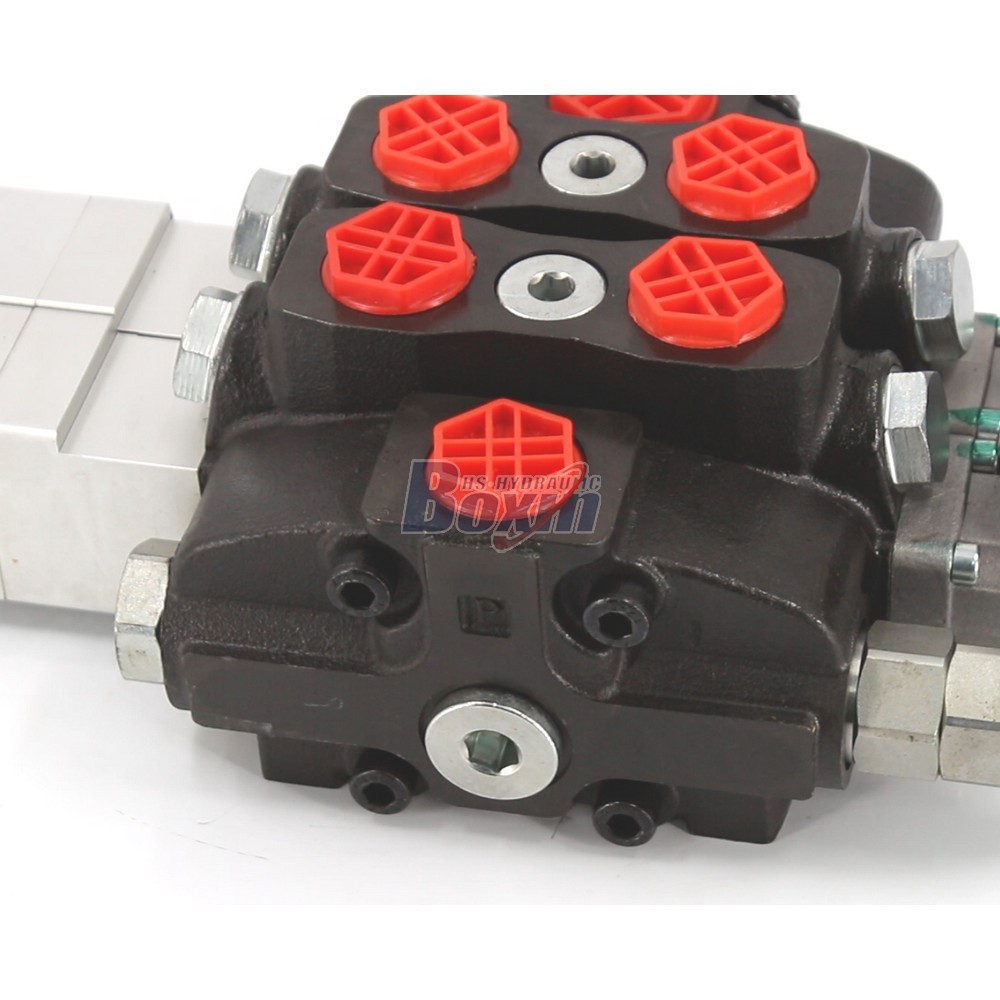

Manufacturer direct sale of the SD8 Series Pneumatic Sectional Valve, featuring a 2-spool design with an 80 L/min rated flow and 350 bar maximum pressure capacity for diverse industrial and agricultural applications.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
As a leading heavy-duty hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Valve directly from our factory. This 2-spool valve supports a rated flow of 80 L/min (21.2 US gpm) and functions efficiently under pressures up to 350 bar (5100 psi). Designed for versatility, it features G1/2 inlet and G3/4 outlet ports, making it ideal for forklifts, mini-excavators, tractors, and waste compactors. We provide comprehensive OEM, ODM, and custom manufacturing services to meet specific technical requirements. Our facility supports large-scale wholesale and private labeling solutions for global partners. We are actively seeking professional distributors, wholesalers, agents, and traders to expand our global supply chain. Benefit from factory-direct pricing, robust technical support, and reliable quality for construction, material handling, and agricultural machinery sectors.
