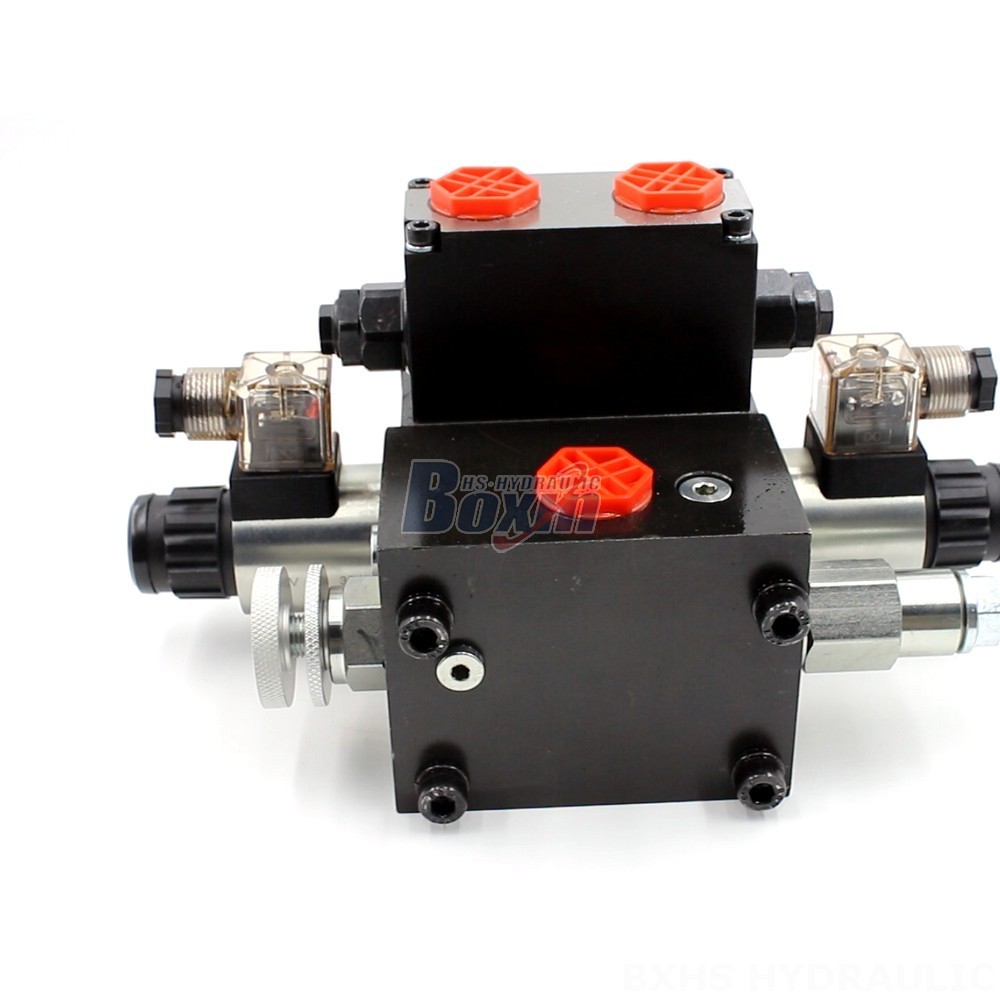

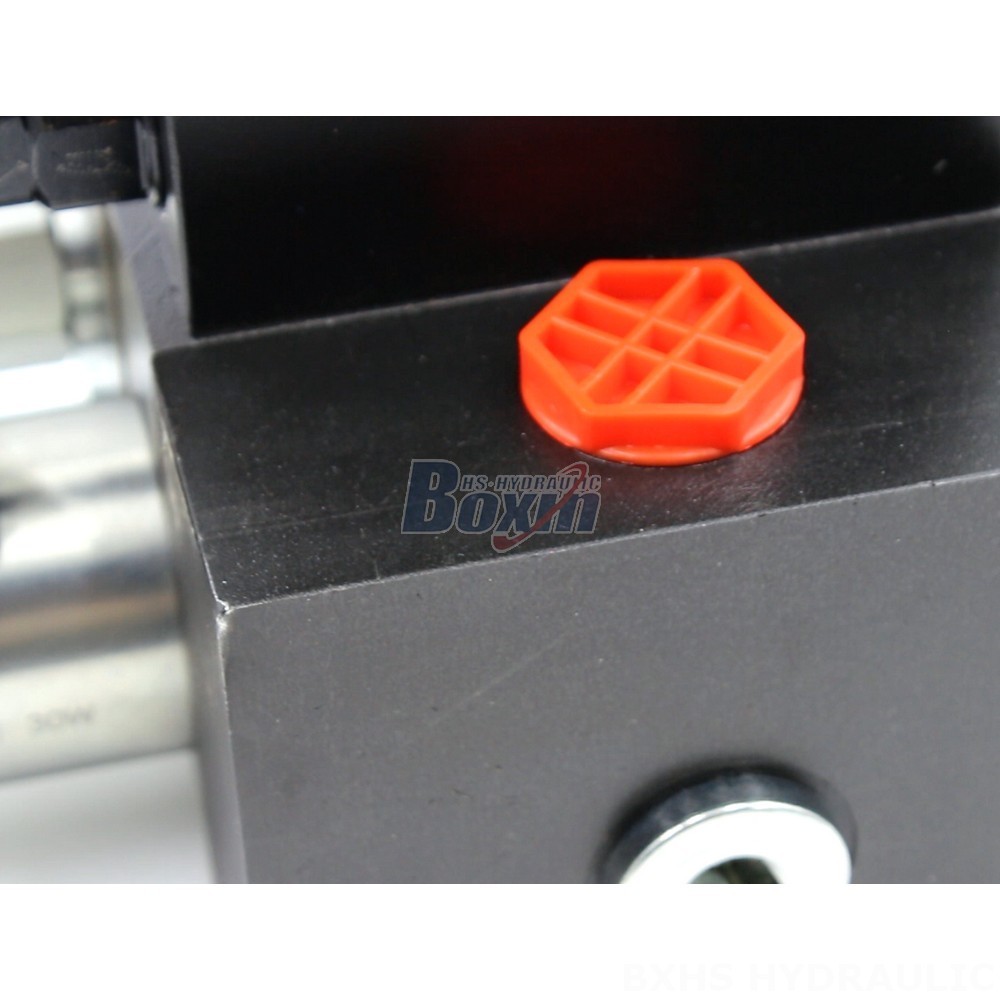

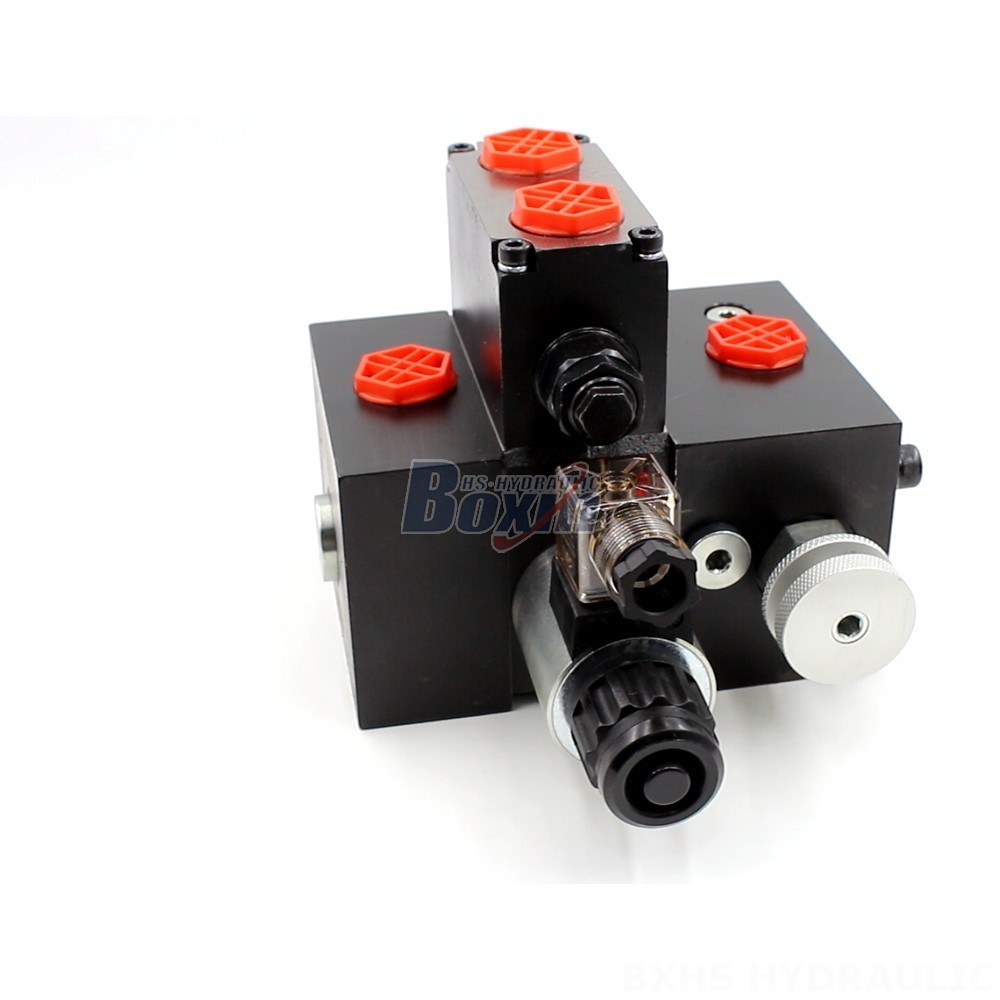

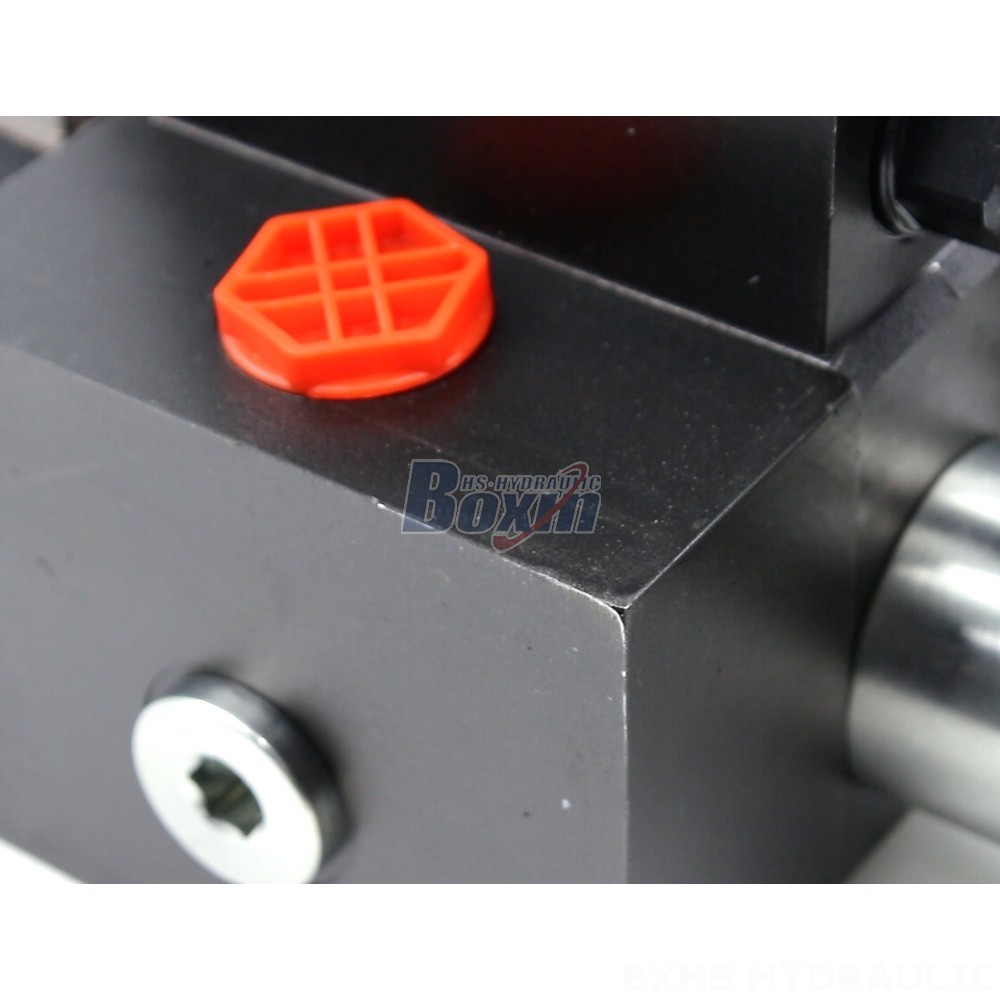

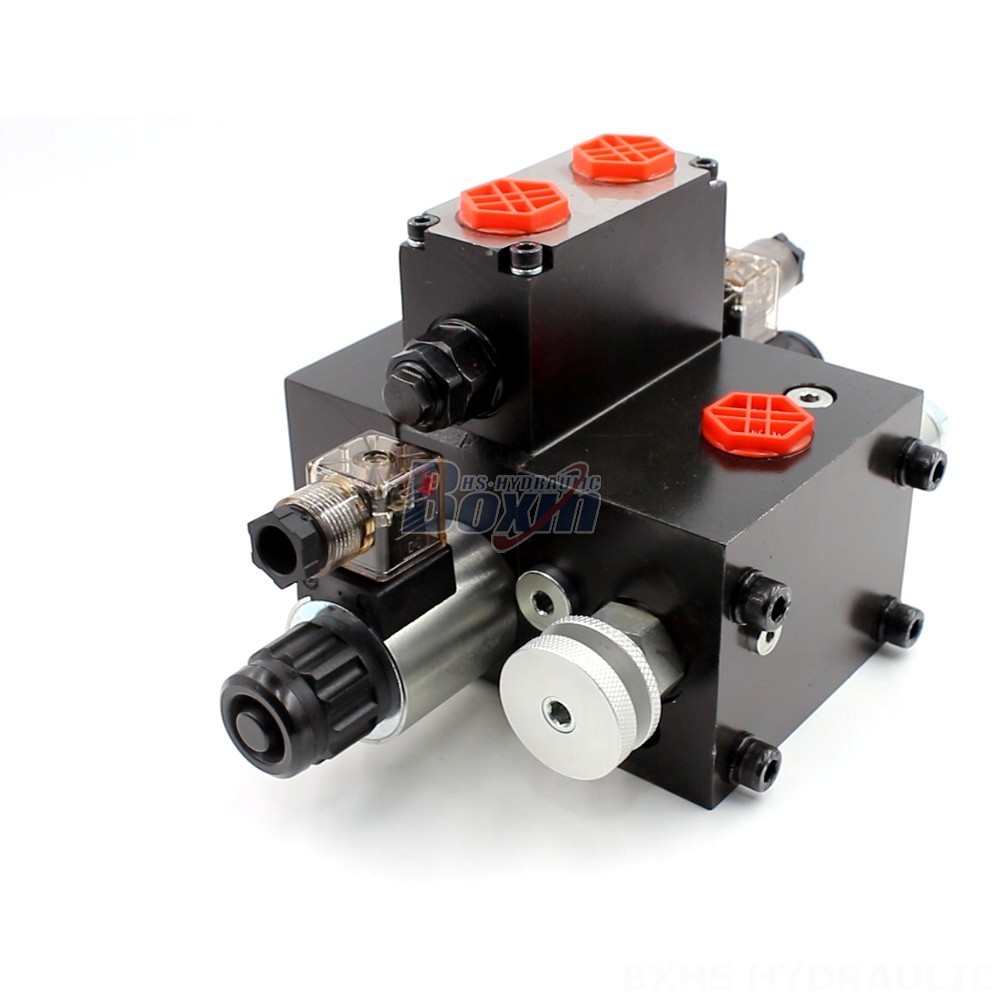

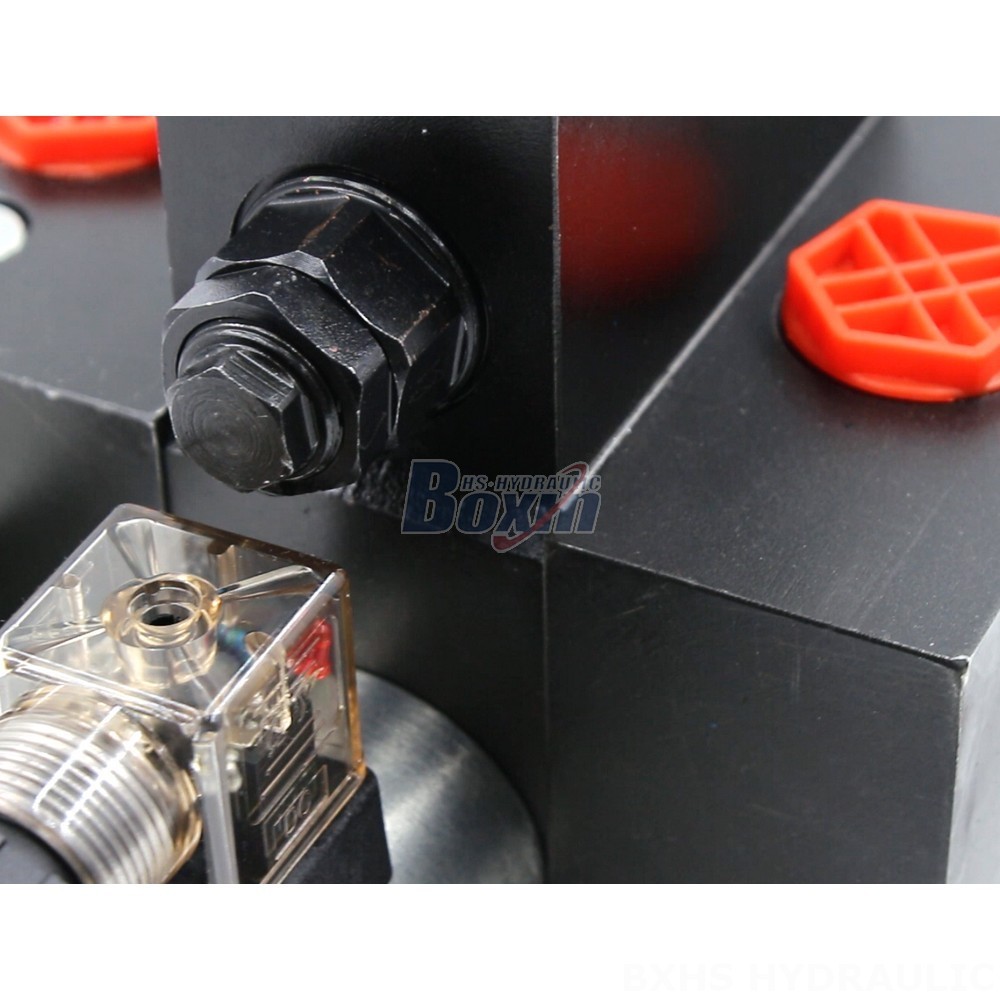

The DCV58F Series Hydraulic Directional Control Valve is a 12v solenoid-operated valve designed for heavy-duty applications in construction, agriculture, and material handling equipment. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve is suitable for controlling hydraulic actuators in various machinery, including telehandlers, forklifts, excavators, and loaders.
| Seri DCV58F Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
This 1-section sectional valve features a single spool and operates with a control method of solenoid. It is designed for high-performance applications, offering a flow rate of 60 L/min and a maximum pressure rating of 350 bar. Its robust construction allows for reliable operation across a wide range of ambient temperatures, from -40°C to +80°C. The DCV58F Series valve is specifically designed for demanding applications in construction, material handling, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers.
