Produksi & Pengiriman
Waktu Produksi 15-30 Hari

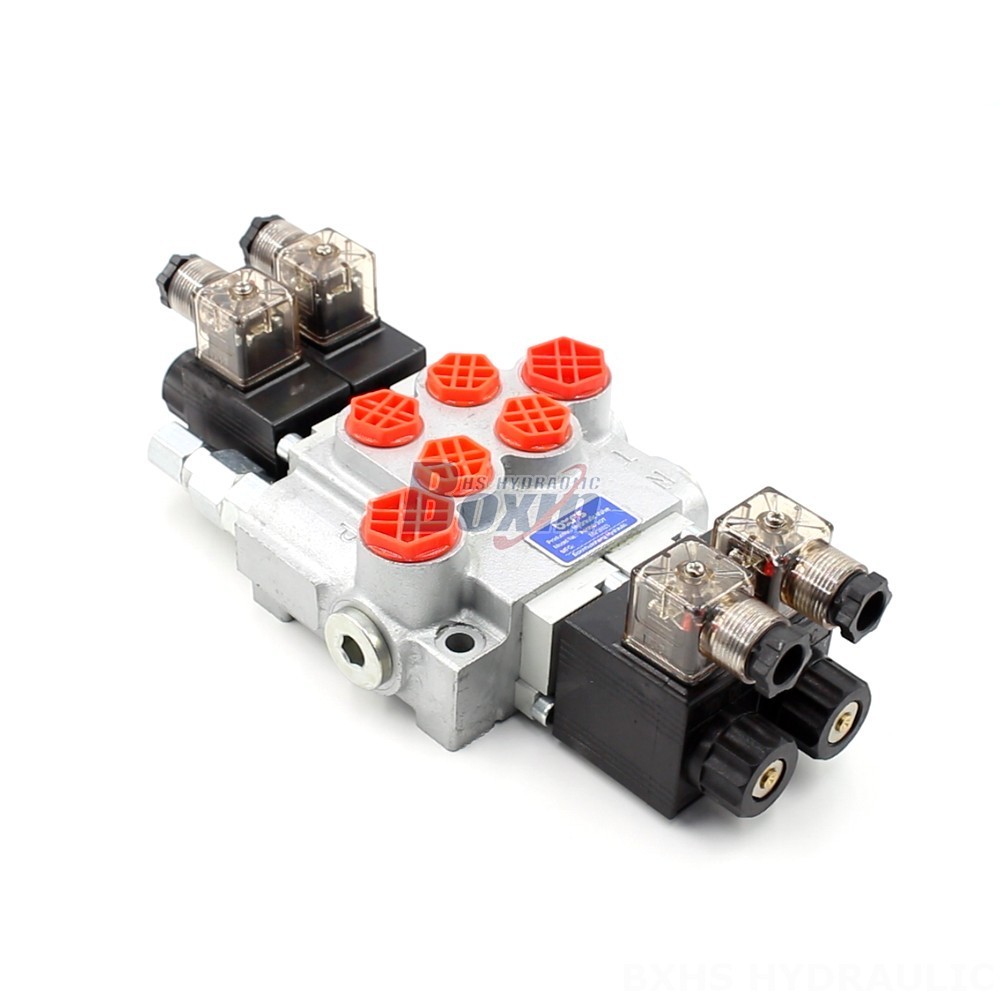

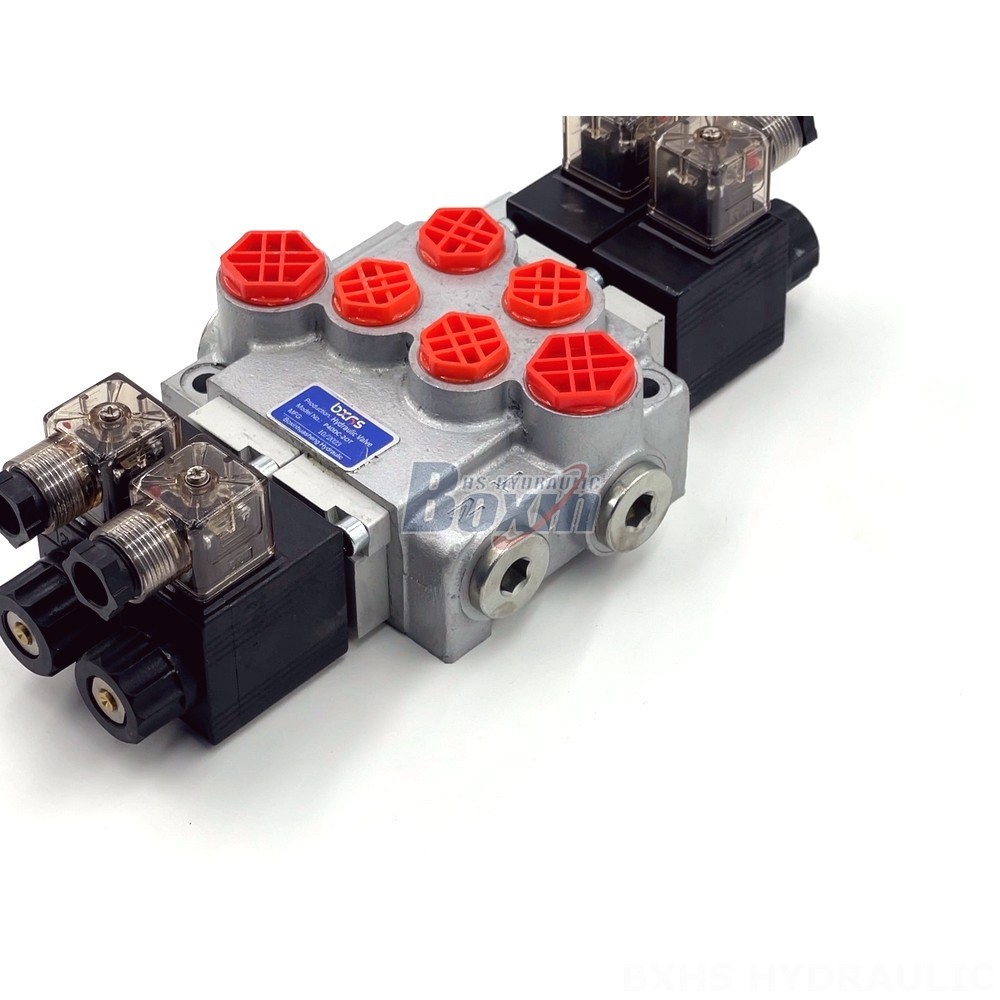

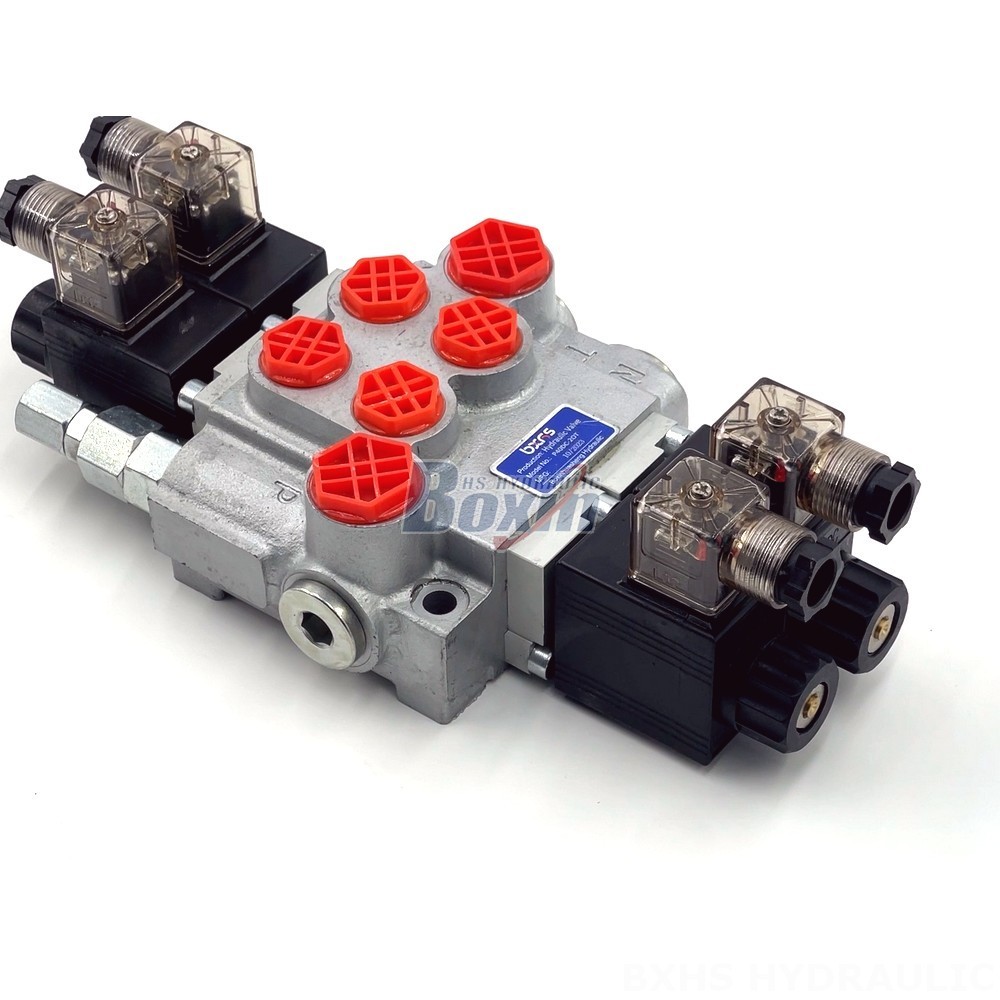

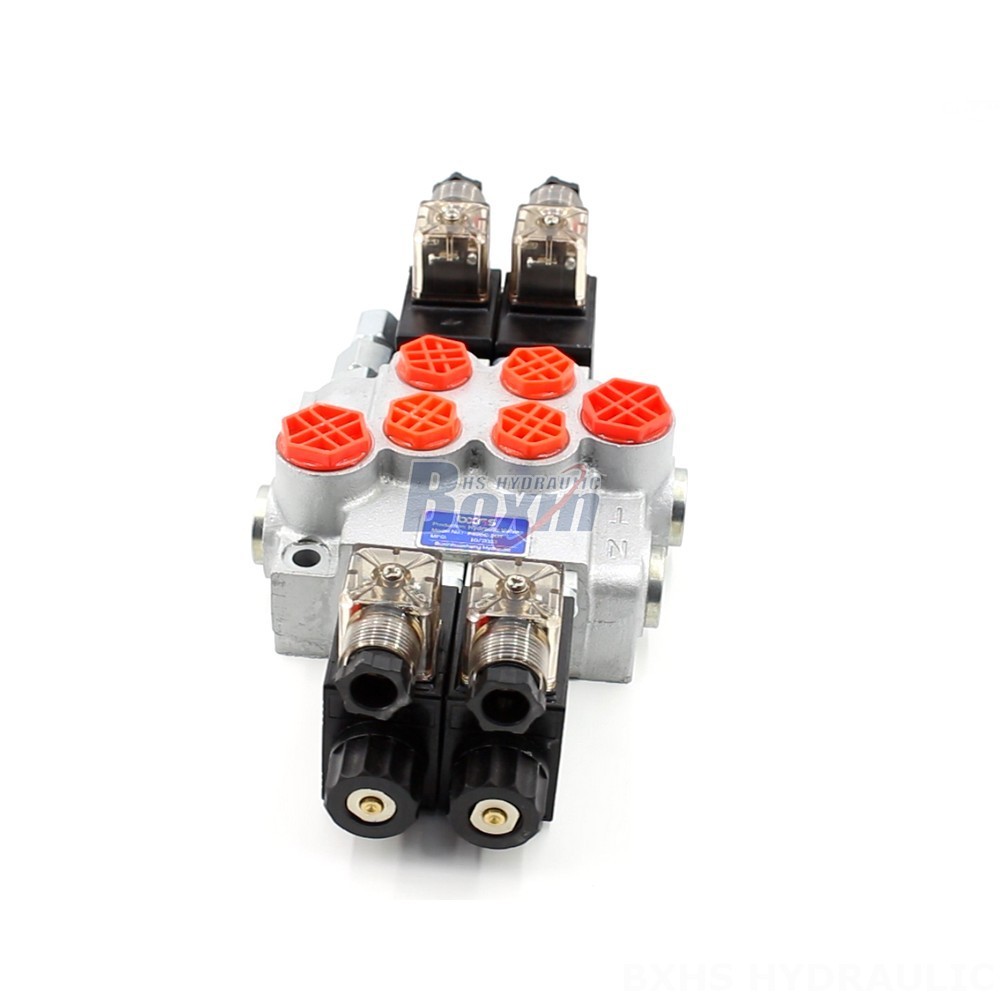

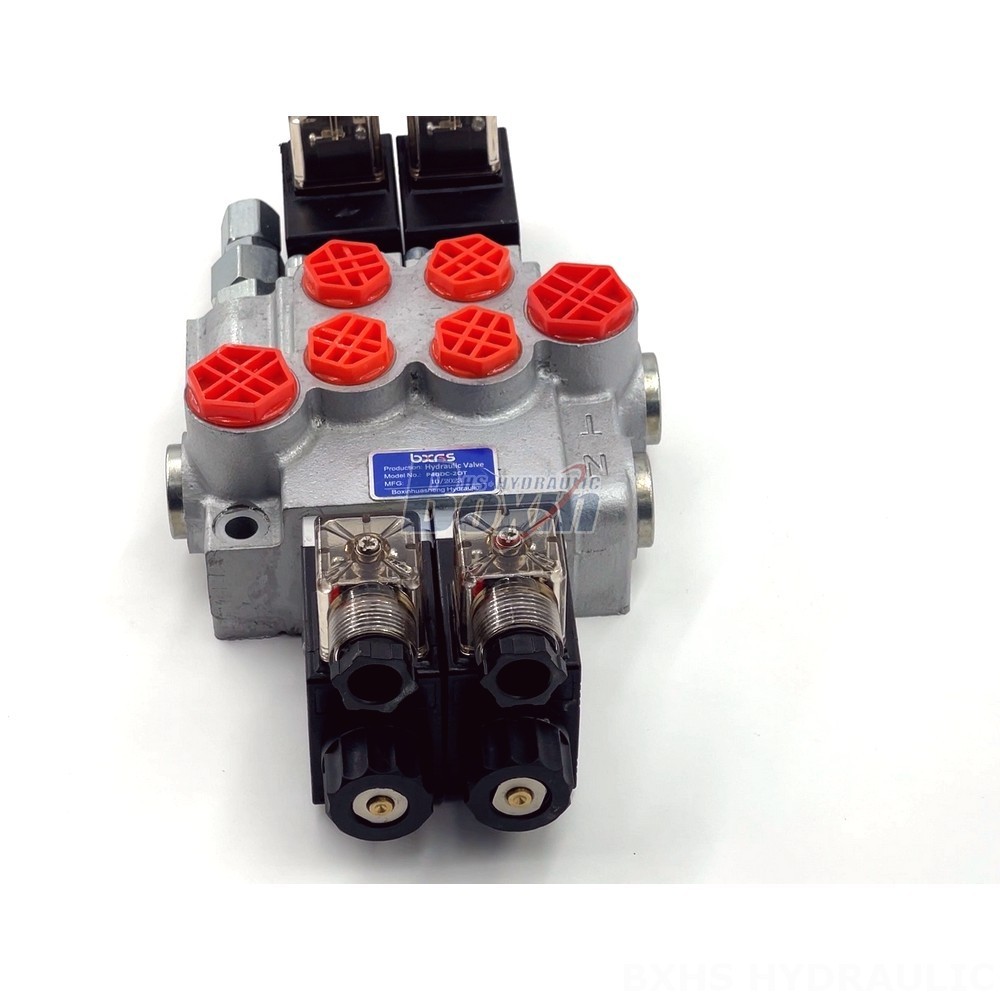

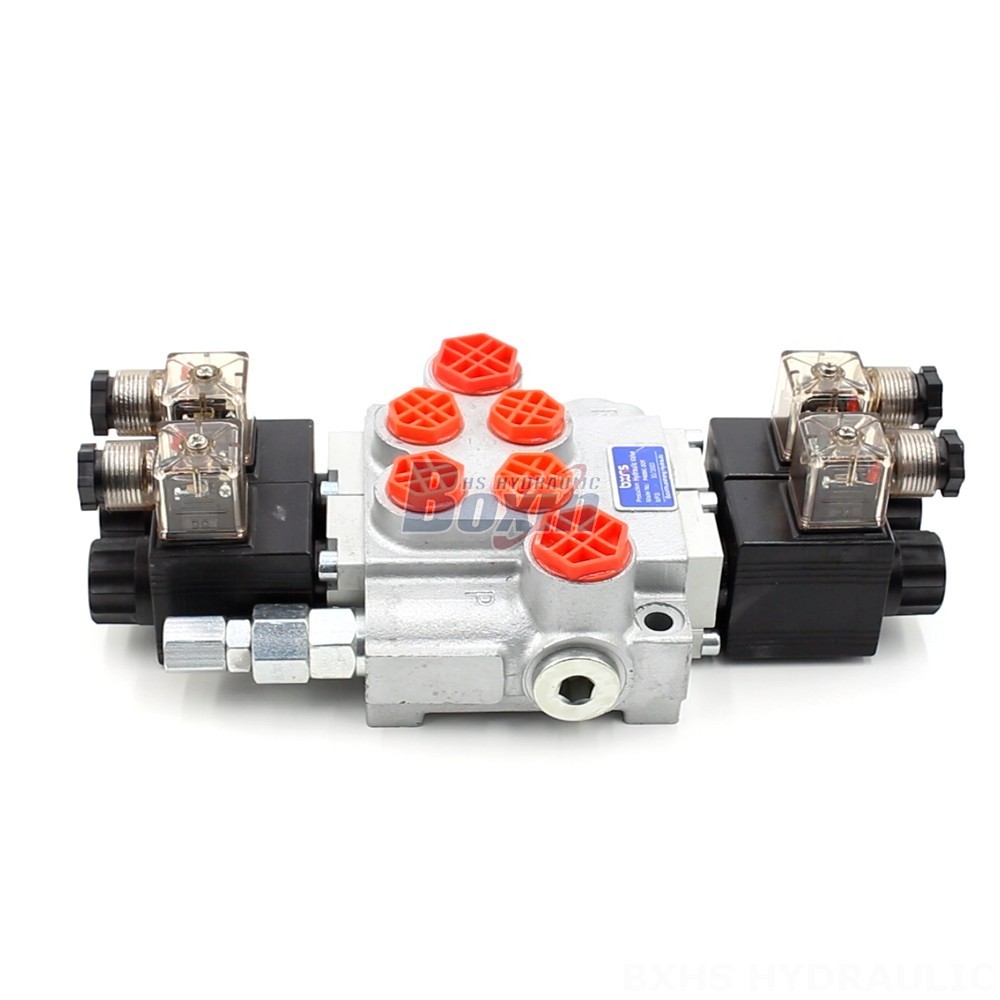

The P40-DKL Series is a high-performance, 2-section, monoblock hydraulic directional control valve with solenoid actuation. It features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications in construction equipment, material handling, agriculture, and industrial vehicles.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P40-DKL Series hydraulic directional control valve is a reliable and efficient solution for controlling hydraulic fluid flow in various applications. It is a 2-section, monoblock valve with solenoid actuation, providing precise and responsive control. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is designed to handle demanding operating conditions. Its compact size and durable construction make it ideal for use in tight spaces and harsh environments. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. Available in both wholesale and OEM options, the P40-DKL Series offers flexibility and customization to meet your specific needs.
