Enhance the performance of your hydraulic systems with our Hydraulic System Optimization: SD8 Sectional Directional Valves. Designed for demanding applications, these valves offer precise control, high flow capacity, and durability.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |

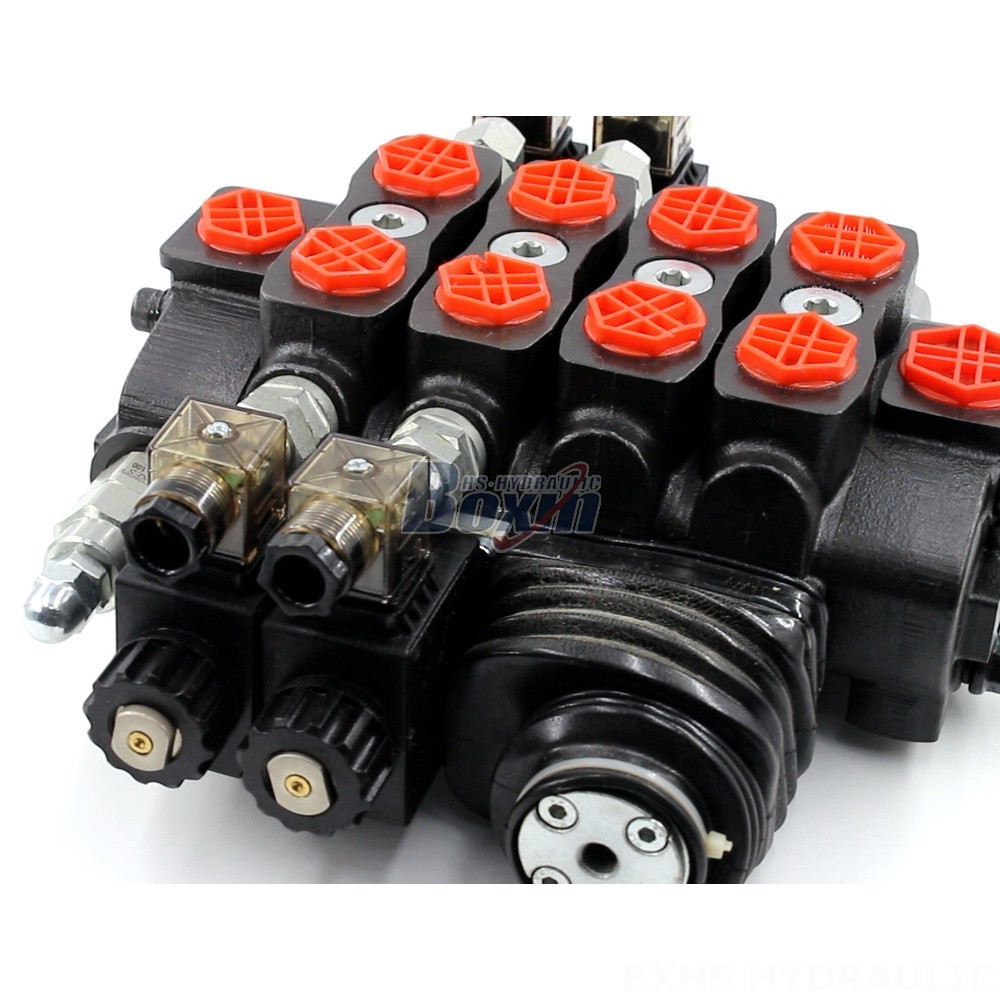

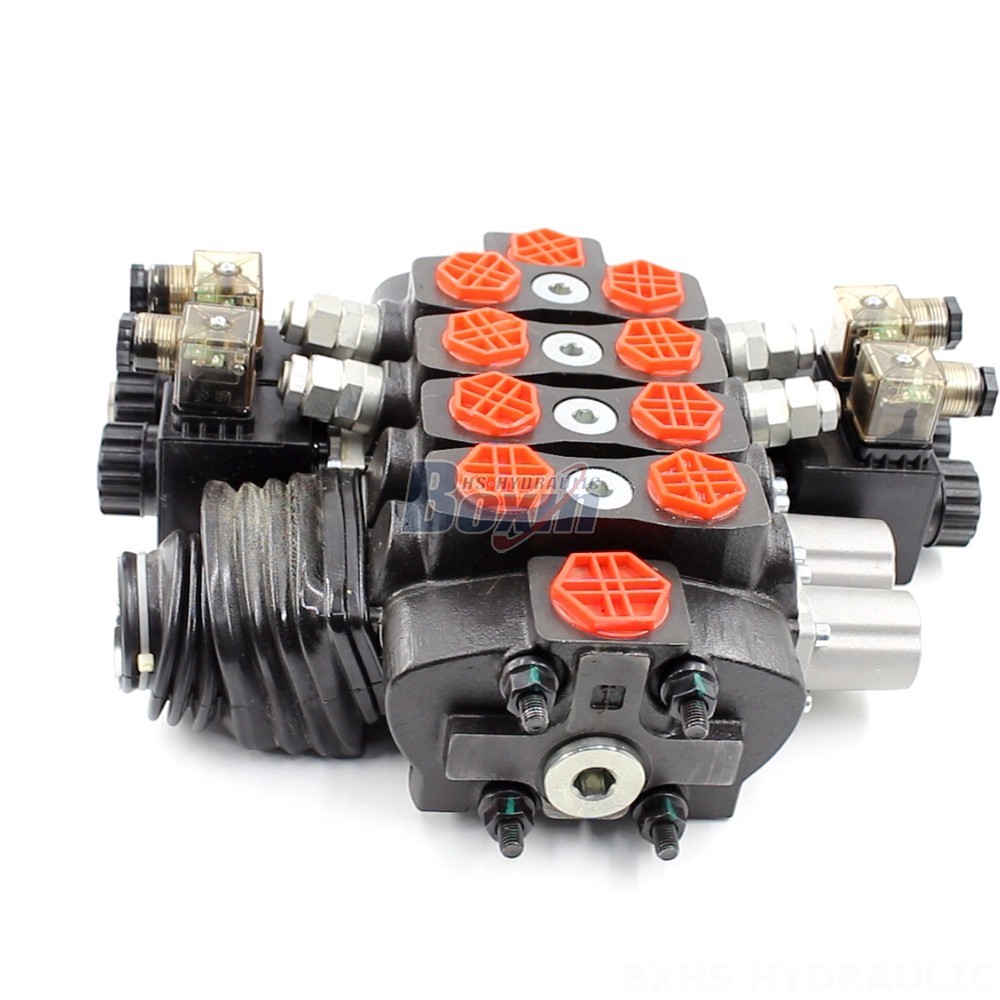

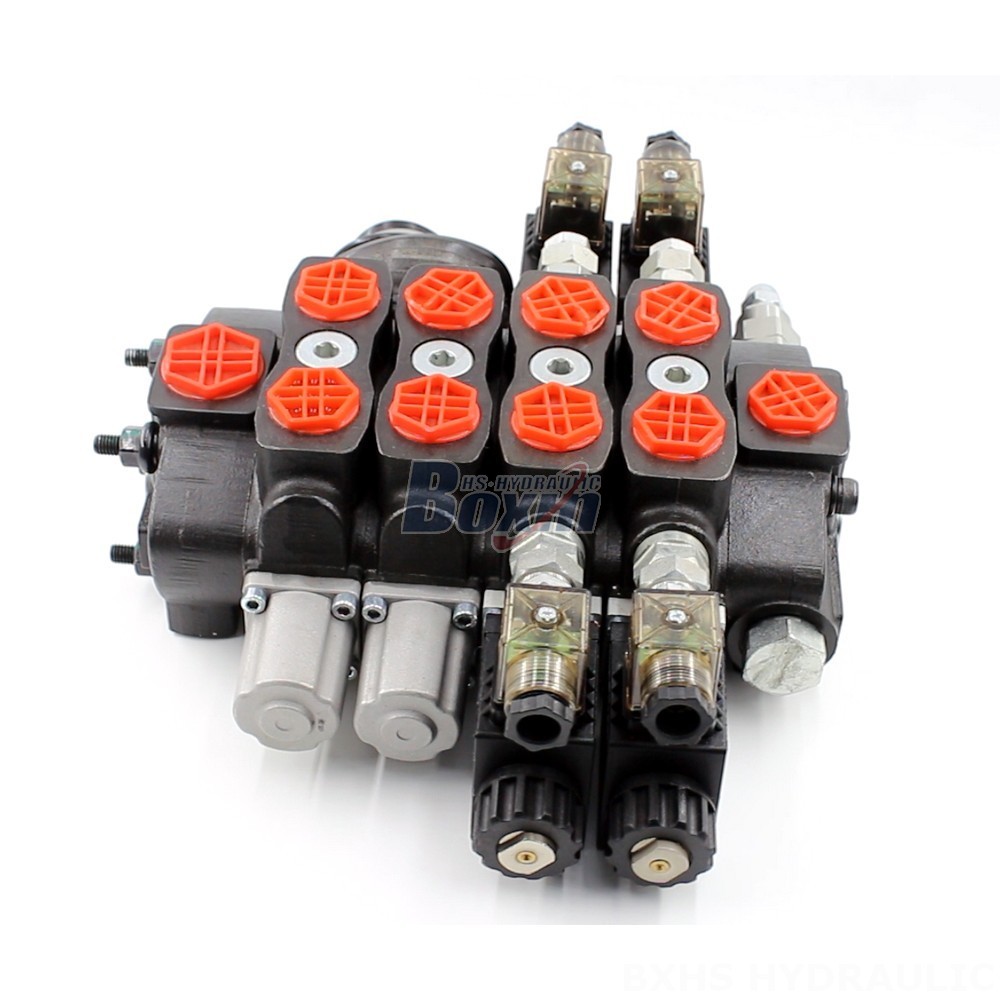

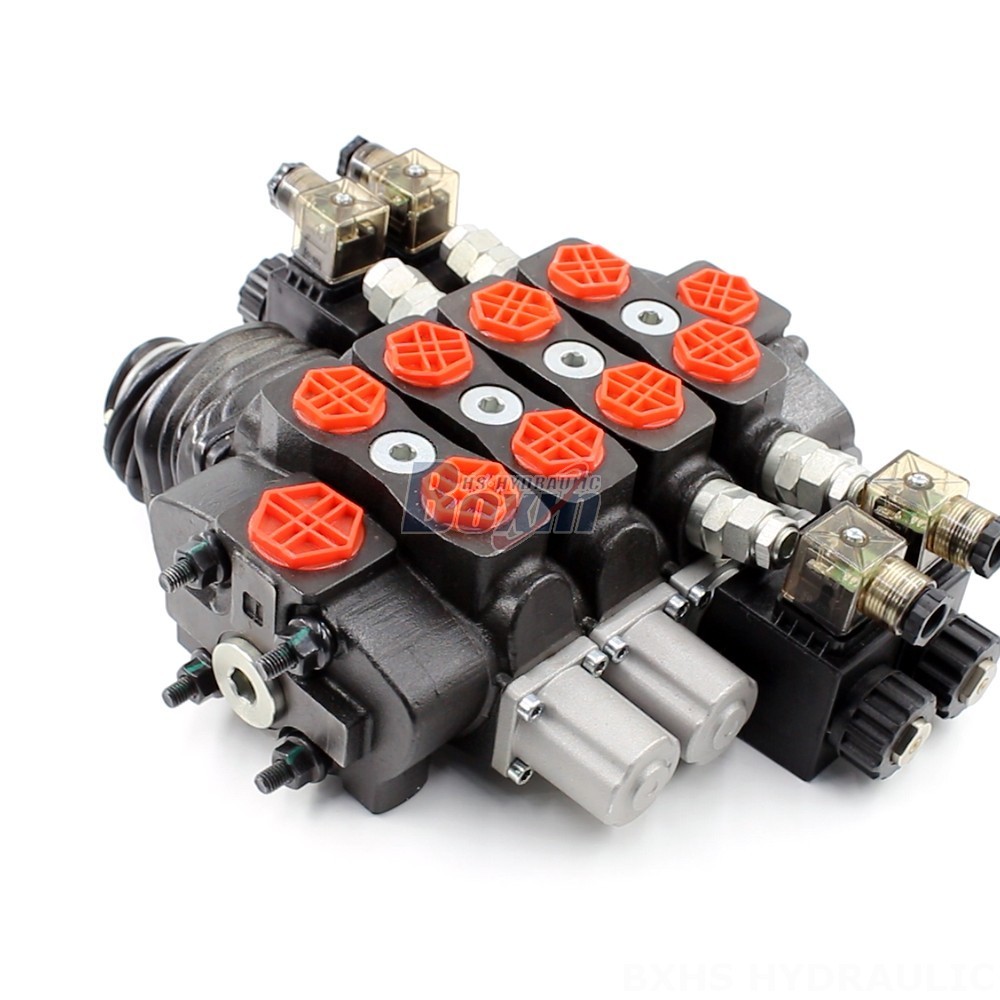

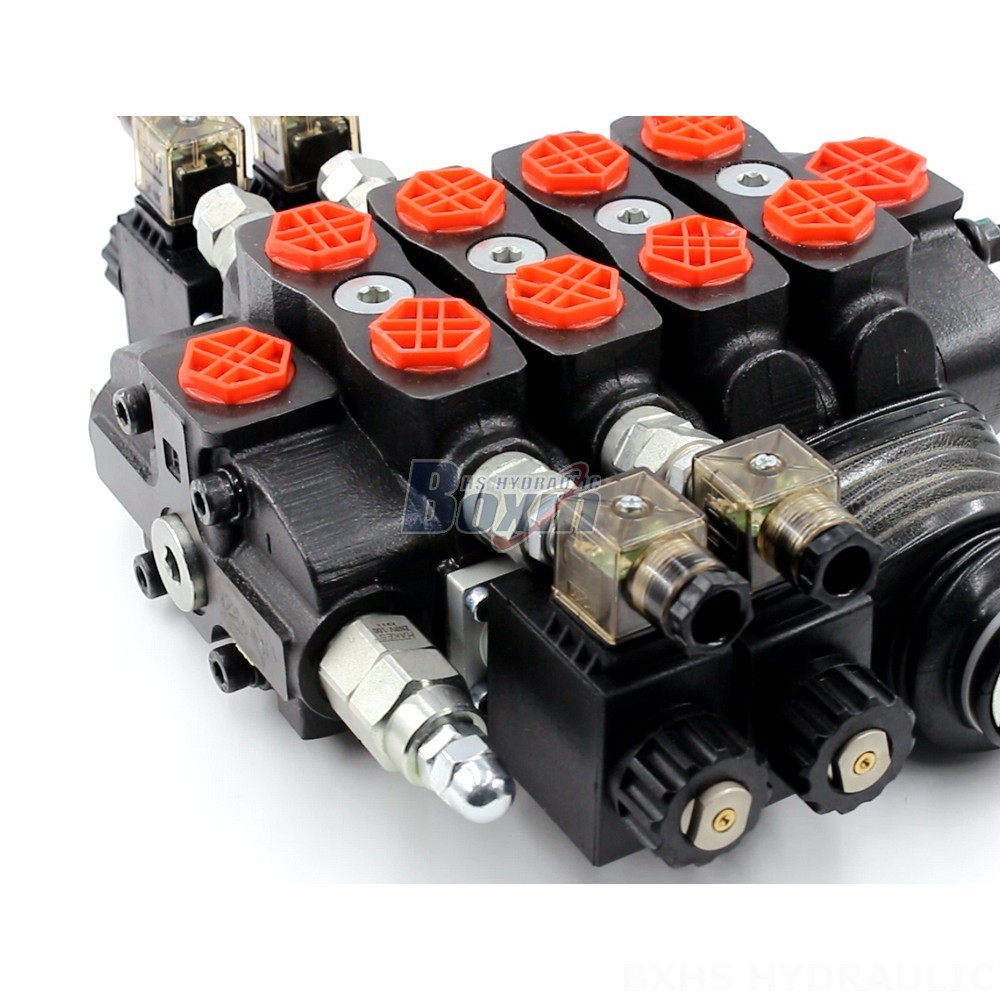

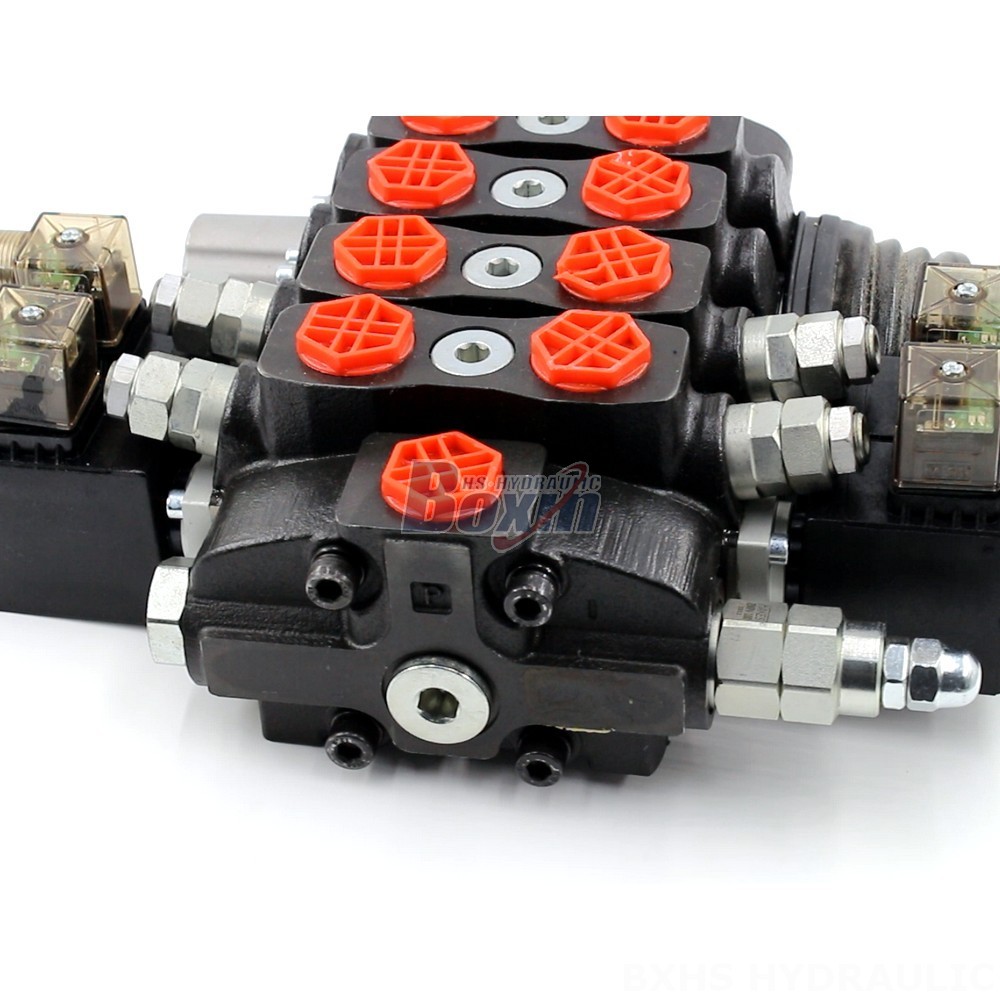

**Hydraulic System Optimization: SD8 Sectional Directional Valves**
Optimize your hydraulic system's performance and efficiency with our SD8 Sectional Directional Valves. These valves provide precise control, high flow capacity, and exceptional durability for demanding applications in various industries.
**Key Features:**
* Solenoid and joystick control for responsive and accurate operation
* Sectional design allows for customization and flexibility
* 3 section configuration for versatile control
* 90 L/min rated flow for high-volume applications
* Maximum pressure of 350 bar for robust performance
* Wide operating viscosity range (12 - 400 mm²/s) for diverse fluid compatibility
* 3 spool design for precise flow management
**Applications:**
Our SD8 Sectional Directional Valves are ideal for applications requiring precise fluid control and high flow capacity. They are commonly used in:
* Material handling equipment
* Construction and earth moving machinery
* Agricultural vehicles
* Industrial vehicles
**Applicable Models:**
These valves are suitable for various hydraulic systems, including those found in:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
