Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1060 Pandangan Mencari Produk Ini

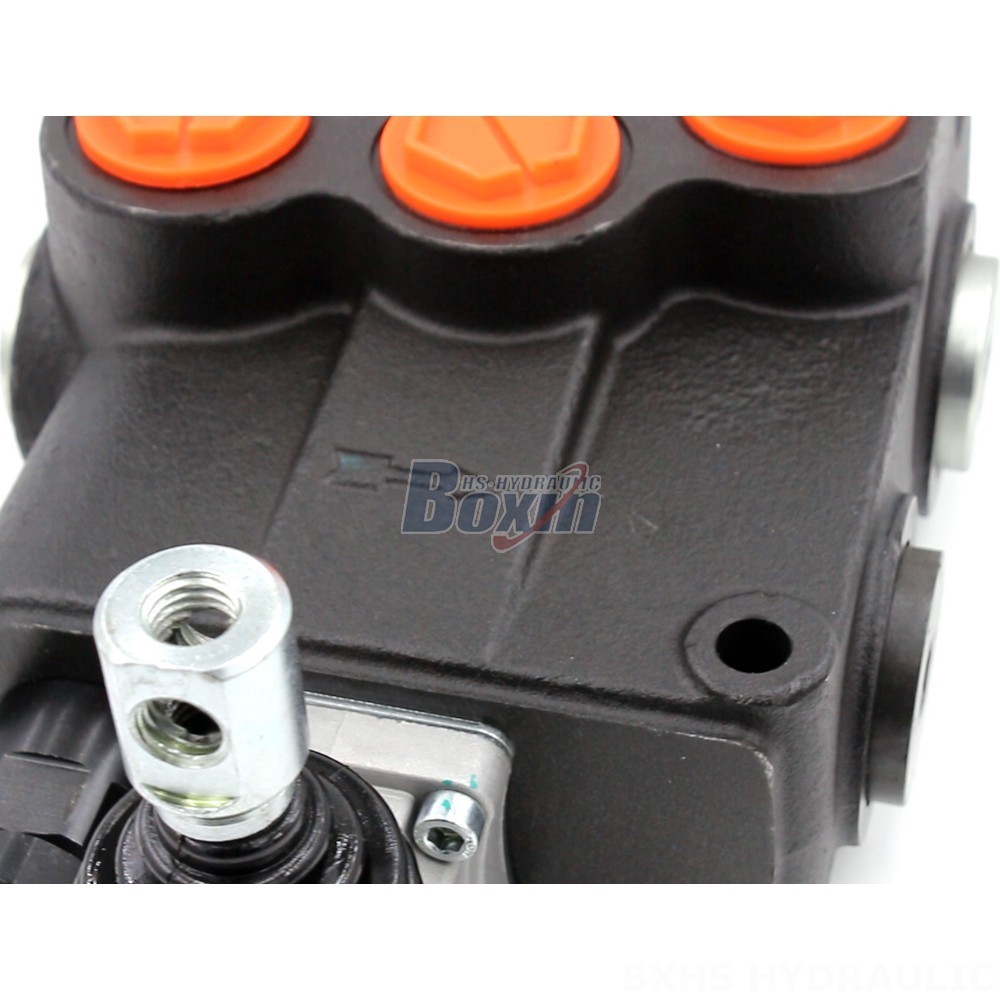

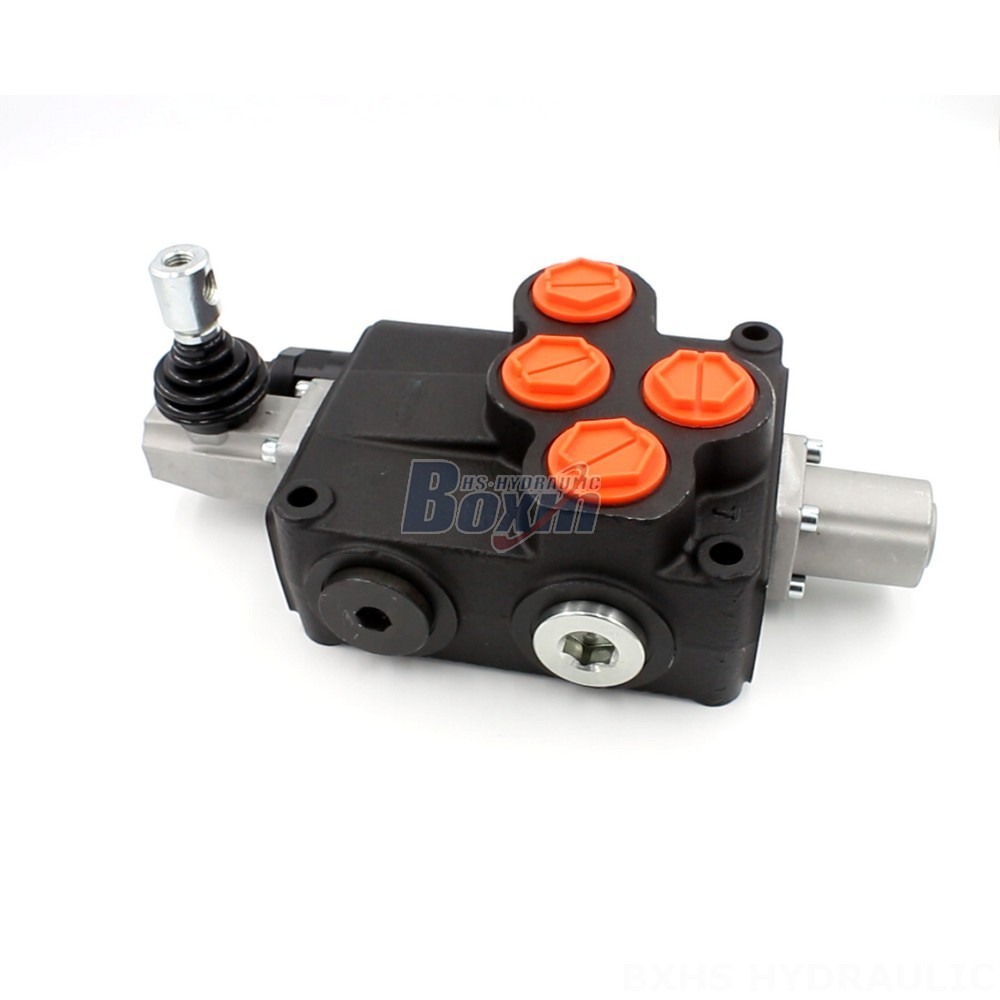

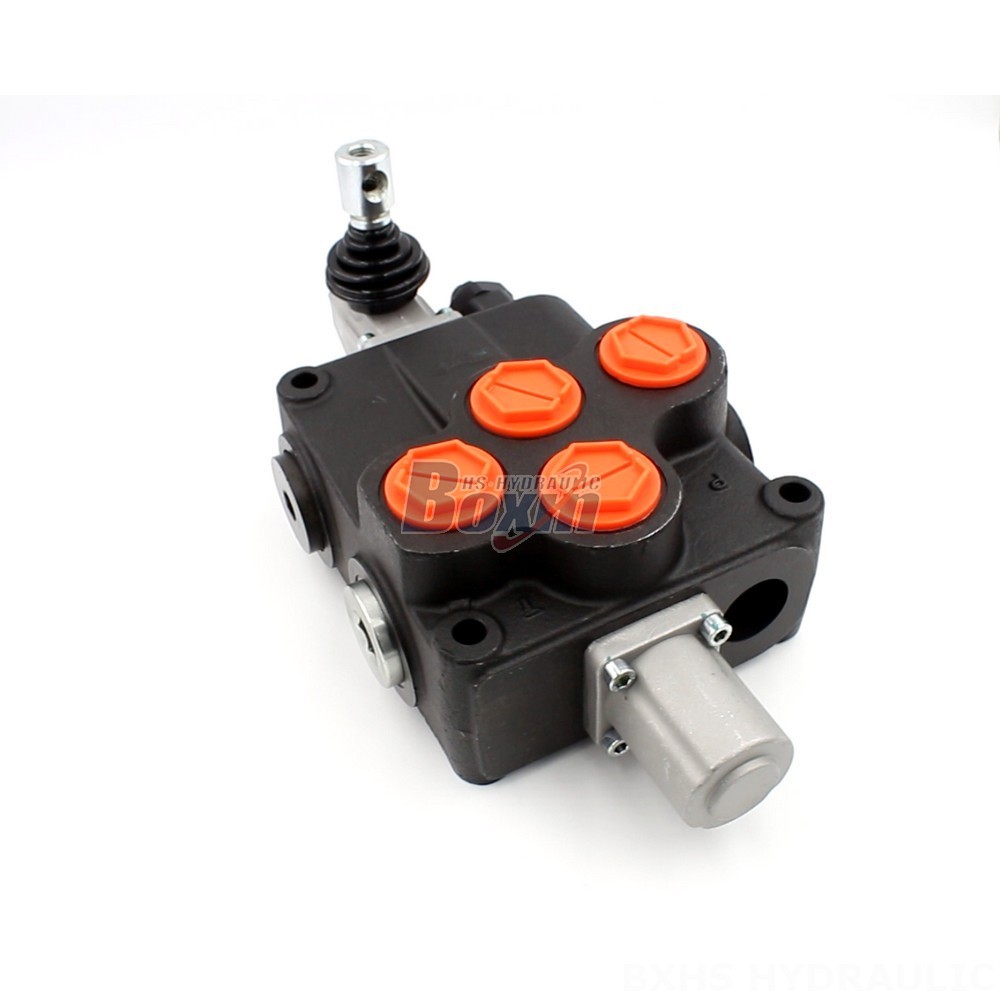

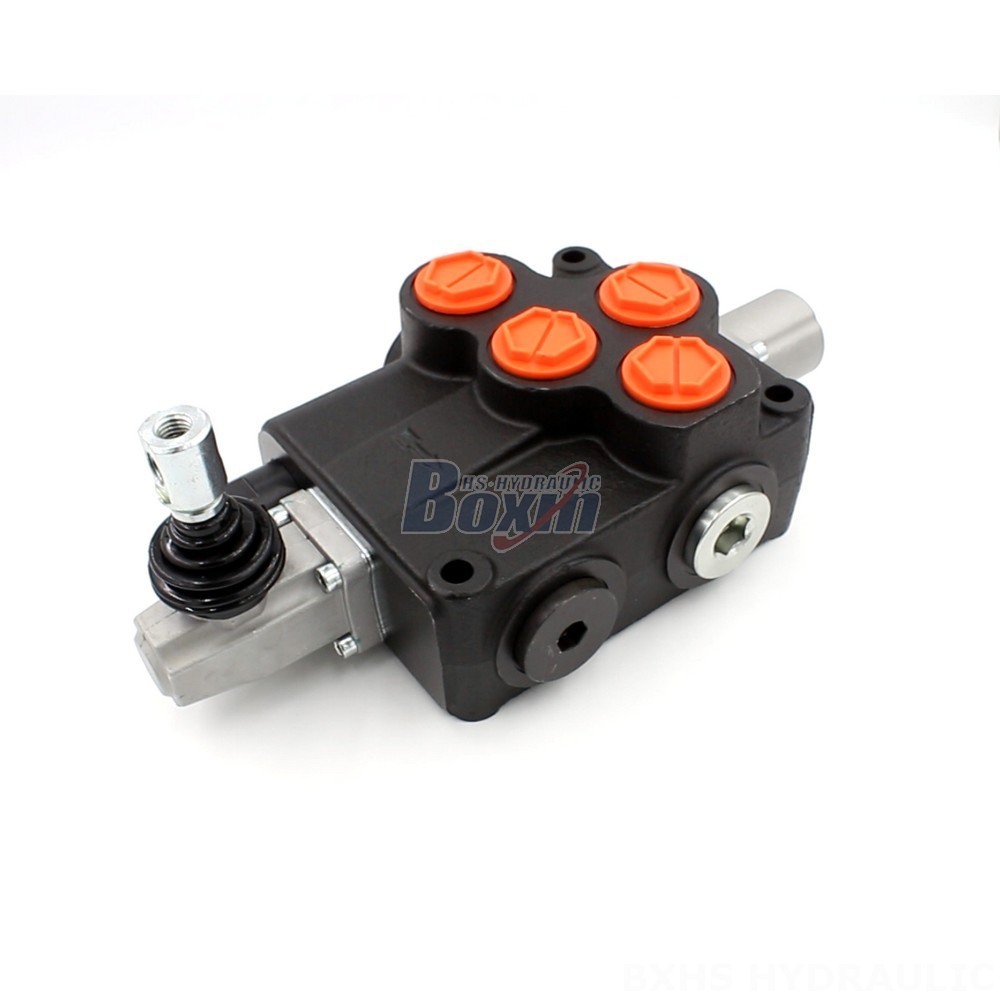

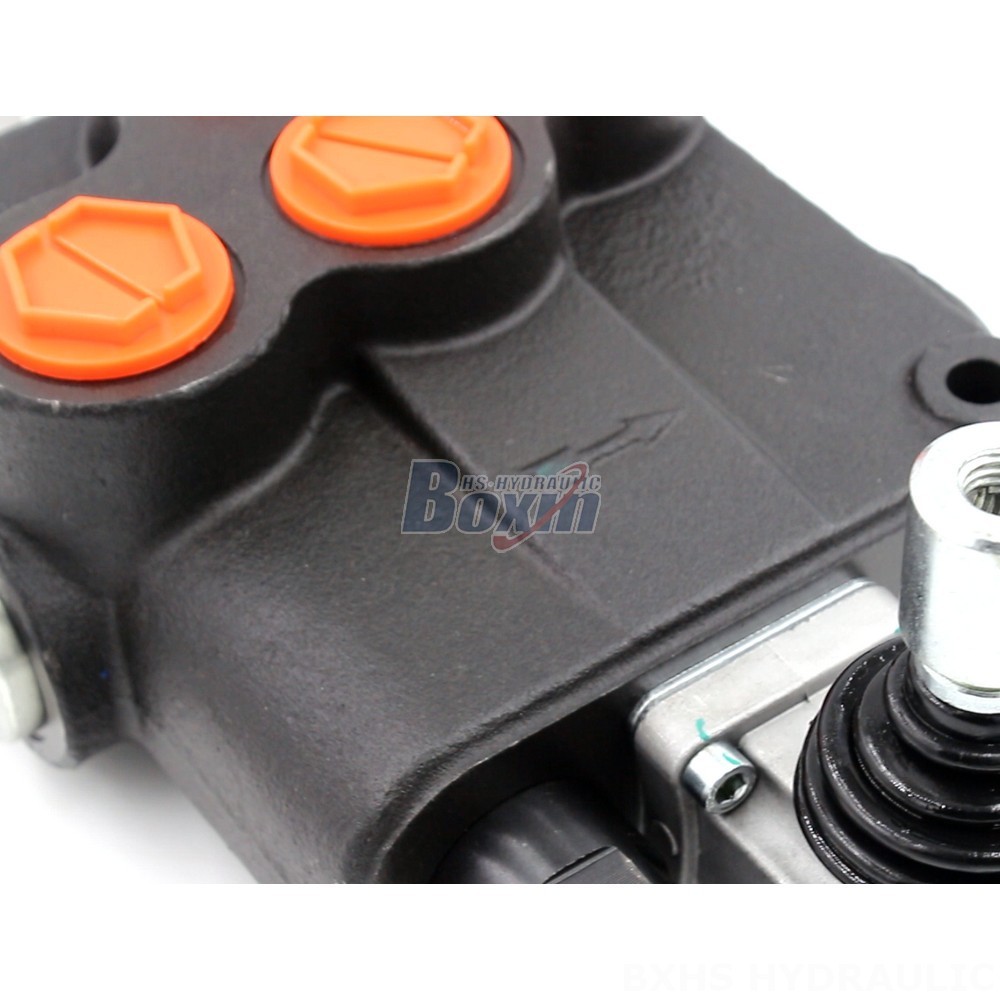

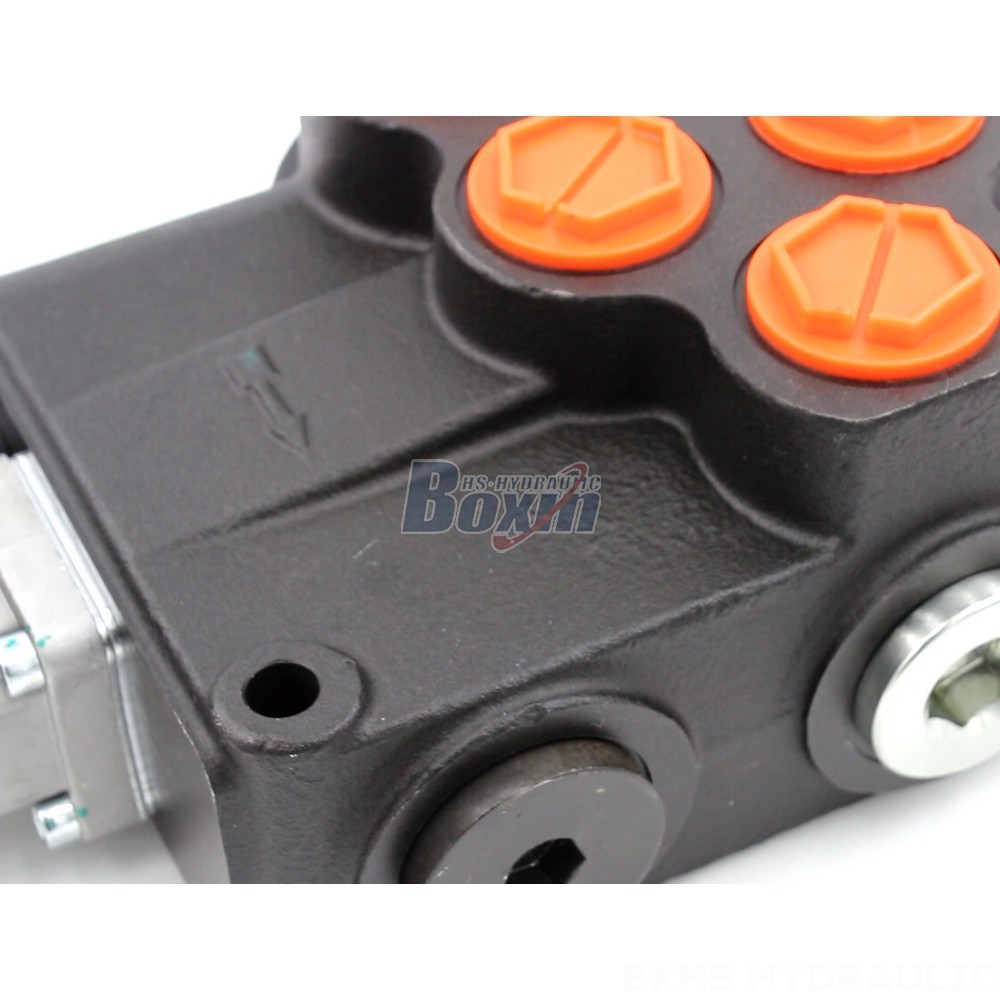

The P120-G1-OT Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With its manual control, 1 section, and monoblock valve design, this valve offers precise control and durability. Its 120 L/min rated flow and 250 bar max pressure make it suitable for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**P120-G1-OT Directional Valve**
**Features:**
- Manual control
- 1 section
- Monoblock valve design
- 120 L/min rated flow
- 250 bar max pressure
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
- 1 spool
- P120 Series
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MINI-EXCAVATOR
- SKID STEER LOADER
- WHEEL LOADER
- HARVESTER
- BALE WRAPPER
- SEEDING MACHINE
