Produksi & Pengiriman
Waktu Produksi 15-30 Hari
970 Pandangan Mencari Produk Ini

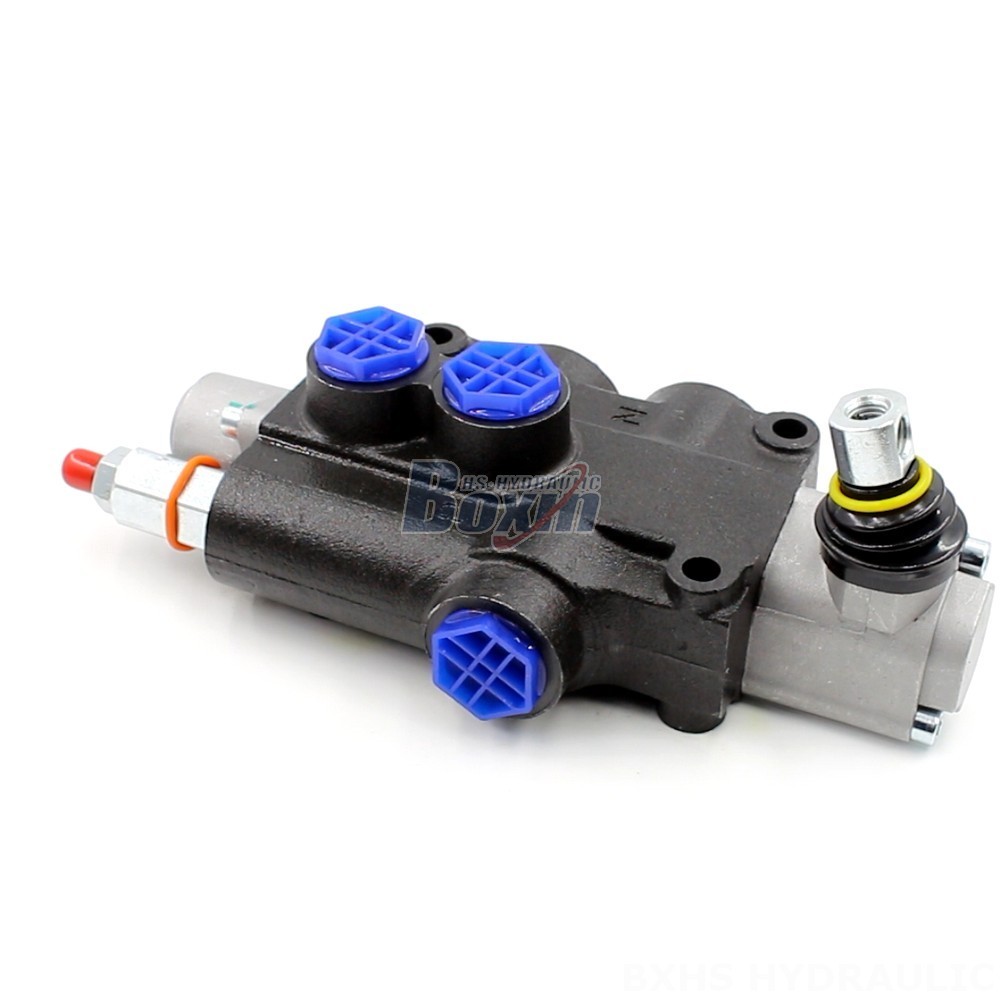

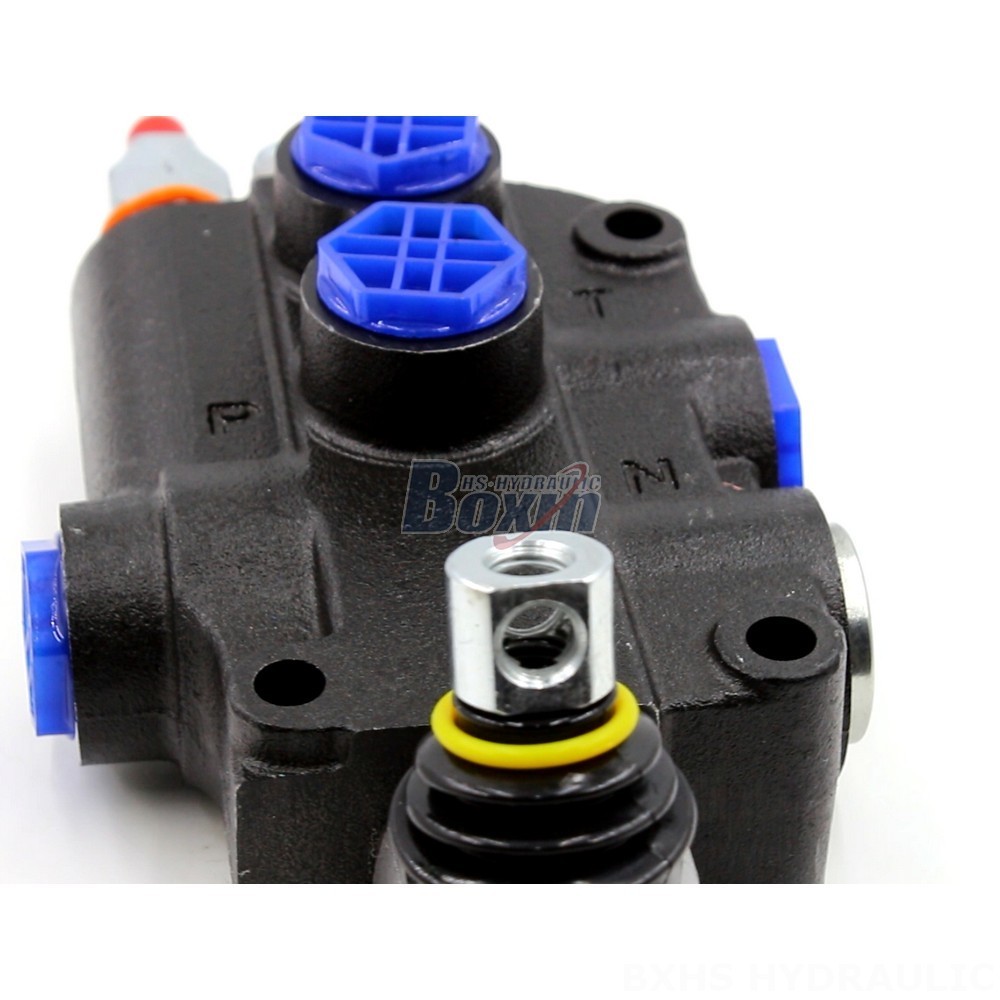

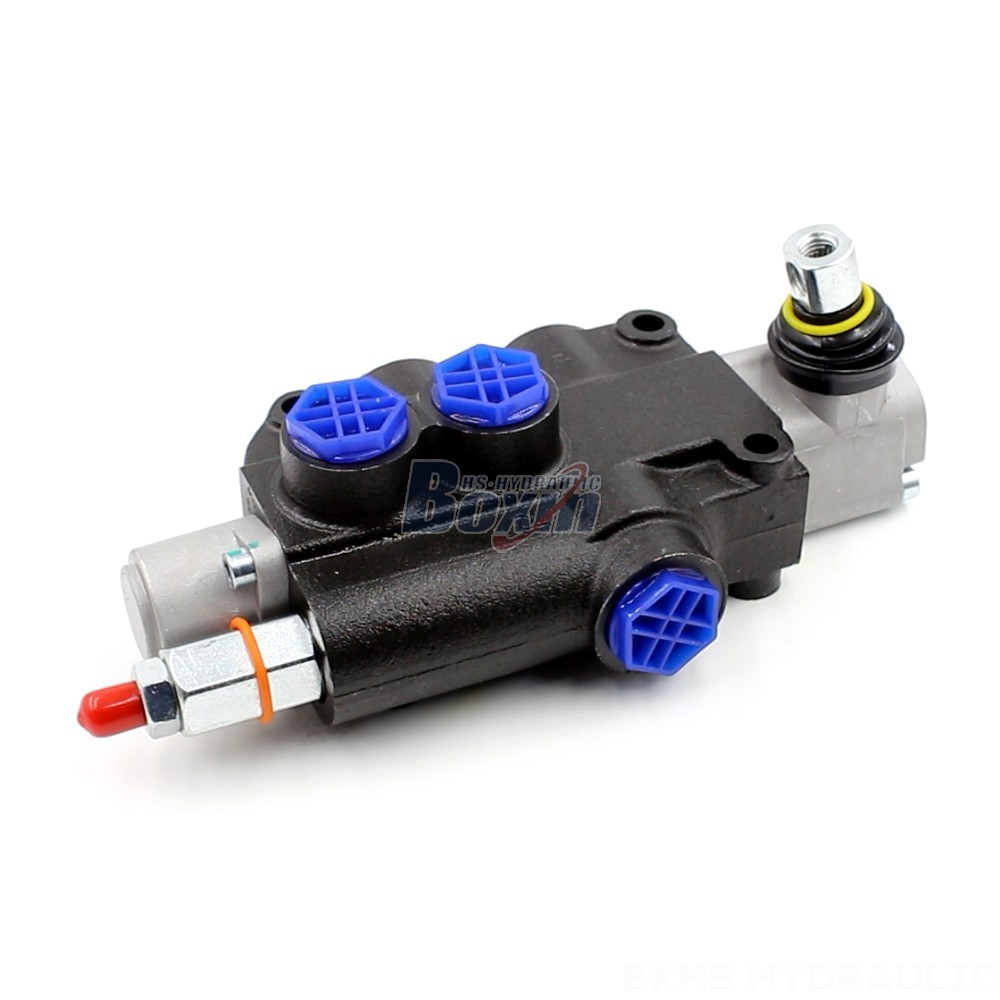

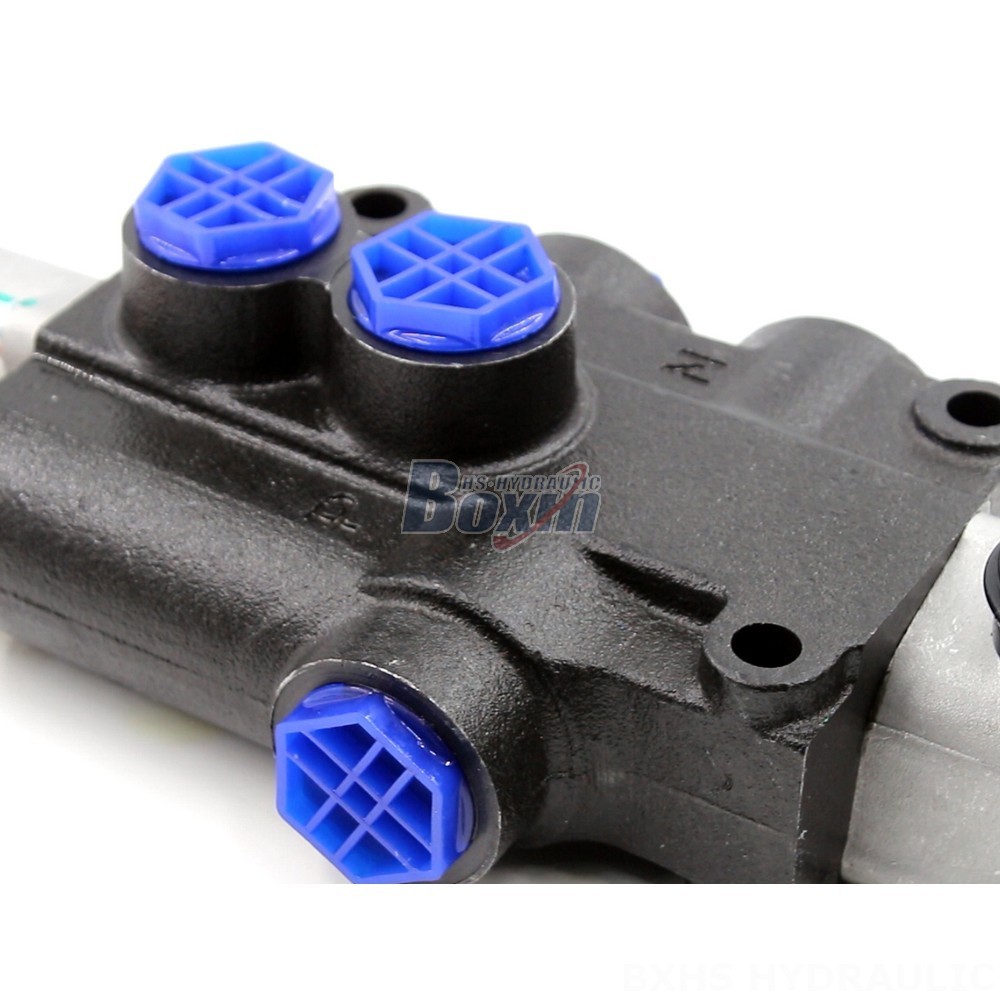

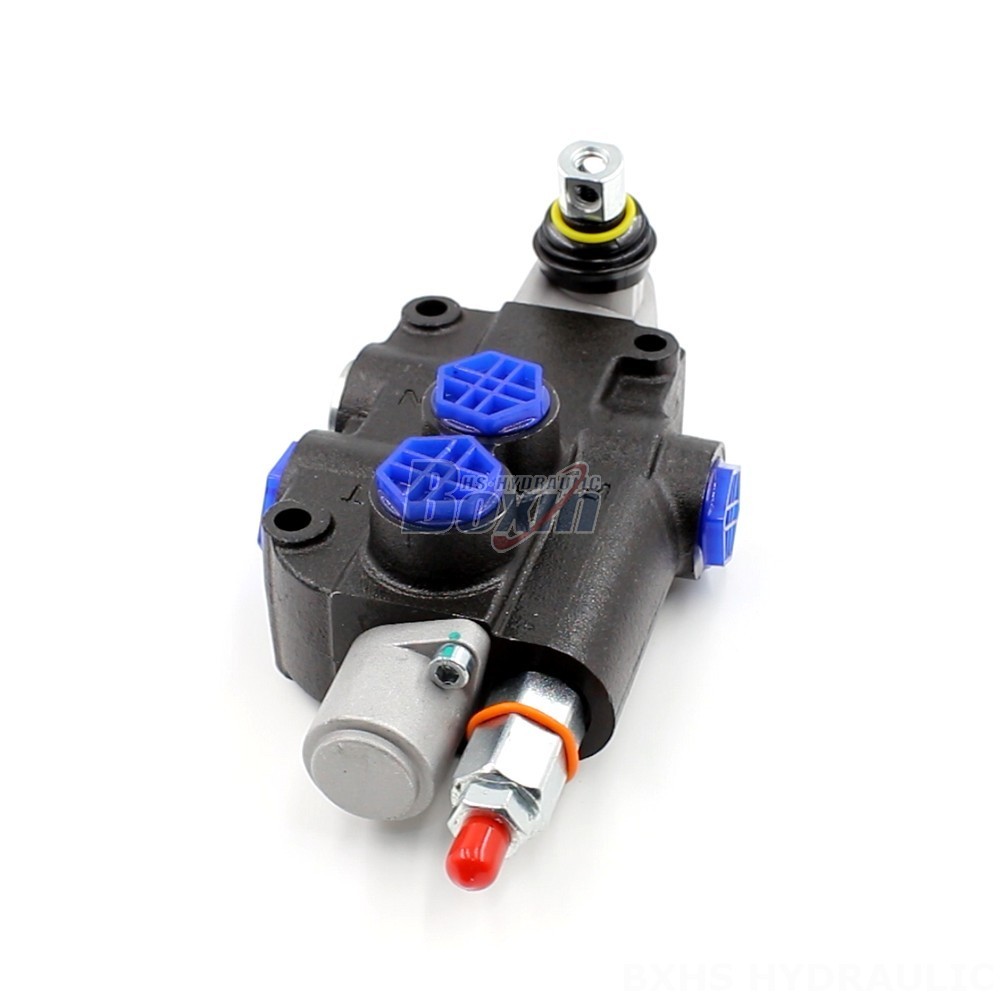

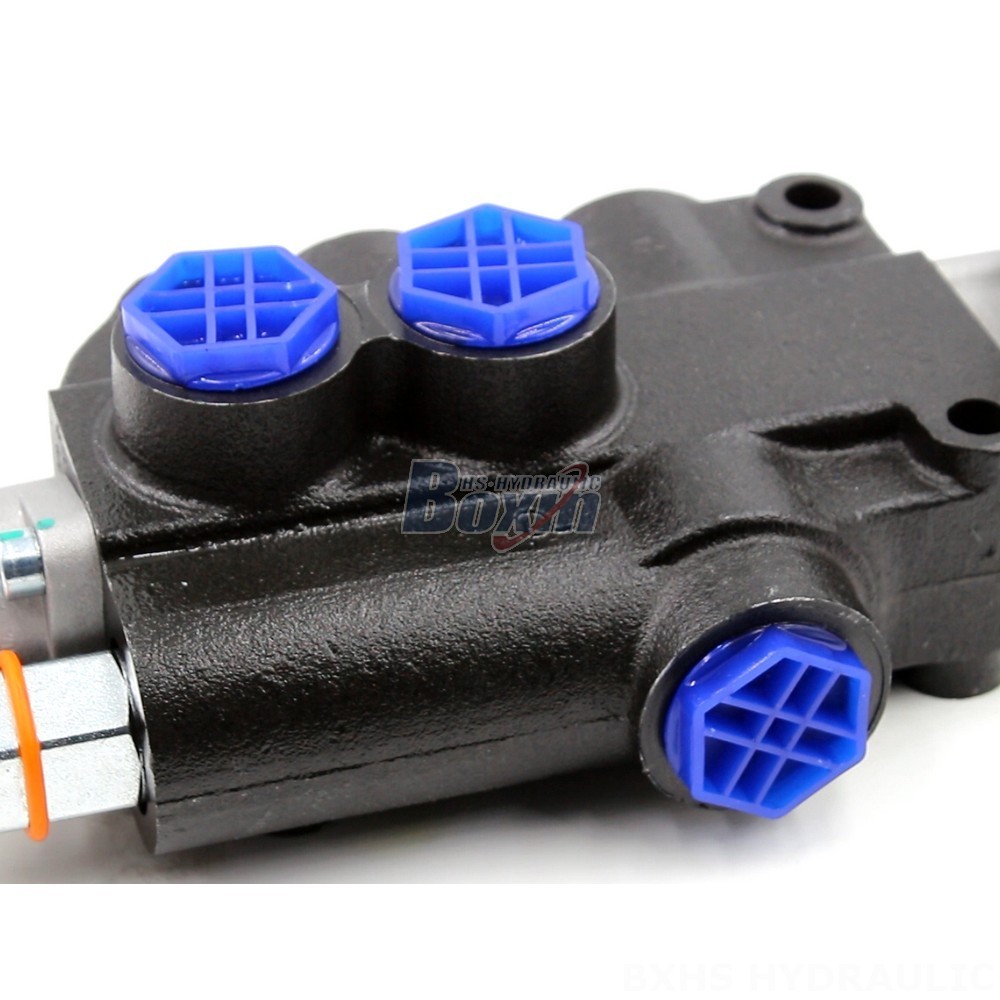

The Hydraulic Valve Manufacturer: P80-G12-OW Directional Valve is a high-performance valve designed for demanding hydraulic applications. With its manual control, monoblock structure, and impressive flow rate and pressure capabilities, this valve is ideal for various industries, including material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Details:**
- **Product Name:** Hydraulic Valve Manufacturer: P80-G12-OW Directional Valve
- **Control Method:** Manual
- **Section:** 1 Section
- **Structure Type:** Monoblock Valve
- **Rated Flow:** 80 L/min (21.2 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 1 Spool
- **Series:** P80 Series
- **Application Area:** Material Handling, Construction, Agriculture, Industrial Vehicles
- **Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform
