Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1020 Pandangan Mencari Produk Ini
Our P40-U34 Series hydraulic valves offer exceptional performance and versatility for various applications. With OEM and ODM services, we can tailor these valves to your specific requirements, including customized designs, private labeling, and tailored solutions.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

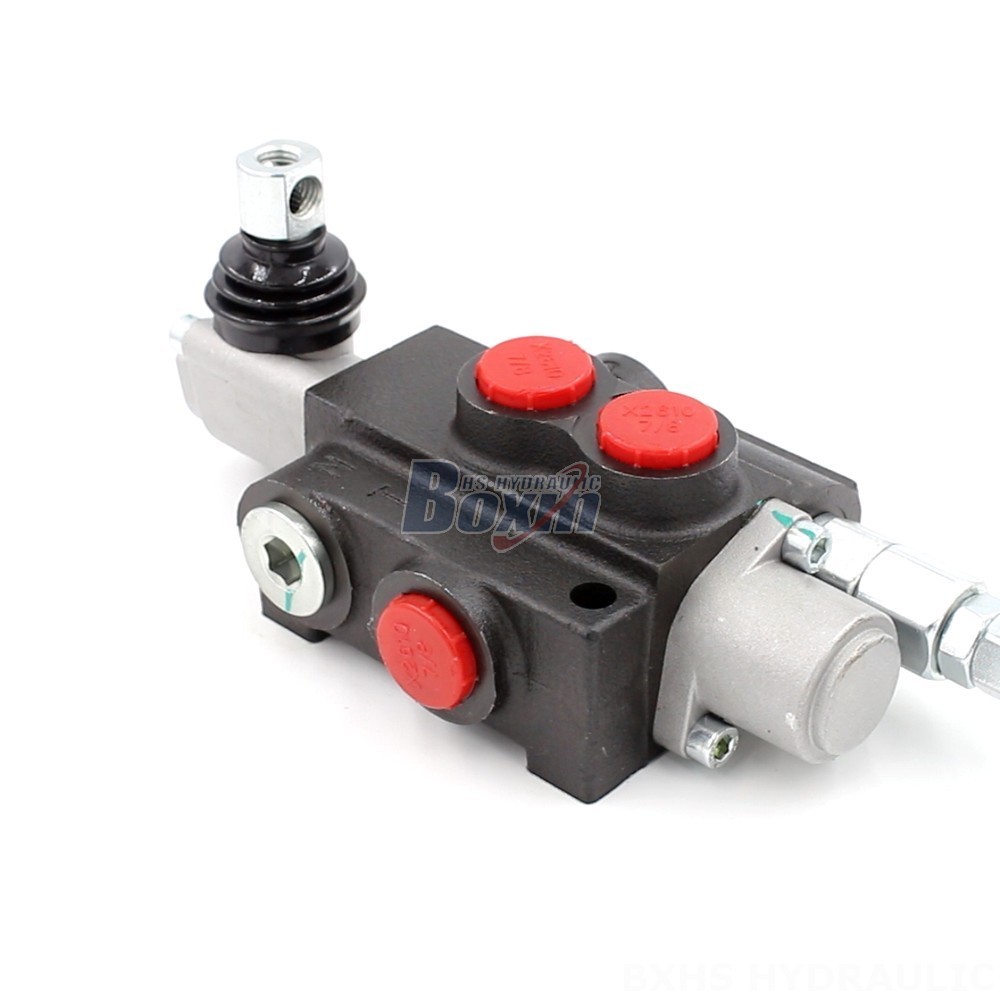

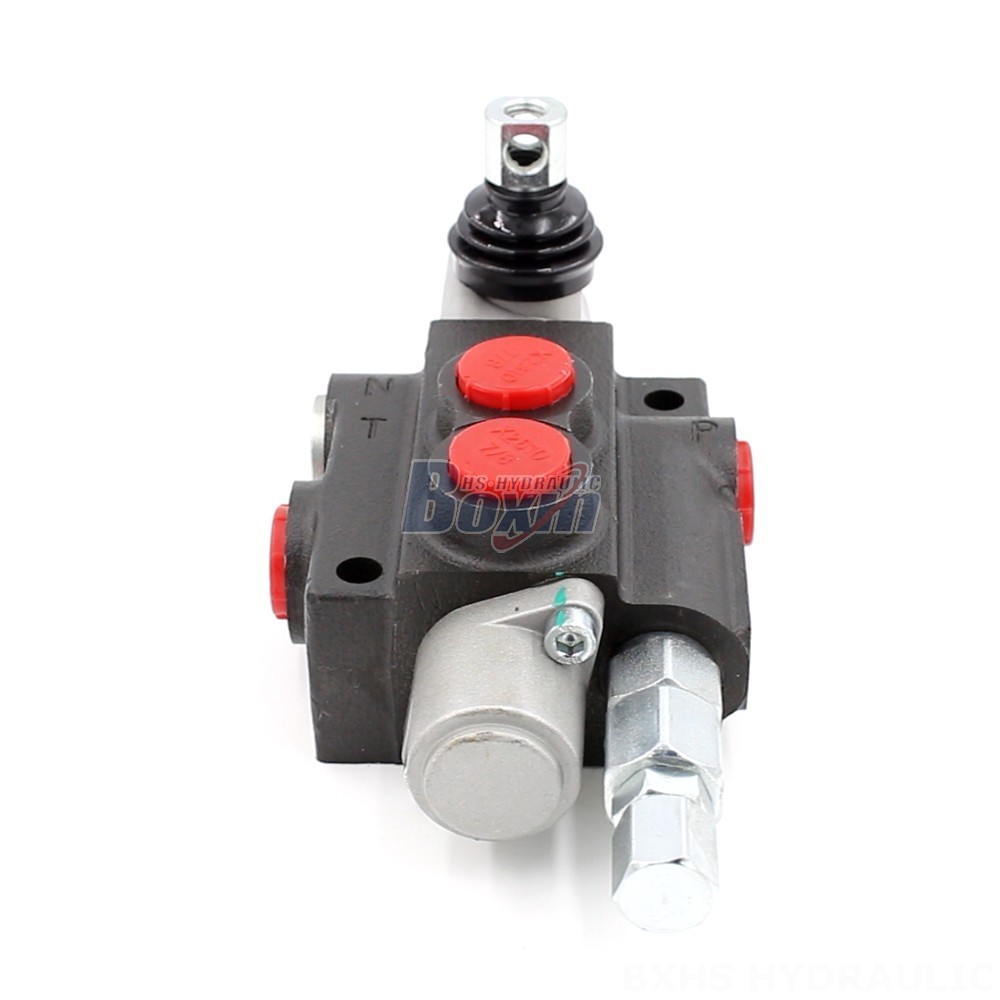

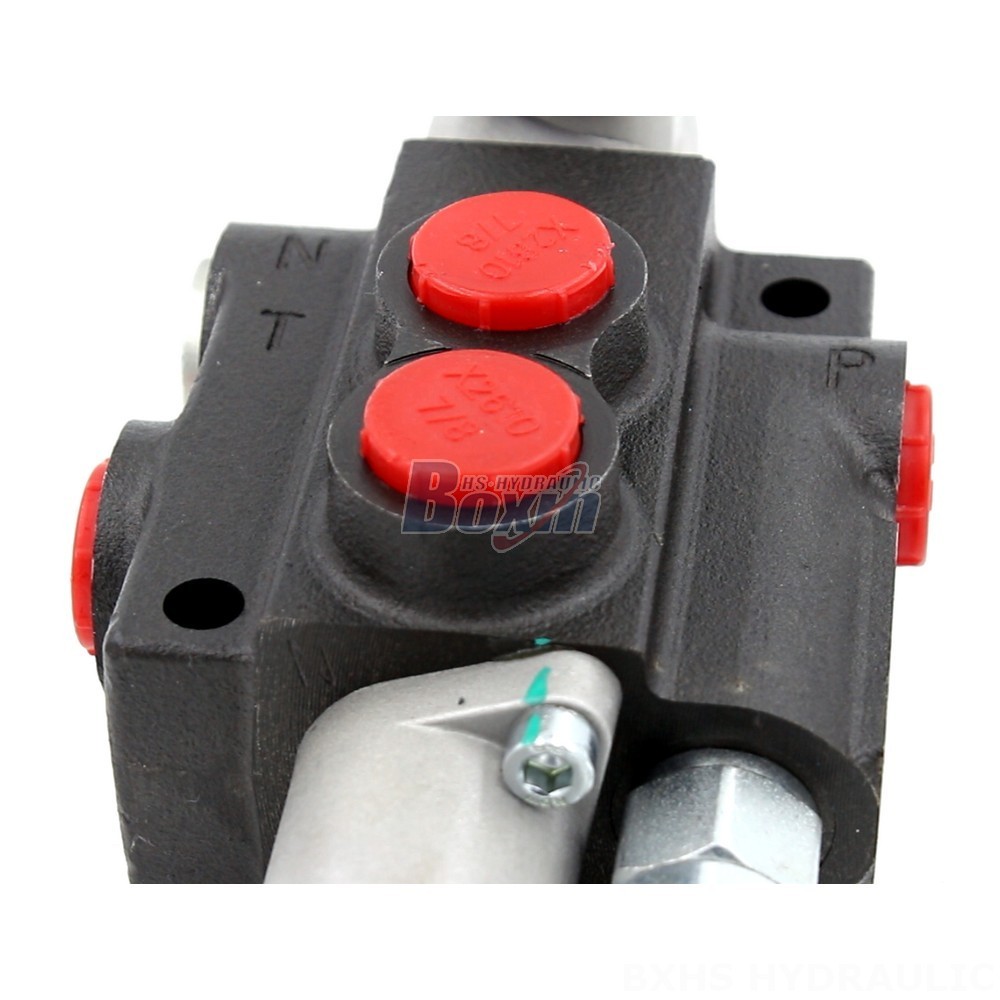

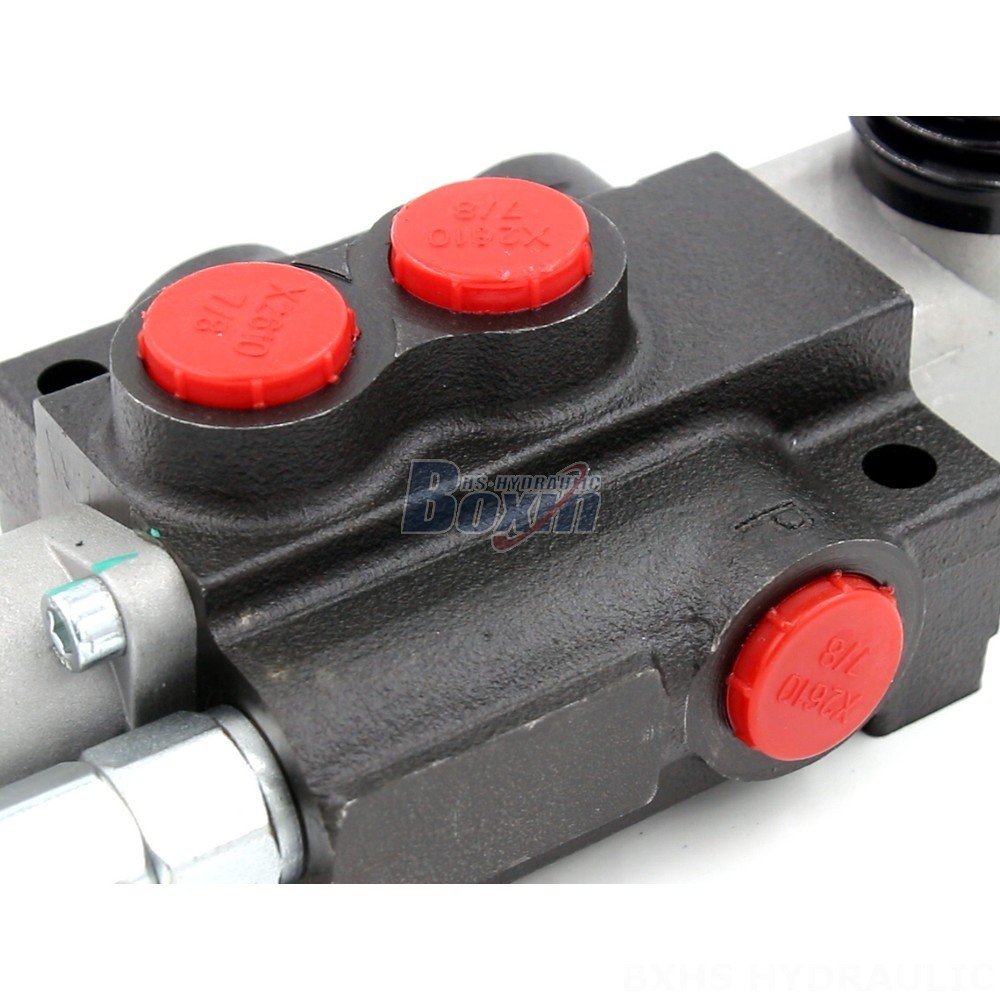

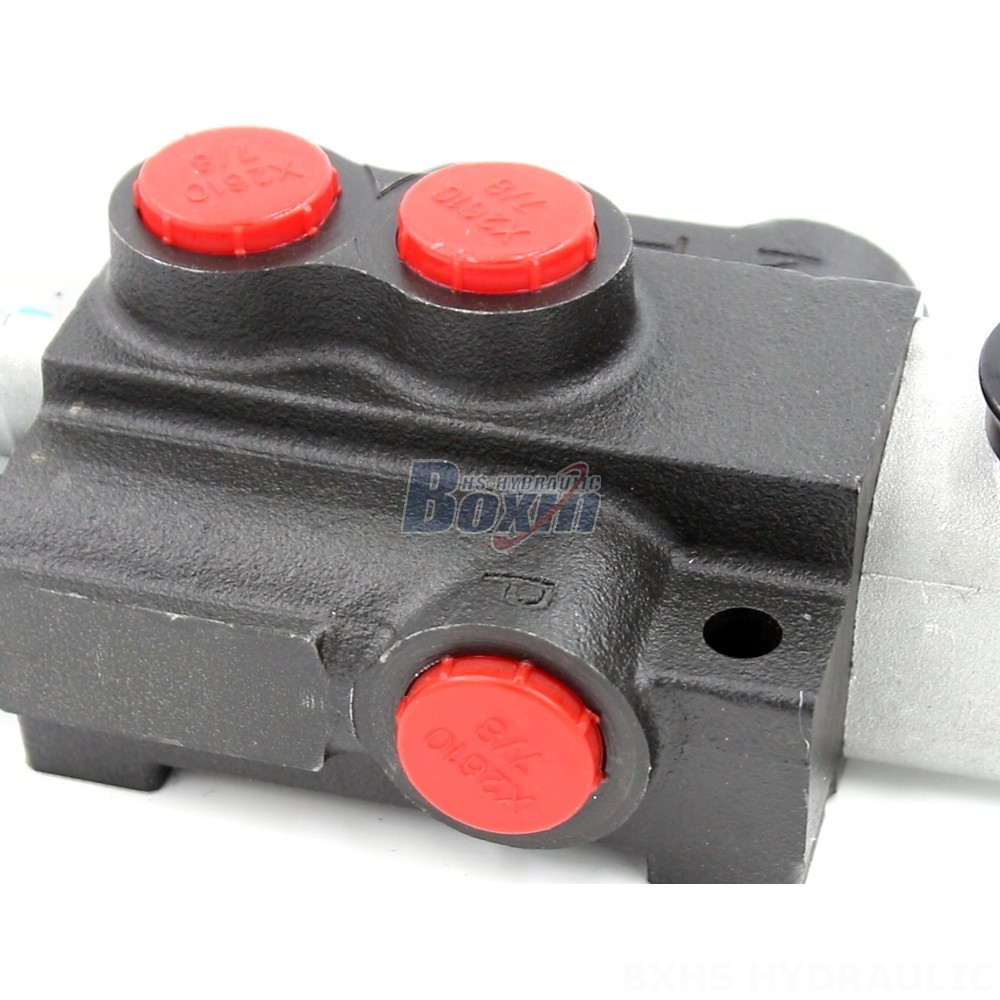

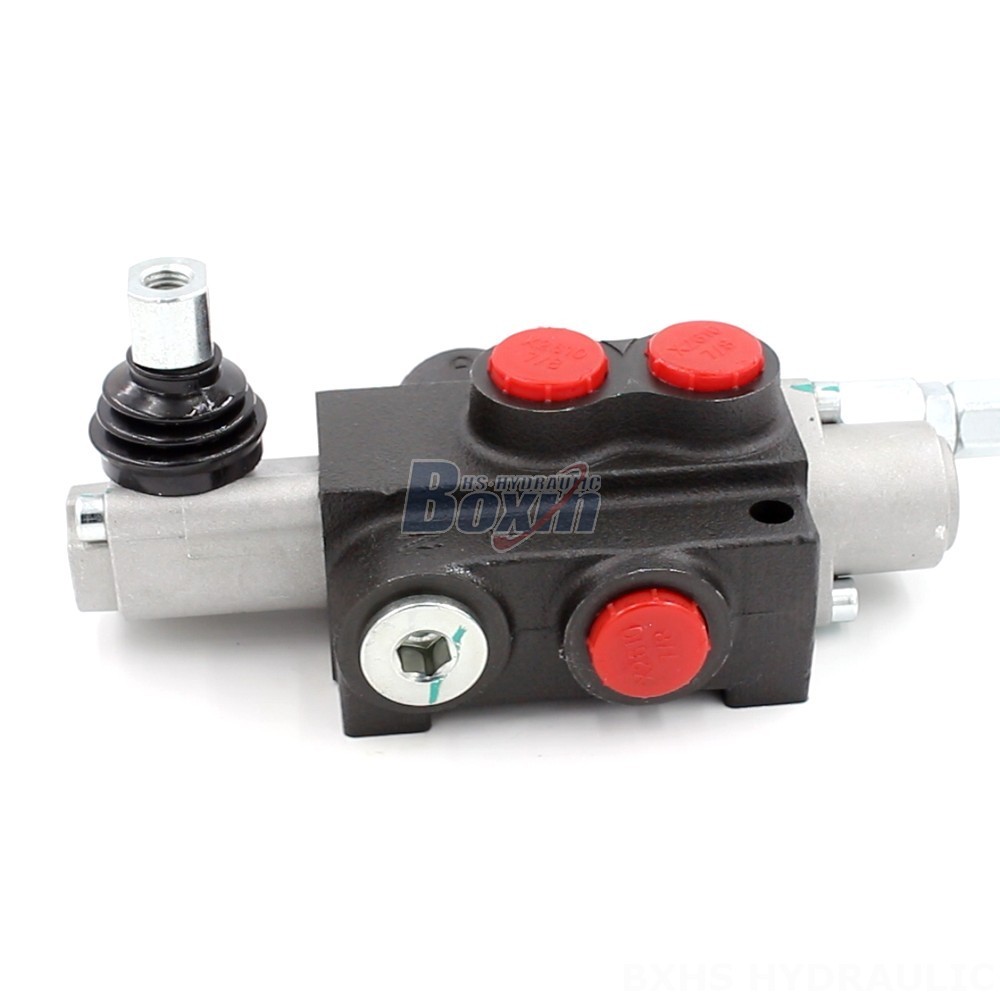

**P40-U34 Series Hydraulic Valve: Customizable Solutions for Demanding Applications**
**OEM/ODM Services for Tailored Solutions:**
- Custom designs to match your exact specifications
- Private labeling for enhanced brand recognition
- Specialized solutions to meet unique application challenges
**Exceptional Performance and Durability:**
- Manual control for precise operation
- Monoblock construction for ruggedness and reliability
- Rated flow of 40 L/min and maximum pressure of 250 bar
- Operating viscosity range of 15 - 75 mm²/s
- Ambient temperature range of -40°C to +80°C
**Wide Range of Applications:**
- Material handling equipment (e.g., forklifts, telehandlers)
- Construction and earthmoving machinery (e.g., excavators, skid steer loaders)
- Agricultural vehicles (e.g., tractors, harvesters)
- Industrial vehicles (e.g., aerial platforms, motor graders)
