Produksi & Pengiriman
Waktu Produksi 15-30 Hari

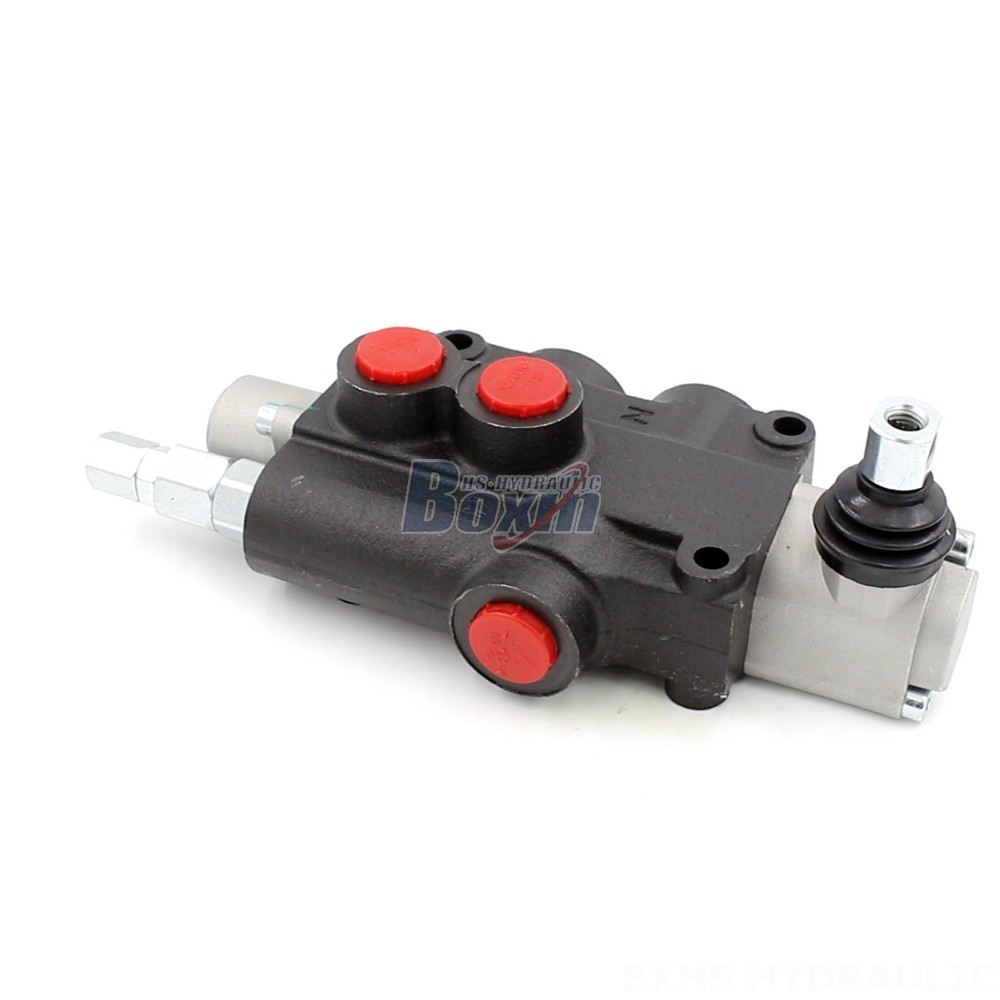

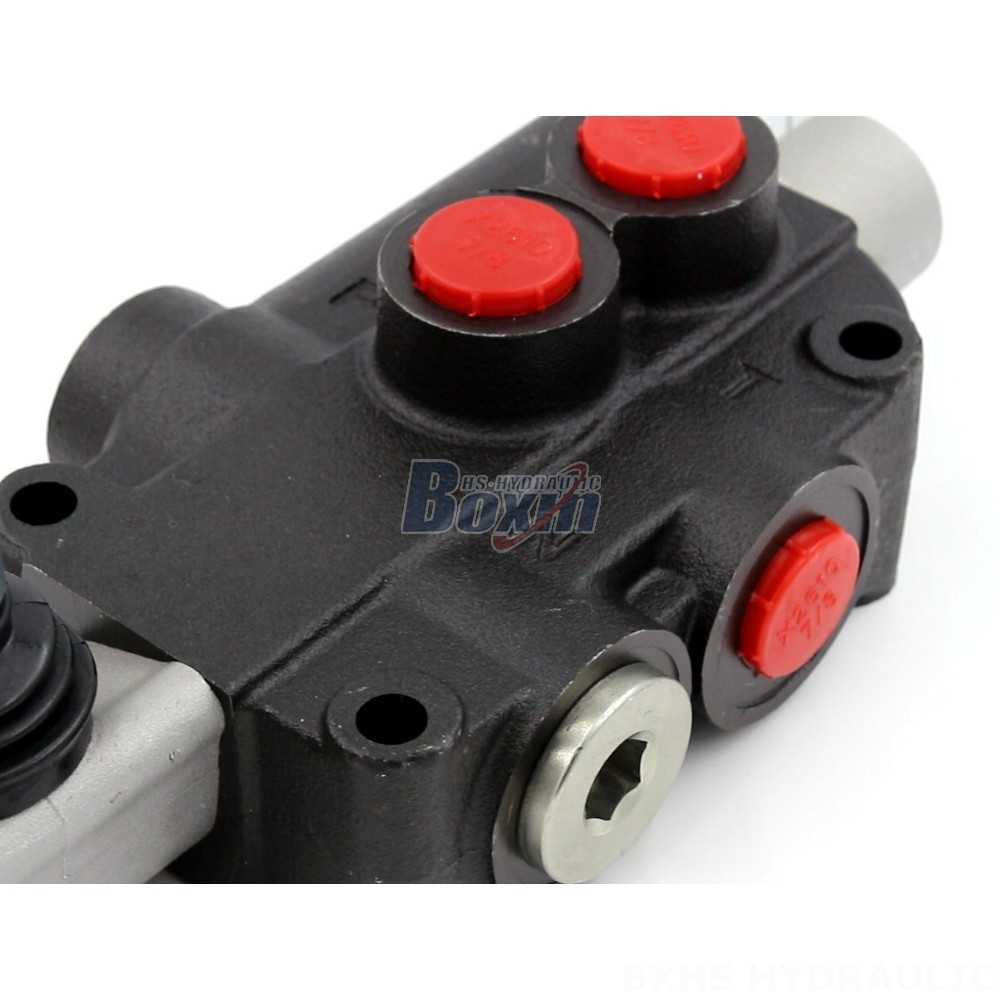

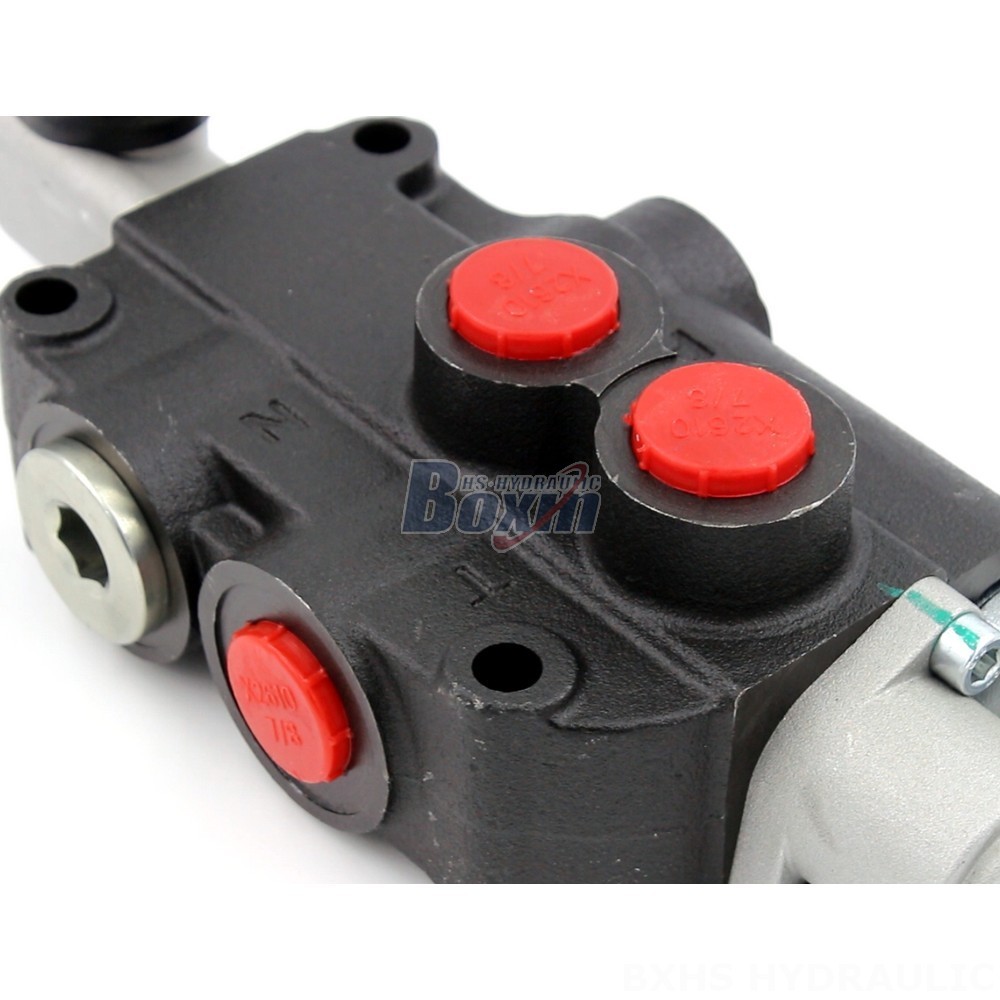

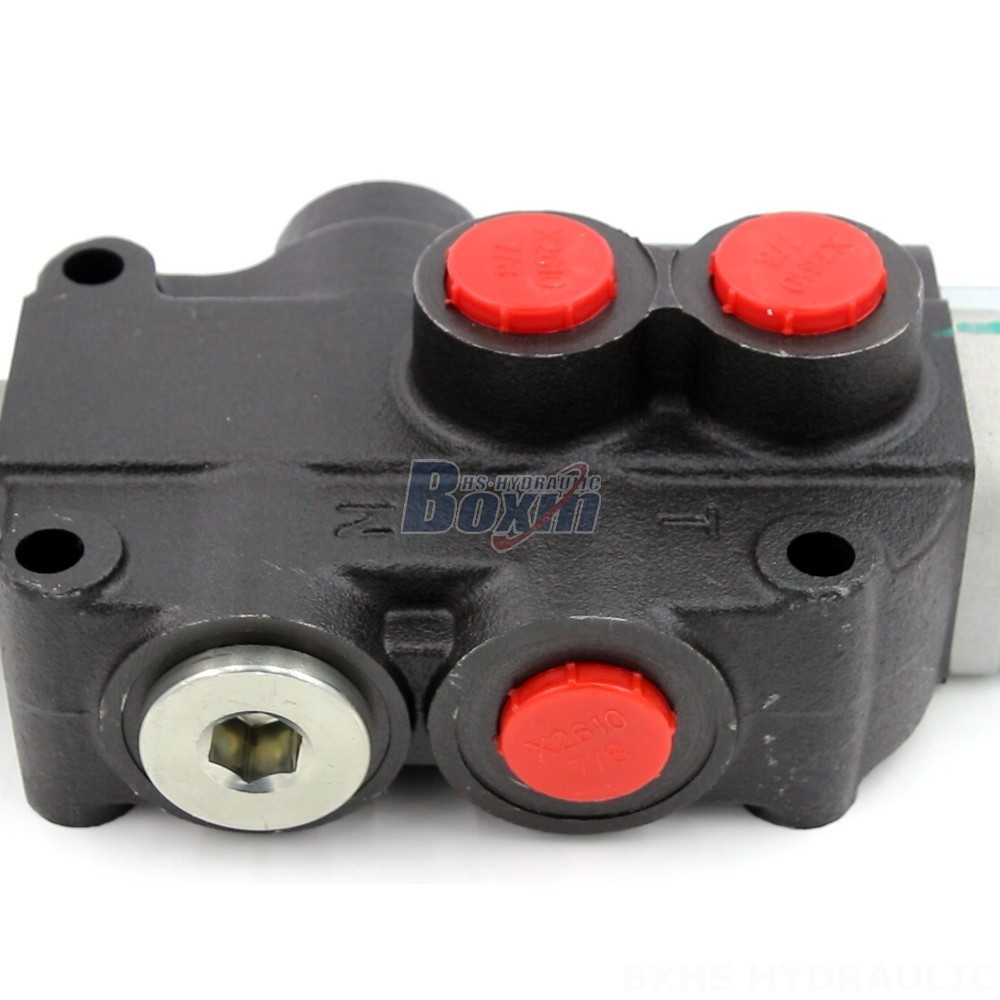

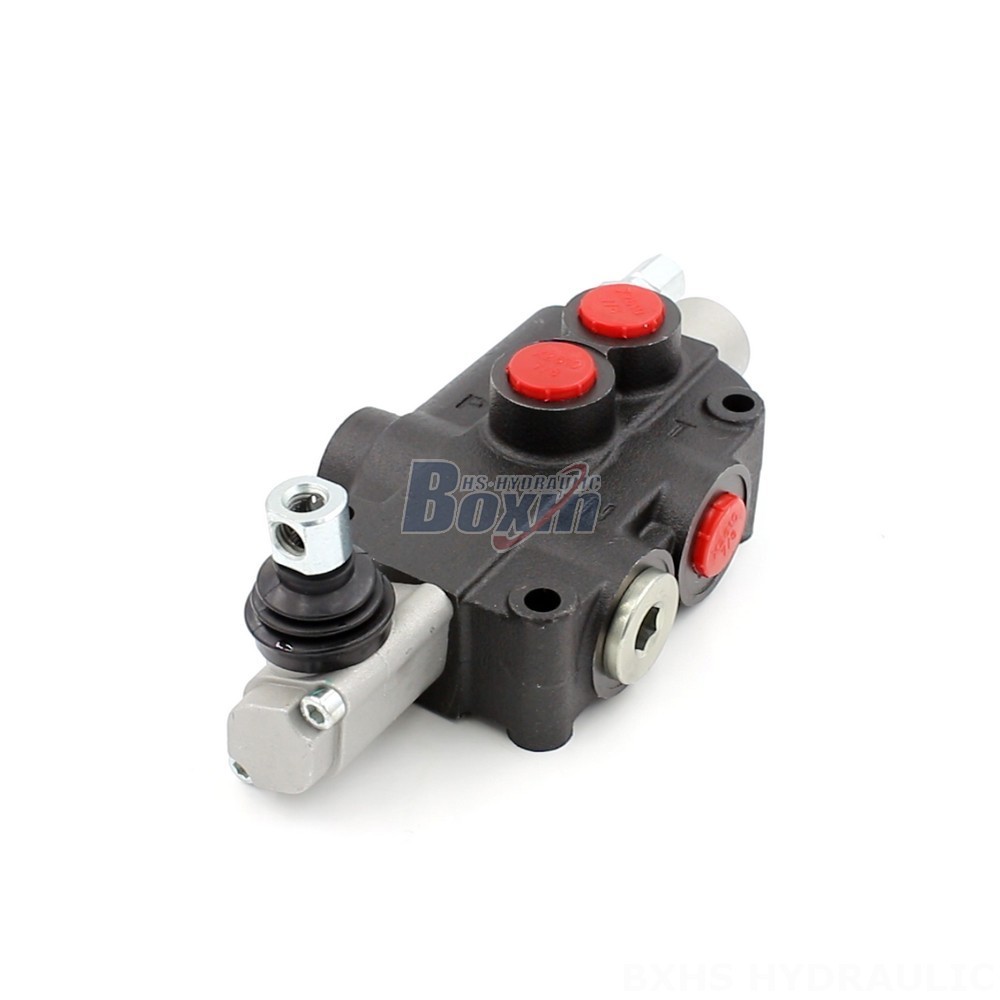

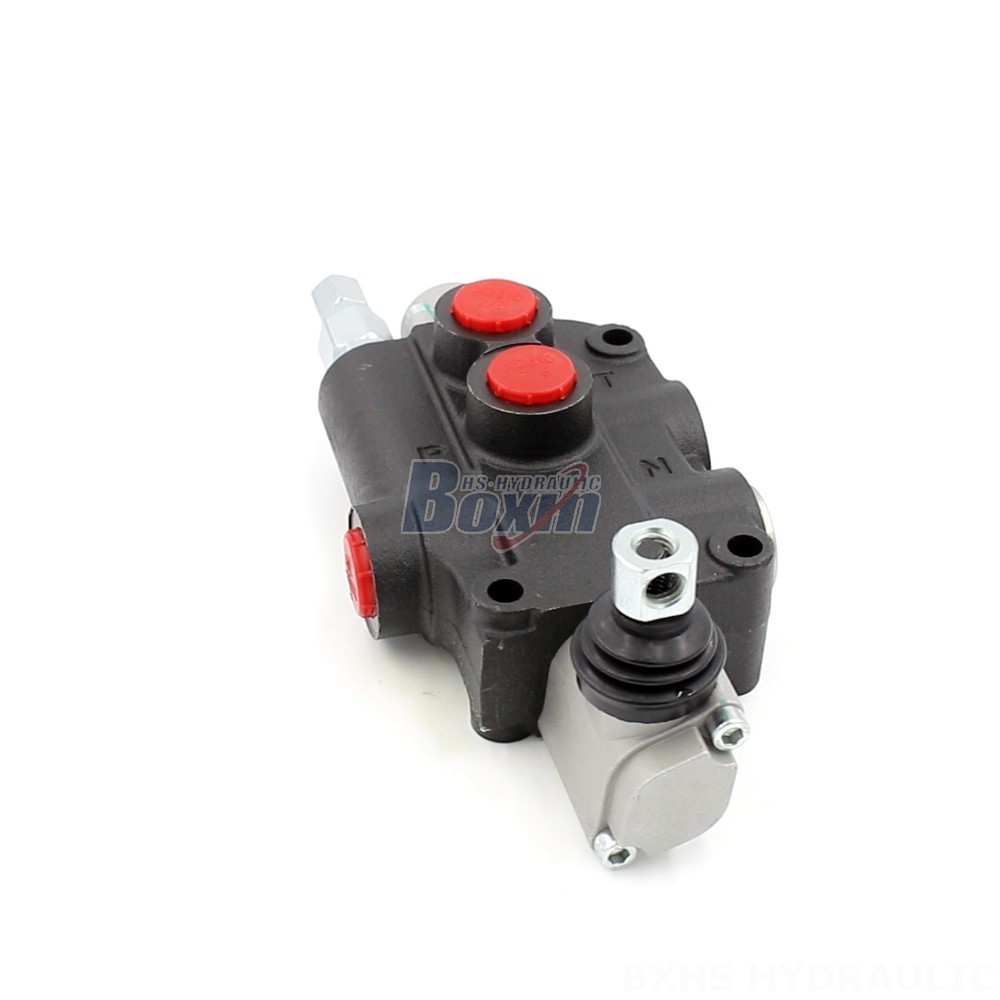

The SDS180 Hydraulic Valve P80-U78-OT is a high-quality, direct control monoblock valve designed for material handling applications, particularly in forklifts. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and a robust construction for reliable performance.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This premium quality SDS180 Hydraulic Valve P80-U78-OT is a direct control monoblock valve ideal for material handling applications, specifically for forklifts. With a manual control method, it features a single section and a rated flow of 80 L/min. Operating at a maximum pressure of 250 bar, this valve is designed for demanding environments. Its monoblock construction ensures durability and reliability. The valve is compatible with a wide range of operating viscosities (15-75 mm²/s) and can withstand ambient temperatures from -40°C to +80°C. This P80 series valve provides competitive pricing and is backed by our commitment to quality. It's an excellent choice for those seeking a reliable and high-performing hydraulic valve for their forklift applications.
