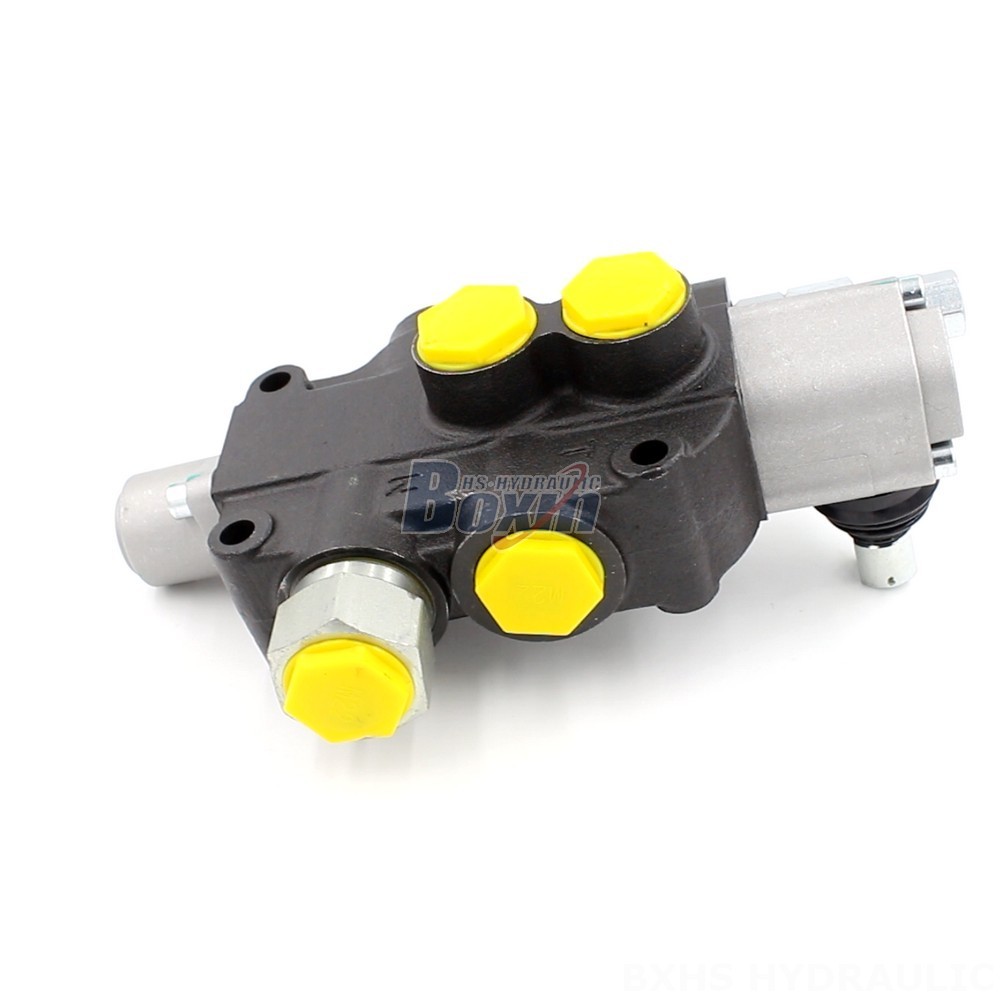

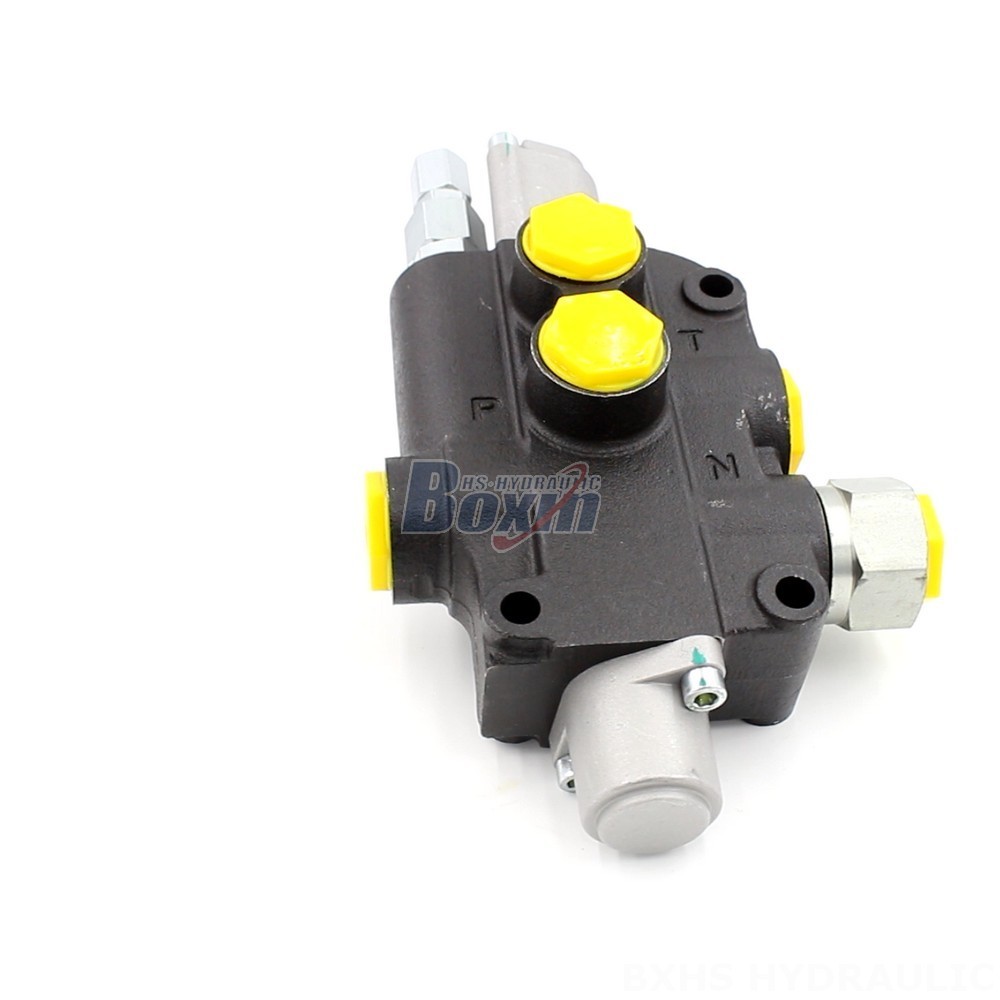

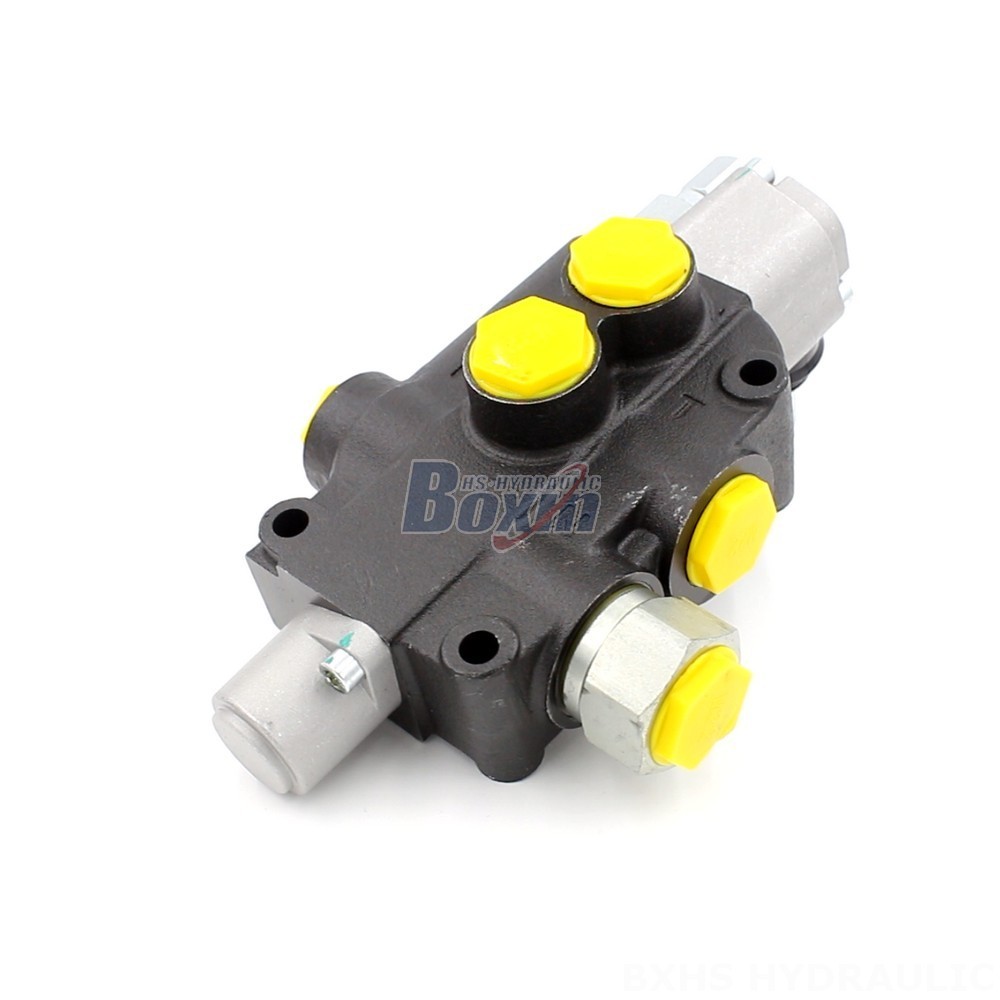

The P80J Hydraulic Control Valve is a high-performance, manual control valve designed for log splitters and a variety of construction and material handling equipment. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this monoblock valve is built to withstand demanding applications. It is available for global distribution directly from the factory.
| Seri P80J Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M20×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M20×1.5, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The P80J Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. Its monoblock construction ensures durability and long-lasting performance. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for heavy-duty log splitting and other applications requiring high flow and pressure. The manual control method provides simple and straightforward operation. This valve is specifically designed for use in various equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The P80J series is manufactured to the highest quality standards and is available for global distribution directly from the factory, ensuring a reliable and cost-effective solution for your hydraulic needs.
