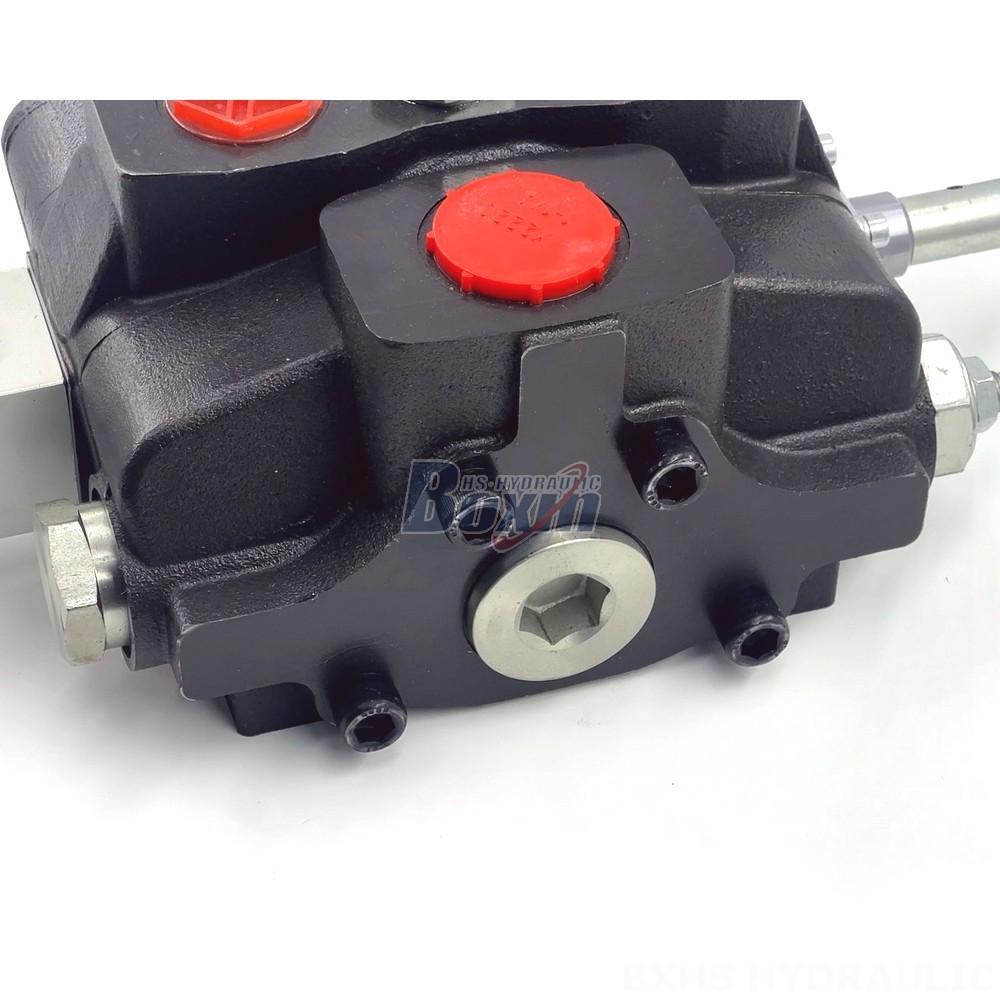

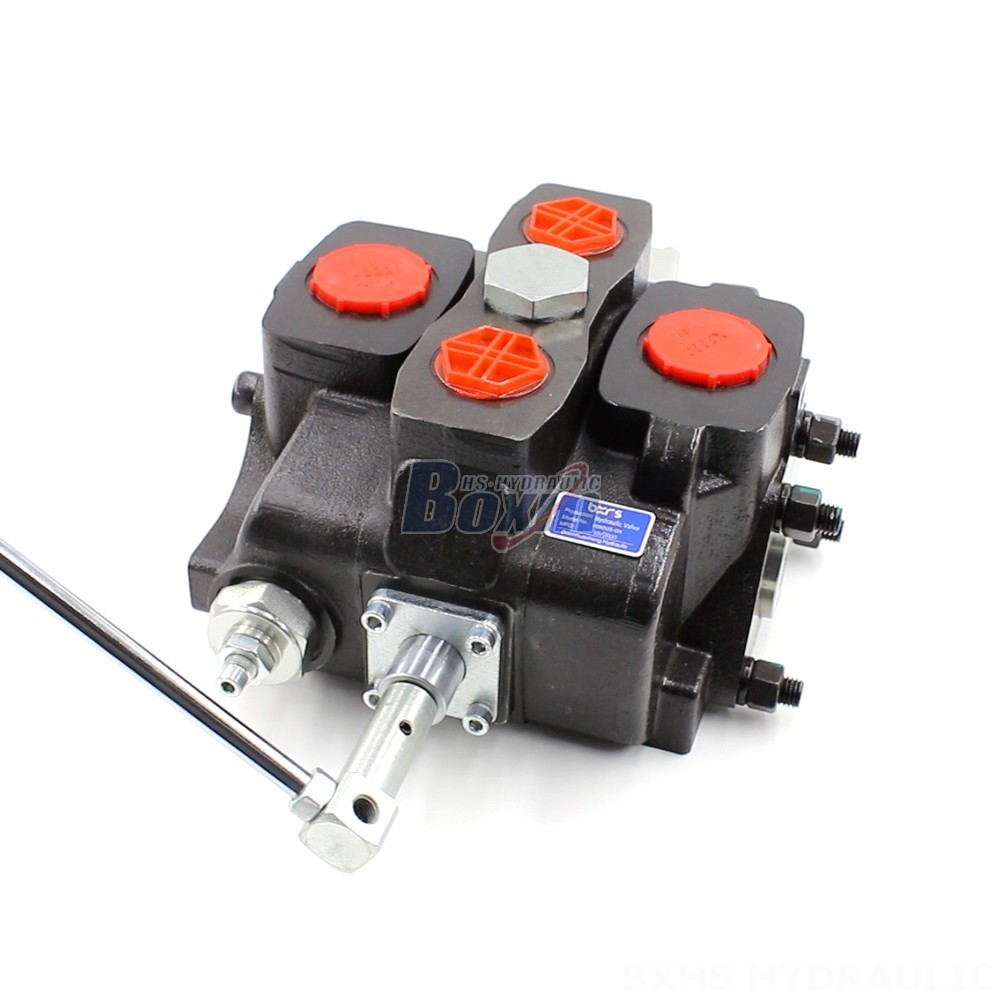

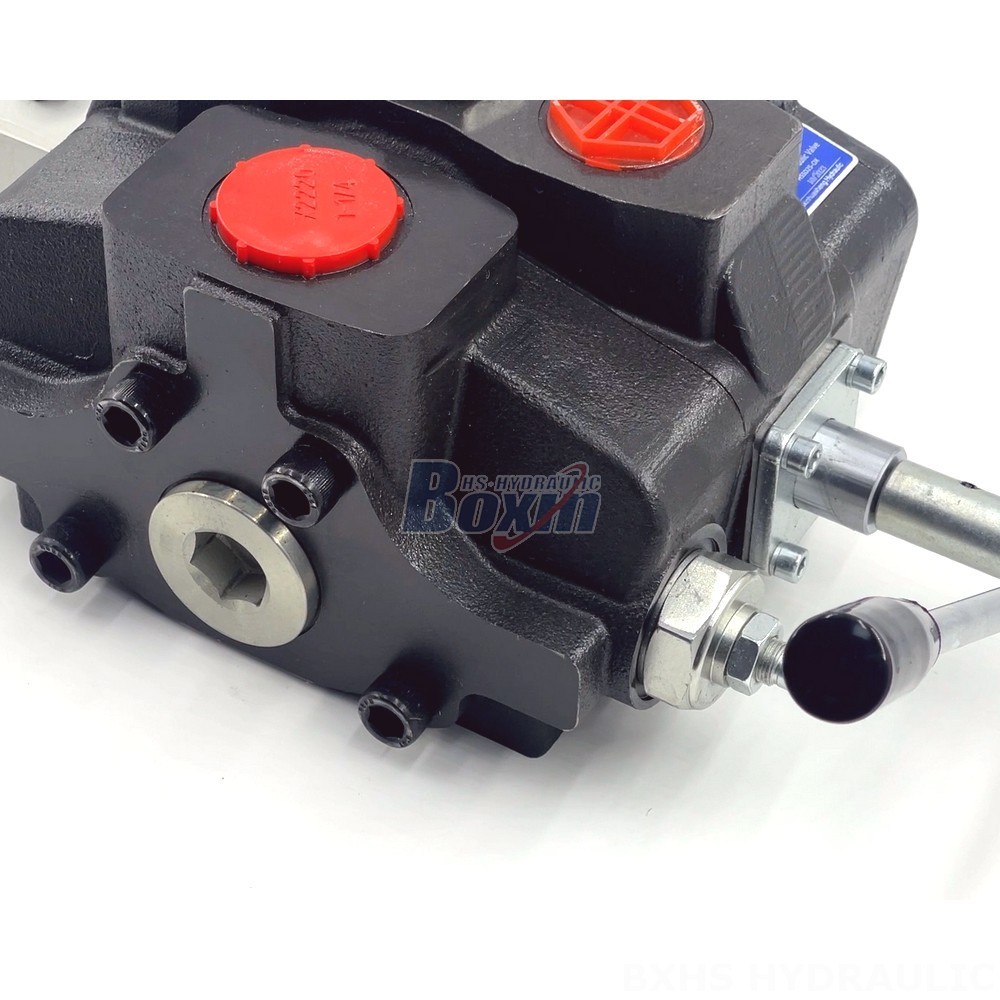

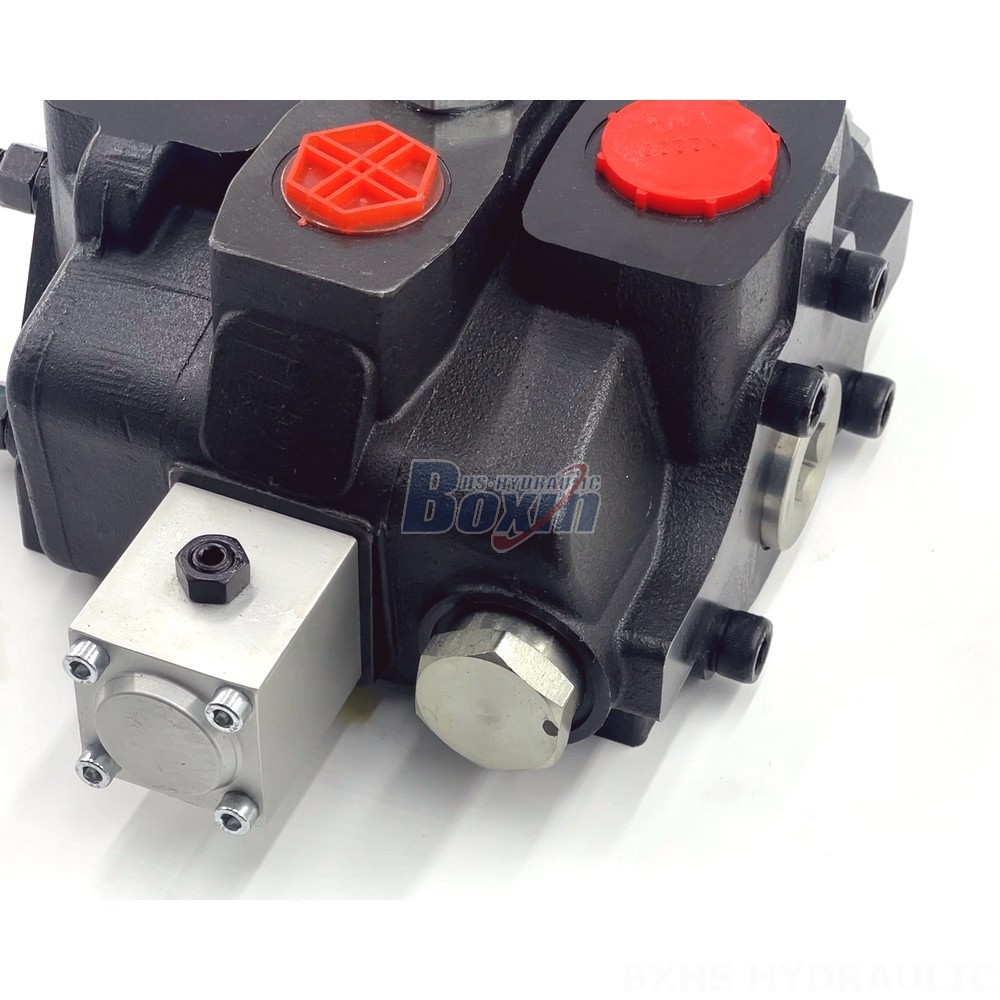

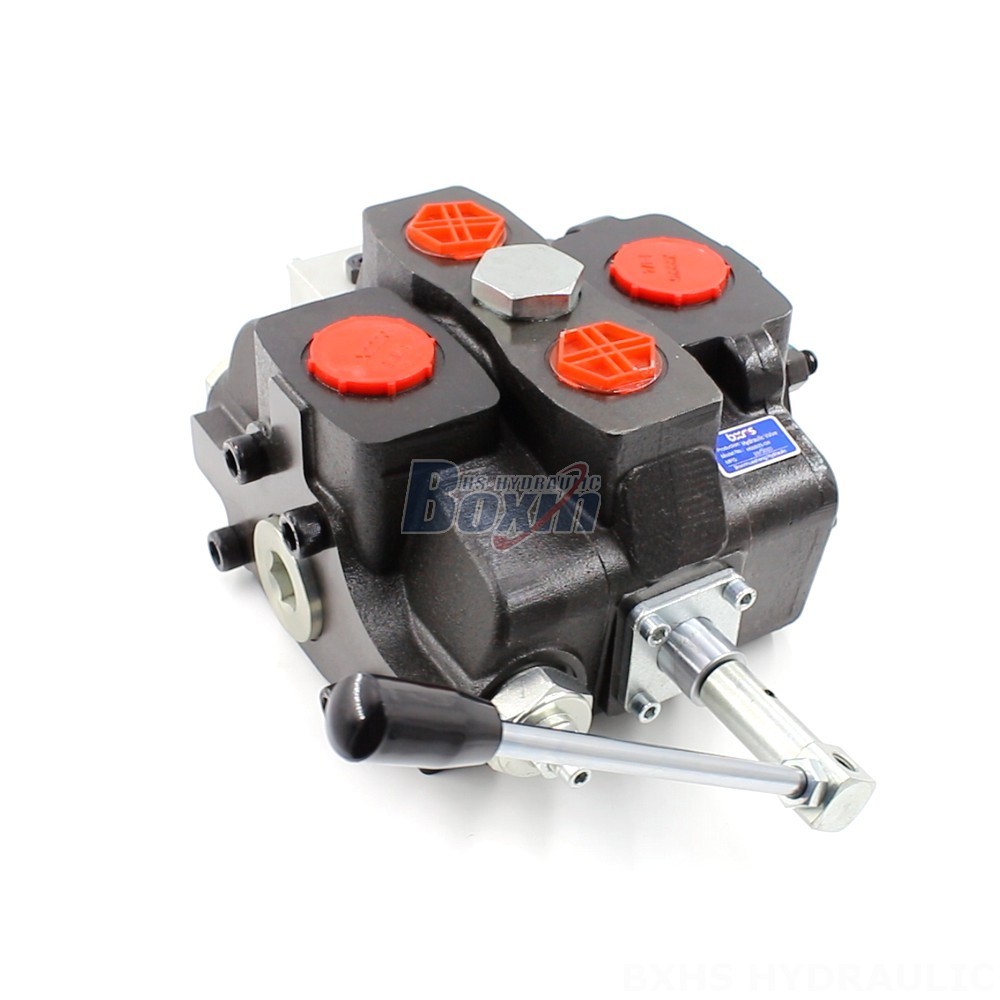

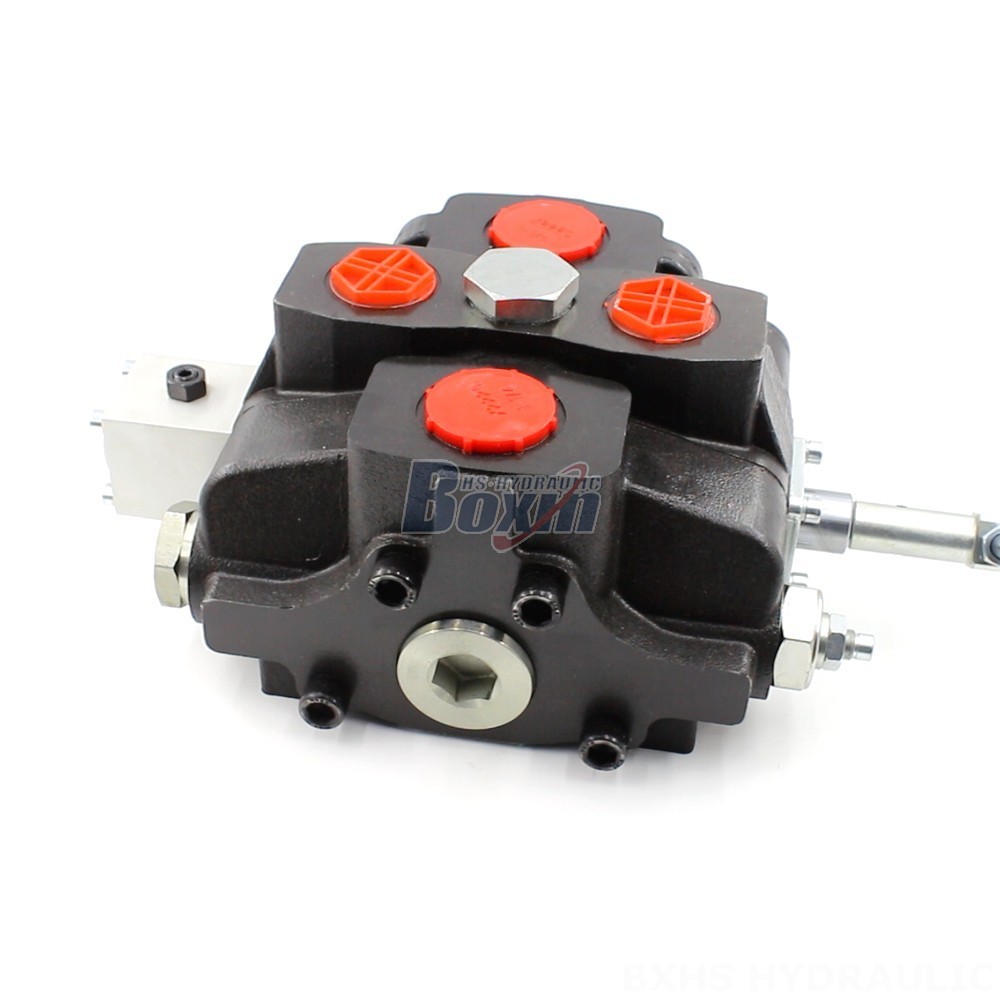

The SD25 3 Way Hydraulic Flow Control Valve is a reliable and durable hydraulic valve designed for demanding applications in construction, agriculture, and industrial vehicles. This manual, monoblock valve features a rated flow of 240 L/min and a maximum pressure of 315 bar, making it suitable for a wide range of heavy-duty machinery.
| Seri SD25 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 240 L/menit (63,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1, SAE 16 |
| Port Keluar | G1-1/4, SAE 16 |
| Ukuran Port | G1, G1-1/4, SAE 12 |
The SD25 Series 3 Way Hydraulic Flow Control Valve is a high-performance hydraulic valve designed for heavy-duty applications. This monoblock valve features a manual control method, providing precise control over hydraulic flow. With a rated flow of 240 L/min and a maximum pressure of 315 bar, this valve is suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The SD25 Series valve is built to withstand harsh environments and demanding operating conditions, with an operating viscosity range of 12-400 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is available for direct factory purchase and can be customized to meet your specific application needs.
