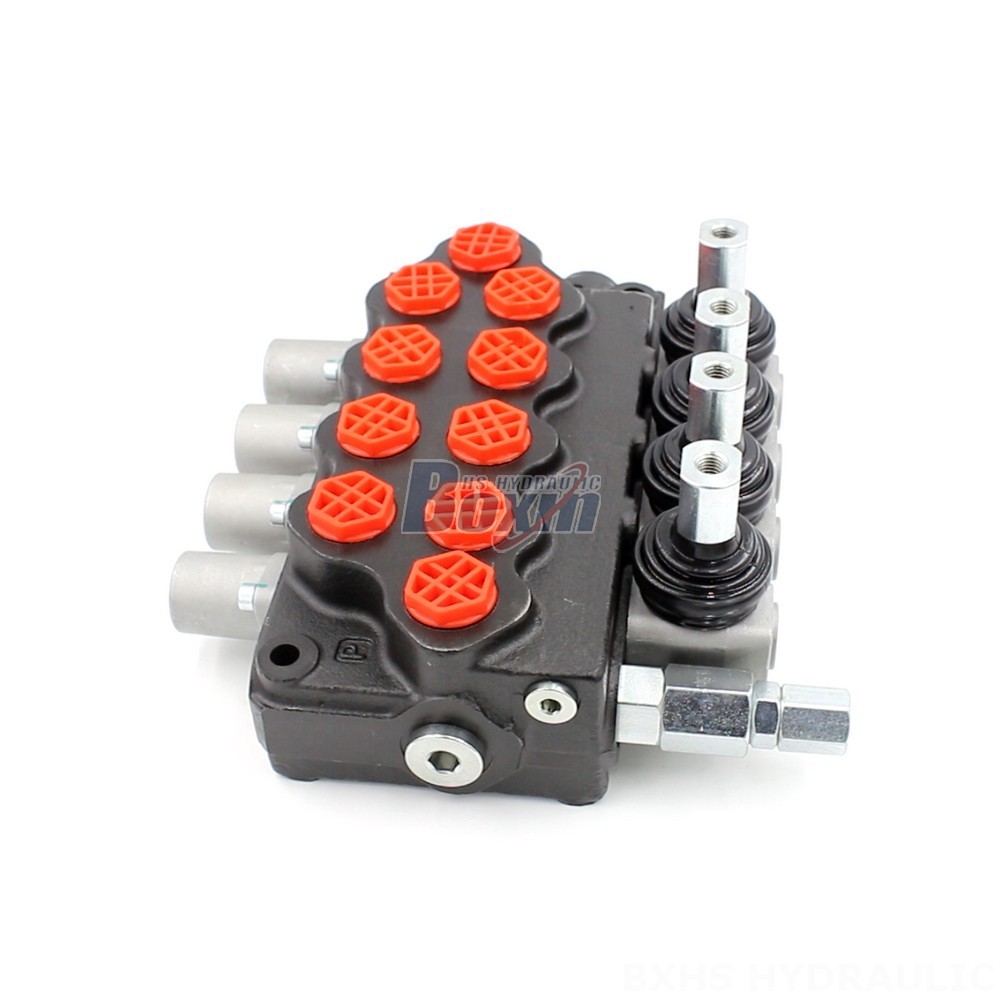

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G3/8

Port Keluar:G3/8

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri SD5 Katup Arah Monoblok

Ukuran kemasan:22.5*23.5*12.5

Kelas kotor:9.90 kg

Ketersediaan: Tersedia

955 Pandangan Mencari Produk Ini

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available drawing image

The SD5-G38 Hydraulic Two Way Valve is a high-performance, manual control valve designed for use in a variety of construction, material handling, and agricultural applications. This monoblock valve features a 4-section design, a 40 L/min rated flow, and a maximum pressure of 305 bar. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.

Seri SD5 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +60°C (-40°F hingga +140°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 305 bar (4400 psi)
Port Masuk G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Port Keluar G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Ukuran Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Hydraulic Two Way Valve is a robust and reliable valve that is ideal for demanding applications. It is manufactured from high-quality materials and is designed to withstand a wide range of operating conditions. The valve features a manual control method, a 4-section design, and a monoblock structure. It has a rated flow of 40 L/min and a maximum pressure of 305 bar. The operating viscosity range is 15-75 mm²/s and the ambient temperature range is -40°C to +60°C. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and customization options for this product.
