Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1247 Pandangan Mencari Produk Ini

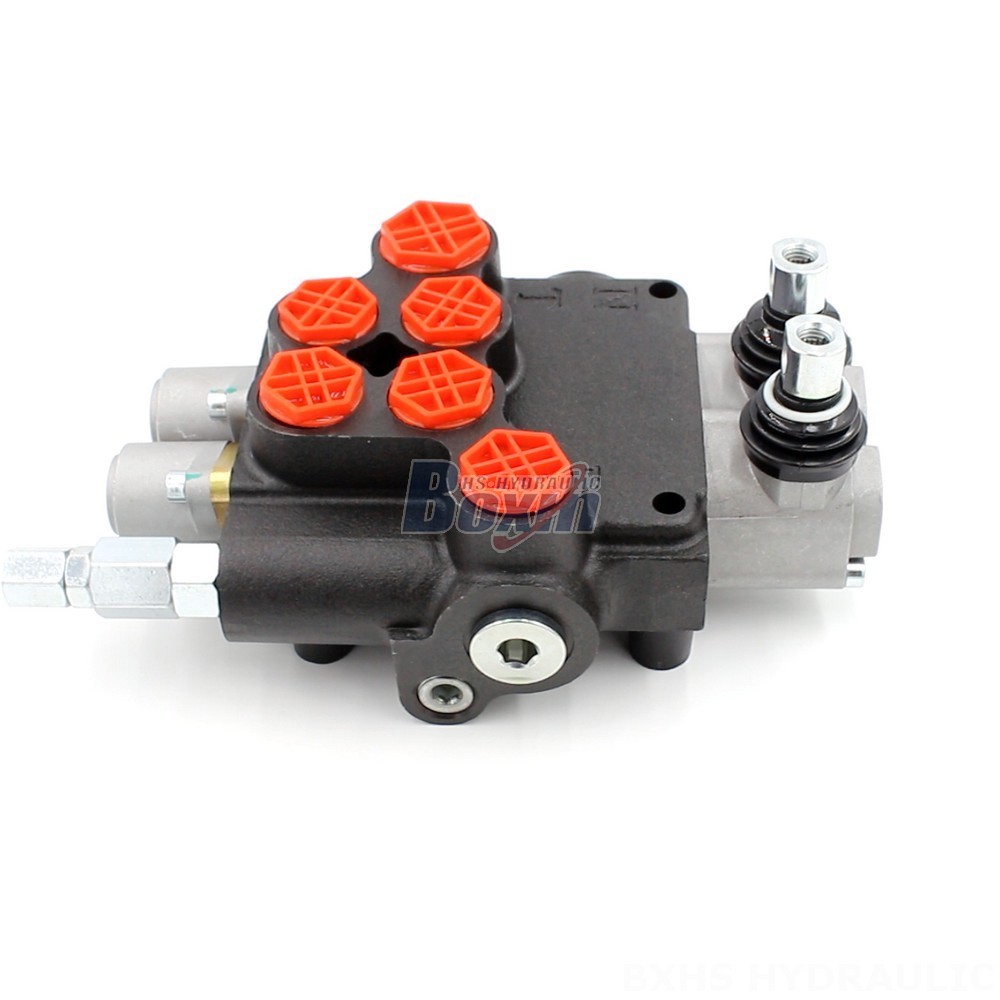

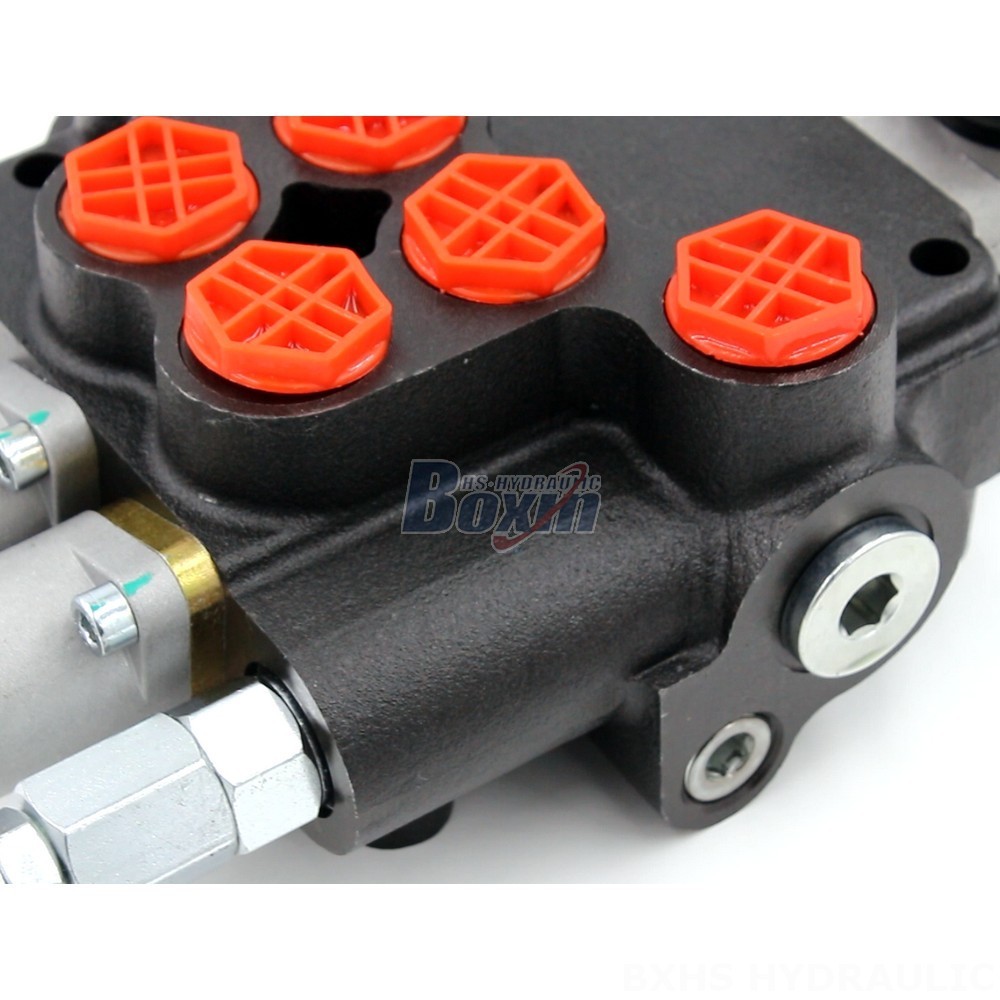

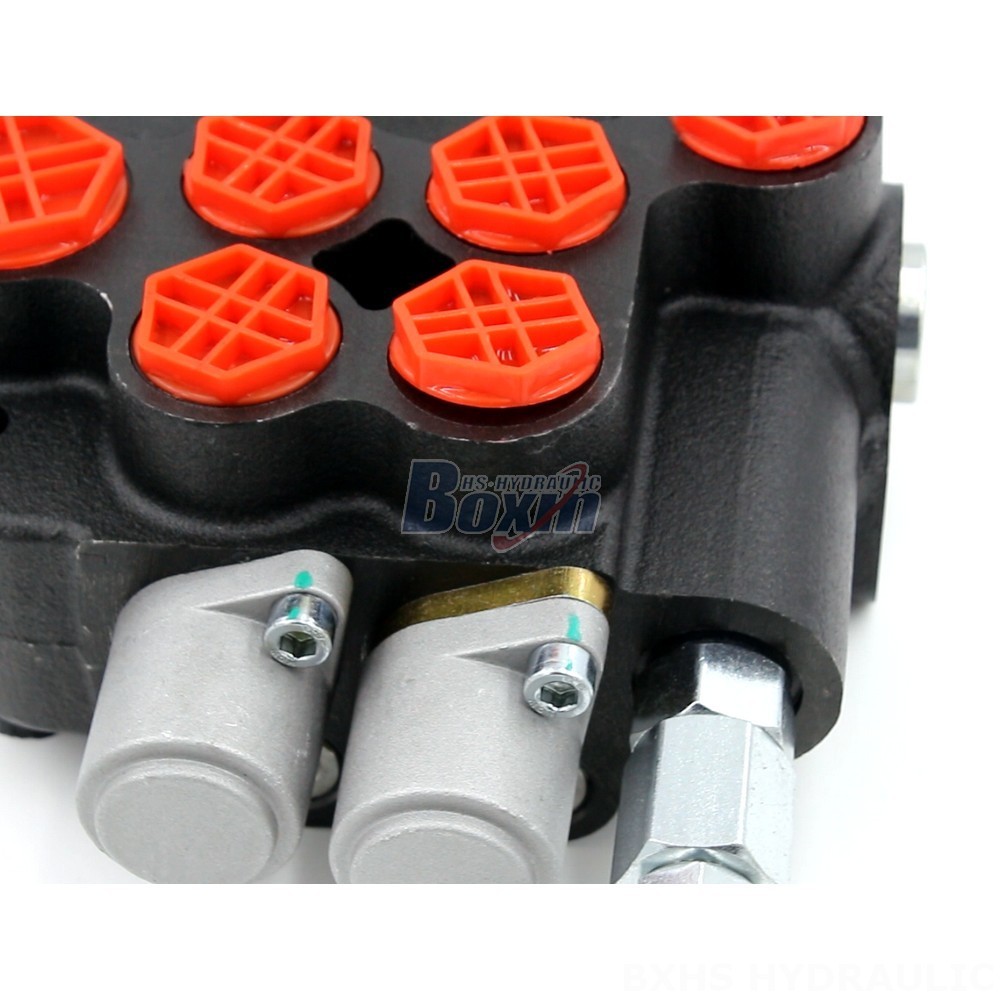

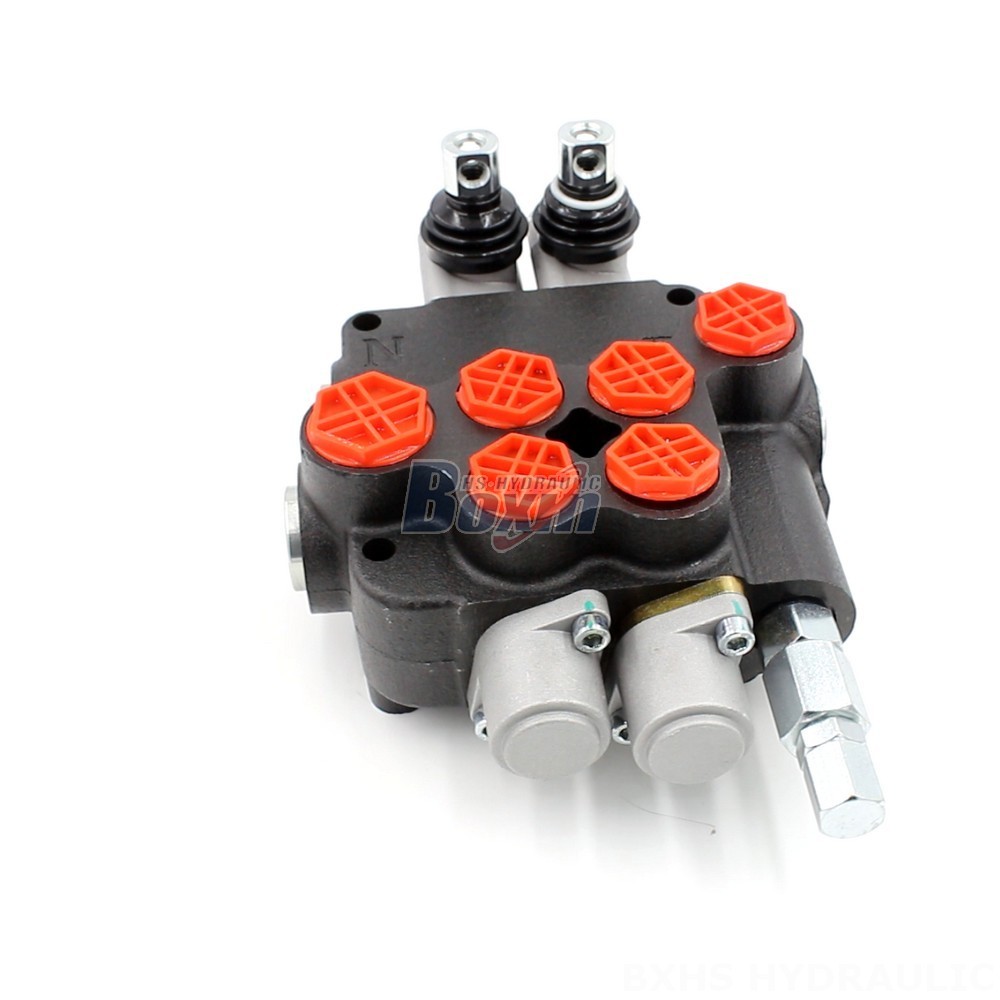

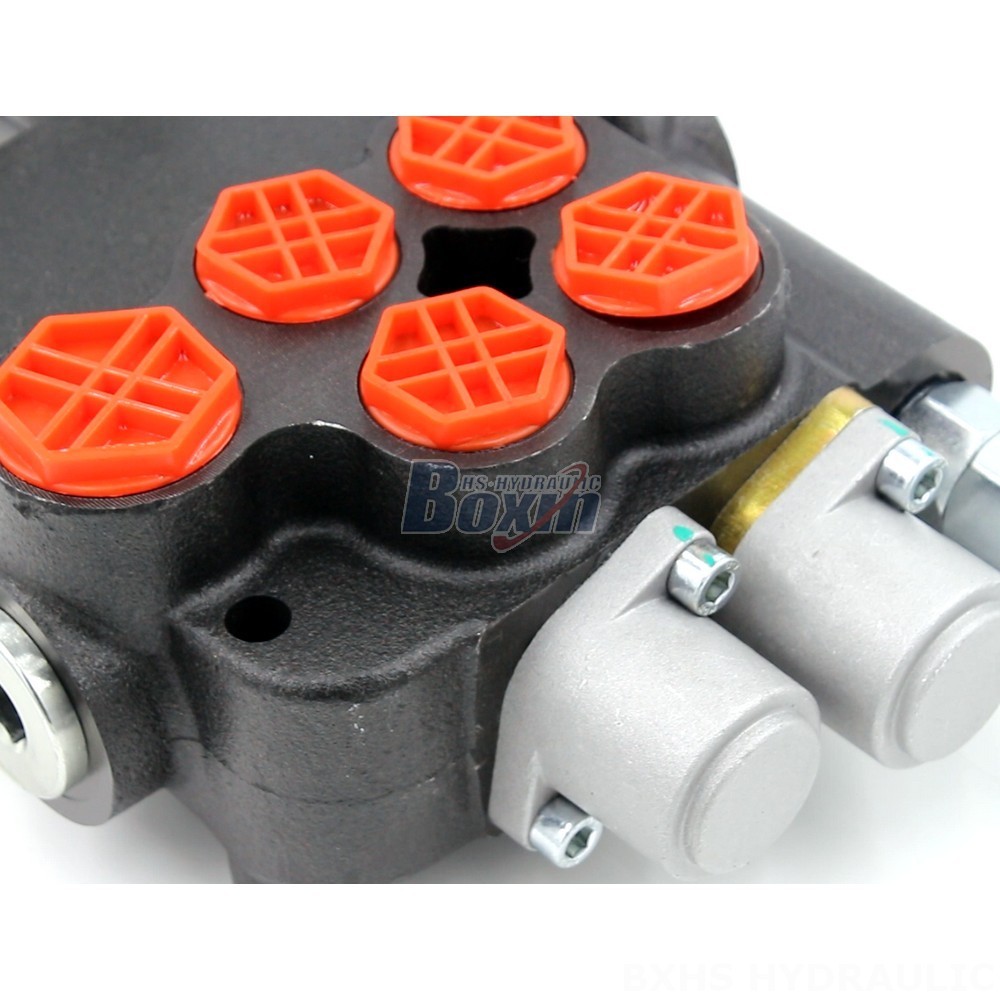

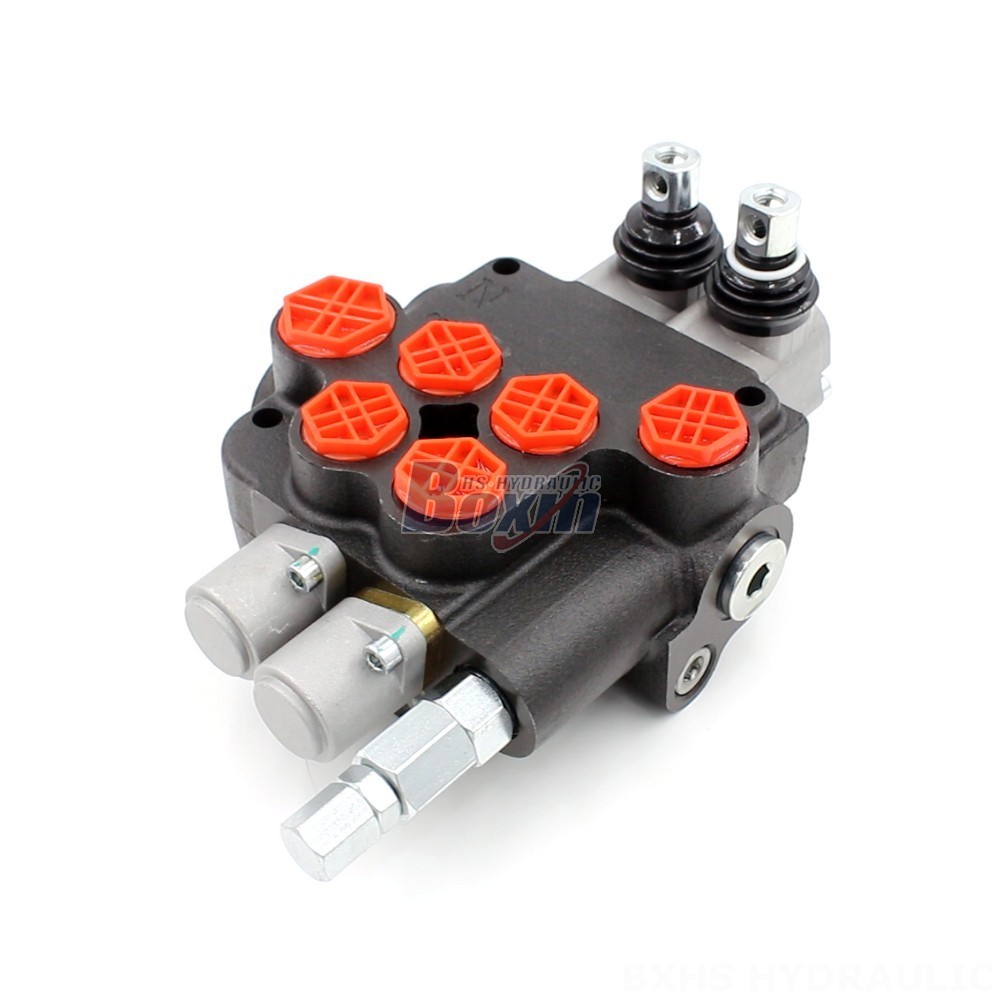

P80-G12-G34-2OT Directional Control Valve is a high-performance hydraulic valve designed for demanding applications. It features manual control, 2 sections, a rated flow of 80 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range of 15 - 75 mm²/s. The valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G12-G34-2OT Directional Control Valve**
**Key Features:**
- Manual control
- 2 sections
- Monoblock valve structure
- Rated flow: 80 L/min (21.2 US gpm)
- Maximum pressure: 250 bar (3600 psi)
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
- 2 spool
- P80 Series
**Applications:**
- Material handling
- Construction and earth moving
- Agriculture
- Industrial vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All terrain crane
- Stacker
- Aerial platform
- Motor grader
- Compact wheel loader
- Wheel loader
- Backhoe loader
- Harvester
- Bale wrapper
- Seeding machine
