Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1546 Pandangan Mencari Produk Ini

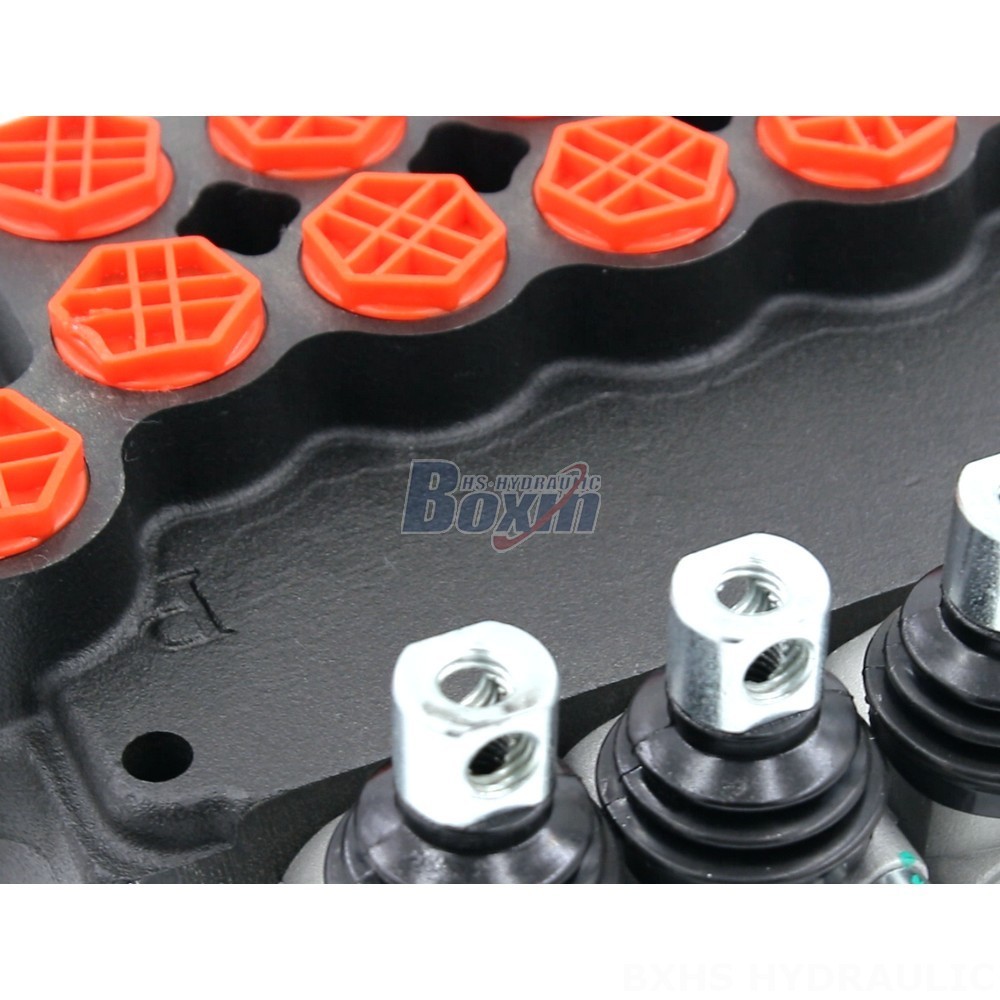

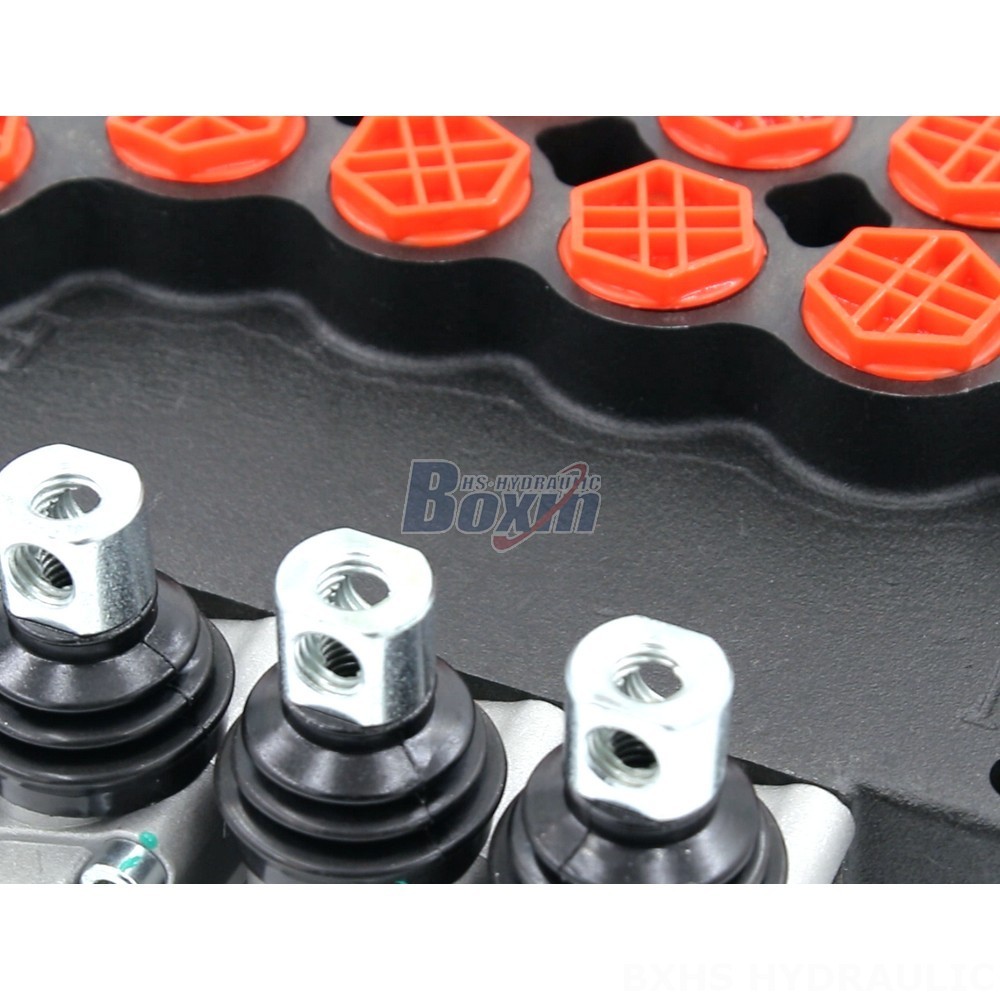

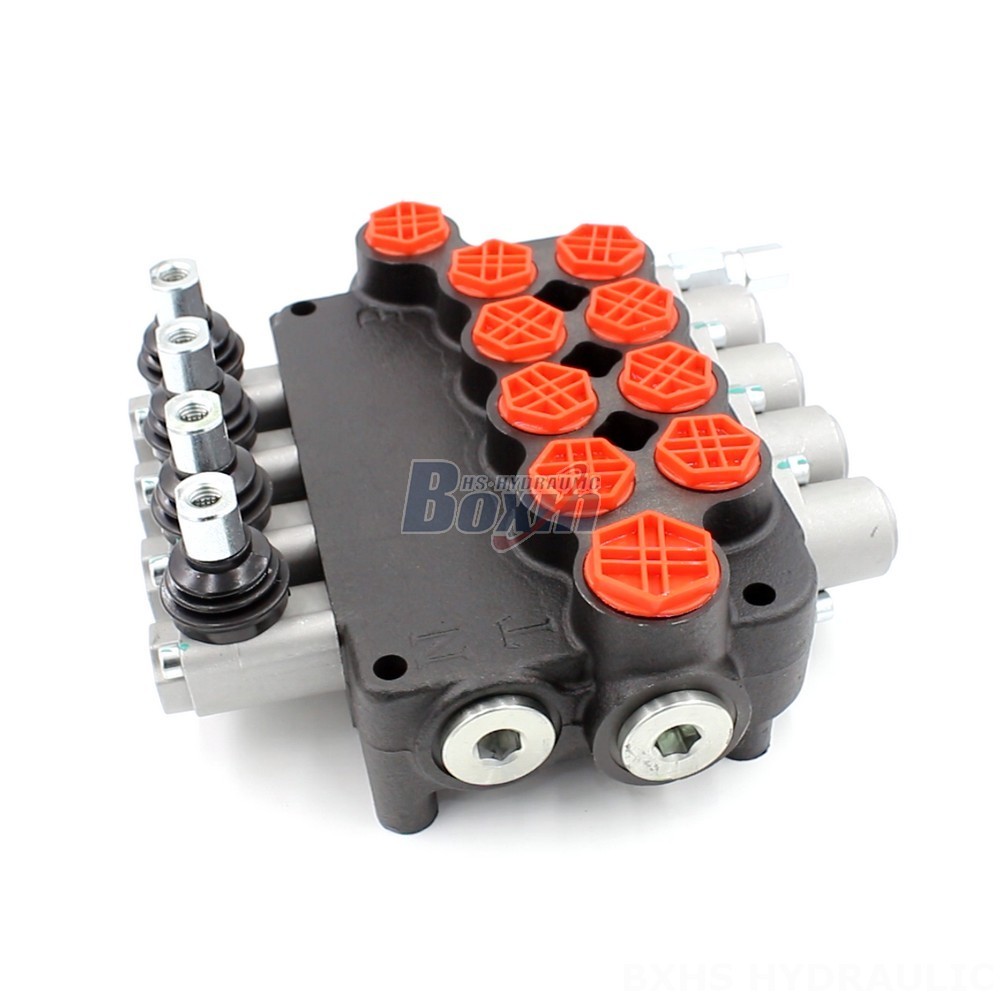

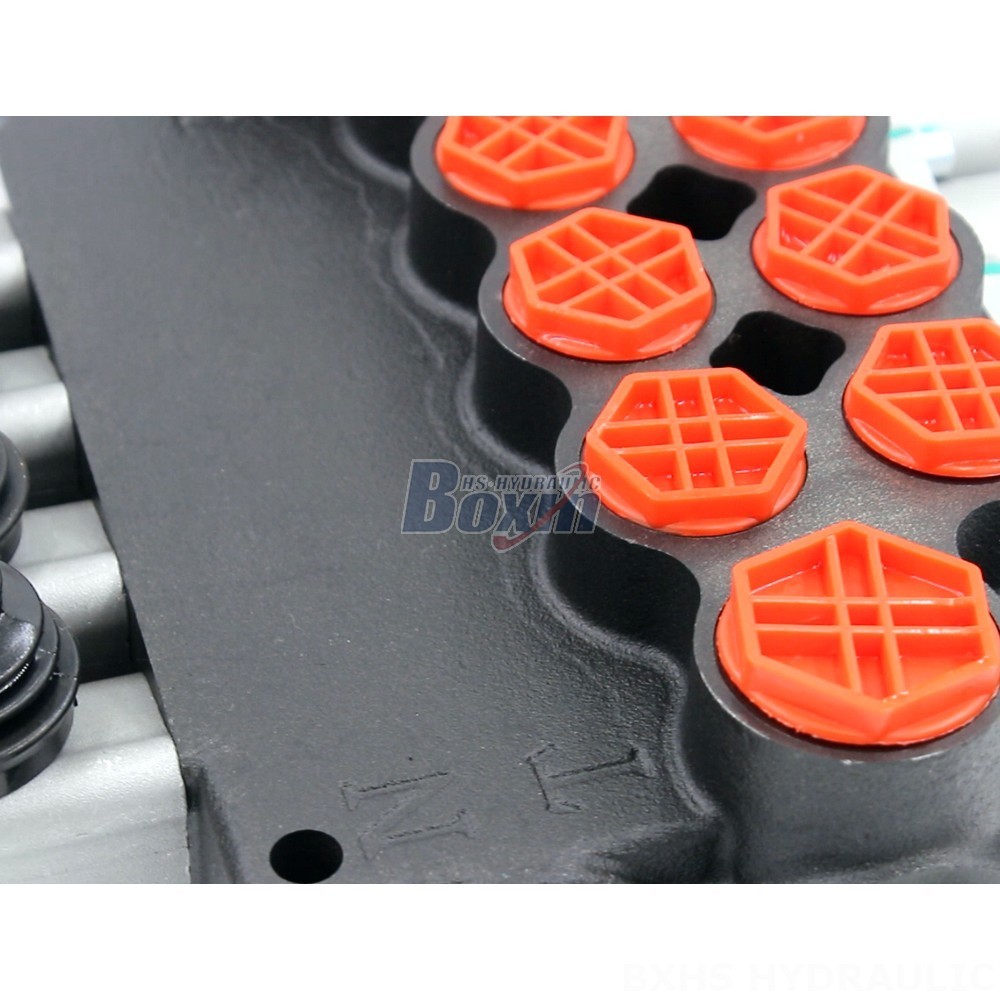

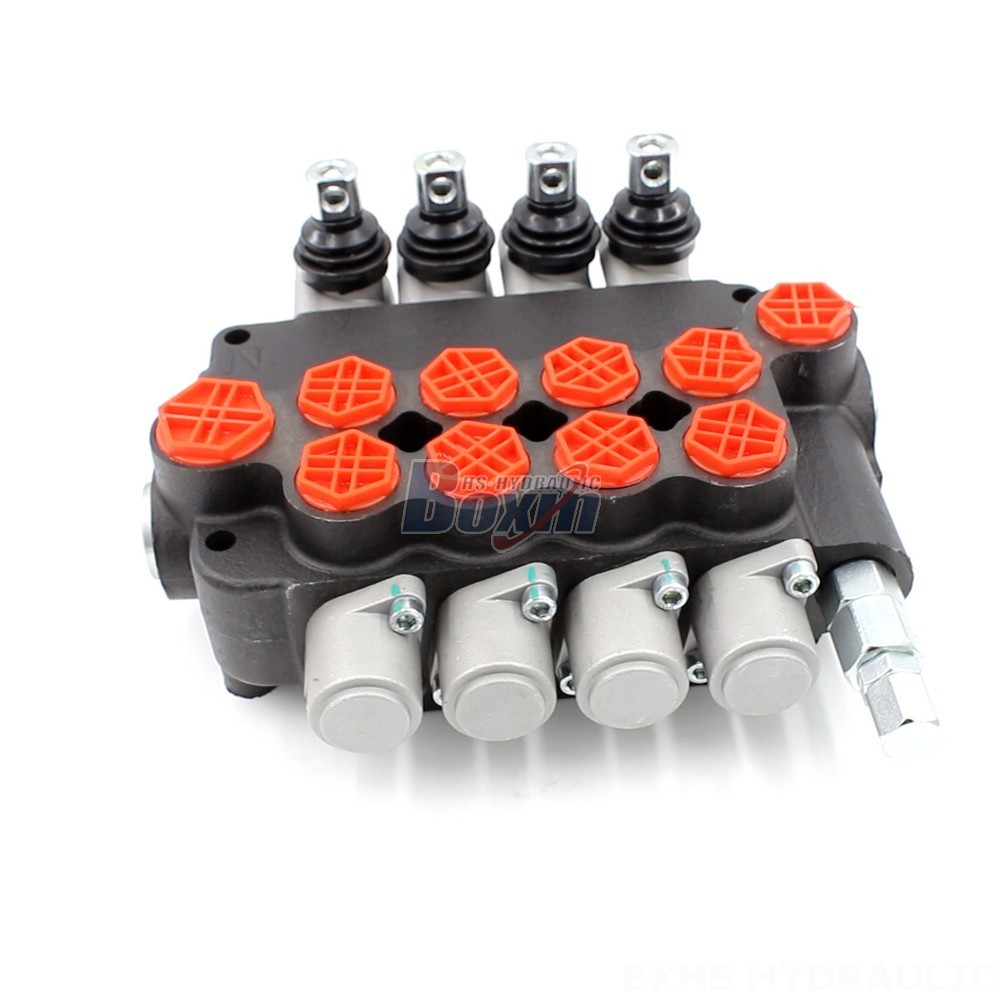

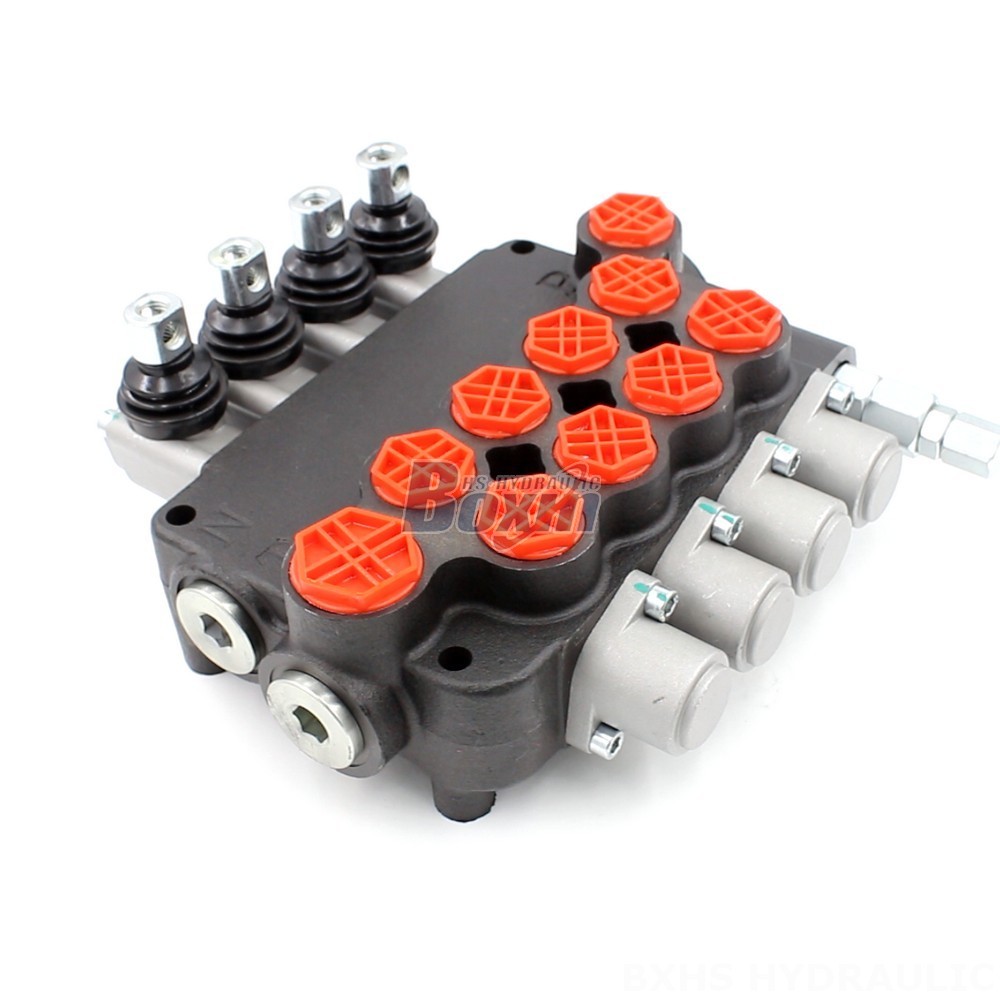

The P80 Series Hydraulic Loader Valve with Joystick Control is a robust and reliable 4-section monoblock valve designed for industrial applications. It features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of heavy-duty machinery.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This high-performance hydraulic loader valve is engineered for demanding applications in material handling, construction, agriculture, and industrial vehicles. It utilizes a joystick control for precise operation and features a 4-spool design for efficient hydraulic circuit management. The valve's monoblock construction provides exceptional strength and durability. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is compatible with various machinery types including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
