Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 8

Port Keluar:SAE 8

Ukuran Port:SAE 8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*18*13

Kelas kotor:4.80 kg

Ketersediaan: Tersedia

1053 Pandangan Mencari Produk Ini

Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution

Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution

Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution drawing image

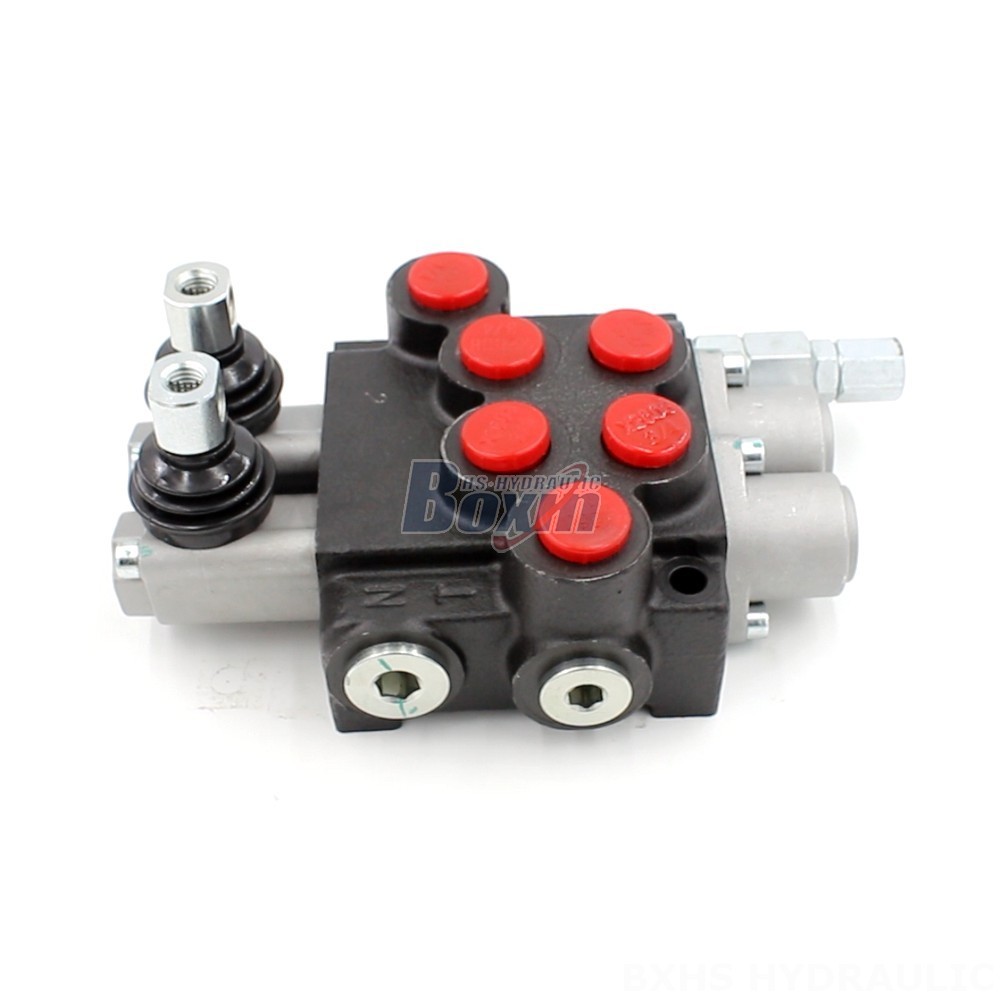

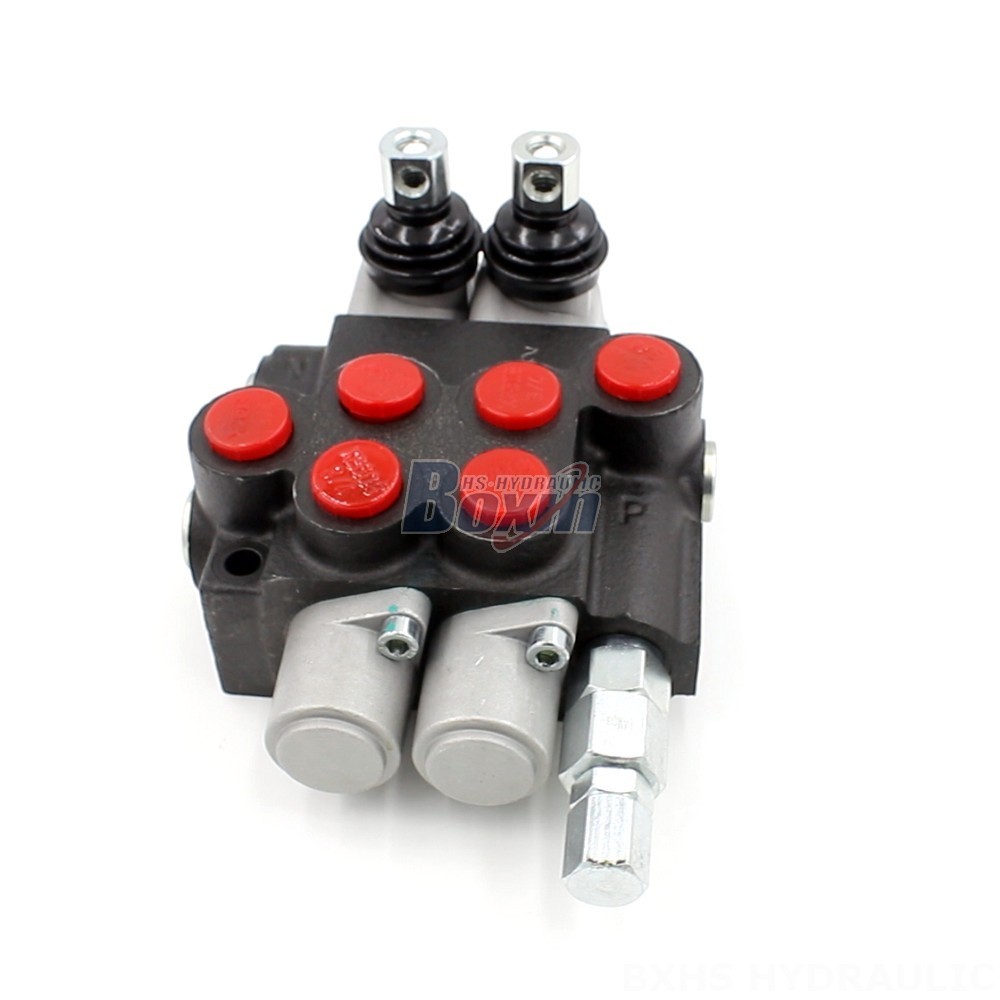

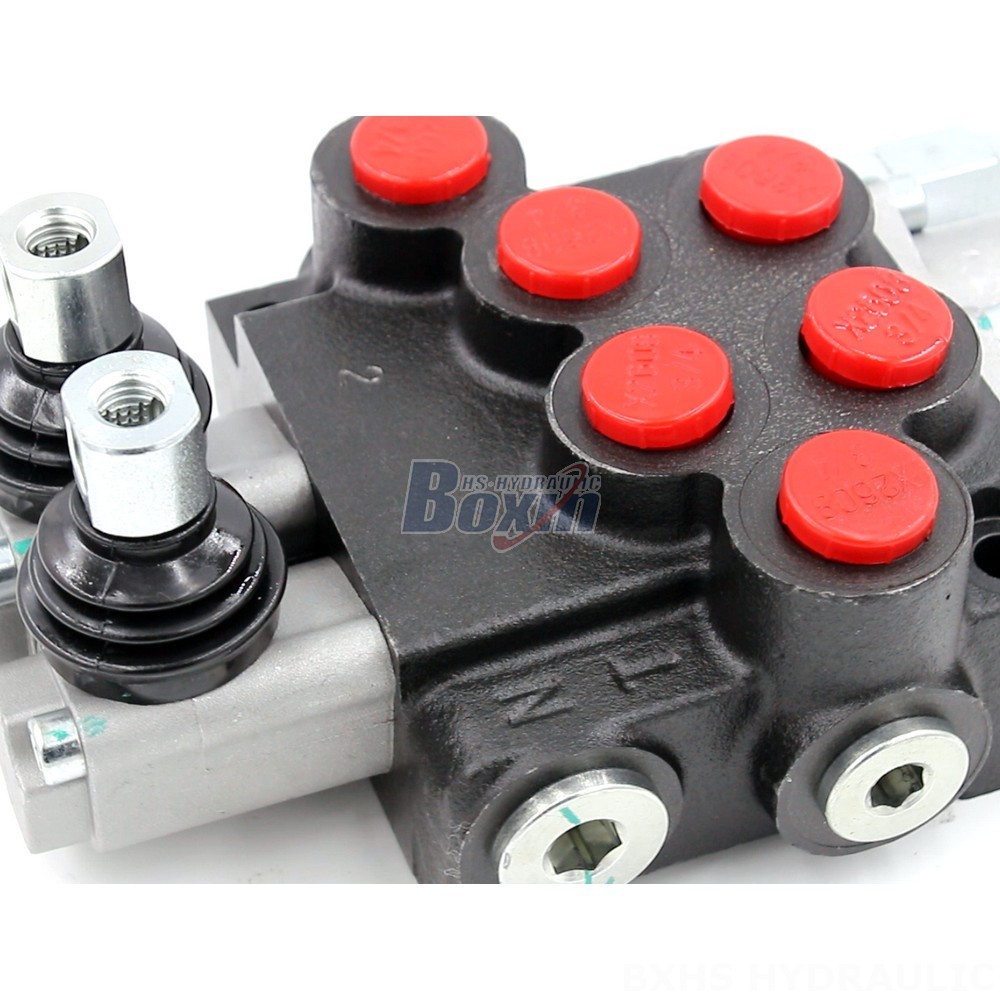

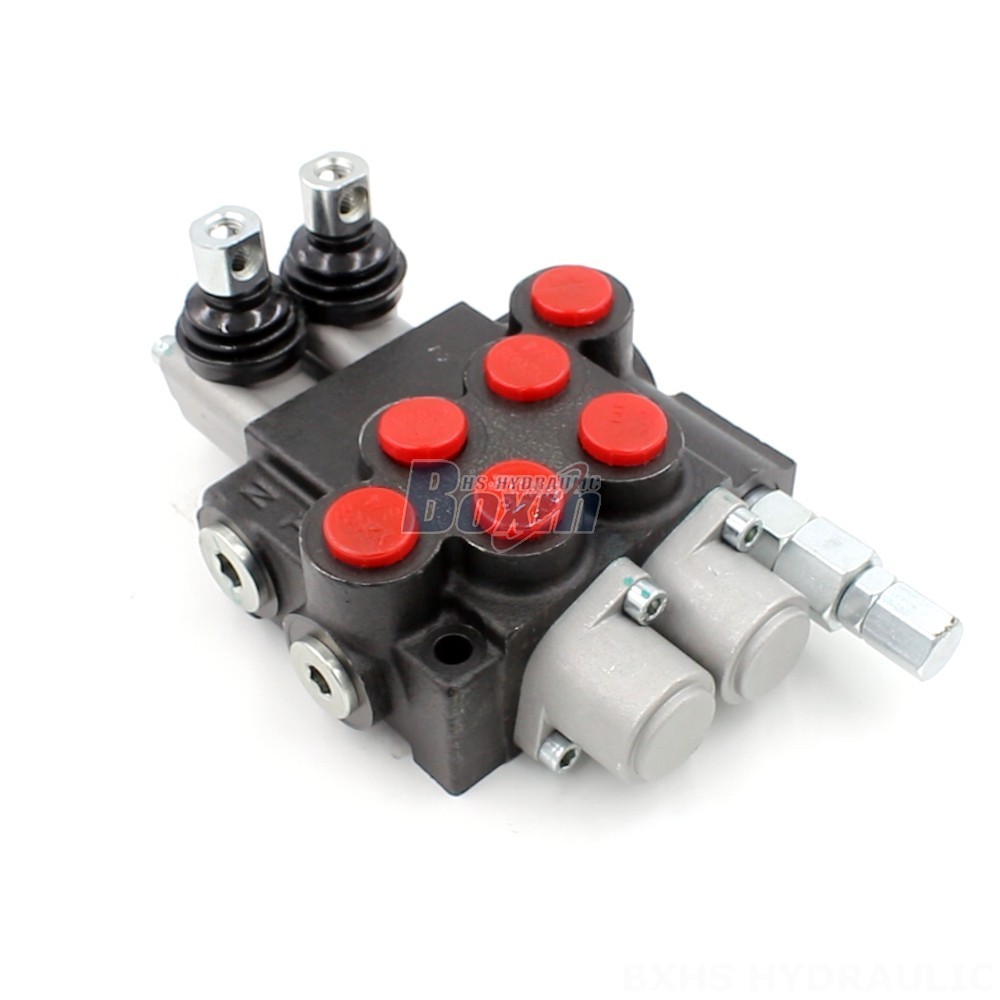

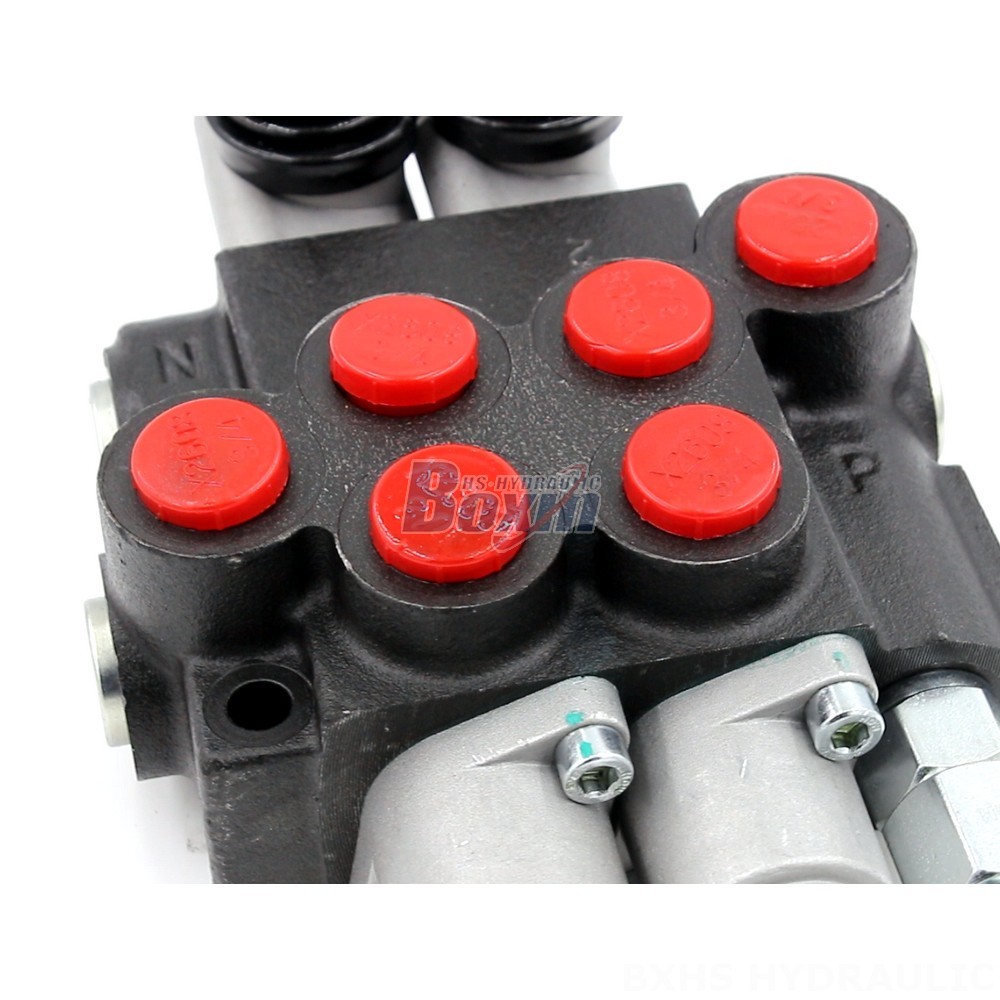

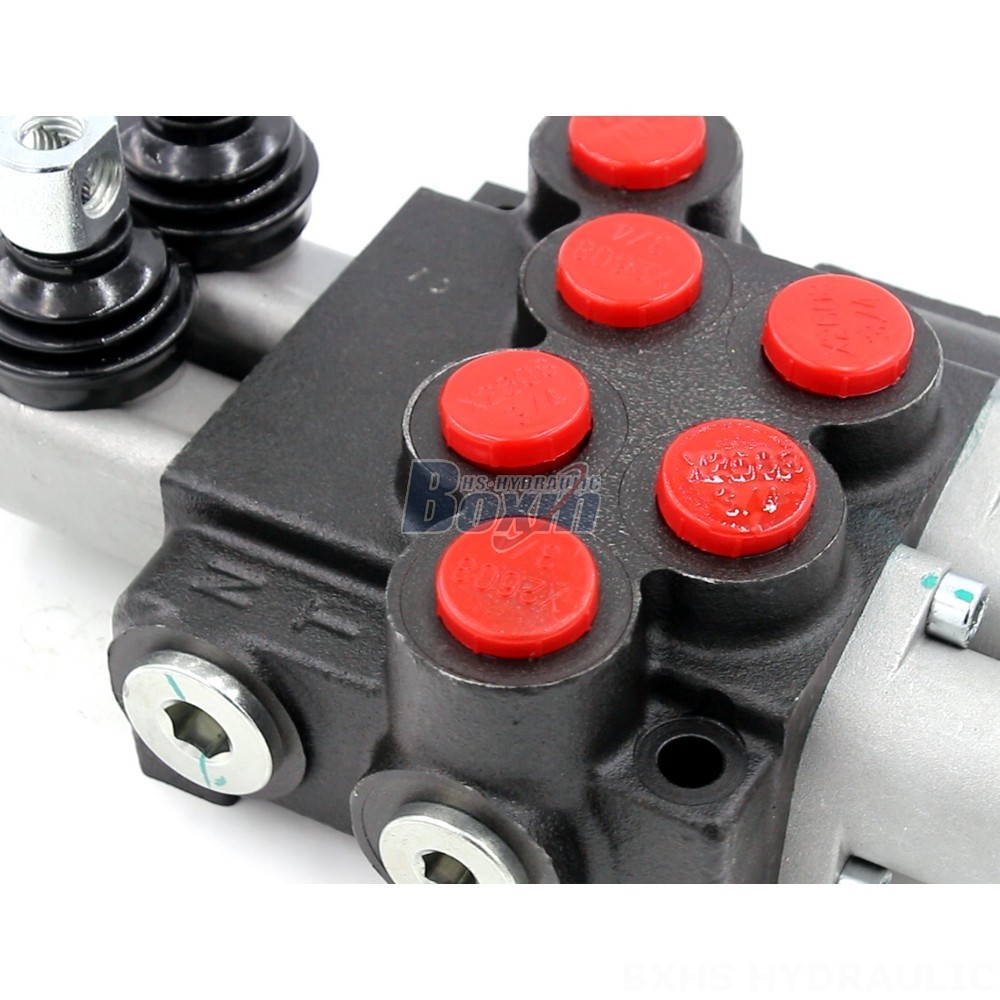

The P40-U34-2OT is a high-performance electromagnetic hydraulic valve designed for demanding applications in material handling, construction, and industrial vehicles. This 2-section monoblock valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring reliable operation in a wide range of environments.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U34-2OT is a robust and reliable electromagnetic hydraulic valve specifically engineered for heavy-duty applications. It features a compact monoblock design with a 2-section configuration, offering efficient control and high flow capacity. This valve is capable of handling a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi), making it suitable for demanding applications. Its wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensure reliable performance in various operating conditions. The P40-U34-2OT is specifically designed for applications in material handling, construction, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its high performance and durability make it an ideal choice for manufacturers and end-users looking for reliable and efficient hydraulic control solutions.
