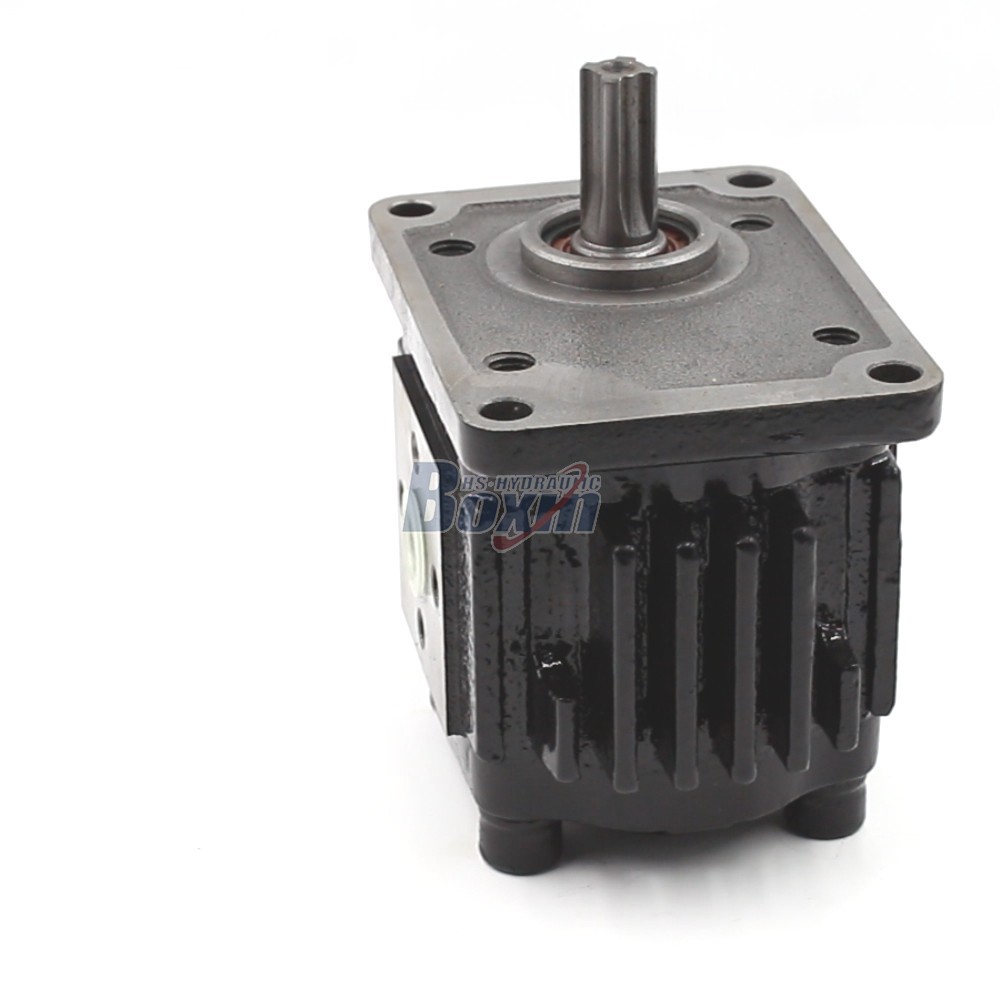

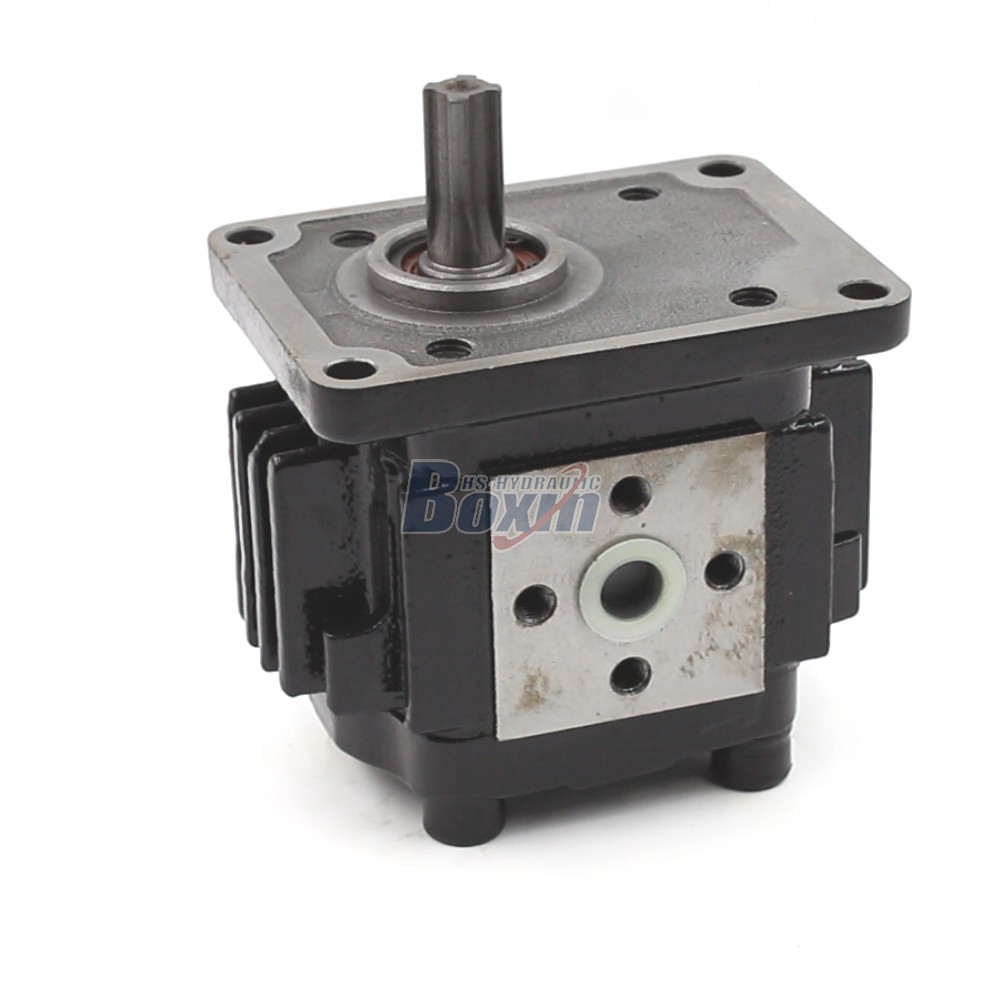

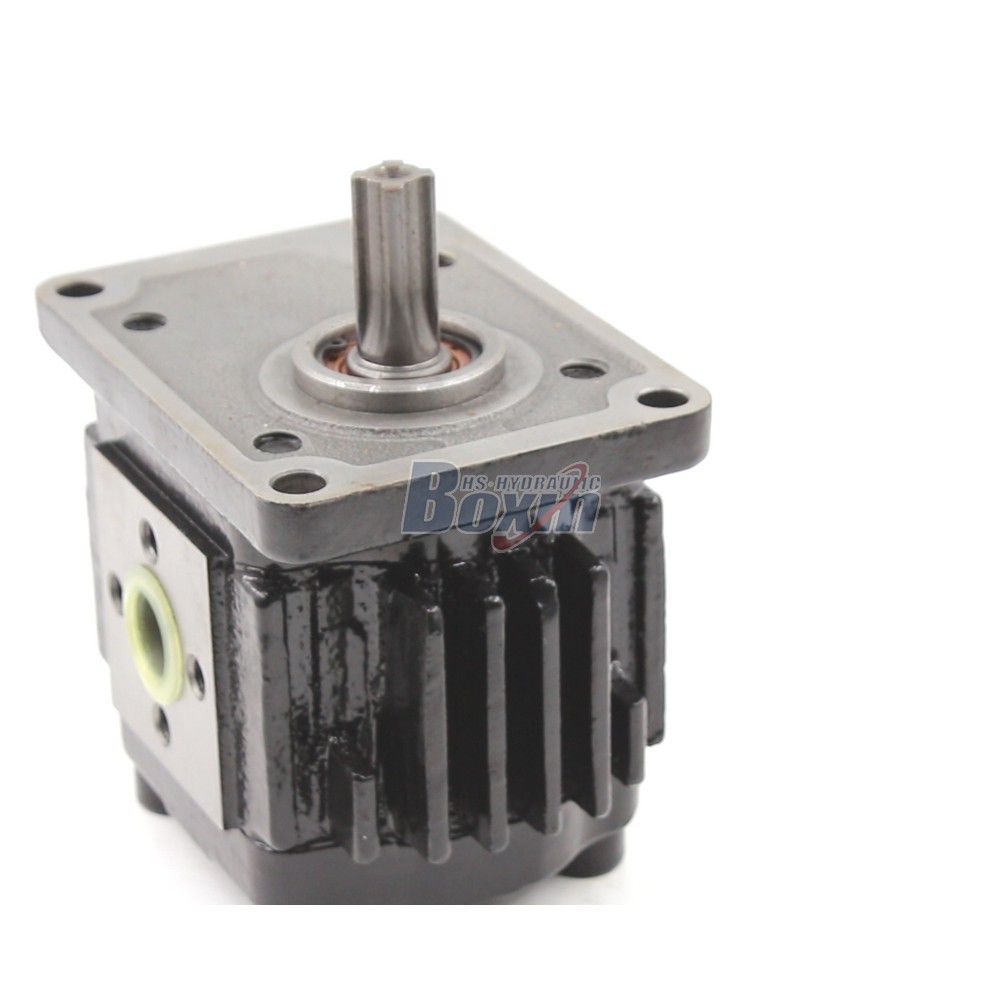

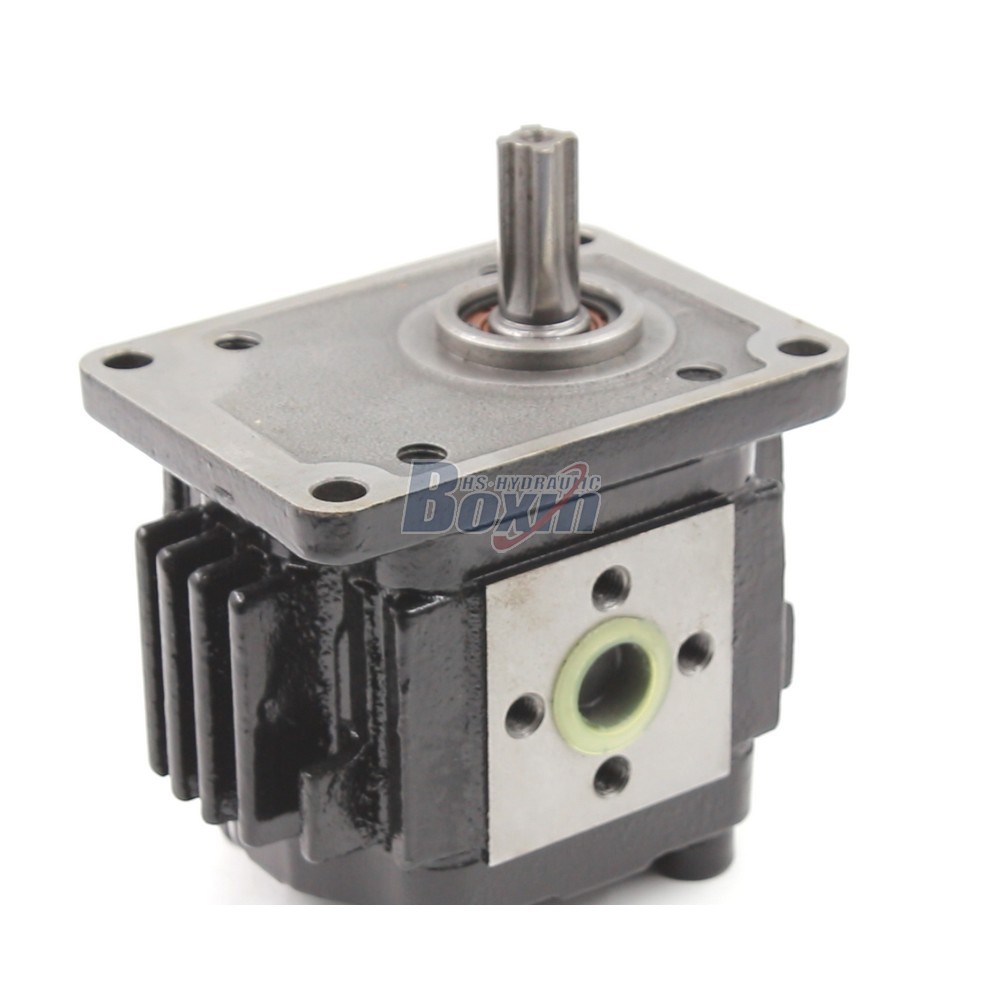

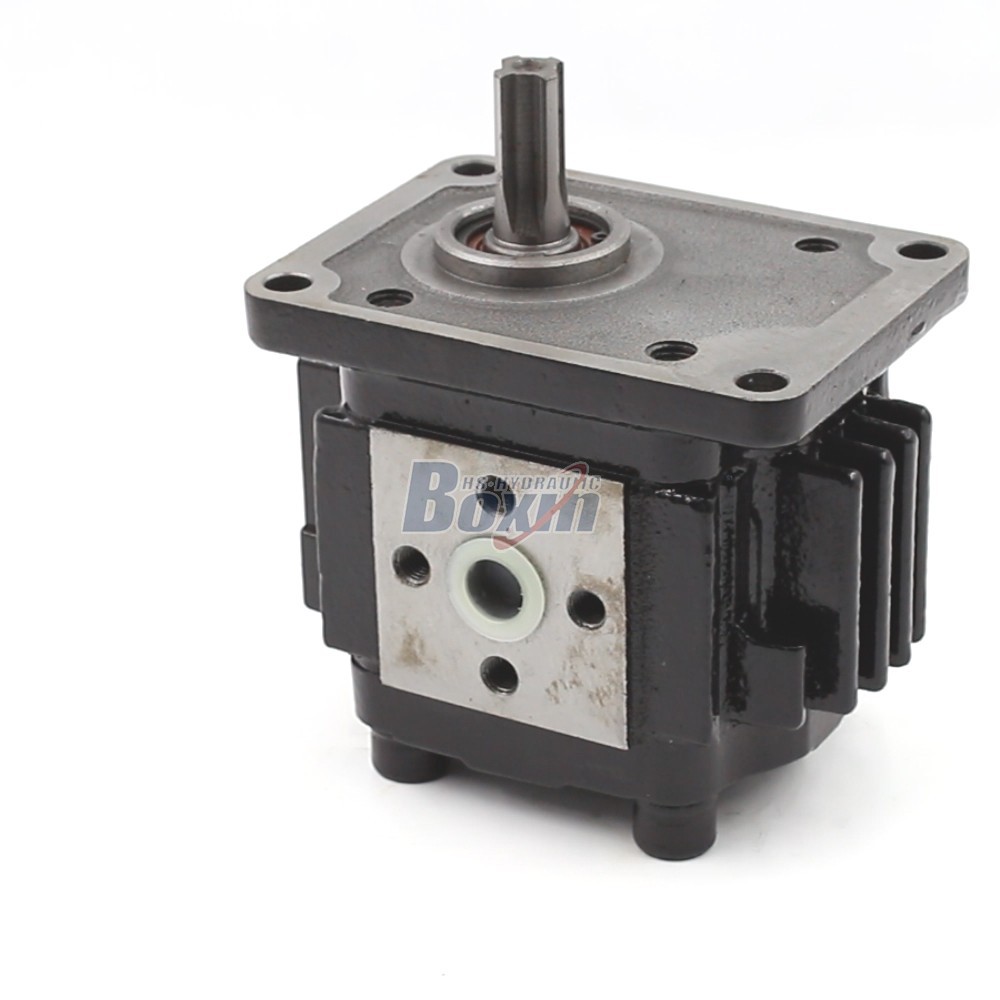

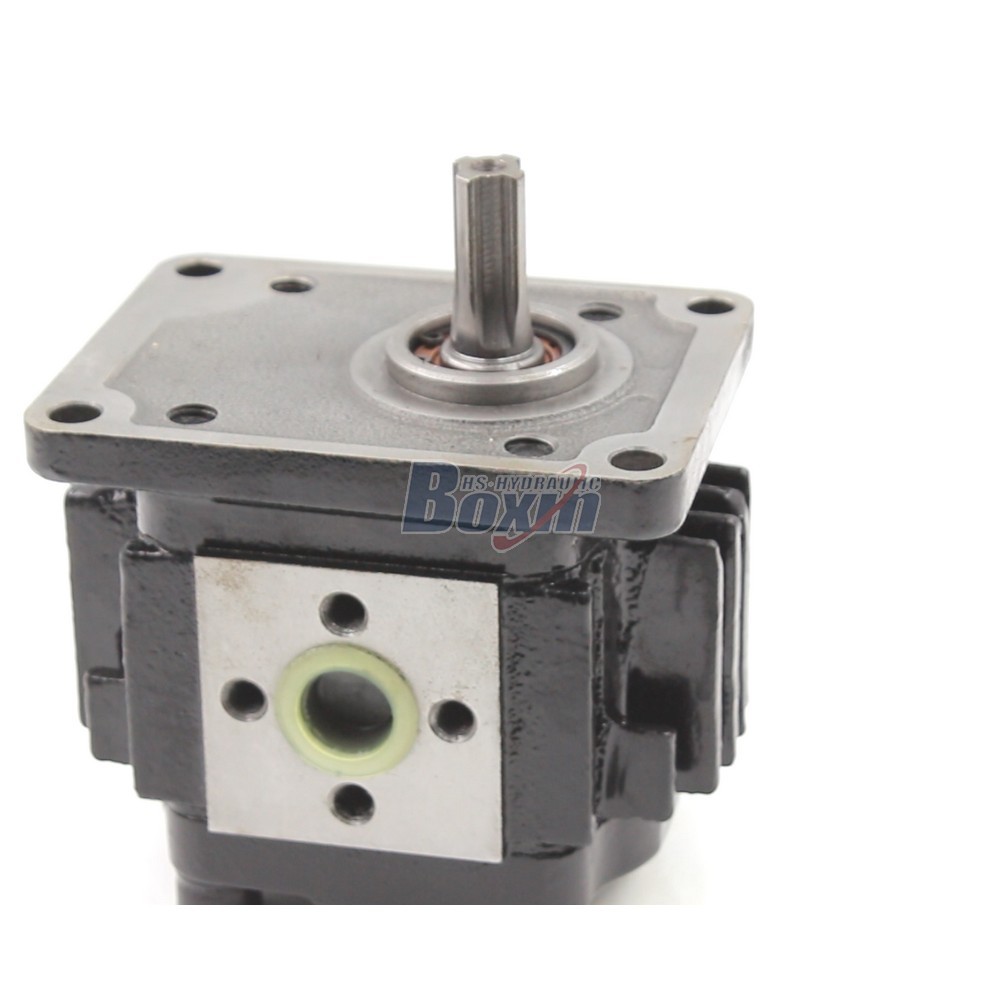

This industrial hydraulic gear pump is designed for high performance and heavy duty applications. It features a robust construction with a displacement of 16 cc/rev and a rated pressure of 18 MPa (2610 psi), ensuring reliable operation in demanding environments.
| Seri CBHS-F3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 16 MPa (2320 psi) |
| Tekanan Maksimum | 18 MPa (2610 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2200 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Struktur | Pompa Roda Gigi Eksternal |
| Bahan | Aluminium |
| Tipe Poros | P: Kunci Biasa |
| Versi Flens | Flange Oval-A |
Our Industrial Hydraulic Gear Pump is available in various displacements, including 50 cc/rev, 32 cc/rev, 45 cc/rev, and 63 cc/rev. It is designed to withstand a maximum pressure of 20 MPa (2900 psi) and can operate at speeds up to 2200 r/min. The pump features a robust cam plate type design and is available with both internal and external gear configurations. Constructed from durable aluminium, the pump comes with an A-oval flange and plain key shaft. This pump is ideal for a wide range of applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It is particularly suited for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer a complete range of services including manufacturing, OEM, ODM, private label, and customization to meet the specific requirements of our customers.
