Produksi & Pengiriman
Waktu Produksi 15-30 Hari

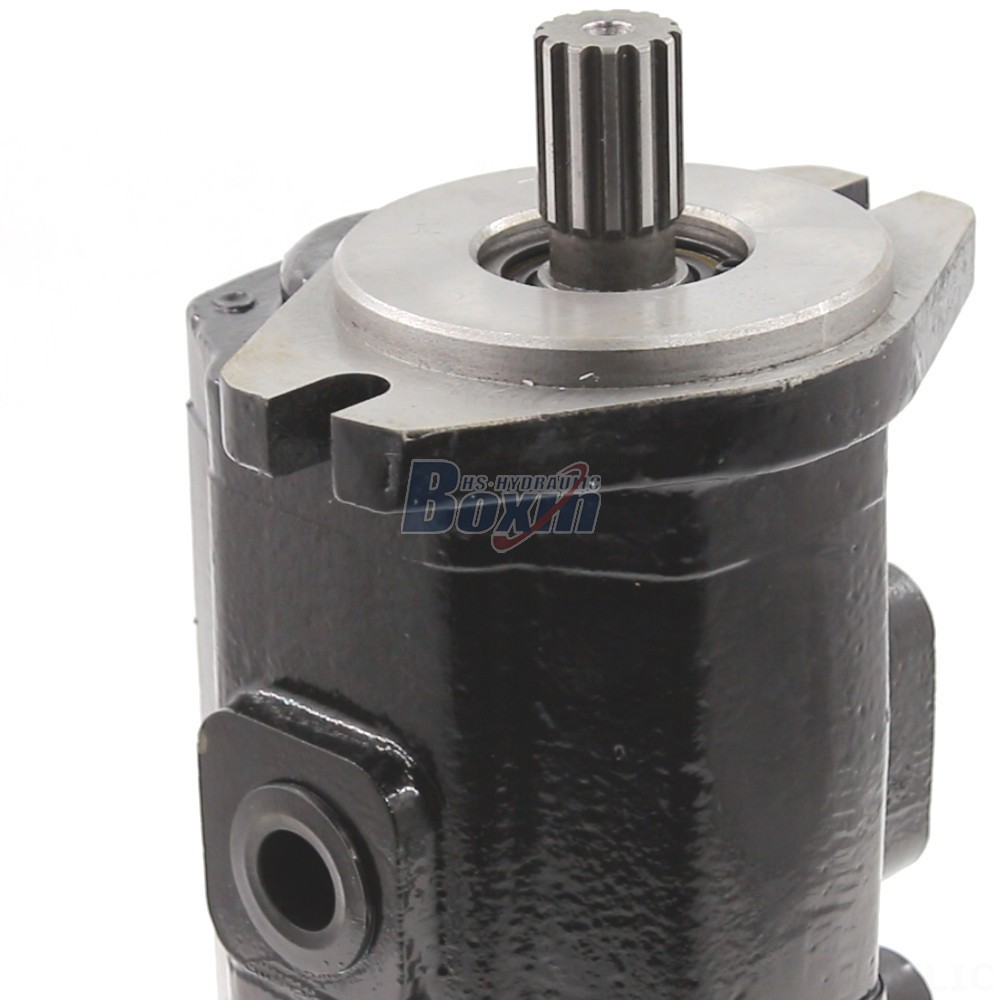

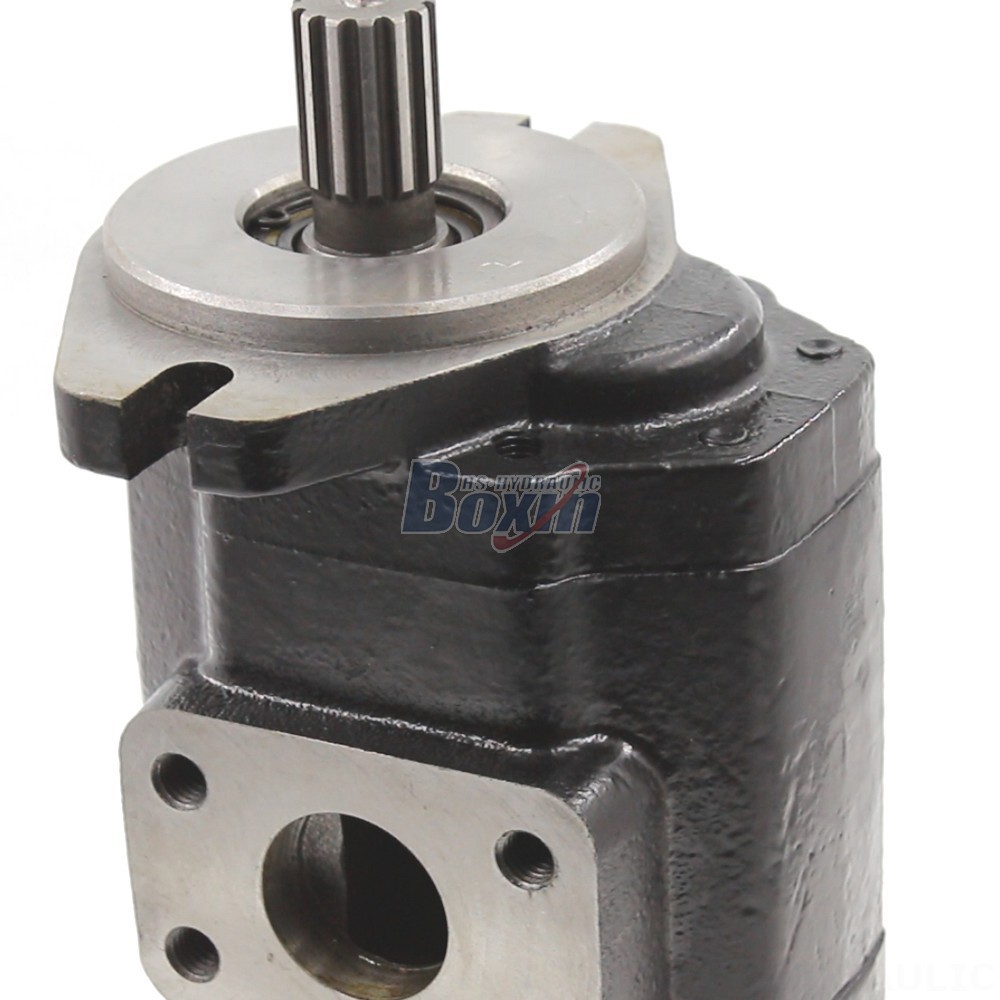

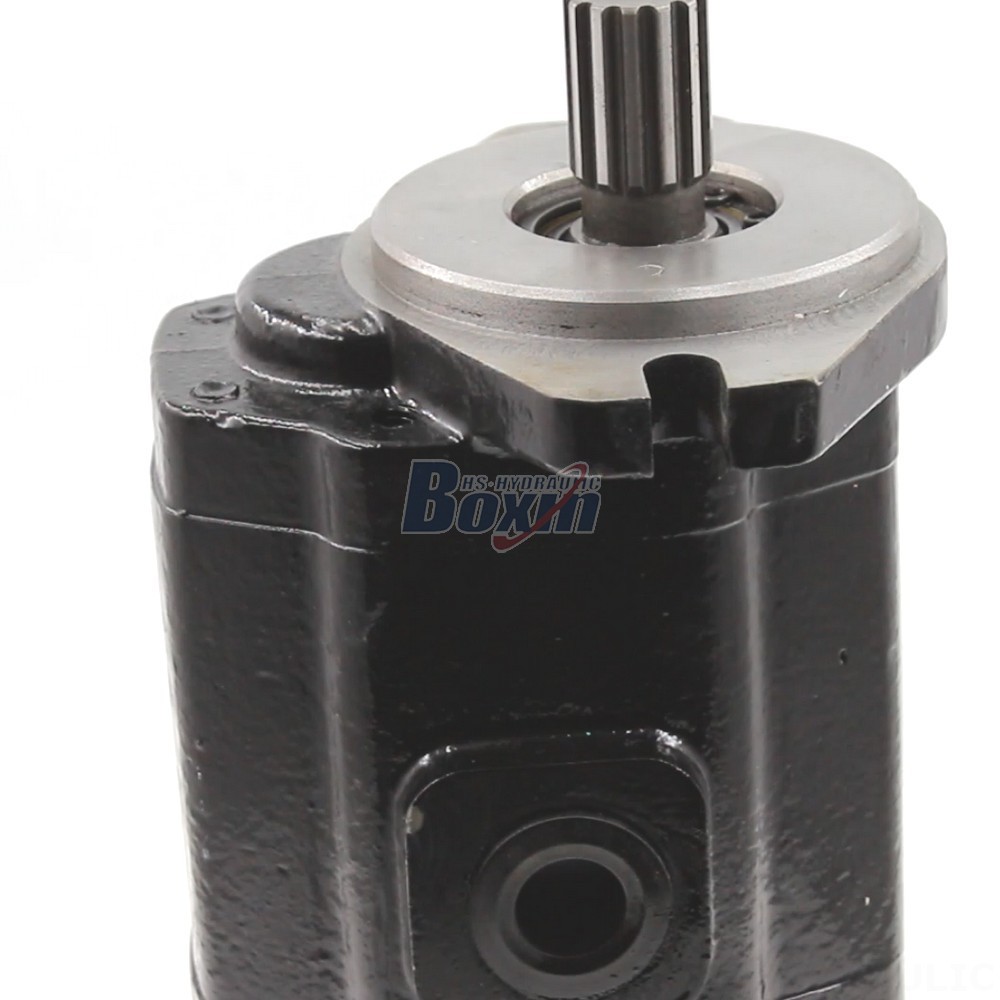

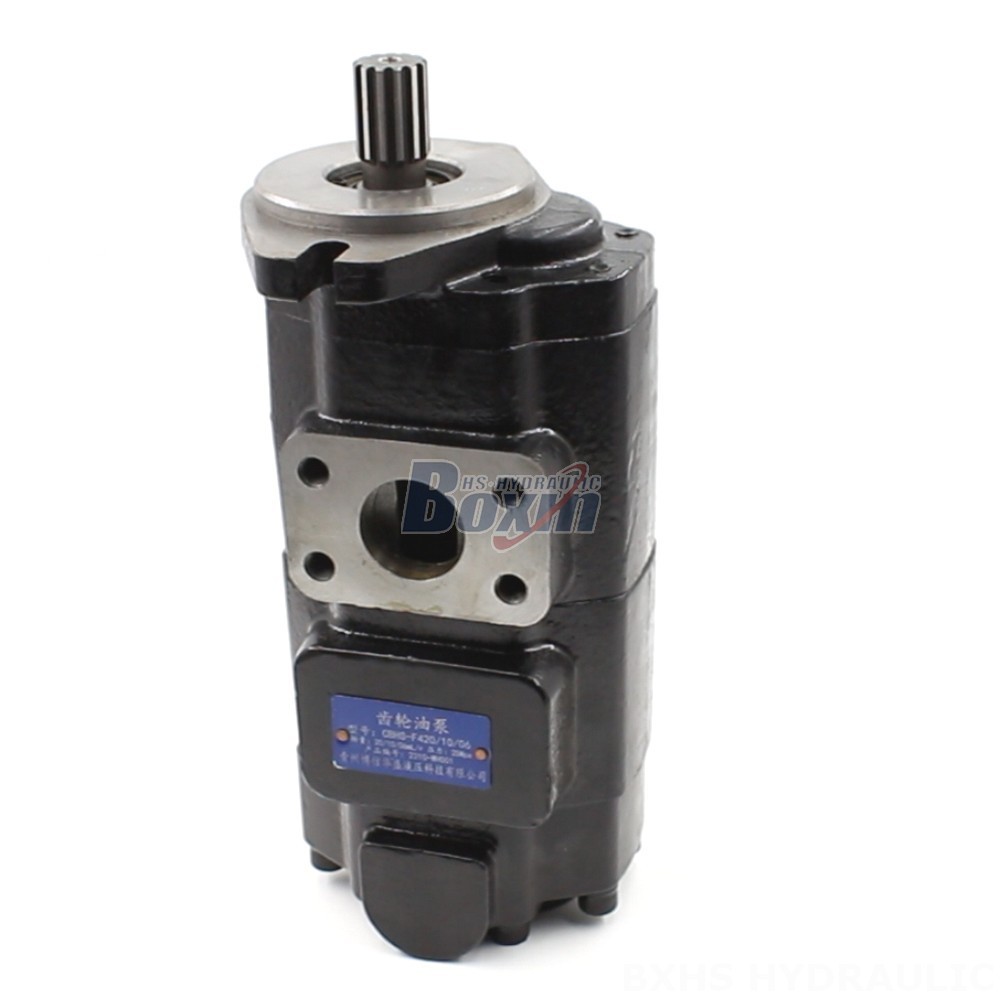

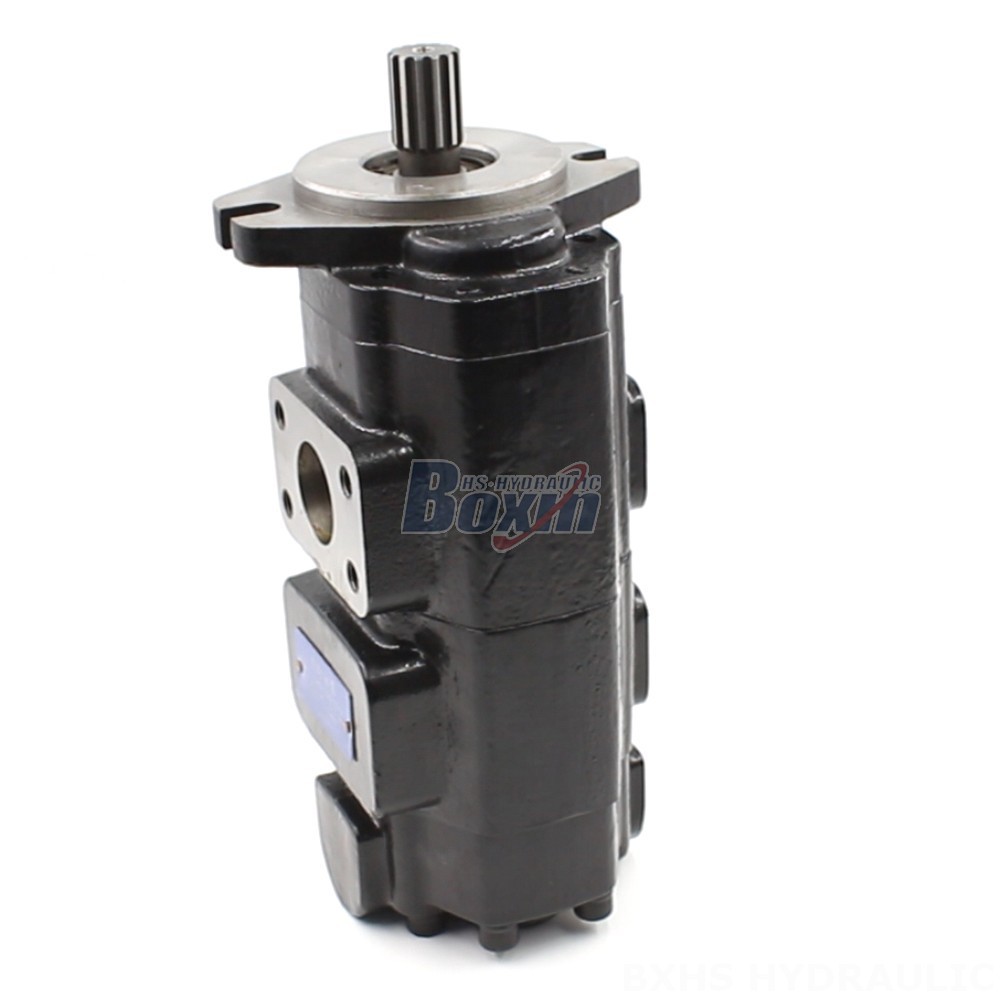

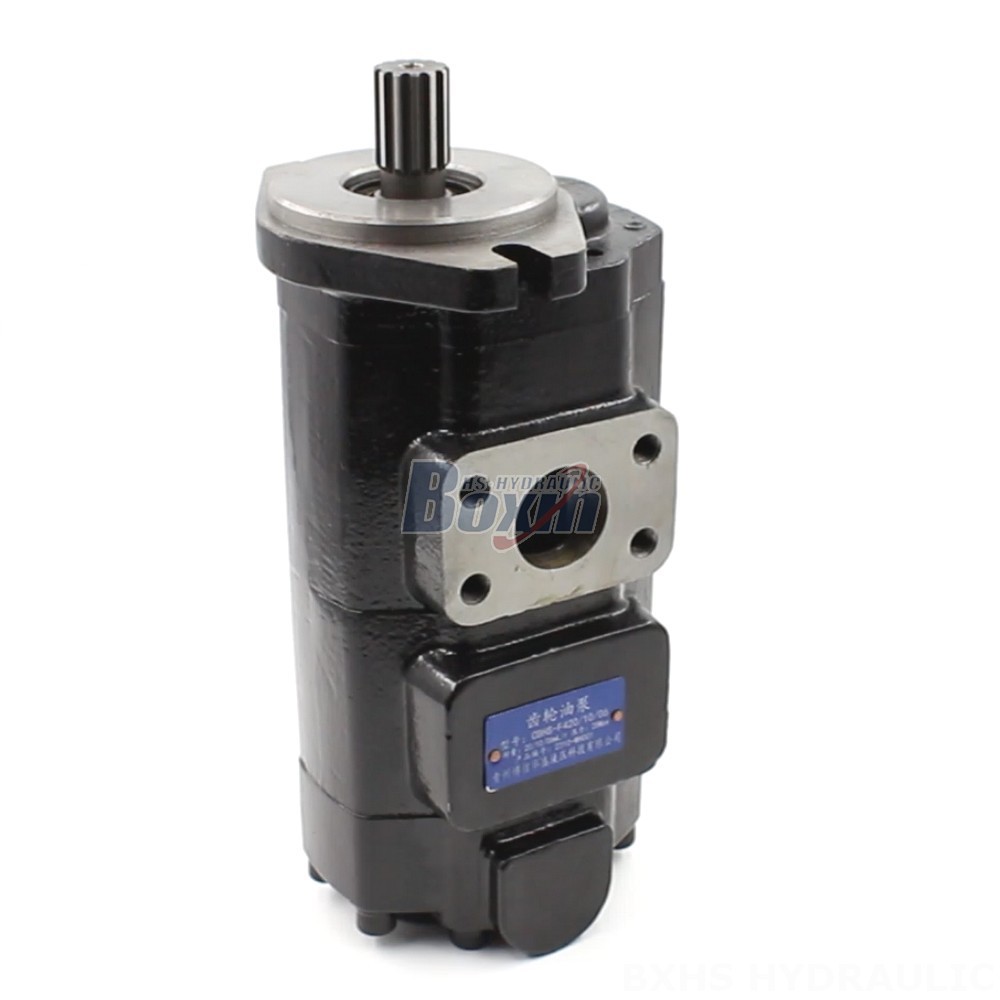

This Industrial Hydraulic Gear Pump is a high-performance, durable and reliable pump designed for various construction, agricultural, and industrial applications. Available in different displacement sizes and pressure ratings, it caters to diverse needs and equipment types.
| Seri CBHS-F4 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 40 cc/putaran, 25 cc/putaran, 20 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 2500 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Besi Cor, Besi Tuang Aluminium, Aluminium |
| Struktur | Tipe Cam Plate |
| Versi Flens | Flange Oval-A, Flange Persegi-B, Lubang Pemasangan ISO-4, Lubang Pemasangan UNI-3, Flensa SAE |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
This Industrial Hydraulic Gear Pump is a reliable and durable solution for a wide range of applications in construction, agriculture, and industrial vehicles. It offers displacement options ranging from 32 cc/rev to 80 cc/rev and pressure ratings up to 3625 psi (25 MPa). The pump features an external gear design with a cam plate type structure and is available with both A-oval and B-square flange versions. It also features a rectangle spline shaft for easy installation. The pump is suitable for various equipment such as forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. Our company offers manufacturing, OEM, ODM, and customization services to meet the specific needs of our clients. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach and offer our high-quality hydraulic gear pumps to a wider market.
