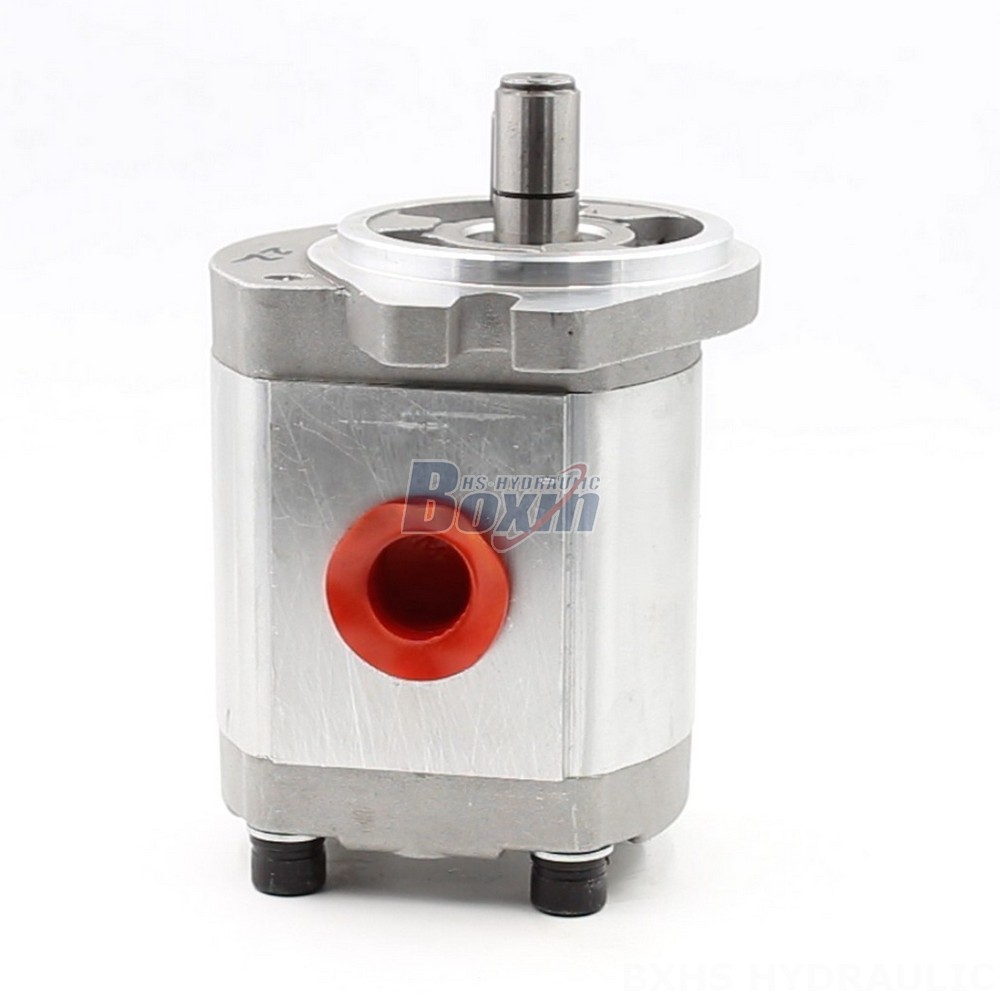

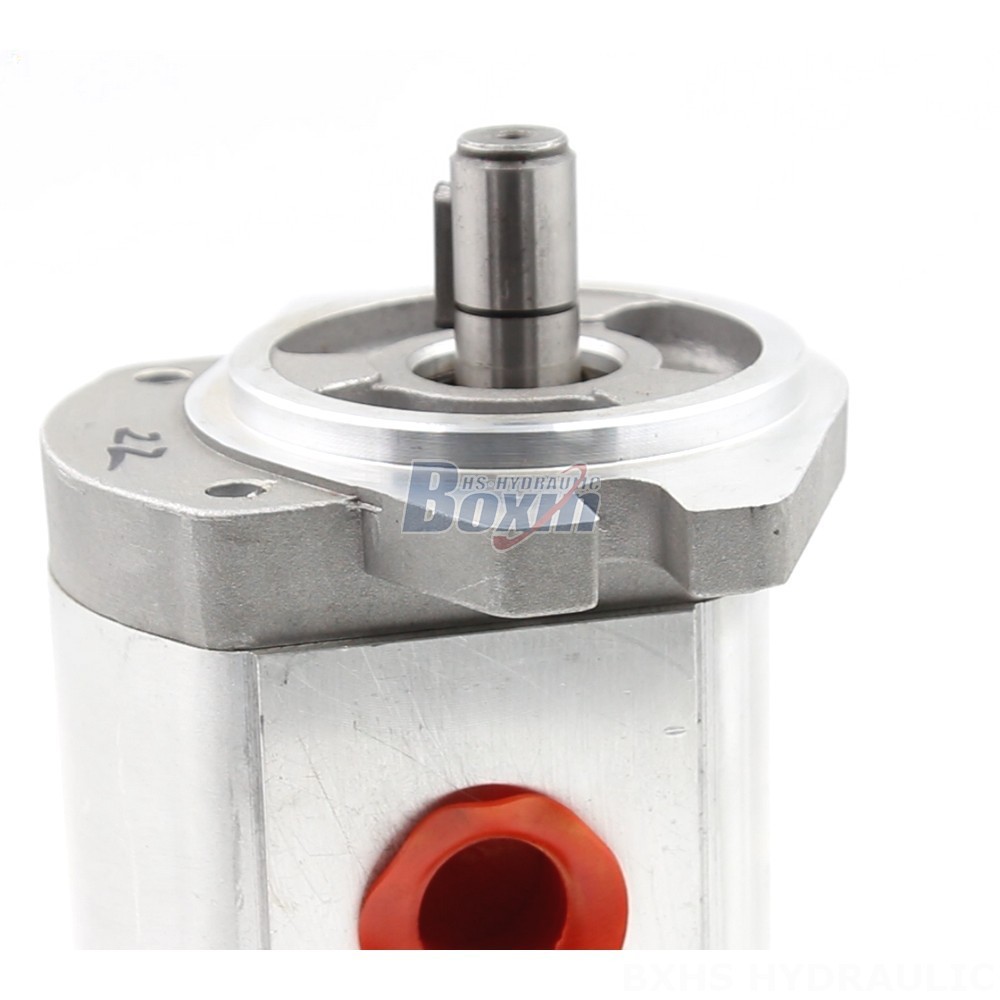

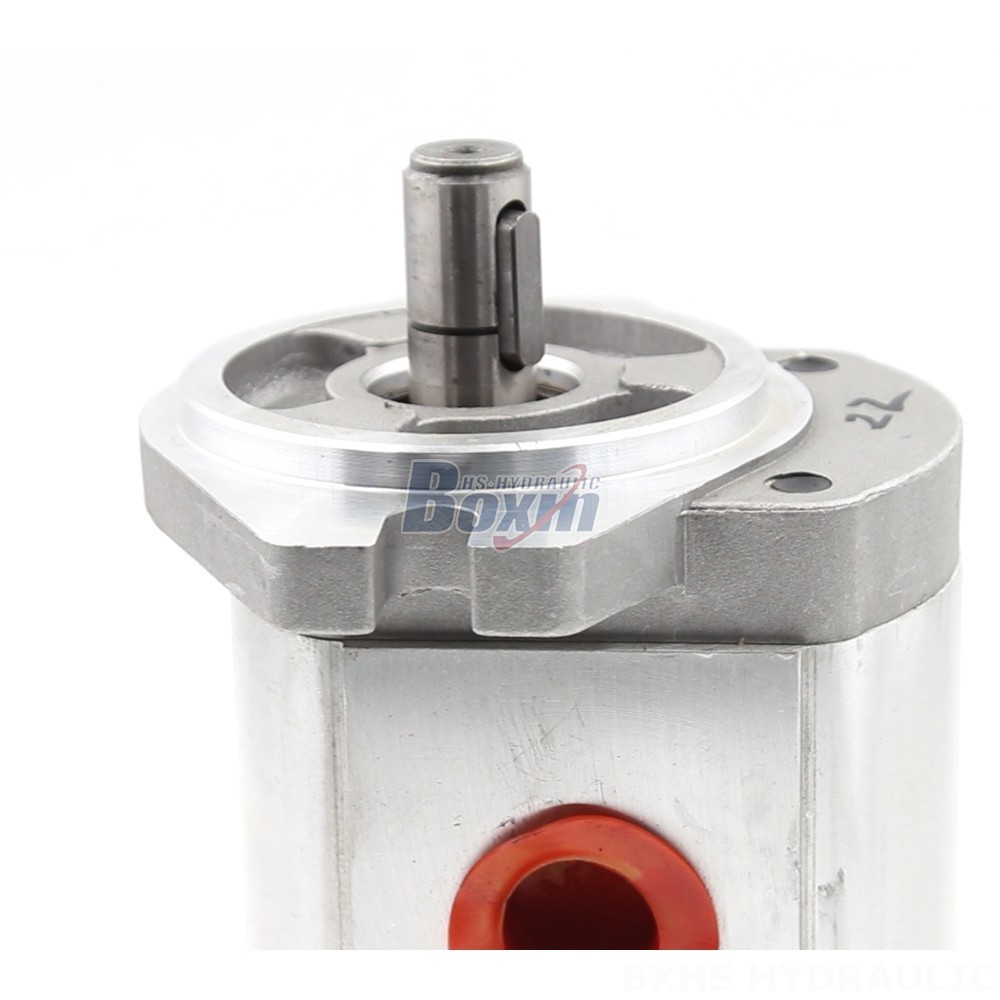

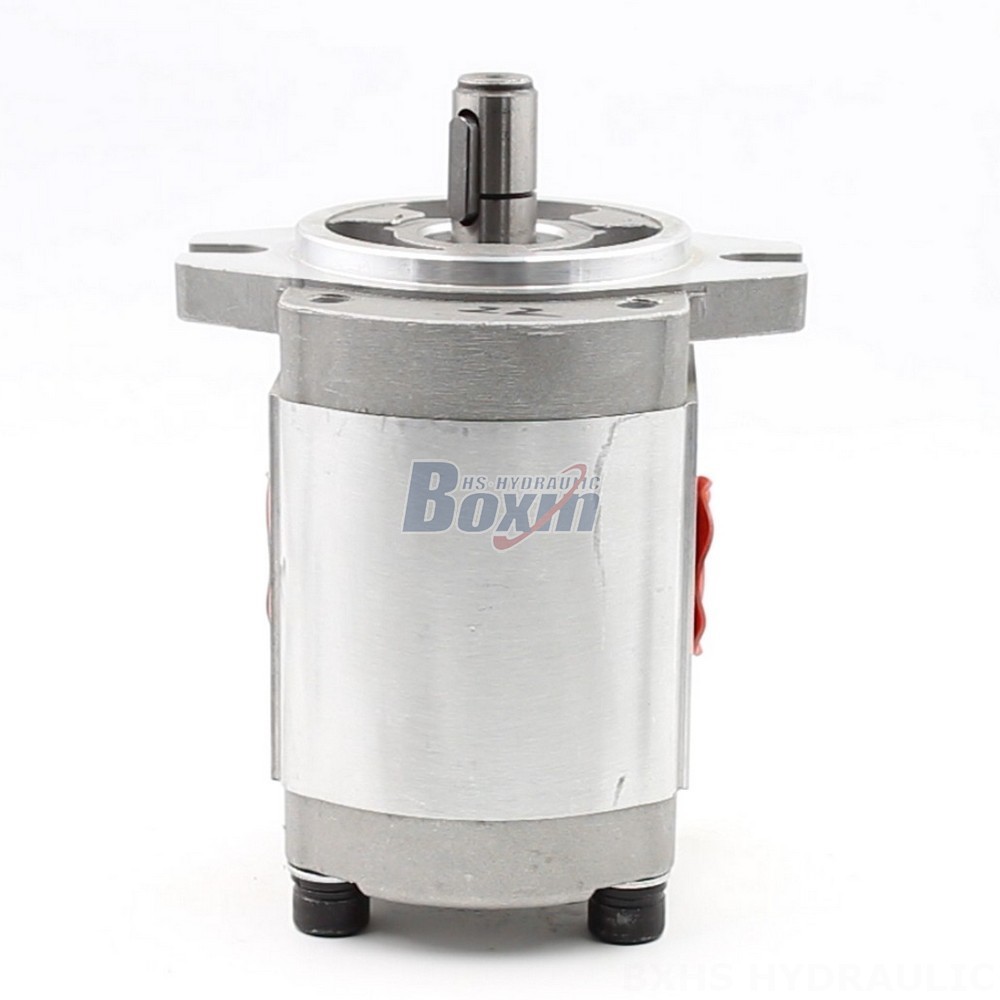

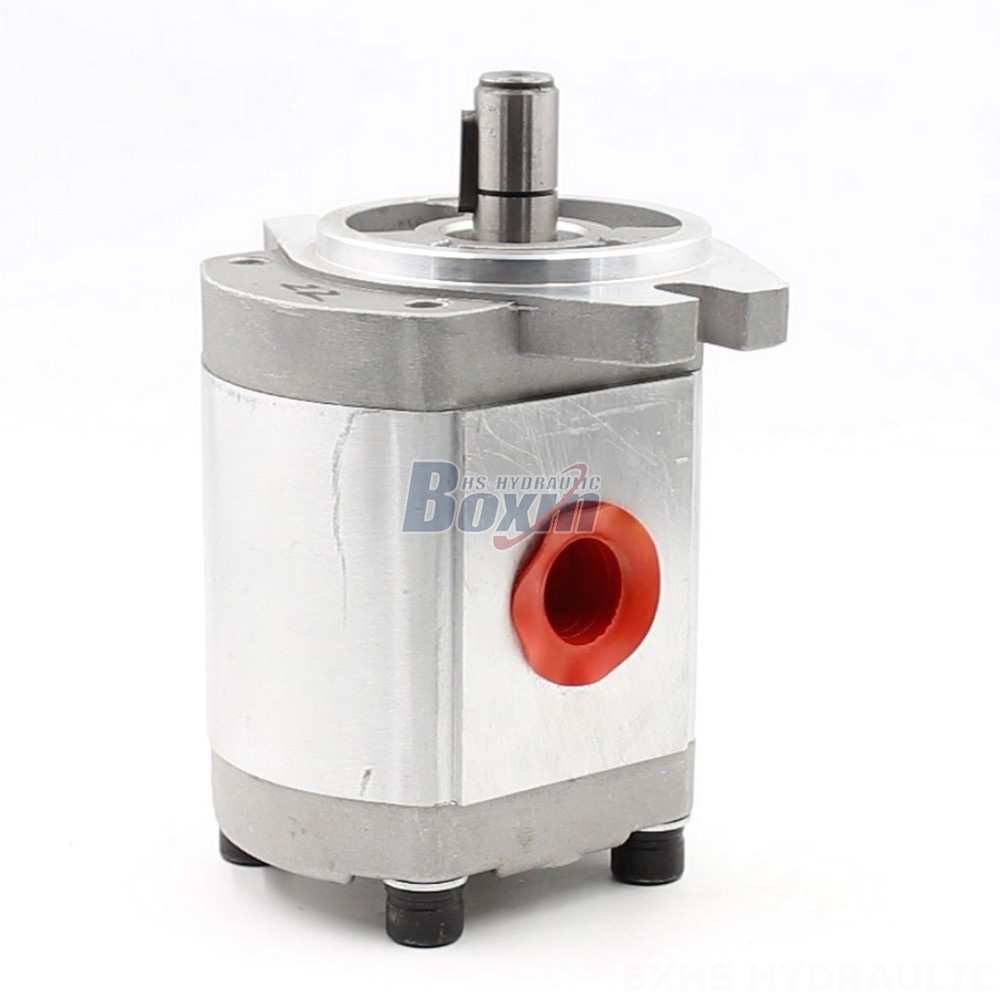

The CBHS-FL304 Industrial Hydraulic Gear Pump is a high-performance, low-noise pump designed for demanding applications in construction, agriculture, industrial vehicles, and material handling. With a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), this pump delivers high flow rates while maintaining quiet operation.
| Seri CBHS-FL3 Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 4 cc/putaran, 20 cc/putaran, 16 cc/putaran, 14 cc/putaran, 6 cc/putaran |
| Tekanan Terukur | 20 MPa (2900 psi) |
| Tekanan Maksimum | 25 MPa (3625 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 3000 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam), R: Kanan ( searah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Oval-A |
| Tipe Poros | H: Spline Persegi Panjang, X: Spline Involute, P: Kunci Biasa |
The CBHS-FL304 is a robust internal gear pump constructed from aluminium, featuring an A-Oval flange and a plain key shaft. It boasts a rated speed of 2000 r/min and a maximum speed of 3000 r/min, ensuring reliable performance in various applications. Specifically designed for construction and earth moving, agriculture, industrial vehicles, and material handling, it is suitable for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
