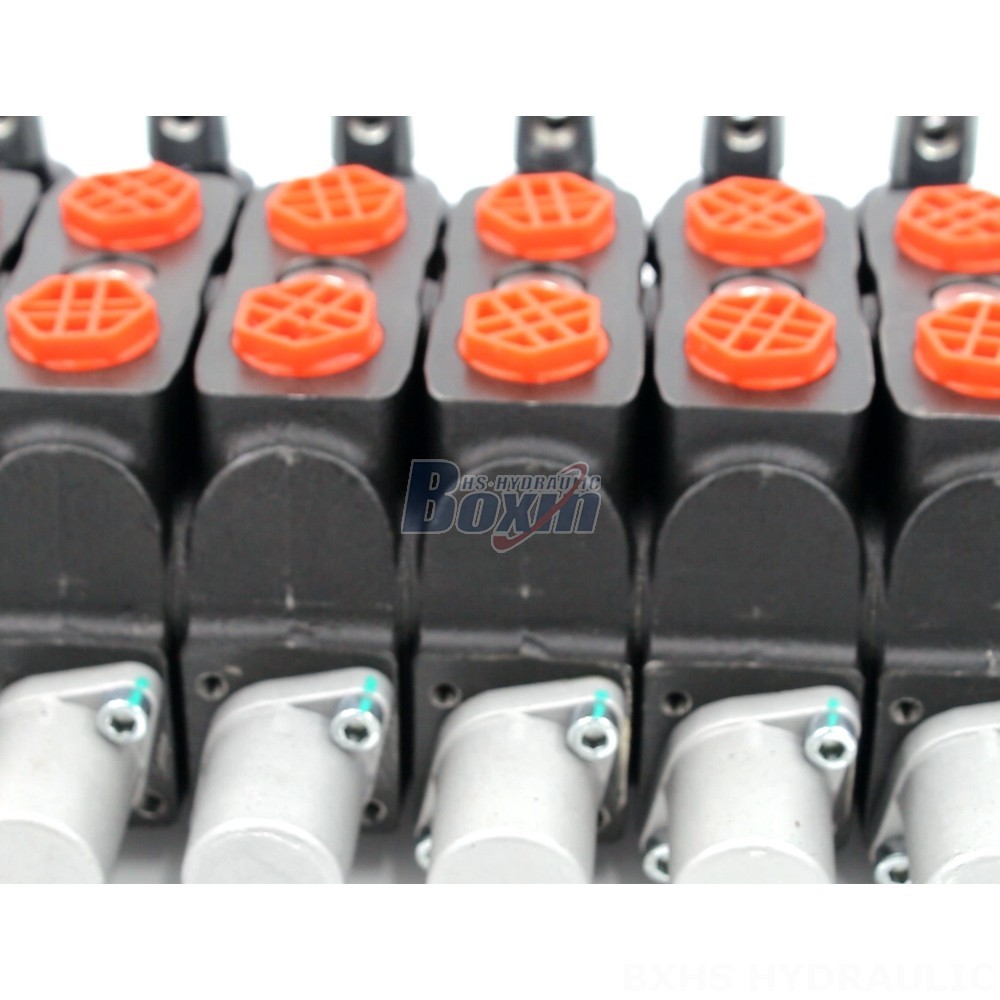

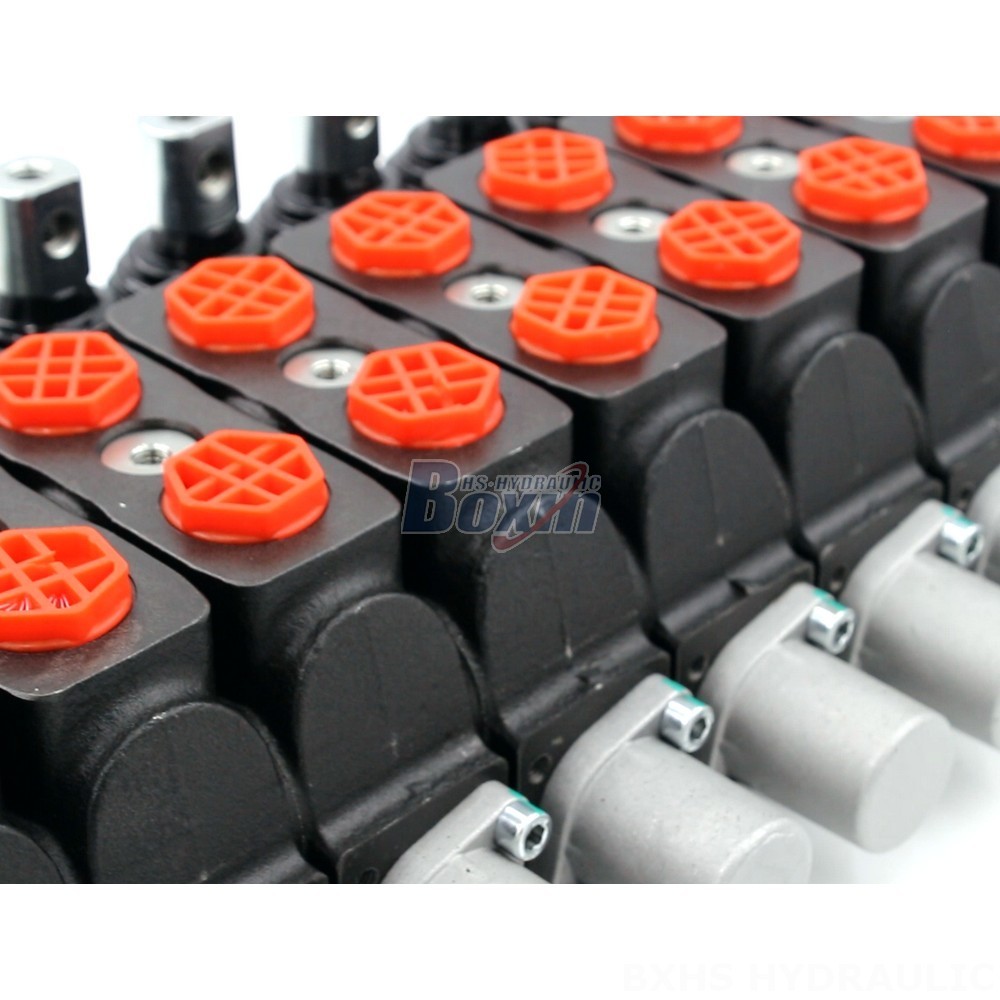

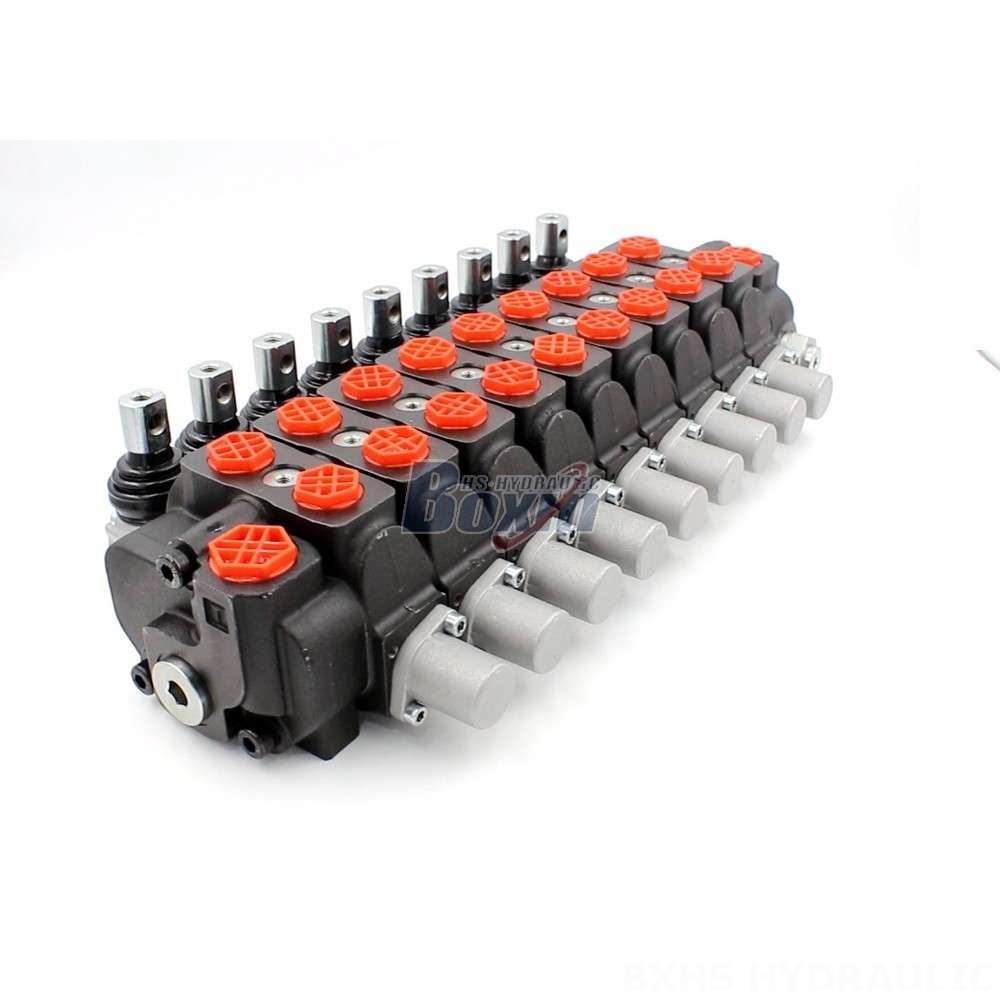

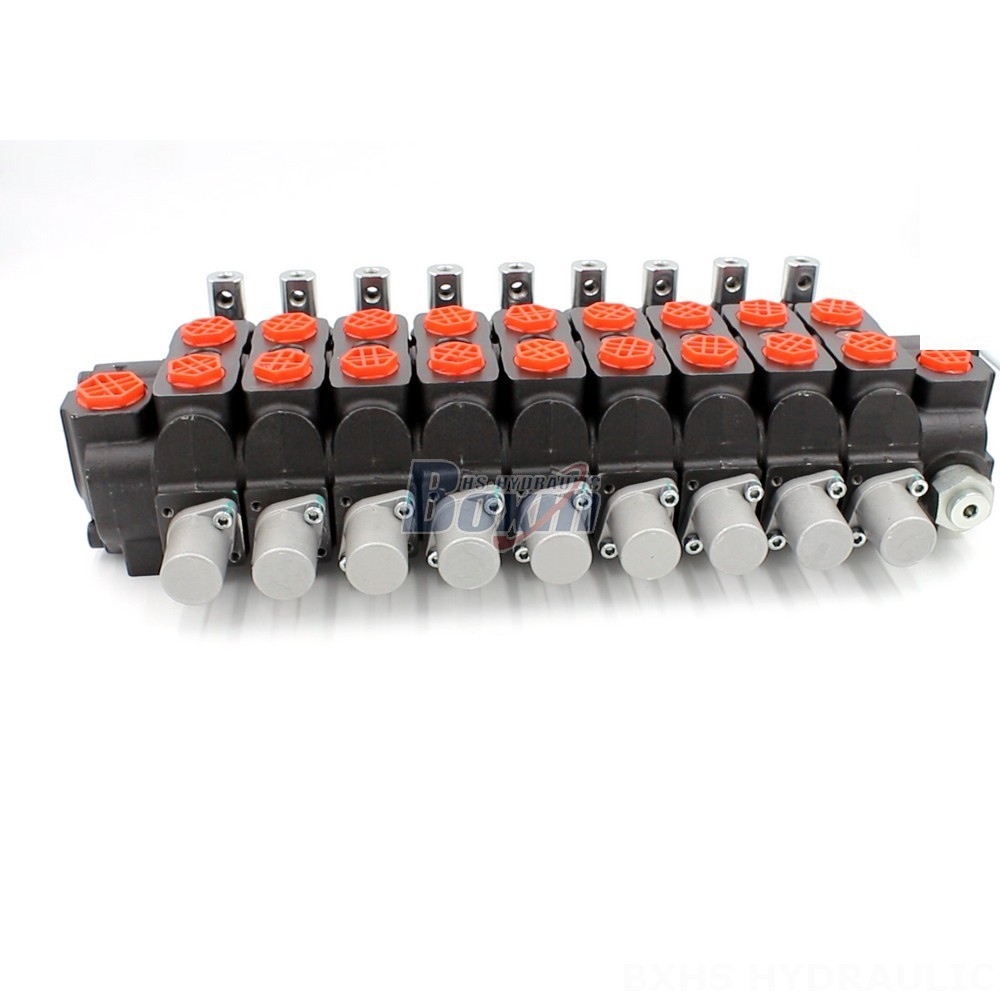

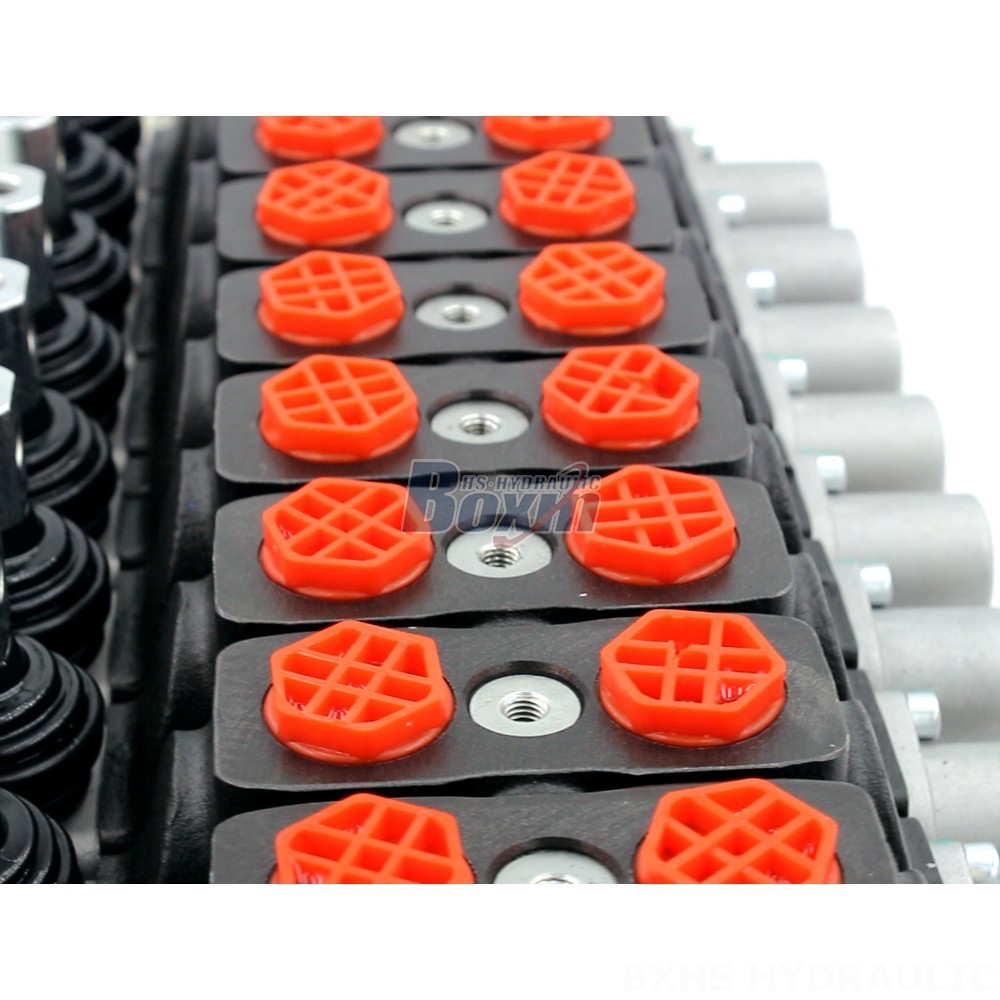

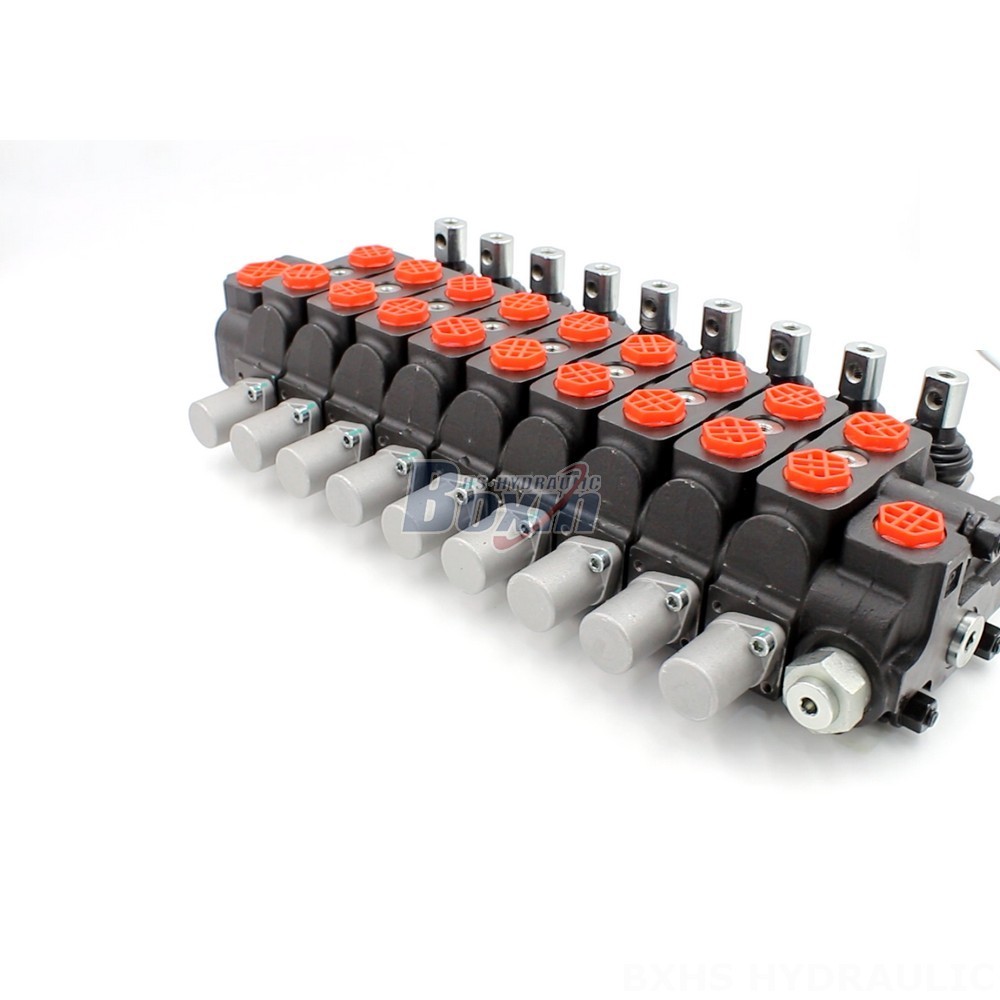

The SD8 Sectional Directional Valve is a heavy-duty hydraulic valve designed for demanding applications in industries like construction, material handling, agriculture, and industrial vehicles. This 9-section valve provides high flow rates and pressure capabilities, offering robust control for telehandlers, forklifts, cranes, excavators, and other equipment.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
This SD8 Series sectional directional valve boasts a 9-section design, offering precise control over hydraulic circuits. It features a manual control method, making operation simple and reliable. With a rated flow of 90 L/min and a maximum pressure rating of 350 bar, this valve is built for high-demand applications. Its wide operating viscosity range (12 - 400 mm²/s) ensures consistent performance across various operating temperatures (-40°C to +80°C). The SD8 valve is ideal for various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and wheel loaders.
