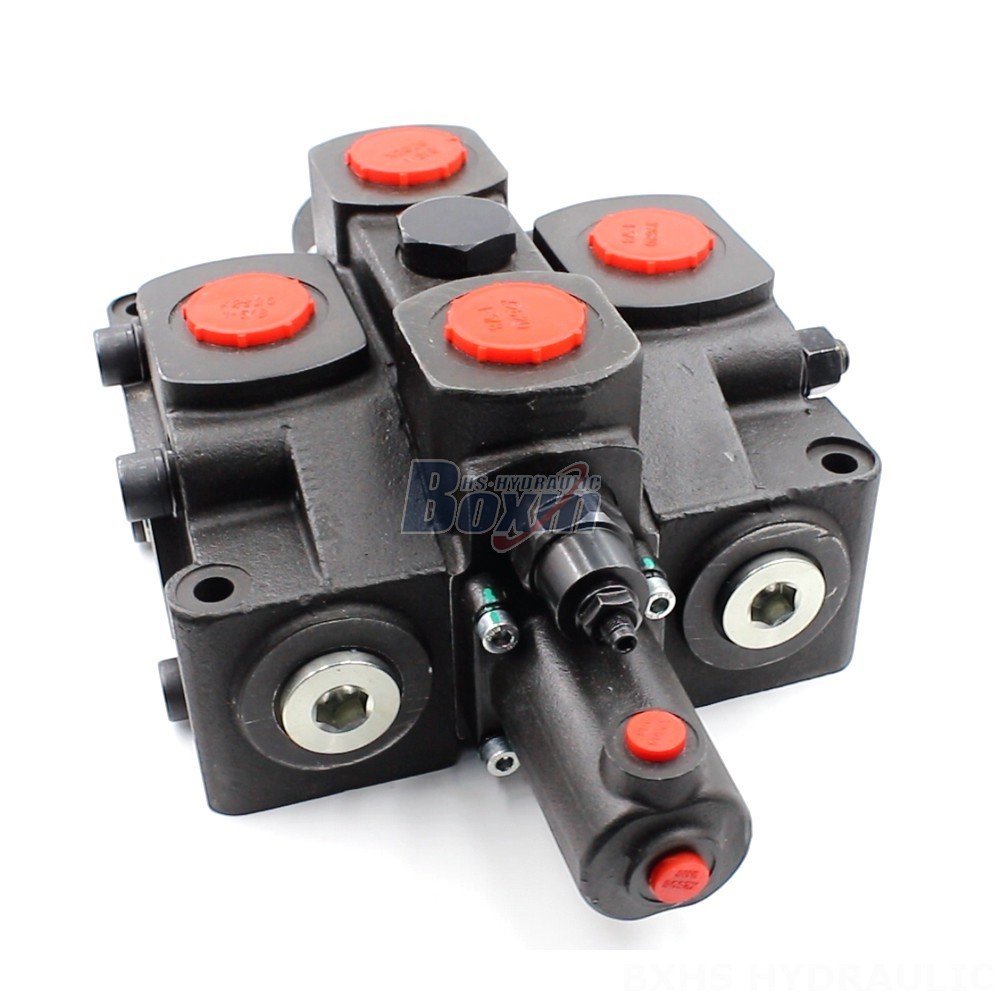

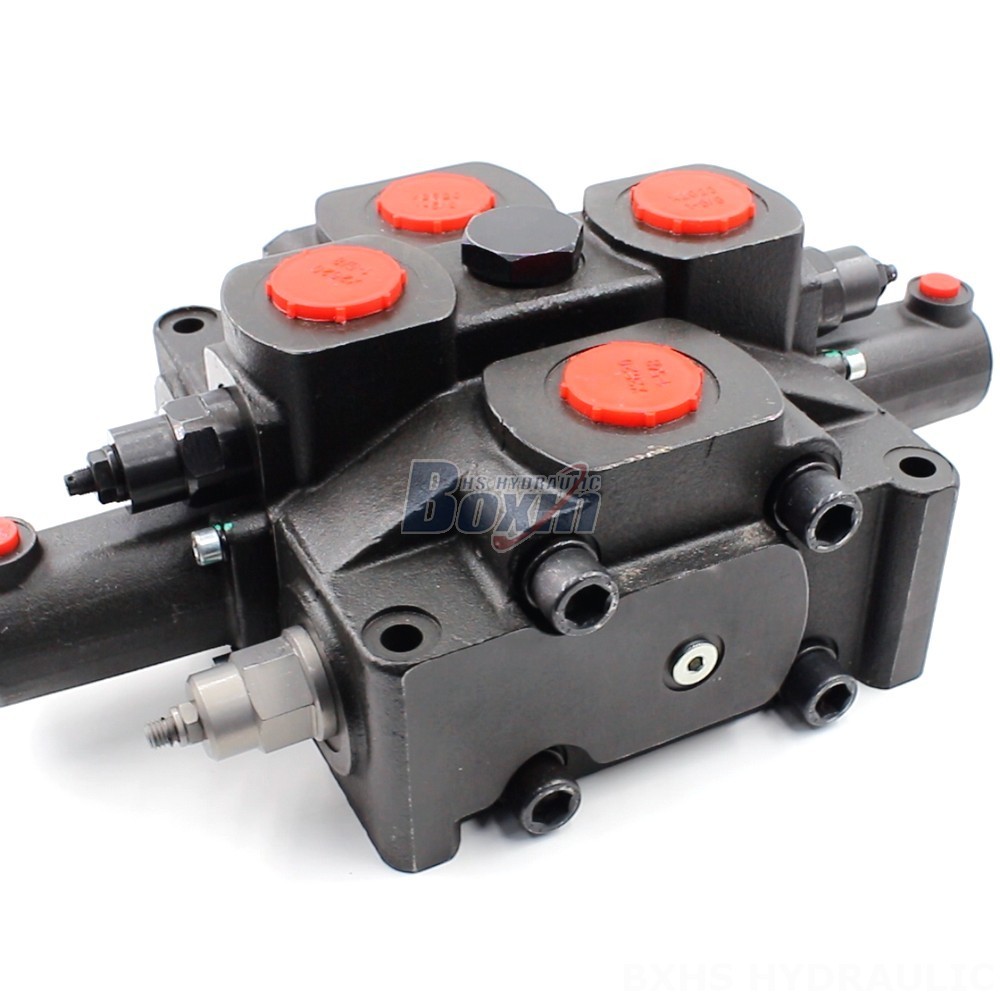

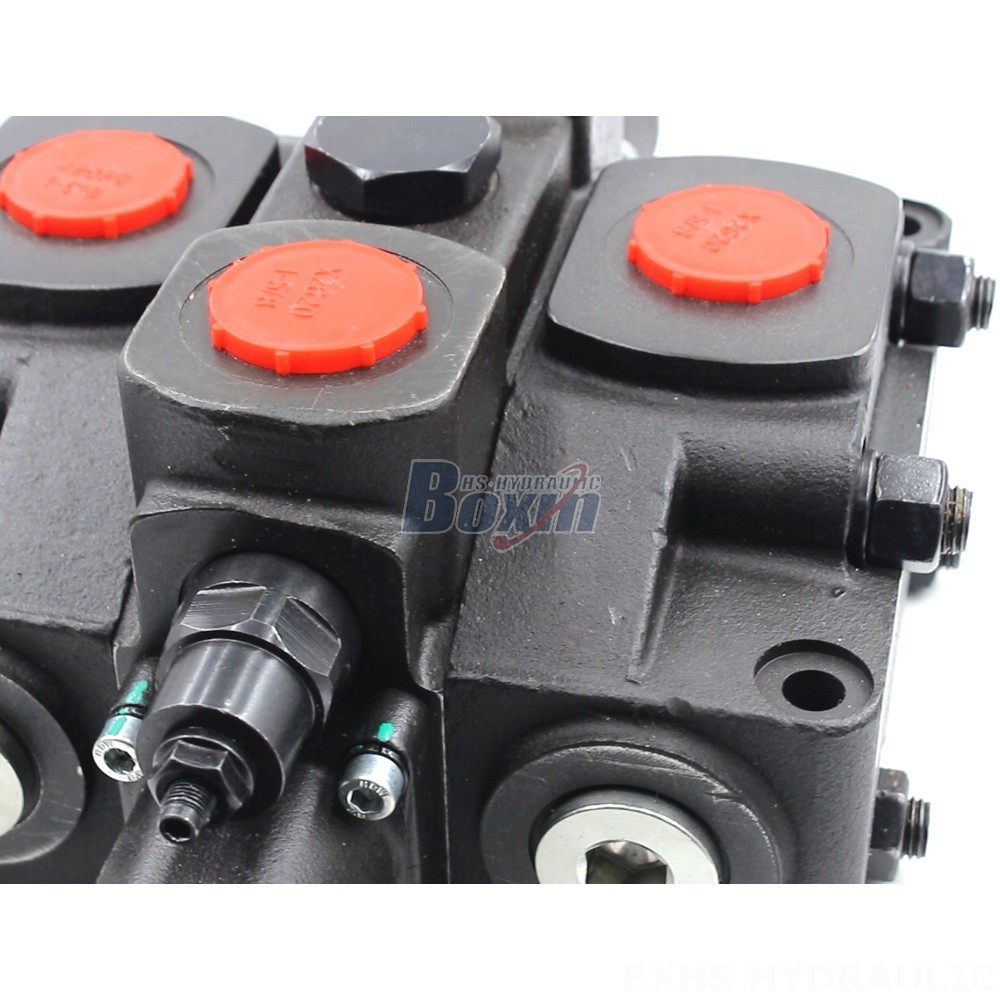

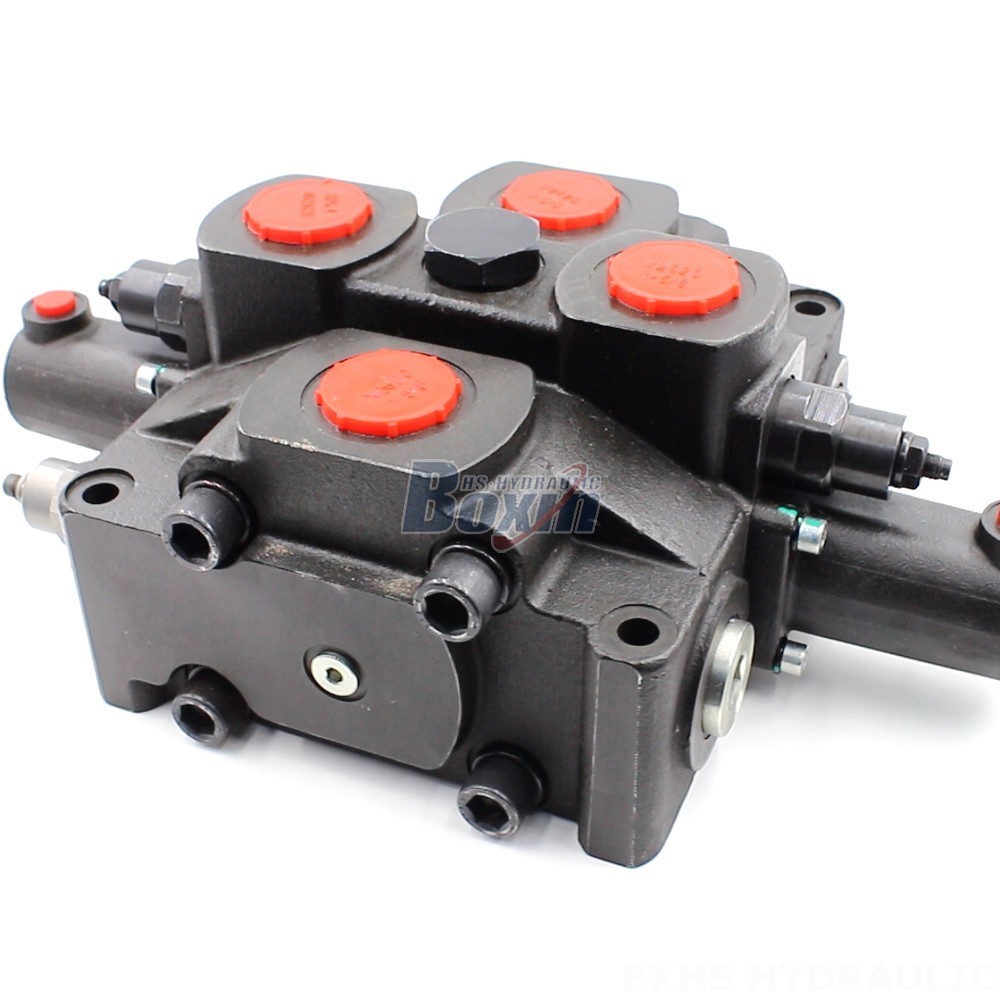

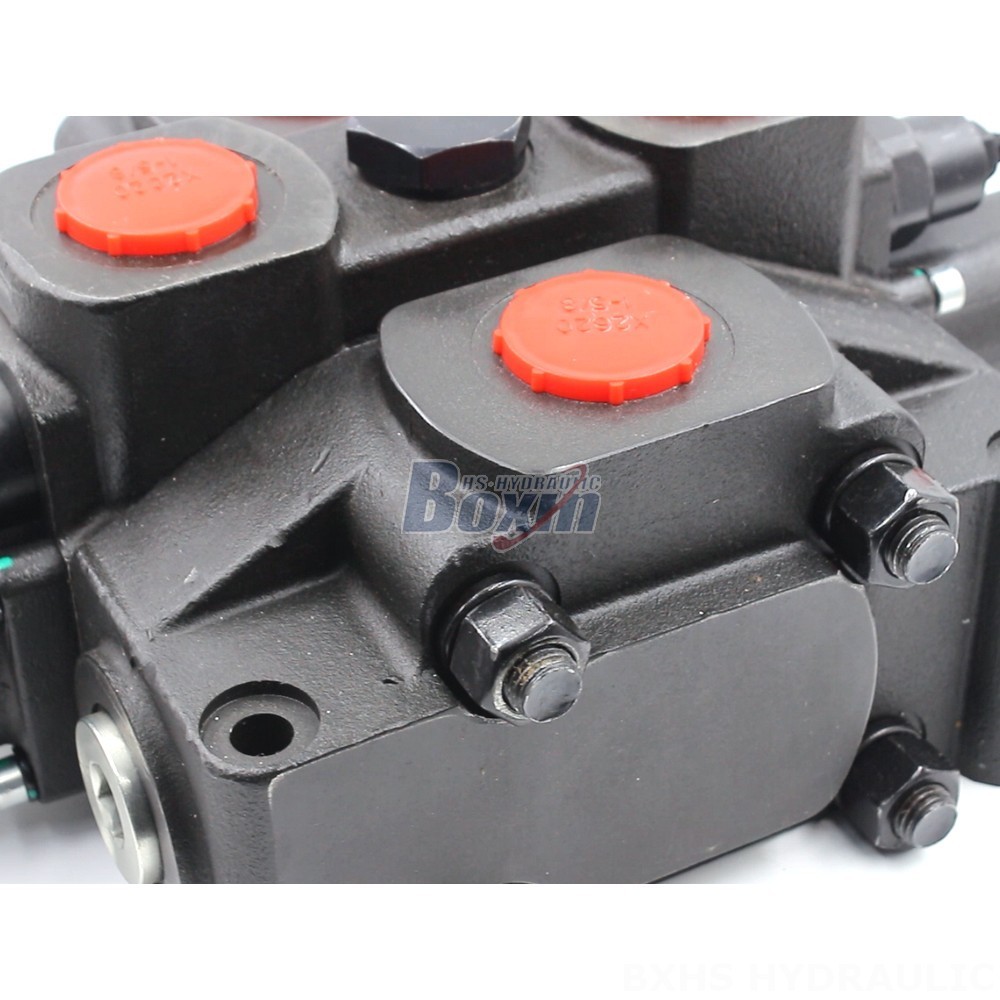

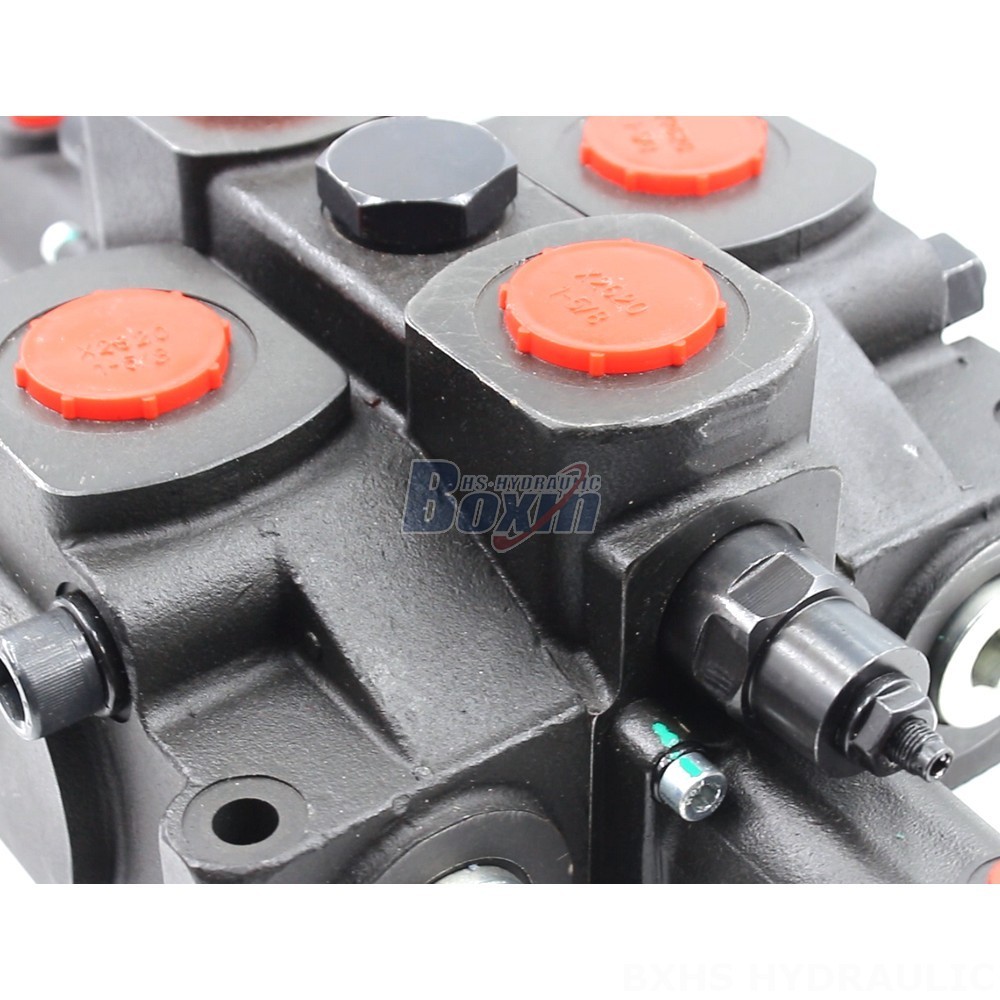

Introducing the SDS380 Directional Valve, an innovative hydraulic solution designed for advanced applications. With a rated flow of 380 L/min (100.4 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve offers exceptional performance and reliability.
| Seri SDS380 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 380 L/menit (100,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1-1/2, SAE 20 |
| Port Keluar | G1-1/2 |
| Ukuran Port | G1-1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The SDS380 Directional Valve is a sectional valve with a 1-section structure, providing versatility for various applications. It is widely used in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, tractors, front-end loaders, and harvesters. Its robust construction and advanced design ensure durability and precision even under demanding operating conditions.
