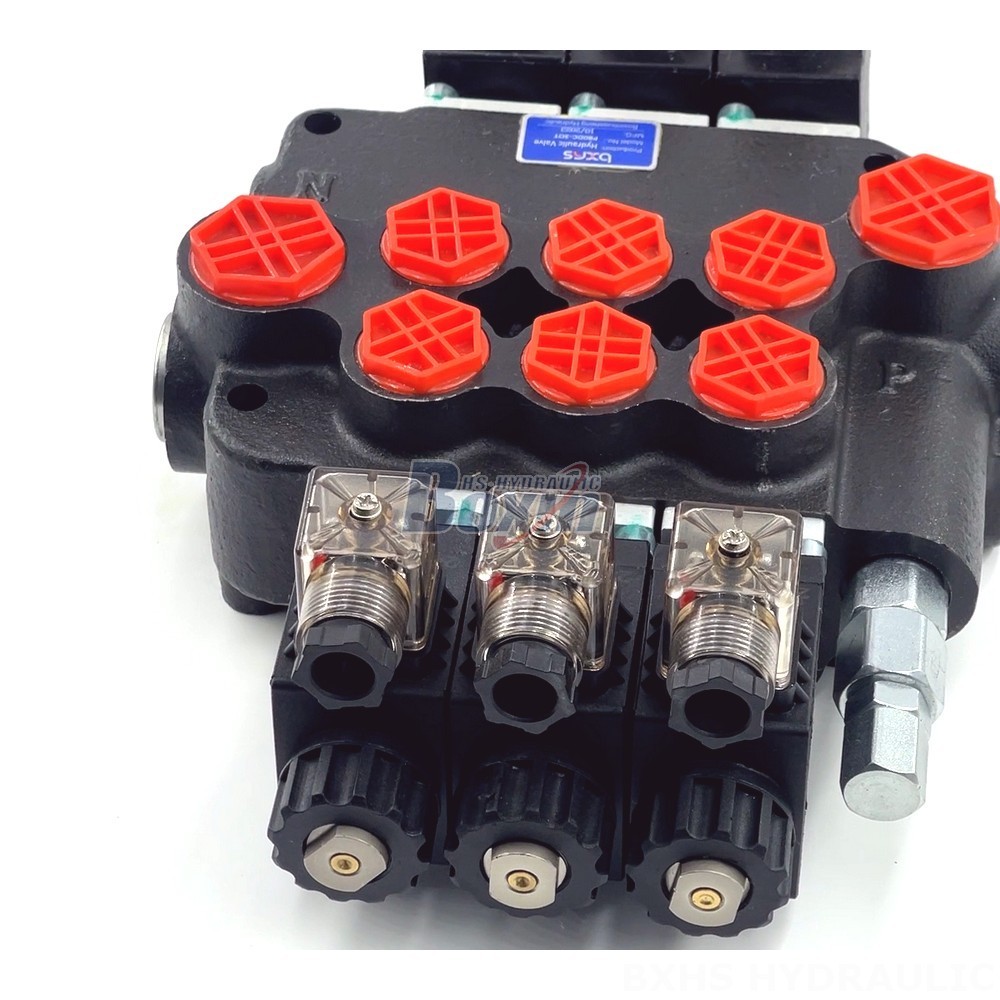

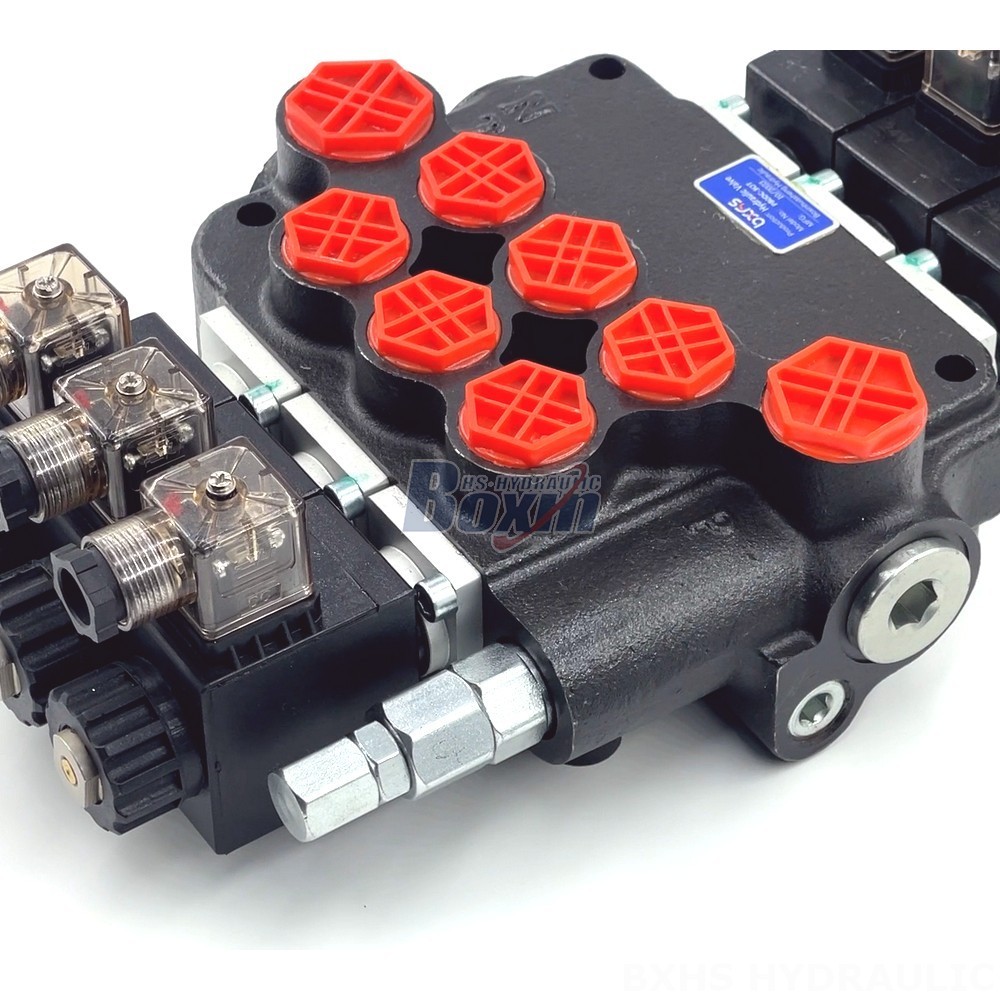

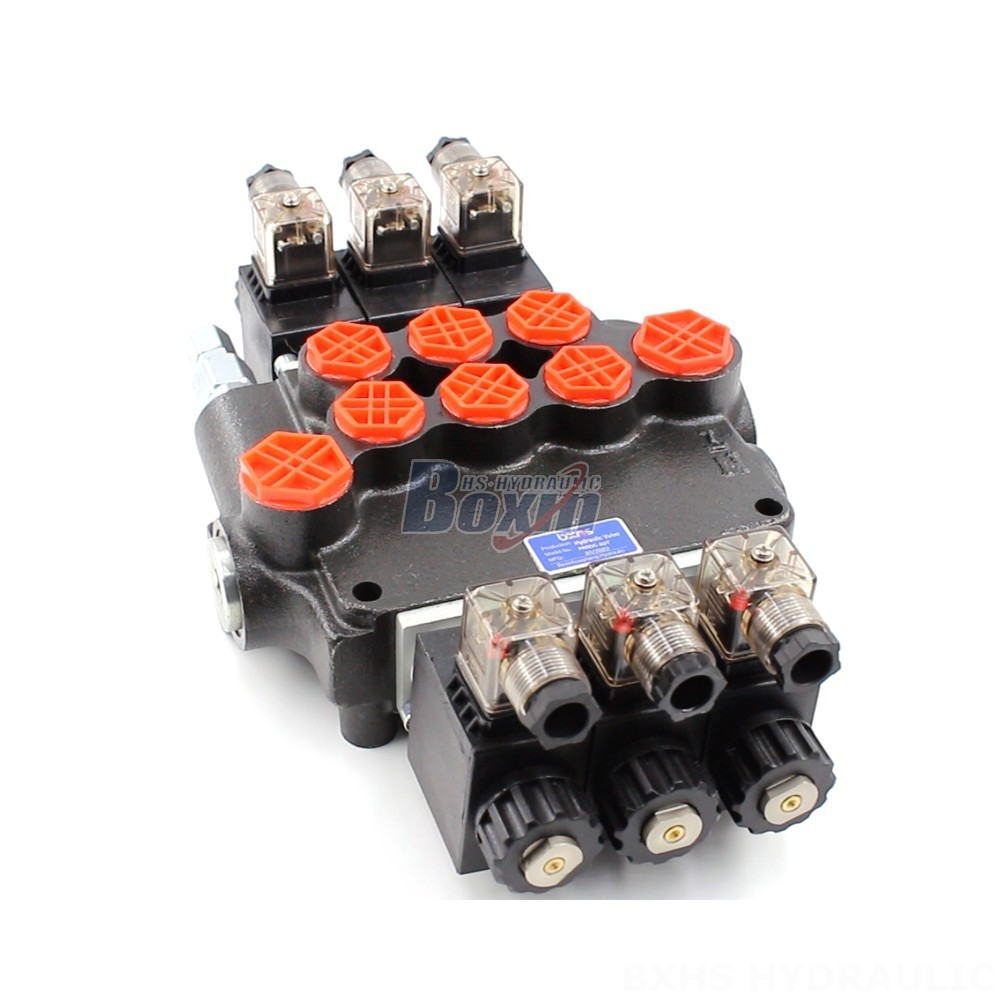

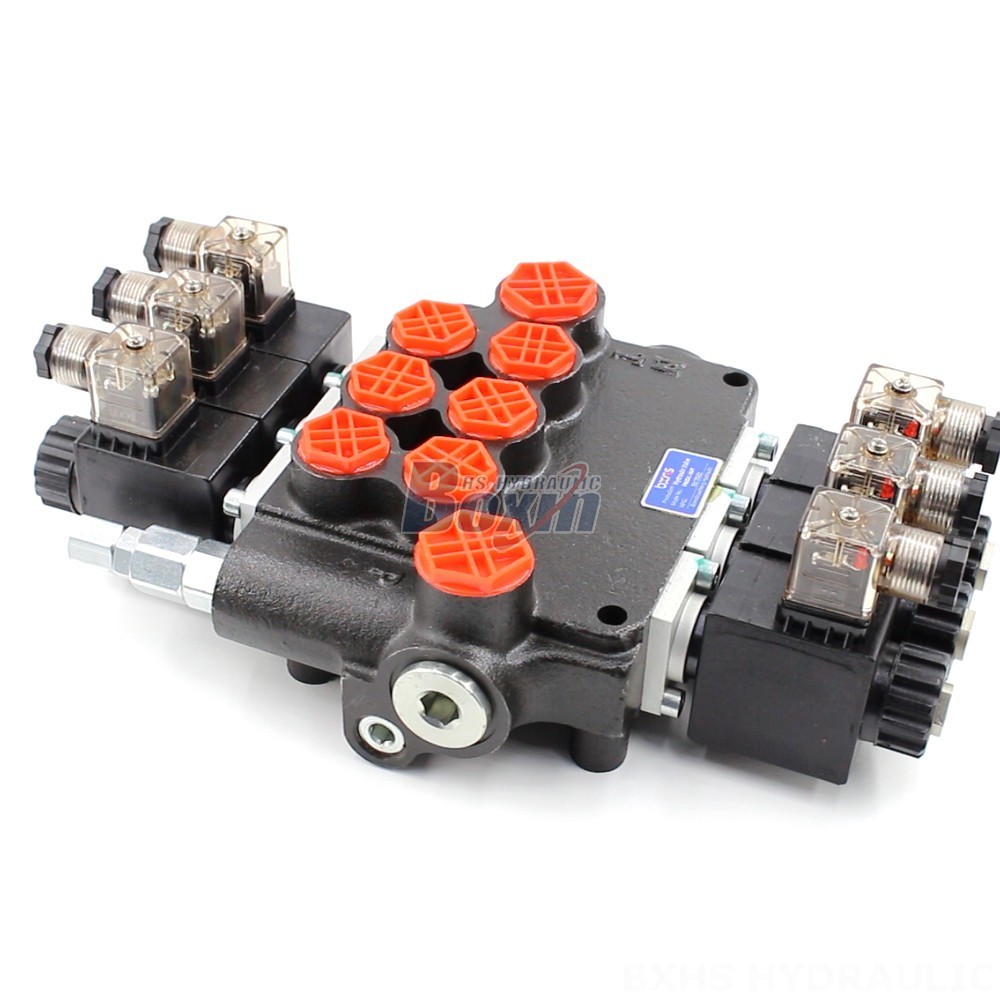

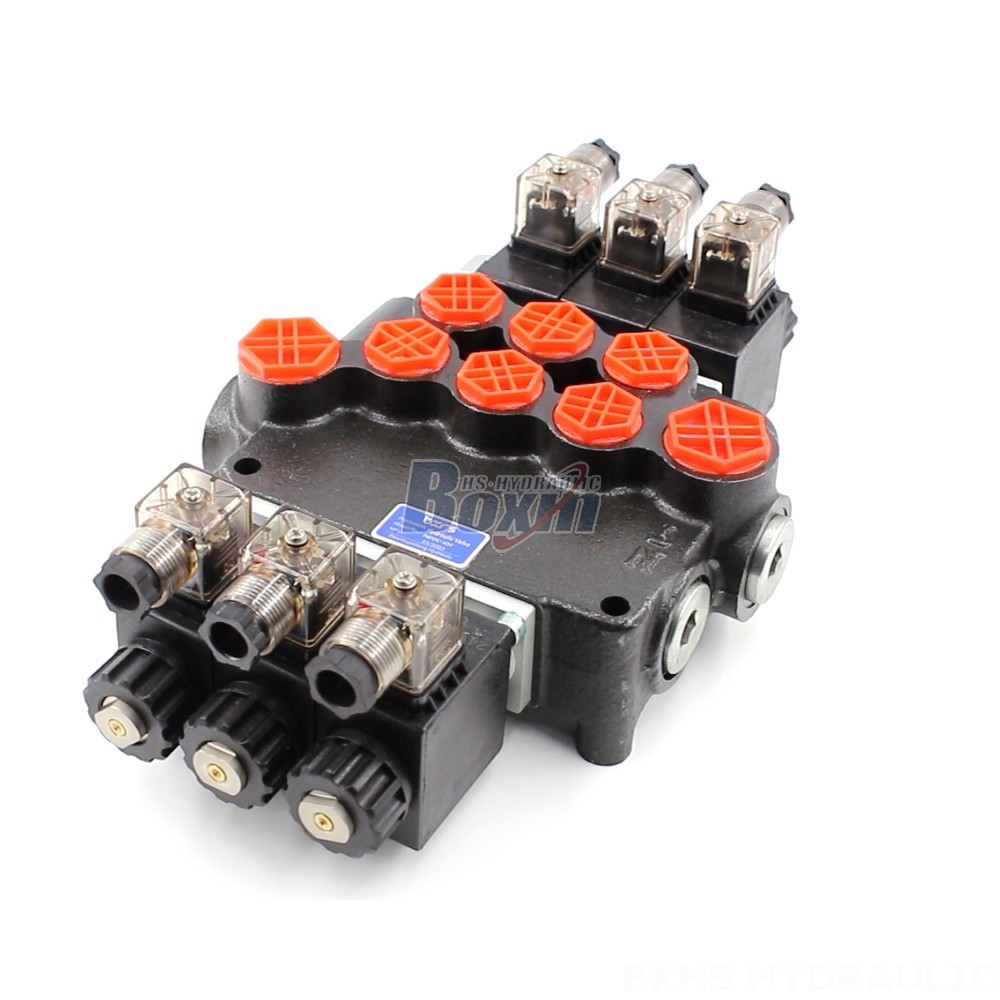

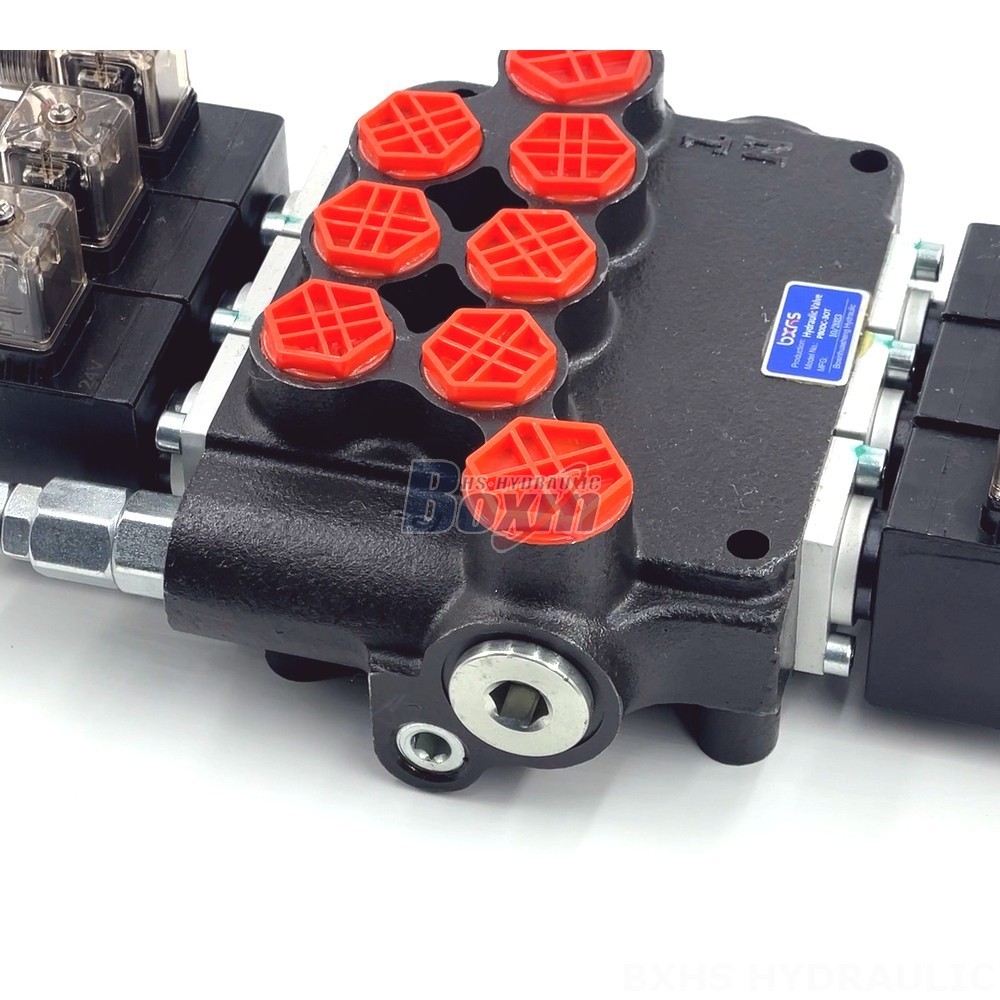

The P80 Series Double Acting Hydraulic Spool Valve is a high-performance, reliable and versatile solution for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. With its robust monoblock design, rated flow of 80 L/min, and maximum pressure of 250 bar, this solenoid controlled valve is ideal for demanding environments.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Double Acting Hydraulic Spool Valve is a 3-section, monoblock valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a solenoid control method for precise and reliable operation. The valve has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for heavy-duty applications. It operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The P80 Series is a highly durable and reliable valve, perfect for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
