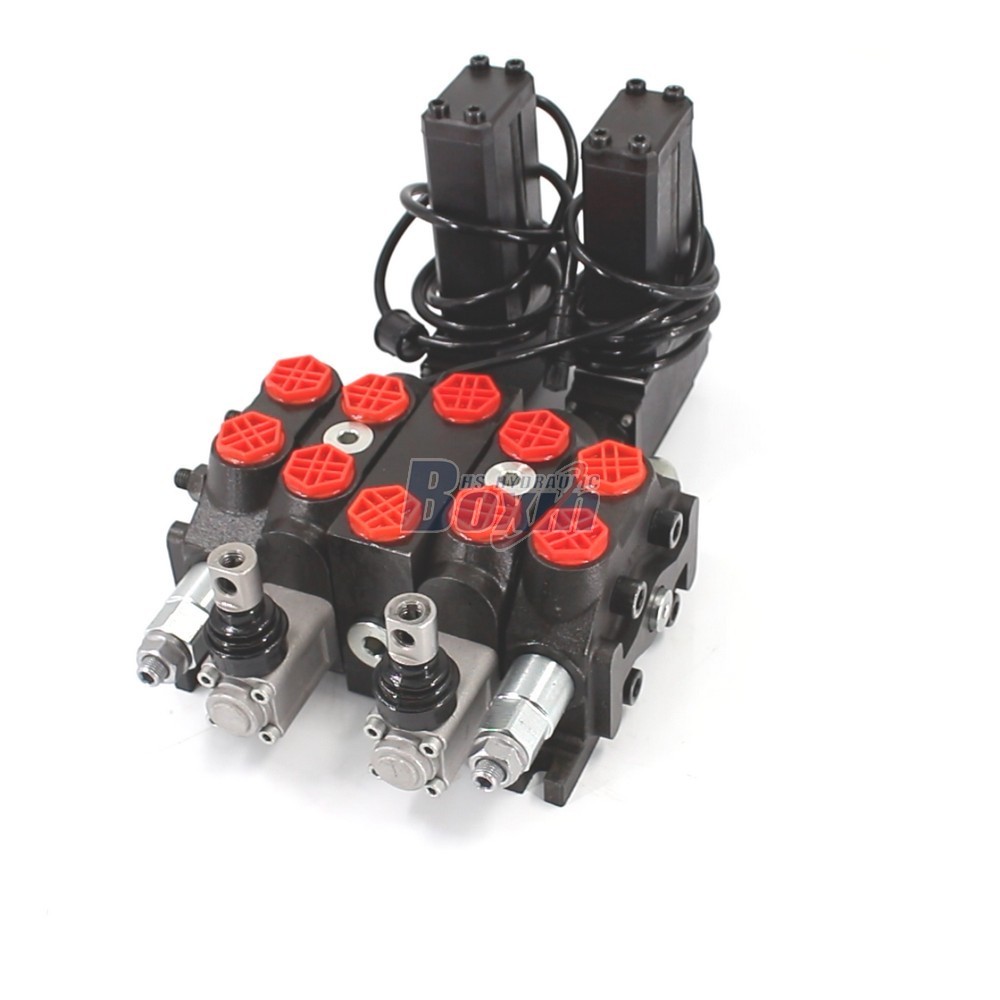

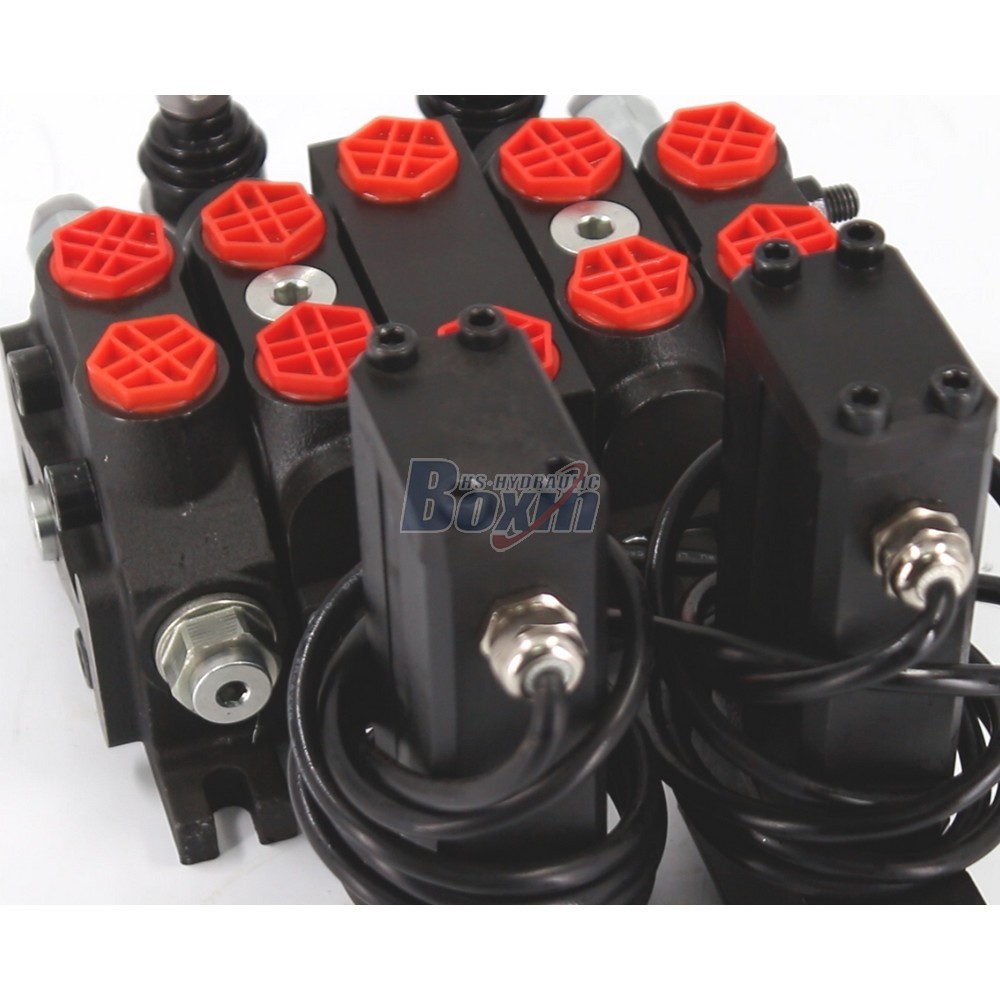

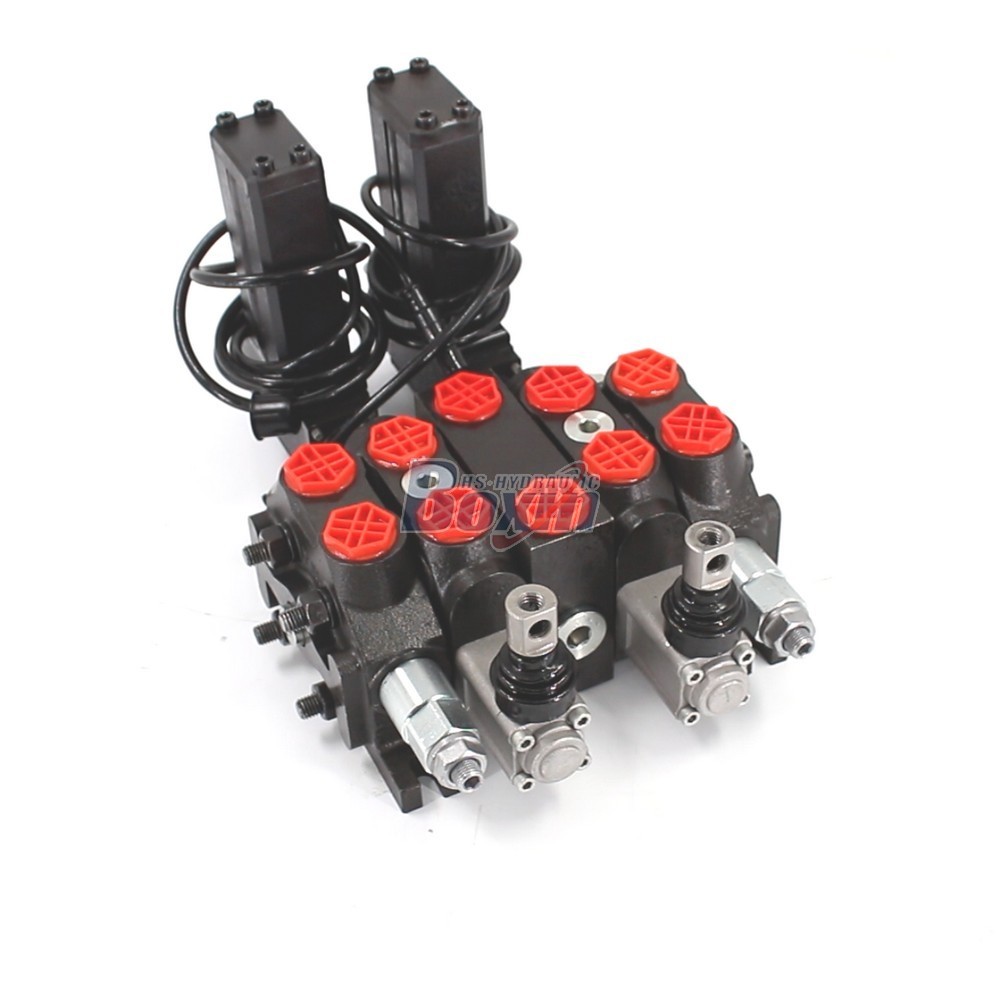

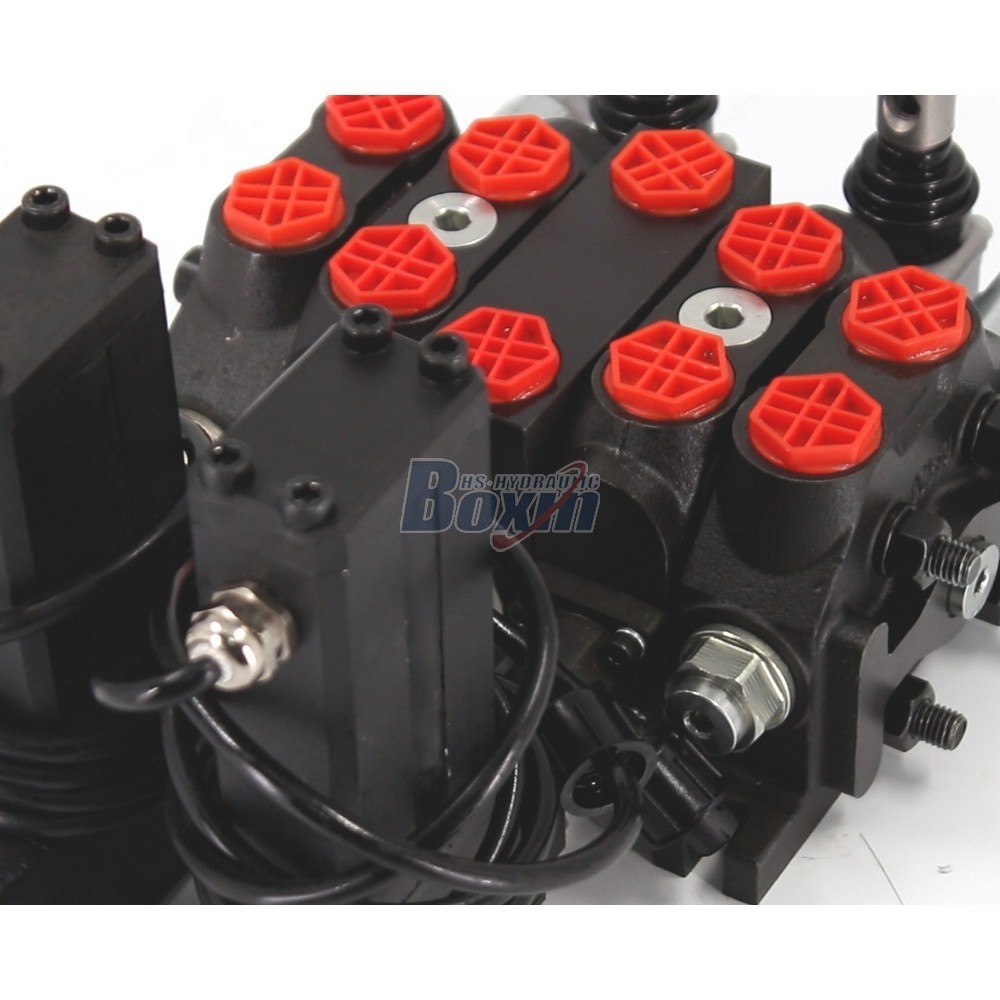

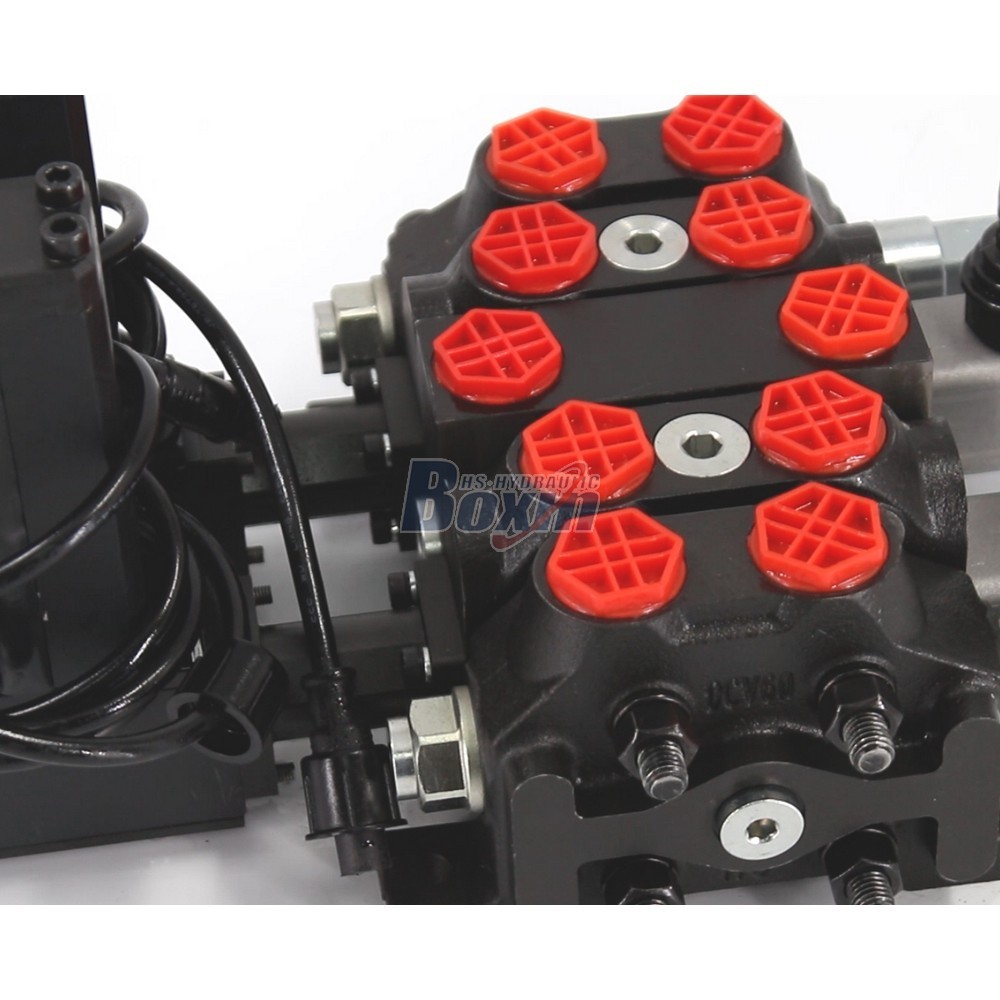

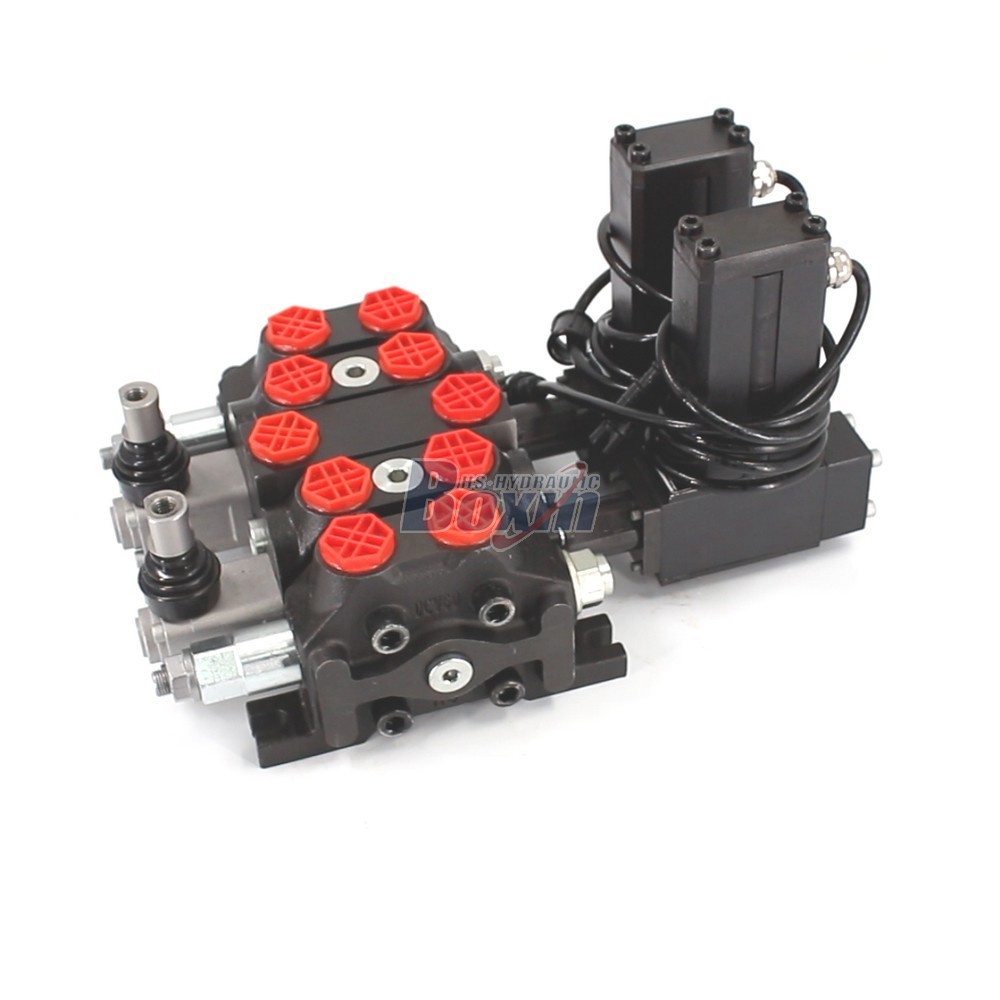

High-performance DCV60 series 2-spool sectional valve featuring electric motor control, designed for precise hydraulic management in heavy-duty machinery. Rated at 60 L/min with a maximum pressure of 315 bar, this robust valve is ideal for diverse applications including construction, agriculture, and material handling.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
As a leading manufacturer of hydraulic solutions, we offer the Large Scale Production DCV60 Electric Motor 2 Spool Sectional Valve for global markets. This valve delivers a rated flow of 60 L/min (15.8 US gpm) and handles pressures up to 315 bar (4600 psi) with G1/2 porting, ensuring reliable performance in demanding environments. Designed for versatility, it is suitable for tractors, front-end loaders, forklifts, skid steers, and mini-excavators. We provide comprehensive business cooperation opportunities including OEM, private labeling, custom manufacturing, and bulk wholesale. Our facility ensures consistent factory supply and competitive factory wholesale pricing. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide to expand our global footprint. Partner with us for high-quality hydraulic components and flexible manufacturing services tailored to your specific industrial needs.
