Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:Tekanan Maksimum

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Pembelah Kayu

Seri Produk:Seri P81 Katup Pembelah Kayu

Ukuran kemasan:27*16*12

Kelas kotor:4.80 kg

Ketersediaan: Tersedia

2161 Pandangan Mencari Produk Ini

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable drawing image

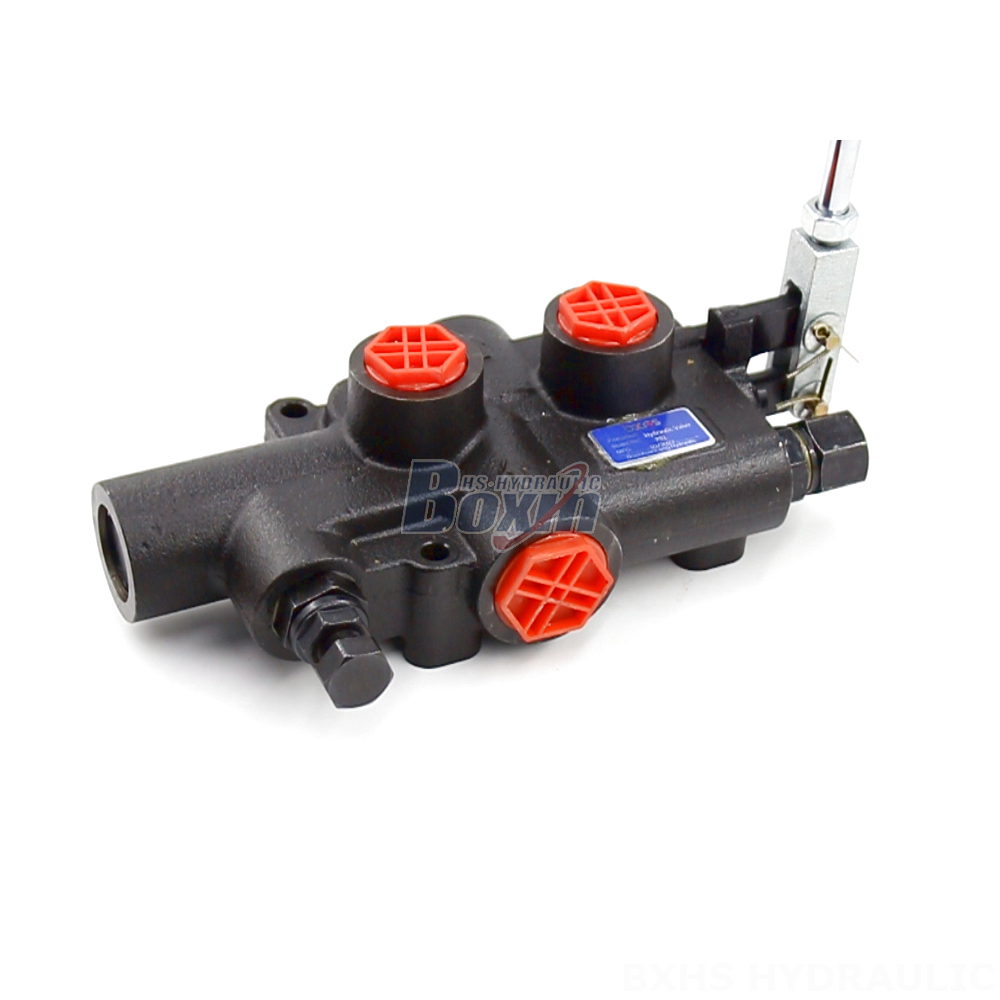

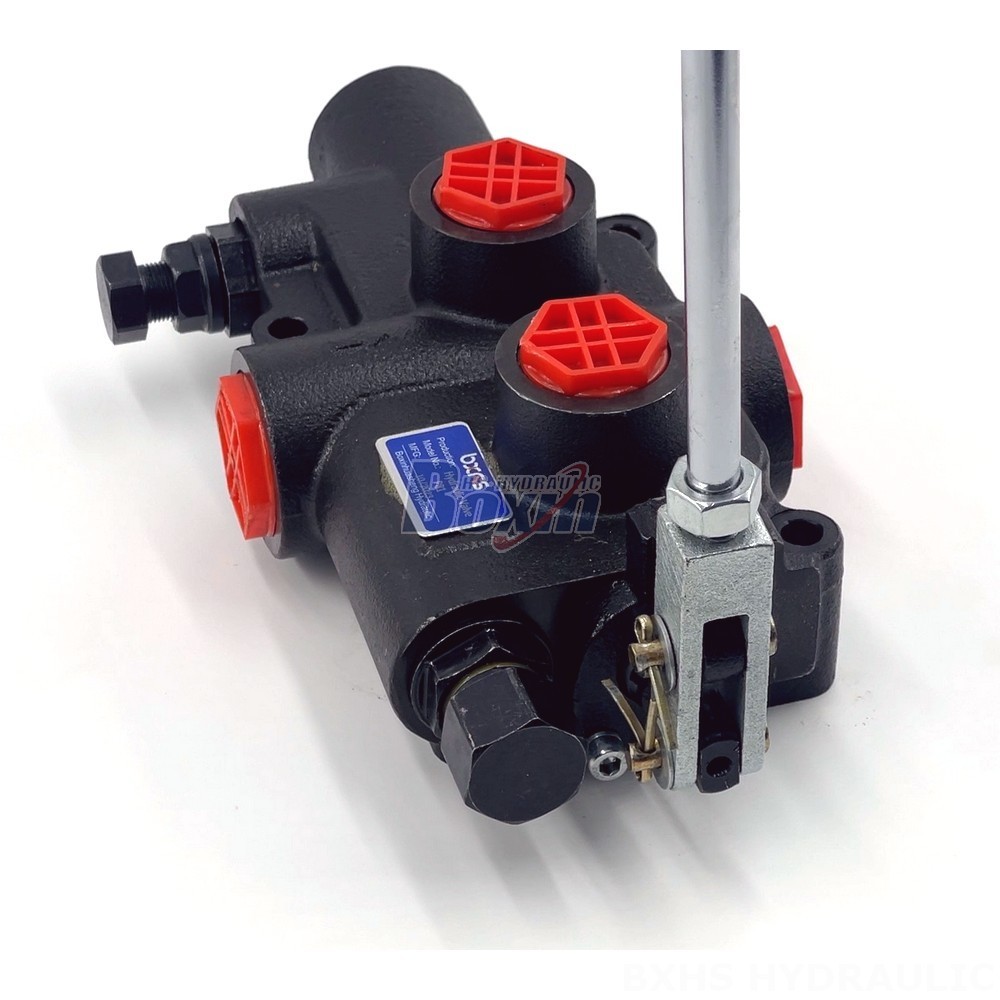

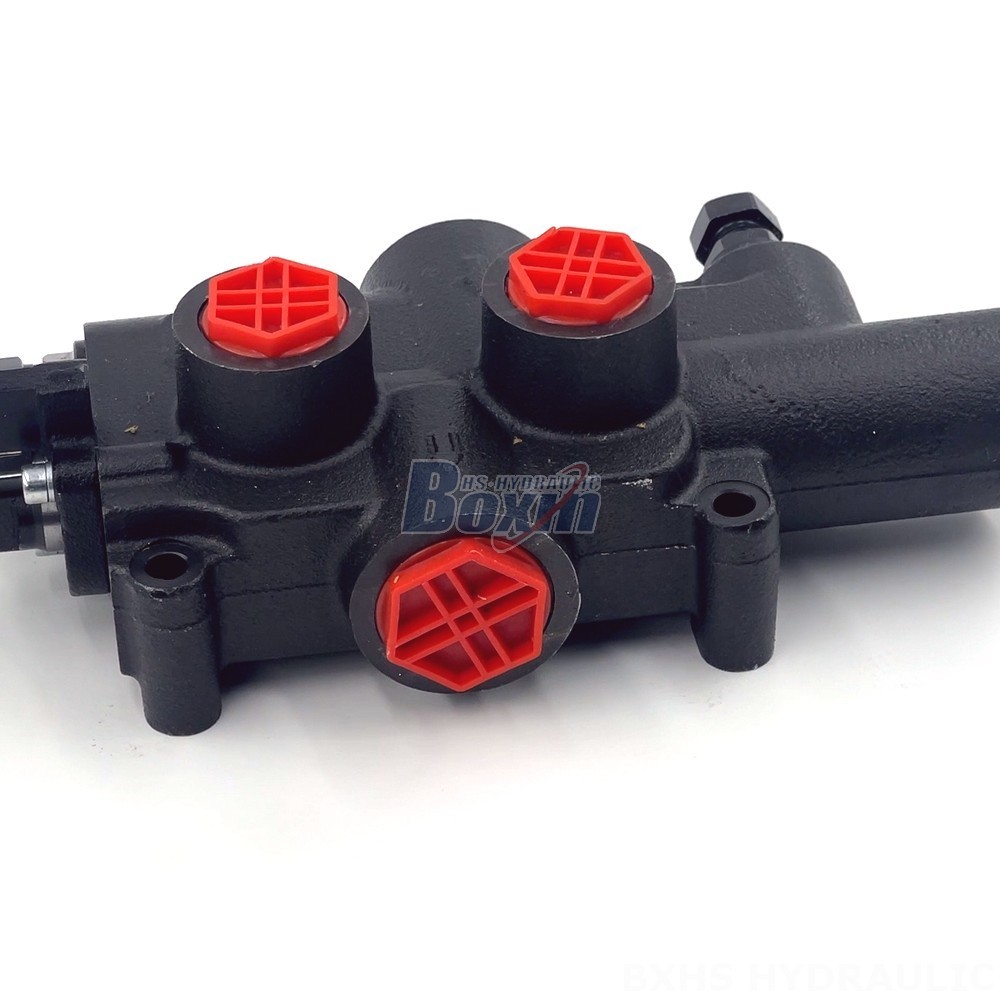

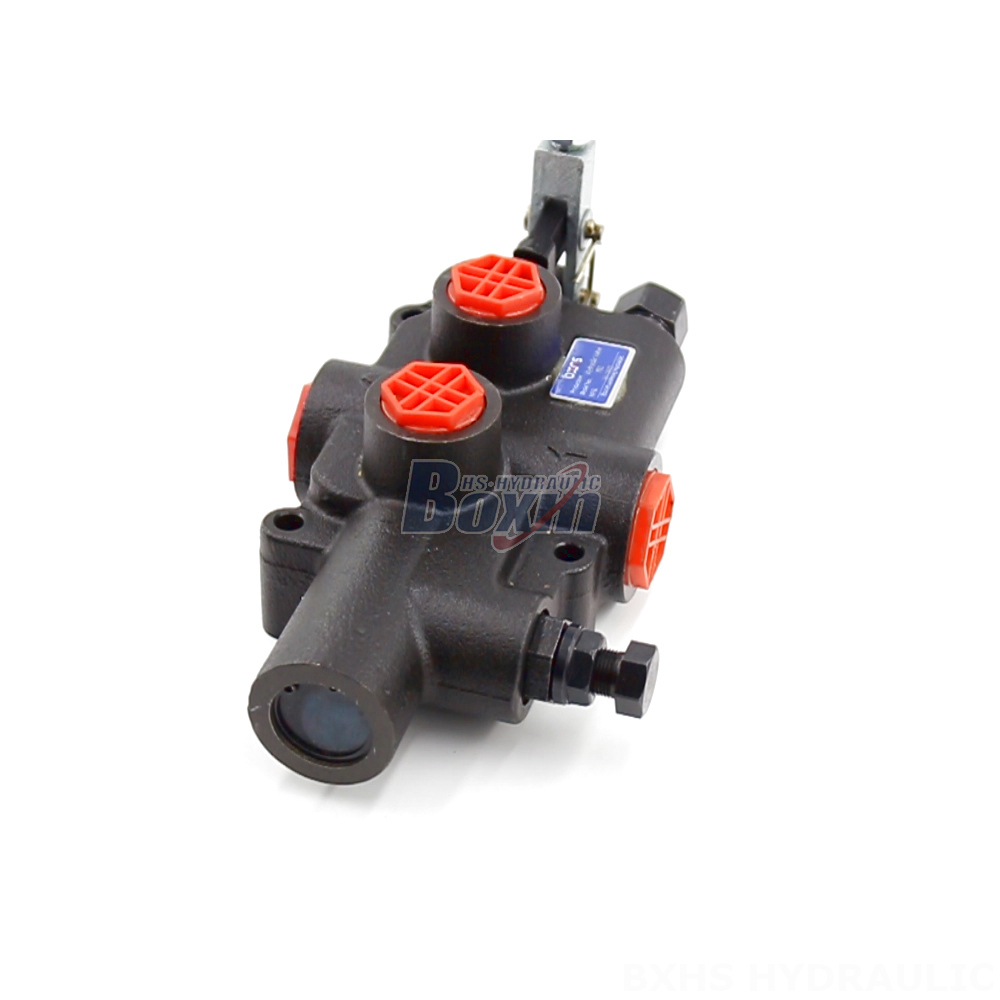

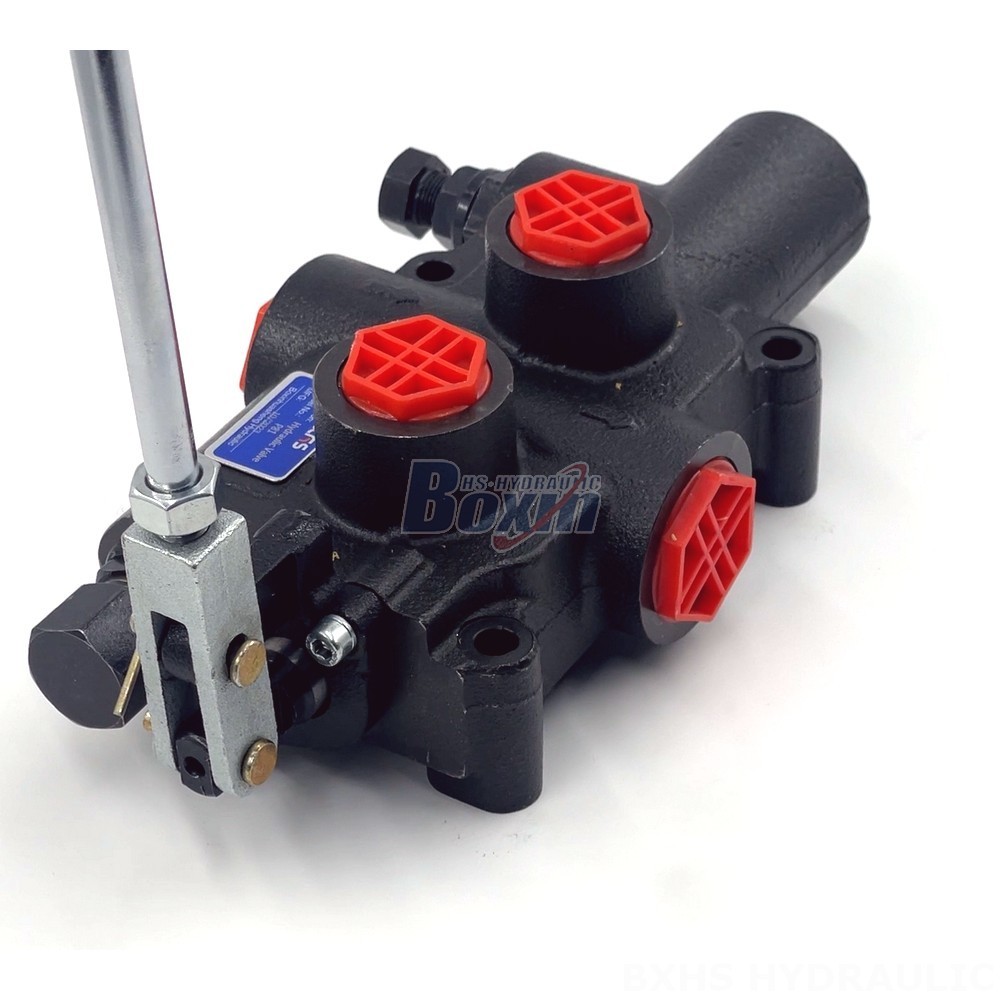

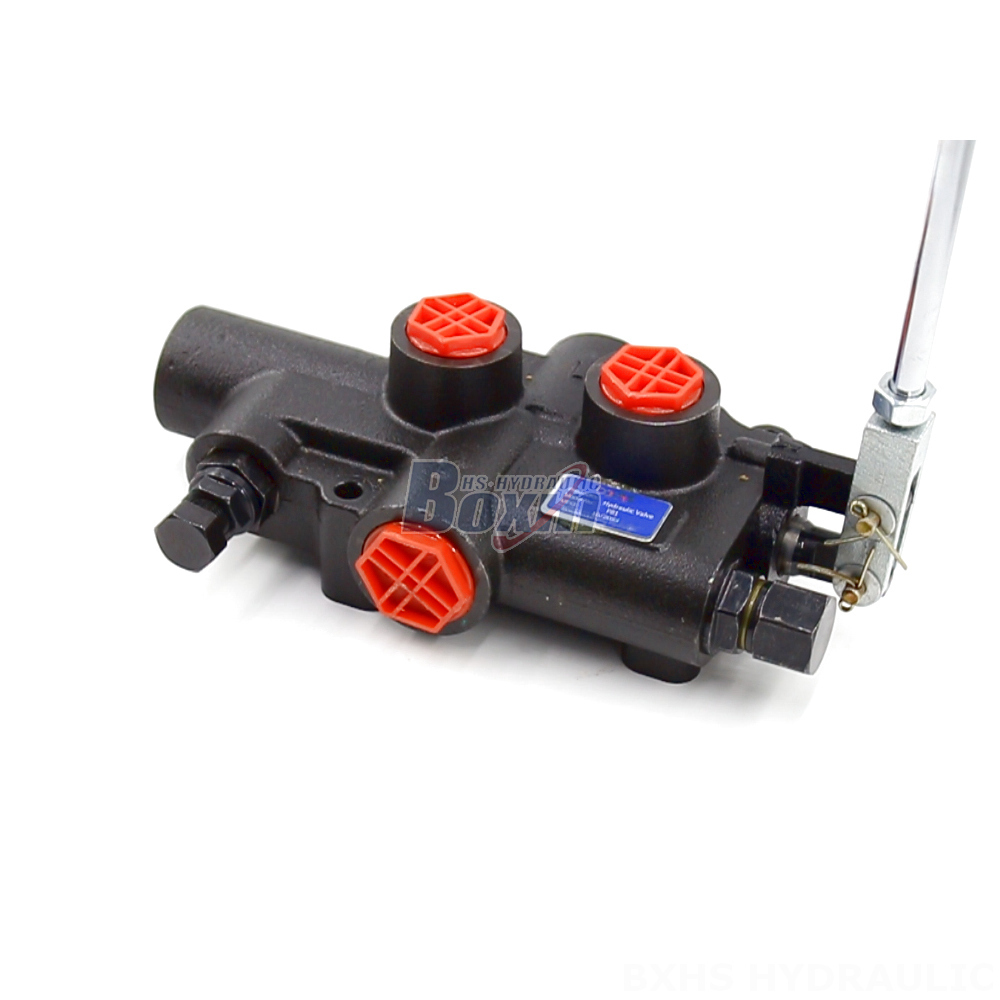

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.

Seri P81 Katup Pembelah Kayu Parameter
Metode Kontrol Buku Panduan
Spul 1 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm), 95 L/menit (25,1 US gpm)
Tekanan Maksimum Tekanan Maksimum
Port Masuk G1/2
Port Keluar G1/2
Ukuran Port G3/4

The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
