The DCV58F Series Hydraulic Valve is available for OEM and ODM customization. It features a solenoid control, sectional valve structure, and a rated flow of 60 L/min (15.8 US gpm). With a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), it is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| Seri DCV58F Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |

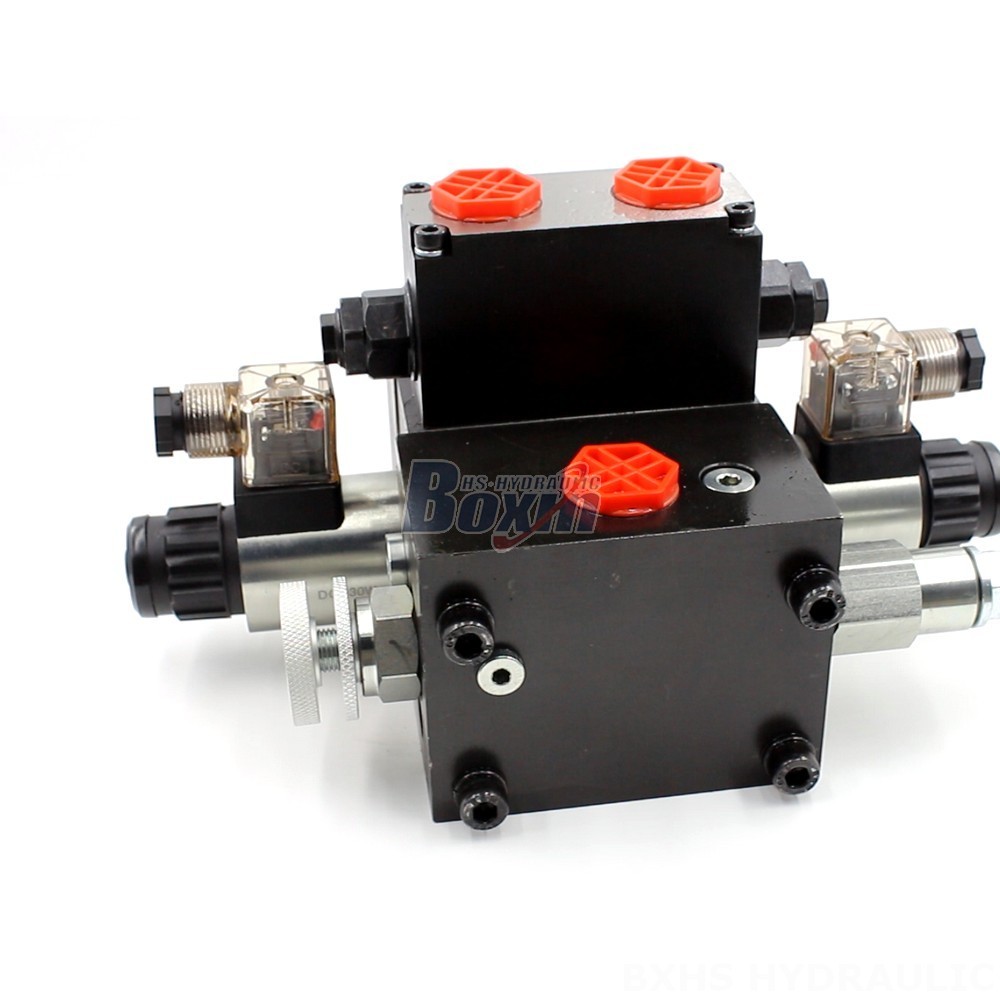

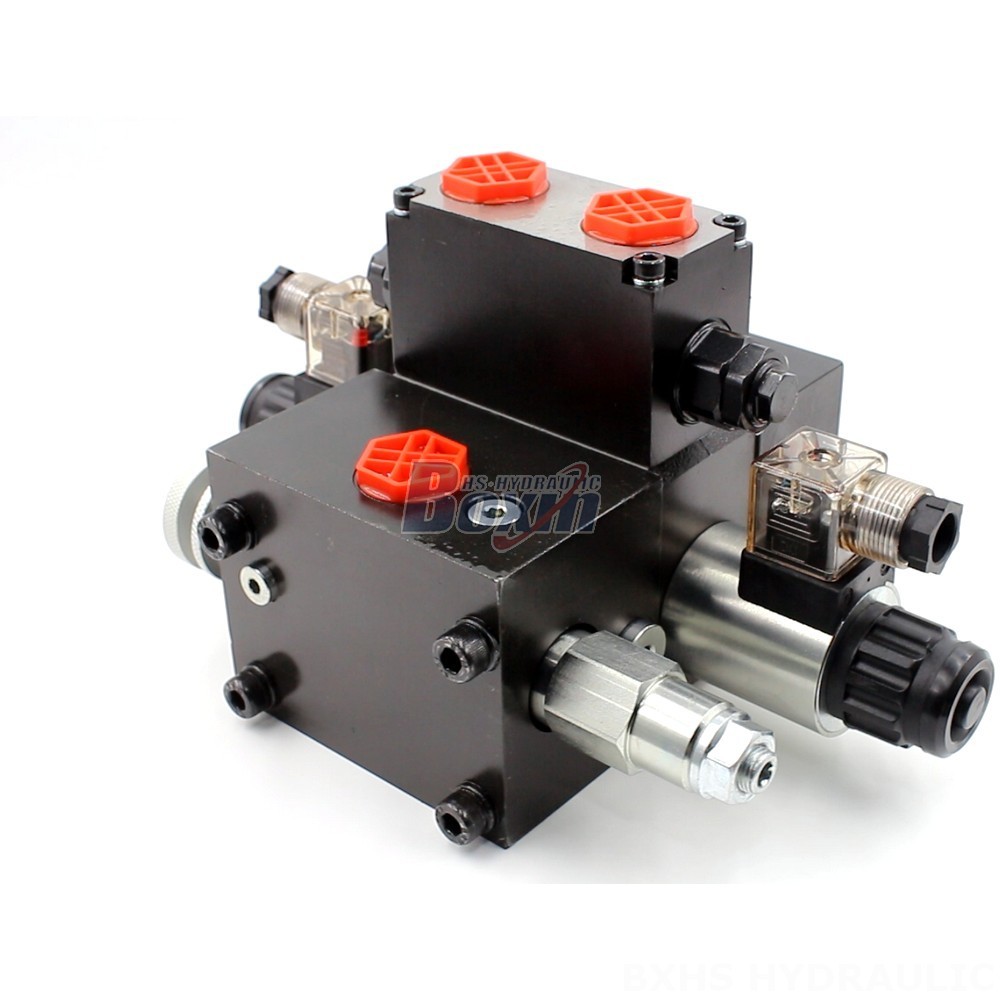

**DCV58F Series Hydraulic Valve**
**OEM and ODM Customization Available**
The DCV58F Series Hydraulic Valve is available for OEM and ODM customization. We can tailor the valve to meet your specific requirements, including flow rate, pressure, and porting configuration.
**Solenoid Control**
The valve is controlled by a solenoid, which provides precise and responsive control of the fluid flow.
**Sectional Valve Structure**
The sectional valve structure allows for easy maintenance and repair. The valve can be disassembled into individual sections, making it easier to replace worn or damaged components.
**Technical Specifications**
* Rated Flow: 60 L/min (15.8 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: DCV58F Series
**Applications**
The DCV58F Series Hydraulic Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models**
The valve is commonly used in the following models:
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
* Wheel Loader
* Backhoe Loader
* Dumper
