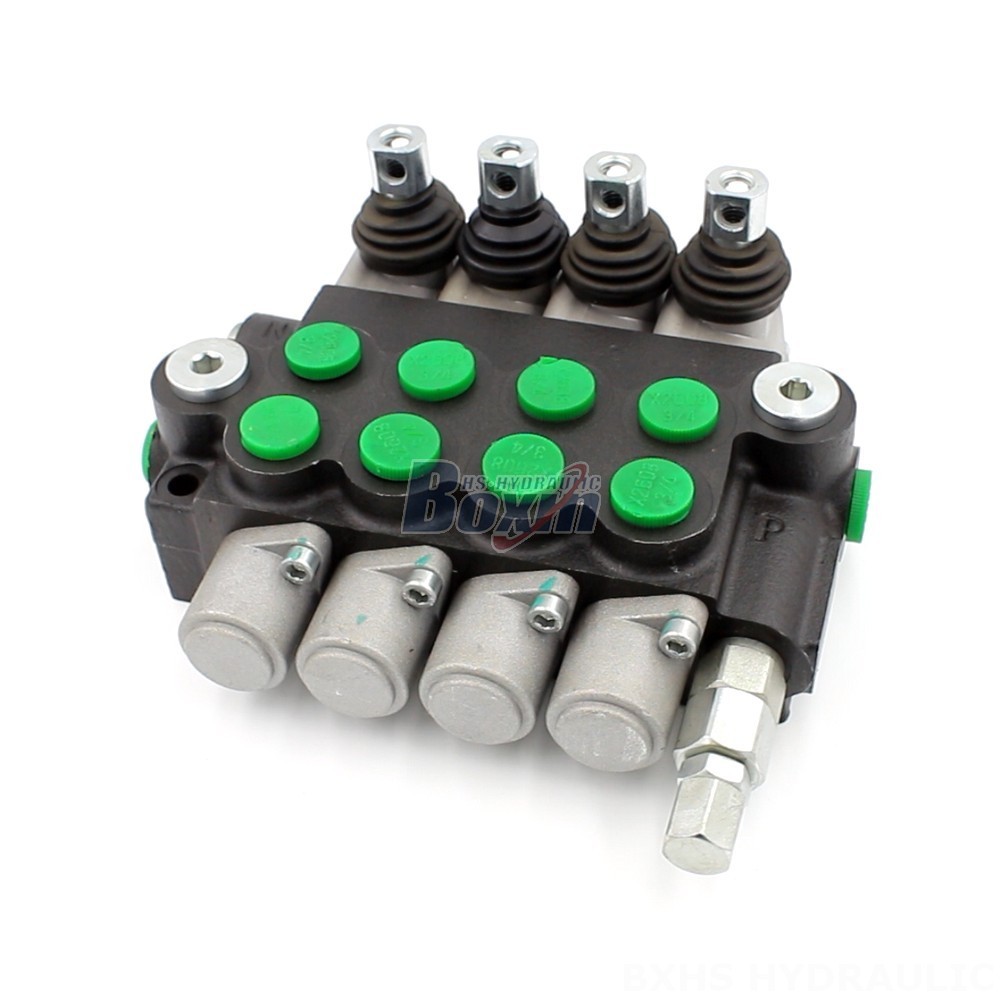

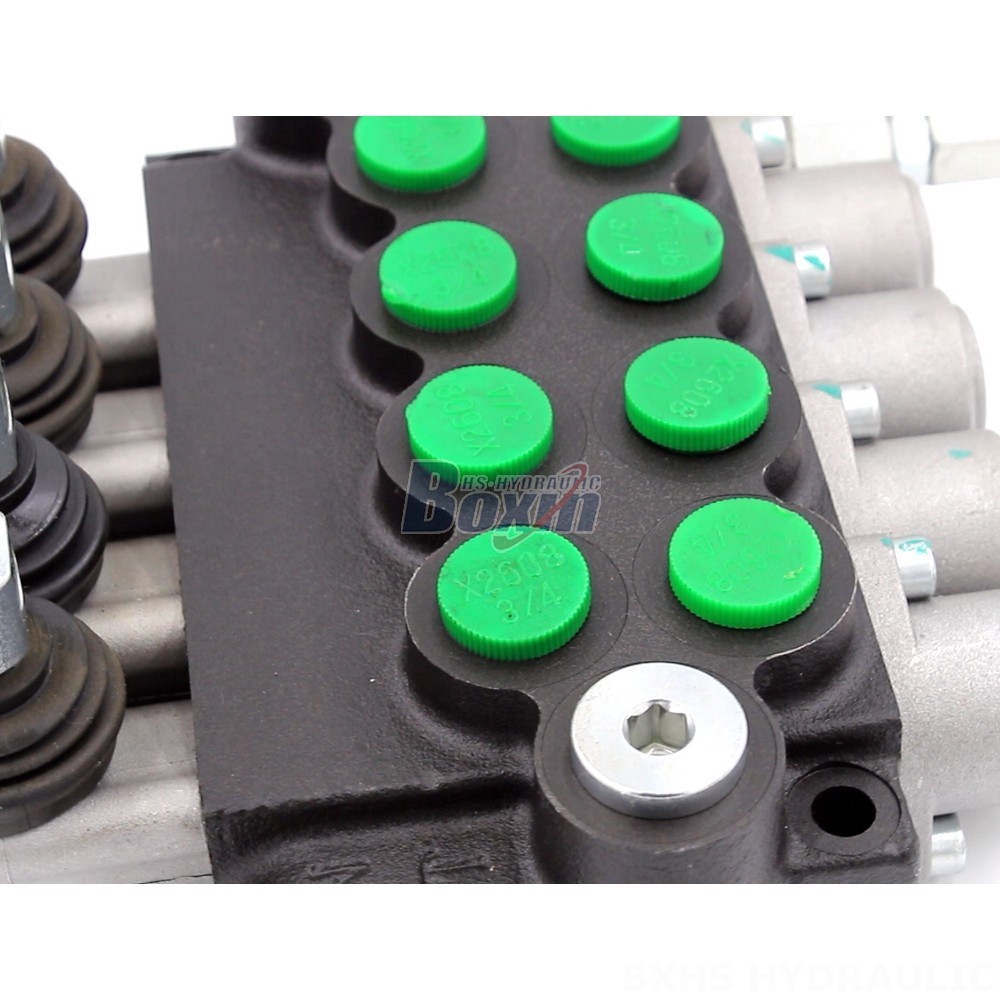

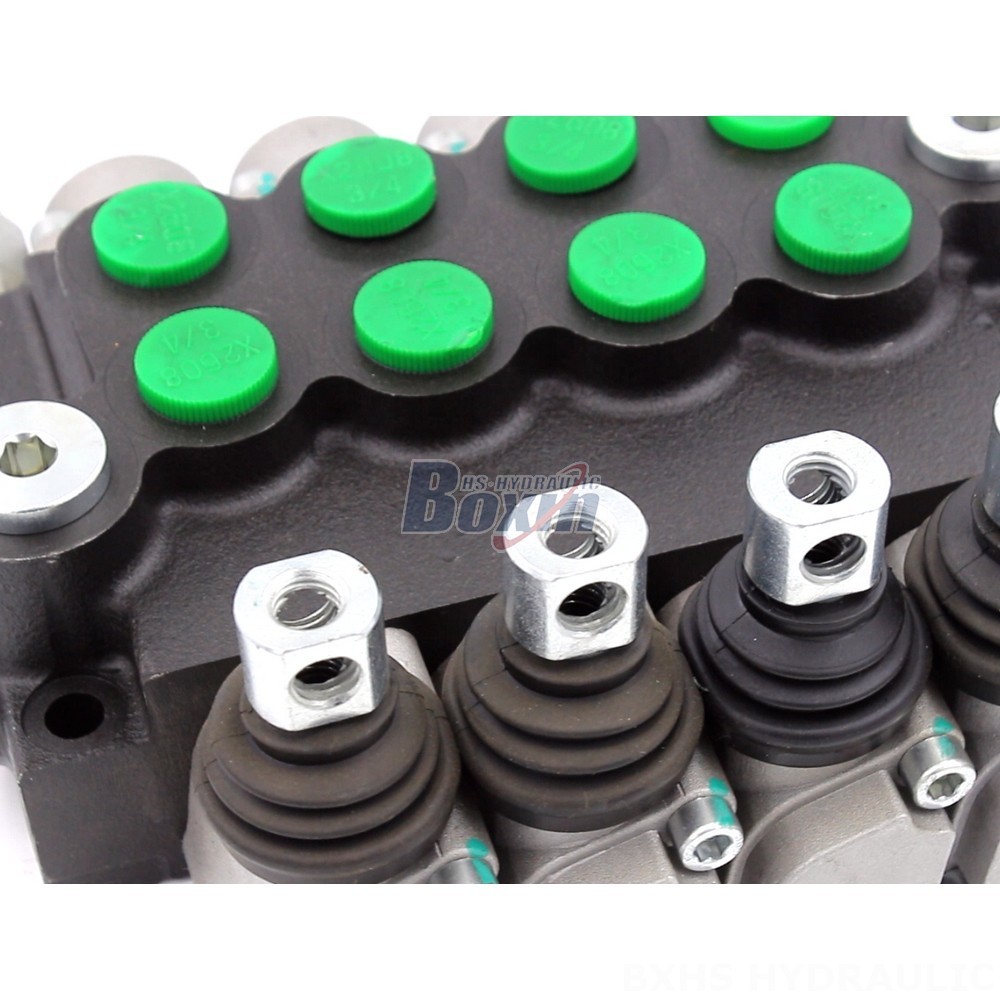

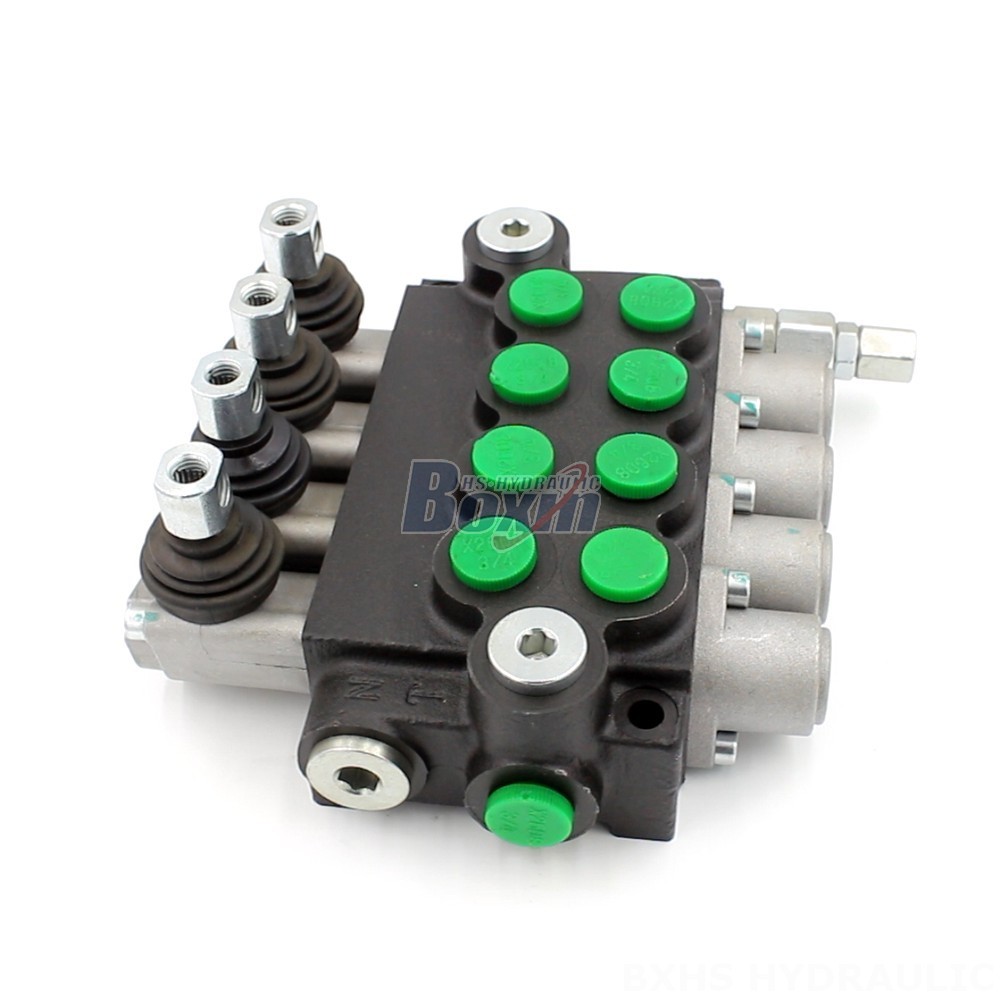

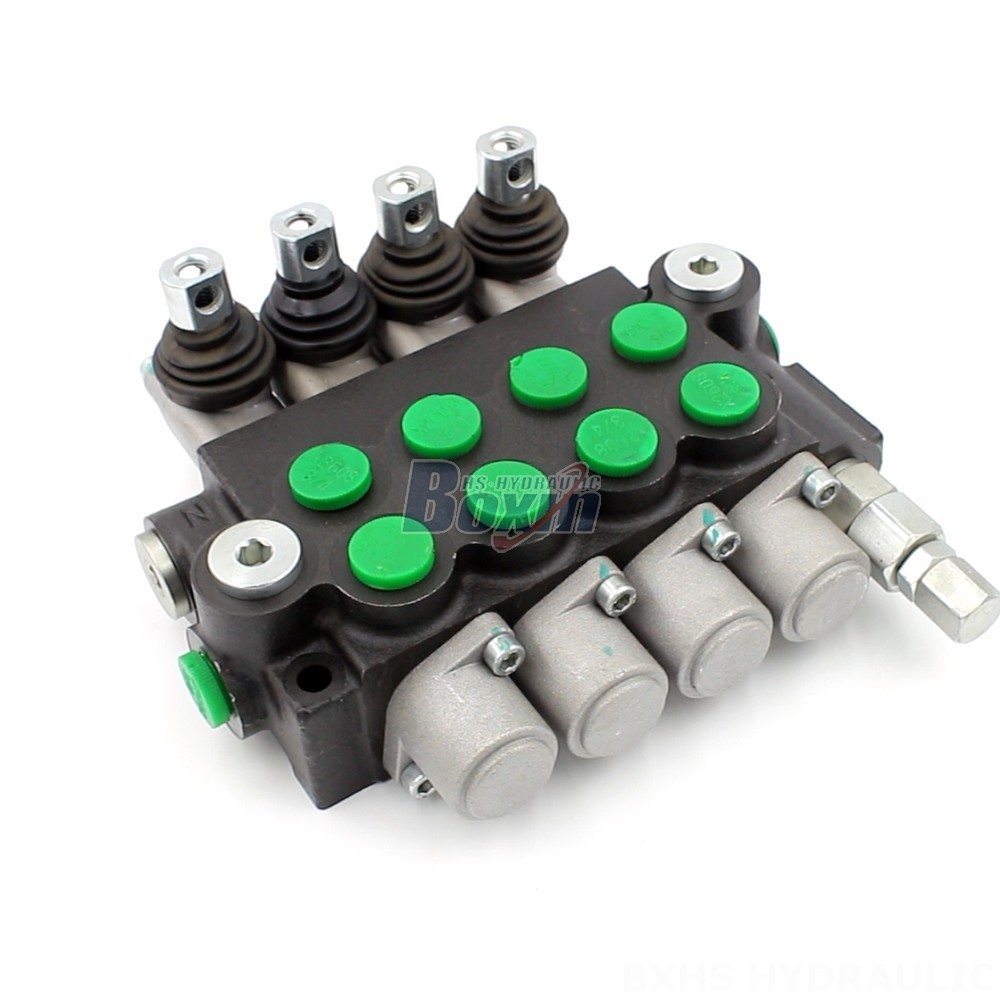

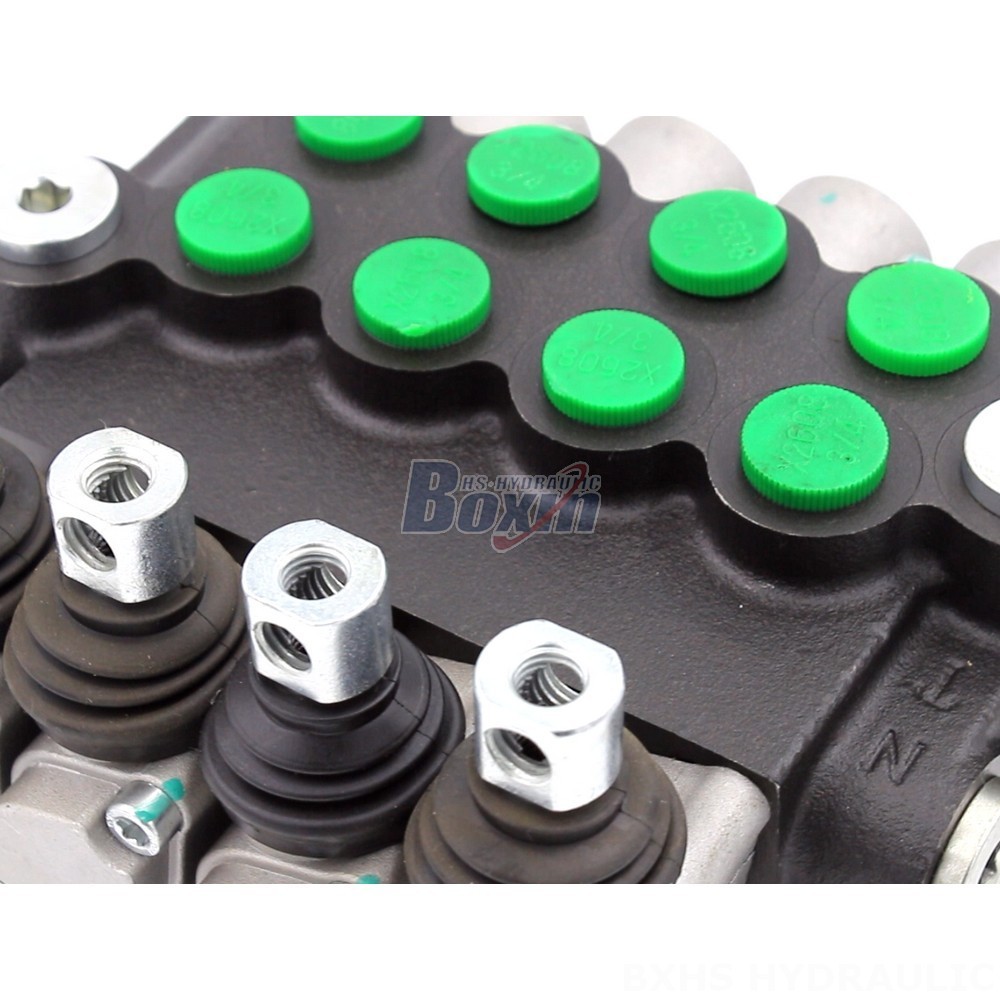

The P40-U34 Hydraulic Valve is a 4-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is manually controlled and has a wide operating viscosity range of 15 - 75 mm²/s. The valve is suitable for use in various applications, including material handling, construction, agriculture, and industrial vehicles. It is available for OEM/ODM customization to meet specific customer requirements.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34 Hydraulic Valve is a versatile and reliable valve that can be customized to meet the specific needs of your application. With its high flow rate and pressure capacity, it is ideal for use in demanding applications. The valve is also compact and lightweight, making it easy to install and maintain.
**Key Features:**
* Manual control
* 4 section
* Monoblock valve
* Rated flow: 40 L/min
* Max pressure: 250 bar
* Operating viscosity range: 15 - 75 mm²/s
* Ambient temperature range: -40°C to +80°C
* 4 spool
* Series: P40 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,SKID STEER LOADER,WHEEL LOADER,TRACTOR AND FRONT-END LOADER,HARVESTER
**Benefits:**
* High flow rate and pressure capacity
* Compact and lightweight
* Easy to install and maintain
* OEM/ODM customization available
If you are looking for a high-quality hydraulic valve that can be customized to meet your specific needs, the P40-U34 Hydraulic Valve is the perfect choice.
