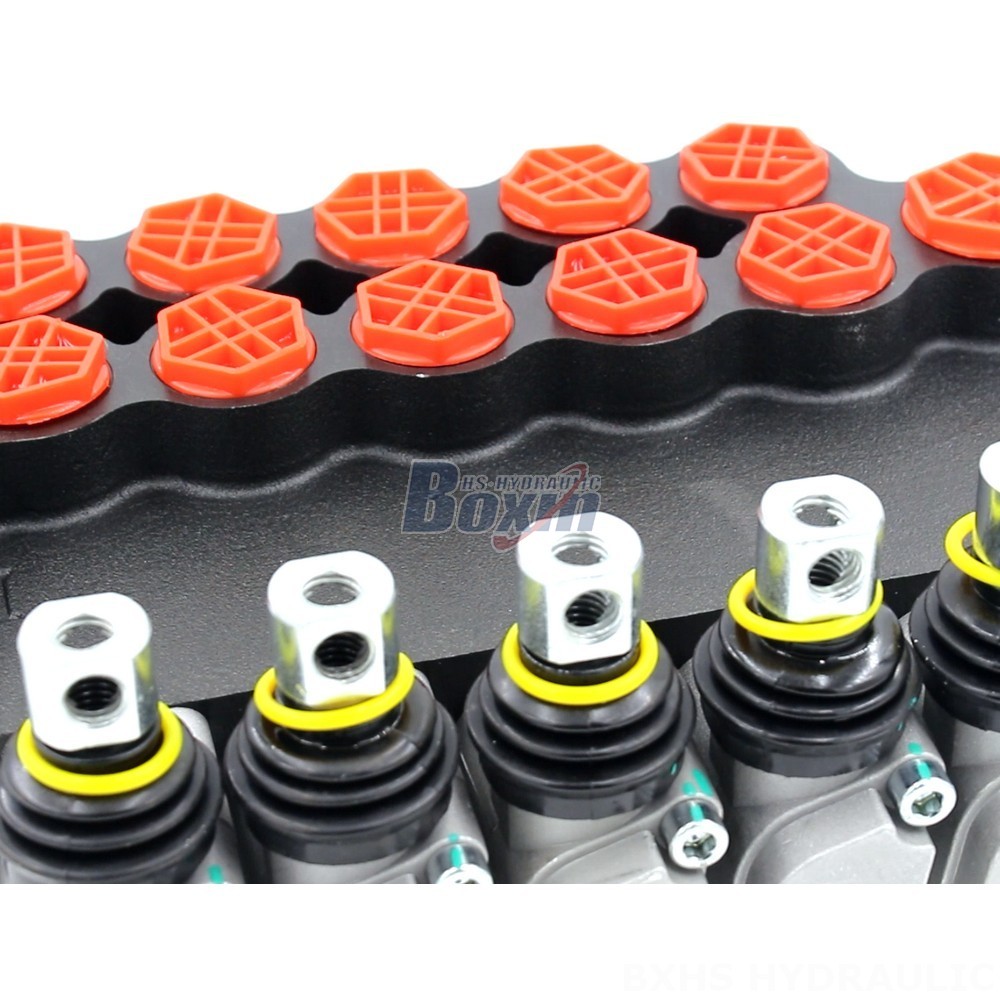

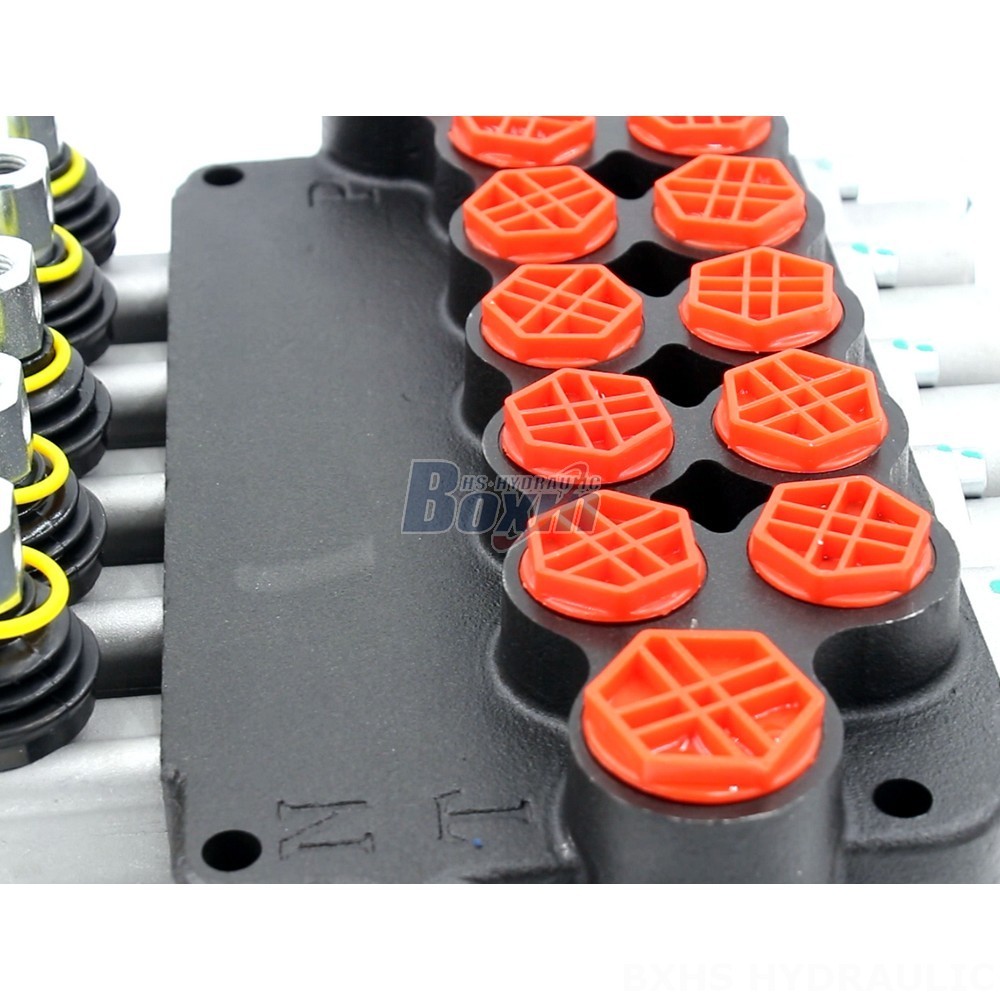

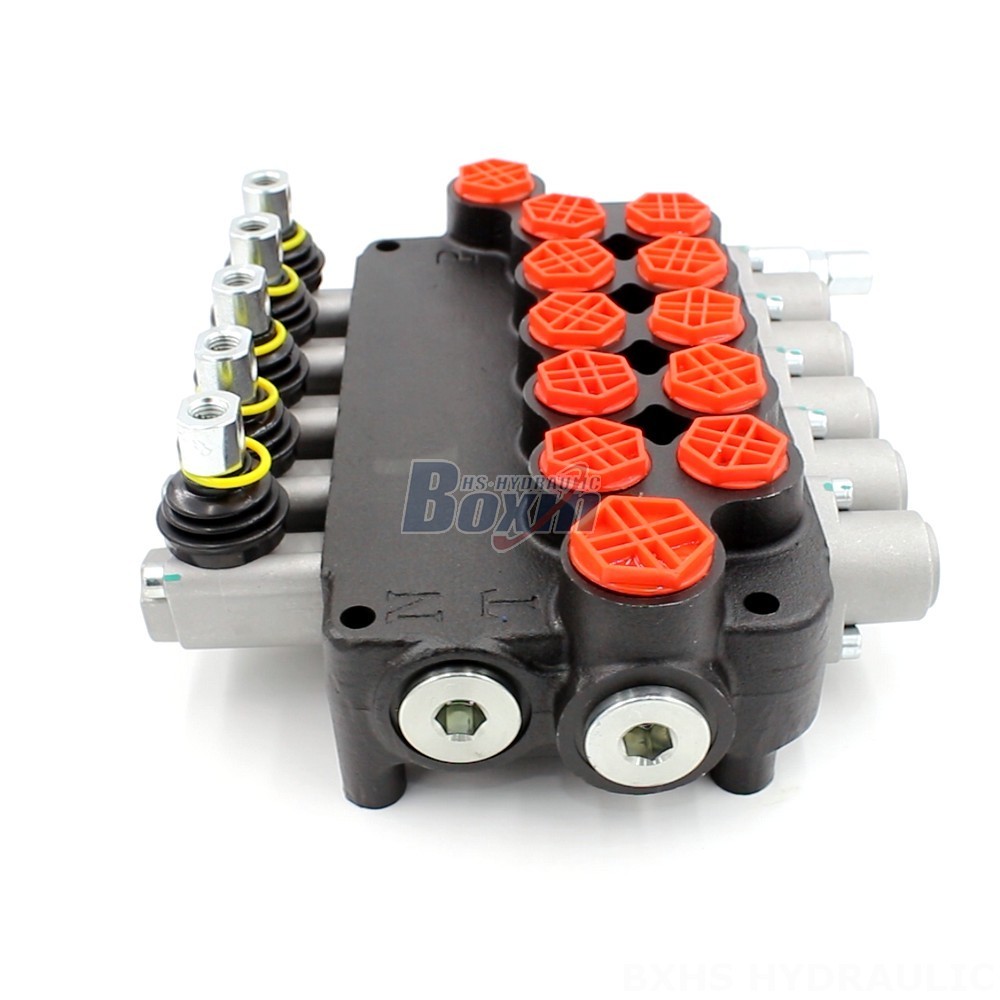

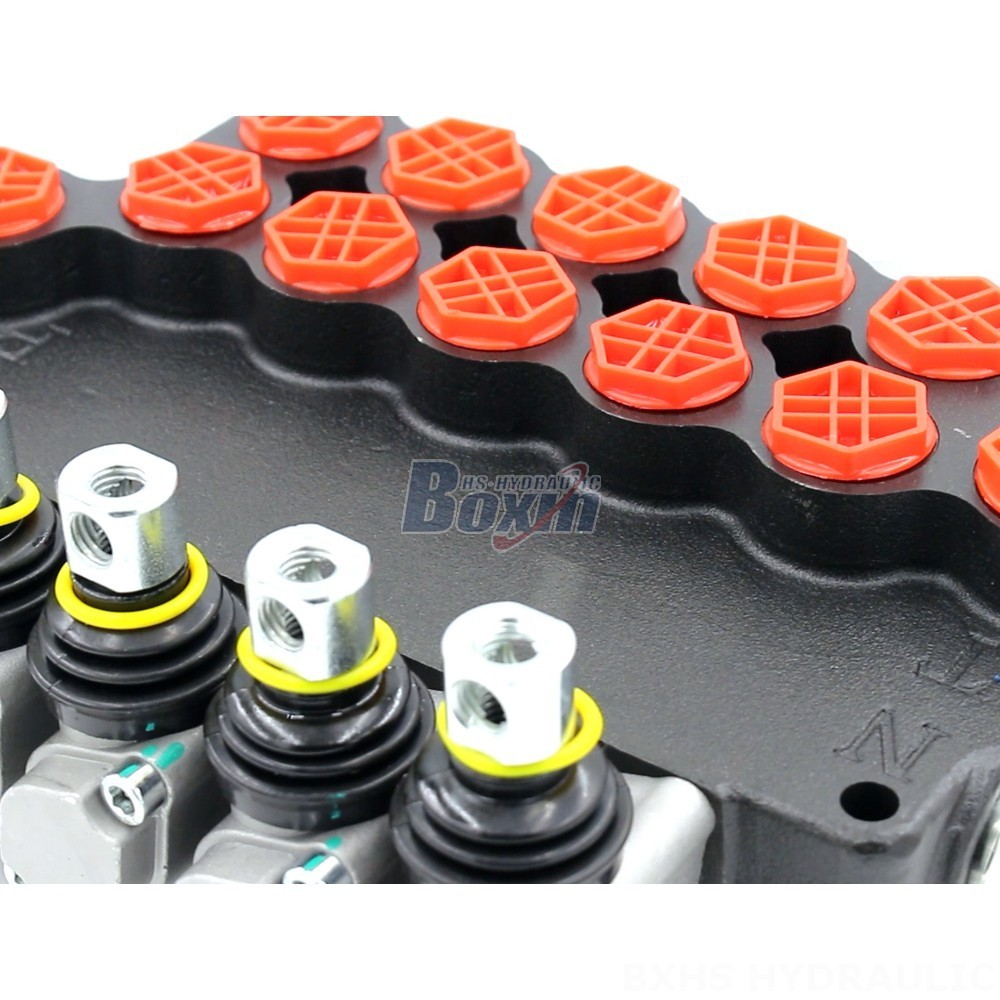

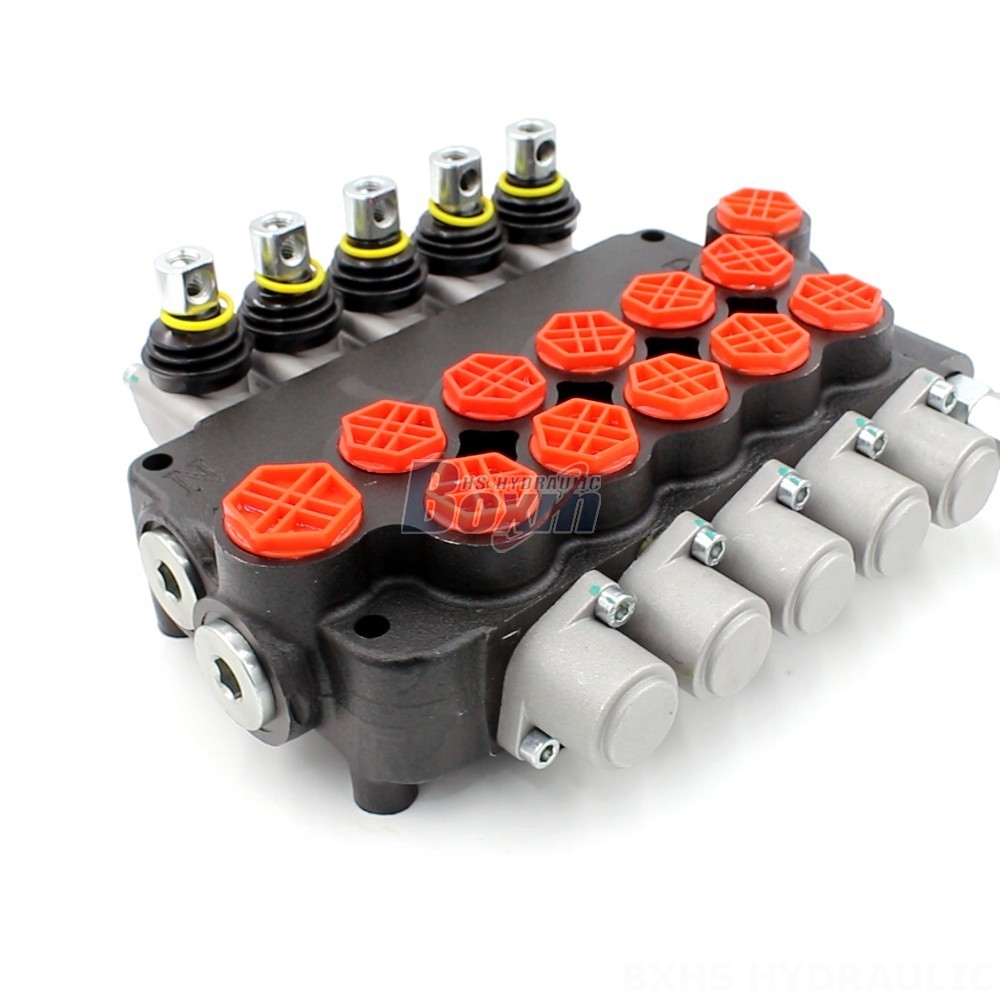

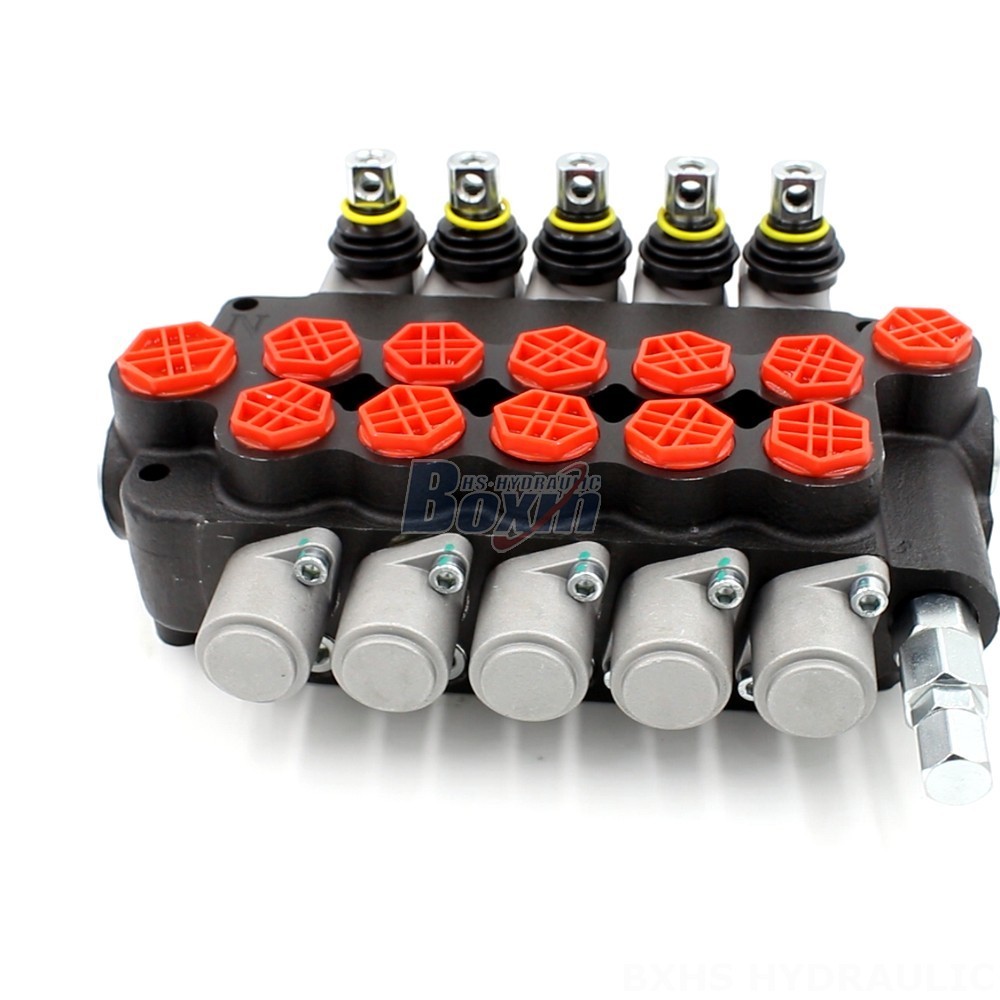

The P80-G12-G38-OW Series of hydraulic valves offers a robust and customizable solution for various applications. With a rated flow capacity of 80 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range, these valves are versatile and reliable. Their monoblock structure ensures durability, while the manual control provides precise and responsive operation. This series is suitable for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Features and Benefits:**
* **OEM/ODM Customization:** Can be customized to meet specific requirements.
* **Manual Control:** Precise and responsive operation.
* **5 Section:** Multiple spool configurations for complex hydraulic systems.
* **Monoblock Valve:** Compact and durable design.
* **Rated Flow: 80 L/min (21.2 US gpm):** Suitable for high flow applications.
* **Max Pressure: 250 bar (3600 psi):** High-pressure capability.
* **Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt):** Suitable for various fluid viscosities.
* **Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F):** Wide operating temperature range.
* **5 Spool:** Multiple spool options for diverse applications.
* **P80 Series:** Part of a reliable and well-established product line.
* **Application Area:** Ideal for applications in material handling, construction, agriculture, and industrial vehicles.
* **Applicable Models:** Suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
