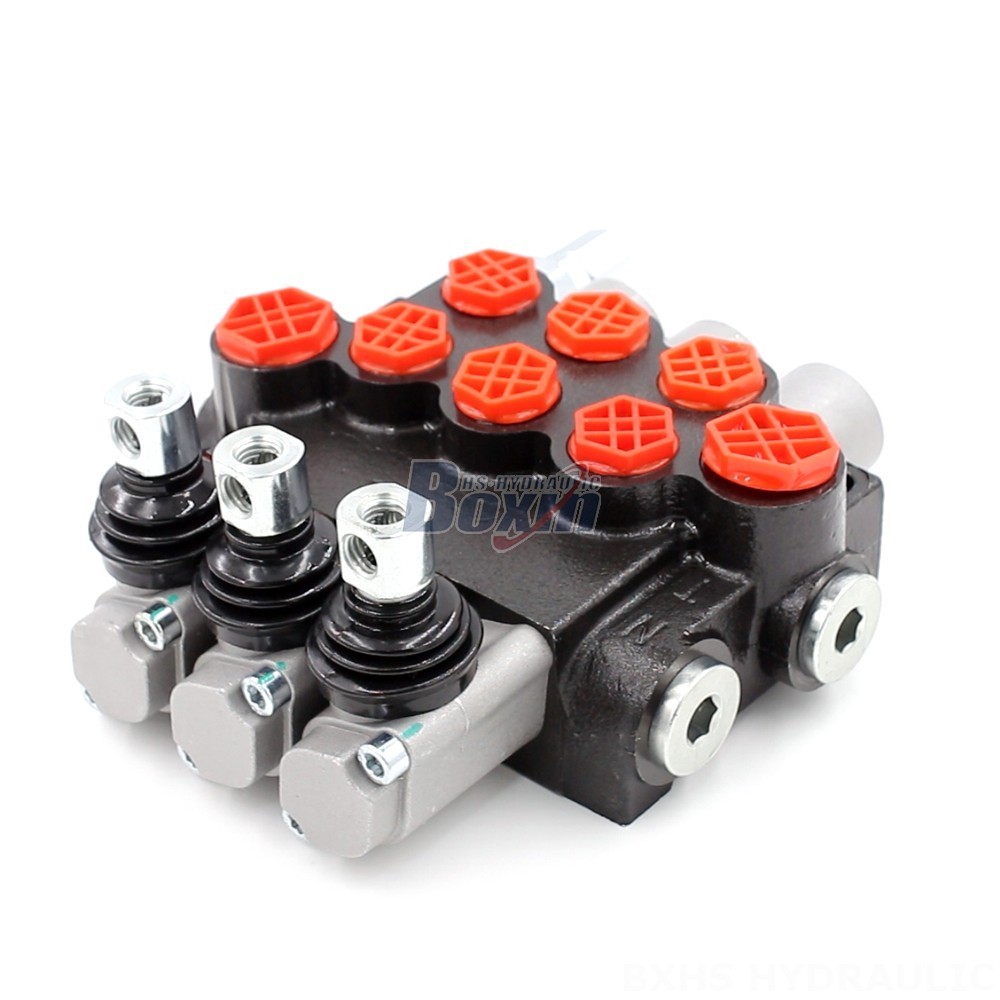

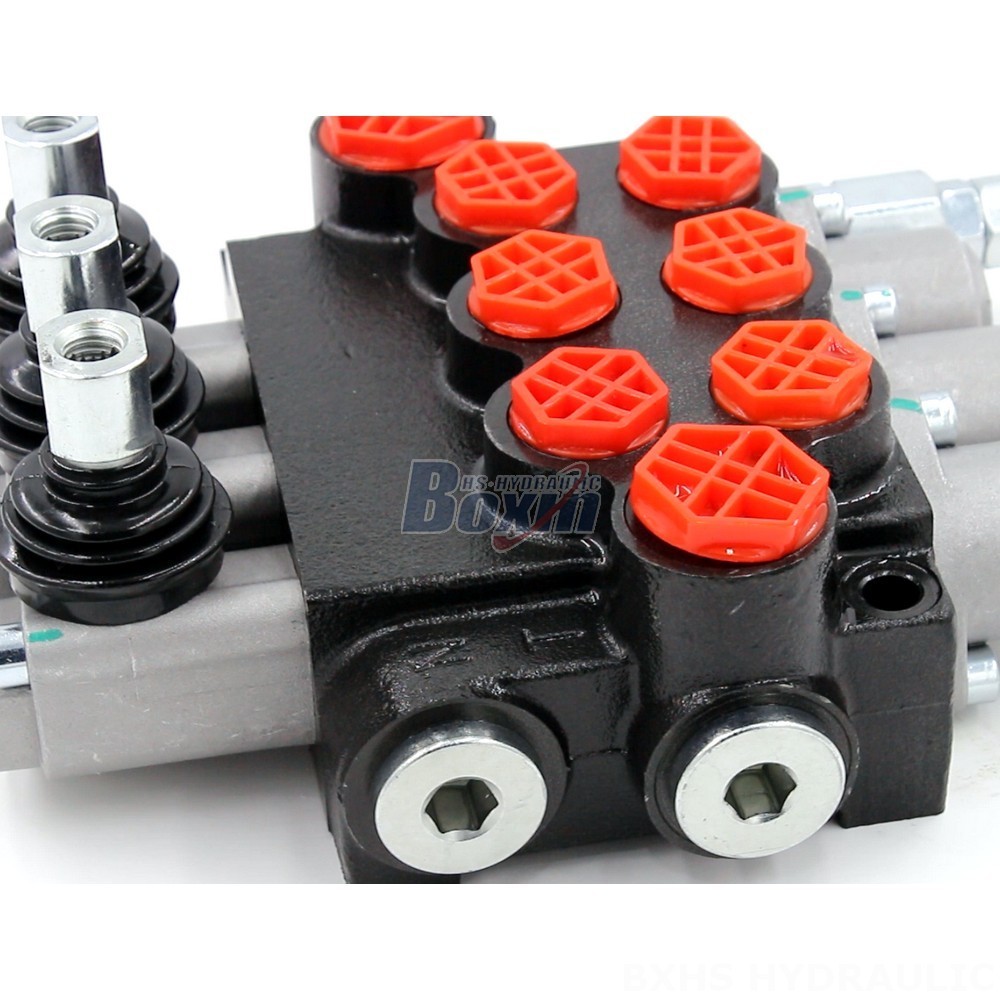

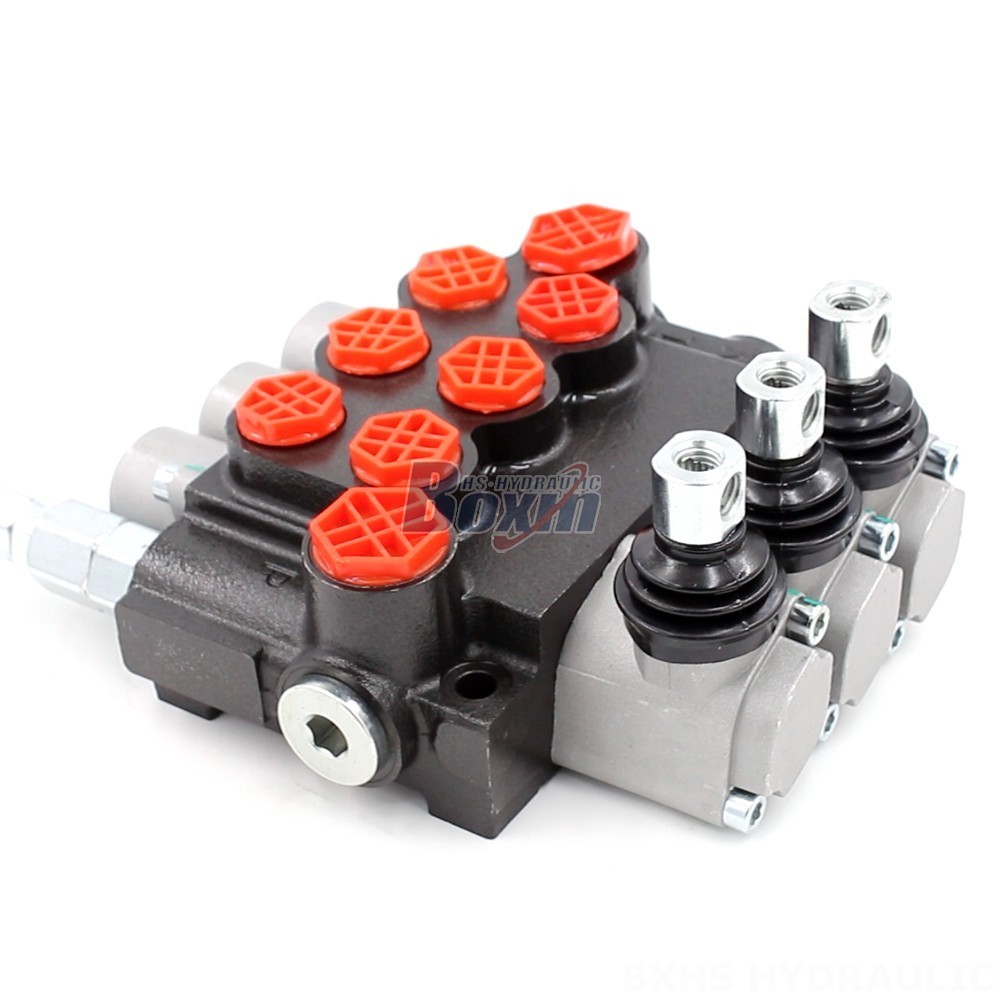

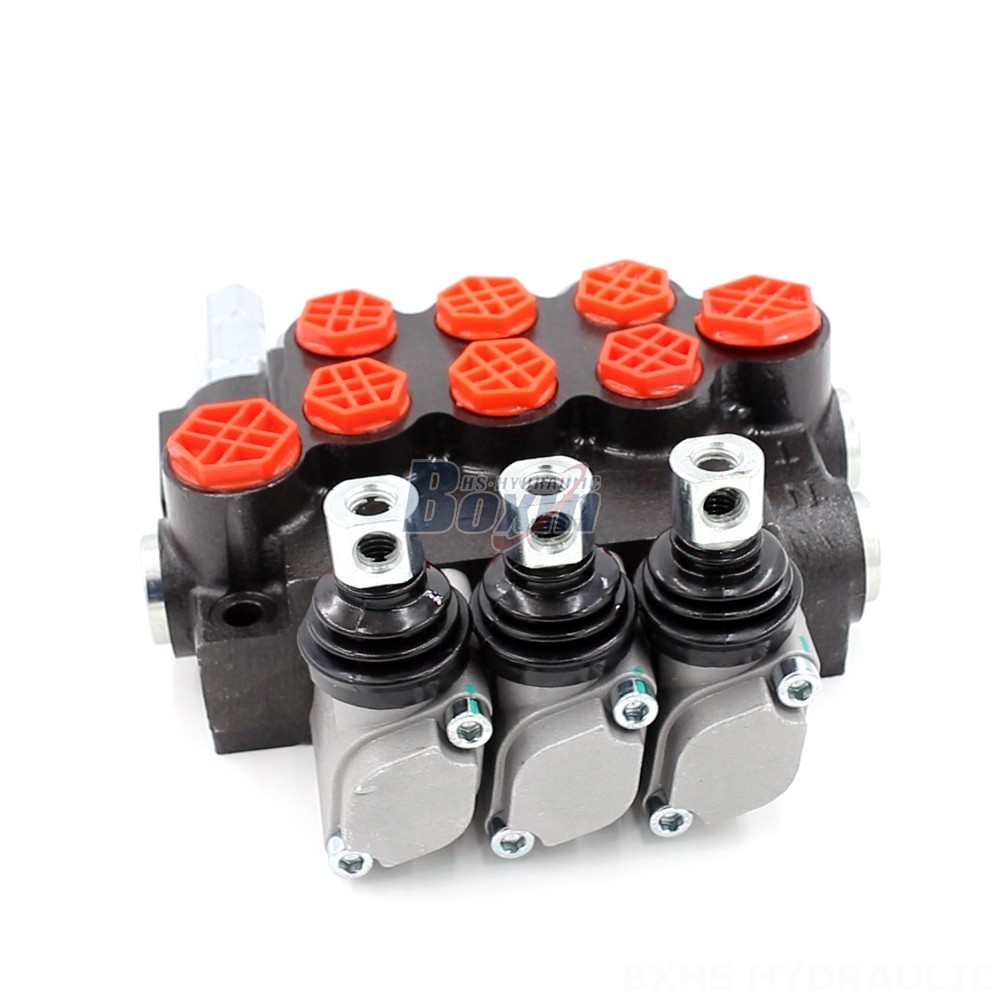

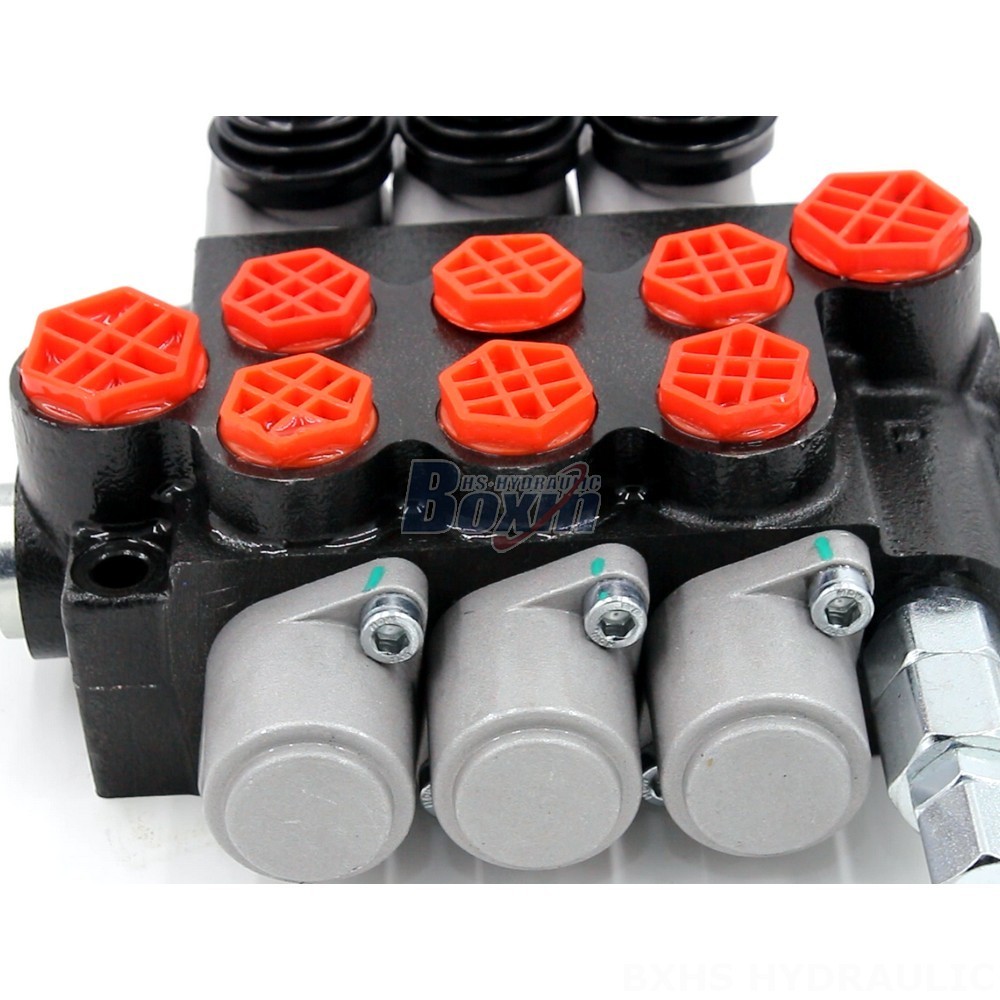

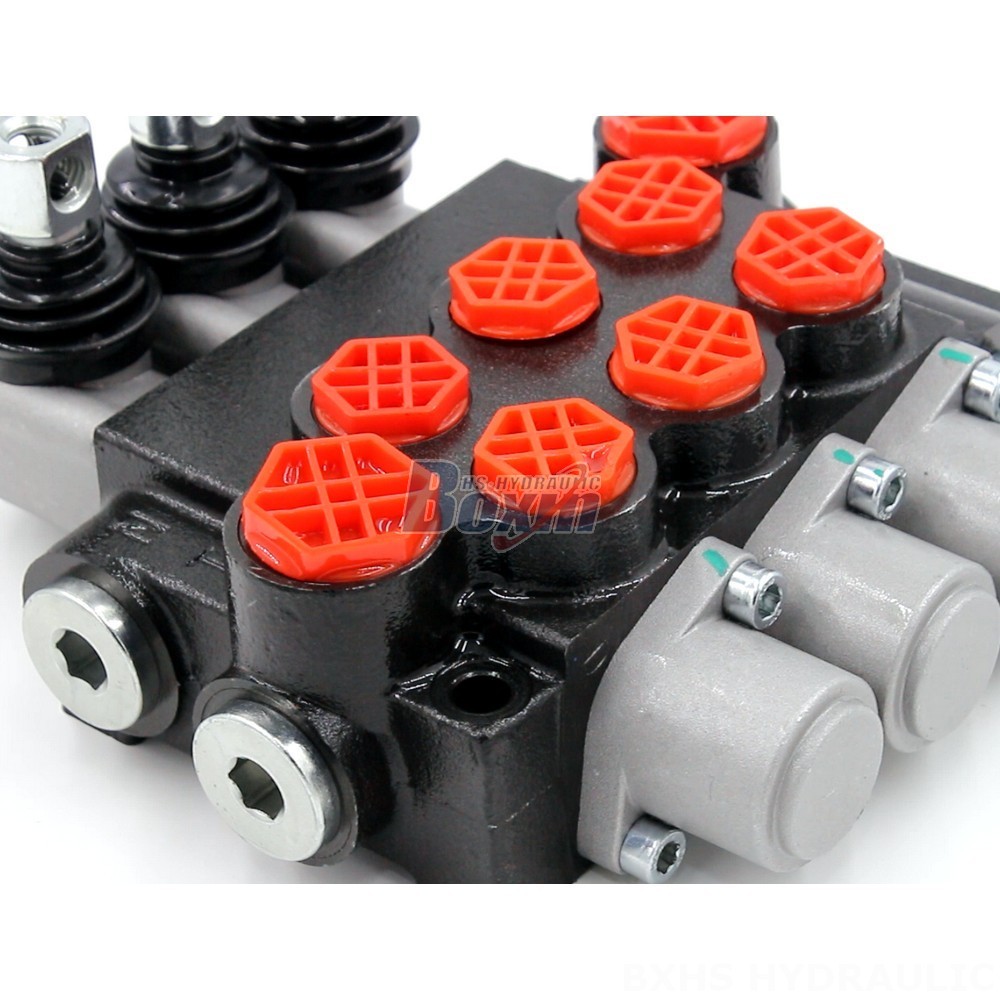

Our P40-G38-G12-OT-OT-OT Series Manual 3 Spool Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides precise control over the flow of hydraulic fluid in systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
- Manual control for precise operation
- 3 spool design for versatility
- Monoblock construction for durability
- 40 L/min rated flow for efficient performance
- 250 bar maximum pressure for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for wide compatibility
- Ambient temperature range of -40°C to +80°C for reliable operation in various environments
**Applications:**
- Material handling
- Construction and earth moving
- Agriculture
- Industrial vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All terrain crane
- Stacker
- Aerial platform
- Motor grader
- Telehandler
- Midi-excavator
- Mini-excavator
- Skid steer loader
