The Manual 3 Spool Sectional Directional Valve - DCV58 Series is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. It features a sectional design, allowing for easy customization and configuration to meet specific system requirements.
| Seri DCV58 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |

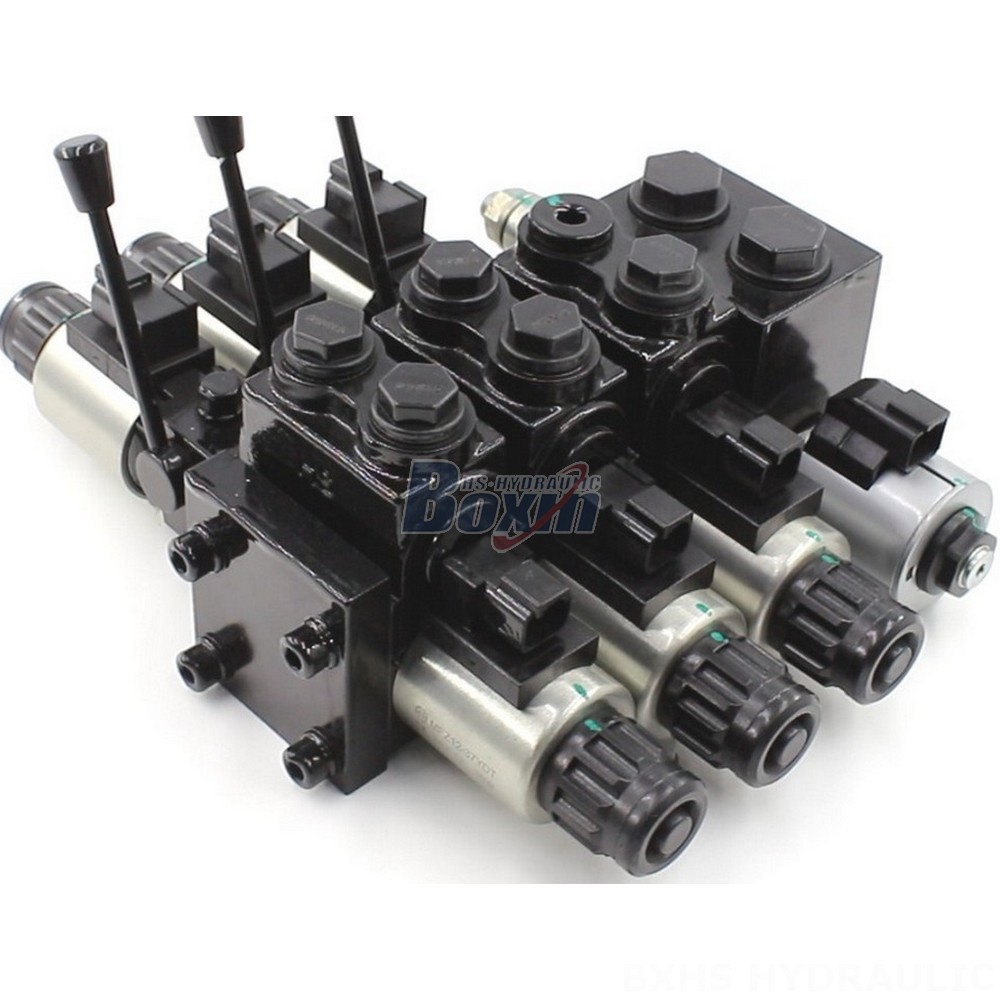

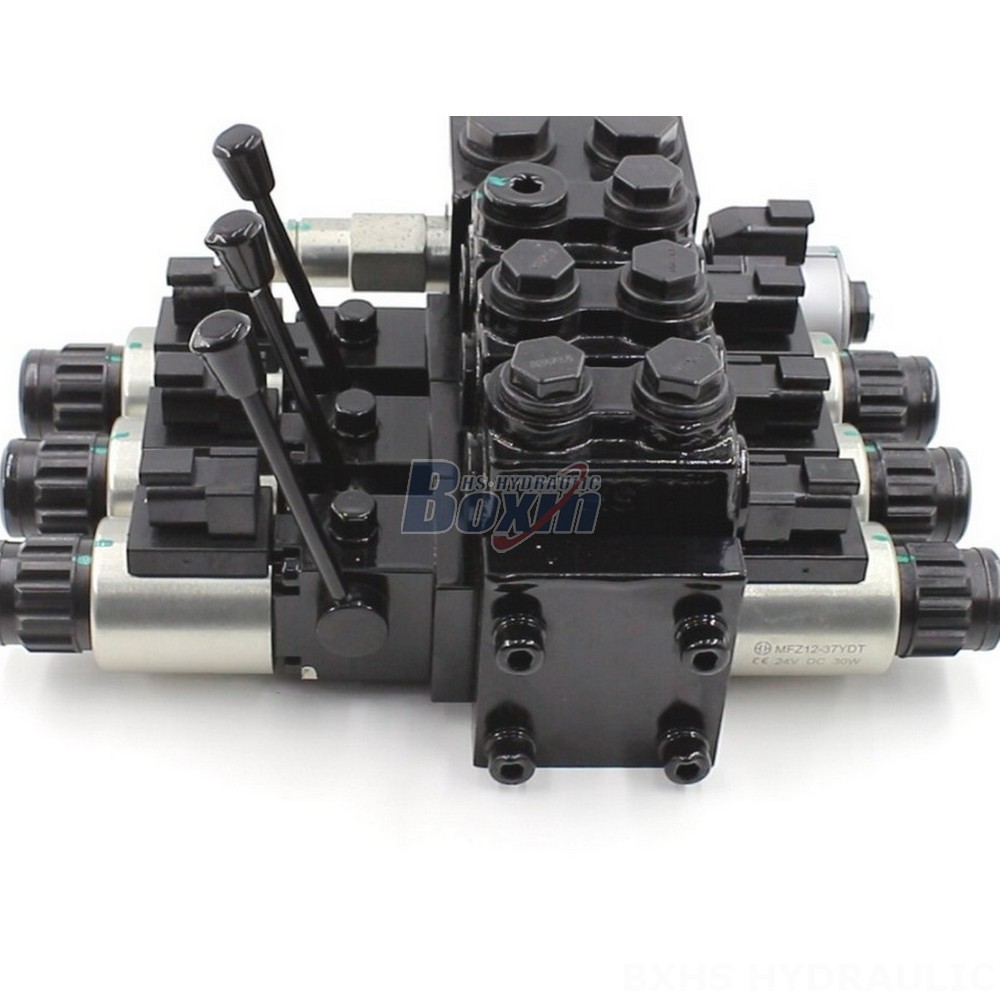

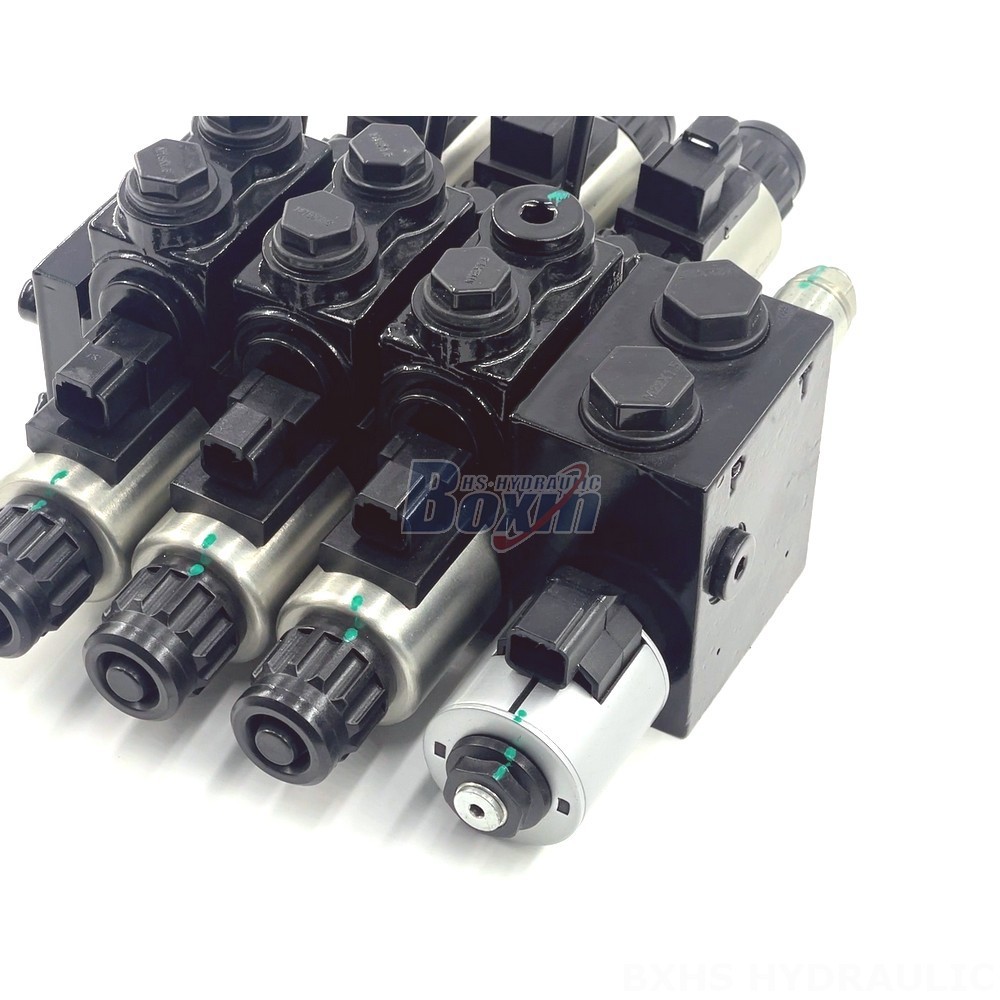

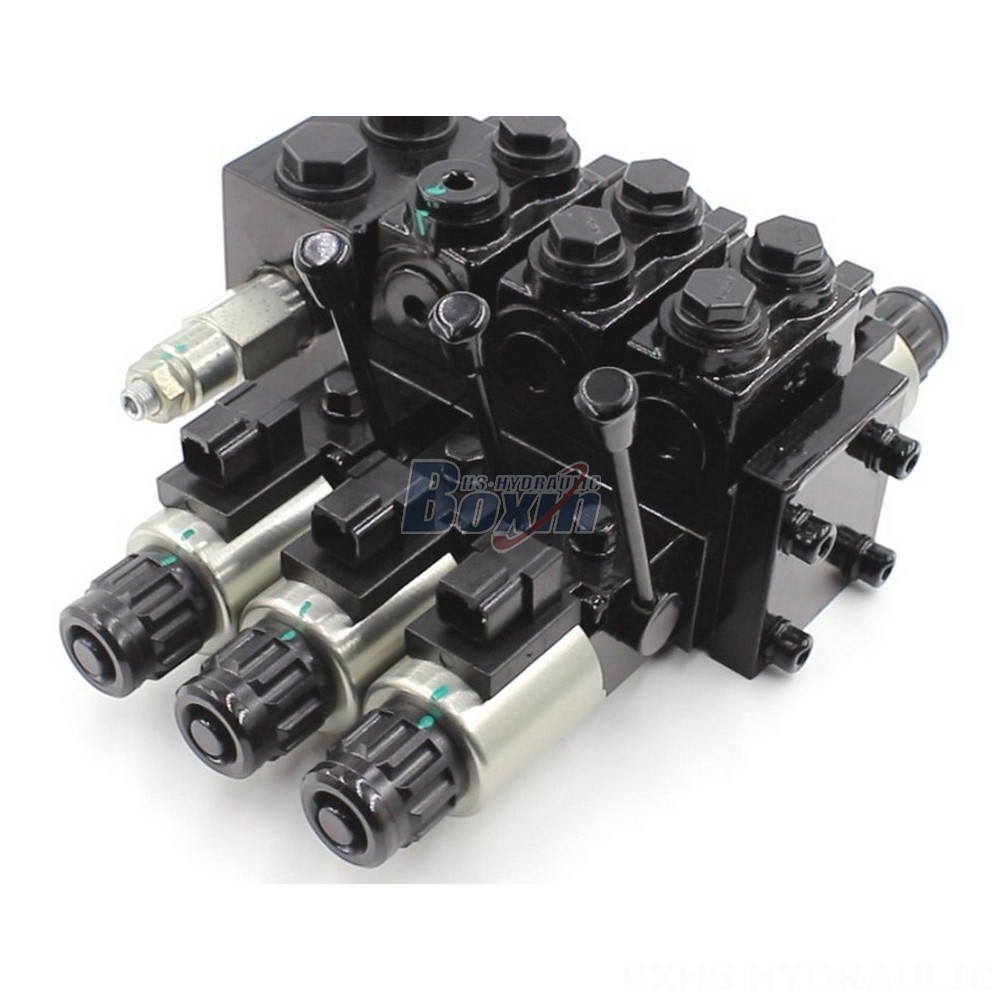

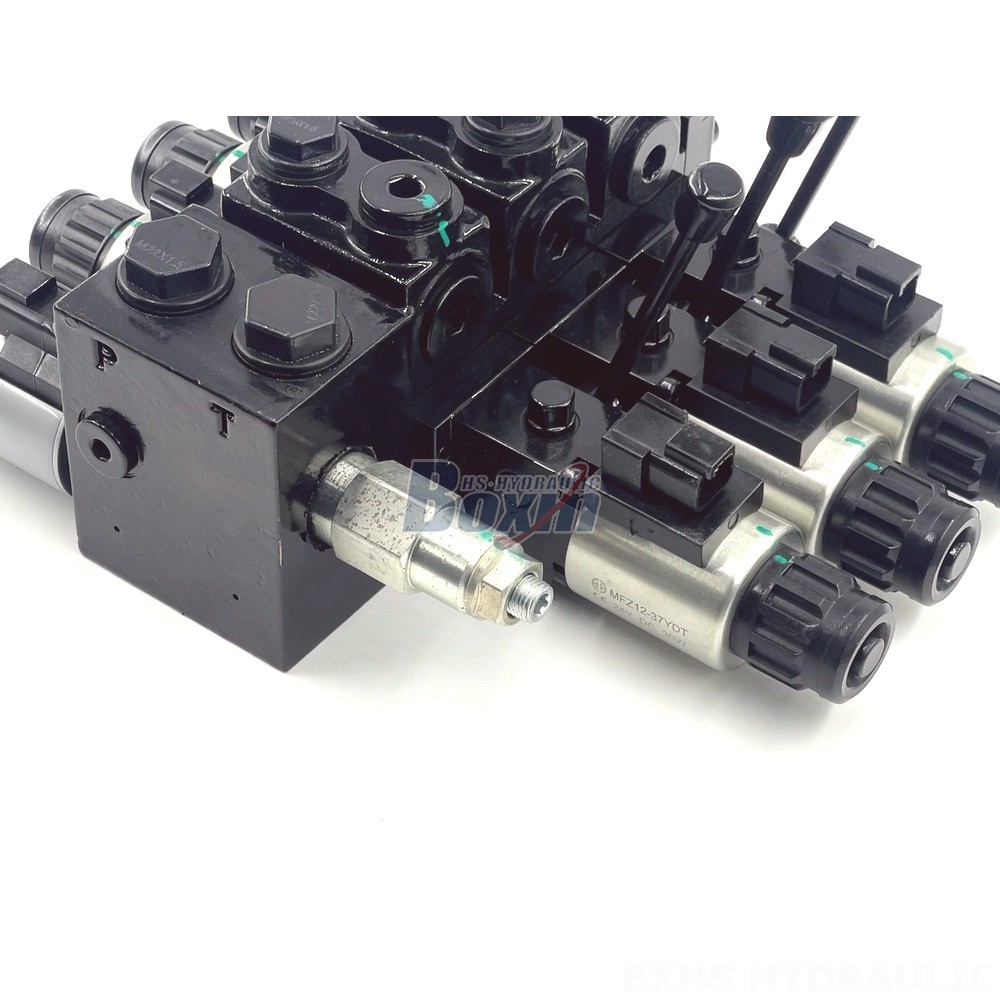

**Manual 3 Spool Sectional Directional Valve - DCV58 Series**
The DCV58 Series Manual 3 Spool Sectional Directional Valve is a versatile and reliable valve designed to control the flow of hydraulic fluid in a wide range of applications. With its robust construction, high-pressure capabilities, and precise control, this valve is ideal for use in demanding hydraulic systems.
**Key Features:**
* 3 spool design for precise control of multiple hydraulic functions
* Sectional design for easy customization and configuration
* Rated flow of 60 L/min (15.8 US gpm) for high-volume applications
* Max pressure of 350 bar (5100 psi) for heavy-duty applications
* Solenoid and manual control options for flexible operation
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in harsh environments
**Applications:**
* Material Handling: Telehandlers, forklifts, stackers, aerial platforms
* Construction and Earth Moving: Excavators, motor graders, cranes
* Agriculture: Tractors, harvesters, sprayers
* Industrial Vehicles: Sweepers, scrubbers, lift trucks
**Benefits:**
* Improved system performance and efficiency
* Reduced downtime and maintenance costs
* Increased productivity and operator safety
* Versatile and customizable to meet specific application requirements
