Waktu Produksi 15-30 Hari
1138 Pandangan Mencari Produk Ini

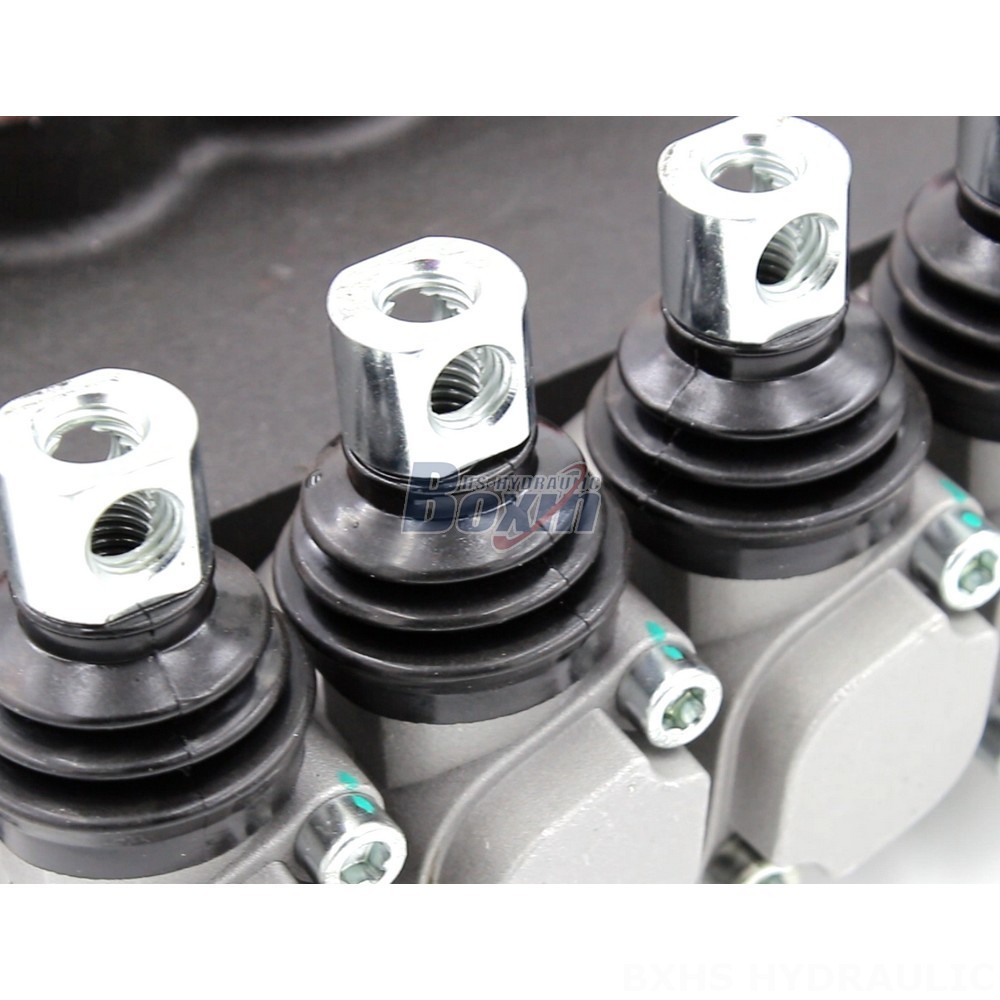

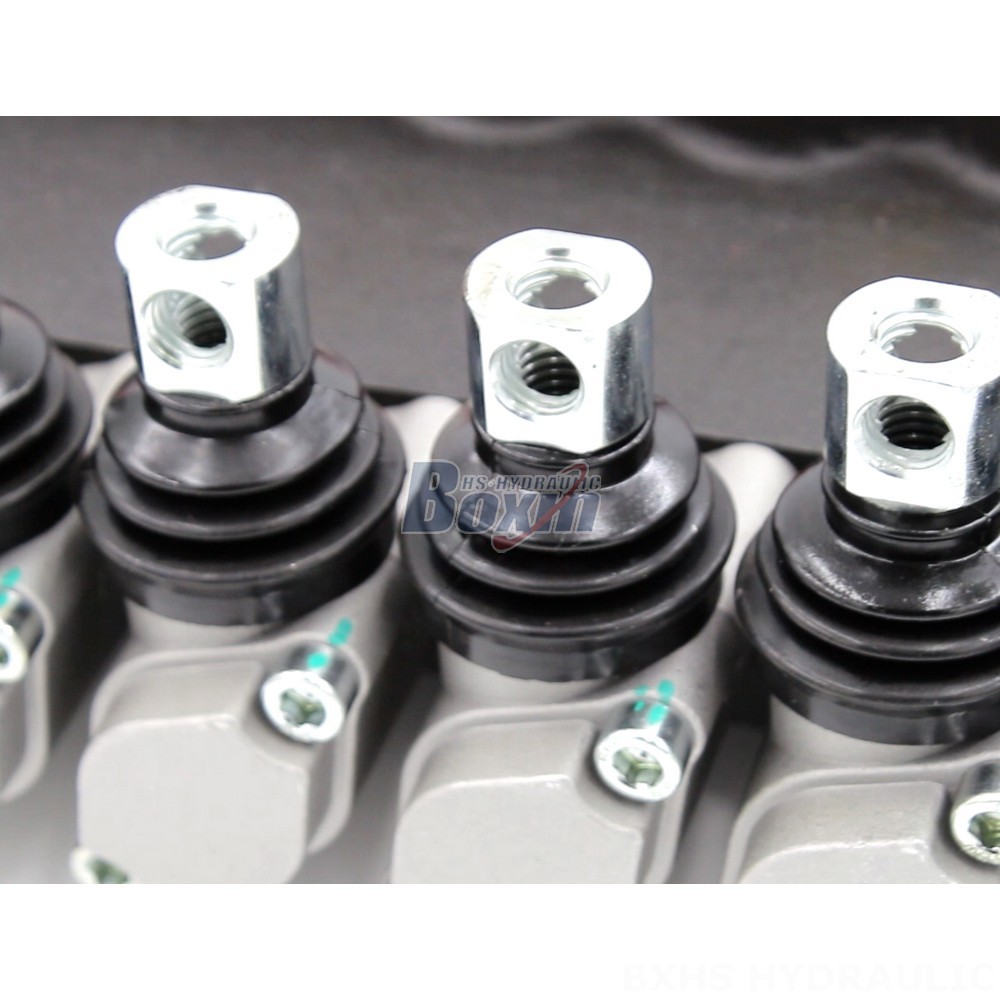

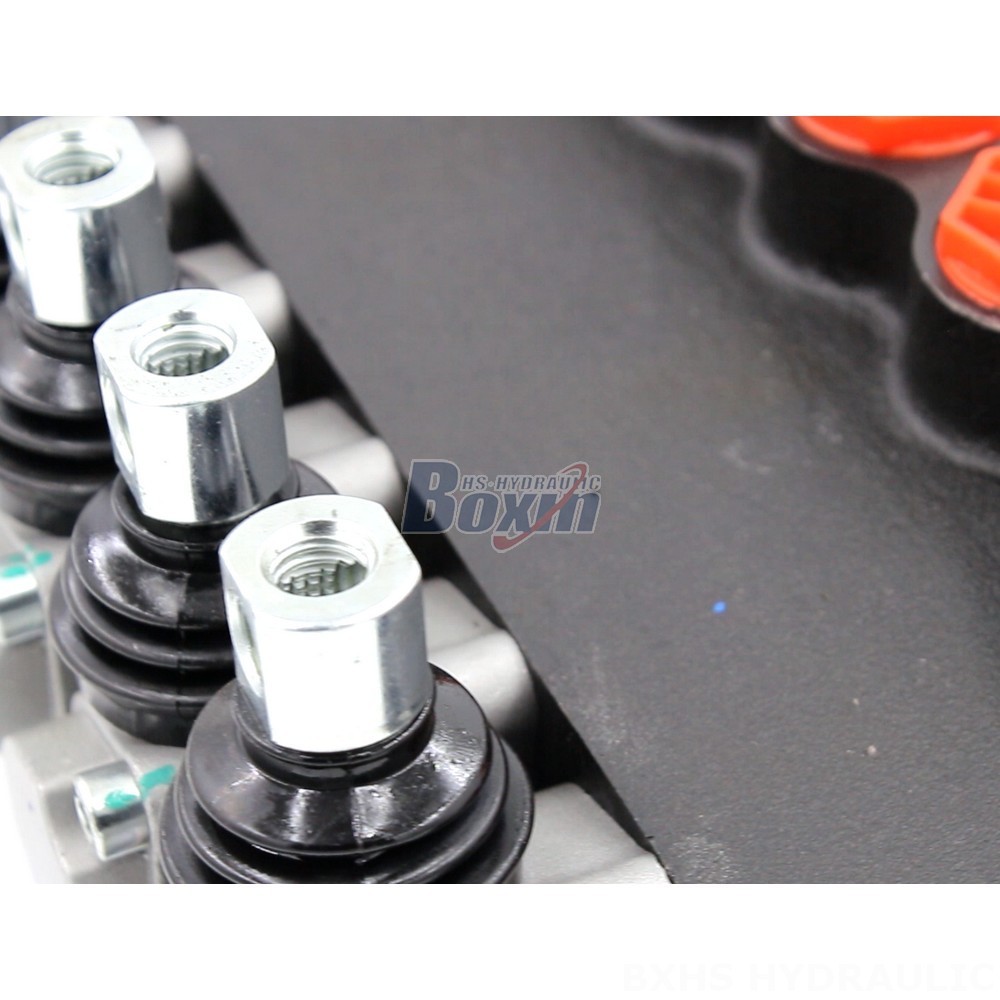

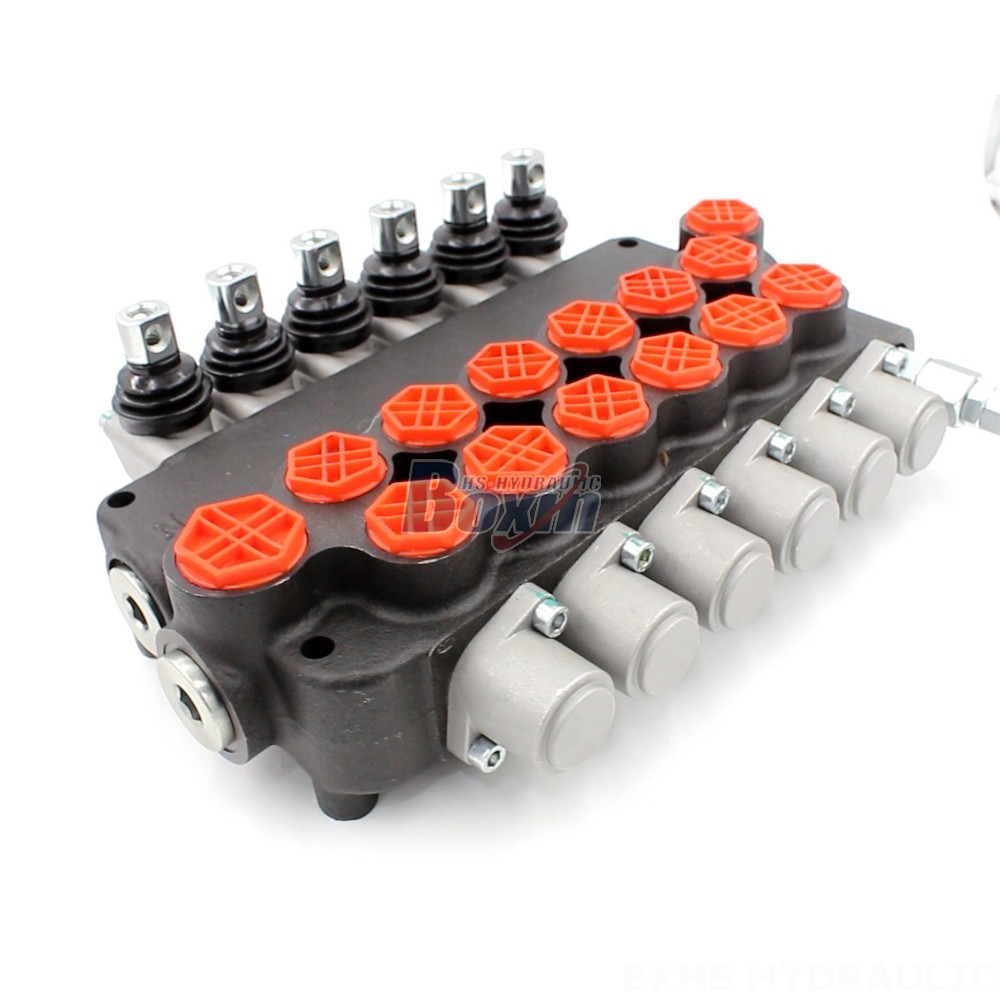

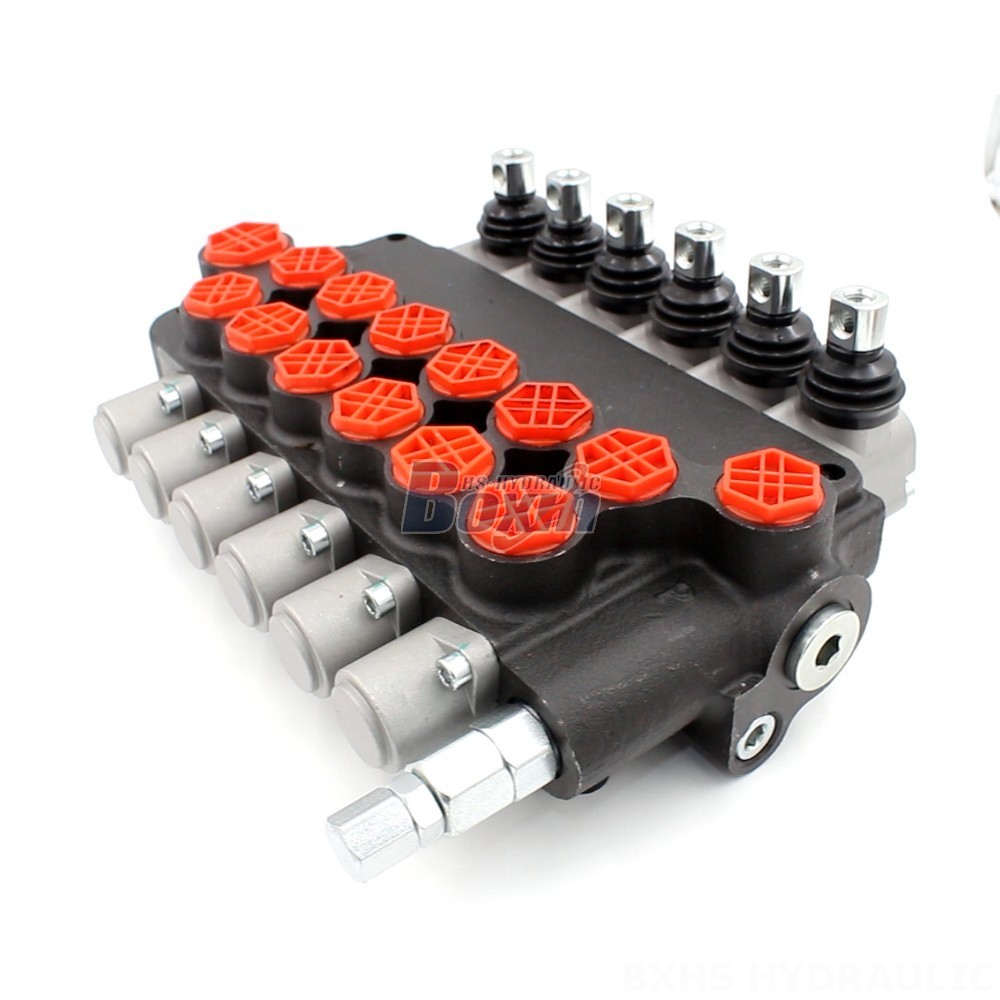

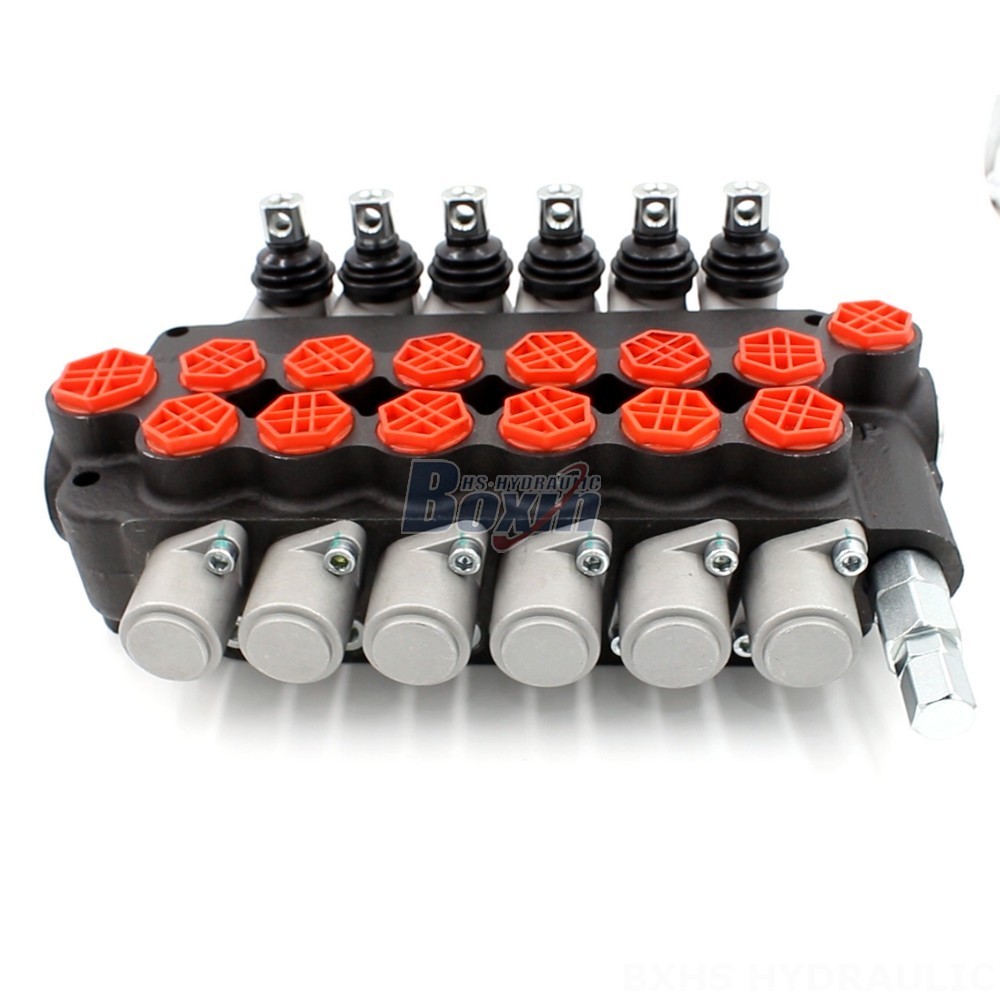

This is a high-quality, 6-section manual directional hydraulic valve designed for heavy-duty applications in various industries such as material handling, construction, and agriculture. It features a monoblock valve design and a rated flow of 80 L/min, capable of handling pressures up to 250 bar. The valve is compatible with a wide range of machinery, including telehandlers, forklifts, excavators, and loaders.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12-G34-OT is a robust manual directional hydraulic valve designed for demanding applications. It offers a 6-section monoblock valve structure, ensuring reliable and efficient operation. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar (3600 psi), this valve is ideal for heavy-duty equipment. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows for use in a variety of environments and applications. The valve is designed for a wide range of machinery, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
