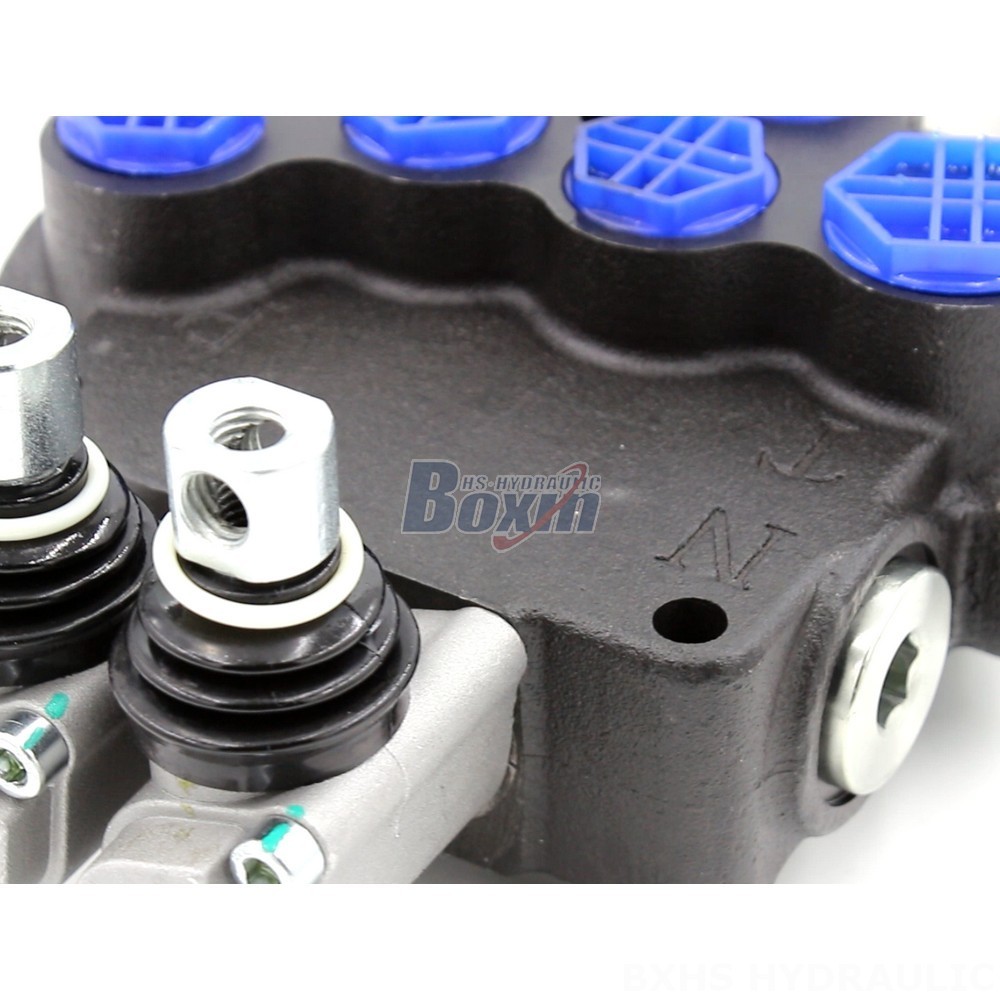

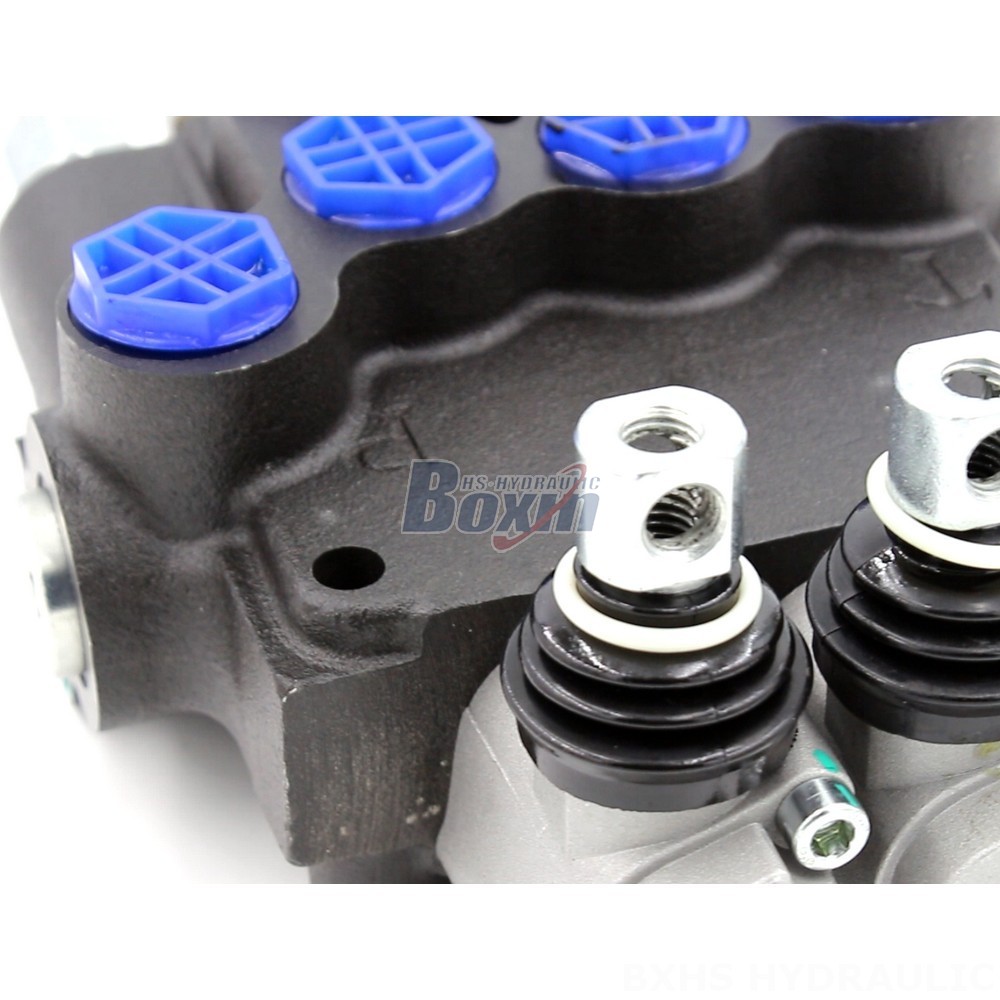

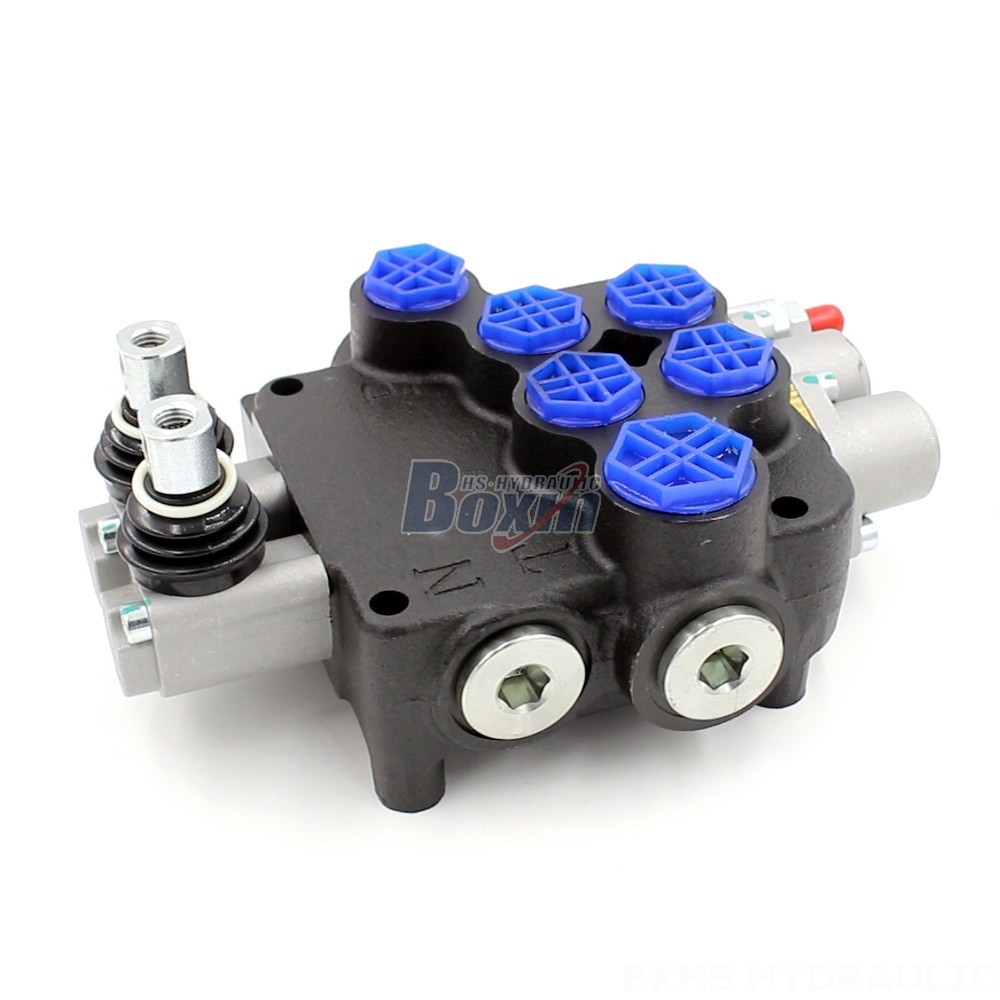

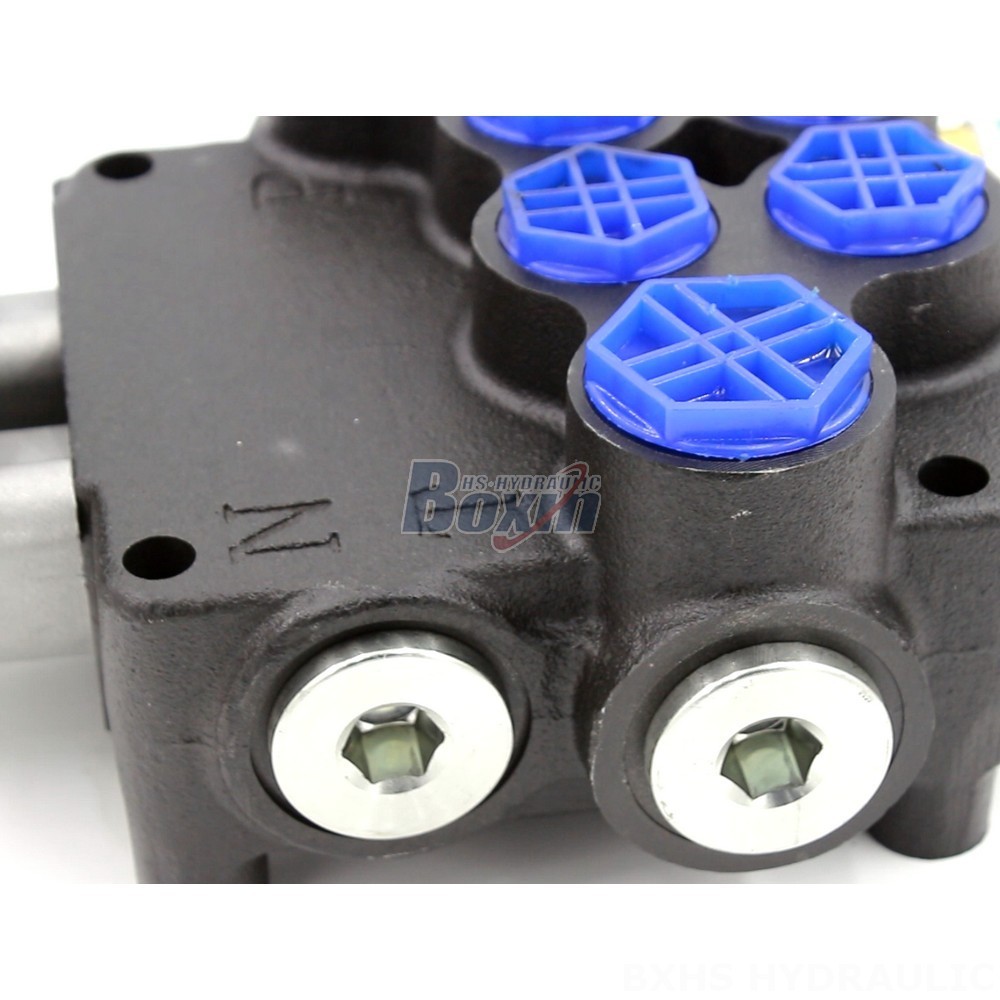

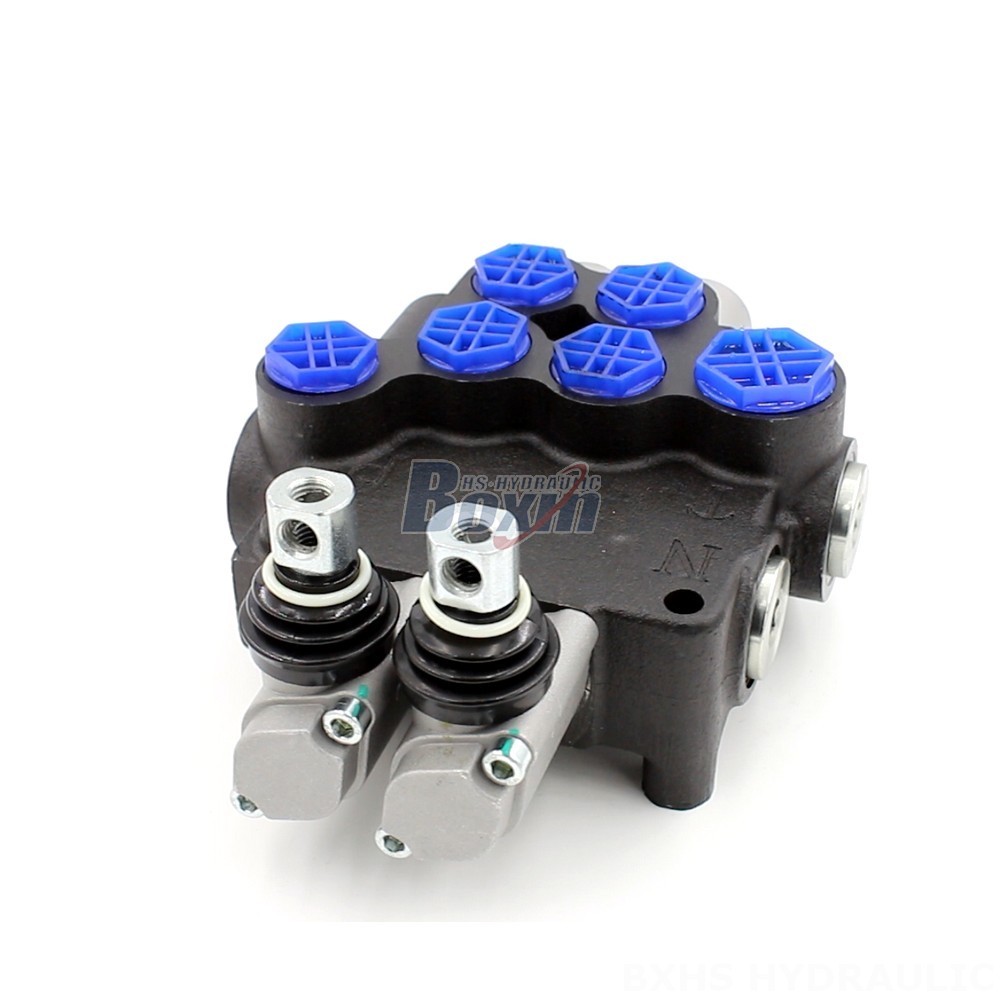

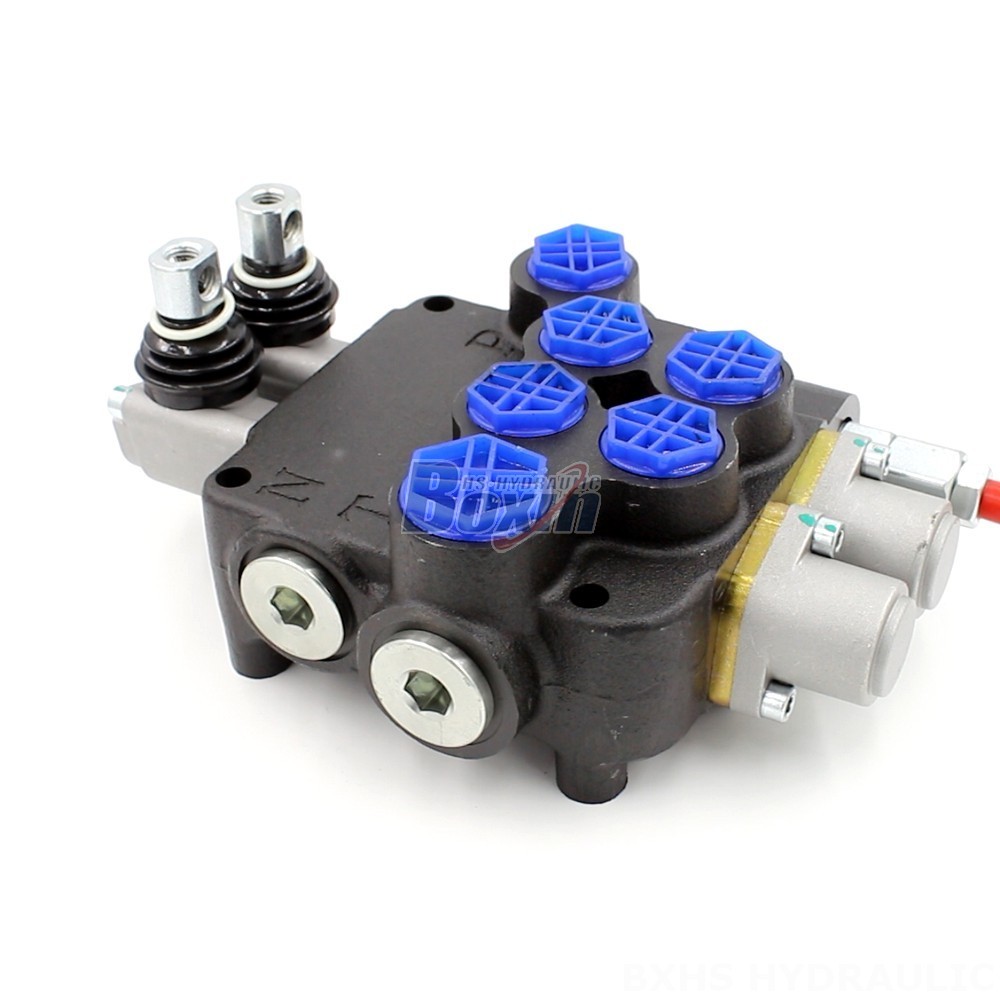

The P80-G12-G38-QW is a high-performance, 2-spool joystick loader valve designed for use in demanding applications like construction equipment, material handling, agriculture, and industrial vehicles. It offers precision control and durability, making it an ideal choice for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and more.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This manual directional valve features a robust monoblock construction with a rated flow of 80 L/min and a maximum pressure rating of 250 bar. Its operating viscosity range is from 15 to 75 mm²/s, allowing for use in a wide variety of environments. With its durable design and reliable performance, this 2-spool joystick loader valve is an excellent choice for manufacturers and users of construction equipment, material handling equipment, agricultural machinery, and industrial vehicles.
