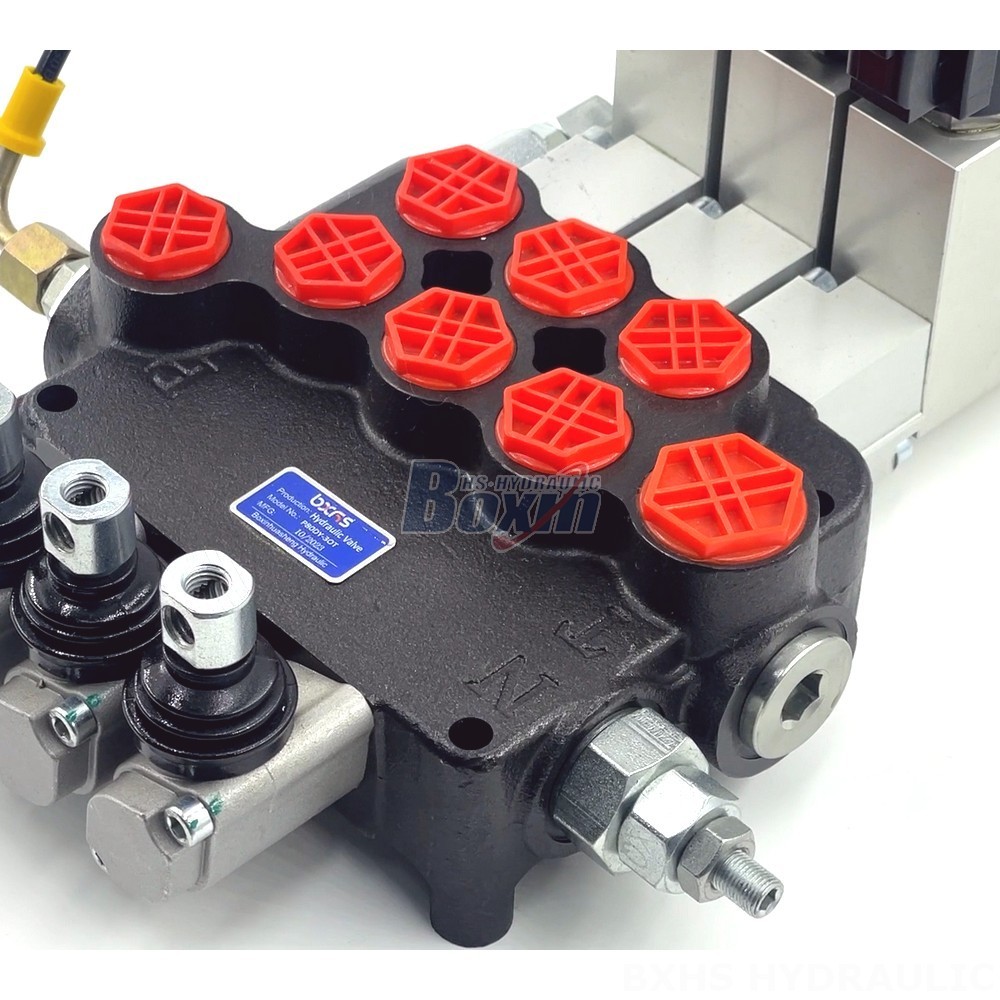

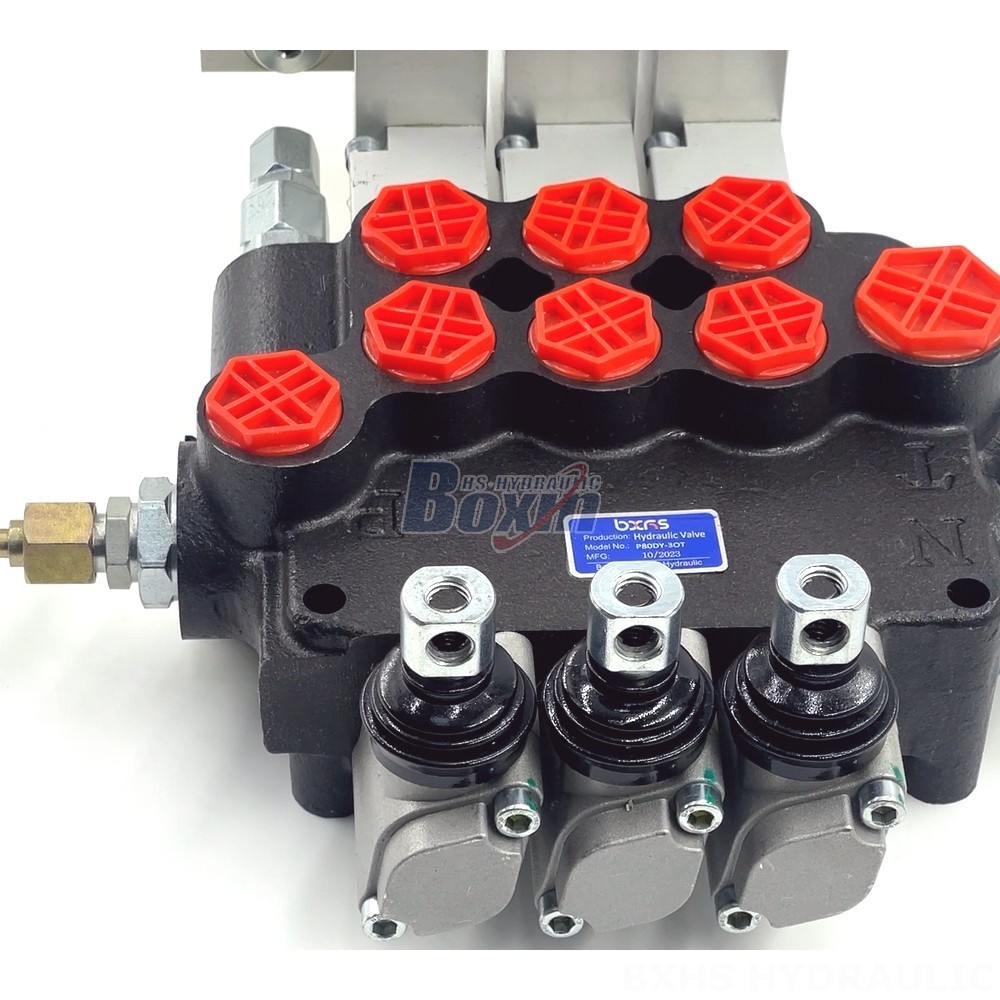

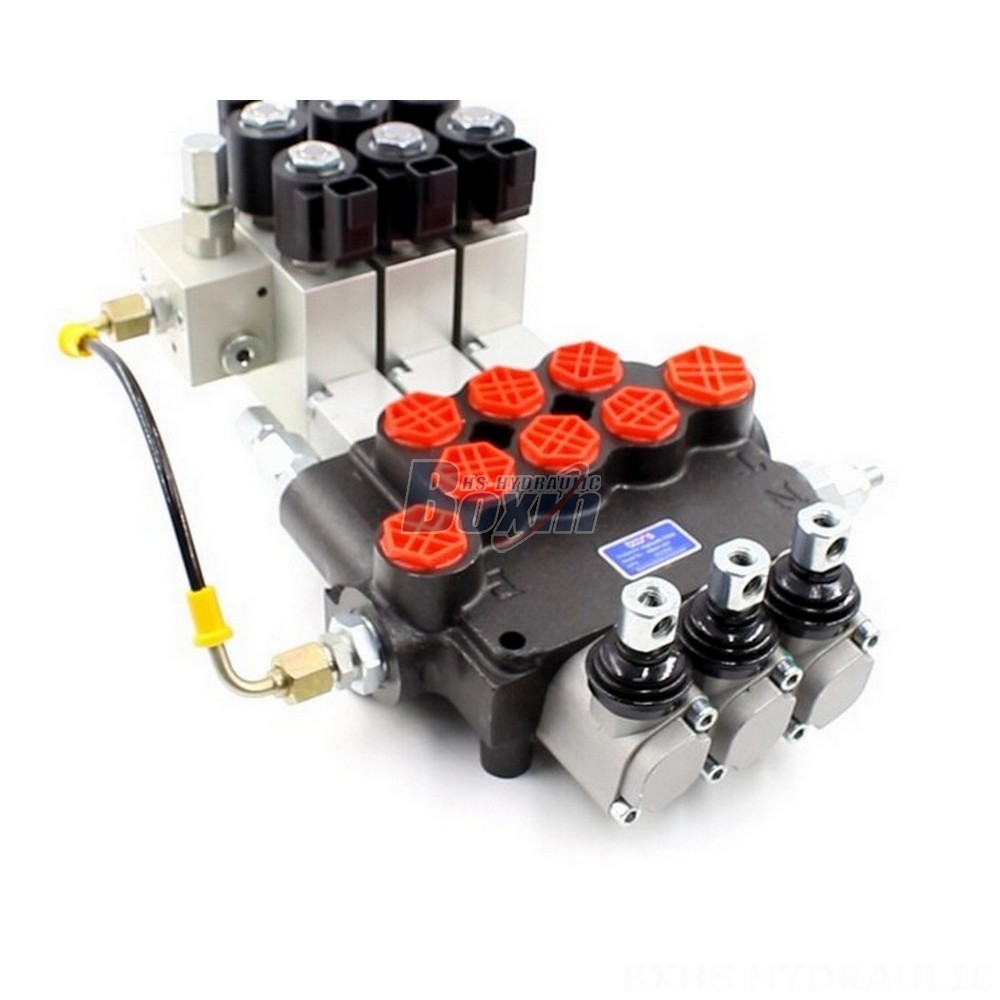

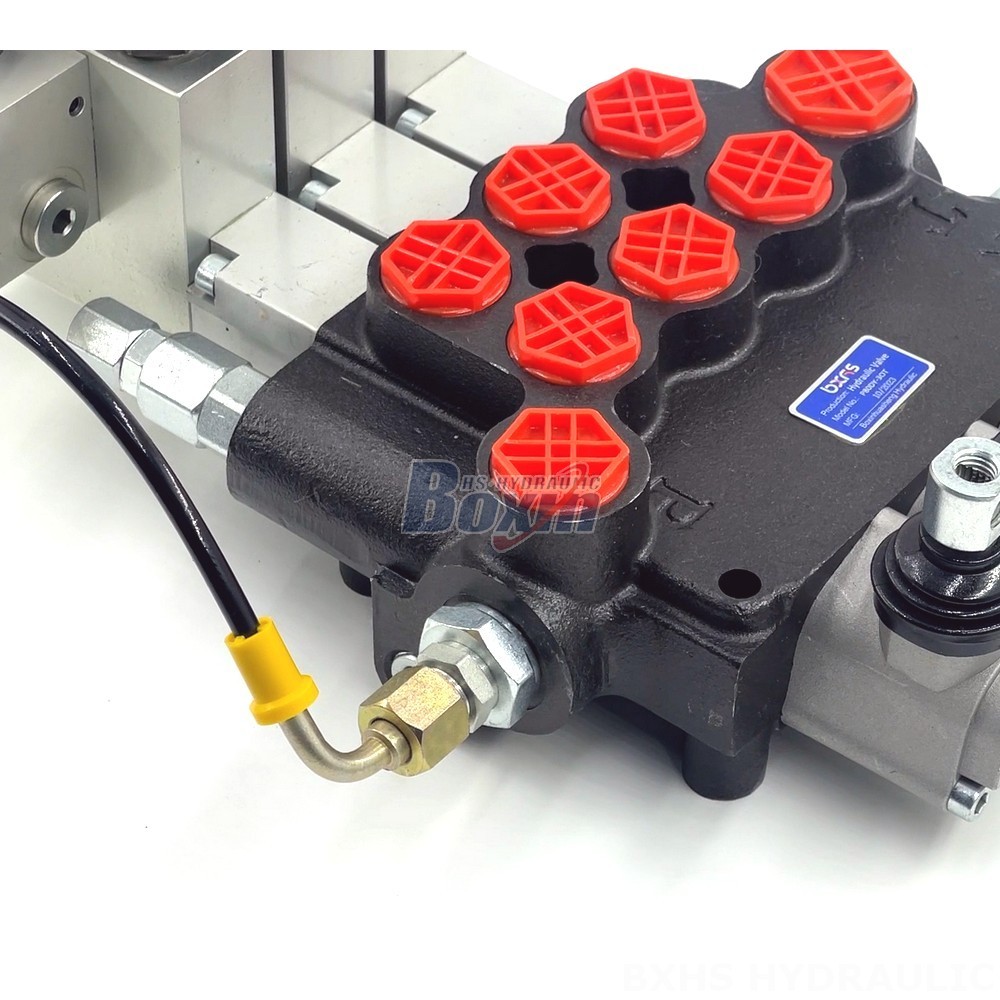

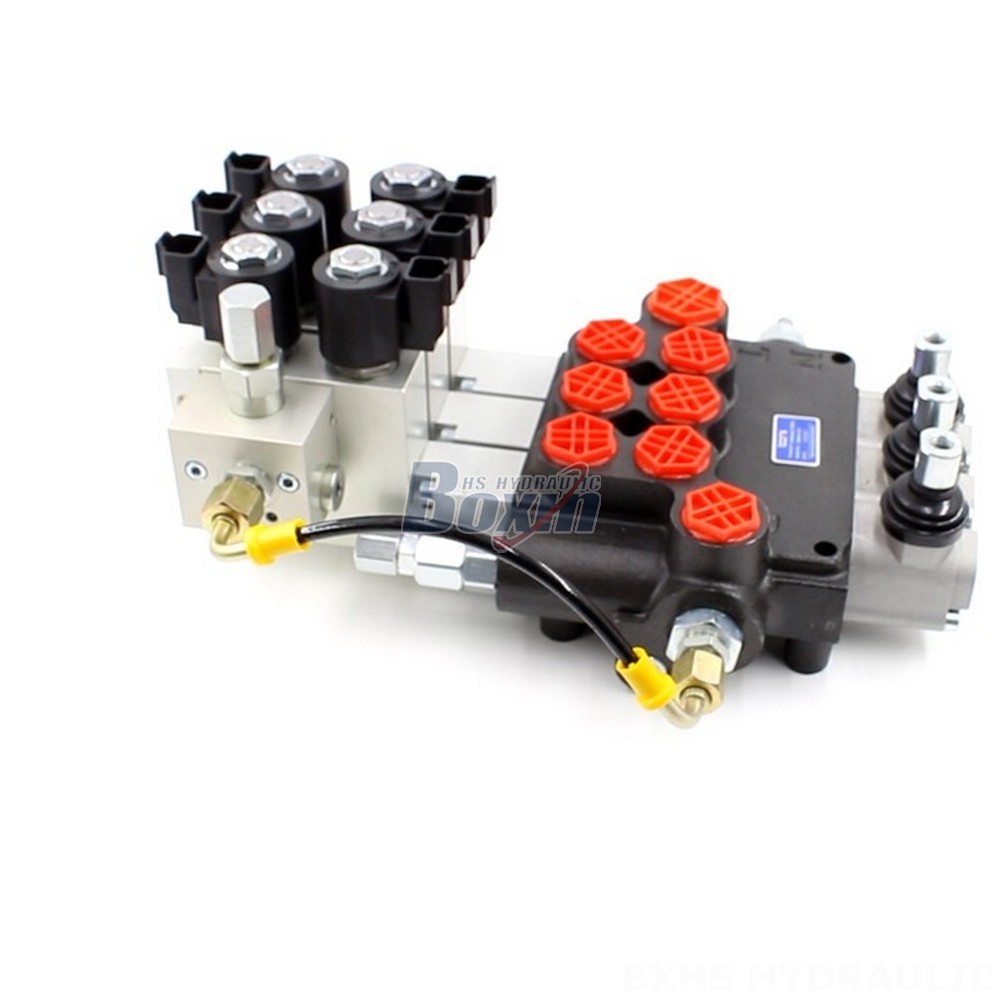

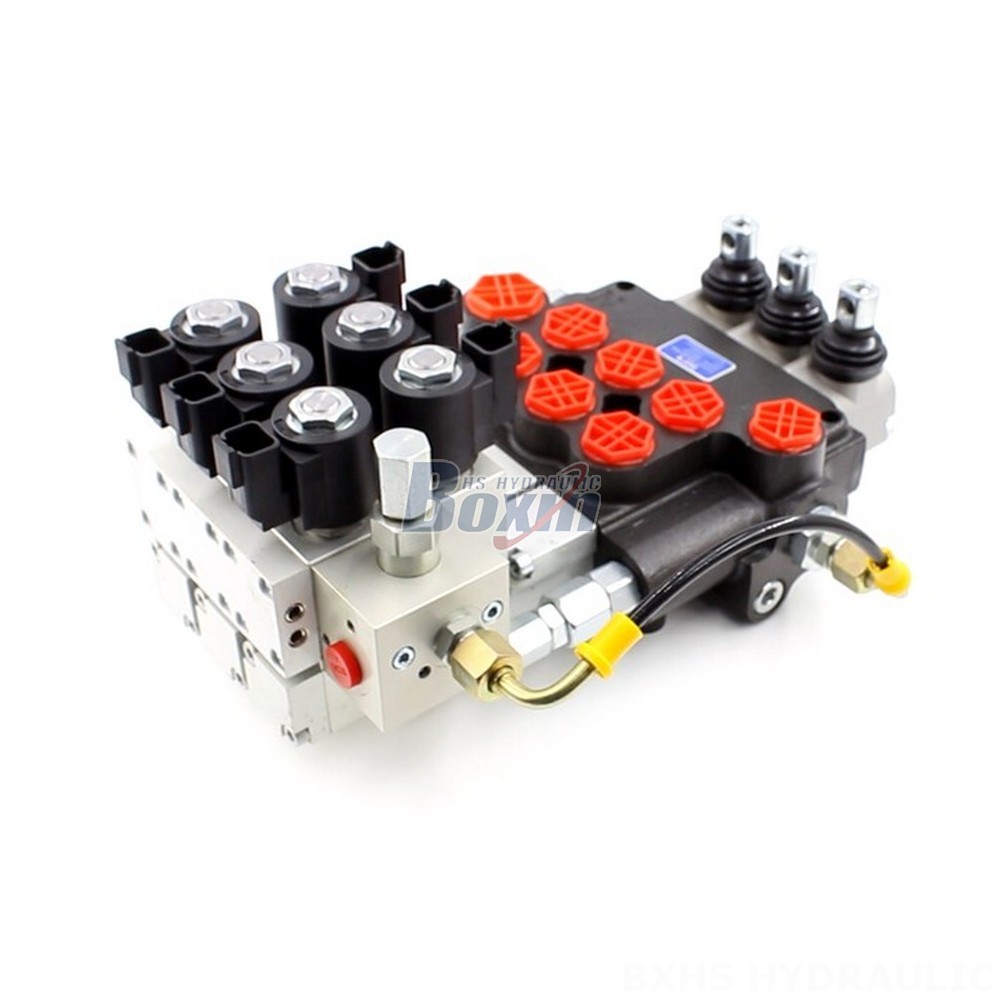

Our P80 Series Manual Electro-hydraulic Monoblock Directional Valve is a high-performance valve designed for various applications in material handling, construction, earth moving, agriculture, and industrial vehicles. It features a 3-section monoblock design, providing precise control of hydraulic systems with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- Monoblock construction for compactness and durability
- Rated flow of 80 L/min (21.2 US gpm) for efficient system performance
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme environments
- 3-spool design for versatile control of multiple hydraulic circuits
**Applications:**
- Telehandlers
- Forklifts
- All terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
