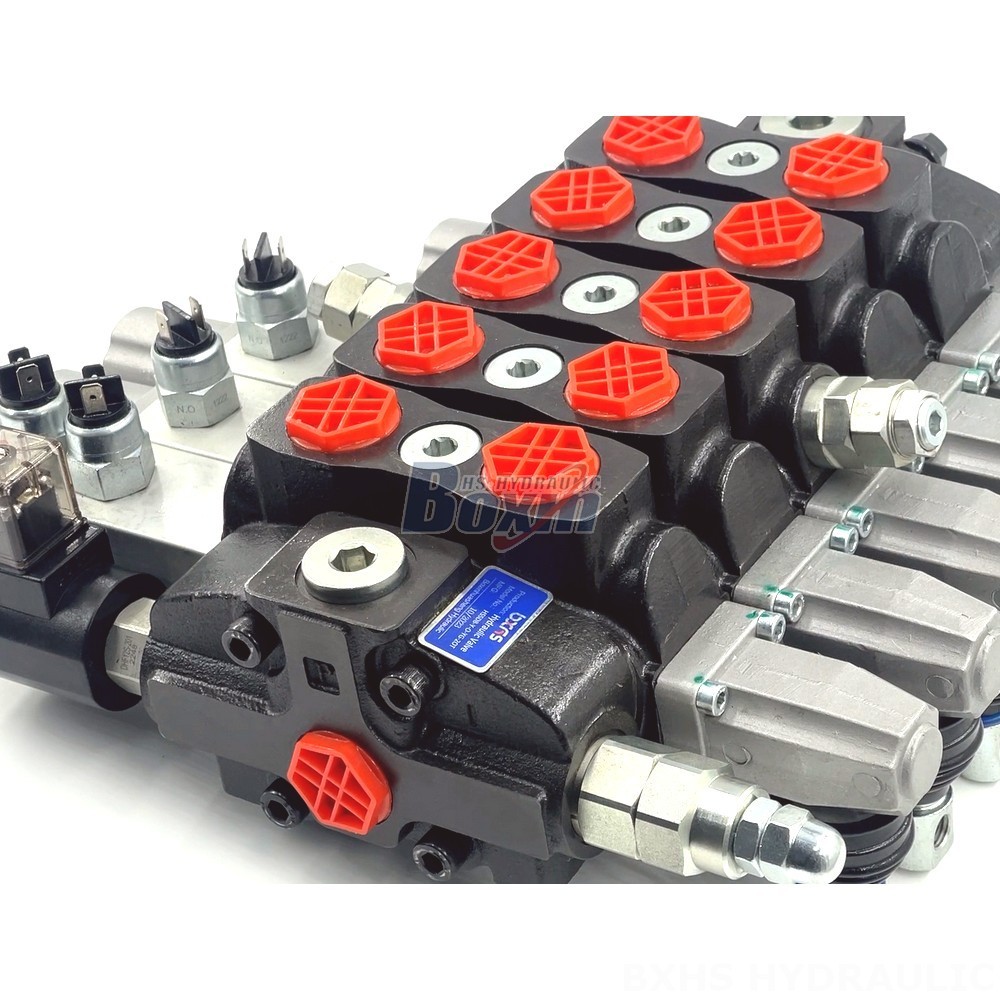

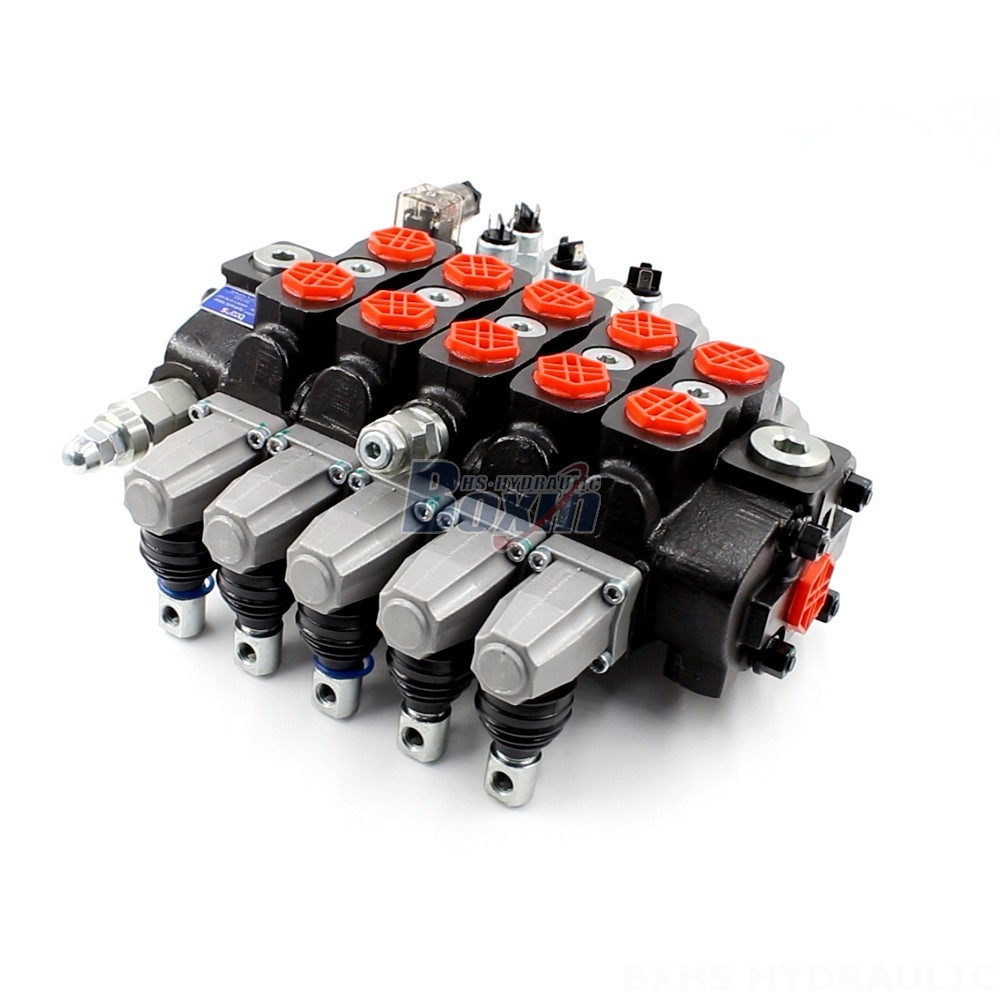

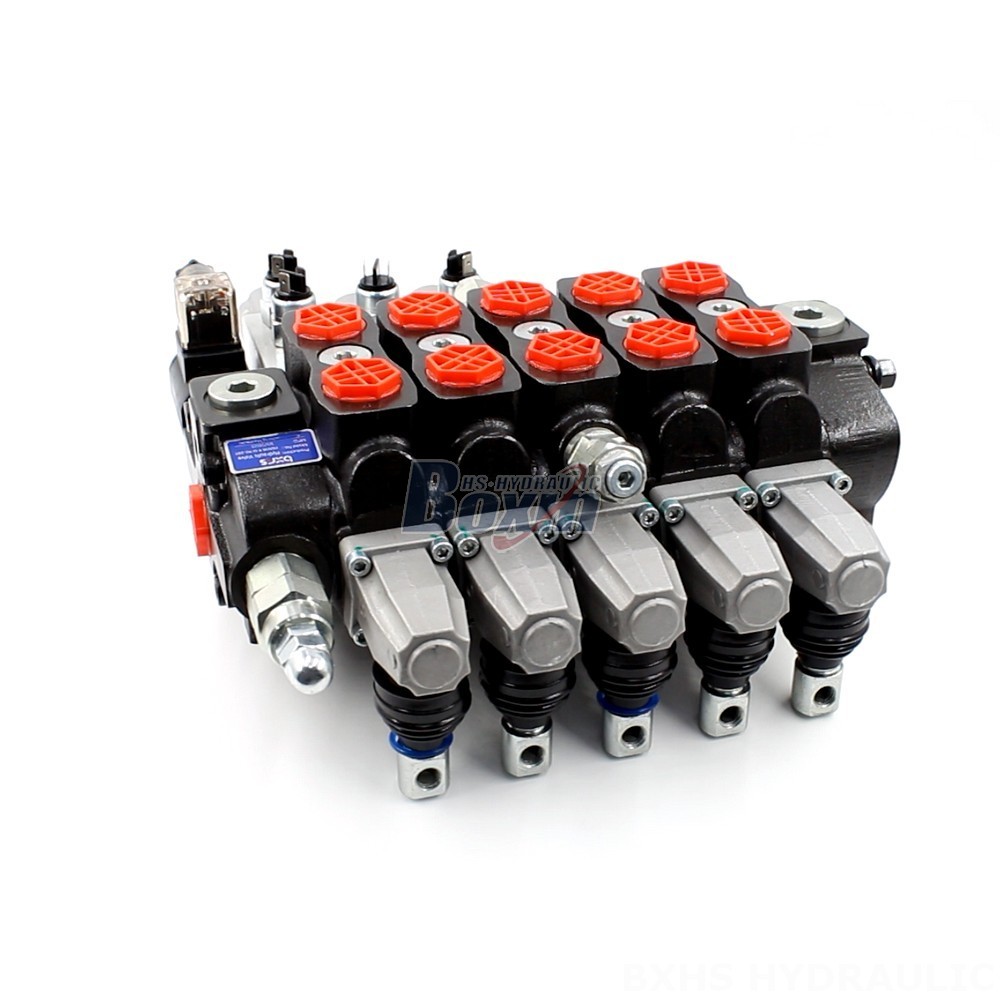

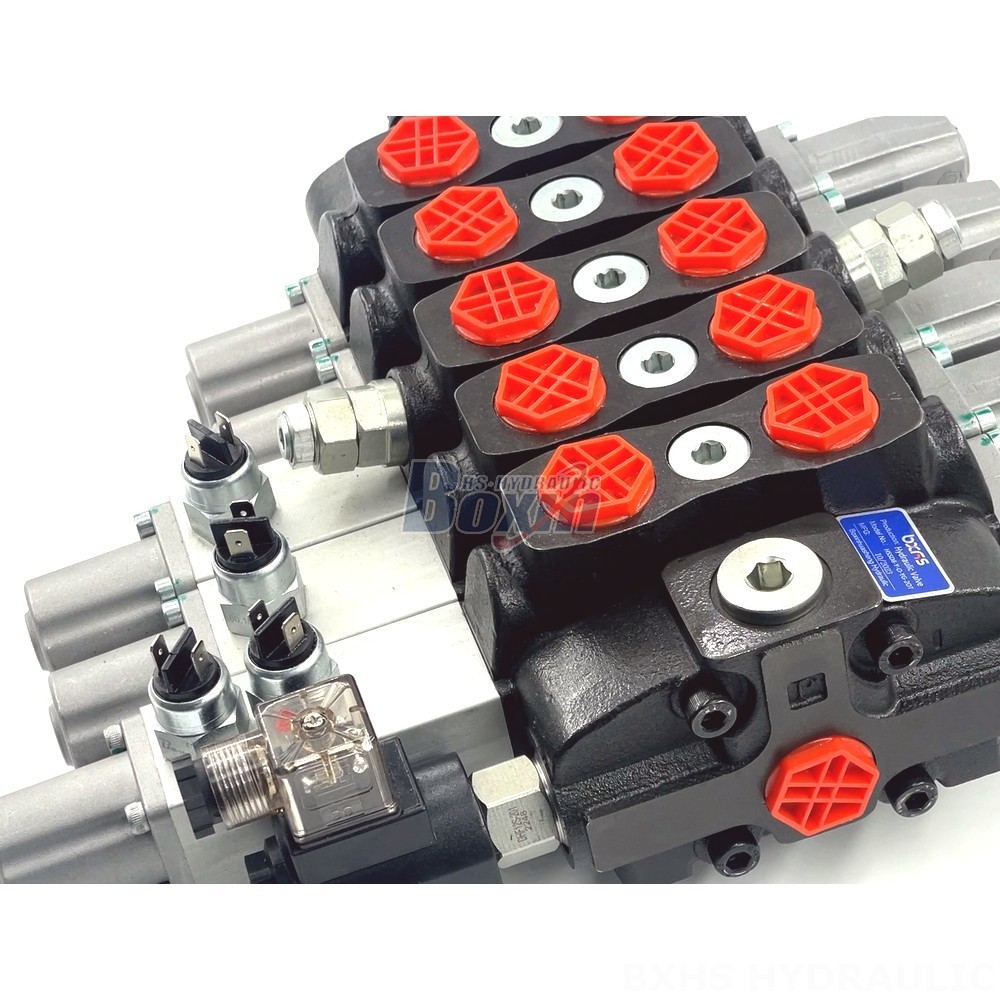

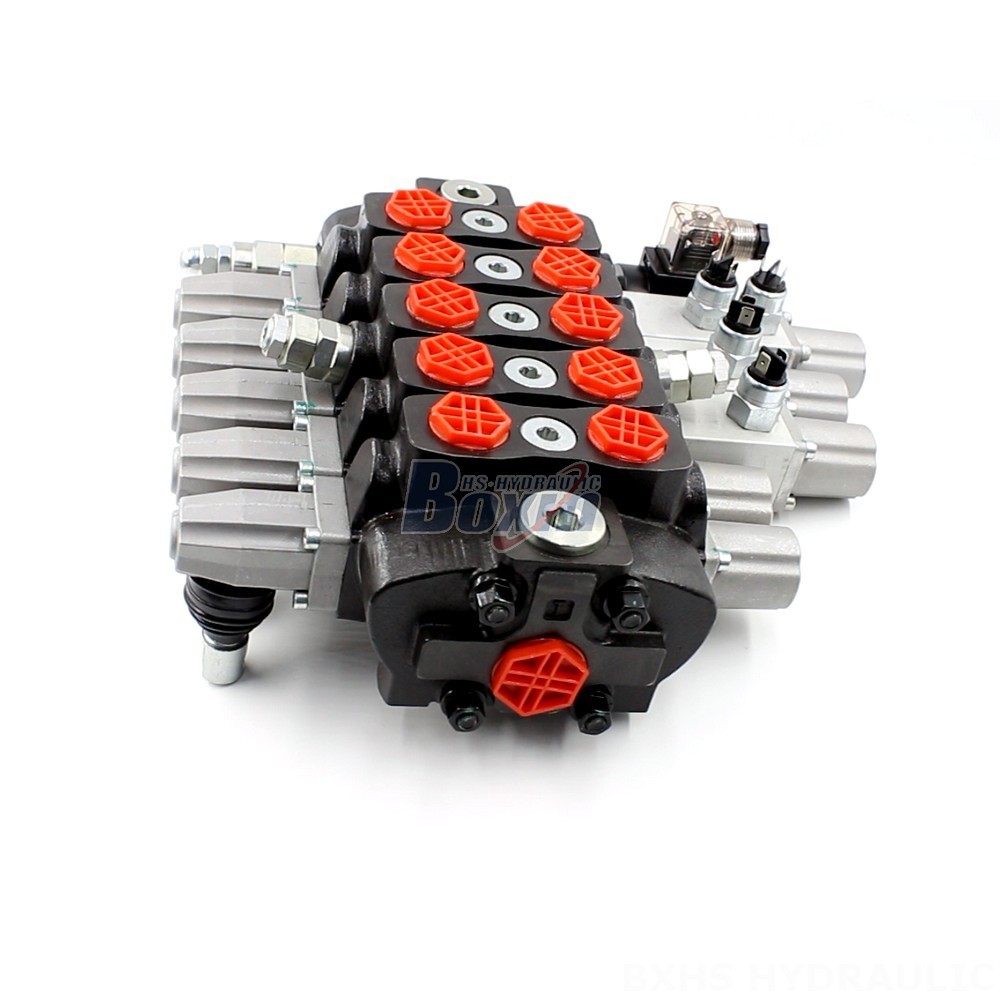

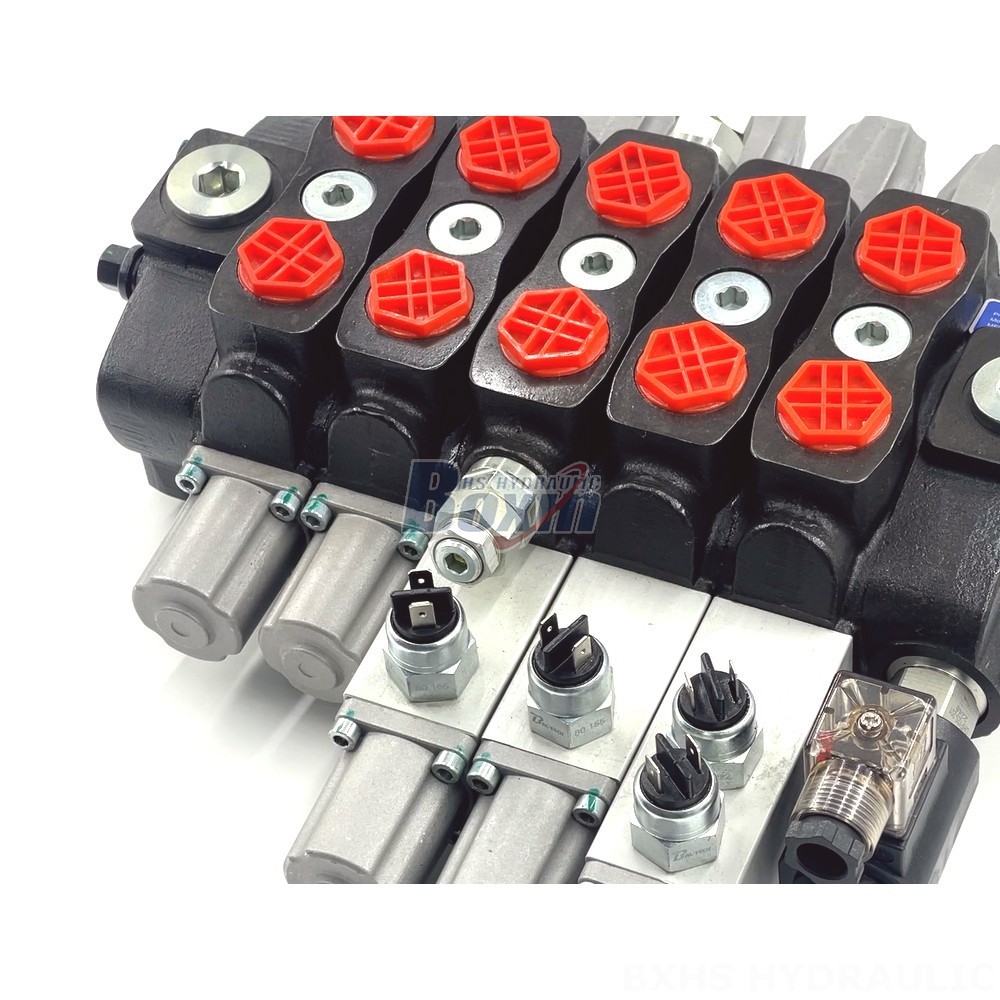

This 5-spool, sectional hydraulic directional valve is designed for manual control of hydraulic tipper systems. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of construction, agricultural, and industrial vehicles.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
This manual hydraulic directional valve is specifically designed for tipper control applications. With its 5-spool, sectional design, it offers precise and reliable control of hydraulic functions. The valve has a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of applications. It is designed to operate within a viscosity range of 12 to 400 mm²/s and withstand ambient temperatures from -40°C to +80°C. The valve is suitable for a variety of vehicles, including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
