Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Metode Kontrol:Buku Panduan

Spul:6 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 8

Port Keluar:SAE 8

Ukuran Port:SAE 8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:32*23*13

Kelas kotor:11.40 kg

Ketersediaan: Tersedia

1120 Pandangan Mencari Produk Ini

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available drawing image

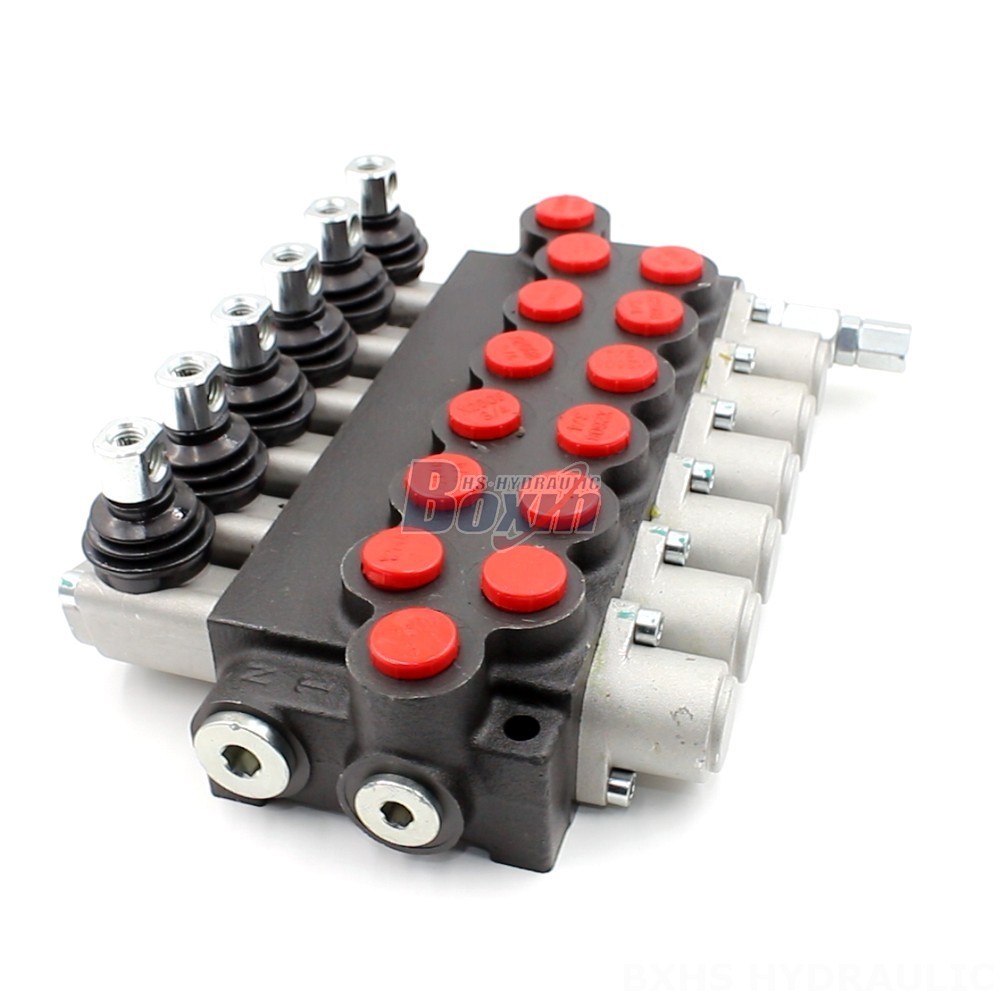

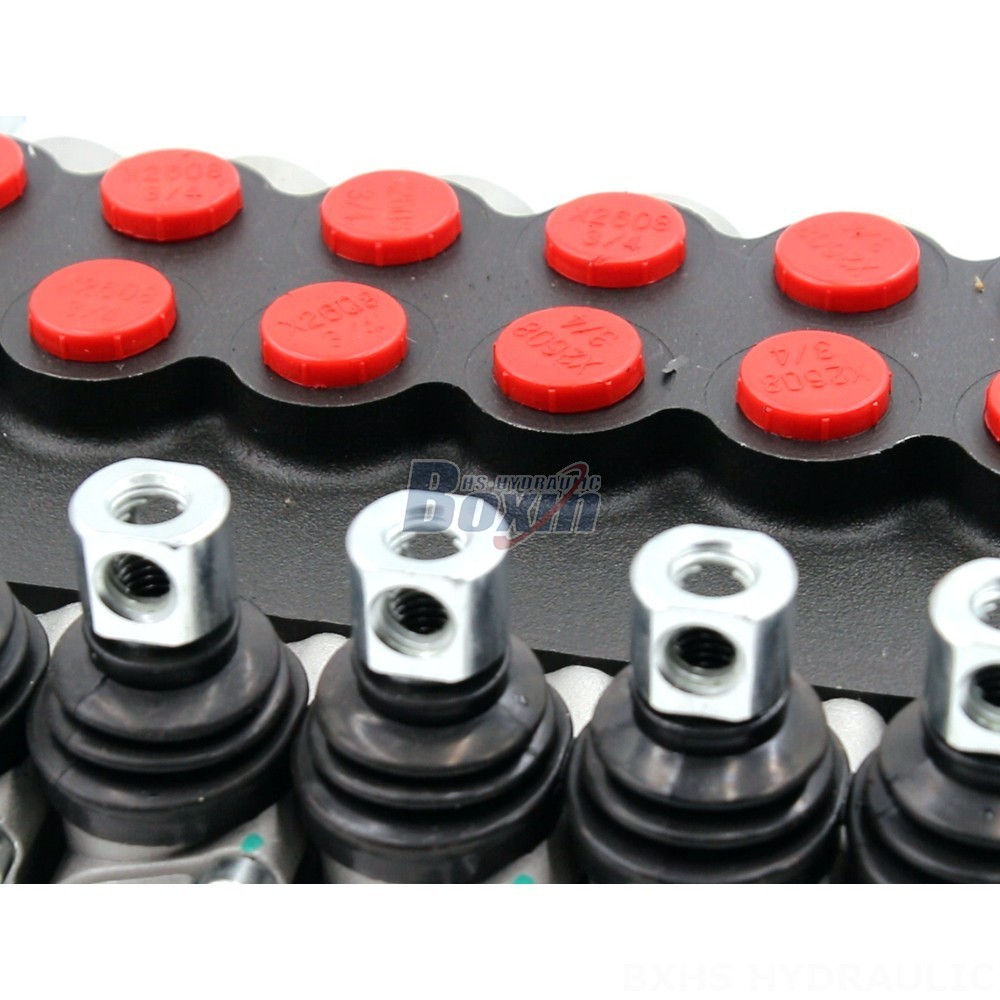

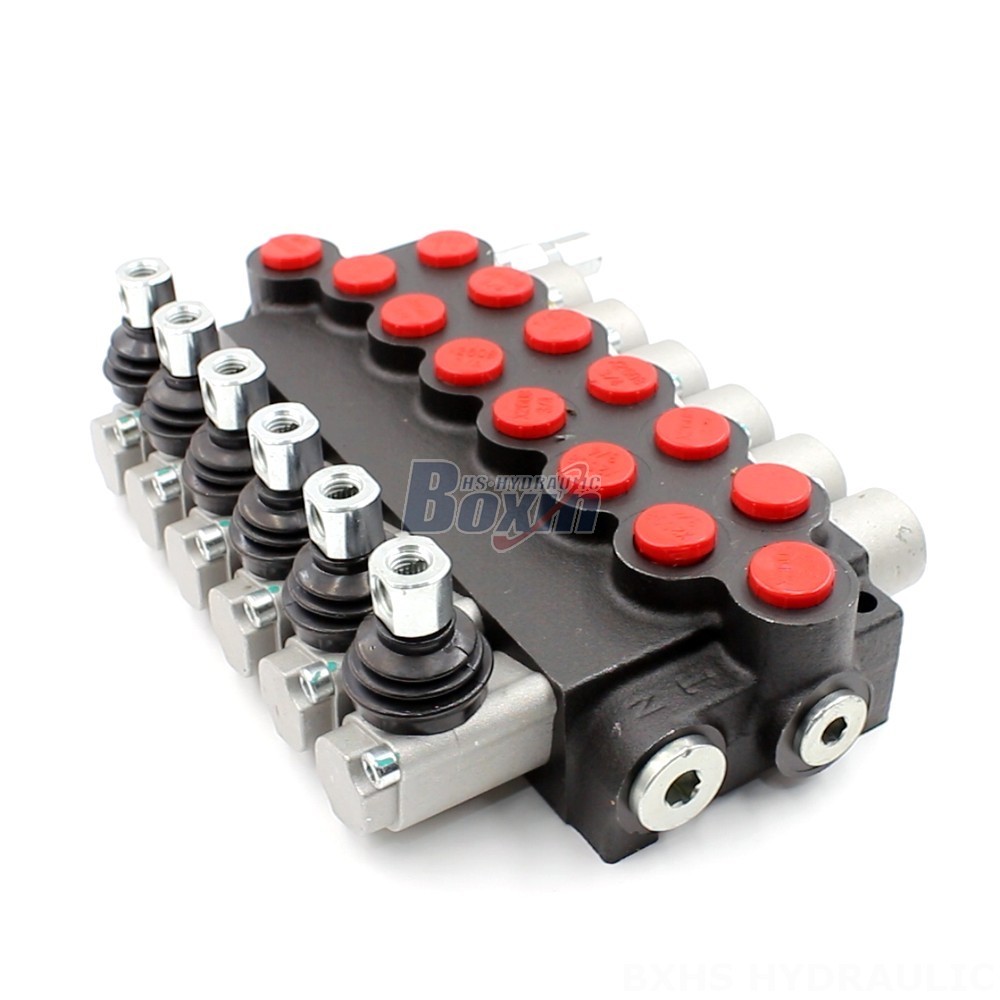

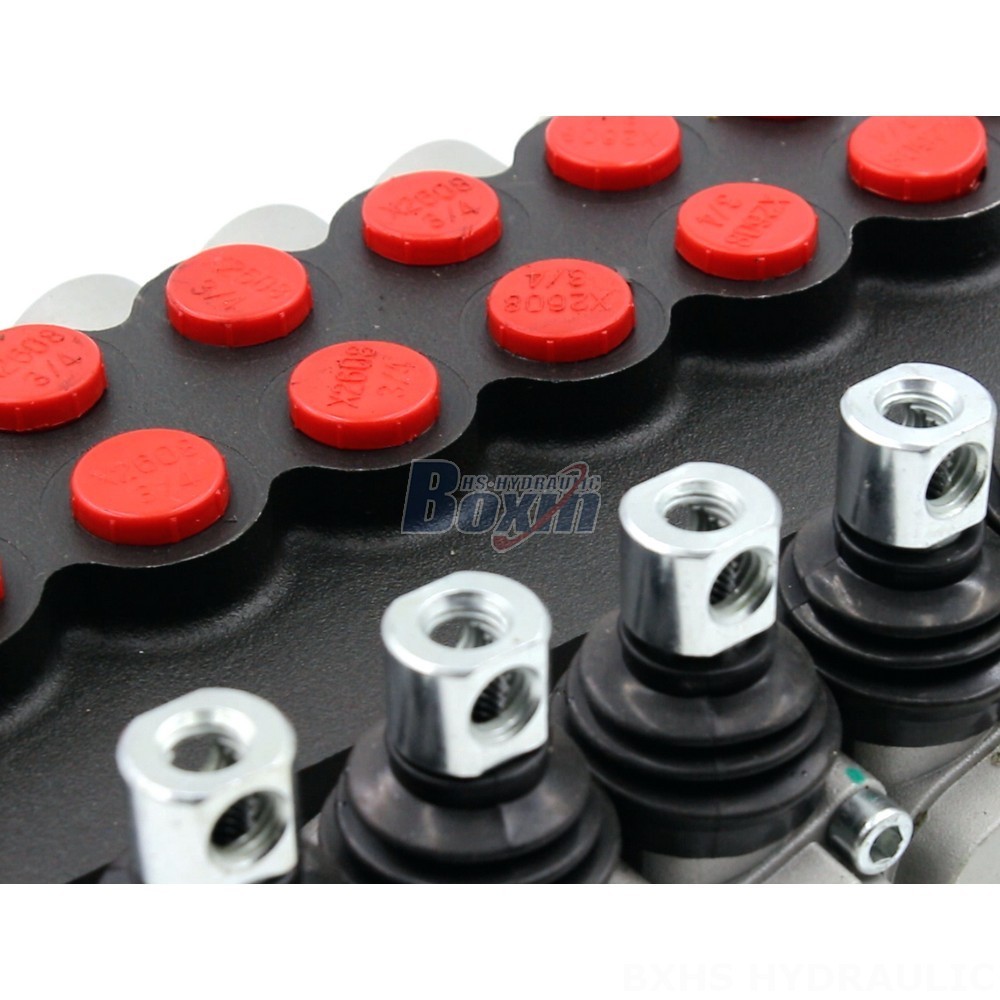

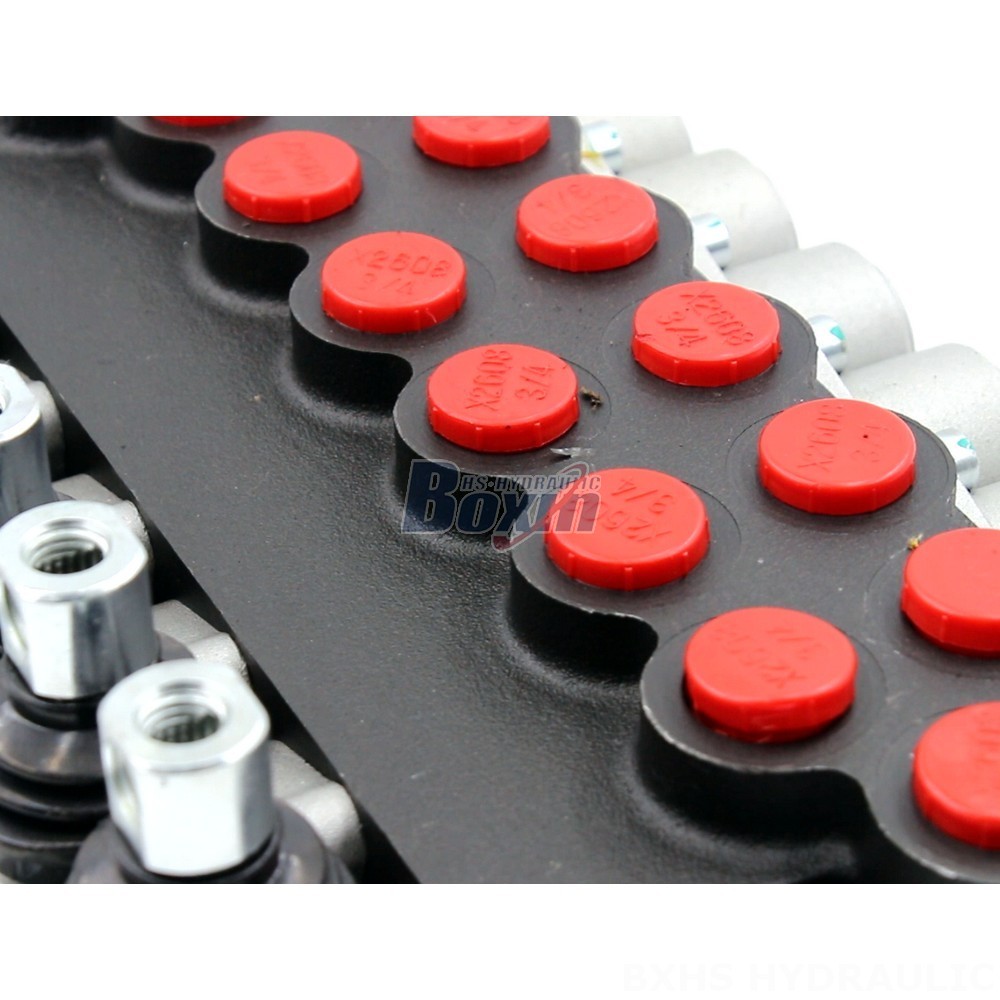

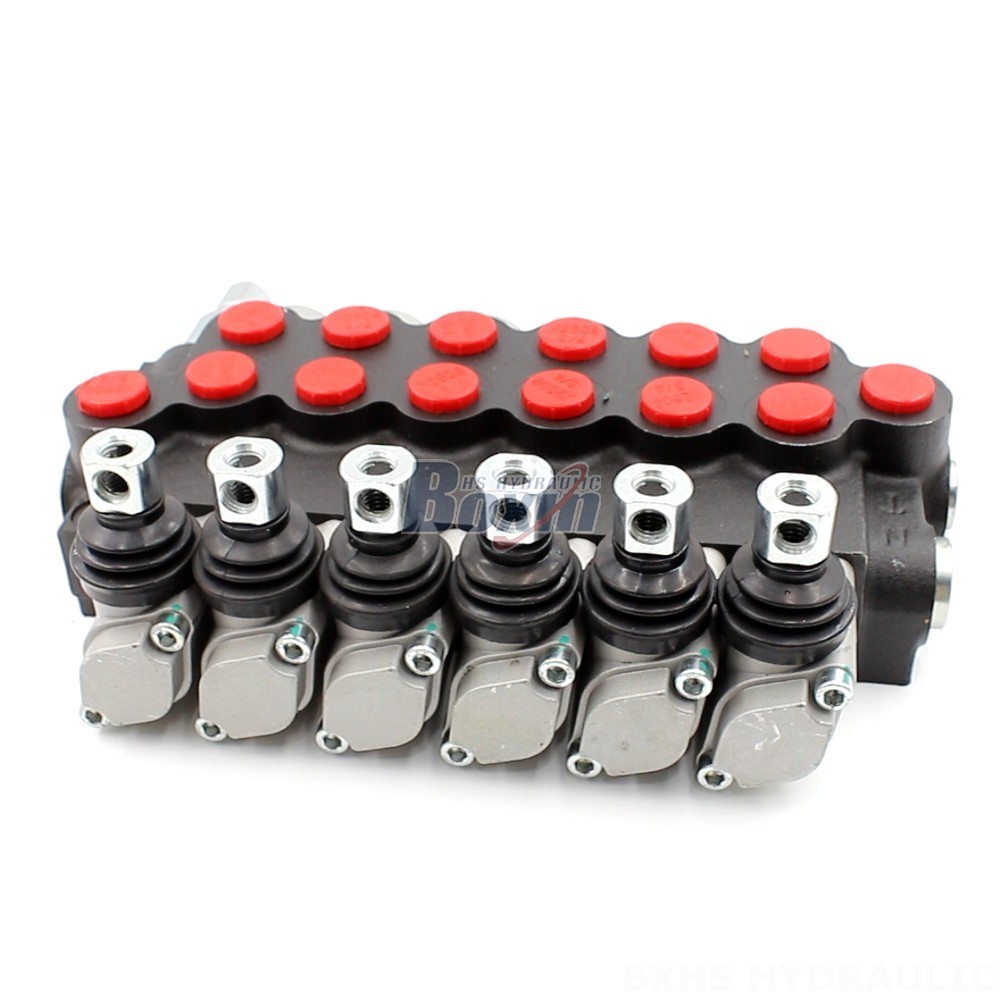

The P40-U34 is a 6-section, manual hydraulic directional valve designed for use in a variety of industrial, construction, and agricultural applications. It features a robust monoblock design, rated flow of 40 L/min, and maximum pressure of 250 bar. This versatile valve is customizable and available for OEM applications.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U34 is a high-performance, 6-section manual hydraulic directional valve built for durability and reliability. With its monoblock construction, it provides exceptional strength and stability. The valve is rated for a flow rate of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of demanding applications. It operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in industrial vehicles, construction and earthmoving equipment, and agriculture applications. It is compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. As a manufacturer, we offer a range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
