The Q45 Series 4 Way Flow Diverter Valve is a manual hydraulic valve designed for controlling hydraulic flow in various applications like material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers reliable control and durability for demanding operations.
| Seri Q45 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 45 L/menit (11,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G1/2 |

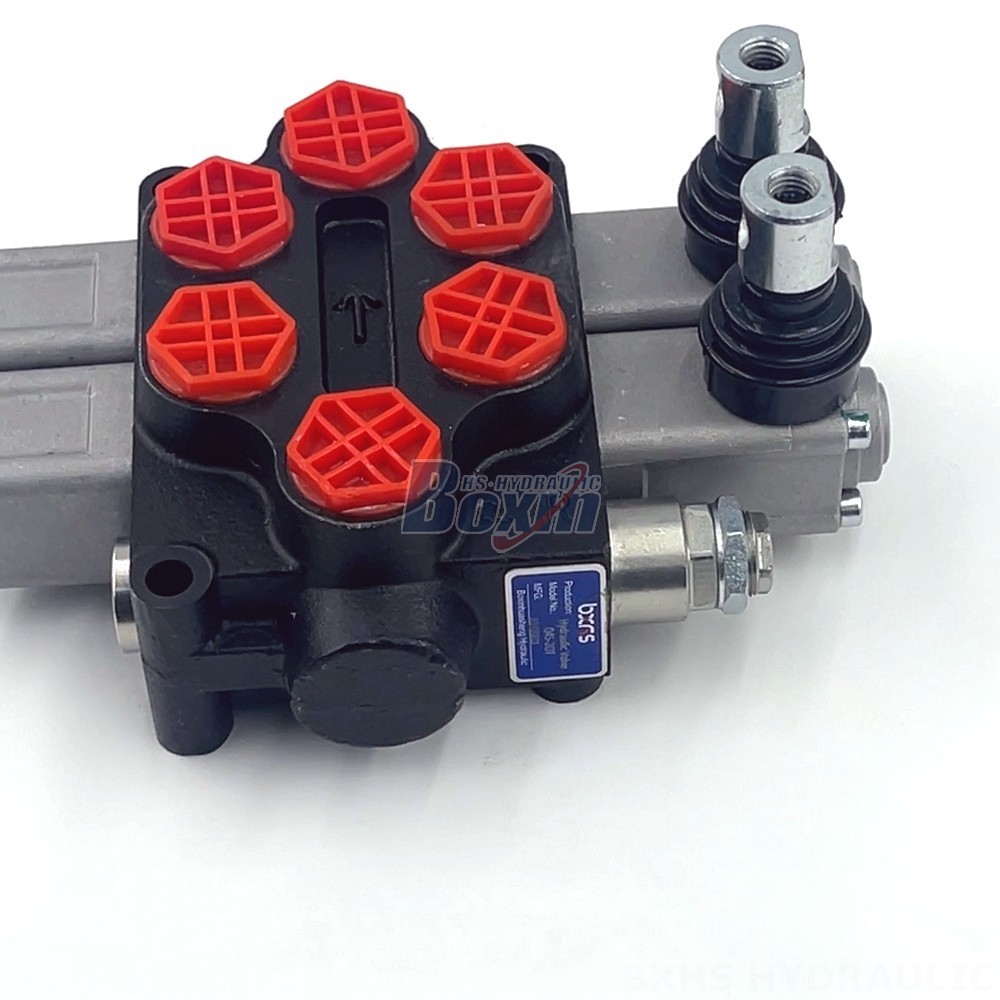

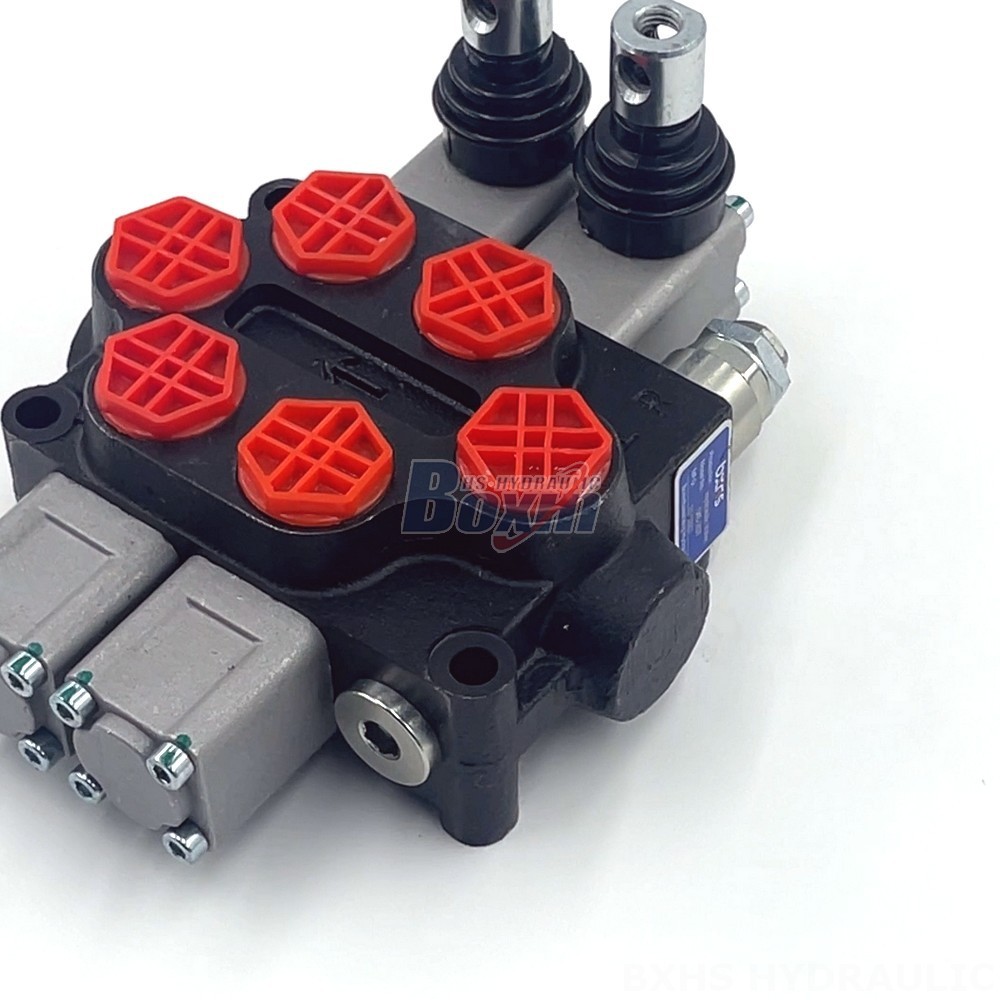

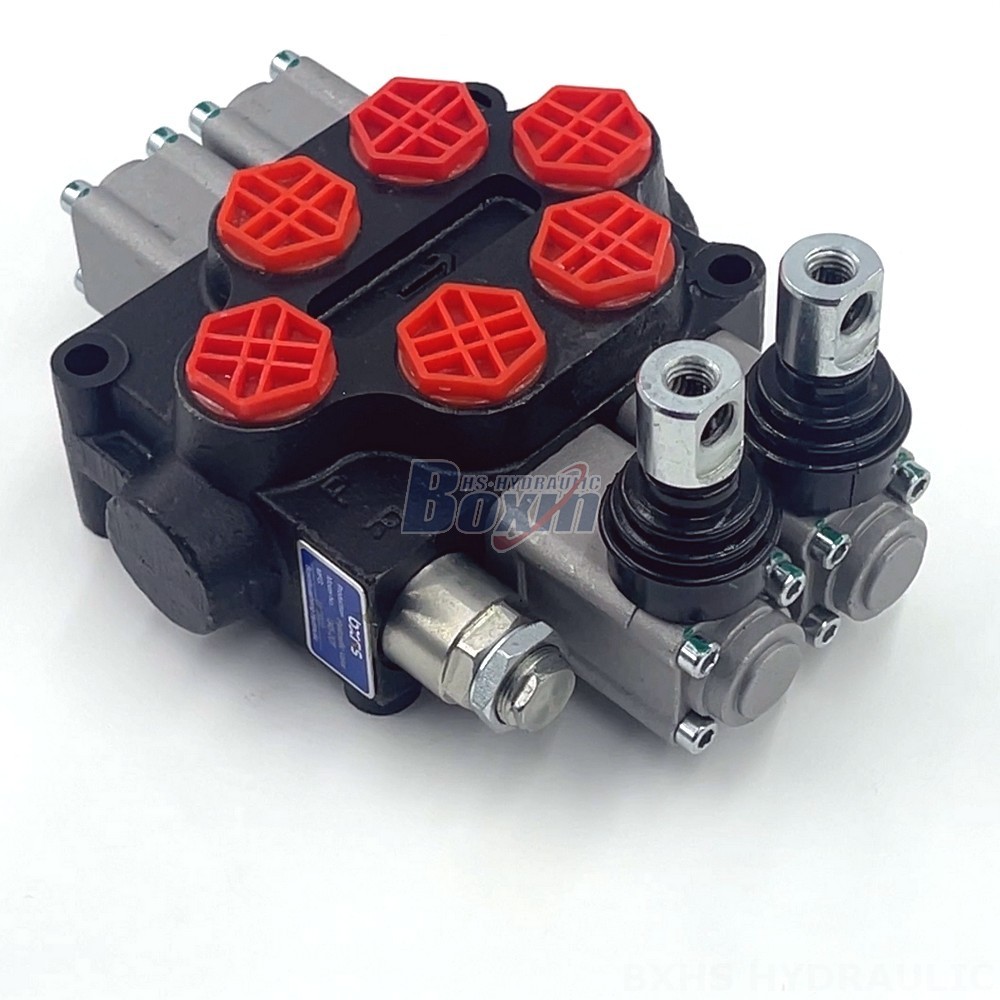

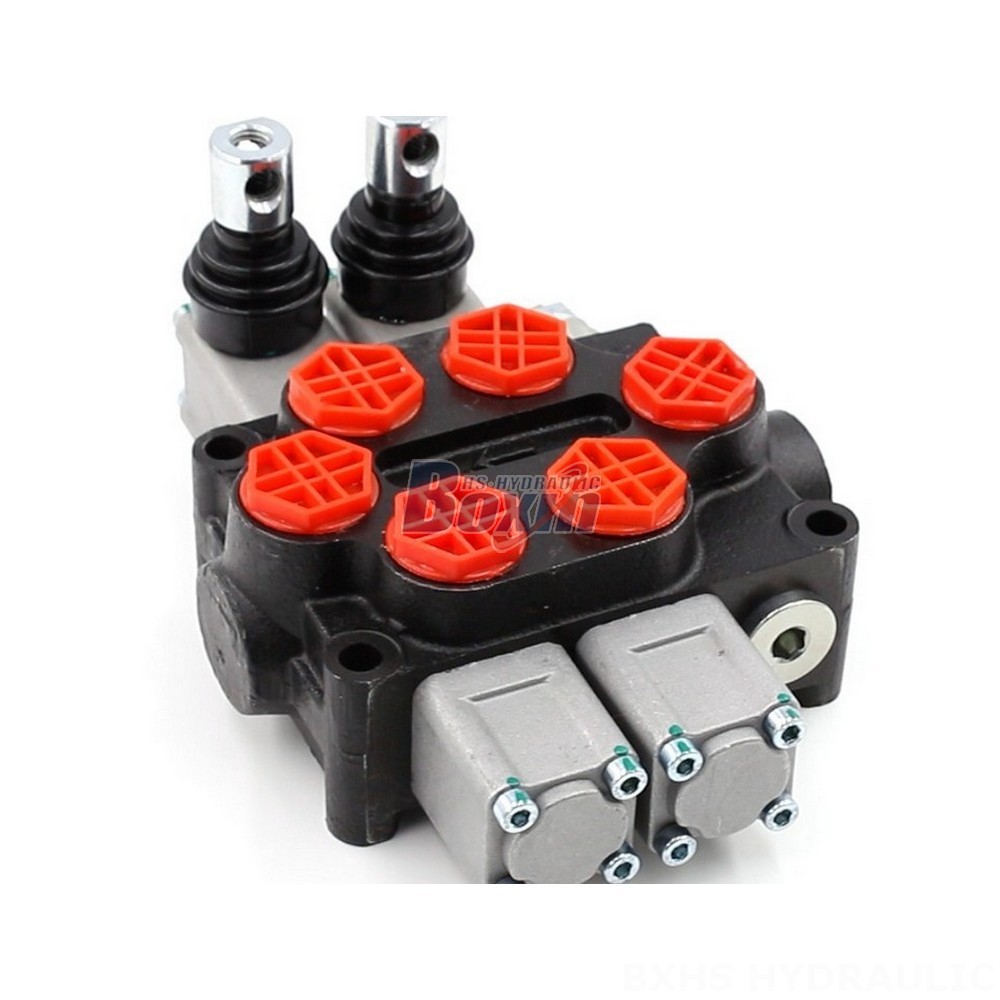

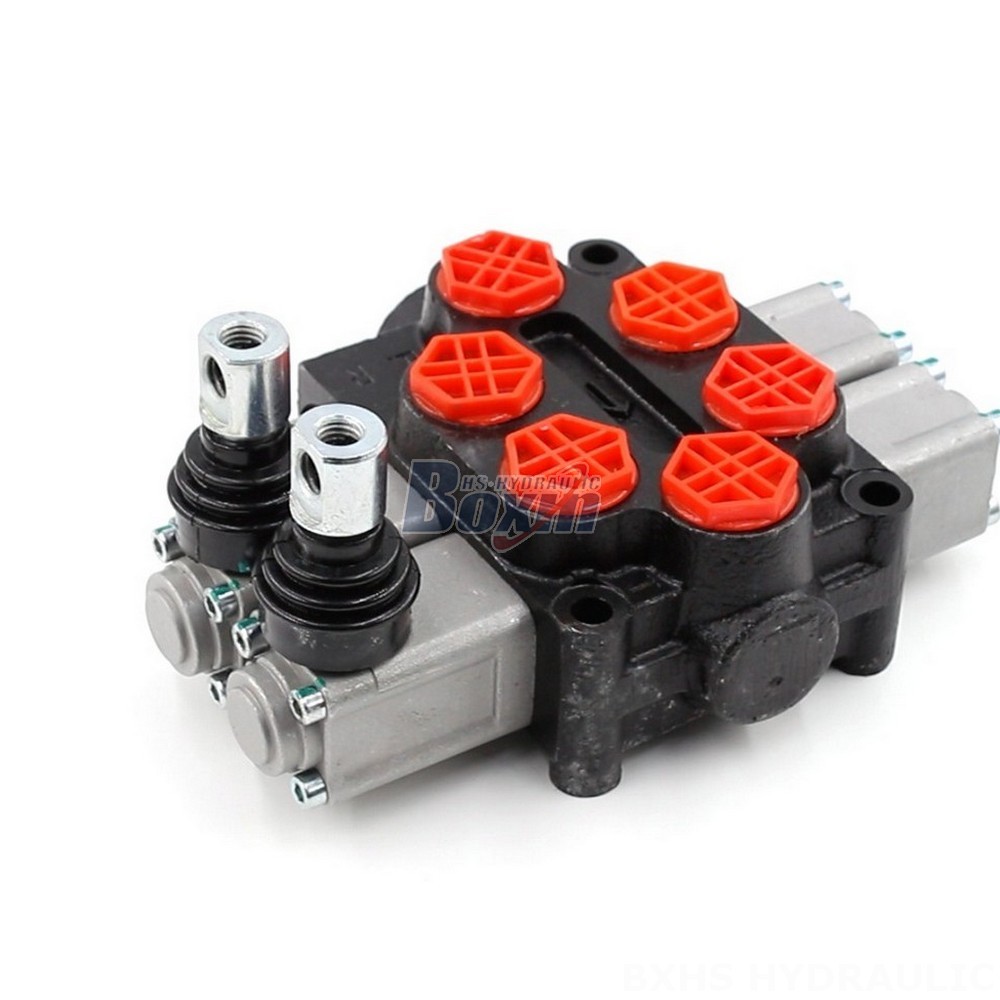

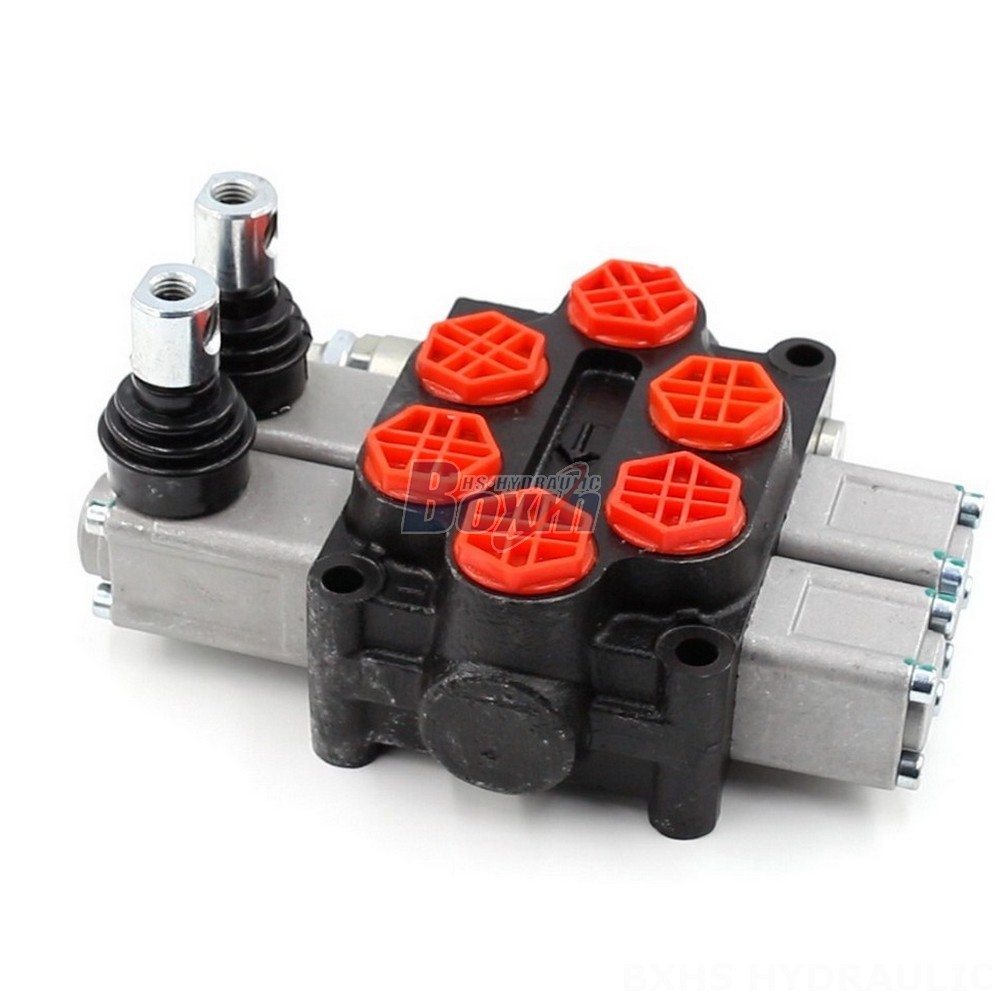

The Q45 Series 4 Way Flow Diverter Valve is a manual, 2-section, monoblock valve with a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure rating of 315 bar (4600 psi). It features a 2-spool design and is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This valve offers uncompromised control and reliability, ensuring smooth and efficient operation in demanding environments.
